Have you ever faced the frustration of blurred aerial footage due to vibration, mapping data compromised by unstable equipment, or missed critical moments during industrial inspections because of camera shake? The key to overcoming these challenges often lies in a seemingly small component—the gimbal motor.
As the “heart” of a drone’s camera stabilization system, the gimbal motor directly determines image clarity and data accuracy. A high-quality gimbal motor not only effectively eliminates vibrations and shakes during flight, ensuring every frame remains rock-steady, but also significantly enhances your drone’s performance in complex environments. Whether you are an aerial photography enthusiast seeking the ultimate image quality, a mapping engineer with strict data accuracy requirements, or an industrial user needing long-term operational stability, choosing the right gimbal motor is a crucial step to improving both efficiency and results.
So, how do you select a high-performance gimbal motor that truly fits your needs? What are the core differences between various models? In this article, LIGPOWER will provide an in-depth analysis of gimbal motor working principles, key selection criteria, and a detailed comparison of six high-performance gimbal motors specifically designed for drones. Our goal is to help you avoid common selection pitfalls and easily find the optimal solution. By the end of this article, you will not only have a comprehensive understanding of gimbal motor fundamentals but also master practical selection tips, enabling your drone operations and aerial photography to reach new heights.
Working Principles and Core Advantages of Gimbal Motors
A gimbal motor is a brushless DC motor (BLDC) engineered to provide high-precision, stable control for payloads such as cameras and sensors. Its primary function is to dynamically compensate for disturbances encountered during drone flight, achieving stabilization across three axes—pitch, roll, and yaw—so that your footage remains consistently smooth.
1. How Gimbal Motors Work
A typical gimbal system consists of a high-precision gyroscope, accelerometer, and a Gimbal Control Unit (GCU). The gyroscope and accelerometer continuously monitor the drone’s attitude changes and transmit this data to the GCU. The control unit then uses a PID algorithm (Proportional-Integral-Derivative control) to calculate compensation signals, driving the gimbal motors to make real-time adjustments in the opposite direction of the disturbance.
Key parameters for gimbal motors include:
● KV Rating (RPM/V): Indicates the motor’s no-load speed per volt. Lower KV values (e.g., 26–53KV) mean higher torque and smoother control, ideal for gimbal applications.
● Torque (Nm): Determines the motor’s ability to stabilize heavy payloads. Higher torque ensures stable operation with large cameras or sensors.
● Cogging Torque: The resistance caused by the interaction between the motor’s magnets and stator slots when unpowered. Premium gimbal motors use optimized magnetic circuit designs to minimize cogging torque, resulting in ultra-smooth rotation.
● Pole Pairs & Stator Slots: For example, a 12N14P configuration enhances motor smoothness and response speed.
● Internal Resistance: Affects efficiency and heat generation; lower resistance means higher efficiency.
2. Core Advantages of Gimbal Motors
● High-Precision Stability:
With high-resolution encoders and advanced closed-loop control algorithms, gimbal motors achieve sub-degree positioning accuracy, ensuring shake-free, blur-free footage.
● Low Noise & Low Heat:
The brushless DC design ensures quiet operation and minimal heat, making it suitable for long-duration tasks.
● Rapid Response:
Optimized magnetic circuits and windings enable millisecond-level response to external disturbances, ideal for high-speed flight and complex environments.
● Strong Compatibility:
Multiple mounting patterns and standard interfaces make integration with various drones and gimbal systems easy.
● High Reliability:
Premium bearings and high-temperature-resistant windings ensure stable performance even in extreme conditions.
How to Select the Right Gimbal Motor
Choosing the right gimbal motor is critical for your drone’s overall performance and the quality of your work. To help you make a scientific and systematic selection, we recommend following this step-by-step process:
Step 1: Define Your Application and Usage Scenario
Before making a purchase, clarify your primary application. Is it for aerial photography, mapping and modeling, industrial inspection, or multi-purpose DIY? Each scenario has different performance requirements for gimbal motors. Understanding your needs ensures a targeted selection process.
Step 2: Focus on Core Parameters and Filter Suitable Models
Once your application is clear, pay close attention to these key parameters:
● KV Rating: Directly affects response speed and torque. For aerial photography and mapping, where stability is paramount, opt for low KV models for smoother control. For FPV racing or action scenarios, higher KV models offer faster response and agility.
● Torque: Essential for stabilizing heavy cameras or sensors. For industrial and mapping applications with large payloads, prioritize high-torque models for reliable stability.
● Voltage Compatibility: The motor’s operating voltage must match your drone’s power system, typically 3–6S LiPo batteries. Voltage compatibility impacts both performance and safety.
● Weight & Size: Affects drone endurance and flight characteristics. Lightweight motors are ideal for compact drones, while heavy-duty platforms require robust motors for load-bearing.
● Mounting Patterns & Interfaces: Different brands and models may have varying mounting standards. Always confirm compatibility with your existing gimbal or drone platform to avoid installation issues.
By considering these parameters, you can shortlist gimbal motors that fit your requirements.
Step 3: Match Products Precisely to Your Scenario
Based on your parameter screening, further refine your choice according to your specific application:
● Aerial Photography:
Prioritize low KV, high-torque, lightweight motors such as the GB2208 and GB4106. These effectively suppress minor vibrations during flight, ensuring smooth, clear footage.
● Mapping & Industrial Applications:
For heavy cameras or multi-sensor setups, choose high-torque, large-size models like the GB54-1 and GB54-2. These offer superior load capacity and stability for long-duration, intensive operations.
● Multi-Purpose & DIY:
If you need versatility or custom solutions, opt for highly compatible, flexible motors like the GB36 series. Whether building a custom gimbal or integrating across platforms, these motors adapt easily to your creative needs.
Step 4: Reference User Reviews and Technical Support for a Worry-Free Purchase
After matching models, consult user reviews to understand real-world performance in various scenarios. We also recommend choosing brands like LIGPOWER that offer comprehensive after-sales and technical support, ensuring you receive timely professional assistance if issues arise.
By following these four steps, you can make an informed selection and avoid common pitfalls. Each step builds on the last, guiding you from needs analysis to parameter screening, scenario matching, and after-sales assurance for a seamless buying experience.
6 High-Performance Gimbal Motors: Our Top Picks
After thorough needs analysis and parameter screening, you should now have a clear idea of how to select the right gimbal motor. But among the many products on the market, which gimbal motors truly combine high performance with reliability to meet professional demands across different scenarios? To answer this, we have carefully selected six highly acclaimed high-performance gimbal motors from LIGPOWER. Whether you are an aerial photography enthusiast seeking the ultimate image quality or an industrial user requiring long-term stability, these six products will elevate your drone system to the next level. Let’s dive into their technical highlights, application advantages, and detailed specifications to help you easily identify the best choice and unlock a more stable, efficient flying experience!
1. Technical Highlights and Applications

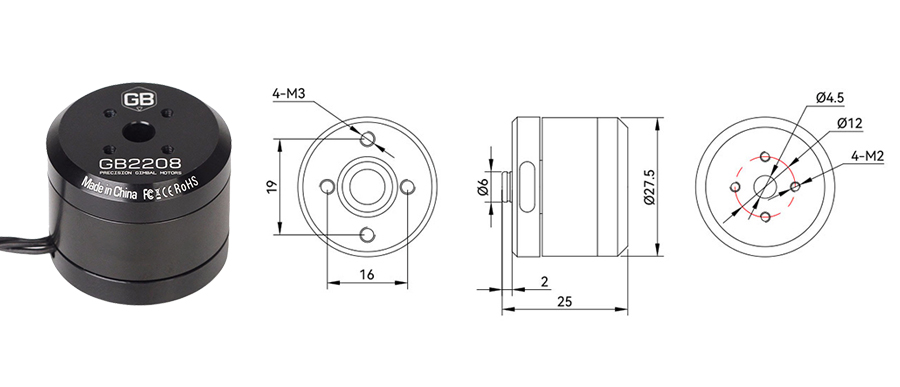

● GB2208 KV128: Ultra-lightweight design, ideal for small aerial photography drones; low cogging torque for smoother footage.
● GB36-1 KV50: Suitable for medium-sized drones, balancing torque and weight for broad applicability.

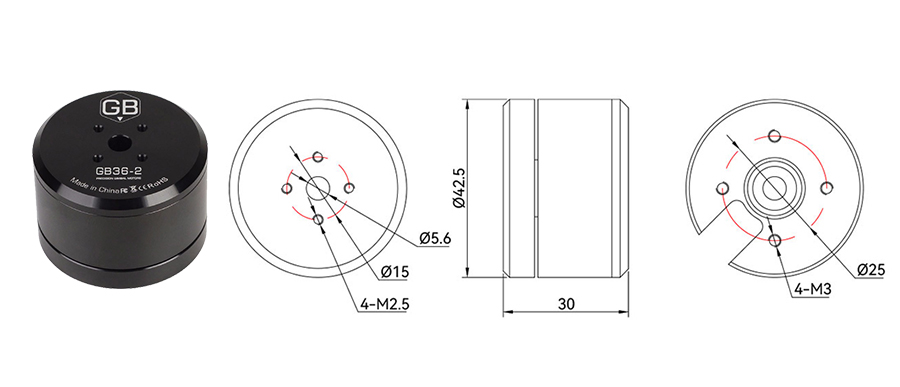

● GB36-2 KV30: Low KV and high torque, perfect for scenarios demanding maximum stability.

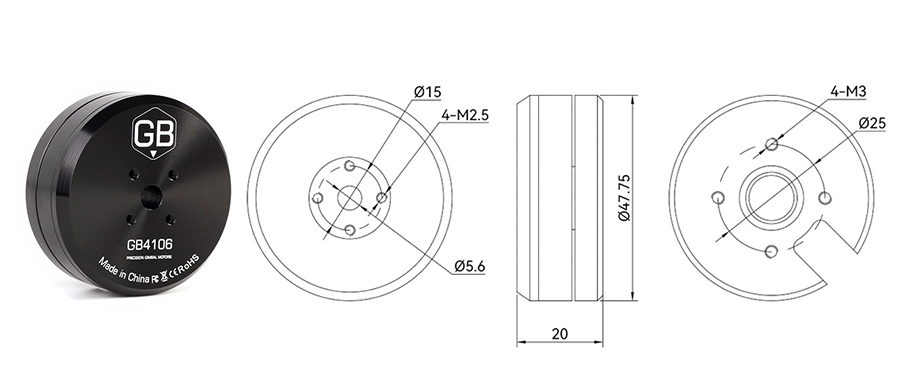

● GB4106 KV53: Lightweight, fast response, compatible with various gimbal controllers—ideal for professional aerial photography and portable setups.

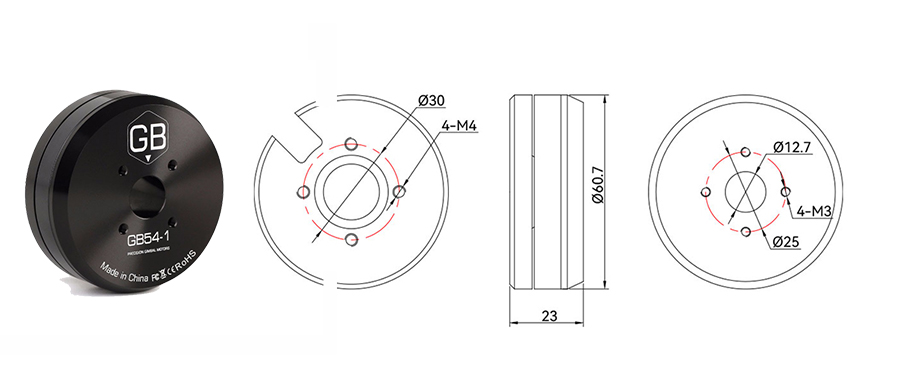

● GB54-1 KV33: Designed for heavy-duty aerial photography and industrial mapping; 0.33Nm high torque, 3–6S voltage support, low cogging torque for exceptional stability.

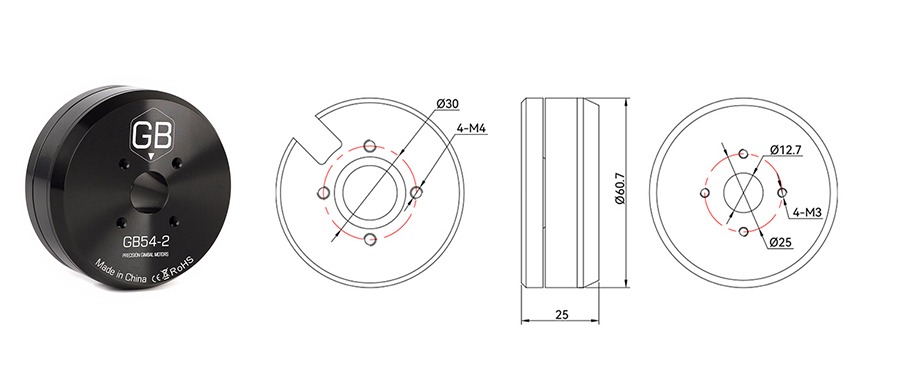

● GB54-2 KV26: Ultra-low KV for ultimate stability, suitable for large gimbals and high-end industrial drones.
2. Detailed Comparison of the Six Gimbal Motors
Model | KV | Rated Torque | Rated Voltage | Weight | Dimensions | Hole Size | Application |
GB2208 | 128 | 0.07 | 3-4S | 39.5g | ø27.5*23 | 6mm | drones / lightweight |
GB36-1 | 50 | 0.24 | 3-6S | 88g | ø41.8*24.3mm | 5.6mm | Medium drones |
GB36-2 | 30 | 0.36 | 3-6S | 128g | ø42.5*30mm | 5.6mm | High-stability scenarios |
GB4106 | 53 | 0.2 | 3-6S | 70g | ø47.75*20mm | 8mm | Aerial/portable devices |
GB54-1 | 33 | 0.33 | 3-6S | 137g | ø60.7*23mm | 12.7mm | Industrial/mapping/heavy |
GB54-2 | 26 | 0.45 | 3-6S | 156g | ø60.7*25mm | 12.7mm | Industrial/high-end aerial |
*Note: Please refer to the product pages for the most up-to-date specifications. Click on the model name for direct purchase links.*
3. Service Overview
LIGPOWER is committed to providing every customer with professional and attentive service, whether you are an individual or an enterprise client, ensuring an efficient and worry-free shopping experience.
● Online Purchase Guarantee
All gimbal motors purchased through the official LIGPOWER website are guaranteed genuine. Multiple convenient payment options are supported, orders are fully trackable, shipping is fast, and free international express delivery (DHL/UPS) ensures your products arrive safely and quickly.
● Customization Services
For customers with special requirements, LIGPOWER offers customization services, including parameter, interface, and batch customization. Whether for OEM/ODM projects or personalized needs, contact us for tailored solutions.
● Support for Small and Bulk Orders
Whether you need a single unit or a large batch, LIGPOWER provides flexible procurement options. Enterprise clients enjoy dedicated business support, bulk shipping, customized invoicing, and other value-added services to help your projects run smoothly.
● Comprehensive Technical Support
From selection consultation and installation to ongoing maintenance, LIGPOWER’s professional technical team offers one-on-one support, ensuring every user can purchase and use our products with confidence and peace of mind.
Conclusion
Each of LIGPOWER’s six gimbal motors has undergone rigorous testing and features high torque, low cogging torque, and strong compatibility to meet professional demands across various scenarios. If you are interested in our gimbal motors, simply click on the product models above to learn more about their specifications and applications, and choose the one that best suits your needs. Let LIGPOWER gimbal motors become your reliable partner for aerial photography, mapping, and industrial operations—ensuring every flight is as stable and brilliant as the first!
