Drone Propulsion Matching Guide: Motors, Props, ESCs & Batteries

In a drone propulsion system,the motor is not an"isolated component."Instead,it forms a tightly coupled power loop with the propeller,Electronic Speed Controller(ESC),and battery.An imbalance in any of these components can lead to a significant drop in performance,resulting in issues such as insufficient thrust,sluggish response,low efficiency,voltage sag,or even severe problems like in-flight loss of control or a burnt-out ESC.

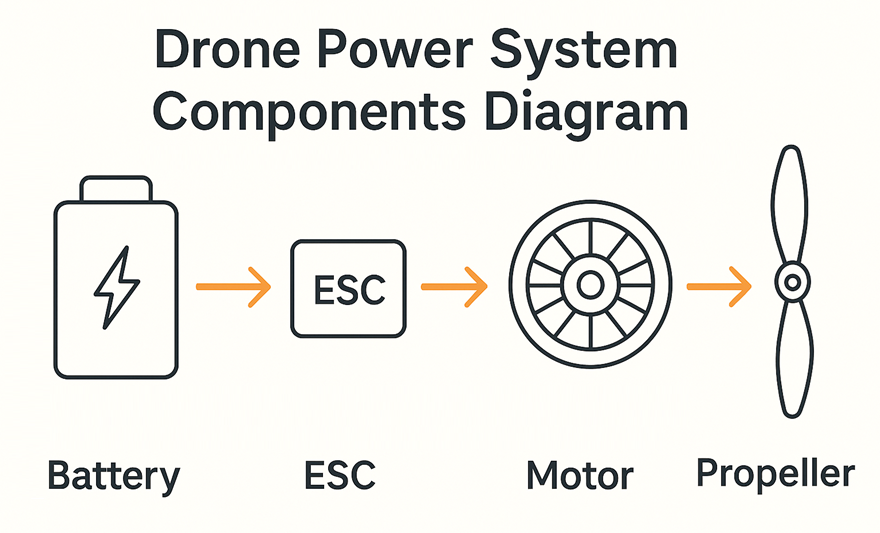

The motor is responsible for outputting power,the propeller converts that power into thrust,and the ESC and battery provide a stable supply of energy and control signals.Only when these four modules are properly matched can the aircraft achieve a balance between thrust,response,flight time,and stability.Different types of drones—such as FPV racers,Cinewhoops,aerial photography platforms,and long-endurance aircraft—have varying requirements for their propulsion systems,meaning a single"one-size-fits-all"configuration is not feasible.

This article will focus on"motor matching"to systematically explain the interrelationships and pairing principles of each element in the propulsion system.Starting with an understanding of motor parameters,moving to the coordinated selection of propellers,ESCs,and batteries,and finally covering PWM protocols and the matching process,this guide will help you build a clear,reusable,and practical selection methodology.Whether you are a DIY enthusiast or a seasoned pilot,you will find valuable insights here.

Before diving into drone power system matching,if you’re not yet familiar with motor fundamentals,we recommend reading our Drone Motor Guide first.It will help you better understand the parameters and matching logic explained in the following sections.

I. How do drone motor parameters affect propulsion system matching?

The motor is the"heart"of the entire propulsion system.Drone motor parameters not only determine its maximum output capability but also define the selection range for the propeller,ESC,and battery.Accurately understanding motor parameters is the first step toward achieving an efficient match.

1. KV Rating:The Key Metric Affecting RPM and Load

The KV rating(RPM/V)represents the theoretical rotational speed of a motor per 1 volt of input voltage under no-load conditions.

High KV Value:Signifies high RPM and strong burst power,making it suitable for smaller propellers used in FPV racing,freestyle,and other high-dynamic flights.

Low KV Value:Signifies higher torque and greater efficiency,making it suitable for larger propellers used in aerial photography and long-endurance platforms.

For example,a 2300 KV motor on a 4S(16.8 V)battery has a theoretical no-load speed of approximately 38,640 RPM,which is ideal for 5-inch propellers.In contrast,motors below 1000 KV are often paired with 7 to 10-inch propellers.

Note:If the KV rating is too high and the power supply and propeller specifications cannot keep up,it will lead to soaring current,severe overheating,and may even burn out the ESC.

2. Stator Size:Determining Torque and Propeller Compatibility

The numbers in a motor model,such as"2207"or"2306,"represent the stator's diameter and height in millimeters.

Larger Diameter:Means stronger torque,allowing it to drive larger propellers.

Greater Height:Means higher power output and a more agile response.

Common Scenarios:

2207 Motor:Typical for 5-inch FPV racing configurations.

2306 Motor:A balanced choice for freestyle and racing.

2806.5 Motor:Paired with 7-8 inch propellers,balancing high torque and efficiency.

Therefore,the stator size determines the motor's"load-bearing capacity"and must be considered in coordination with propeller size and aircraft weight.

3. Maximum Current and Power:Defining the Lower Limits for the ESC and Battery

The peak current a motor draws under high load is a crucial factor in selecting the ESC and battery specifications.

The ESC's rated current should be higher than the motor's maximum current,with a 20%-30%margin.

The battery's discharge capability must be able to support the peak current of all motors simultaneously.

For example,if a single motor has a peak current of 35 A,the total peak current for a quadcopter is approximately 140 A.In this case,you should choose an ESC rated for≥40 A and ensure the battery's total discharge capacity is sufficient(C-rating×capacity≥140 A).

4. Voltage and RPM:Influencing Power Ceilings and Propeller Choice

Motor RPM is approximately KV×Voltage.

For example:

2300 KV×4S(16.8 V)≈38,640 RPM

2300 KV×6S(25.2 V)≈57,960 RPM

Increasing the voltage can boost motor RPM and burst power,but it also places higher demands on the propeller,ESC,and battery.If other parts of the system cannot keep up,it will lead to decreased efficiency and overheating.

5. Thrust-to-Weight Ratio:The Core Metric for Sufficient Power

Thrust-to-Weight Ratio=Total Thrust÷Total Weight

≥2.0:Suitable for racing and freestyle,providing high maneuverability.

≈1.5:Suitable for aerial photography and cruising,balancing efficiency.

1.2-1.5:Suitable for lightweight or entry-level drones.

For example,a 500g FPV freestyle drone should have a total thrust of at least 1000g to achieve agile maneuvers and a safe margin of power.

Therefore,a higher thrust-to-weight ratio is not always better.It should be matched to the flight scenario to avoid energy waste and instability caused by"over-speccing."

II. Propeller Matching Principles:The Motor's Direct Load

In the entire drone propulsion chain,the propeller is the only component that directly interacts with the air.It determines whether the motor's output power can be effectively converted into thrust.Parameters such as propeller diameter,pitch,material,and weight directly affect the load,efficiency,and flight characteristics.Even with a perfectly chosen motor,an improperly matched propeller will cause a significant drop in system performance,potentially leading to current overload or insufficient thrust.

1. Propeller Diameter and Pitch:The Core Parameters Determining Load and Thrust

Larger Diameter:Means stronger thrust,higher torque demand,and greater energy consumption.

Higher Pitch:Means a higher theoretical forward speed,but it also increases the load on the motor,demanding more power and a more robust power supply.

A Typical Example:

A 2207 2300 KV motor paired with a 5-inch propeller achieves a good balance of power and efficiency.If you switch to a 6-inch propeller,you will experience a sharp increase in current,excessive heat,and a drop in efficiency,potentially triggering the ESC's overcurrent protection.

Recommendations:

Large propellers are suitable for low-KV motors and high-torque applications(e.g.,long-endurance,aerial photography).

Small propellers are suitable for high-KV motors and high-response applications(e.g.,FPV racing and freestyle).

2. Propeller Material and Weight:Affecting Response Speed and Inertia

The weight of the propeller determines the motor's response speed during acceleration and deceleration.

Lightweight Propellers(e.g.,thin carbon fiber,lightweight plastic):Have low inertia and provide a nimble response,making them ideal for high-speed racing and agile freestyle.

Heavy Propellers(e.g.,thick plastic or composite materials):Have high inertia and are better suited for long-endurance and steady flight,but they demand higher torque and current.

Material differences also affect propeller rigidity.For example,carbon fiber propellers deform less at high RPMs and are more efficient,but they are more expensive and brittle.Plastic propellers are cheap and durable but slightly less efficient.Therefore,even with the same dimensions,differences in material and weight can cause variations in thrust and response,especially in high-KV scenarios.

3. The Relationship Between Torque and Propeller Matching

A motor must have sufficient torque to drive a propeller of a given size;otherwise,it will result in a sharp drop in efficiency,increased heat,and potential failure.

Small Motor+Large Propeller:Leads to insufficient thrust,motor overheating,a surge in current,and an overloaded ESC.

Large Motor+Small Propeller:Leads to excess thrust but poor efficiency,reducing flight time.

When selecting a propeller,first estimate the motor's torque based on its stator size and KV rating,then determine the appropriate propeller range.Do not arbitrarily change propeller sizes.

4. Typical Propeller Matching for Different Drone Scenarios

III.ESC and Battery Matching:The Stability of the Power Supply System

Even with a perfect motor and propeller combination,the propulsion system cannot perform optimally if the power supply(ESC+battery)cannot keep up.The ESC acts as the motor's"commander,"translating signals from the flight controller into motor speed changes.The battery is the system's"energy reservoir,"providing a continuous and stable current output.

The match between the ESC,battery,and motor is critical for influencing the drone's thrust,response speed,thermal management,and flight time.

1. Matching ESC Current with Motor Power

Every motor has a maximum operating current(Max Current)under high load.The ESC's rated current must be greater than or equal to the motor's maximum current,with a recommended safety margin of 20%-30%to prevent burnout during high-load situations.

Example:

If a single motor's max current is 35 A,the corresponding ESC should be rated for≥40-45 A.

The total peak current for four motors would be approximately 140 A,so the battery's total discharge capability must meet or exceed this value.

Note:When selecting an ESC,don't just look at the"nominal current."Pay attention to the difference between"Continuous Current"and"Burst Current."The continuous current is the more important reference for real-world flying.

Recommendations:

High-KV+Small Prop(Racing/Freestyle):High-current ESCs(40-45A).

Low-KV+Large Prop(Aerial Photography/Long-Range):Medium-to-low current ESCs(30-40A).

Micro Drones:Lightweight ESCs(10-15A).

2. The Interplay Between Voltage and KV Rating

Motor RPM=KV×Voltage

Increasing voltage can lower the current required for the same amount of thrust,improving system efficiency.However,"higher voltage is not always better":

Racing/Freestyle:6S systems are often recommended for their strong burst power and lower current draw.

Micro Drones/Cinewhoops:Typically use 1S-4S systems for lighter weight and agile control.

Aerial Photography/Long-Range:6S or higher systems are often recommended for their efficiency with large props at low RPMs.

Example:

2300 KV×4S≈38,640 RPM

2300 KV×6S≈57,960 RPM

Therefore,simply increasing the voltage without adjusting the propeller and ESC can easily lead to an overloaded power system,overheating,and damage.

Recommendations:

‍

Lower voltage is better suited for small propellers and lightweight flight.

Higher voltage is ideal for high-thrust,high-RPM scenarios.

When changing voltage,you should also adjust propeller specifications,ESC current rating,and PID parameters.

3. The Decisive Impact of Battery Discharge Rate(C-Rating)on Power Delivery

The battery's discharge rate(C-rating)and capacity(mAh)together determine its maximum discharge current:

Max Discharge Current=Capacity(in Ah)×C-Rating

Example:

A 1300 mAh 75C 4S battery has a maximum discharge current of approximately 97.5 A(1.3 Ah×75C).

If this battery is paired with four 35 A motors,the peak current draw is≈140 A.In this case,the battery's discharge capability is insufficient,leading to significant voltage sag.

Note:

Voltage sag not only causes a loss of power but can also lead to the flight controller shutting down,resulting in a crash.

Insufficient battery discharge capability is a very common"hidden bottleneck"in DIY builds.

Recommendations:

Racing/Freestyle Drones:Recommend a C-rating of≥60C.

Cinewhoops:Recommend a C-rating of≥50C.

Aerial Photography/Long-Range Drones:Have relatively lower C-rating requirements(around 45C is sufficient).

The larger the battery capacity,the lower the required C-rating can be.However,you cannot compensate for high-power motors with a low C-rating battery.

4. ESC Response Characteristics:PWM Frequency and Protocol

The ESC is not just a"power supply module";its response characteristics also affect motor performance and the flight controller experience.

PWM Frequency:High frequencies(48kHz and above)are suitable for high-KV motors,improving throttle smoothness and reducing noise.Lower frequencies are better for low-KV,large-propeller setups,enhancing efficiency and thermal management.

Communication Protocol:The DShot series(e.g.,DShot600/DShot1200)offers faster response times and stronger interference resistance,and has become the mainstream choice.

5. Motor–ESC–Battery Matching Table

IV.Drone Propulsion System Matching Quick Reference Chart

In practice,many builders face a common problem:"I understand the parameters,but I don't know how to combine them."In fact,most drone propulsion systems can be configured into well-established"reference combinations"based on the flight scenario.

The table below summarizes typical pairings for common drone types,covering Motor/KV/Prop/ESC/Battery/C-Rating/Thrust-to-Weight Ratio/Voltage/Estimated Flight Time/and Key Characteristics to help you quickly narrow down your options.

V.Frequently Asked Questions

Q1:What if the motor shaft diameter and propeller bore don't match?

A mismatch between the shaft diameter and the propeller bore can cause eccentric vibrations,reduced efficiency,and even propeller detachment during flight.When choosing a propeller,confirm that its bore diameter(e.g.,1.5mm,5mm)matches the motor shaft.Use adapters or lock nuts to ensure it is securely fastened.

Q2:How does the frame size affect the propulsion system?

The frame's arm length limits the propeller size and,consequently,the motor specifications.For example,a 5-inch frame is most balanced with 2207/2306 motors and 5-inch propellers.Propellers that are too large may hit the arms and create uneven thrust,while small propellers on large motors waste power.

Q3:Why did the flight feel change after I changed the ESC protocol?

Different protocols affect response time and throttle linearity.

DShot600/1200:Low latency and fast response,ideal for high-KV racing.

PWM/Oneshot:Slower response but higher efficiency,suitable for aerial photography.

Switching from PWM to DShot will make the throttle feel more precise but may slightly increase power consumption.The reverse is also true—the drone will be more power-efficient,but the controls will feel less sharp.

Q4:Why does my system overheat after switching to a higher-voltage battery?

Increasing the voltage boosts RPM and power output.If the propeller,ESC,and battery discharge capability are not upgraded accordingly,it can easily lead to overload,overheating,and even component failure.When increasing voltage,you should simultaneously switch to a smaller propeller or a lower KV motor and confirm that the ESC's current rating and the battery's C-rating are sufficient.

Q5:Why didn't my flight time increase after I switched to a larger capacity battery?

A larger battery is heavier,which lowers the thrust-to-weight ratio and forces you to fly at a higher throttle range,increasing energy consumption.This is especially noticeable on 5-inch drones,where a heavier battery can also lead to a slower response and increased heat.Before increasing battery capacity,consider the trade-off between weight and flight time;do not blindly increase it.

Q6:Why is there a big difference in flight feel after changing the propeller brand or material?

Propellers of the same specification but from different brands can have significant differences in weight,rigidity,and blade shape.Lighter propellers are more agile but can deform easily,while stiffer propellers provide more punch but can generate more vibrations.On a 5-inch FPV drone,in particular,this can noticeably affect the throttle curve and PID tune.It is recommended to re-tune your PID settings gradually after changing propellers.
