What Is a Drone Motor and How Do Drone Motors Work?

In drone systems,the motor is hailed as the"heart."It not only determines whether the drone can take off smoothly but also directly impacts flight stability,endurance,and safety performance.Whether it's an aerial photography drone,an FPV racing drone,or an industrial-grade drone,the motor is the core component that defines overall performance.

When first encountering drones,questions often arise:What is a drone motor?How does it differ from a regular motor?How does motor performance affect the drone's flight behavior?These seemingly complex questions are all closely related to the definition,working principles,and performance characteristics of motors.Of course,understanding what a drone motor is and how it works is only the beginning.For a more comprehensive overview,you can read our Drone Motor Guide.

I.What is a Drone Motor?

A drone motor is an electric motor specifically designed for aircraft.Its primary role is to convert electrical energy supplied by the battery into mechanical energy,driving propellers at high speeds to generate thrust.This enables the drone to lift off,hover,and perform various flight maneuvers.Compared to motors used in common household appliances or industrial equipment,drone motors place a greater emphasis on being lightweight,highly efficient,and having a rapid response to meet the demanding power and control requirements of the flight environment.

In terms of types,drone motors are mainly divided into two categories:

Brushed Motor:Simple in structure and low in cost,these are often used in entry-level or toy drones.However,due to their short lifespan,low efficiency,high noise,and significant heat generation,they are gradually being phased out of the market.

Brushless Motor:The current mainstream choice,widely used in aerial photography drones,FPV racing drones,and industrial drones.Brushless motors offer the advantages of high efficiency,long life,and strong power,enabling stable power output during high-intensity,long-duration flights.

Furthermore,drone motors can be classified by their rotor structure:

Outrunner Motor:The stator is fixed internally,and the outer case(rotor)rotates to drive the propeller.This design provides greater torque output and is suitable for the vast majority of multi-rotor drones.

Inrunner Motor:The rotor is located inside the motor.This type features high rotational speed but relatively lower torque,making it primarily useful for special applications requiring high-speed,small propellers.

In summary,a drone motor is by no means a simple,scaled-down version of a regular motor.It is a"high-performance power core"deeply optimized for flight characteristics.It must provide an instantaneous response to flight control commands and maintain efficient,stable power output,all while remaining lightweight.

II.How Do Drone Motors Work?

The working principle of a drone motor can be understood as a collaborative process of energy conversion and precise control.Its function isn't just to convert electrical energy into mechanical energy,but to also maintain a high-speed,stable,and responsive output under the real-time commands of the flight control system.This drives the propellers to generate thrust,allowing the drone to perform complex flight maneuvers.

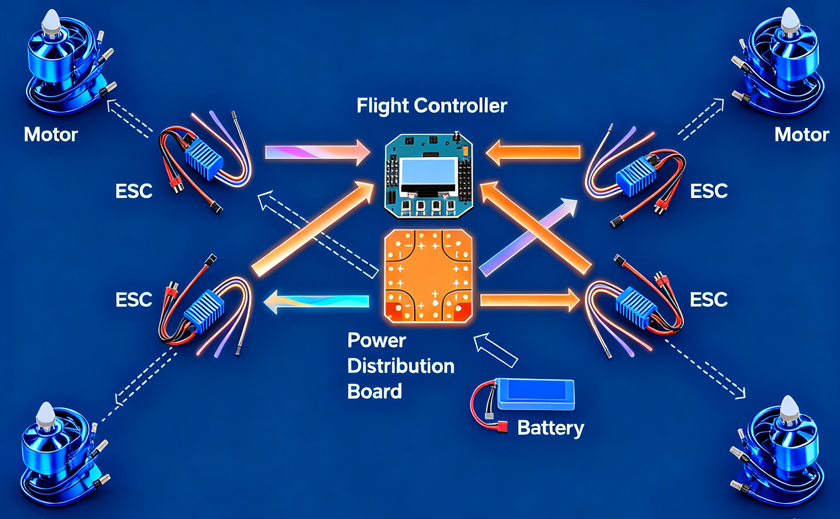

1. Power Transmission:From Battery to Propeller

A drone motor doesn't operate in isolation;it requires the entire propulsion system to work together efficiently.The core power link can be broken down into these steps:

Battery Power Supply:The lithium battery provides direct current(DC)to the drone and is the energy source for the entire system.Different voltage platforms(e.g.,3S,4S,6S)directly influence the motor's maximum rotational speed and power output.

Flight Controller(FC)Commands:The FC uses attitude sensors and gyroscopes to constantly detect the drone's attitude and position.Based on the pilot's commands(from a remote controller or an automated flight path),it calculates the required power distribution.

Electronic Speed Controller(ESC)Regulation:The ESC receives digital signals like PWM or DShot from the FC and quickly regulates the current and voltage supplied to the motor.It acts like a"throttle valve,"determining the motor's speed and acceleration.High-performance ESCs can even adjust speed within a millisecond.

Motor Drives the Propeller:The rotating magnetic field generated by the motor's stator causes the rotor to spin at high speed.This,in turn,drives the propeller to push air downward,creating an accelerated airflow that ultimately translates into thrust.

Propeller and Air Interaction:The propeller's geometric parameters(diameter,pitch,and number of blades)determine its thrust characteristics and efficiency.The combination of the motor and propeller ultimately defines the drone's propulsion performance.

2. Achieving Flight Maneuvers:The Magic of Differential Speed

All attitude changes in a drone's three-dimensional space are essentially the result of differences in motor speeds.

Hovering:All four motors maintain the same speed.The total thrust balances the force of gravity,and the drone holds a stable altitude.

Ascending/Descending:All motor speeds are increased or decreased simultaneously,making the total thrust greater or less than gravity.

Pitch/Roll:The speed difference between the front and rear motors controls the body's forward or backward tilt(pitch),while the speed difference between the left and right motors controls its left or right tilt(roll).

Yaw:The speeds of the diagonal motors are adjusted to change the balance of anti-torque forces,allowing the drone to rotate horizontally.

This"differential speed"mechanism allows a drone to perform various flight maneuvers flexibly without complex control surfaces.

3. Responsiveness and Flight Experience

The command frequency of a drone's flight control system is extremely high(often thousands of times per second),requiring the motors to have very fast dynamic response capabilities.

High-Responsiveness Motor:It can accelerate or decelerate within milliseconds,ensuring precise and stable flight maneuvers.

Low-Responsiveness Motor:It can cause attitude drift and control delays,and in severe cases,it can lead to a loss of control during high-speed flight.

This is why high-performance drones use brushless motors with low rotational inertia,strong magnetic force,and high efficiency,along with high-refresh-rate ESCs,to achieve a"what you see is what you get"flight experience.

III.What is the Difference Between a Drone Motor and a Regular Motor?

Outwardly,drone motors and common household or industrial motors are not fundamentally different;both use electromagnetic induction to produce rotational output.However,due to vast differences in their application environments and performance requirements,they have significant distinctions in design goals,performance,and operating methods.

1. Different Design Goals

Drone Motor:Emphasizes being lightweight and having a high power-to-weight ratio.It needs to output the maximum possible thrust within a limited weight to ensure the drone can take off and perform its mission.

Regular Motor:The design focus is on stability,durability,and long-term operation.For devices like electric fans,electric vehicles,and pumps,the priority is continuous-duty capability.

2. Different Performance Requirements

Drone Motor:Must have an extremely fast response speed and excellent acceleration/deceleration characteristics,as a drone's attitude adjustments rely on millisecond-level changes in motor speed.

Regular Motor:In most cases,operates under constant conditions,with low demand for response speed and instantaneous power bursts.

3. Different Operating Methods

Drone Motor:Needs to frequently handle complex flight environments,such as sudden stops,sharp turns,and rapid ascents/descents,all while maintaining stability during high-frequency dynamic adjustments.

Regular Motor:Mostly operates within a stable speed range with small fluctuations,and the working environment is more controllable.

4. Different Application Scenarios

Drone Motor:Typically features better dynamic balance,vibration resistance,and heat dissipation design to ensure it can efficiently output power while minimizing vibrations that could affect flight stability and image quality.

Regular Motor:Primarily serves household or industrial equipment,emphasizing cost control,stability,and longevity,without the need to adapt to the high-precision flight requirements of high-speed rotation.

Therefore,a drone motor can be seen as a"specialized motor optimized for flight."It is not simply a downsized industrial motor but a power core specifically tailored for drones in terms of lightweight design,rapid response,and flight safety.

IV.How Does Motor Performance Affect a Drone?

A drone's flight performance depends not only on its flight controller and battery but is also intrinsically linked to the performance of its motors.The motor's power output,operational stability,response speed,and reliability directly determine the drone's flight behavior and safety.

1. Power and Payload Capacity

A high-performance drone motor can continuously provide strong thrust,allowing the drone to maintain stable flight even when carrying additional payloads like cameras,surveying equipment,or sensors.If the motor's power is insufficient,the drone may not be able to take off successfully or may experience power decay at high altitudes,limiting its flight ceiling.

2. Flight Stability

The dynamic balance and vibration control of a drone motor directly impact the drone's stability.High-quality motors produce less vibration at high speeds,reducing airframe shake.This is especially crucial for aerial photography drones,where motor stability determines whether the footage is clear and steady.

3. Response Speed

During flight,the flight controller constantly issues attitude adjustment commands.The faster the motor responds,the more agile the drone feels and the better the control experience.For FPV racing drones,a millisecond difference in motor response can determine the outcome of a race.In aerial photography,a smooth motor response results in more fluid footage,avoiding abrupt jerks.

4. Reliability and Lifespan

High-performance motors typically have better heat dissipation and durability,allowing them to operate stably under heavy loads for extended periods without overheating or failing.This not only reduces the risk of losing control mid-flight but also significantly extends the drone's service life.

5. Flight Safety

When a motor's performance is inadequate or it fails,the drone may lose attitude stability,experience a sudden drop in power,or even crash directly.A reliable and stable motor is the last line of defense for ensuring drone flight safety.

It can be said that motor performance not only affects"if"a drone can fly but also determines"how well"it flies.For drones with different purposes,selecting a suitable,high-performance motor is key to ensuring mission success and flight safety.

V.How to Understand Drone Motor Parameters

When purchasing a drone motor,manufacturers usually provide detailed parameter information.Without a proper understanding of this data,it's difficult to judge whether a motor matches your drone's needs.Here is an analysis of the most important core parameters:

1. Motor Size(Stator Size)

This is usually indicated in a"diameter×height"format.For example,a 2207 motor:

"22"indicates the stator diameter is 22 mm.

"07"indicates the stator height is 7 mm.

A larger size generally means the motor can produce more thrust,but its weight and power consumption will also increase accordingly.

2. KV Rating

The KV value represents the theoretical rotational speed(RPM)of the motor per volt of applied voltage under no-load conditions.For example,a 2300KV motor will theoretically spin at 2300 RPM for every 1 volt applied.

High KV Motor:Faster rotational speed,more responsive,but lower torque and higher power consumption.

Low KV Motor:Slower rotational speed,higher torque,suitable for heavy loads and long flight times.

3. Thrust

Thrust is a direct indicator of a motor's power.Test data will often specify the"maximum thrust per single motor."Generally,the total thrust of a quadcopter should be at least twice the total weight of the aircraft to ensure safe and stable flight.

4. Max Current&Power

This parameter indicates the maximum current draw and corresponding power of the motor at full throttle.This directly influences the choice of the Electronic Speed Controller(ESC)and whether the battery can meet the motor's energy demands.When selecting components,the ESC's current rating must be higher than the motor's maximum current draw.

5. Voltage Range

Manufacturers will specify the compatible battery cell counts(e.g.,3S,4S,6S).Different voltage platforms correspond to different power performances.Operating outside the specified voltage range can cause the motor to overheat or even become damaged.

6. Weight and Efficiency

The motor's weight affects the overall thrust-to-weight ratio and flight endurance.Higher efficiency means more thrust is produced for the same amount of power,thereby increasing flight time.

By mastering these parameters,users can not only quickly understand motor specifications but also make better motor selections based on their drone's flight requirements.

VI.Summary

The drone motor is the power core of the entire aircraft.It converts electrical energy into thrust,allowing the drone to take off,hover,and perform a variety of complex flight maneuvers.Compared to regular motors,drone motors are more lightweight,have a faster response,and are optimized for the flight environment with features like better dynamic balancing and heat dissipation.

The quality of a motor's performance directly impacts the drone's flight behavior:whether it has sufficient power,stable attitude,and agile response,and whether it can operate reliably over the long term.For aerial photography drones,high-performance motors ensure smooth footage.For FPV racing drones,the motor's instantaneous power burst and response speed define the control experience.In industrial applications,motor reliability is a prerequisite for successful mission completion.

Furthermore,mastering the skill of interpreting motor parameters(including size,KV rating,thrust,current,voltage range,etc.)will help you quickly determine a motor's compatibility with your flight platform.Only by deeply understanding the function and performance characteristics of motors can you more scientifically select and build a drone,ultimately achieving a safer and more efficient flight experience.
