How to Choose Carbon Fiber Propellers?
Carbon fiber propellers offer superior performance characteristics that can significantly impact your drone's efficiency, responsiveness, and reliability. This comprehensive guide will help you select the right carbon fiber propellers for your specific application, from FPV racing to heavy-lift operations.
Propeller Fundamentals
Core Specifications
Diameter and pitch form the foundation of propeller performance. Diameter determines the disc area and maximum theoretical thrust, while pitch controls the advance per revolution - essentially the propeller's "gear ratio."
Blade count affects thrust smoothness and efficiency. Two-blade propellers typically offer higher efficiency, while three or more blades can provide smoother operation and lower external noise when diameter is constrained, though usually with slight efficiency reduction.
Airfoil profile and chord distribution determine how efficiently the blade converts rotational energy into thrust. Carbon fiber's stiffness maintains these critical shapes under load, unlike flexible materials.
Carbon Fiber Advantages
The layup orientation in carbon fiber construction directly impacts performance characteristics. Properly designed CF propellers maintain blade twist and airfoil shape even under high centrifugal forces and thrust loads.
Stiffness benefits include:
- Consistent blade angle throughout the RPM range
- Reduced energy loss from blade flexing
- More predictable thrust response
- Better airfoil shape retention under load
Note: While carbon fiber's high stiffness helps maintain blade geometry, vibration levels depend primarily on balance and installation quality. Carbon fiber propellers require more precise balancing due to their rigidity.
RPM considerations become critical with carbon fiber props. Their light weight and stiffness enable higher operational speeds. While design guidelines suggest keeping tip speeds below 0.7-0.8 Mach to avoid compressibility effects, most common UAV propellers operate well below this threshold, with practical limits more often determined by structural loads, noise, and efficiency considerations.

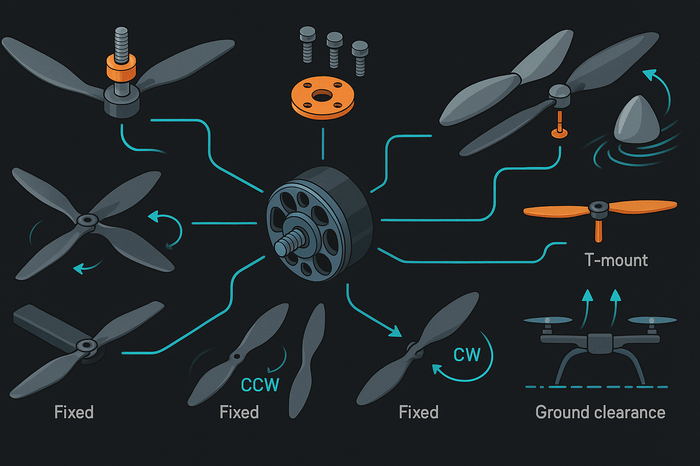

Fit & Compatibility
Mounting Systems
Hub bore sizing must match your motor shaft exactly. Common sizes include 5mm, 6mm, 8mm, and fractional inch measurements for different motor classes.
Mounting patterns vary by application:
- Direct mount with shaft adapters for smaller multirotors
- Bolt circle patterns with various PCD (pitch circle diameter) specifications - always verify exact measurements with motor and propeller hub datasheets
- T-mount systems commonly used for small multirotor applications (2-3 inch props)
- Spinner integration for streamlined fixed-wing installations
Rotation and Configuration
CW/CCW designation becomes critical for multirotor applications. Each motor position requires the correct rotation direction to achieve stable flight.
Folding versus fixed depends on your mission requirements:
- Fixed props offer maximum efficiency and simplicity
- Folding props enable compact transport and reduced drag during fixed-wing gliding phases
- For multirotor applications, folding props primarily benefit portability and collision damage reduction, but do not provide autorotation landing capability
- Modern propeller attachment systems favor bolt-on or quick-release designs over older self-tightening mechanisms, especially in systems with active braking
Clearance calculations must account for:
- Frame arm or boom proximity
- Ground clearance during takeoff and landing
- Propwash effects on other aircraft components
Performance Selection Criteria
Motor and Electrical Matching
The fundamental relationship between motor KV, voltage, and propeller size determines your system's operating point. Higher KV motors pair with smaller props, while lower KV motors efficiently swing larger propellers.
Key calculations include:
- RPM ≈ KV × (Voltage - I×Rm) or approximately 0.8-0.9 × (KV × Voltage) for loaded conditions (estimation)
- Tip speed = π × Diameter × RPM / 60
- Power [kW] = Torque [N·m] × RPM / 9550 (SI units)
ESC current headroom should maintain at least 10-20% margin above maximum propeller current draw, with 25-30% recommended for high-temperature environments or aggressive flying. This prevents thermal throttling and extends component life during demanding operations.
Performance Trade-offs
Mission-specific considerations guide propeller selection:
Thrust priority applications benefit from larger diameter and aggressive pitch, accepting higher current draw and reduced efficiency.
Efficiency priority missions favor moderate loading with optimized blade design, potentially sacrificing peak thrust for extended flight time.
Agility applications may accept efficiency penalties for rapid thrust changes and precise control response.
Use-Case Mapping
Multirotor Cinematography
Smooth response and low noise requirements typically favor:
- Larger diameter props (15-32 inches for professional systems)
- Conservative pitch ratios (0.4-0.6 × diameter)
- Professional platforms typically use two-blade carbon fiber props for efficiency; multi-blade options considered when diameter is constrained or higher disc loading is needed
- Lower disc loading generally contributes to reduced induced velocity and power requirements, which can help with overall noise management, though final noise levels depend significantly on installation and aerodynamic interactions
FPV Racing (3-7 inch)
Agility versus efficiency balance depends on track characteristics:
- 5-inch props dominate racing with optimal thrust-to-weight
- Current mainstream: 6S systems with ~1800-2100 KV motors; 4S setups may use ~2300-2700 KV
- Three-blade props are now mainstream for 5-inch racing and freestyle, offering good balance of thrust and smoothness
- Two-blade designs primarily used for efficiency-focused applications or speed runs
- Aggressive pitch for rapid acceleration out of turns
Fixed-Wing Applications
Cruise efficiency and climb performance drive selection:
- Two-blade props maximize efficiency for cruise flight
- Multi-blade options improve climb rate and reduce vibration
- Spinner integration reduces drag and improves aesthetics
- Larger diameter with conservative pitch for endurance missions
VTOL and Heavy-Lift
High torque and reliability requirements include:
- Robust folding mechanisms for transport efficiency
- Higher blade count for smooth operation under load
- Conservative loading for thermal management
- Redundancy considerations for safety-critical applications
Long-Endurance Missions
Maximum efficiency prioritizes:
- Large diameter with conservative pitch for low disc loading
- Lower RPM operation (commonly in the low thousands of RPM, varying significantly with diameter and mission requirements)
- Optimized airfoil sections for cruise conditions
- Balanced construction to minimize vibration fatigue
- Operating point should be determined from actual thrust-power curves rather than general RPM guidelines
Propeller Selection Comparison
Common Pitfalls & How to Avoid Them
Over-propping Problems
Excessive current draw can cause brownouts, ESC overheating, and reduced flight time. Always verify current consumption stays within ESC and battery specifications with adequate margins.
Thermal issues develop when motors operate beyond their continuous rating. Monitor motor temperatures during testing and reduce propeller size or pitch if temperatures exceed 80°C.
Mechanical Issues
Hub and shaft mismatches can cause dangerous failures. Verify exact specifications before ordering, as small differences in bore size or threading can prevent proper installation.
Inadequate clearance calculations lead to prop strikes during aggressive maneuvers. Account for frame flex and propeller deflection under load.
Balance and Installation Errors
Insufficient balancing causes vibration that affects flight performance and accelerates wear on bearings and other components. Take time to properly balance all propellers before first flight.
Incorrect rotation can cause control reversal and immediate crash. Double-check rotation direction matches motor assignments in your flight controller.
Quick Selection Workflow
Step-by-Step Selection Process
Define mission requirements and measure frame clearance
- Determine maximum propeller diameter that fits your frame
- Identify thrust requirements and flight time goals
- Consider noise and vibration constraints
Calculate motor and propeller matching
- Use motor KV and battery voltage to estimate RPM
- Select diameter based on clearance and thrust needs
- Choose pitch based on desired RPM and efficiency target
Verify electrical system compatibility
- Check propeller current draw against ESC ratings
- Ensure at least 10-20% current margin (25-30% for demanding conditions)
- Confirm battery C-rating can supply required current
Confirm mechanical compatibility
- Verify hub bore matches motor shaft diameter
- Check mounting pattern compatibility (bolt circle, adapters)
- Ensure correct CW/CCW rotation for each motor position
Test and validate performance
- Balance propellers before installation
- Apply proper torque and thread-locking compound
- Test at partial throttle first, monitoring current and temperature
- Gradually increase to full throttle while logging performance data

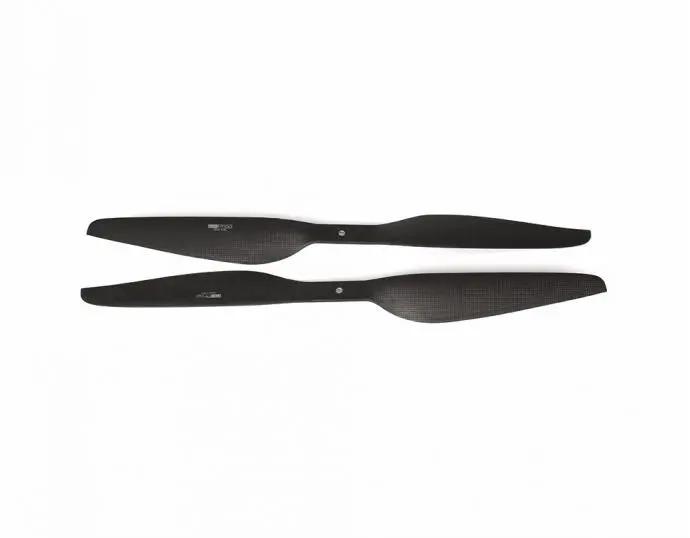

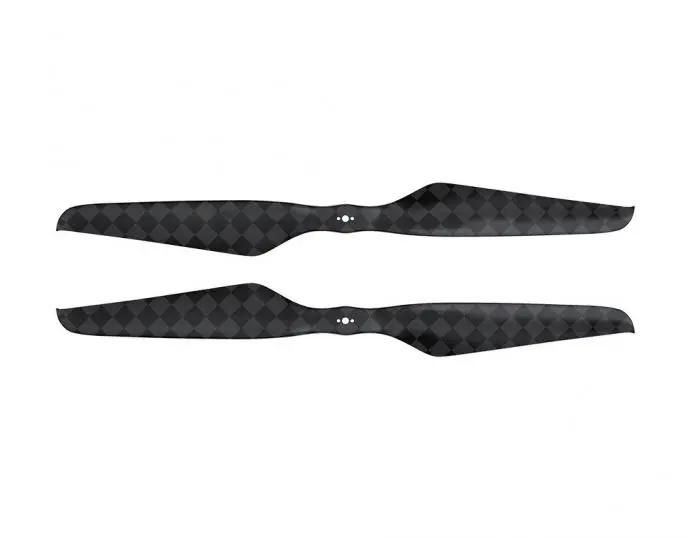

Popular & Recommended Carbon Fiber Propeller
This section highlights frequently chosen carbon fiber propellers across different multirotor applications, helping users quickly identify suitable options for various operational requirements. The selection covers diverse sizes, configurations, and design features to match professional and recreational UAV needs.
The selection spans from compact 12-inch propellers suitable for smaller frames to large 40-inch models for heavy-lift applications. Key differentiators include folding vs. fixed configurations, surface treatments (polished, glossy, ultra-light), blade count options (2-blade and 3-blade variants), and specialized design features like winglet optimization and 10mm hub bores. When selecting propellers, match diameter to frame clearance constraints, verify pitch compatibility with motor KV and voltage specifications, and confirm hub bore sizing matches motor shaft requirements.
Carbon Fiber Propeller FAQ
What are the main advantages of carbon fiber propellers over plastic alternatives?
Carbon fiber propellers offer superior strength-to-weight ratios, enhanced durability, and better performance consistency. They resist deformation under load, maintain precise aerodynamic profiles, and provide longer operational life compared to plastic propellers. Carbon fiber construction provides good resistance to surface wear, though performance can be affected by environmental factors over time.
How do folding carbon fiber propellers work?
Folding carbon fiber propellers utilize specialized winglet designs and precise positioning mechanisms to enable easy folding and deployment. The FA series features optimized blade shapes that reduce vortex effects while maintaining structural integrity during folding operations. Precise positioning systems prevent sweepback during operation, ensuring consistent performance.
What makes three-blade carbon fiber propellers different?
Three-blade carbon fiber propellers typically provide smoother thrust output and can offer better static thrust characteristics in diameter-constrained applications, though often with slight efficiency reduction compared to two-blade designs. The additional blade reduces individual blade loading and can help manage noise through lower tip speeds. Two-blade propellers generally maintain efficiency advantages in most flight conditions, while three-blade configurations may be preferred when diameter limitations or noise considerations are primary factors.
Are carbon fiber propellers suitable for various weather conditions?
Specific temperature ranges vary by manufacturer and model. For example, LIGPOWER propellers list operating temperatures of -40°C to 65°C on their product specifications. However, actual operational limits depend on the complete aircraft system, as batteries and electronics typically have more restrictive temperature ranges (such as -20°C to 50°C for many industrial drones, or -10°C to 40°C for consumer models). Always refer to your complete system specifications rather than individual component ratings.
How do I determine the correct propeller size for my UAV?
Propeller selection depends on motor specifications, desired flight characteristics, and operational requirements. Match propeller diameter and pitch to your motor's optimal RPM range while considering thrust requirements for your specific payload and flight mission. Consult motor manufacturer specifications and conduct test flights to verify performance.
What maintenance do carbon fiber propellers require?
Carbon fiber propellers require minimal maintenance but benefit from regular inspection for damage and proper storage procedures. Clean using a dry, soft cloth or mild cleaning agents when necessary, avoiding strong solvents. Check for stress fractures, especially at blade roots, chips, or signs of delamination. Replace propellers immediately if any structural damage is detected. Use specialized propeller bags to prevent scratches during transport and storage.
Can carbon fiber propellers be repaired if damaged?
While minor surface scratches may not significantly affect performance, any structural damage such as cracks, chips, delamination, or imbalance that cannot be easily corrected requires immediate replacement. The layered construction of carbon fiber makes field repairs impractical and potentially unsafe. Proper storage, careful handling, and regular inspection help prevent most damage scenarios.
