How to Choose FPV Flight Controller?

The flight controller serves as the brain of your FPV drone, processing sensor data and translating your stick inputs into precise motor commands. Selecting the right flight controller directly impacts your drone's flight performance, stability, feature set, and future upgrade potential.

Core Functions of an FPV Flight Controller

Understanding what a flight controller does helps you make informed decisions about which features matter most for your build.

Inertial Measurement Unit (IMU)

The gyroscope and accelerometer work together to detect the drone's orientation and movement. High-quality sensors provide:

• Accurate attitude detection for stable flight
• Reduced noise and vibration sensitivity
• Better filtering capabilities for smoother video
• Consistent performance across temperature ranges

Microcontroller Unit (MCU) Processing Power

The MCU handles all flight calculations, sensor processing, and communication tasks. Modern options include:

• F4 processors: Entry-level performance, suitable for basic builds
• F7 processors: Mid-range performance, handles most features well
• H7 processors: High-end performance, supports advanced filtering and features

Firmware Compatibility

Popular firmware options offer different capabilities:

• Betaflight: Most common, excellent for freestyle and racing
• iNav: Specialized for GPS navigation and long-range flights
• ArduPilot: Advanced autonomous flight features
• KISS: Simple, low-latency racing firmware

Connectivity and Ports

UART ports enable communication with external devices like GPS modules, telemetry systems, and camera control units. Modern flight controllers typically offer 3-6 UART ports, with some doubling as soft serial ports.

Key Selection Criteria

MCU Generation Comparison

Different processor generations offer varying levels of performance and capability:

F4 Controllers

• Adequate for basic builds and beginners
• Limited advanced filtering options
• May struggle with resource-intensive features
• Generally more affordable

F7 Controllers

• Balanced performance for most applications
• Supports advanced filtering algorithms
• Hardware inverters for easier SBUS/serial connections
• Handles multiple peripherals without issue
• Best value for intermediate pilots

H7 Controllers

• Maximum processing power for demanding setups
• Supports all current firmware features
• Future-proofed for upcoming developments
• Premium pricing but worth it for advanced builds

Form Factor and Mounting

Flight controller size must match your frame's mounting pattern:

• 30.5×30.5mm (M3): Traditional standard for 5-inch platforms, also common in larger builds
• 20×20mm (M2): Increasingly popular for 5-inch racing and freestyle, emphasizing weight reduction
• 25.5×25.5mm (M2): Standard for cinewhoop/micro platforms and AIO designs
• 16×16mm (M2): Ultra-micro builds and 2-3 inch frames
• AIO (All-in-One): Integrated ESC solutions, commonly 25.5×25.5mm mounting

Essential Connectivity Features

Consider your current and future peripheral needs:

• UART count: Modern 5-inch controllers typically offer 4-8 hardware UARTs (6 is common). SoftSerial has limitations (19200 baud max, not suitable for receivers or MSP)
• USB connector: Necessary for configuration and firmware updates
• Bluetooth support: Enables wireless configuration via smartphone (e.g., SpeedyBee App)
• Boot button: Simplifies firmware recovery and updates

Built-in Features

Modern flight controllers often integrate additional components:

• On-Screen Display (OSD): Analog systems use MAX/AT7456 chips; digital systems (DJI/Walksnail/HDZero) use MSP DisplayPort
• Blackbox logging: Records flight data for analysis and tuning
• Barometer: Altitude hold and position features
• Current sensor: Battery monitoring and consumption tracking

Special Features to Consider

GPS Integration

Long-range and autonomous flight applications benefit from GPS capability:

• Betaflight: GPS Rescue mode, Altitude/Position Hold (v4.6+)
• INAV/ArduPilot: Full RTL, waypoint navigation, and autonomous modes
• Rescue modes for signal loss scenarios
• Requires dedicated UART port and clear sky view

Advanced Sensor Suite

Specialized applications may require additional sensors:

• Magnetometer: Compass heading for navigation
• Barometer: Precise altitude control
• Optical flow: Indoor position holding (primarily ArduPilot/INAV)
• Lidar: Obstacle avoidance and terrain following (primarily ArduPilot)

Communication Protocols

Modern flight controllers support various communication standards:

• DroneCAN (UAVCAN): Mature in ArduPilot/PX4 ecosystems; standard 5-inch FPV uses DShot + ESC Telemetry
• ESC telemetry: Bidirectional DShot provides RPM data for RPM Filter in Betaflight
• DJI compatibility: Integration with DJI digital FPV systems
• Crossfire/ELRS support: Long-range control link protocols

Stack vs AIO Solutions

Choose between modular and integrated approaches:

Flight Controller Stacks

• Separate flight controller and ESC boards
• Better cooling and serviceability
• More configuration flexibility
• Higher component count and complexity

All-in-One Solutions

• Integrated flight controller and ESC
• Compact size and reduced wiring
• Compromised cooling and serviceability compared to stacks
• Cost varies by specifications and features

Use-Case Mapping

Different flying styles and applications have specific flight controller requirements.

Freestyle Flying

Freestyle pilots prioritize smooth video and reliable performance:

• F7 or H7 MCU for advanced filtering
• Quality gyroscope with good vibration isolation
• Blackbox logging for tuning optimization
• Sufficient UARTs for telemetry and camera control

Racing Applications

Racing demands minimal latency and maximum responsiveness:

• Fast MCU (F7 minimum, H7 preferred)
• Low-latency firmware configuration
• Compact form factor to reduce weight
• Robust construction for crash resistance

Cinematic and Smooth Flying

Cinewhoop and cinematic applications require exceptional smoothness:

• Premium gyroscope with excellent filtering
• Sufficient processing power for complex filter stacks
• Good vibration isolation mounting
• Support for advanced stabilization modes

Long-Range Exploration

Long-range flying needs navigation and safety features:

• GPS module compatibility and dedicated UART
• Barometer for altitude control
• Multiple UART ports for telemetry systems
• Reliable firmware with rescue modes

Tiny Whoop Racing

Ultra-small indoor racing has unique constraints:

• AIO design with integrated ESCs
• 1S or 2S battery compatibility
• Minimal weight and size
• Adequate performance for indoor flying

Comparison Table

Common Pitfalls & How to Avoid

Underpowered MCU Selection

Choosing an F4 controller to save money often leads to frustration when advanced features become unavailable.

Solution: Invest in F7 minimum for future compatibility and feature support.

Insufficient UART Ports

Many builders underestimate their future peripheral needs, leading to connectivity limitations.

Solution: Count required UARTs (GPS, telemetry, camera control) and add one spare for future expansion.

Voltage and ESC Compatibility Issues

Mismatched voltage levels or incompatible ESC protocols cause setup difficulties.

Solution: Verify voltage requirements and ensure ESC protocol support before purchasing.

Ignoring Physical Constraints

Flight controllers that don't fit the frame or interfere with other components create mounting challenges.

Solution: Check mounting hole spacing, board dimensions, and component clearances during planning.

Firmware Lock-in

Some flight controllers only support proprietary firmware, limiting configuration options.

Solution: Choose controllers with open-source firmware support for maximum flexibility.

Checklist: Quick Selection Workflow

Use this systematic approach to narrow down your flight controller options:

Step 1: Define Your Application

• Determine primary use case (freestyle, racing, cinematic, long-range)
• Identify required features and performance level
• Set budget constraints for the complete build

Step 2: Frame Compatibility

• Measure mounting hole spacing on your frame
• Check available space for flight controller stack
• Verify clearance for connectors and wiring

Step 3: MCU Performance Tier

• F4: Budget builds, basic flying, minimal features
• F7: Most applications, good performance-to-cost ratio
• H7: Advanced builds, maximum features, future-proof

Step 4: Connectivity Requirements

• Count required UART ports for all peripherals
• Verify USB connector type and accessibility
• Check for Bluetooth support if desired

Step 5: Essential Features

• Confirm OSD integration for video overlay needs
• Verify Blackbox support for flight analysis
• Check barometer availability for altitude features

Step 6: Firmware Compatibility

• Ensure support for preferred firmware (Betaflight, iNav, etc.)
• Verify active development and community support
• Check for any proprietary limitations

Maintenance & Setup Tips

Firmware Management

Keep your flight controller updated and properly configured:

• Update firmware regularly for bug fixes and new features
• Back up configuration before major firmware changes
• Use appropriate firmware branch for your hardware revision
• Test thoroughly after any firmware modifications

Physical Protection

Protect your investment with proper mounting and environmental considerations:

• Use soft mounting to reduce vibration transmission (avoid excessive softness which can introduce latency)
• Apply conformal coating in humid or corrosive environments
• Ensure adequate cooling airflow around the MCU
• Protect connectors from moisture and debris
• Prioritize rigid frame construction and clean power before relying on soft mounting

Configuration Best Practices

Optimize your setup for reliability and performance:

• Start with conservative settings and tune gradually
• Enable appropriate safety features for your skill level
• Configure proper failsafe behavior for signal loss
• Regularly verify sensor calibration and alignment

Troubleshooting Preparation

Be prepared for common issues and repairs:

• Keep spare flight controllers for critical applications
• Learn basic troubleshooting techniques for common problems
• Maintain backup configurations for quick restoration
• Build relationships with experienced pilots for technical support

Best FPV Flight Controllers — Curated Picks

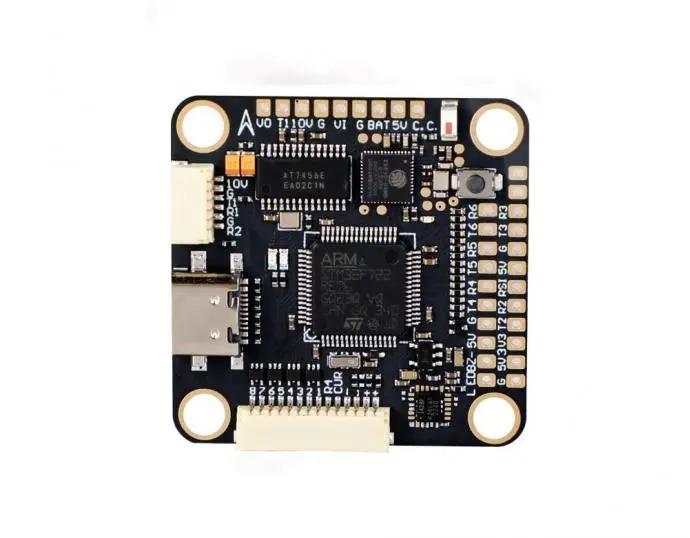

This comprehensive comparison helps you understand the core differences between LIGPOWER's flight controller series, from entry-level options to professional-grade systems. Each model targets specific flight applications with optimized processor performance, sensor configurations, and connectivity features.

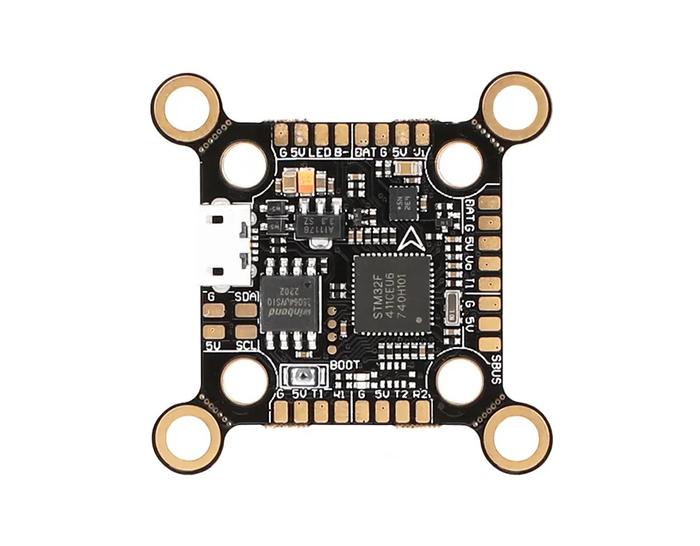

The lineup spans from budget-conscious F411 controllers with essential functionality to advanced H7 processors with dual gyroscope systems. Key differentiators include processor performance (F411 to H7), gyroscope technology (BMI270 to IIM-42652), mounting patterns (20x20mm racing vs 30x30mm versatile), and connectivity options (3-8 UARTs). Choose based on your flight application: F411 LITE for budget builds, F7 series for racing and freestyle, Velox F7 SE for beginner-friendly wireless configuration, and H7 Mini for maximum performance. Consider UART count for future peripheral expansion and mounting size for frame compatibility.

FPV Flight Controller FAQ

Common questions about FPV flight controller selection and configuration:

Q: What's the difference between F4, F7, and H7 processors in flight controllers?
A: F4 processors (STM32F411) provide basic functionality for budget builds with limited peripheral support and resource constraints. F7 controllers (STM32F722) offer enhanced performance with faster sampling rates, more UART connections, and hardware inverters for easier SBUS/serial connections. H7 processors (STM32H7) deliver maximum computational power with higher clock speeds and processing margin for complex filtering tasks. Note: Features like dual gyroscope support and 8-motor outputs depend on specific board design and pin allocation, not just the processor generation.

Q: Do I need dual BEC output on my flight controller?
A: Dual BEC outputs (5V/9-10V) are highly recommended but not strictly essential for HD video systems like DJI Air Units (rated 7.4-26.4V input). The 9-10V regulated output reduces electrical noise and simplifies wiring compared to direct battery connection. Single 5V BEC controllers work fine for analog systems, while dual BEC configurations provide convenience and noise reduction for digital systems.

Q: What gyroscope should I choose for my flight controller?
A: BMI270 gyroscopes provide reliable performance with good noise characteristics (~0.007-0.010 dps/√Hz) and ODR up to 6.4kHz, suitable for most applications. ICM-42688P sensors offer lower noise density (~0.0028 dps/√Hz) and higher ODR (up to 32kHz) based on datasheet specifications. IIM-42652 targets industrial-grade applications with extended temperature range and stability. Actual flight performance depends on board design, power supply quality, and filtering implementation. Dual gyroscope systems provide redundancy but may require firmware-specific compatibility verification.

Q: Is 20×20mm or 30.5×30.5mm mounting better for my build?
A: 30.5×30.5mm mounting is more common for 5-7 inch frames and provides more space for additional features like extra UARTs, larger BEC circuits, and wireless connectivity. 20×20mm mounting suits weight-conscious builds and is increasingly popular for 5-inch racing and freestyle applications. Choose based on your frame's mounting holes first, then consider feature requirements. Both sizes can work well for most applications.

Q: Do I need wireless configuration capability?
A: Wireless configuration via Bluetooth or WiFi significantly improves field tuning convenience, allowing parameter adjustments without computers or cables. Flight controllers with built-in Bluetooth or WiFi adapters (like SpeedyBee Adapter 3) support wireless parameter tuning and blackbox data download through compatible apps. This feature particularly benefits freestyle pilots who frequently adjust settings between sessions and beginners who benefit from simplified configuration processes. Specific capabilities depend on the flight controller's hardware and firmware support.

Q: How many UARTs do I need on my flight controller?
A: Basic builds require 3-4 UARTs for receiver, VTX, and essential peripherals. Advanced setups benefit from 6-8 UARTs to support GPS, telemetry systems, additional cameras, and specialized sensors. Consider future expansion needs when selecting UART count, as adding peripherals later often requires additional connections.

Q: What firmware should I use for my flight controller?
A: Betaflight remains the most popular firmware with extensive community support and regular updates, suitable for racing, freestyle, and general FPV applications. FETtec Alpha firmware adopts a "low-latency, minimal filtering" philosophy with direct control feel and supports DShot2400 protocol - whether this suits racing depends on personal preference and setup. iNav provides specialized features for GPS navigation and autonomous flight modes. Choose firmware based on your specific application requirements and community support preferences.
