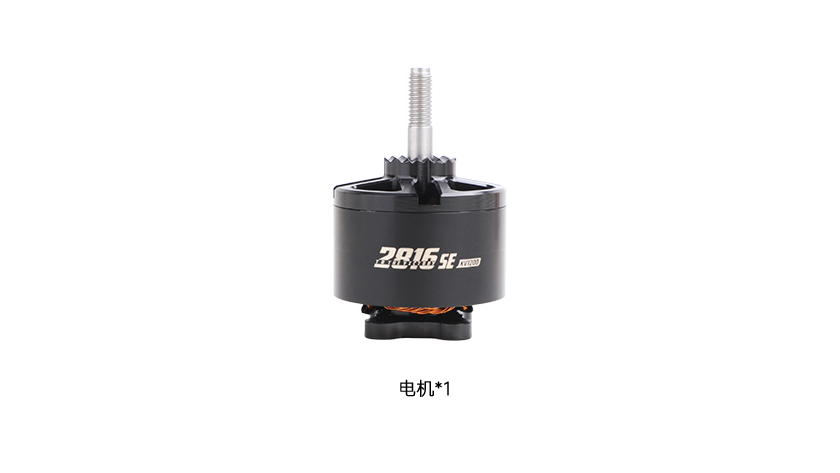

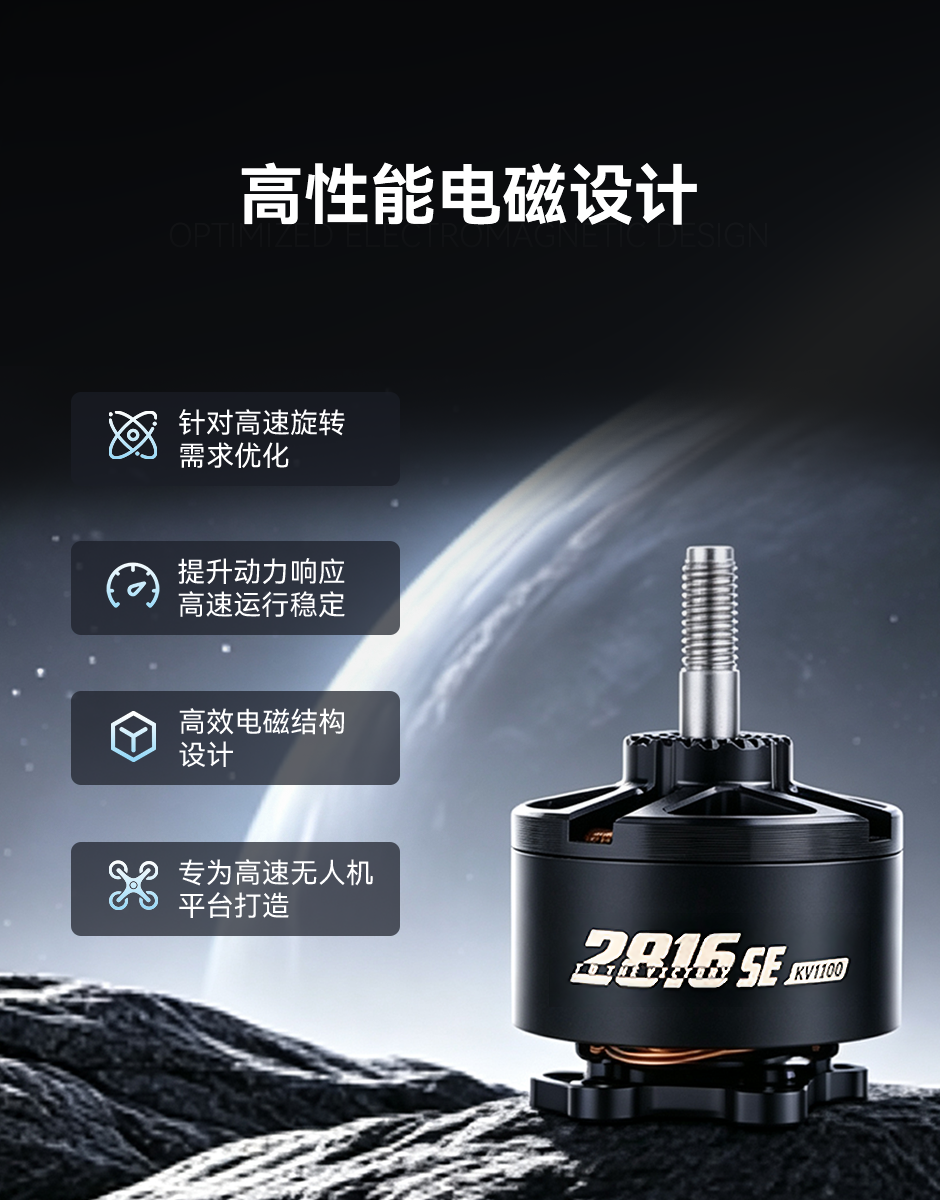

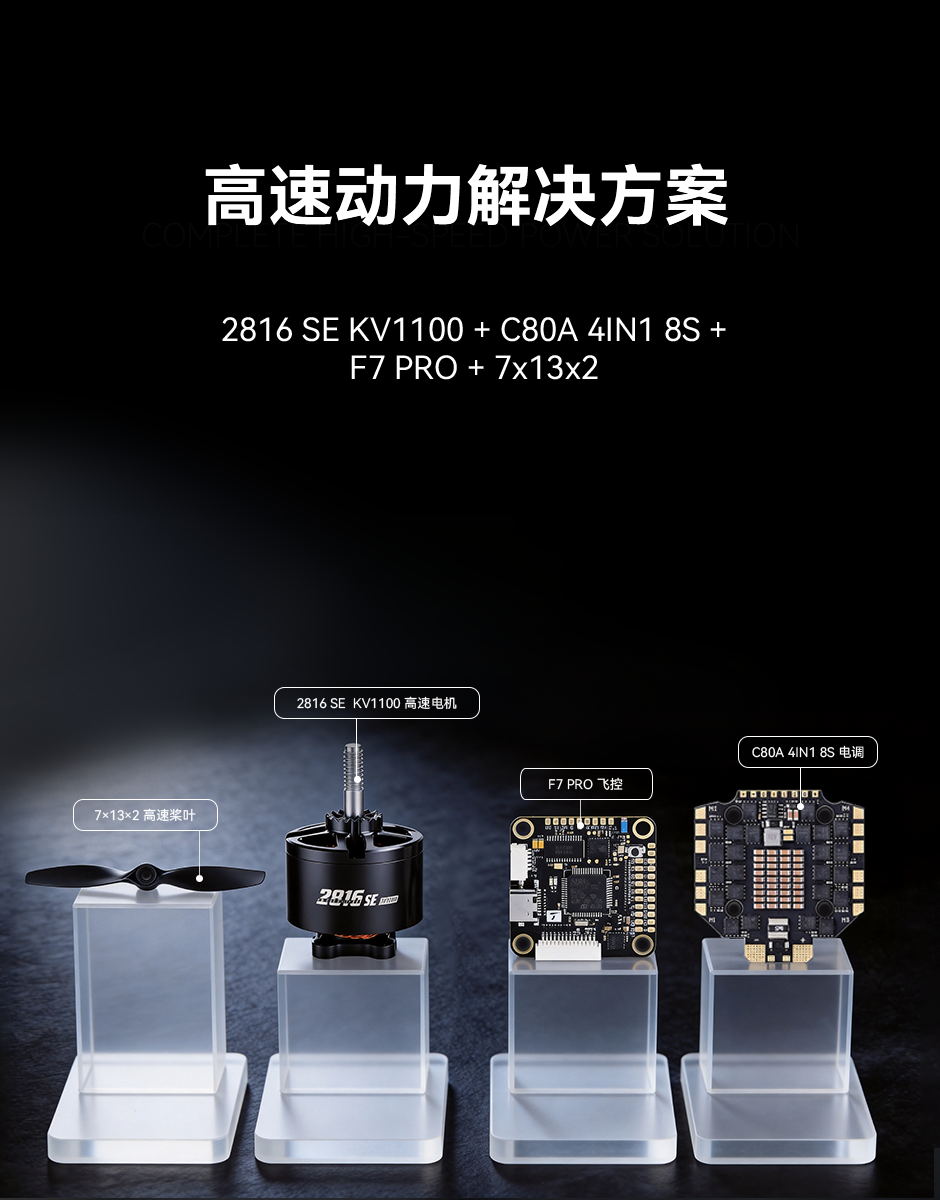

| 电机型号 | 2816SE | 电机尺寸 | Φ33.4x50.9mm |
| 磁铁 | 镀镍弧形磁铁 | 线圈绝缘测试 | 500V耐压测试 |
| 防尘防水等级 | / | 槽级数 | 12N14P |
| 转子动平衡标准 | ≤5mg | 轴承型号 | 694-ZZ轴承 |
| 出轴轴径 | 4mm | 出线规格/长度 | 18AWG特氟龙线150mm |
| 电机安装孔尺寸 | Φ19-M3-4孔 | 桨叶安装尺寸 | M5 |
| 包装尺寸 | 77x72x70mm | 包装重量 | 120g |
| 技术参数 | |||
| KV值/推荐电压 | KV800 | 空载电流 (10V) | 1.4A |
| 最大功率 | 510W | 相间内阻 | 47mΩ |
| 工作额定电压 | 6-8S | 最大电流 | 92A |
| 最大拉力 | 5670g | 电机重量 (含线) | 100g |
| KV值/推荐电压 | KV1200 | 空载电流 (10V) | 2.3A |
| 最大功率 | 452W | 相间内阻 | 20mΩ |
| 工作额定电压 | 6-8S | 最大电流 | 110A |
| 最大拉力 | 5210g | 电机重量 (含线) | 98g |
| 推荐搭配 | |||

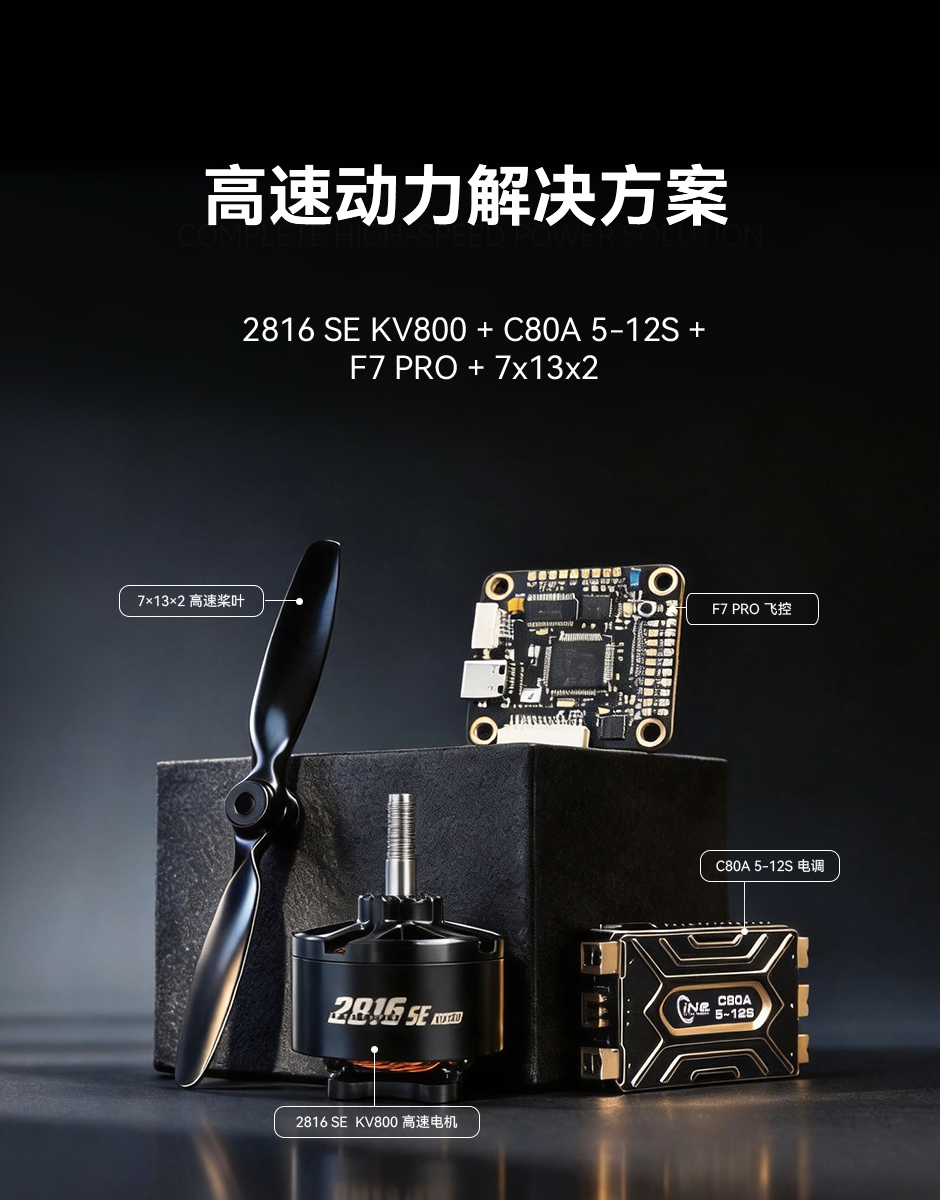

| 电机 | 2816SE KV800 | 机架类型 | 7寸火箭类低风阻X4 |
| 桨叶 | 7x13x2 | 电池电压 | 12S |
| 电调 | V90A 12S | 推荐起飞 重量区间 | 2kg以内 |
| 飞控 | F7 PRO | 最大起飞重量 | 2.5kg |
| 推荐电调设置: AM32: V2.19及以上固件版本，启动功率100%，进角22.5，PWM频率24-48，KV值1600，以获得最佳效率和飞行体验 (不当设置可能会导致失步) BL32: 启动功率35，进角30，PWM频率24-48，退磁补偿HIGH: 以获得最佳效率和飞行体验 (不当设置可能会导致失步) | |||
| 实测数据: 起飞重量21000g，3300mAh 12S 95c电池，最快速度480km/h，航程10km+ (负载500g，最快速度440km/h) | |||
| 型号 | 桨 | 电压 (V) | 油门点 | 电流 (A) | 转速 (RPM) | 拉力 (gf) | 功率 (W) | 力效 (gf/W) | 扭矩 (N·m) | 电机温度 (℃) |
| 2816SE KV800 | T-HOBBY Cine75 | 48.0 | 20% | 1.8 | 7361 | 430 | 51 | 4.91 | 0.07 | 59 (环境温度: 25) |
| 48.0 | 30% | 4.2 | 10310 | 880 | 140 | 4.32 | 0.13 | |||
| 47.9 | 40% | 8.3 | 13260 | 1470 | 300 | 3.72 | 0.22 | |||
| 47.8 | 50% | 13.7 | 15839 | 2120 | 510 | 3.25 | 0.31 | |||
| 47.6 | 60% | 20.8 | 18193 | 2820 | 780 | 2.85 | 0.41 | |||
| 47.5 | 70% | 29.7 | 20396 | 3600 | 1107 | 2.56 | 0.52 | |||
| 47.3 | 80% | 40.6 | 22455 | 4370 | 1481 | 2.28 | 0.63 | |||
| 47.0 | 90% | 53.8 | 24286 | 5130 | 1892 | 2.03 | 0.74 | |||
| 46.7 | 100% | 67.6 | 25862 | 5670 | 2276 | 1.80 | 0.84 | |||
| 2816SE KV800 | T-HOBBY Cine85 | 32.0 | 20% | 1.3 | 4977 | 260 | 24 | 6.35 | 0.05 | 59 (环境温度: 25) |
| 32.0 | 30% | 3.1 | 6981 | 550 | 68 | 5.69 | 0.09 | |||
| 32.0 | 40% | 5.5 | 8644 | 880 | 131 | 5.05 | 0.14 | |||
| 31.9 | 50% | 9.5 | 10575 | 1320 | 237 | 4.37 | 0.21 | |||
| 31.8 | 60% | 15.5 | 12496 | 1850 | 393 | 3.76 | 0.30 | |||
| 31.6 | 70% | 22.6 | 14109 | 2420 | 569 | 3.40 | 0.39 | |||
| 31.5 | 80% | 30.6 | 15519 | 2960 | 764 | 3.07 | 0.47 | |||
| 31.3 | 90% | 40.5 | 16831 | 3500 | 989 | 2.77 | 0.56 | |||
| 31.1 | 100% | 51.8 | 18000 | 4040 | 1223 | 2.51 | 0.65 | |||
| 2816SE KV800 | GF6x12x2 | 45.0 | 20% | 1.6 | 6993 | 110 | 39 | 1.58 | 0.05 | 59 (环境温度: 25) |
| 45.0 | 30% | 3.7 | 9888 | 230 | 113 | 1.38 | 0.11 | |||
| 44.9 | 40% | 7.0 | 12713 | 380 | 236 | 1.20 | 0.18 | |||
| 44.8 | 50% | 11.5 | 15230 | 540 | 404 | 1.04 | 0.25 | |||
| 44.7 | 60% | 17.1 | 17604 | 700 | 612 | 0.92 | 0.33 | |||
| 44.6 | 70% | 24.6 | 19796 | 900 | 883 | 0.82 | 0.43 | |||
| 44.4 | 80% | 33.3 | 21922 | 1090 | 1193 | 0.73 | 0.52 | |||
| 44.2 | 90% | 44.5 | 23903 | 1310 | 1562 | 0.67 | 0.62 | |||
| 43.9 | 100% | 56.7 | 25756 | 1500 | 1943 | 0.60 | 0.72 | |||
| 2816SE KV800 | 7x13x2 | 50.0 | 20% | 2.4 | 6955 | 190 | 80 | 1.57 | 0.11 | 59 (环境温度: 25) |
| 49.9 | 30% | 5.7 | 9659 | 360 | 207 | 1.26 | 0.21 | |||
| 49.8 | 40% | 12.6 | 12729 | 630 | 473 | 1.02 | 0.36 | |||
| 49.6 | 50% | 21.4 | 15148 | 900 | 801 | 0.85 | 0.51 | |||
| 49.4 | 60% | 32.2 | 17152 | 1170 | 1180 | 0.73 | 0.66 | |||
| 49.1 | 70% | 45.6 | 18956 | 1400 | 1583 | 0.63 | 0.80 | |||
| 48.8 | 80% | 60.3 | 20356 | 1610 | 1957 | 0.55 | 0.92 | |||
| 48.5 | 90% | 76.1 | 21324 | 1770 | 2265 | 0.48 | 1.01 | |||
| 48.2 | 100% | 91.1 | 21892 | 1860 | 2440 | 0.42 | 1.06 | |||
| 2816SE KV1100 | T-HOBBY Cine75 | 35.0 | 20% | 2.5 | 7161 | 390 | 50 | 4.45 | 0.07 | 59 (环境温度: 25) |
| 34.9 | 30% | 5.6 | 9942 | 810 | 129 | 4.18 | 0.12 | |||
| 34.8 | 40% | 10.4 | 12675 | 1350 | 264 | 3.73 | 0.20 | |||
| 34.7 | 50% | 17.3 | 15196 | 1950 | 453 | 3.26 | 0.28 | |||
| 34.5 | 60% | 25.7 | 17396 | 2580 | 681 | 2.90 | 0.37 | |||
| 34.3 | 70% | 36.3 | 19399 | 3230 | 949 | 2.60 | 0.47 | |||
| 34.1 | 80% | 48.8 | 21273 | 3900 | 1257 | 2.35 | 0.56 | |||
| 33.8 | 90% | 64.4 | 23009 | 4580 | 1603 | 2.11 | 0.67 | |||
| 33.5 | 100% | 81.1 | 24443 | 5210 | 1940 | 1.92 | 0.76 | |||
| 2816SE KV1100 | T-HOBBY Cine85 | 28.0 | 20% | 2.2 | 5654 | 340 | 36 | 5.51 | 0.06 | 59 (环境温度: 25) |
| 28.0 | 30% | 4.8 | 7751 | 680 | 92 | 5.05 | 0.11 | |||
| 27.9 | 40% | 8.8 | 9684 | 1100 | 180 | 4.46 | 0.18 | |||
| 27.7 | 50% | 16.0 | 11877 | 1680 | 336 | 3.79 | 0.27 | |||
| 27.6 | 60% | 24.8 | 13756 | 2290 | 523 | 3.34 | 0.36 | |||
| 27.4 | 70% | 35.4 | 15344 | 2870 | 735 | 2.96 | 0.46 | |||
| 27.1 | 80% | 47.5 | 16725 | 3420 | 962 | 2.65 | 0.55 | |||
| 26.8 | 90% | 62.4 | 17977 | 3970 | 1214 | 2.37 | 0.65 | |||
| 26.5 | 100% | 79.2 | 18986 | 4470 | 1457 | 2.13 | 0.73 | |||
| 2816SE KV1100 | GF6x12x2 | 48.0 | 20% | 3.5 | 9509 | 200 | 98 | 1.16 | 0.10 | 59 (环境温度: 25) |
| 47.9 | 30% | 8.6 | 13558 | 420 | 288 | 1.01 | 0.20 | |||
| 47.8 | 40% | 14.6 | 16685 | 610 | 517 | 0.87 | 0.30 | |||
| 47.6 | 50% | 24.0 | 19618 | 870 | 863 | 0.76 | 0.42 | |||
| 47.4 | 60% | 36.3 | 22373 | 1150 | 1296 | 0.67 | 0.55 | |||
| 47.1 | 70% | 50.9 | 24909 | 1410 | 1778 | 0.59 | 0.68 | |||
| 46.7 | 80% | 68.1 | 27170 | 1660 | 2281 | 0.52 | 0.80 | |||
| 46.4 | 90% | 87.3 | 29043 | 1880 | 2766 | 0.47 | 0.91 | |||
| 45.9 | 100% | 110.3 | 30463 | 2080 | 3192 | 0.41 | 1.00 | |||
| 2816SE KV1100 | 7x13x2 | 35.0 | 20% | 3.1 | 6616 | 180 | 67 | 1.64 | 0.10 | 59 (环境温度: 25) |
| 34.9 | 30% | 6.9 | 8964 | 320 | 167 | 1.31 | 0.18 | |||
| 34.7 | 40% | 14.4 | 11633 | 540 | 366 | 1.07 | 0.30 | |||
| 34.6 | 50% | 24.7 | 13967 | 750 | 628 | 0.88 | 0.43 | |||
| 34.3 | 60% | 37.2 | 15799 | 980 | 924 | 0.77 | 0.56 | |||
| 34.0 | 70% | 51.7 | 17421 | 1190 | 1234 | 0.68 | 0.68 | |||
| 33.7 | 80% | 68.3 | 18791 | 1370 | 1542 | 0.59 | 0.78 | |||
| 33.3 | 90% | 86.9 | 19883 | 1540 | 1831 | 0.53 | 0.88 | |||
| 33.0 | 100% | 105.4 | 20807 | 1650 | 2077 | 0.47 | 0.95 | |||
| 注意: 电机温度为80%油门下电机运行10秒的机壳温度。 （以上数据由T-HOBBY自主平台测试所得，仅供选型参考，最终解释权归T-HOBBY所有。） | ||||||||||
