Name: T-MOTOR Airgear 450Ⅱ Combo Set Multi-Rotor UAV Power
Brand: LIGPOWER
SKU: LIGPOWER001221
Price: 89.99 USD
Availability: InStock

T-MOTOR Airgear 450Ⅱ Combo Set Multi-Rotor UAV Power

89.99

Available points: 4500 Points Points reward: 89 Points

Parameter：

With ESC
No ESC

Quantity：

89.99

Free Shipping by DHL/UPS Express

Detail information
Specifications

Air Gear 450Ⅱ

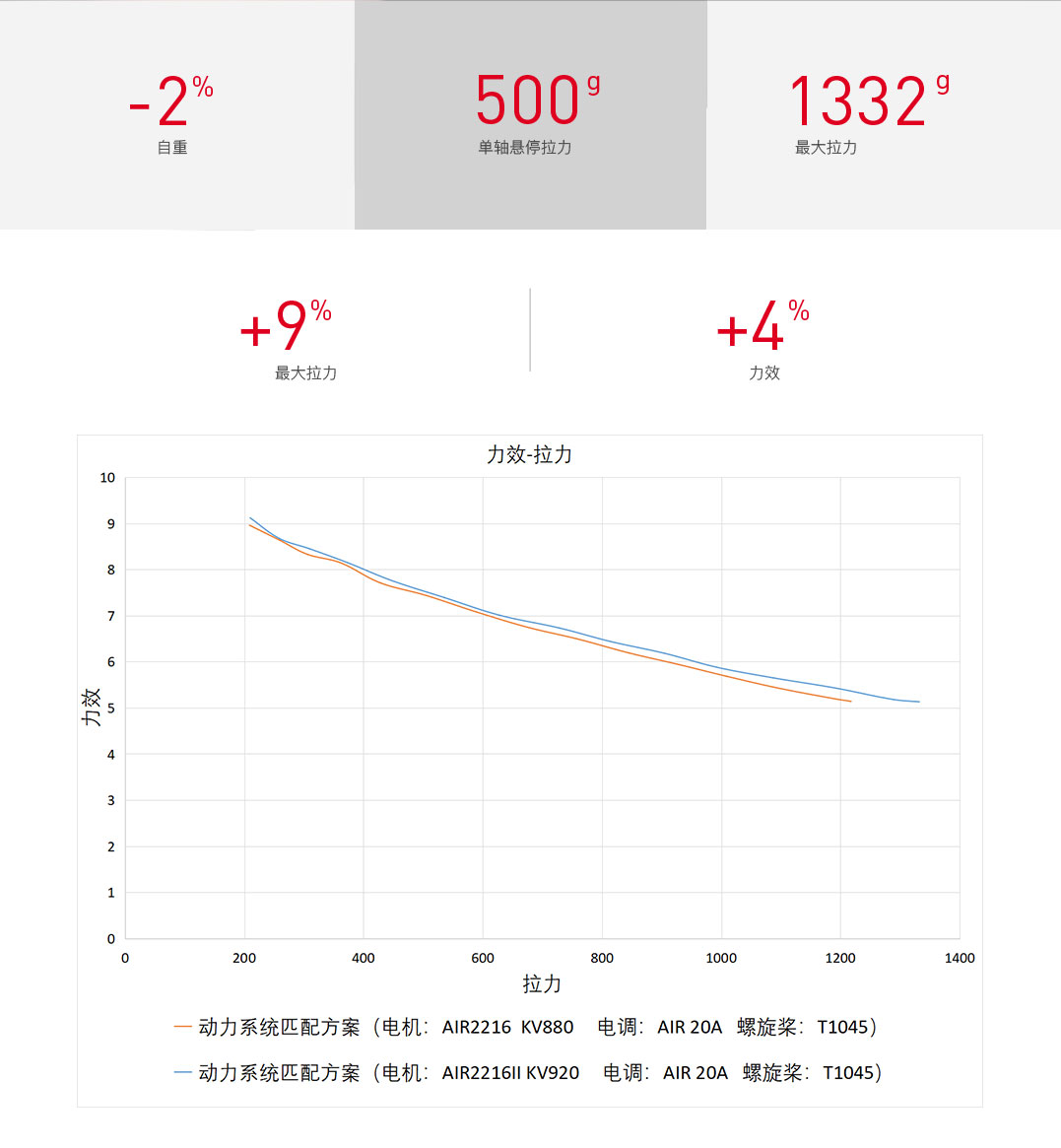

force diagram

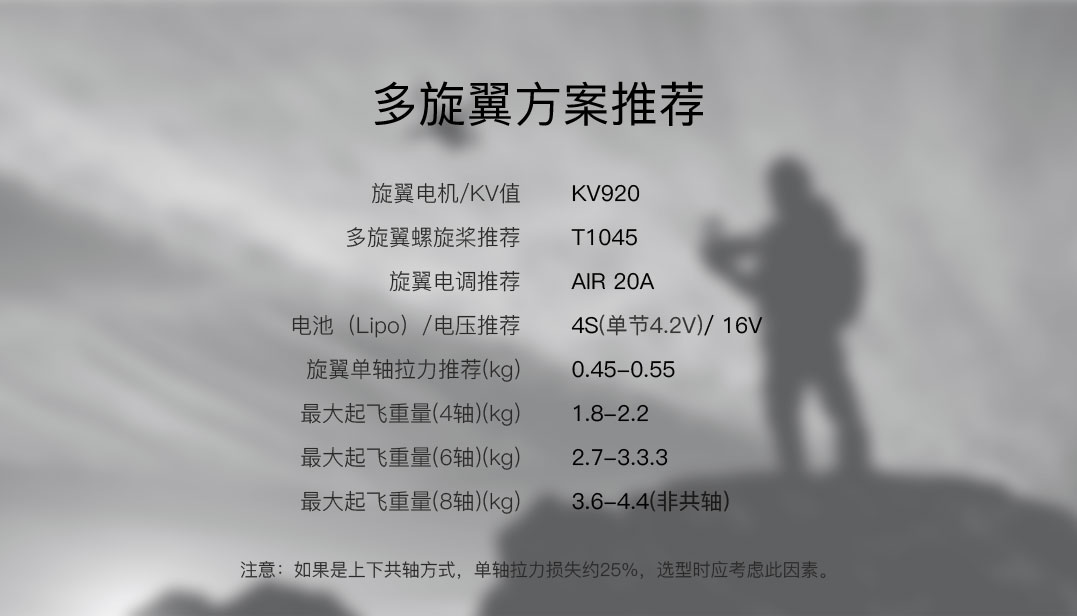

recommendations

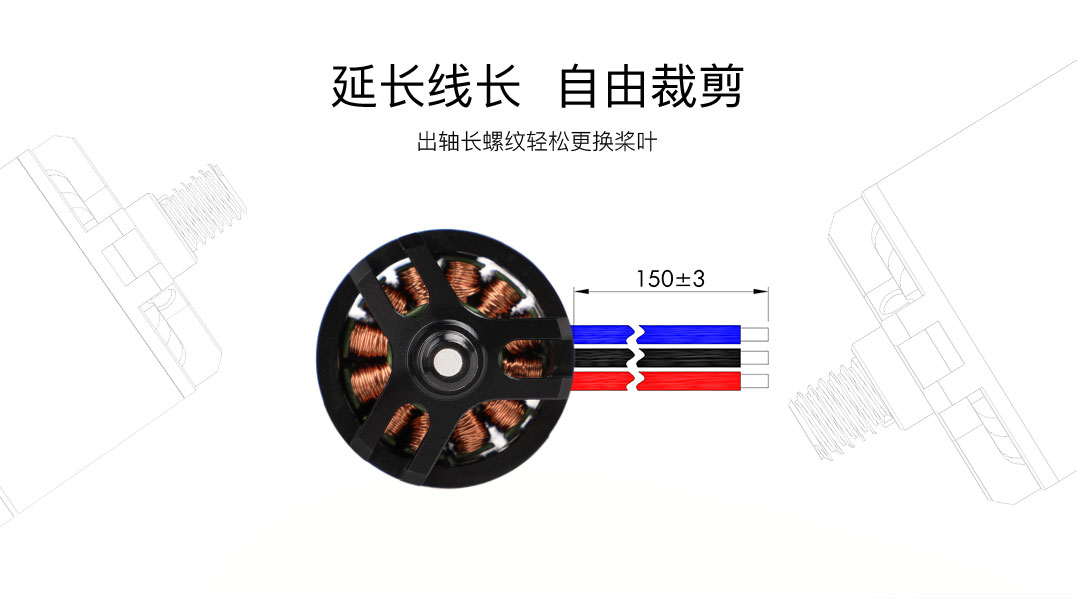

the extension wire is at your dispoosal to adjust the length

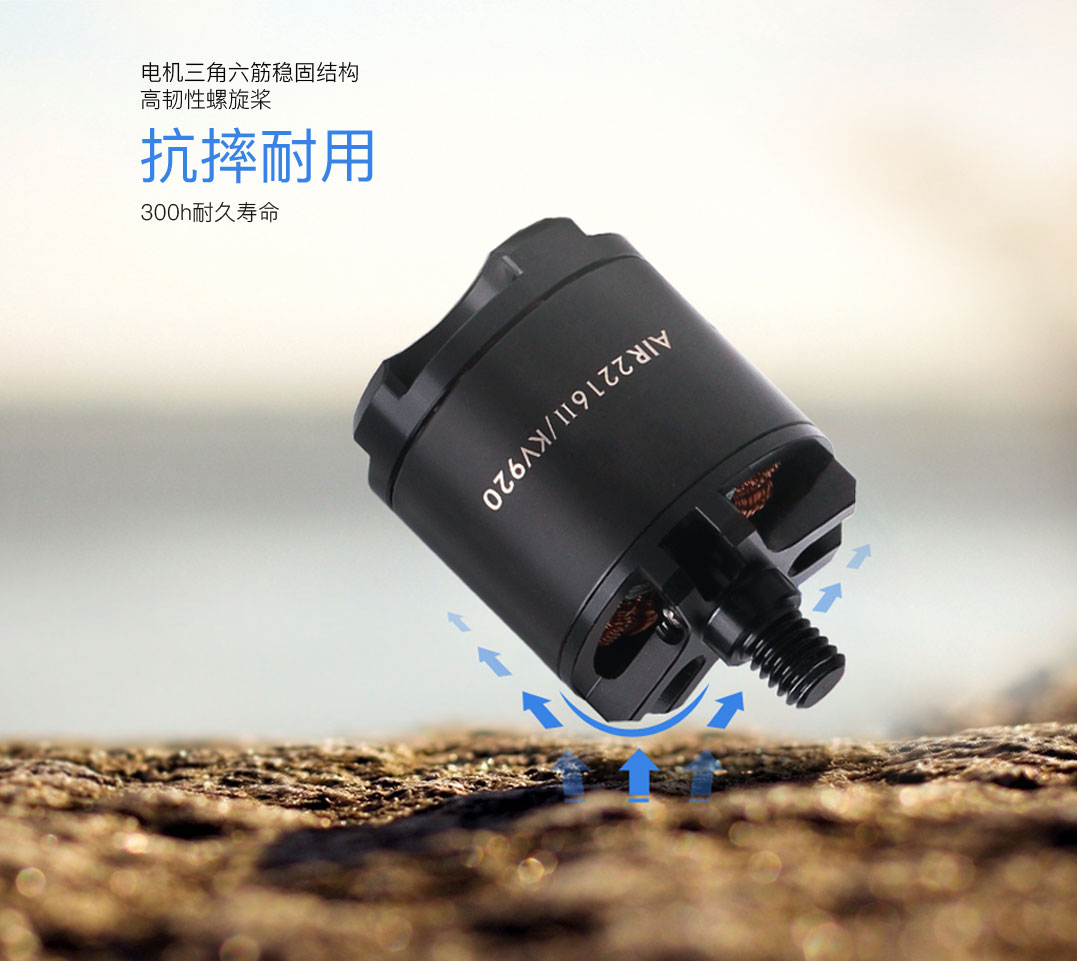

300h Endurance life,high toughness

Technical Drawing


Specification Export to Excel

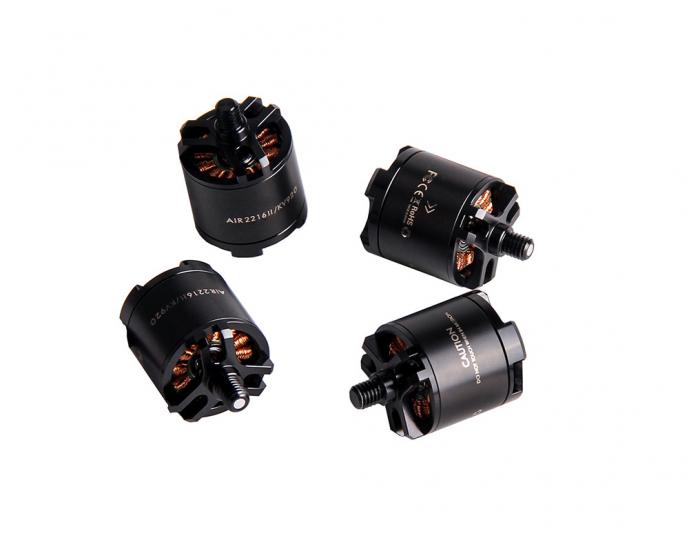

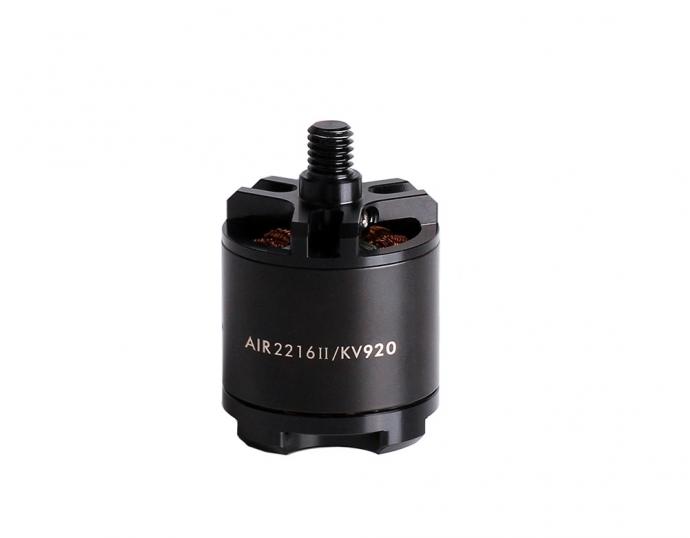

AIR2216II-Specifications
KV	920	Rated Voltage(Lipo)	4S(4.2V/PC) / 16V
Idle Current(10V)	0.8A	Internal Resistance	115±10mΩ
Peak Current(180s)	17A	Weight (Incl. Cable)	64±2g
Max Power (180S)	272W	Package Weight	/

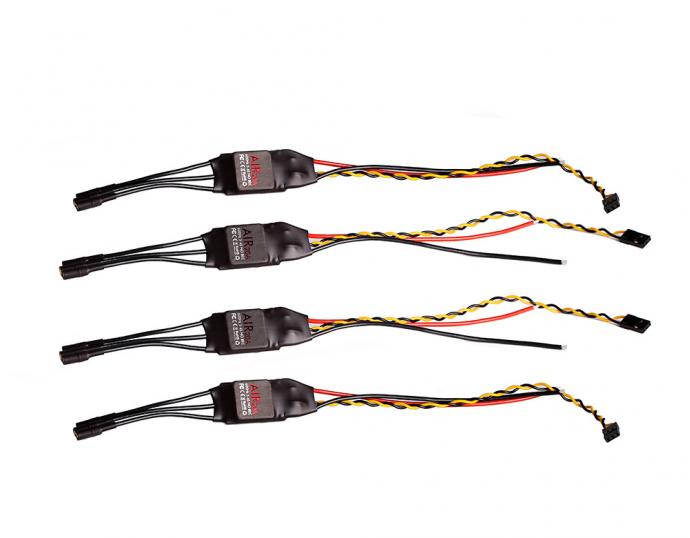

AIR 20A-Specifications
Size(L x W x H)	53x22x7mm	Rated Voltage(Lipo)	3-4s
Con.Current	20A	BEC	/
Peak Current(10s)	30A	Weight (Incl. Cable)	21g
Banana Plug	3.5mm	Throttle Signal Frequency	50Hz-600Hz

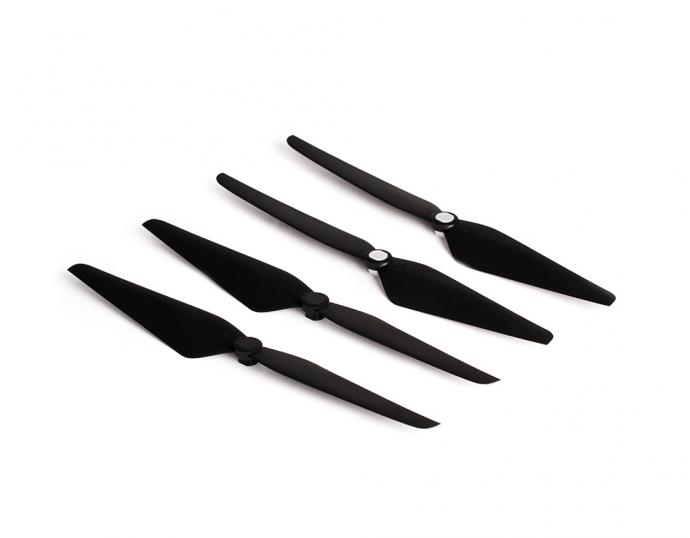

T1045-Specifications
Plastic Propeller	10" 4.5 (254114.3mm)	working Temp	-10℃ ~40℃
Weight (Single Propeller)	13g	Storage Temp	10℃ ~35℃
Material	Nylon+Glass fiber	Storage Humidity	65±20%RH
Surface Treatment	Matte Technology	Optimum RPM	6000-7000RPM/min
Propeller Type	Polymer Propeller	Thrust Limitation	1.2kg

Test Data Export to Excel

Type	Propeller	Throttle	Voltage (V)	Thrust (g)	Torque (N*m)	Current (A)	RPM	Power (W)	Efficiency (g/W)	Operating Temperature (℃)
AIR2216II-KV920	T1045	30%	16	210	0.03	1.44	4042	23	9.12	80℃
		35%	16	259	0.04	1.87	4469	30	8.67
		40%	16	309	0.05	2.29	4855	37	8.45
		45%	16	373	0.05	2.86	5301	46	8.15
		50%	16	447	0.06	3.60	5780	58	7.76
		55%	16	536	0.08	4.53	6298	72	7.39
		60%	16	628	0.09	5.61	6800	90	7.01
		65%	16	729	0.10	6.78	7281	108	6.73
		70%	16	814	0.11	7.92	7679	126	6.44
		75%	16	906	0.12	9.20	8096	147	6.18
		80%	16	993	0.14	10.59	8468	169	5.88
		85%	16	1087	0.15	12.11	8867	193	5.65
		90%	16	1191	0.16	13.81	9257	219	5.43
		95%	16	1289	0.18	15.68	9675	249	5.18
		100%	16	1332	0.18	16.37	9857	260	5.13
Note: Motor temperature is motor surface temperature @100% throttle running 10mins. (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)
