Name: T-HOBBY F60PROV 2207.5 FPV Racing Drone Motor 4-6S KV1750/KV1950/KV2020/KV2550
Brand: LIGPOWER
SKU: ligpower001217
Price: 26.90 USD
Availability: InStock

Relevant Products

T-HOBBY F55A Pro II 55A 3-6s 4in1 ESC w/ BEC

$93.9
T-HOBBY F7 HD Flight Controller for DJI VTX

$62.9
T-HOBBY Mini F7 HD Flight Controller w/OSD+VTX Switch 20x20

$62.9
T-HOBBY Mini Racer F7 Flight Controller 20x20

$50.9
T-HOBBY H7 Mini Flight Controller (HD+Analog) 20x20

$106.9

Detail information
Specifications

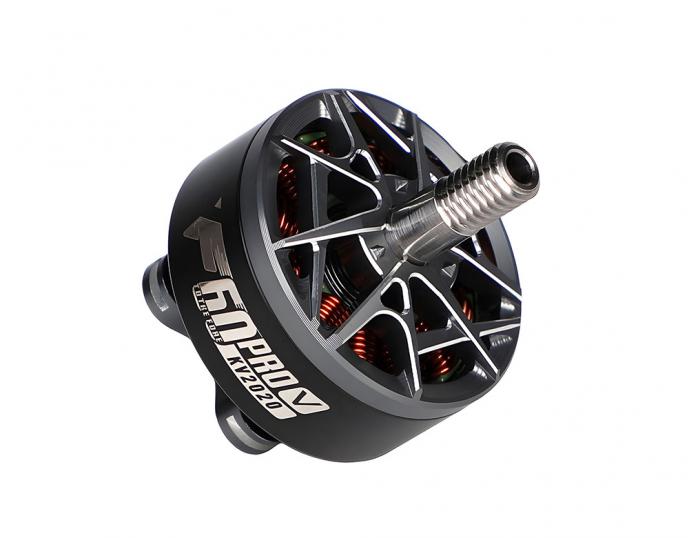

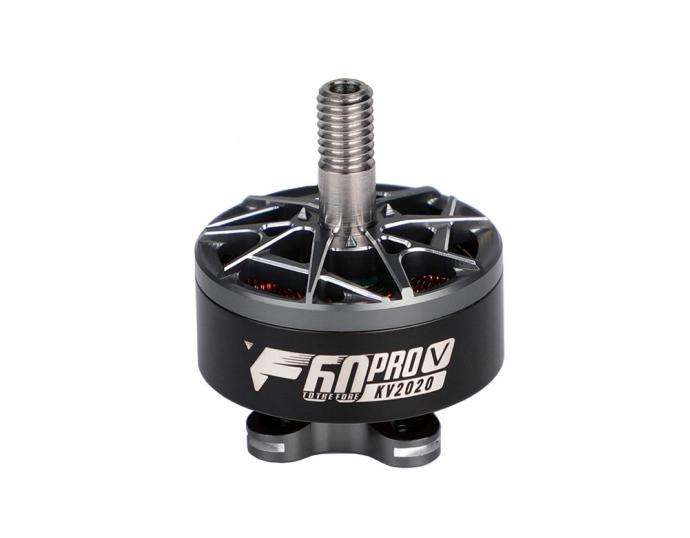

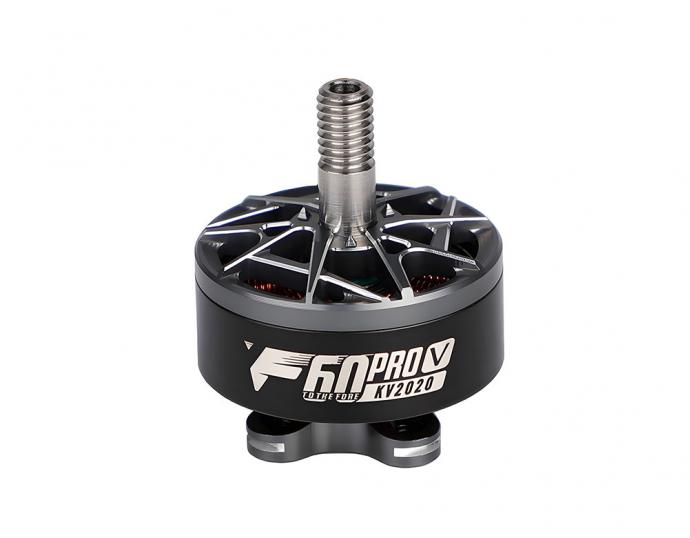

About T-HOBBY F60PRO V Racing Drone Motor

F60 PRO V Motor continues the lineage of great FPV racing motors by T-HOBBY!

The Pro V provides more thrust and increased durability compared to its predecessor. Available in multiple KV options: 1750KV, 1950KV, 2020KV, or 2550KV.

F60PRO V Hightlight:

F60PRO V is a high-end FPV drone motor designed specifically for racing. This motor has the characteristics of high burst, high linearity, and super explosion resistance.

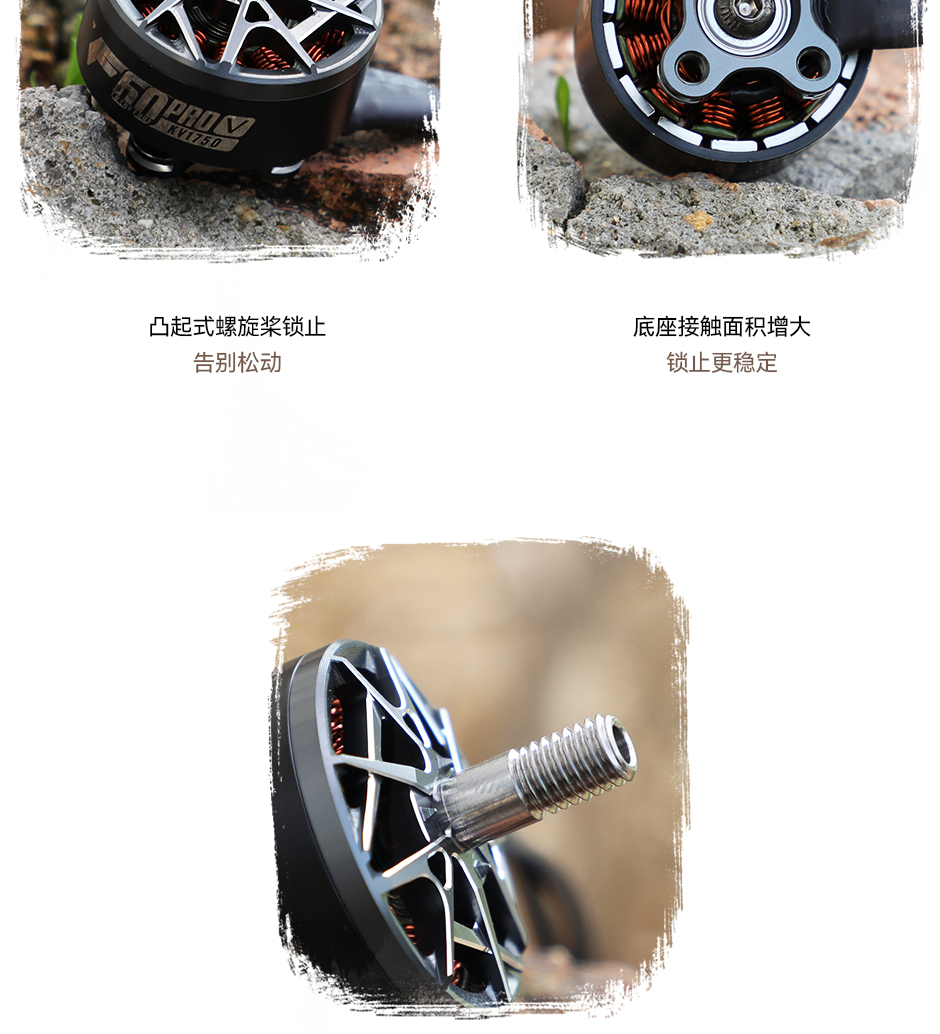

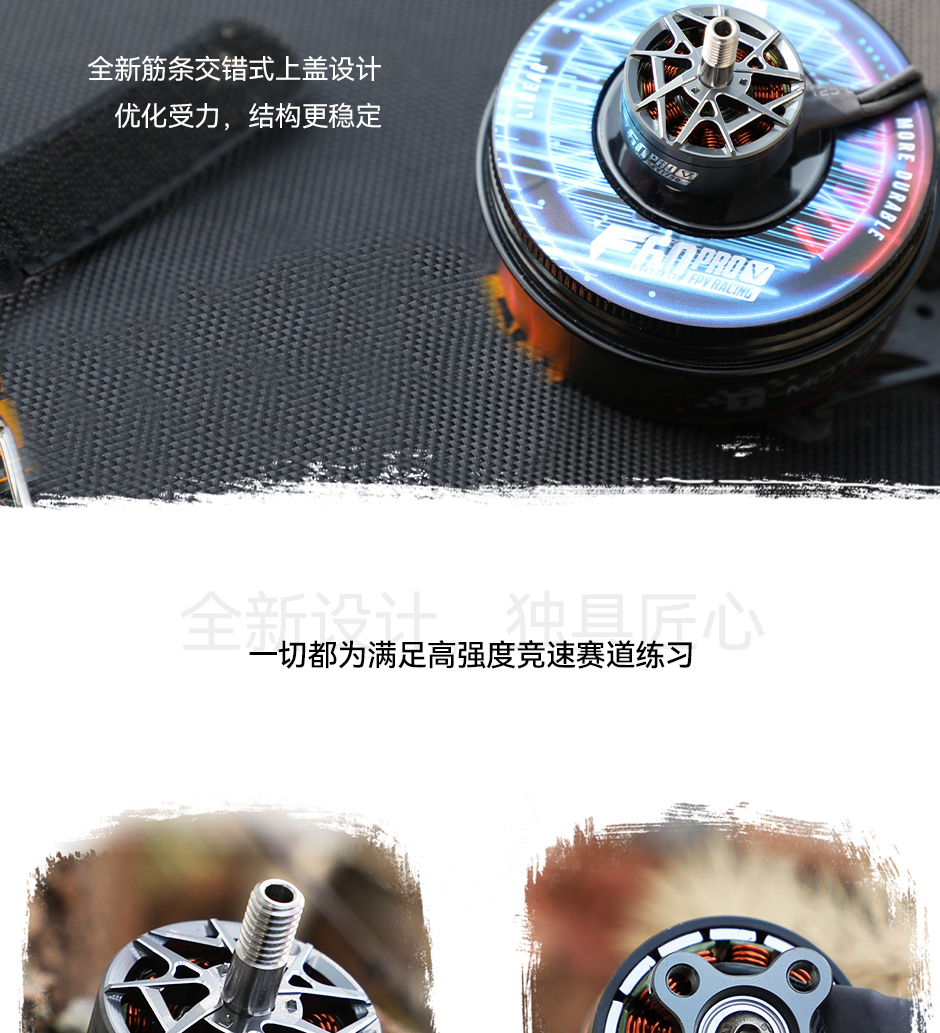

The upper cover of the rotor adopts a staggered rib design, which optimizes the force and makes the structure more stable, which can meet the needs of pilots for high-intensity racing track practice.

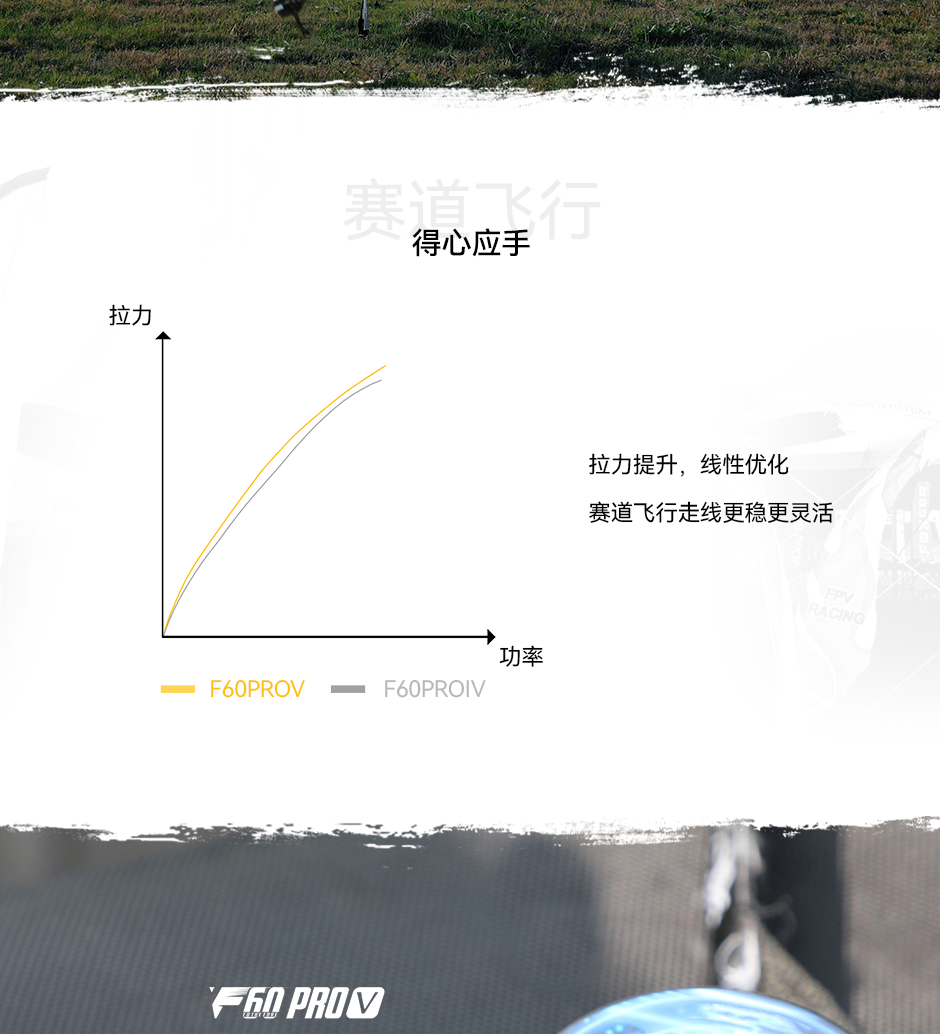

The designer has optimized the magnetic circuit design, and the motor pulling force has been significantly improved, making it more linear, making every turn and every flight movement smooth.

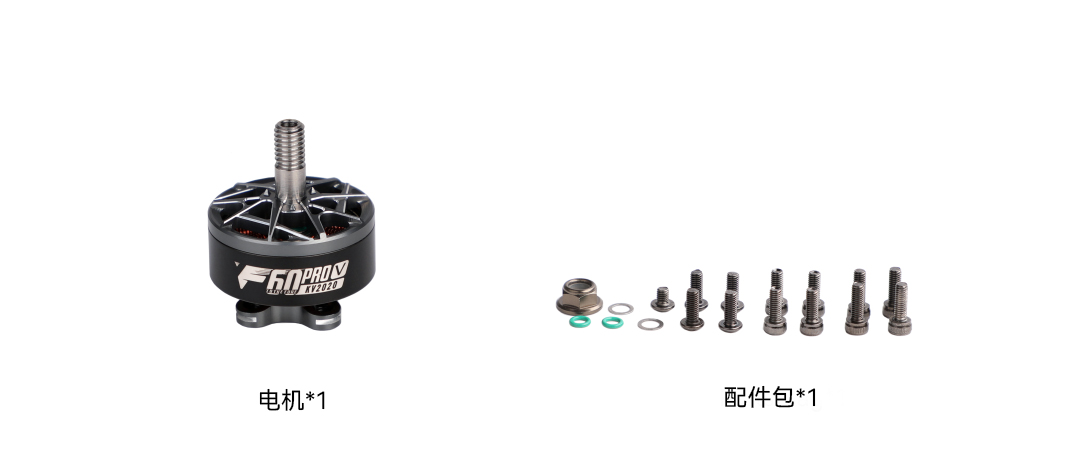

Packing List Includes:

1x T-HOBBY F60 PRO V Motor

4x Socket Head Screws

1x Prop Locknut

1x Shaft Screw

Matching Guide:

Mini Racer F7 Flight controller

Mini F60A ESC

T5146 FPV Drone propeller

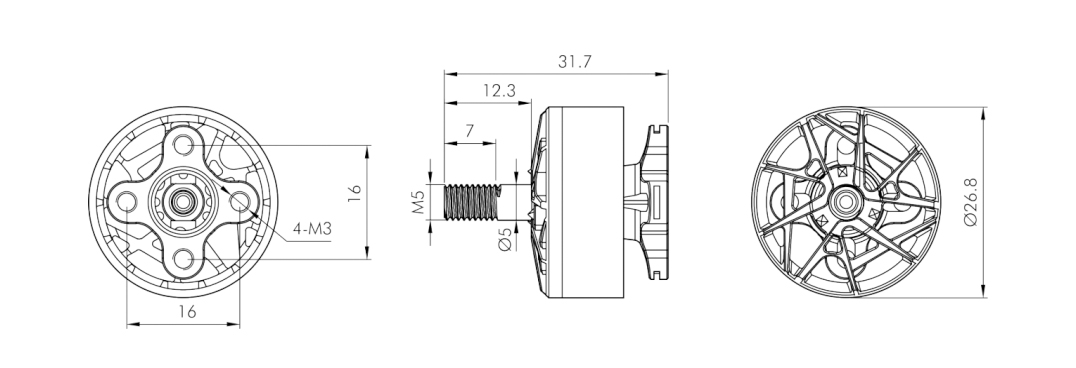

Technical Drawing

Specification

KV	1750KV	Configuration	12N14P
Shaft Diameter	4mm	Lead	20# 150mm
Weight (Incl. Cable)	34.3g	Voltage	25.2V
Idle Current（10V）	1.0A	Max. Power（10s）	1003W
Peak Current（10s）	40.5A

KV	1950KV	Configuration	12N14P
Shaft Diameter	4mm	Lead	20# 150mm
Weight (Incl. Cable)	33.9g	Voltage	25.2V
Idle Current（10V）	1.1A	Max. Power（10s）	1216W
Peak Current（10s）	49.3A

KV	2020KV	Configuration	12N14P
Shaft Diameter	4mm	Lead	20# 150mm
Weight (Incl. Cable)	33.8g	Voltage	25.2V
Idle Current（10V）	1.25A	Max. Power（10s）	1297W
Peak Current（10s）	52.7A

KV	2550KV	Configuration	12N14P
Shaft Diameter	4mm	Lead	20# 150mm
Weight (Incl. Cable)	33.3g	Voltage	16.8V
Idle Current（10V）	1.6A	Max. Power（10s）	825W
Peak Current（10s）	50.7A

Test Data

Propeller	Type	Throttle	Voltage (V)	Current (A)	RPM	Thrust (g)	Power (W)	Efficiency (g/W)
T-HOBBY T5147-3	1750KV	20%	25.2	2.1	11132	227.0	53.6	4.24
		40%	25.2	6.6	16928	558.6	165.2	3.38
		60%	25.1	13.7	21409	910.7	342.4	2.66
		80%	25.0	24.3	26122	1403.4	606.9	2.31
		100%	24.8	40.5	30527	1882.5	1002.8	1.88
	1950KV	20%	25.2	2.6	11979	257.8	65.9	3.91
		40%	25.2	8.6	18222	635.8	215.4	2.95
		60%	25.1	17.6	22540	996.7	441.3	2.26
		80%	24.9	30.5	27582	1559.5	758.4	2.06
		100%	24.7	49.3	31401	1990.4	1215.8	1.64
	2020KV	20%	25.2	2.7	12105	265.1	67.5	3.93
		40%	25.2	9.6	18557	667.1	240.2	2.78
		60%	25.0	19.8	22983	1054.7	494.3	2.13
		80%	24.9	33.7	28069	1636.1	837.9	1.95
		100%	24.6	52.7	31628	2025.5	1297.1	1.56
	2550KV	20%	16.8	2.9	10441	188.3	49.2	3.83
		40%	16.7	9.2	16163	492.1	153.4	3.21
		60%	16.6	18.3	20173	783.9	303.6	2.58
		80%	16.5	31.6	24339	1199.9	520.9	2.30
		100%	16.3	50.7	28250	1629.4	824.6	1.98
GF 51466-3	1750KV	20%	25.2	2.1	11954	222.9	52.7	4.23
		40%	25.2	6.8	18208	565.0	170.1	3.32
		60%	25.1	13.2	22349	877.6	330.2	2.66
		80%	25.0	22.1	27050	1340.0	551.8	2.43
		100%	24.8	37.7	31867	1829.2	935.5	1.96
	1950KV	20%	25.2	2.4	12682	254.8	60.6	4.20
		40%	25.2	8.5	19262	639.2	214.1	2.98
		60%	25.1	16.1	23495	981.0	404.4	2.43
		80%	24.9	28.2	28763	1530.8	703.0	2.18
		100%	24.7	46.9	33163	1958.3	1158.9	1.69
	2020KV	20%	25.2	2.6	13071	260.9	65.2	4.00
		40%	25.2	9.3	19740	654.2	233.6	2.80
		60%	25.1	17.3	24135	1014.5	433.0	2.34
		80%	24.9	31.1	29275	1558.0	773.5	2.01
		100%	24.7	51.1	33538	1973.4	1260.4	1.57
	2550KV	20%	16.8	2.9	11249	192.6	48.2	4.00
		40%	16.8	9.2	17276	496.7	153.3	3.24
		60%	16.7	16.9	21242	779.9	282.0	2.77
		80%	16.5	29.0	25404	1151.2	479.0	2.40
		100%	16.3	47.6	29502	1610.7	775.6	2.08

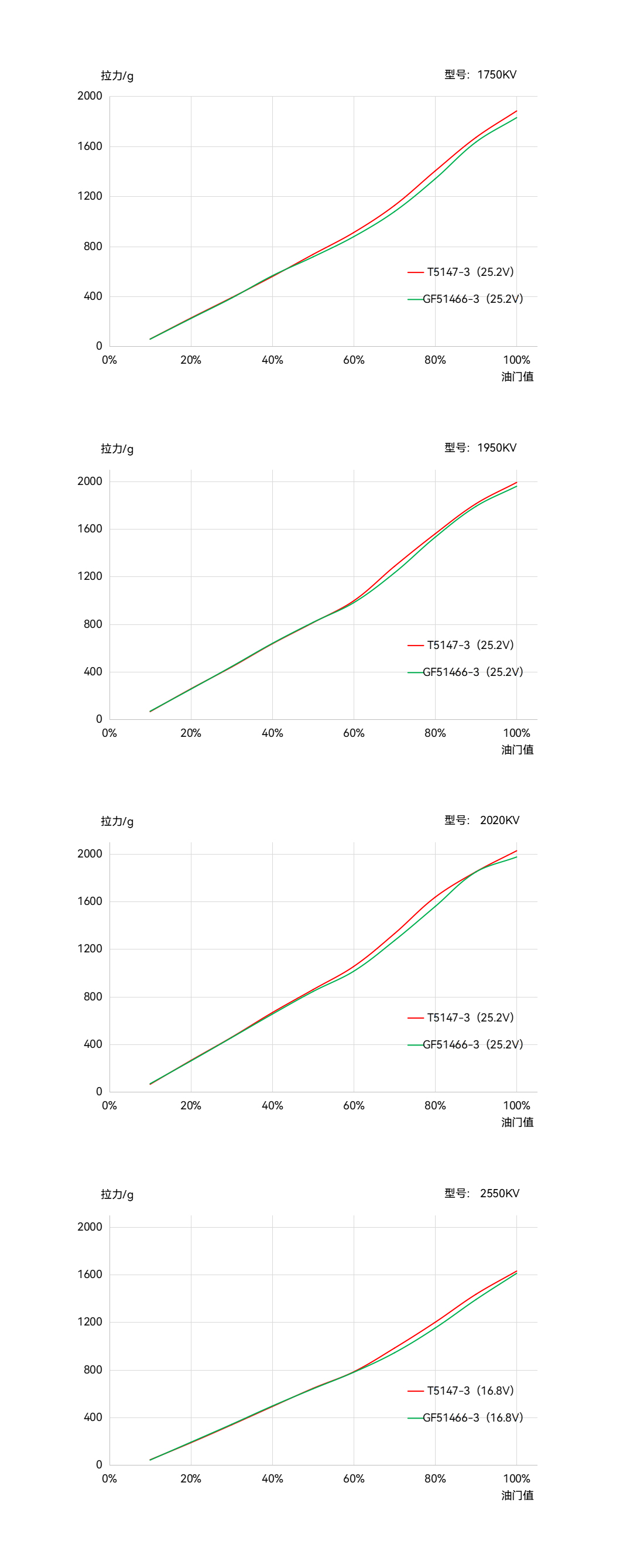

Analysis Chart

Packing List

Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
