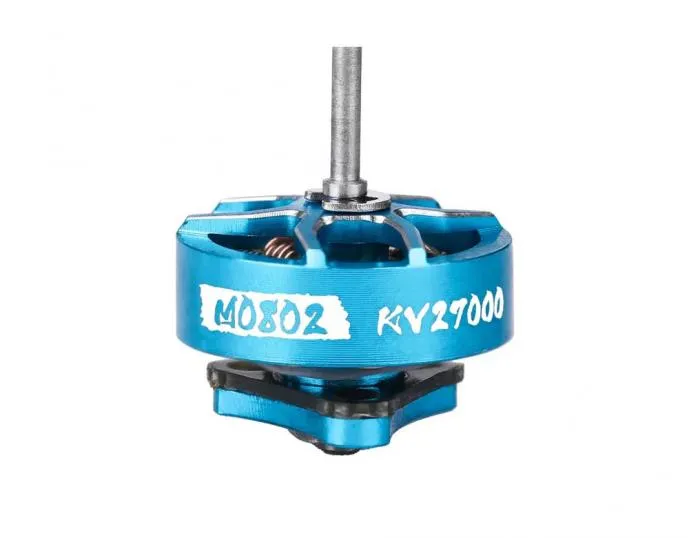

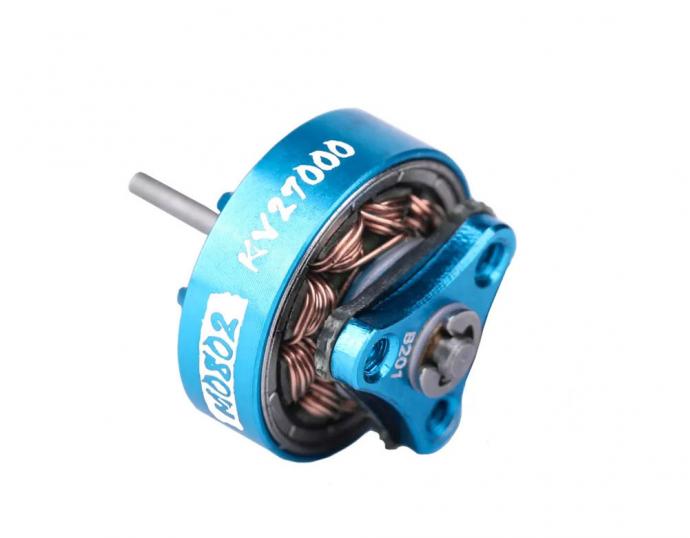

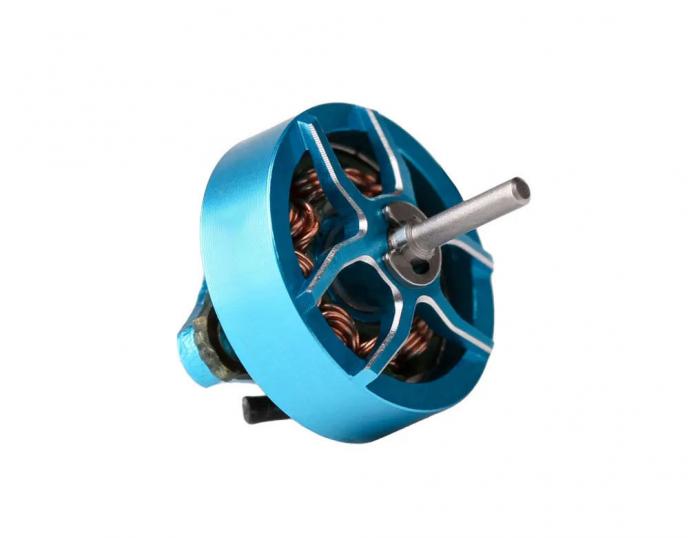

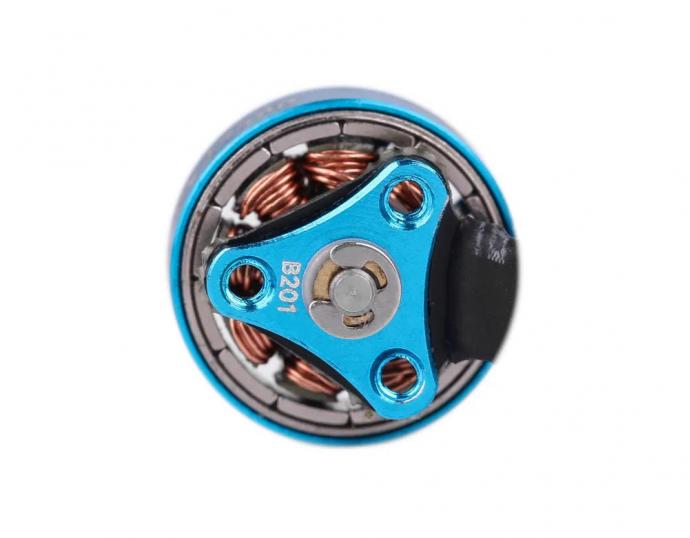

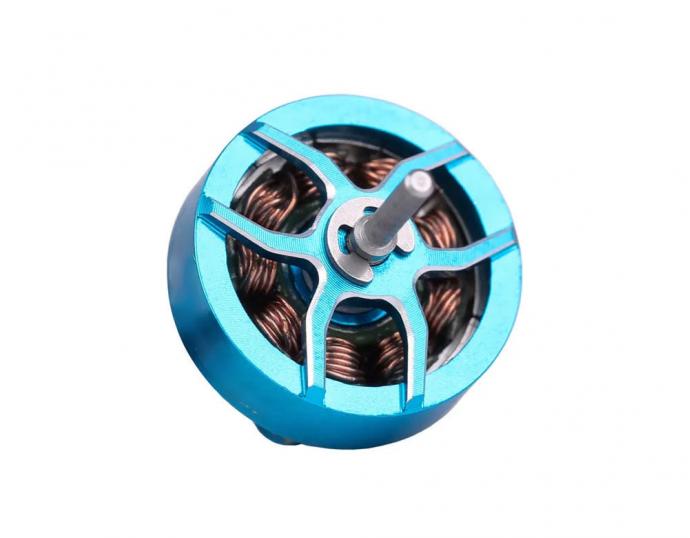

Name: T-HOBBY M0802 KV27000 65-75mm Tinywhoop Indoor Racing FPV Motor
Brand: LIGPOWER
SKU: ligpower001328
Price: 10.90 USD
Availability: InStock

Relevant Products

Detail information
Specifications

About T-HOBBY Mirco M0802 Indoor racing&freestyle Motor

Discover a motor that is more resistant to crashes and provides ultimate performance.

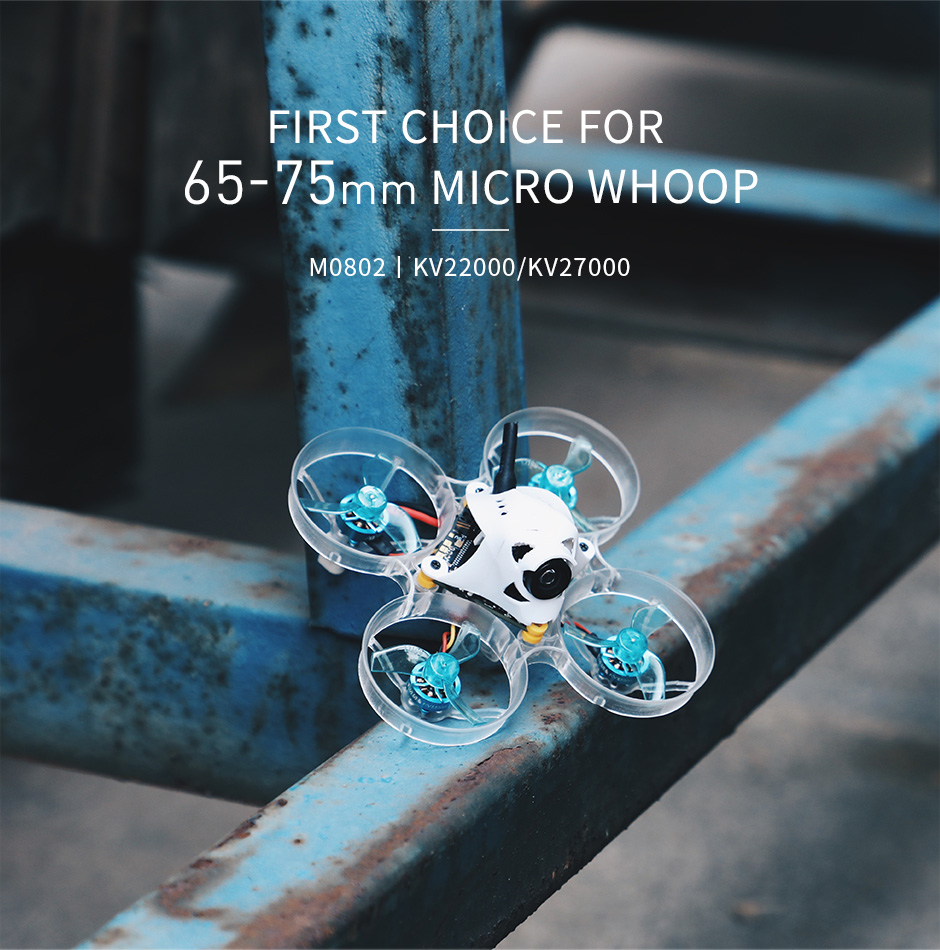

The T-HOBBY M0802 Tinywhoop Brushless Motor has a rated voltage of 1S. Making it perfect for your 65-75MM Whoop racing drone.

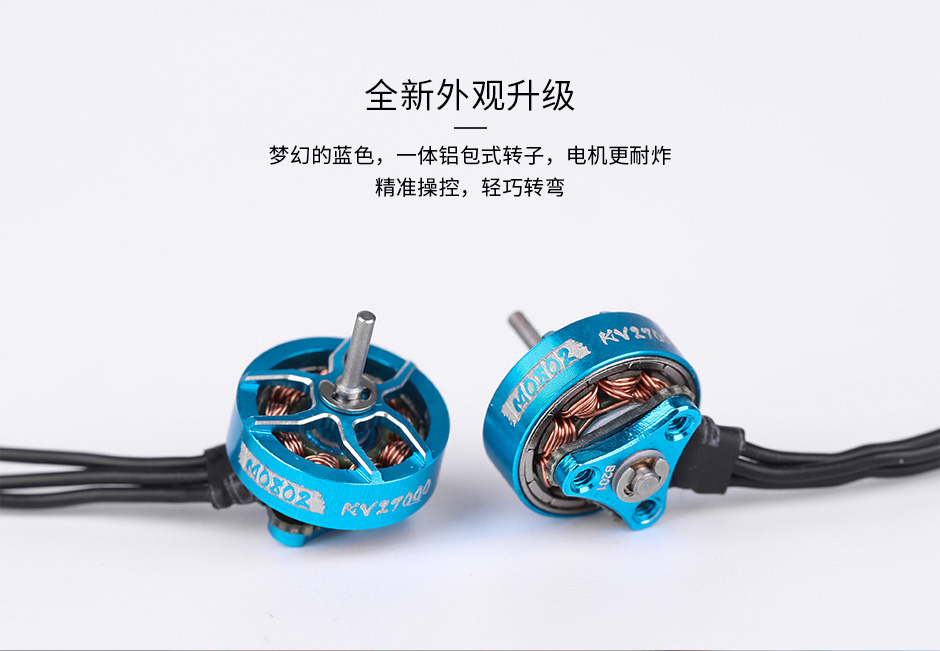

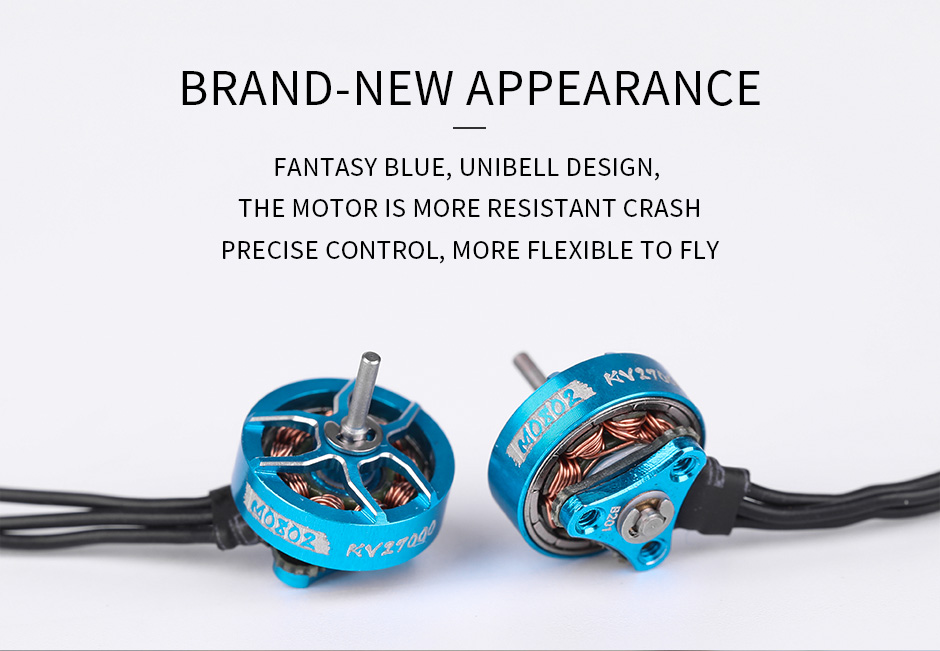

Its unibell design in fantasy blue and silver adds a stylish touch that is sure to dazzle! Soar through the sky with confidence.

Mirco M0802 Hightlight:

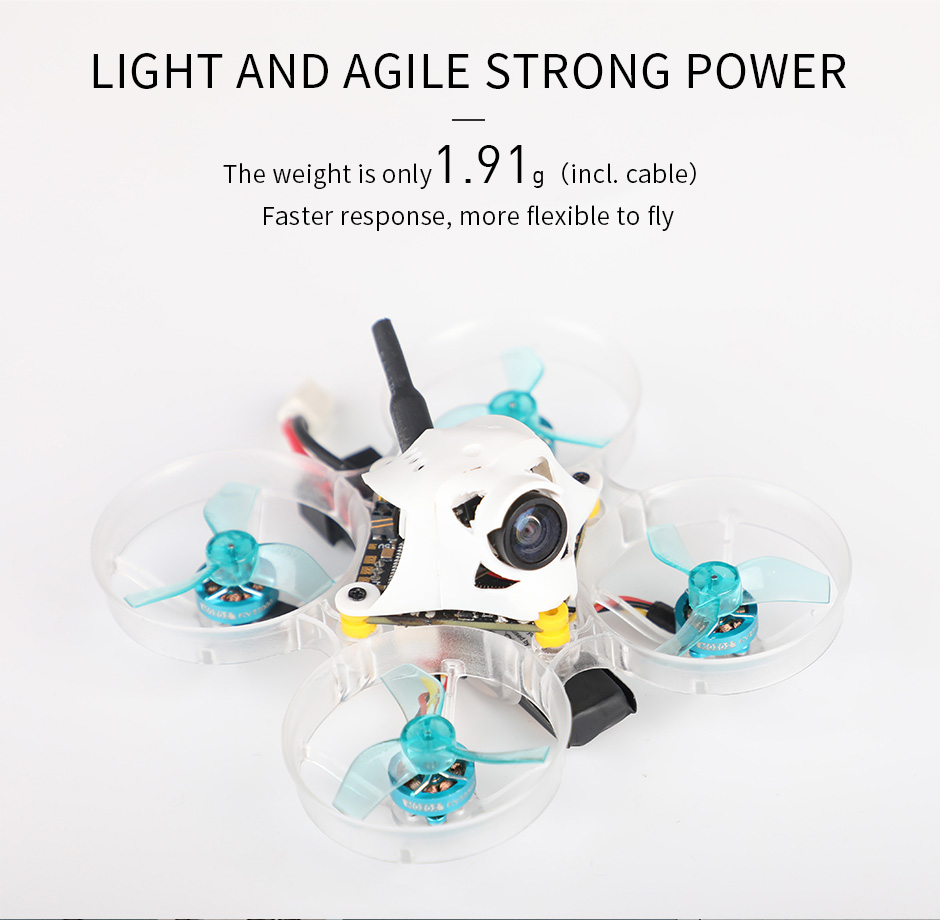

The M0802 brushless motor with 4 different KVs: 19000KV, 22000KV, 25000KV and 27000KV Suitable for 65-75mm tinywhoop. Fantasy blue and silver unibell design, more durable. With PCB lead wire to avoid motor scrapping. Agile and powerful, weight only 1.8g (Incl. cable), fast response.

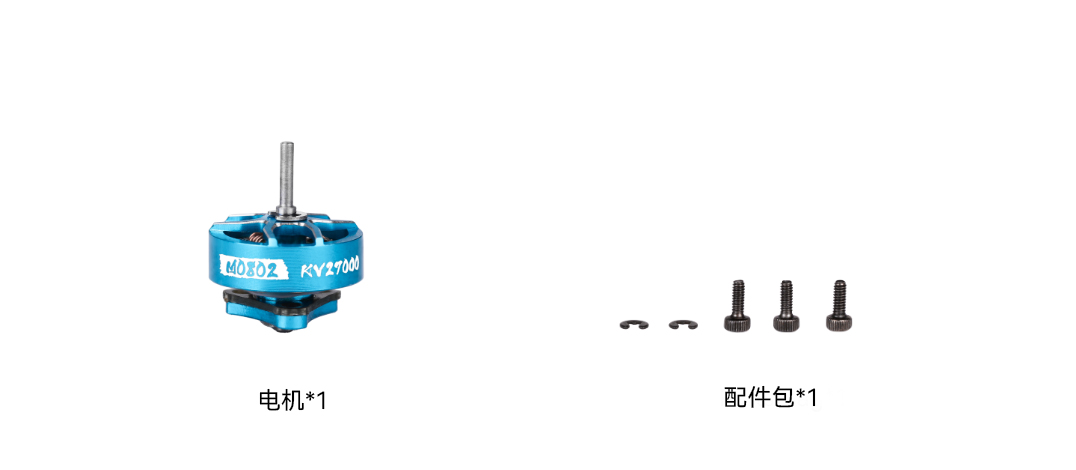

Packing List Includes:

1x T-HOBBY M0802II Micro Motor

1x Hardware Set

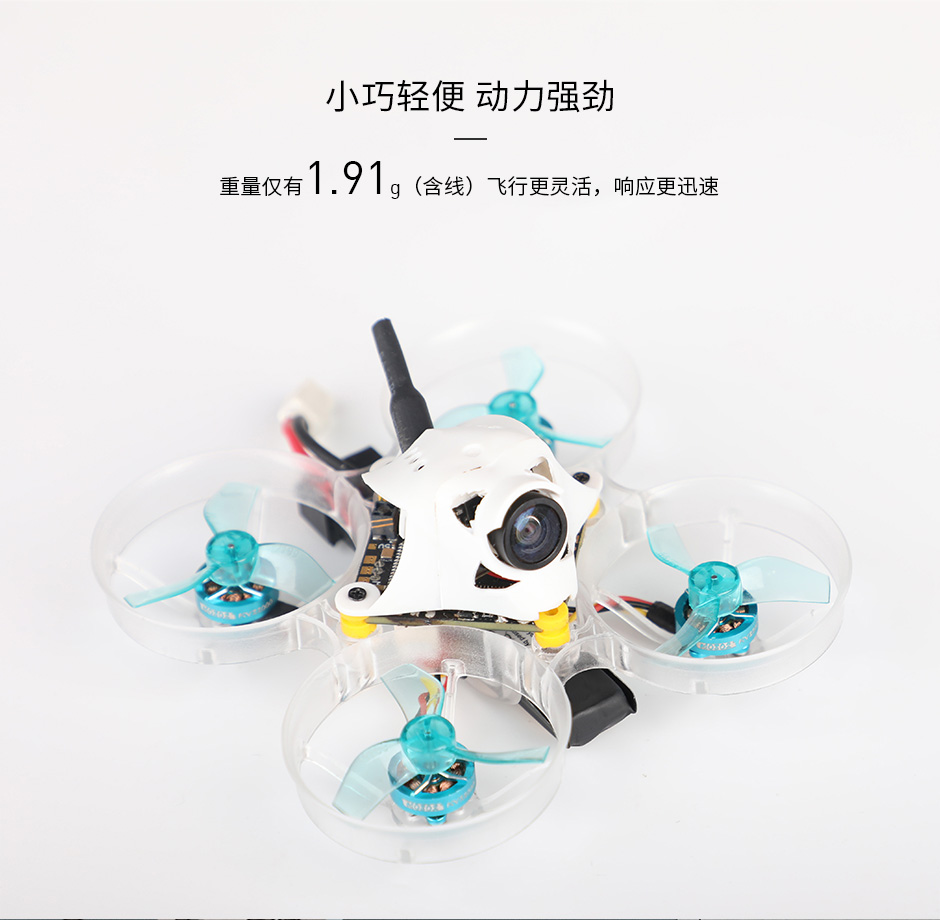

Matching Frame:

65-75mm

Matching Guide:

F411 aio 1s 13a / F411 aio 1s 6a

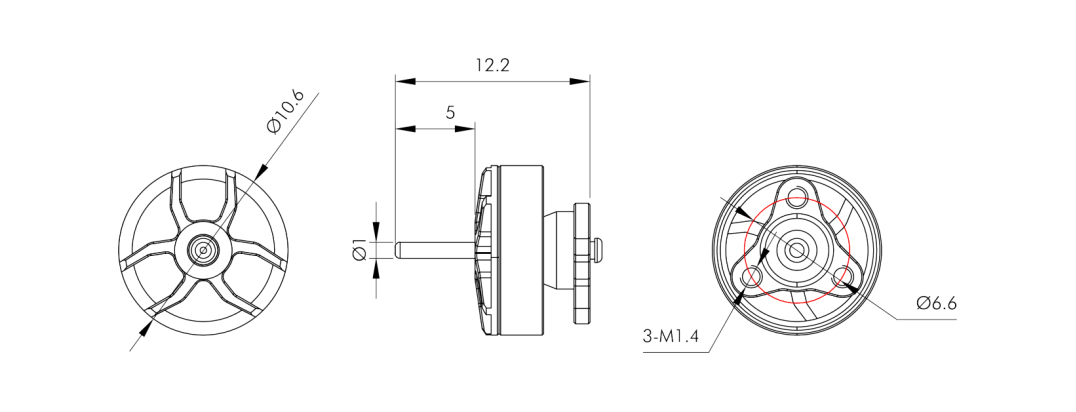

Technical Drawing

Specification

KV	KV27000	Configuration	9N12P
Shaft Diameter	IN:1.5mm OUT:1mm	Lead	XH-3P/1.25 30mm
Weight (Incl. Cable)	1.78g	Voltage	3.7V
Idle Current（10V）	0.62A	Max. Power（10s）	21W
Peak Current（10s）	5.65A

Test Data

Propeller	Type	Throttle	Voltage (V)	Current (A)	RPM	Thrust (g)	Power (W)	Efficiency (g/W)
M12199-3	KV27000	10%	3.7	0.3	/	0.3	1.0	0.26
		20%	3.7	0.7	/	1.8	2.7	0.70
		30%	3.7	1.2	/	6.0	4.3	1.38
		40%	3.7	1.7	/	9.6	6.3	1.51
		50%	3.7	2.2	/	13.0	8.3	1.57
		60%	3.7	2.8	/	17.3	10.1	1.71
		70%	3.7	3.2	/	20.8	11.8	1.77
		80%	3.7	3.6	/	23.3	13.3	1.76
		90%	3.7	4.2	/	25.9	15.2	1.71
		100%	3.6	5.1	/	30.7	18.5	1.66

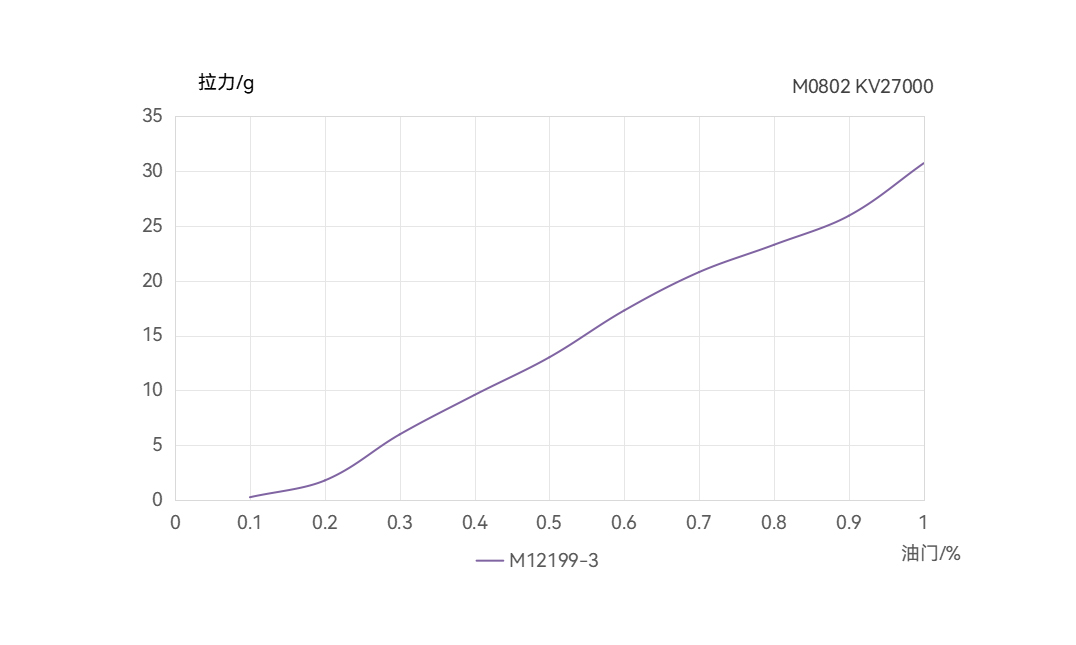

Analysis Chart

Packing List

Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
