Name: T-MOTOR MN3110 High-Performance UAV Motor for Aerial Photography KV470/KV700/KV780
Brand: LIGPOWER
SKU: LIGPOWER001628
Price: 61.90 USD
Availability: InStock

T-MOTOR MN3110 High-Performance UAV Motor for Aerial Photography KV470/KV700/KV780

61.90

Available points: 3000 Points Points reward: 61 Points

• High Strength Construction
• Super Balance

Parameter：

KV470
KV700
KV780

Quantity：

61.90

Free Shipping by DHL/UPS Express

Relevant Products

T-MOTOR AIR 20A 3-4S ESC for Multirotor UAVs

$19.99
T-MOTOR AIR 40A 2-6S ESC for Multirotor UAVs

$39.99
T-MOTOR P13*4.4 Prop-2PCS/PAIR

$41.9
T-MOTOR P14*4.8 Prop-2PCS/PAIR

$48.9
T-MOTOR P15*5 Prop-2PCS/PAIR

$55.9
T-MOTOR MS1302-2PCS/PAIR

$16.99
T-MOTOR MF1302-2PCS/PAIR

$29.9

Detail information
Specifications

About T-MOTOR MN3110 Multirotor Fixed Wing UAV Motor KV470/KV700/KV780

T-MOTOR MN3110 KV470/KV700/KV780 Navigator Series Brushless Motor is a high-quality, durable motor designed for reliable performance in aerial photography and various multi-rotor, VTOL, and fixed-wing applications. Key features include smooth operation, high-quality EZO bearings for extended lifespan (MTBF ~1000 hours), and a maximum thrust of 1.2kg. Optimized for efficiency and long flight times, it's recommended for use with a T-MOTOR P15*5'' propeller. The "Navigator" series emphasizes reliability and robust construction for dependable aerial platforms.

Navigator MN3110 Highlights:

Max. thrust:1.2kg
MTBF：About1000hours
Features：Super Balance; High Strength Construction

Application Areas：

Multi-rotors, VTOL, and Fixed-wing UAVs.

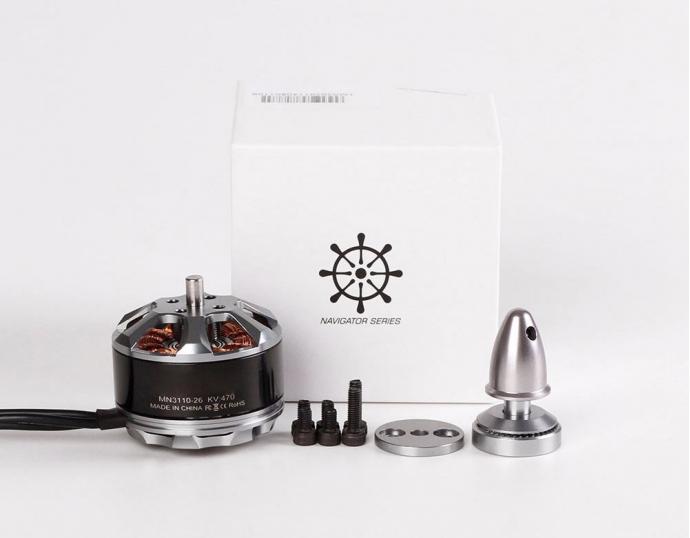

Packing List Includes:

1x T-MOTOR MN3110 Motor KV780 KV92( kv which you choose)

1x Hardware pack

Matching Guide:

T-MOTOR P15*5 Prop / Air 20A 3-4S ESC

If you have any questions or inquires, please contact us: onlinesales@ligpower.com

Technical Drawing

Specification Export to Excel

Test Item	MN3110 KV470	Configuration	12N14P
Internal Resistance	135mΩ	Motor Dimensions	Φ37.7×28.5mm
Shaft Diameter	4mm	Stator Height	10mm
Stator Diameter	31mm	Cable Length	600mm
AWG	18#	Weight Excluding Cables	80g
Weight Including Cables	98g	Idle Current@10v	0.3A
No.of Cells(Lipo)	3-6S	Max Continuous Current 180S	15A
Max Power (180S)	330W

Test Item	MN3110 KV700	Configuration	12N14P
Internal Resistance	92mΩ	Motor Dimensions	Φ37.7×28.5mm
Shaft Diameter	4mm	Stator Height	10mm
Stator Diameter	31mm	Cable Length	600mm
AWG	18#	Weight Excluding Cables	80g
Weight Including Cables	99g	Idle Current@10v	0.3A
No.of Cells(Lipo)	3-6S	Max Continuous Current 180S	21A
Max Power (180S)	466W

Test Item	MN3110 KV780	Configuration	12N14P
Internal Resistance	71mΩ	Motor Dimensions	Φ37.7×28.5mm
Shaft Diameter	4mm	Stator Height	10mm
Stator Diameter	31mm	Cable Length	600mm
AWG	18#	Weight Excluding Cables	80g
Weight Including Cables	100g	Idle Current@10v	0.4A
No.of Cells(Lipo)	3-6S	Max Continuous Current 180S	26A
Max Power (180S)	481W

Test Data Export to Excel

Item No.	Voltage (V)	Prop	Throttle	Current (A)	Power (W)	Thrust (G)	RPM	Efficiency (G/W)	Operating Temperature (℃)
MN3110 KV470	14.8	T-MOTOR 13*4.4CF	50%	1.5	22.20	290	3300	13.06	40
			65%	2.6	38.48	410	4000	10.65
			75%	3.5	51.80	550	4600	10.62
			85%	4.9	72.52	680	5200	9.38
			100%	5.8	85.84	780	5500	9.09
		T-MOTOR 14*4.8CF	50%	2.0	29.60	370	3000	12.50	50
			65%	3.5	51.80	600	3800	11.58
			75%	5.0	74.00	790	4300	10.68
			85%	7.0	103.60	990	4800	9.56
			100%	8.0	118.40	1090	5050	9.21
		T-MOTOR 15*5CF	50%	2.2	32.56	460	2800	14.13	53
			65%	4.3	63.64	730	3600	11.47
			75%	6.2	91.76	930	4100	10.14
			85%	8.2	121.36	1100	4500	9.06
			100%	9.5	140.60	1220	4800	8.68
	22.2	T-MOTOR 10*3.3CF	50%	1.5	33.30	350	5500	10.51	41
			65%	2.5	55.50	500	6500	9.01
			75%	3.5	77.70	630	7300	8.11
			85%	4.8	106.56	780	8300	7.32
			100%	5.3	117.66	890	8600	7.56
		T-MOTOR 11*3.7CF	50%	1.9	42.18	430	4900	10.19	44
			65%	3.5	77.70	690	6300	8.88
			75%	5.0	111.00	860	7100	7.75
			85%	6.3	139.86	1030	7700	7.36
			100%	7.4	164.28	1110	8200	6.76
Notes:The test condition of temperature is motor surface temperature at 100% throttle while the motor run 10min.
MN3110 KV700	11.1	T-MOTOR 11*3.7CF	50%	1.8	19.98	280	3900	14.01	39
			65%	3	33.30	380	4600	11.41
			75%	4.3	47.73	500	5500	10.48
			85%	5.6	62.16	600	6000	9.65
			100%	6.9	76.59	700	6400	9.14
		T-MOTOR 12*4CF	50%	2.1	23.31	320	3600	13.73	39
			65%	3.7	41.07	500	4500	12.17
			75%	5.3	58.83	630	5000	10.71
			85%	7.2	79.92	780	5700	9.76
			100%	8.9	98.79	890	6100	9.01
		T-MOTOR 13*4.4CF	50%	2.4	26.64	320	3500	12.01	45
			65%	4.3	47.73	480	4500	10.06
			75%	6.3	69.93	680	5000	9.72
			85%	8.5	94.35	880	5600	9.33
			100%	10.2	113.22	980	6000	8.66
	14.8	T-MOTOR 10*3.3CF	50%	2.3	34.04	320	5500	9.40	42
			65%	3.5	51.80	430	6500	8.30
			75%	5	74.00	560	7100	7.57
			85%	6.8	100.64	700	8000	6.96
			100%	8.1	119.88	800	8600	6.67
		T-MOTOR 11*3.7CF	50%	2.6	38.48	350	4900	9.10	42
			65%	4.7	69.56	560	6000	8.05
			75%	6.5	96.20	720	6900	7.48
			85%	9	133.20	880	7600	6.61
			100%	10	148.00	1030	8100	6.96
		T-MOTOR 12*4CF	50%	3.2	47.36	420	4800	8.87	47
			65%	6.2	91.76	790	5700	8.61
			75%	8.5	125.80	930	6500	7.39
			85%	11.6	171.68	1190	7200	6.93
			100%	14	207.20	1290	7600	6.23
Notes:The test condition of temperature is motor surface temperature at 100% throttle while the motor run 10min.
MN3110 KV780	11.1	T-MOTOR 11*3.7CF	50%	2.3	25.53	260	4300	10.18	40
			65%	4.1	45.51	400	5300	8.79
			75%	5.7	63.27	530	6000	8.38
			85%	7.7	85.47	660	6800	7.72
			100%	9.4	104.34	750	7100	7.19
		T-MOTOR 12*4CF	50%	2.7	29.97	320	4000	10.68	44
			65%	5.1	56.61	530	5000	9.36
			75%	7.5	83.25	700	5700	8.41
			85%	9.8	108.78	840	6300	7.72
			100%	12	133.20	990	6700	7.43
	14.8	T-MOTOR 9*3CF	50%	2.7	39.96	300	6800	7.51	41
			65%	3.6	53.28	380	7500	7.13
			75%	4.8	71.04	460	8500	6.48
			85%	6.6	97.68	590	9200	6.04
			100%	8	118.40	680	10000	5.74
		T-MOTOR 10*3.3CF	50%	3.1	45.88	360	6000	7.85	42
			65%	4.8	71.04	530	7000	7.46
			75%	6.8	100.64	660	8000	6.56
			85%	9.2	136.16	850	8800	6.24
			100%	11	162.80	980	9500	6.02
		T-MOTOR 11*3.7CF	50%	3.4	50.32	430	5500	8.55	45
			65%	6.5	96.20	700	6700	7.28
			75%	9.2	136.16	880	7600	6.46
			85%	12.4	183.52	1100	8500	5.99
			100%	14.9	220.52	1260	9000	5.71
Notes:The test condition of temperature is motor surface temperature at 100% throttle while the motor run 10min.

Packing List


Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
