Name: MN3508 High-Performance UAV Motor for Aerial Photography KV380/KV580/KV700
Brand: LIGPOWER
SKU: AWD010100841
Price: 69.90 USD
Availability: InStock

Relevant Products

AIR 20A 3-4S ESC for Multirotor UAVs

$19.99
AIR 40A 2-6S ESC for Multirotor UAVs | LIGPOWER®

$39.99
P13*4.4 Prop-2PCS/PAIR

$41.9
P14*4.8 Prop-2PCS/PAIR

$48.9
P15*5 Prop-2PCS/PAIR

$55.9

Detail information
Specifications

About LIGPOWER MN3508 Multirotor Fixed Wing UAV Motor KV380/KV580/KV700

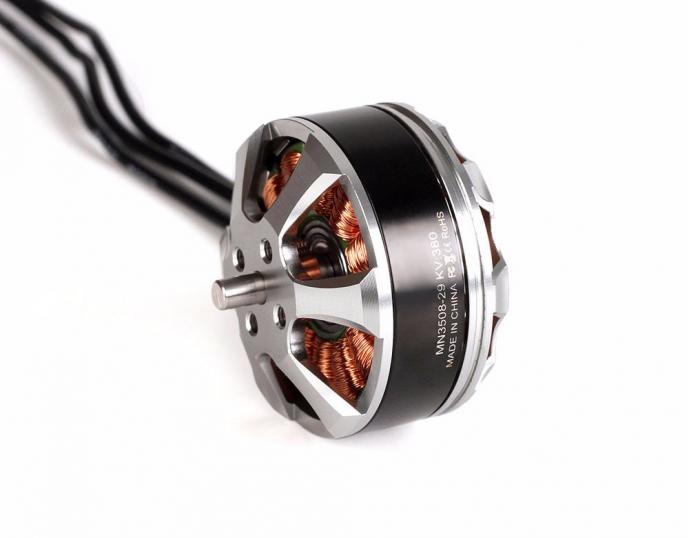

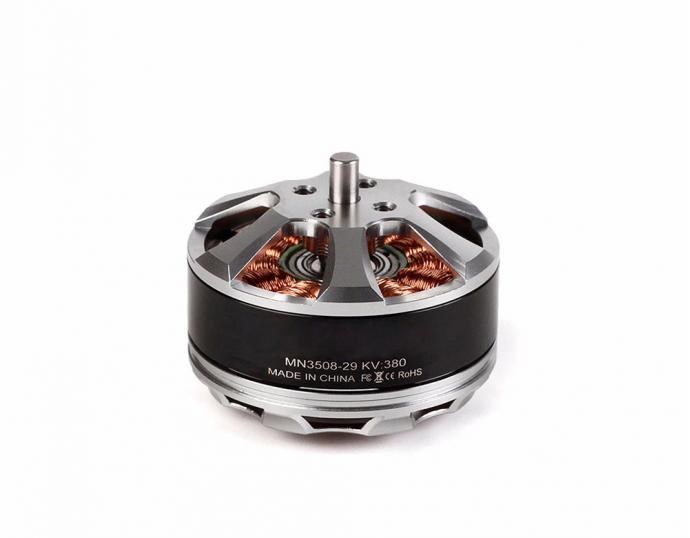

LIGPOWER MN3508 KV380 brushless motor, part of the Navigator Series, is engineered for high-performance aerial photography and UAV applications.

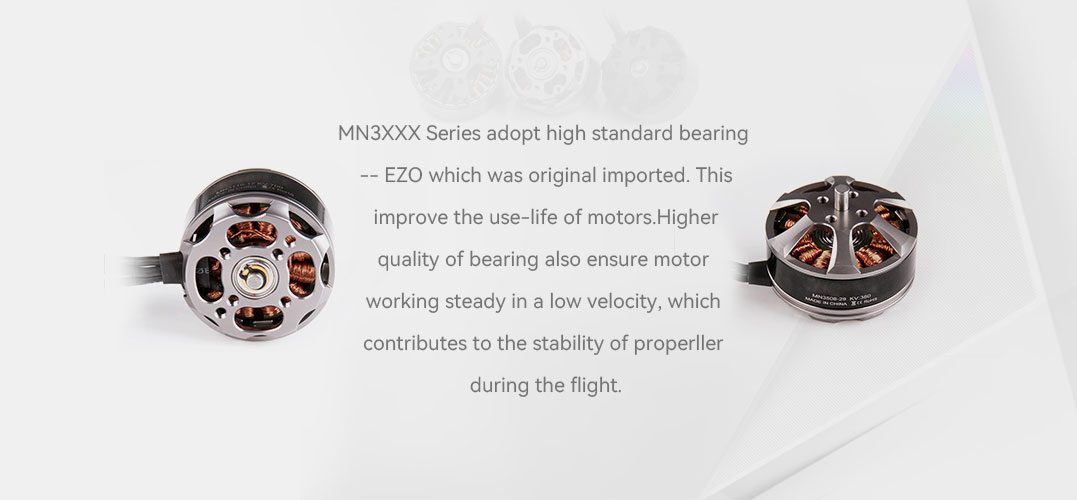

Featuring a smooth-running design with superior EZO bearings, it ensures stable flight at low speeds, extending motor lifespan and enhancing propeller stability.

Offering a maximum thrust of 1.8kg and an MTBF of approximately 1000 hours, the MN3508 is a reliable choice for multirotors, VTOL, and fixed-wing systems.

Ideal for use with LIGPOWER P15*5 props, it delivers exceptional balance and strength for demanding aerial tasks.

Navigator MN3508 Highlights:

Max. thrust:1.8kg
MTBF：About1000hours
Features：Super Balance; High Strength Construction

Application Areas：

Multi-rotors, VTOL, and Fixed-wing UAVs.

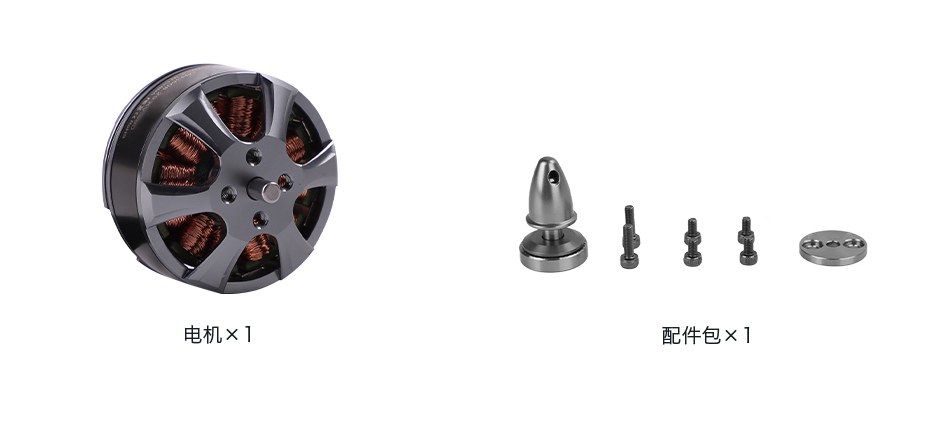

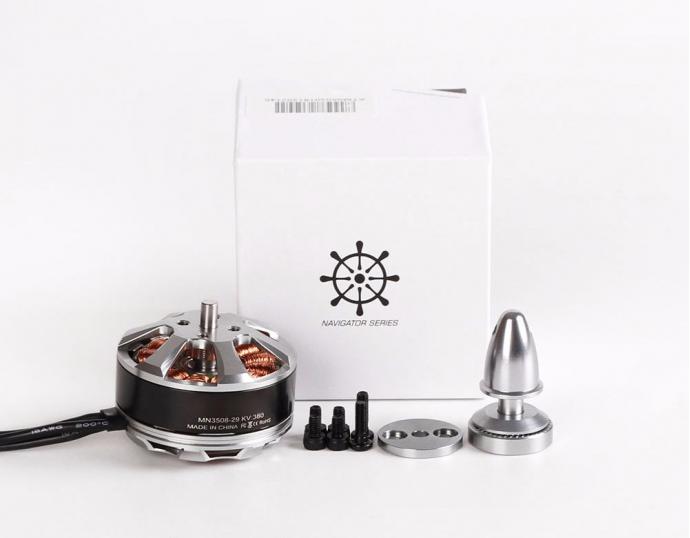

Packing List Includes:

1x LIGPOWER MN3508 Motor KV380/KV580/KV700( kv which you choose)

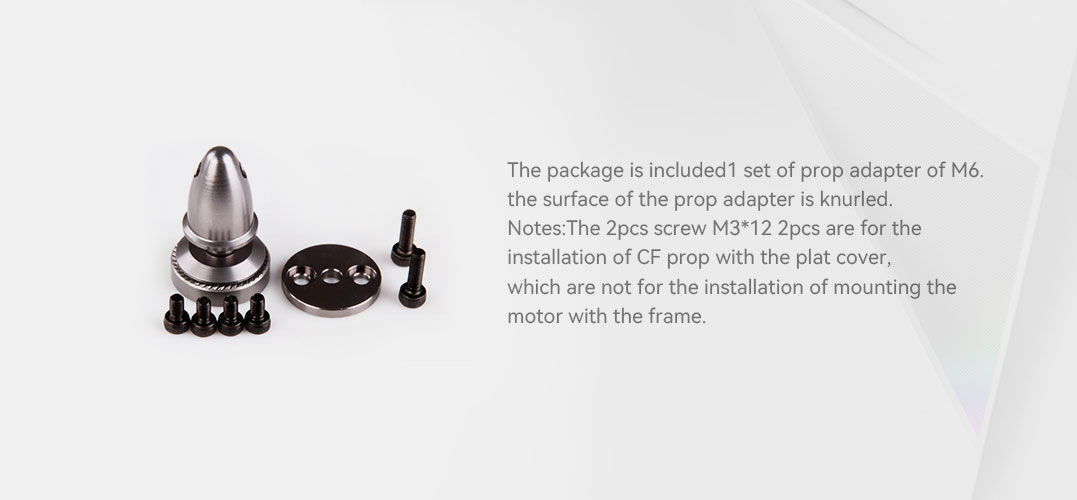

1x Hardware pack

Matching Guide:

LIGPOWER P15*5 Prop / Air 20A 3-4S ESC

If you have any questions or inquires, please contact us: onlinesales@ligpower.com

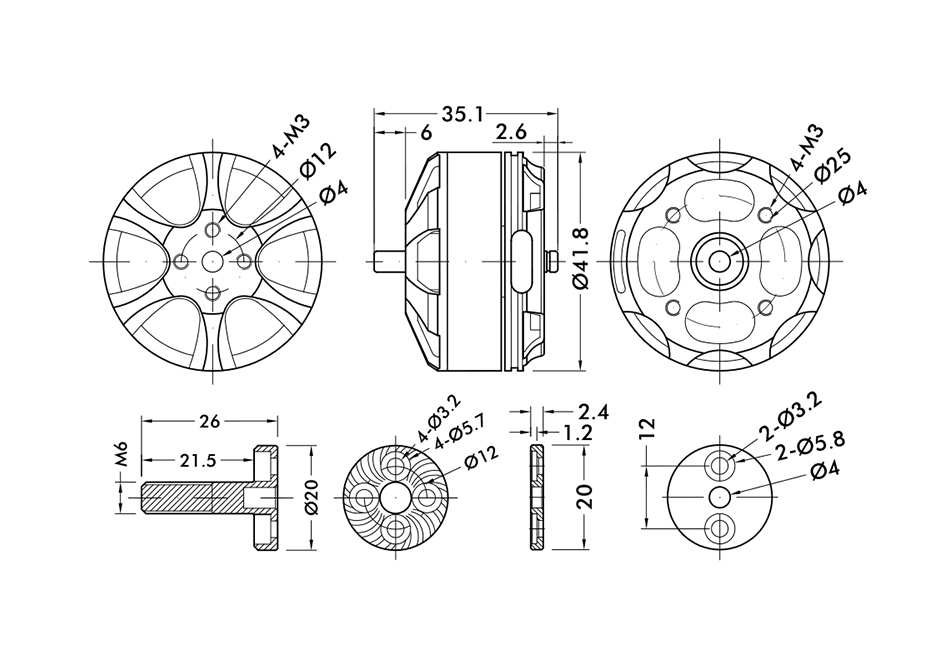

Technical Drawing

Specification

Test Item	MN3508 KV380	Configuration	12N14P
Internal Resistance	205mΩ	Motor Dimensions	Φ41.8×26.5mm
Shaft Diameter	4mm	Stator Height	8mm
Stator Diameter	35mm	Cable Length	600mm
AWG	18#	Weight Excluding Cables	82g
Weight Including Cables	103g	Idle Current@10v	0.4A
No.of Cells(Lipo)	3-6S	Max Continuous Current 180S	14A
Max Power (180S)	310W

Test Item	MN3508 KV580	Configuration	12N14P
Internal Resistance	110mΩ	Motor Dimensions	Φ41.8×26.5mm
Shaft Diameter	4mm	Stator Height	8mm
Stator Diameter	35mm	Cable Length	600mm
AWG	18#	Weight Excluding Cables	82g
Weight Including Cables	103g	Idle Current@10v	0.4A
No.of Cells(Lipo)	3-4S	Max Continuous Current 180S	18A
Max Power (180S)	400W

Test Item	MN3508 KV700	Configuration	12N14P
Internal Resistance	72mΩ	Motor Dimensions	Φ41.8×26.5mm
Shaft Diameter	4mm	Stator Height	8mm
Stator Diameter	35mm	Cable Length	600mm
AWG	18#	Weight Excluding Cables	82g
Weight Including Cables	104g	Idle Current@10v	0.5A
No.of Cells(Lipo)	3-4S	Max Continuous Current 180S	23A
Max Power (180S)	510W

Test Data

Item No.	Voltage (V)	Prop	Throttle	Current (A)	Power (W)	Thrust (G)	RPM	Efficiency (G/W)	Operating Temperature (℃)
MN3508 KV380	14.8	LIGPOWER 14*4.8CF	50%	1.3	19.24	350	2700	18.19	43
			65%	2.9	42.92	560	3500	13.05
			75%	4	59.2	700	4000	11.82
			85%	5.2	76.96	840	4500	10.91
			100%	6.3	93.24	940	4700	10.08
		LIGPOWER 15*5CF	50%	1.6	23.68	430	2600	18.16	45
			65%	3.4	50.32	670	3400	13.31
			75%	5	74	820	3800	11.08
			85%	6.4	94.72	1000	4200	10.56
			100%	7.5	111	1100	4500	9.91
		LIGPOWER 16*5.4CF	50%	2	29.6	440	2500	14.86	46
			65%	3.9	57.72	700	3300	12.13
			75%	5.9	87.32	900	4000	10.31
			85%	7.6	112.48	1100	4500	9.78
			100%	9	133.2	1220	4800	9.16
	22.2	LIGPOWER 12*4CF	50%	1.7	37.74	430	4400	11.39	40
			65%	3.2	71.04	660	5400	9.29
			75%	4.6	102.12	870	6200	8.52
			85%	6.1	135.42	1040	6800	7.68
			100%	7.1	157.62	1160	7300	7.36
		LIGPOWER 13*4.4CF	50%	2.1	46.62	550	4300	11.80	47
			65%	3.7	82.14	810	5300	9.86
			75%	5.5	122.1	1000	6000	8.19
			85%	7.1	157.62	1300	6700	8.25
			100%	8.4	186.48	1380	7040	7.40
		LIGPOWER 14*4.8CF	50%	2.9	64.38	710	4300	11.03	63
			65%	5.3	117.66	1100	5300	9.35
			75%	7.5	166.5	1350	5700	8.11
			85%	9.8	217.56	1580	6000	7.26
			100%	11.5	255.3	1730	6500	6.78
		LIGPOWER 15*5CF	50%	3.6	79.92	820	3900	10.26	70
			65%	6.1	135.42	1200	4800	8.86
			75%	9.5	210.9	1500	5300	7.11
			85%	11.3	250.86	1700	5700	6.78
			100%	13.3	295.26	1880	5900	6.37
Notes:The test condition of temperature is motor surface temperature at 100% throttle while the motor run 10min.
MN3508 KV580	14.8	LIGPOWER 12*4CF	50%	2.2	32.56	360	4000	11.06	43
			65%	4.2	62.16	600	5200	9.65
			75%	6.1	90.28	770	5900	8.53
			85%	8	118.40	910	6500	7.69
			100%	9.6	142.08	1050	7000	7.39
		LIGPOWER 13*4.4CF	50%	2.6	38.48	450	4000	11.69	43
			65%	5	74.00	710	5200	9.59
			75%	7	103.60	900	5700	8.69
			85%	9.3	137.64	1120	6300	8.14
			100%	11.3	167.24	1230	6600	7.35
		LIGPOWER 14*4.8CF	50%	3.7	54.76	600	3800	10.96	55
			65%	7	103.60	930	4600	8.98
			75%	9.7	143.56	1150	4900	8.01
			85%	12.9	190.92	1350	5700	7.07
			100%	15.2	224.96	1520	6100	6.76
Notes:The test condition of temperature is motor surface temperature at 100% throttle while the motor run 10min.
MN3508 KV700	11.1	LIGPOWER 12*4CF	50%	2.3	25.53	280	3800	10.97	42
			65%	4.5	49.95	460	4900	9.21
			75%	6.3	69.93	620	5300	8.87
			85%	8.4	93.24	790	6000	8.47
			100%	10.2	113.22	860	6400	7.60
		LIGPOWER 13*4.4CF	50%	2.6	28.86	330	3600	11.43	44
			65%	5.2	57.72	560	4600	9.70
			75%	7.4	82.14	720	5300	8.77
			85%	9.8	108.78	880	5800	8.09
			100%	12	133.20	1020	6200	7.66
	14.8	LIGPOWER 11*3.7CF	50%	3.1	45.88	380	5300	8.28	41
			65%	5.6	82.88	630	6500	7.60
			75%	7.9	116.92	780	7200	6.67
			85%	10.5	155.40	960	8000	6.18
			100%	12.7	187.96	1110	8500	5.91
		LIGPOWER 12*4CF	50%	3.8	56.24	460	4700	8.18	48
			65%	7.4	109.52	800	6300	7.30
			75%	10	148.00	1000	6900	6.76
			85%	13.5	199.80	1200	7500	6.01
			100%	16.1	238.28	1360	8100	5.71
Notes:The test condition of temperature is motor surface temperature at 100% throttle while the motor run 10min.

Packing List


Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
