T-MOTOR MN801-S KV150 Waterproof UAV Motor with 12kg Max Thrust

249.99

Available points: 12000 Points Points reward: 249 Points

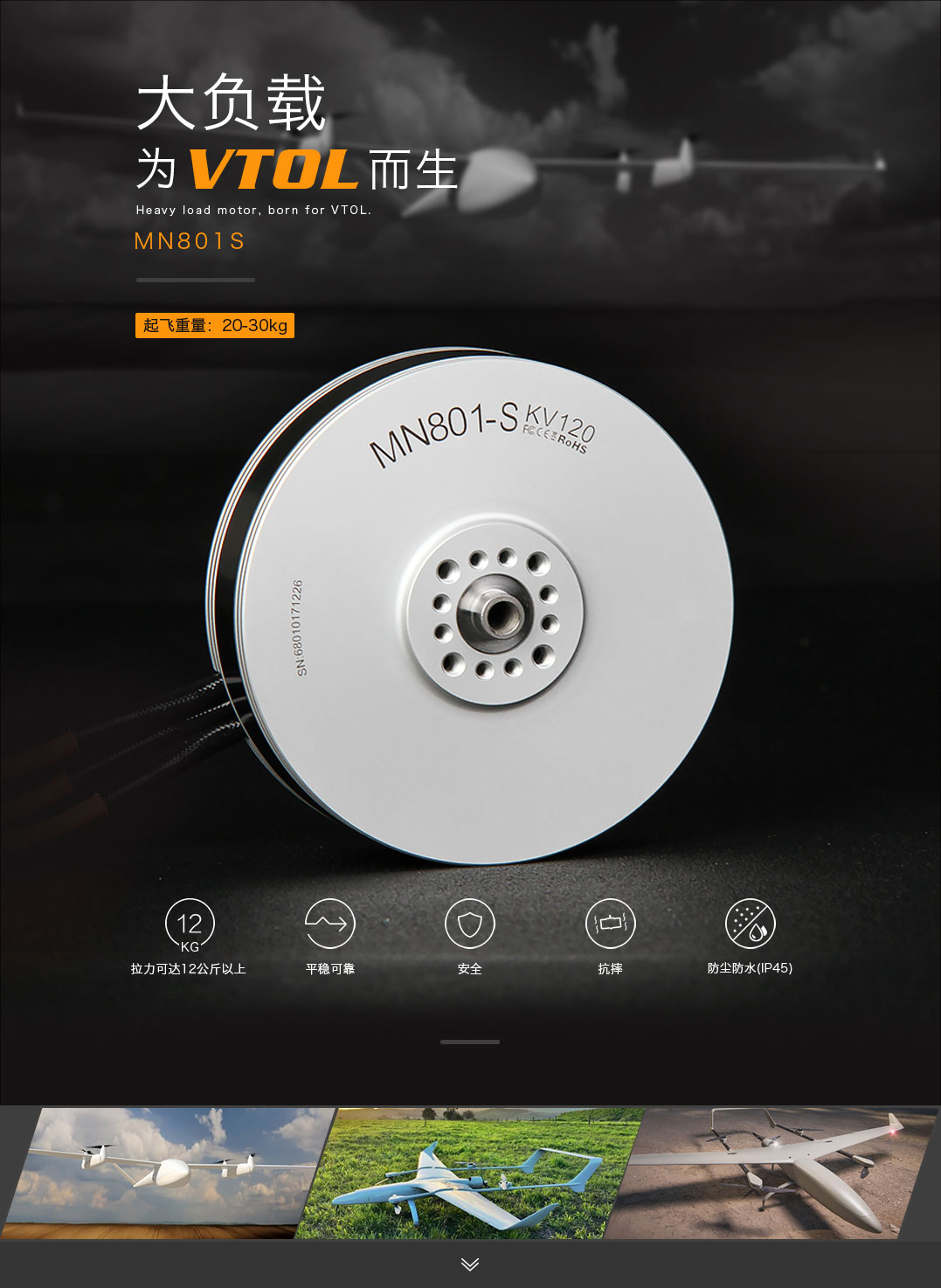

• Heavy load motor,born for VTOL
• Long service life
• Excellent cooling performance
• Anti-high temperature/Anti-overload
• Dust-resistance/Waterproof/Anti-corrosion

Parameter：

KV120
KV150

Quantity：

249.99

Free Shipping by DHL/UPS Express

Relevant Products

T-MOTOR G26*8.5 Prop-2PCS/PAIR

$282.9
T-MOTOR FLAME 80A 12S V2.0 Multi-Rotor UAVs ESC

$119.99
T-MOTOR NS26*8.5 Prop-2PCS/PAIR

$269.99

Detail information
Specifications

About T-MOTOR Navigator MN801-S Multirotor Fixed Wing UAV Motor KV150

T-MOTOR MN801-S "Navigator" Series is a high-performance brushless motor for multi-rotors, VTOL, and fixed-wing UAVs. With 12kg thrust and 1000-hour MTBF, it ensures reliable, long-lasting flight. The motor features superior cooling (15% improvement), dust-resistance, waterproofing, and anti-corrosion. Ideal for aerial photography, it pairs perfectly with T-MOTOR G26*8.5" props. Regular lubrication keeps it running smoothly.

Navigator MN801-S Highlights:

Max thrust: 12kg
MTBF: About 1000hours
Features: Excellent cooling performance; Dust-resistance/Waterproof/Anti-corrosion; Heavy Payload Long Flight Time

"Navigator" motors are for general uses like aerial photography.For demand of multi-rotors, VTOL and fixed wings.

Application Areas：

Cargo Drones, Tethered, Mapping and Inspection.

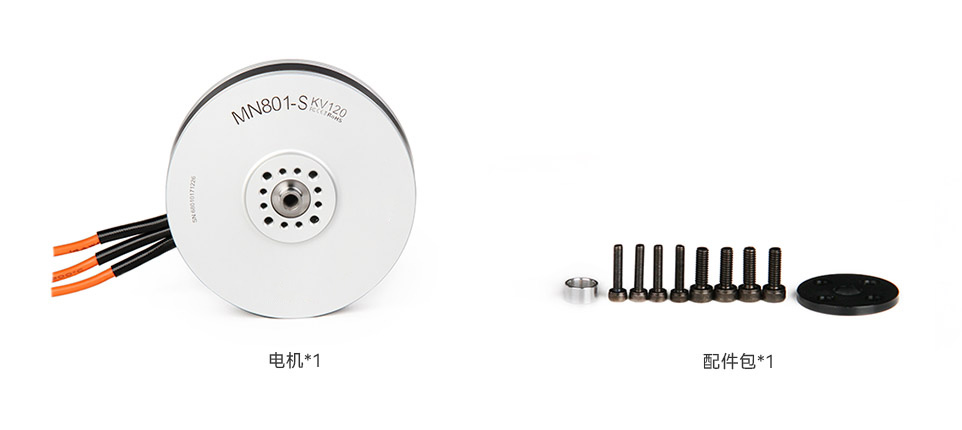

Packing List Includes:

1x T-MOTOR MN801 Motor KV150 ( kv which you choose)

1x Hardware pack

Matching Guide:

T-MOTOR G26*8.5 Prop / Flame 60A 12s v2

If you have any questions or inquires, please contact us: onlinesales@ligpower.com

MN801-S KV150 12kg+ Thrust，IP45

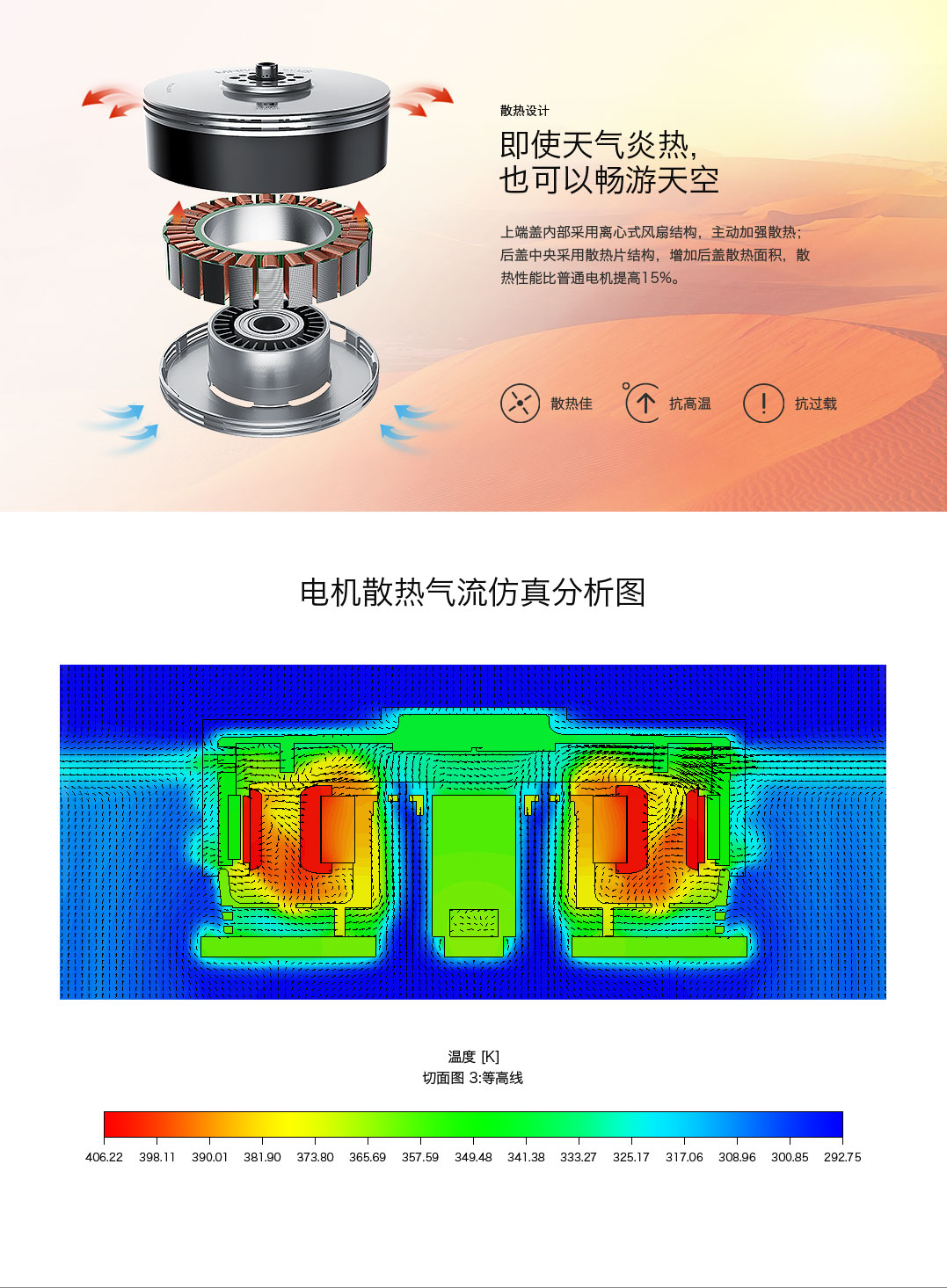

MN801-S KV150 excellent cooling

MN801-S KV150 IP45，Anti-corrosion

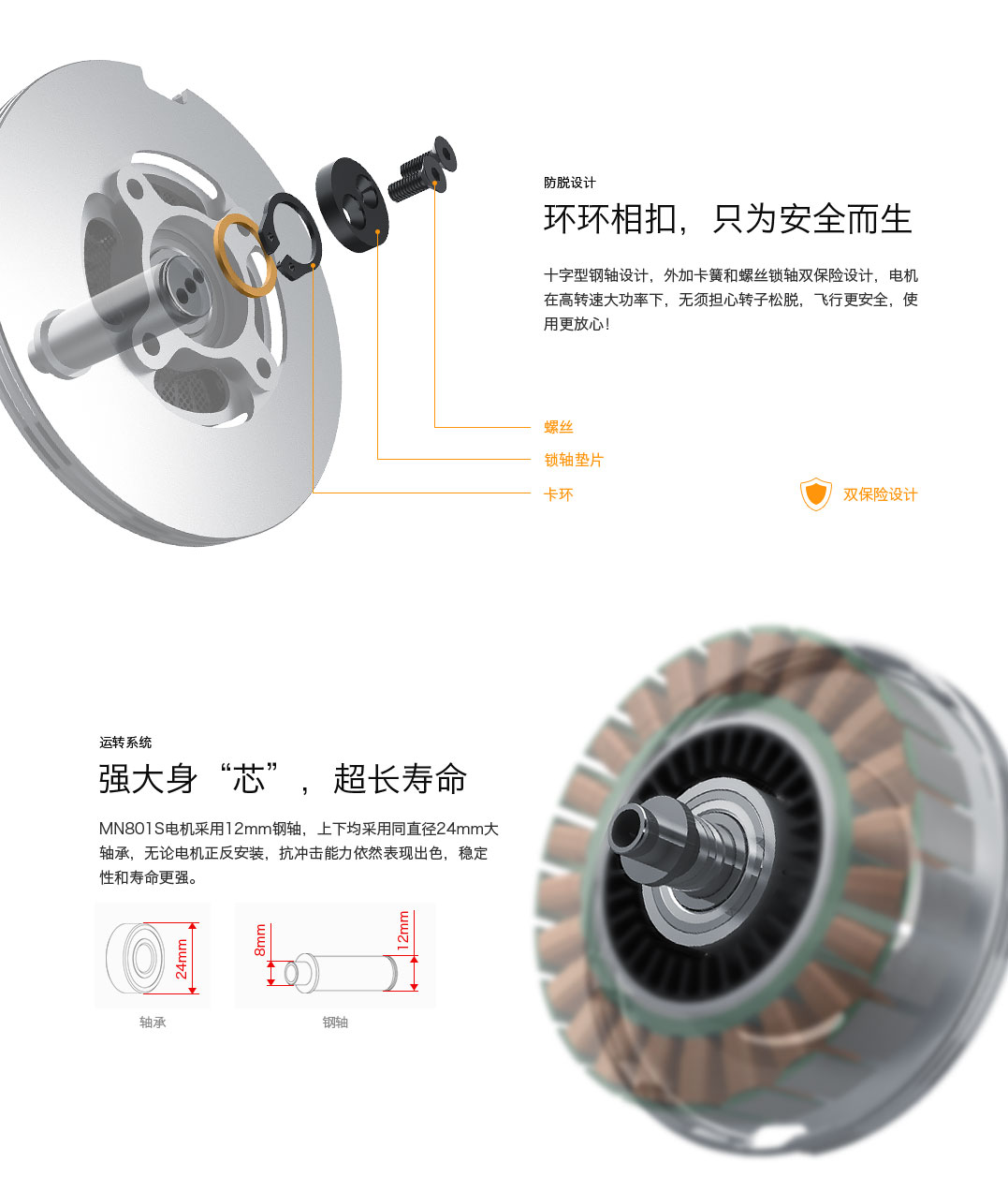

MN801-S KV150 double security，big thrust,long lifespan

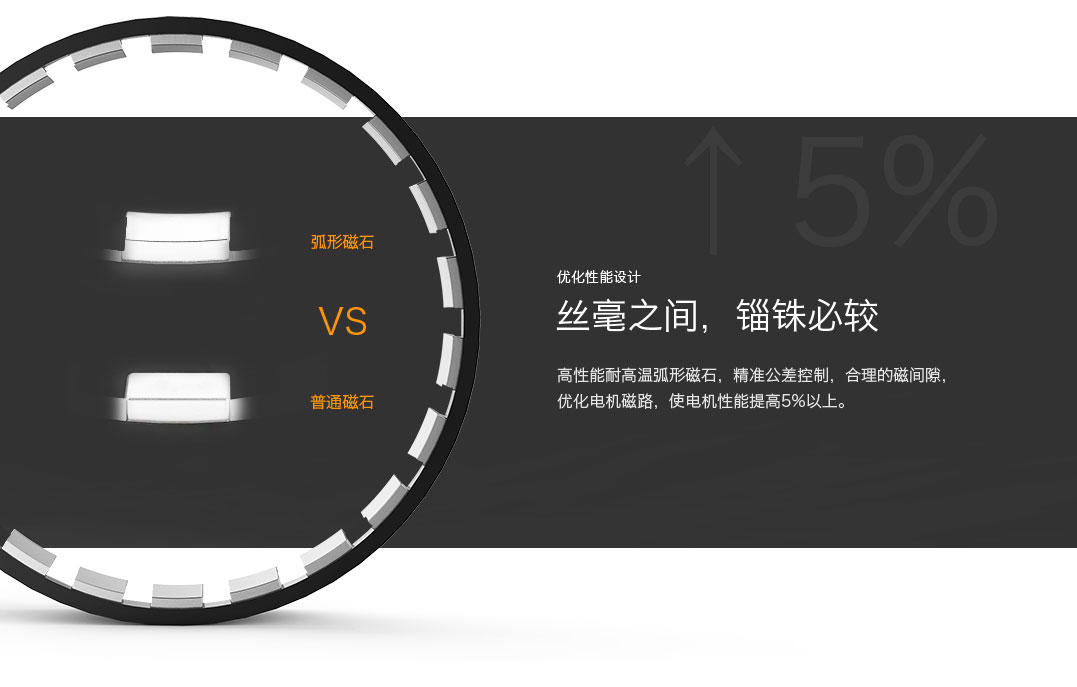

MN801-S KV150 optimal motor magnetic circuit helps improve motor performance by 5%

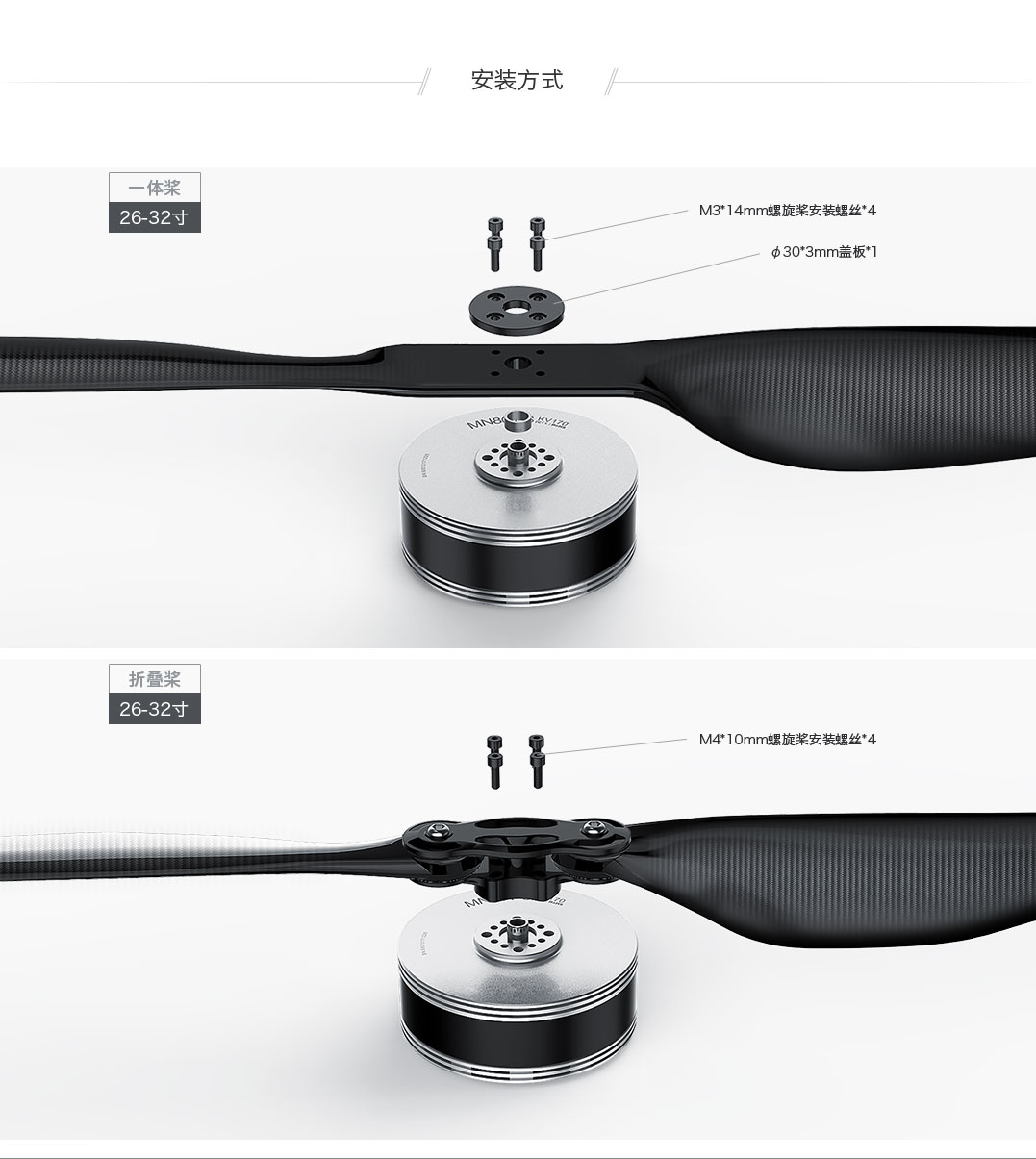

MN801-S KV150 integrated prop,foldable prop installation method

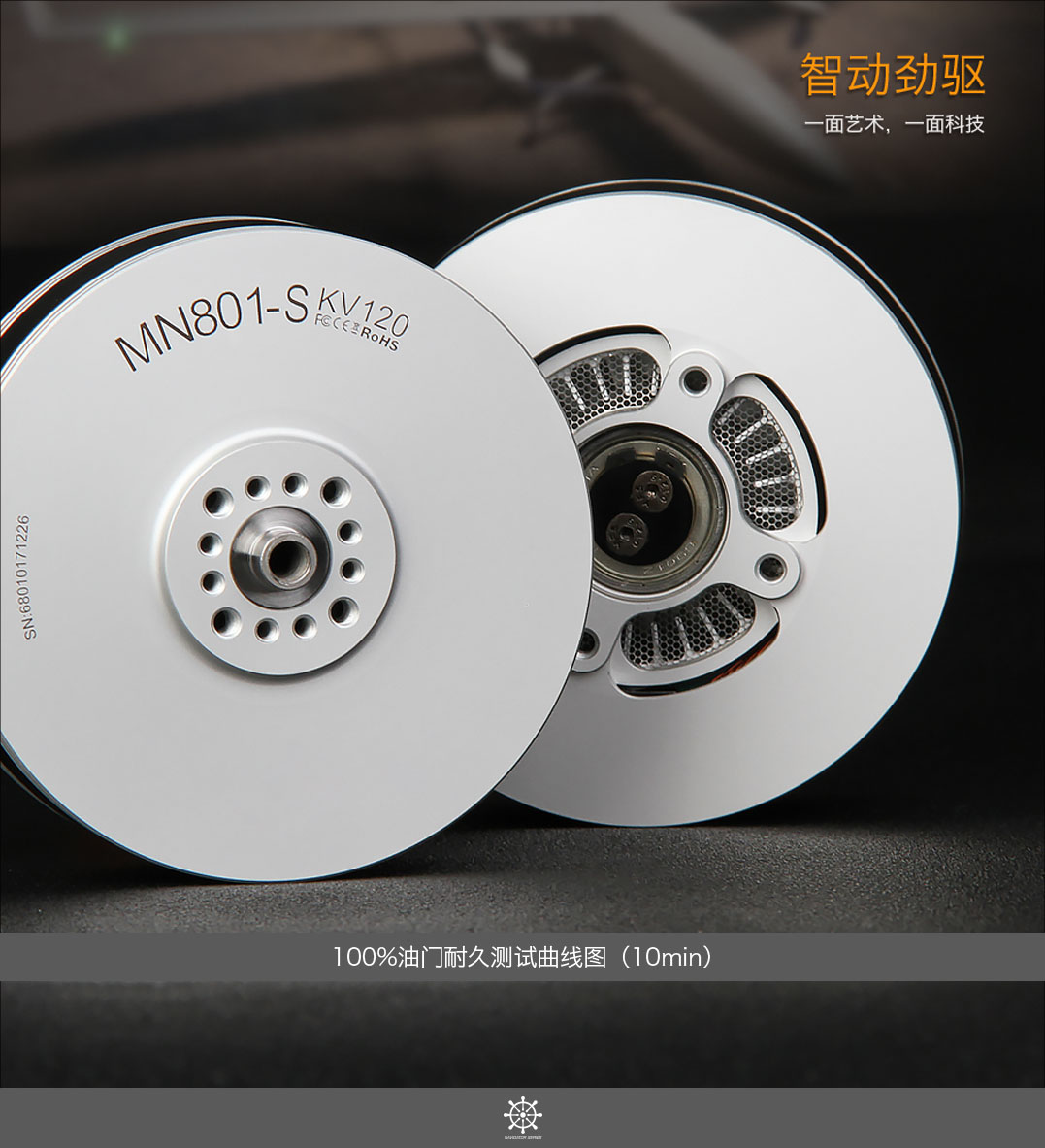

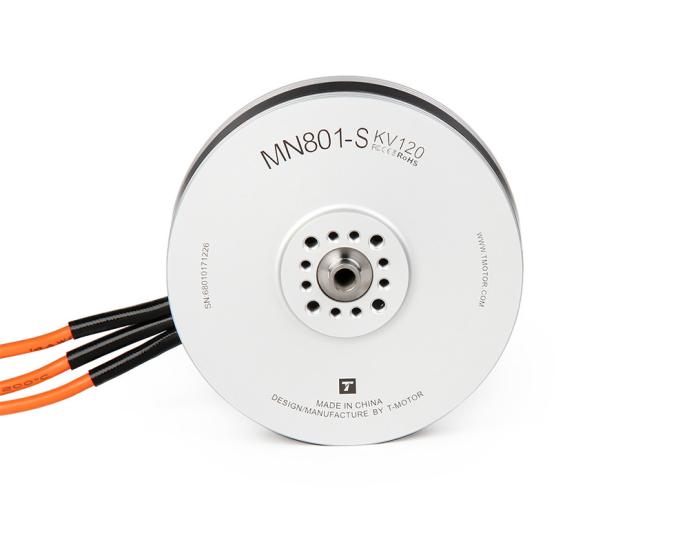

MN801-S KV150 genuine photograph

Technical Drawing

Specification Export to Excel

Motor Size	Φ89*39.4mm	Copper Wire	220℃ high temperature resistance: Level C
Stator	Imported silicon steel sheet; Anti-rust treatment; 150°Chigh temperature-resisting coatings	Coil Insulation Test	500V
Configuration	24N28P	Centrifugal Cooling Design	YES
Shaft Diameter	IN：12mm，OUT：8mm	Rotor Dynamic Balance Standard	≤5Mg
Bearing	Imported 6901ZZ	Motor Dynamic Balance Standard	≤10Mg
Magnet Level	180℃ high temperature resistance	IP	IP45
Lead Cable	14AWG*150mm

KV	120	Rated Voltage ( Lipo )	6-12S
Idle Current（18V）	1.1A	ESC Recommendation	FLAME 60A 12S
Peak Current（180s）	45A	Propeller Recommendation	28-29"
Max.Power（180s）	2200W	Motor Weight (indl. Cable)	470g
Internal Resistance	80mΩ	Package Weight	600g

KV	150	Rated Voltage ( Lipo )	6-12S
Idle Current（15V）	1.4A	ESC Recommendation	FLAME 60A 12S FLAME 80A 12S V2.0
Peak Current（180s）	60A	Propeller Recommendation	26-27"
Max.Power（180s）	2800W	Motor Weight (indl. Cable)	480g
Internal Resistance	50mΩ	Package Weight	600g

Test Data Export to Excel

Type	Propeller	Throttle	Voltage (V)	Thrust (g)	Torque (N*m)	Current (A)	RPM	Power (W)	Effciency (g/W)	Operating Temperature (℃)
MN801S KV120	T-MOTOR G28*9.2	40%	47.81	3083	0.85	5.42	1930	259	11.90	78.5 (Ambient Temperature :0℃)
		42%	47.81	3259	0.91	5.84	1984	279	11.67
		44%	47.83	3506	0.98	6.45	2076	309	11.36
		46%	47.83	3724	1.04	7.05	2174	337	11.04
		48%	47.84	3985	1.11	7.74	2264	370	10.76
		50%	47.84	4247	1.19	8.48	2356	406	10.47
		52%	47.82	4477	1.28	9.12	2432	436	10.26
		54%	47.82	4746	1.35	9.91	2512	474	10.01
		56%	47.82	5010	1.43	10.74	2597	514	9.75
		58%	47.82	5299	1.51	11.62	2676	556	9.53
		60%	47.82	5566	1.58	12.47	2775	596	9.33
		62%	47.83	5816	1.66	13.36	2857	639	9.10
		64%	47.83	6085	1.74	14.30	2942	684	8.89
		66%	47.85	6329	1.81	15.24	3020	729	8.68
		68%	47.85	6769	1.94	16.90	3138	809	8.37
		70%	47.80	7059	2.03	17.92	3204	857	8.24
		75%	47.79	7721	2.24	20.63	3396	986	7.83
		80%	47.80	8402	2.45	23.59	3567	1128	7.45
		90%	47.81	9924	2.90	30.65	3903	1465	6.77
		100%	47.83	10472	3.44	40.28	4277	1927	5.43
MN801S KV120	T-MOTOR G29*9.5	40%	47.91	3662	1.25	6.14	1900	294	12.44	109.5 (Ambient Temperature: 0℃)
		42%	47.91	3880	1.31	6.67	1956	320	12.13
		44%	47.91	4154	1.40	7.35	2054	352	11.79
		46%	47.91	4397	1.48	8.05	2130	386	11.39
		48%	47.91	4694	1.57	8.79	2208	421	11.15
		50%	47.92	4976	1.66	9.61	2293	460	10.81
		52%	47.91	5284	1.75	10.48	2376	502	10.52
		54%	47.91	5557	1.84	11.27	2451	540	10.30
		56%	47.93	5891	1.94	12.23	2530	586	10.04
		58%	47.93	6247	2.05	13.33	2610	639	9.78
		60%	47.93	6596	2.15	14.36	2684	688	9.58
		62%	47.93	6930	2.26	15.46	2777	741	9.35
		64%	47.93	7205	2.35	16.54	2854	793	9.09
		66%	47.93	7515	2.45	17.64	2930	845	8.89
		68%	47.93	7796	2.55	18.77	3108	899	8.67
		70%	47.93	8277	2.70	20.72	3178	993	8.33
		75%	47.92	9108	2.94	23.77	3372	1139	7.99
		80%	47.92	9793	3.19	27.35	3437	1310	7.47
		90%	47.92	10426	3.73	37.77	3774	1810	5.76
		100%	47.92	11683	4.16	48.79	4045	2338	4.99
MN801S KV150	T-MOTOR G26*8.5	40%	47.91	3509	0.83	7.03	2616	337	10.41	86.5 (Ambient Temperature: 0℃)
		42%	47.91	3735	0.90	7.72	2702	370	10.10
		44%	47.91	4028	0.98	8.54	2826	409	9.84
		46%	47.91	4317	1.05	9.39	2928	450	9.59
		48%	47.90	4604	1.13	10.28	3070	492	9.34
		50%	47.92	5057	1.27	11.91	3174	571	8.86
		52%	47.90	5275	1.33	12.64	3302	606	8.71
		54%	47.90	5574	1.42	13.76	3438	659	8.45
		56%	47.91	5878	1.51	14.79	3584	709	8.29
		58%	47.90	6219	1.59	15.88	3697	761	8.17
		60%	47.90	6383	1.69	17.07	3798	817	7.81
		62%	47.91	6770	1.78	18.29	3912	876	7.73
		64%	47.91	7033	1.86	19.40	4029	929	7.57
		66%	47.90	7360	1.95	20.76	4148	994	7.40
		68%	47.90	7710	2.04	22.09	4278	1058	7.28
		70%	47.90	8005	2.13	23.45	4369	1123	7.12
		75%	47.89	8754	2.35	27.02	4496	1294	6.76
		80%	47.85	9604	2.59	30.86	4525	1476	6.50
		90%	47.79	10724	3.10	40.20	4806	1921	5.58
		100%	47.76	12076	3.75	57.34	5247	2738	4.41
Note: Motor temperature is motor surface temperature at 100% throttle running 10mins. (Date above based on benchtest are for reference only,comparion with that of other motor types is not recommended.)

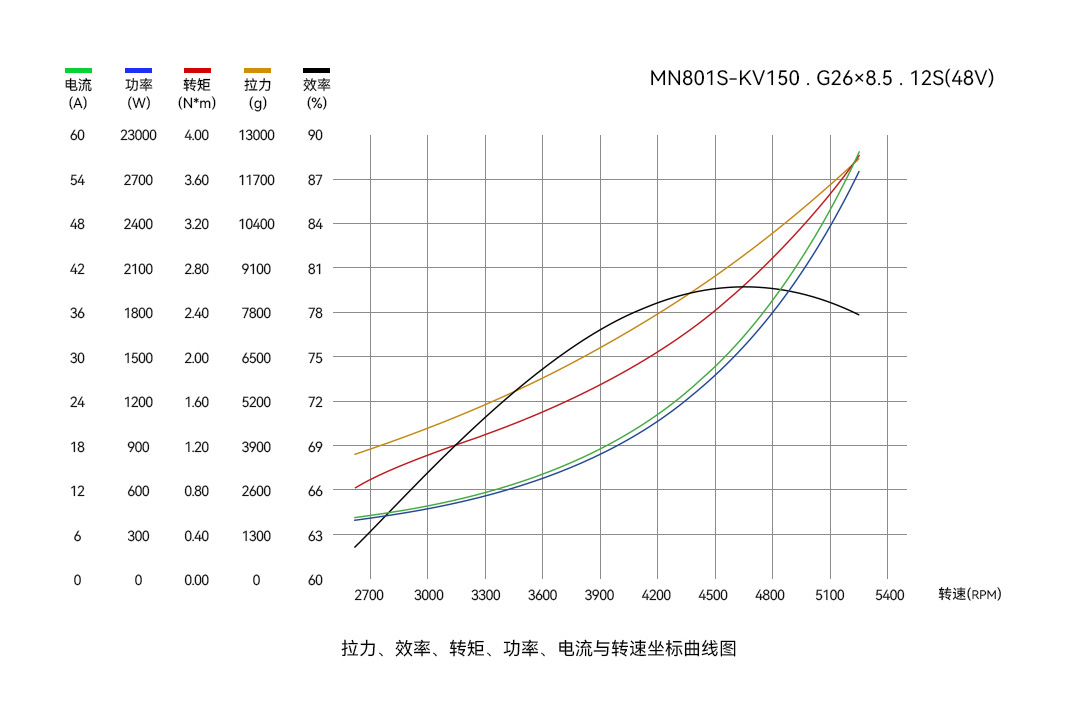

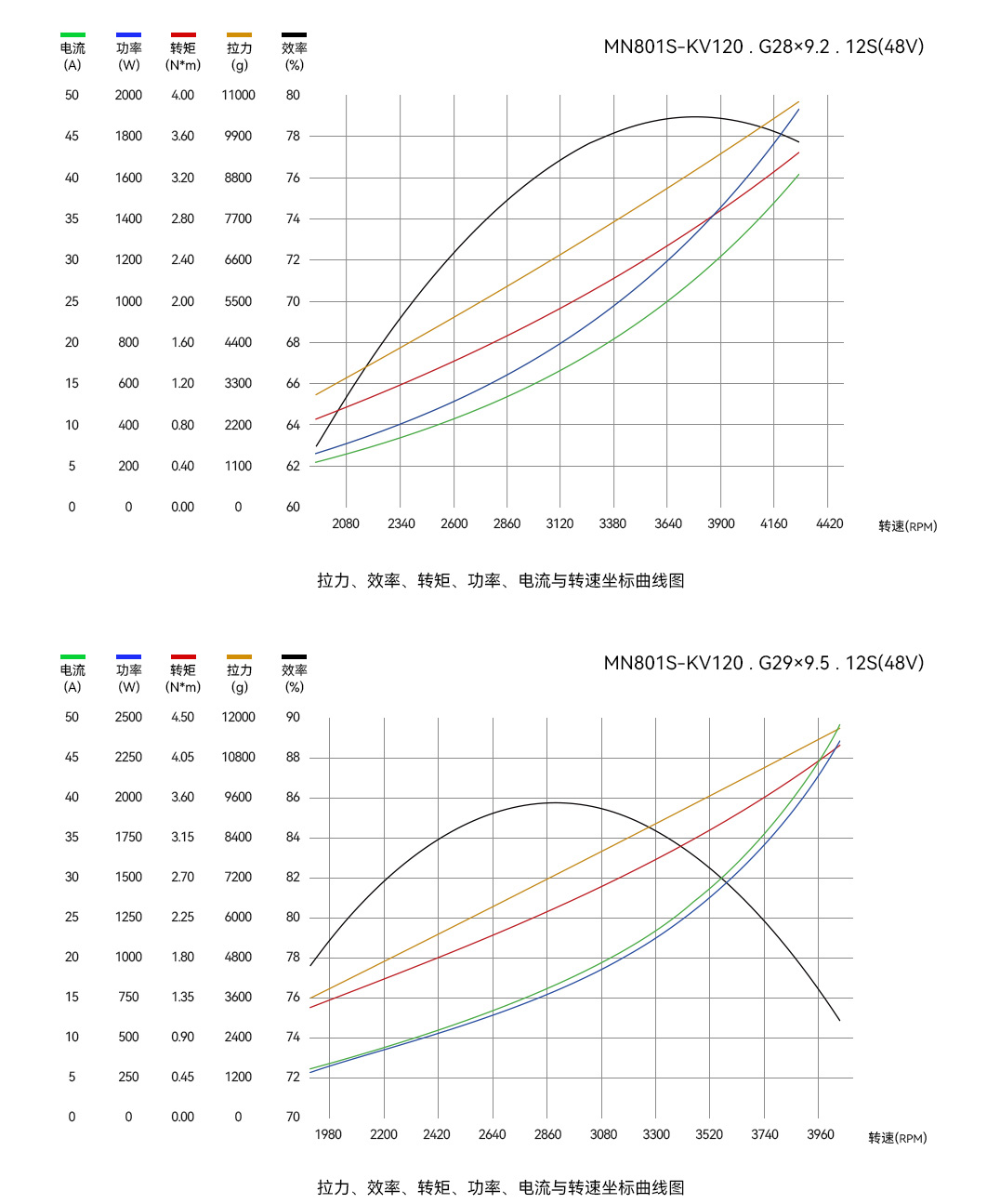

Analysis Chart

Packing List


Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
