| 电机型号 | P22.6-7 | 电机尺寸 | Φ29x32.2mm |
| 磁铁 | 镀镍弧形磁铁 | 线圈绝缘测试 | 500V耐压测试 |
| 防尘防水等级 | / | 槽级数 | 12N14P |
| 转子动平衡标准 | ≤5mg | 轴承型号 | 进口MR105轴承 |
| 出轴轴径 | 5mm | 出线规格/长度 | 20AWG特氟龙线x170mm |
| 电机安装孔尺寸 | Φ16-M3-4孔 | 桨叶安装尺寸 | M5 |
| 包装尺寸 | 61x41.5x32.5mm | 包装重量 | 50g |
| KV值/推荐电压 | KV1880 | 空载电流 (10V) | 1.1A |
| 最大功率 | 173W | 相间内阻 | 55mΩ |
| 工作额定电压 | 6S | 最大电流 | 39A |
| 最大拉力 | 1646g | 电机重量 (含线) | 36g |
| KV值/推荐电压 | KV1980 | 空载电流 (10V) | 1.2A |
| 最大功率 | 193W | 相间内阻 | 50mΩ |
| 工作额定电压 | 6S | 最大电流 | 43A |
| 最大拉力 | 1739g | 电机重量 (含线) | 36.5g |
| 推荐搭配 | |||
| 电机 | P22.6-7 | 机架类型 | 5寸Bando X4机架 |
| 桨叶 | 5寸三叶桨 (螺距2.7-4.7) | 电池电压 | 6S |
| 电调 | F55A PROIII 8S 4IN1/ V50A SE 6S 4IN1/ P60A V2 6S 4IN1 | 推荐起飞 重量区间 | 1000g内 |
| 飞控 | Velox F7 SE | 最大起飞重量 | 2000g |
| 推荐电调设置 | 进角: 22.5-30度, PWM频率: 24-48k (AM32) 启动功率: 60%, 进角: 30度, PWM频率: 24-48k/24k-BYRPM (BL32) | ||

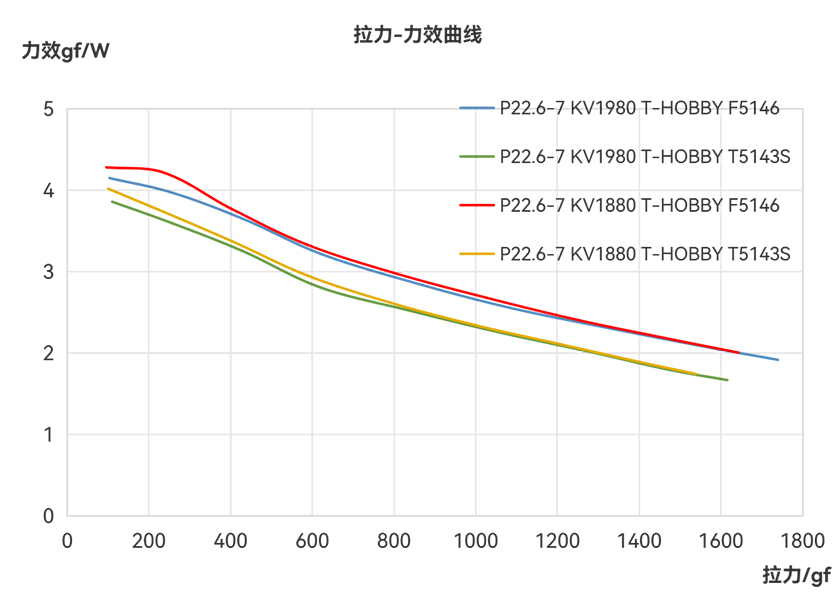

| 型号 | 桨 | 电压 (V) | 油门点 | 电流 (A) | 转速 (RPM) | 拉力 (gf) | 功率 (W) | 力效 (gf/W) | 扭矩 (N·m) | 电机温度 (℃) |
| P22.6-7 KV1880 | T-HOBBY F5146 | 24.0 | 20% | 0.9 | 8953 | 96 | 22 | 4.28 | 0.01 | 49 (环境温度: 25) |
| 24.0 | 30% | 2.3 | 13471 | 232 | 55 | 4.23 | 0.02 | |||
| 23.9 | 40% | 4.4 | 17152 | 401 | 106 | 3.78 | 0.04 | |||
| 23.8 | 50% | 7.4 | 20358 | 586 | 176 | 3.33 | 0.06 | |||
| 23.7 | 60% | 11.3 | 23503 | 799 | 268 | 2.99 | 0.08 | |||
| 23.6 | 70% | 16.2 | 26355 | 1026 | 383 | 2.68 | 0.10 | |||
| 23.4 | 80% | 22.2 | 29005 | 1252 | 521 | 2.41 | 0.12 | |||
| 23.3 | 90% | 29.5 | 31360 | 1486 | 687 | 2.16 | 0.15 | |||
| 23.1 | 100% | 35.5 | 33071 | 1644 | 819 | 2.01 | 0.17 | |||
| P22.6-7 KV1880 | T-HOBBY T5143S | 24.0 | 20% | 1.0 | 8780 | 100 | 25 | 4.02 | 0.01 | 48 (环境温度: 25) |
| 24.0 | 30% | 2.6 | 13068 | 235 | 63 | 3.74 | 0.03 | |||
| 23.9 | 40% | 5.0 | 16700 | 404 | 120 | 3.37 | 0.05 | |||
| 23.8 | 50% | 8.4 | 19917 | 590 | 200 | 2.95 | 0.07 | |||
| 23.7 | 60% | 12.7 | 22866 | 790 | 301 | 2.62 | 0.09 | |||
| 23.6 | 70% | 18.1 | 25606 | 1000 | 427 | 2.34 | 0.12 | |||
| 23.4 | 80% | 24.6 | 28011 | 1210 | 575 | 2.11 | 0.14 | |||
| 23.2 | 90% | 32.0 | 30114 | 1402 | 742 | 1.89 | 0.16 | |||
| 23.0 | 100% | 38.4 | 31544 | 1539 | 883 | 1.74 | 0.18 | |||
| P22.6-7 KV1880 | HQ 5.1x2.9x3 | 24.0 | 20% | 0.9 | 8969 | 92 | 22 | 4.22 | 0.01 | 45 (环境温度: 25) |
| 24.0 | 30% | 2.3 | 13369 | 224 | 56 | 4.03 | 0.02 | |||
| 23.9 | 40% | 4.5 | 17038 | 393 | 107 | 3.66 | 0.04 | |||
| 23.8 | 50% | 7.5 | 20316 | 575 | 179 | 3.21 | 0.06 | |||
| 23.7 | 60% | 11.6 | 23393 | 782 | 274 | 2.85 | 0.08 | |||
| 23.6 | 70% | 16.8 | 26156 | 1011 | 395 | 2.56 | 0.11 | |||
| 23.4 | 80% | 23.1 | 28688 | 1242 | 541 | 2.30 | 0.13 | |||
| 23.2 | 90% | 30.7 | 30946 | 1472 | 712 | 2.07 | 0.16 | |||
| 23.0 | 100% | 37.0 | 32409 | 1629 | 852 | 1.91 | 0.17 | |||
| P22.6-7 KV1880 | GF 5127 | 24.0 | 20% | 1.0 | 8894 | 106 | 24 | 4.45 | 0.01 | 51 (环境温度: 25) |
| 24.0 | 30% | 2.5 | 13193 | 252 | 60 | 4.17 | 0.03 | |||
| 23.9 | 40% | 4.8 | 16911 | 426 | 115 | 3.69 | 0.05 | |||
| 23.8 | 50% | 8.1 | 20071 | 611 | 192 | 3.18 | 0.07 | |||
| 23.7 | 60% | 12.3 | 23084 | 815 | 292 | 2.79 | 0.09 | |||
| 23.6 | 70% | 17.7 | 25826 | 1038 | 417 | 2.49 | 0.11 | |||
| 23.4 | 80% | 24.1 | 28283 | 1263 | 563 | 2.24 | 0.14 | |||
| 23.2 | 90% | 31.6 | 30473 | 1481 | 733 | 2.02 | 0.16 | |||
| 23.0 | 100% | 37.9 | 31925 | 1636 | 872 | 1.88 | 0.18 | |||
| P22.6-7 KV1980 | T-HOBBY F5146 | 24.0 | 20% | 1.0 | 9218 | 103 | 25 | 4.15 | 0.01 | 46 (环境温度: 25) |
| 23.9 | 30% | 2.6 | 13799 | 251 | 63 | 3.98 | 0.03 | |||
| 23.9 | 40% | 4.9 | 17700 | 428 | 117 | 3.66 | 0.04 | |||
| 23.8 | 50% | 8.1 | 21086 | 622 | 193 | 3.22 | 0.06 | |||
| 23.7 | 60% | 12.4 | 24251 | 846 | 295 | 2.87 | 0.09 | |||
| 23.5 | 70% | 17.9 | 27239 | 1081 | 422 | 2.56 | 0.11 | |||
| 23.4 | 80% | 24.7 | 29868 | 1330 | 577 | 2.30 | 0.14 | |||
| 23.2 | 90% | 32.8 | 32261 | 1571 | 759 | 2.07 | 0.16 | |||
| 23.0 | 100% | 39.5 | 33991 | 1740 | 907 | 1.92 | 0.18 | |||
| P22.6-7 KV1980 | T-HOBBY T5143S | 24.0 | 20% | 1.2 | 9086 | 110 | 29 | 3.86 | 0.01 | 52 (环境温度: 25) |
| 24.0 | 30% | 3.0 | 13651 | 255 | 71 | 3.60 | 0.03 | |||
| 23.9 | 40% | 5.5 | 17236 | 428 | 131 | 3.26 | 0.05 | |||
| 23.8 | 50% | 9.3 | 20563 | 621 | 221 | 2.81 | 0.07 | |||
| 23.7 | 60% | 14.1 | 23633 | 839 | 332 | 2.52 | 0.10 | |||
| 23.5 | 70% | 20.1 | 26410 | 1062 | 472 | 2.25 | 0.12 | |||
| 23.3 | 80% | 27.2 | 28936 | 1279 | 634 | 2.02 | 0.15 | |||
| 23.1 | 90% | 35.7 | 31078 | 1476 | 823 | 1.79 | 0.17 | |||
| 22.9 | 100% | 42.3 | 32638 | 1616 | 968 | 1.67 | 0.19 | |||
| P22.6-7 KV1980 | HQ 5.1x2.9x3 | 24.0 | 20% | 1.1 | 9294 | 102 | 25 | 4.00 | 0.01 | 42 (环境温度: 25) |
| 24.0 | 30% | 2.6 | 13763 | 244 | 63 | 3.85 | 0.03 | |||
| 23.9 | 40% | 5.0 | 17698 | 427 | 120 | 3.56 | 0.05 | |||
| 23.8 | 50% | 8.4 | 20987 | 616 | 199 | 3.09 | 0.07 | |||
| 23.7 | 60% | 12.8 | 24143 | 838 | 303 | 2.76 | 0.09 | |||
| 23.5 | 70% | 18.6 | 26959 | 1081 | 439 | 2.47 | 0.11 | |||
| 23.4 | 80% | 25.6 | 29553 | 1326 | 599 | 2.21 | 0.14 | |||
| 23.1 | 90% | 34.0 | 31862 | 1547 | 787 | 1.97 | 0.17 | |||
| 22.9 | 100% | 40.7 | 33468 | 1703 | 934 | 1.82 | 0.19 | |||
| P22.6-7 KV1980 | GF 5127 | 24.0 | 20% | 1.1 | 9241 | 115 | 27 | 4.30 | 0.01 | 49 (环境温度: 25) |
| 23.9 | 30% | 2.8 | 13695 | 268 | 68 | 3.95 | 0.03 | |||
| 23.9 | 40% | 5.3 | 17357 | 450 | 127 | 3.55 | 0.05 | |||
| 23.8 | 50% | 9.1 | 20608 | 654 | 215 | 3.04 | 0.07 | |||
| 23.7 | 60% | 13.8 | 23680 | 870 | 325 | 2.67 | 0.10 | |||
| 23.5 | 70% | 19.6 | 26540 | 1098 | 460 | 2.38 | 0.12 | |||
| 23.3 | 80% | 26.7 | 29047 | 1338 | 622 | 2.15 | 0.15 | |||
| 23.1 | 90% | 35.3 | 31162 | 1557 | 815 | 1.91 | 0.17 | |||
| 22.9 | 100% | 42.0 | 32789 | 1727 | 962 | 1.80 | 0.19 | |||
| 注意：电机温度为80%油门下电机运行10秒的机壳温度。 （以上数据由T-HOBBY自主平台测试所得，仅供选型参考，最终解释权归T-HOBBY所有。） | ||||||||||
