Name: T-MOTOR U15L Kits with 63kg Thrust for Manned Aircraft & Delivery Drones
Brand: LIGPOWER
SKU: LIGPOWER000896
Price: 1099.00 USD
Availability: InStock

T-MOTOR U15L Kits with 63kg Thrust for Manned Aircraft & Delivery Drones

1099.00

Available points: 50000 Points Points reward: 1099 Points

• Big Power
• Matched Propulsion solution
• Stable & Reliable & Safe

Parameter：

ESC：

Thunder 300A 24S

Propellers：

NS47*18

Quantity：

1099.00

Free Shipping by DHL/UPS Express

Relevant Products

Detail information
Specifications

Overview

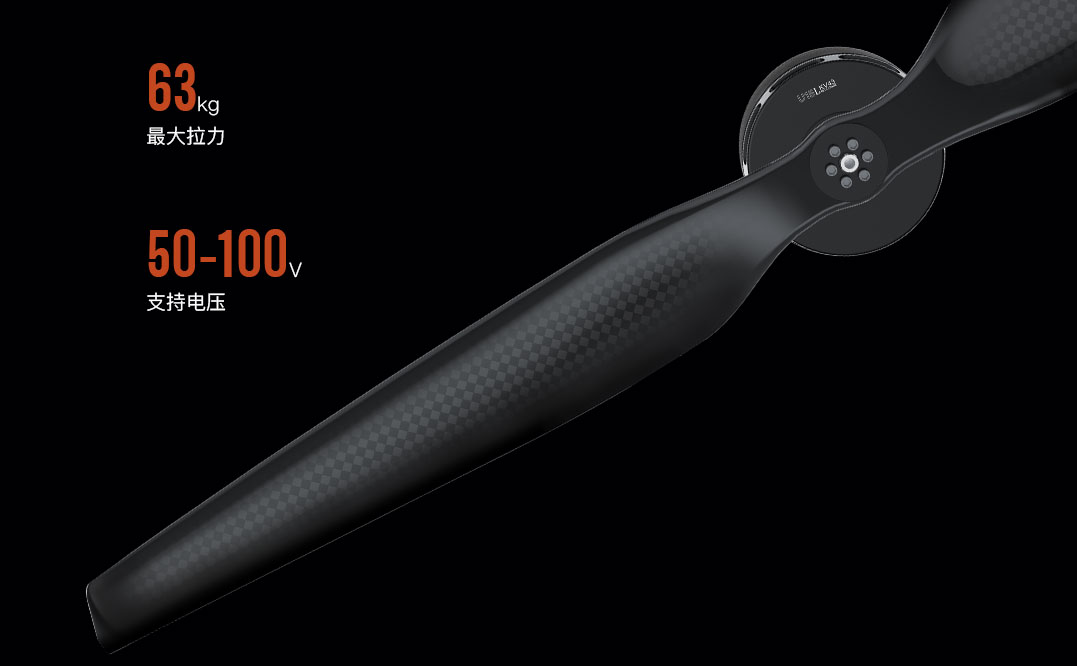

The T-MOTOR U15L Kits redefines high-performance electric propulsion systems, combining a high thrust motor, precision-engineered NS47*18 propeller, and a 300A 24S ESC (Electronic Speed Controller). Designed for heavy-duty applications like manned aircraft and heavy cargo drones, this kit delivers unparalleled 63kg maximum thrust while operating at 50-100V, making it a top choice for professionals seeking reliability and power.

Key Features

1. 63kg Maximum Thrust for Heavy Loads

Engineered to handle extreme demands, the U15L supports payloads up to 63kg, perfect for:

Manned eVTOLs (electric Vertical Take-Off and Landing)
Cargo drones requiring extended flight times
Industrial UAVs in logistics and emergency delivery

2. Wide Voltage Compatibility (50-100V)

Optimized for flexibility, the motor operates efficiently across 50-100V voltage, allowing integration with diverse battery configurations. This ensures:

Stable performance in low/high-voltage scenarios
Extended operational range for long-haul missions

3. Seamless Integration with T-MOTOR Ecosystem

The U15L is pre-tuned for compatibility with:

Thunder 300A 24S ESC: Ensures precise motor control and thermal protection.

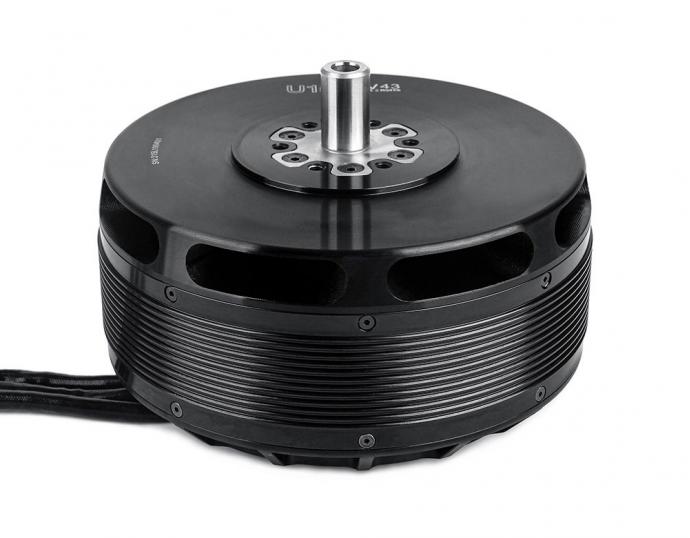

U15L KV43 12-24S: 63kg high thrust designed for manned aircraft and heavy-duty UAVs.

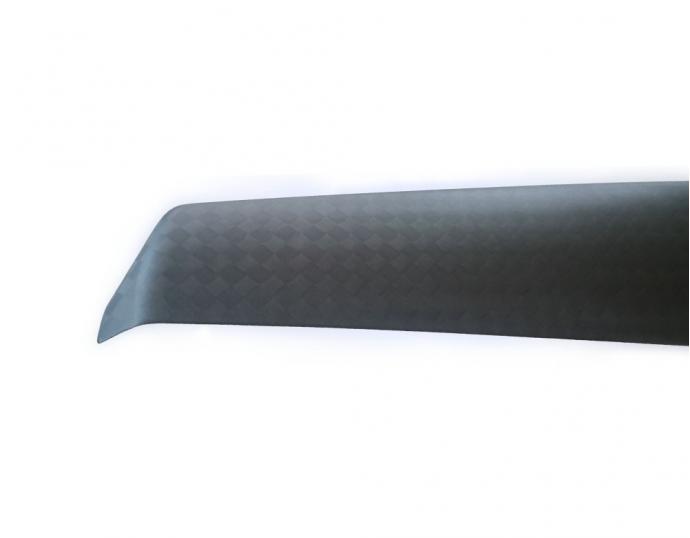

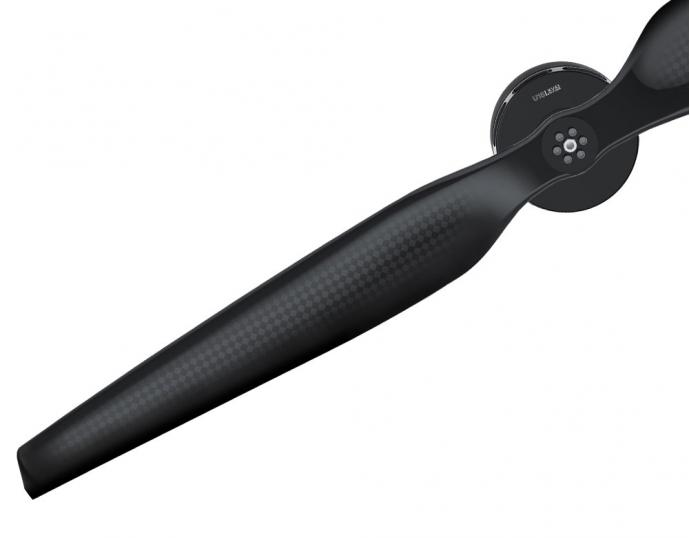

NS47*18" Carbon Fiber Propeller: Enhances aerodynamic efficiency and reduces noise.

4. Durability in Extreme Conditions

Built with aerospace-grade materials, the kit withstands:

High-vibration environments
Temperature extremes (-20°C to 60°C)
Moisture and dust exposure

Why Choose the U15L Kits?

Scalability: Adaptable to hybrid configurations for multi-motor setups.
Energy Efficiency: Reduces power consumption by 15% compared to similar models.
Certification-Ready: Meets safety standards for commercial UAV applications.


Technical Drawing


Specification Export to Excel

Motor Item	U15L KV43	Weight (Incl. Cable)	3600g
Motor Dimensions	Φ151.5*86mm	Internal Resistance	20mΩ
Lead	Enameled Wire200mm	Configuration	36N42P
Shaft Diameter	25mm	Rated Voltage(LiPo)	24S
Idle Current(10V)	4.0A	Peak Current(120s)	135A
Rated Power	2800W

ESC Item	thunder 300A 24S	Weight(Incl. cables)	870g
Size	154.969.648.9mm		No
Programable Item(s)	No	Support Voltage	14-24S
Con. Current	240A	Peak Current(10S)	300A

Model NO.	47*18	Weight(Single Blade)	320±20g
Material	CF+Epoxy	Suface Treatment	Glossy
T-MOTOR Series	2blades-intergrated

Test Data Export to Excel

Type	Propeller	Throttle	Voltage (V)	Thrust (g)	Torque (N*m)	Current (A)	RPM	Power (W)	Efficiency (g/W)	Operating Temperature (℃)
U15L KV43	47*18"	30%	99	9563	5.22	9.43	1239	929	10.30	155 （Ambient Temperature： 32）
		35%	98	11668	6.30	12.11	1413	1192	9.80
		40%	98	14955	8.06	16.72	1566	1646	9.10
		45%	98	20009	10.77	24.74	1809	2434	8.20
		50%	98	24767	13.33	33.35	2019	3279	7.60
		55%	98	28438	15.34	40.56	2193	3984	7.10
		60%	98	31314	16.94	46.64	2313	4572	6.80
		65%	98	36747	19.95	58.94	2469	5769	6.40
		70%	98	38966	21.22	64.97	2580	6359	6.10
		75%	98	48025	26.26	87.88	2799	8580	5.60
		80%	97	50683	27.84	95.31	2913	9286	5.50
		85%	97	53225	29.28	102.47	2973	9976	5.30
		90%	97	56197	30.90	110.95	3060	10788	5.20
		95%	97	60146	33.17	123.93	3156	12036	5.00
		100%	97	63383	35.04	134.64	3210	13109	4.80
Note: Temperature is motor coiling temperature at 100% throttle running 2mins. (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)
