Personal Data
Specification
6~14S
Support Voltage
100A
Con.Current
200A(3S)
Peak Current
243g(excl.cable)/470g
ESC Weight

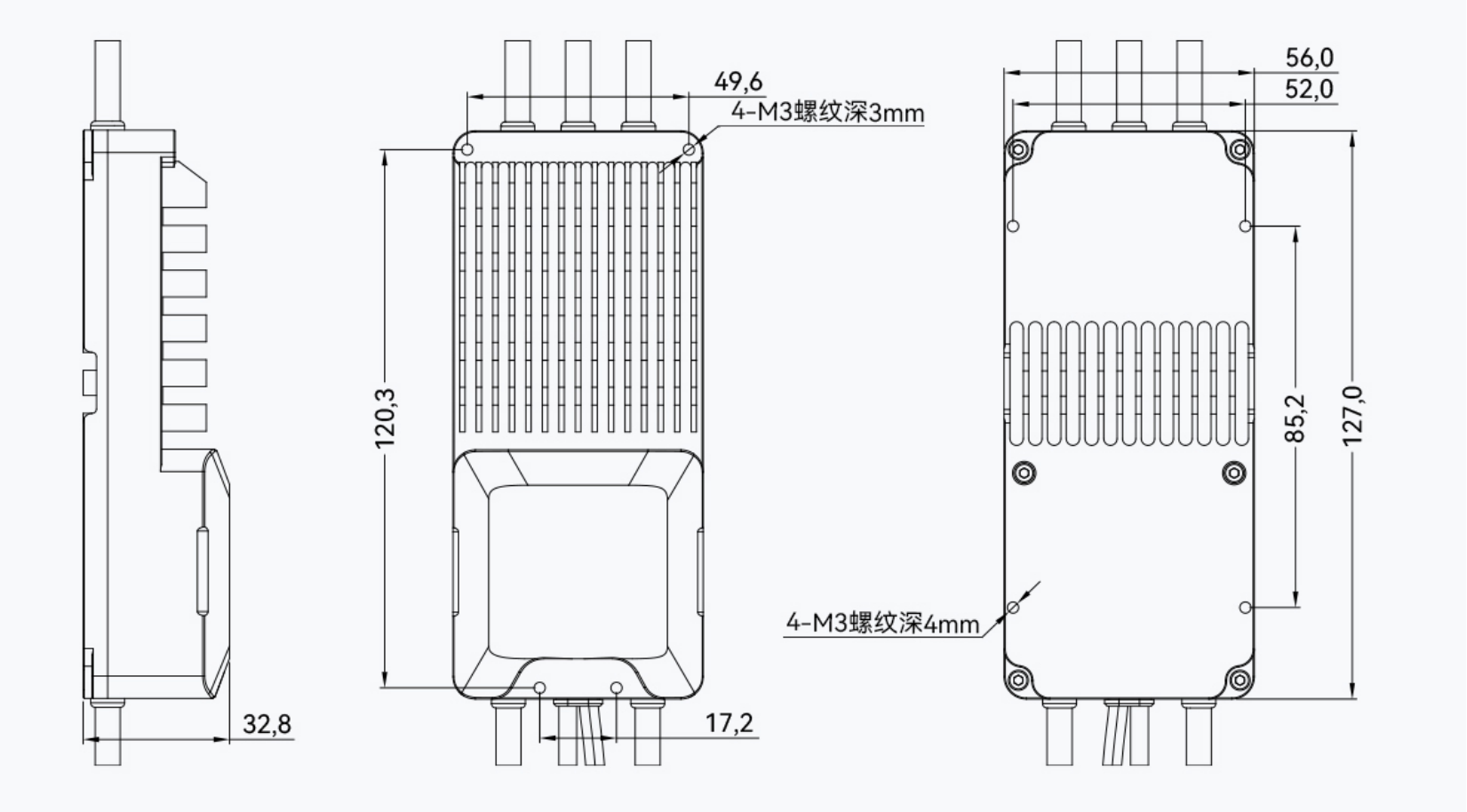

127*56*33mm
ESC Size

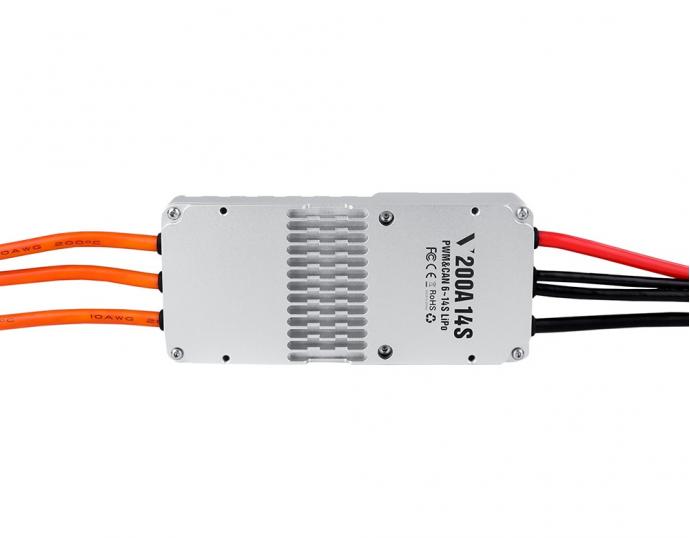

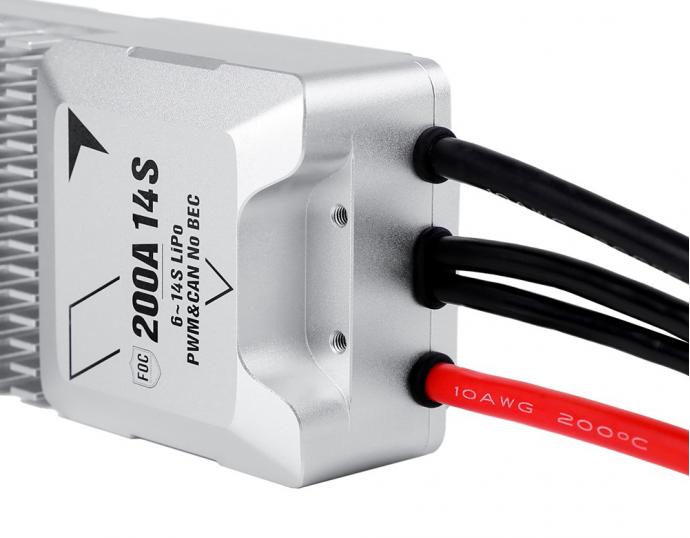

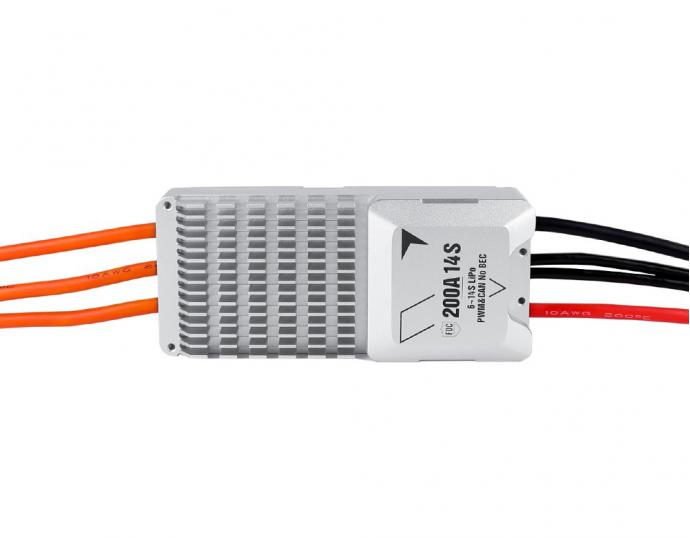

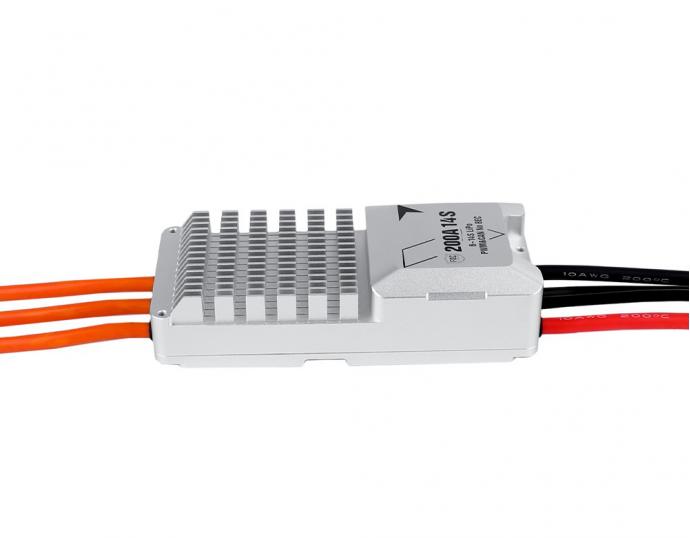

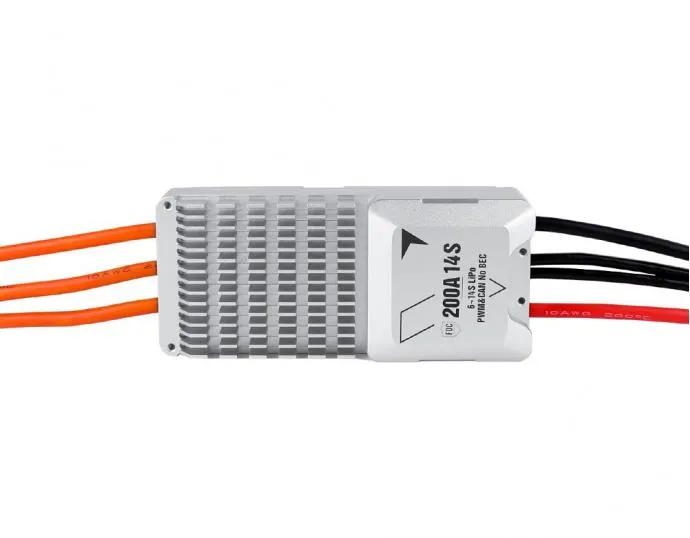

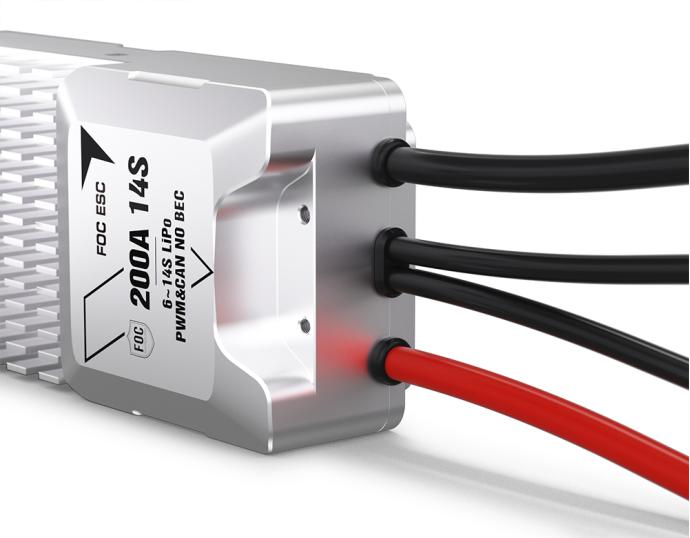

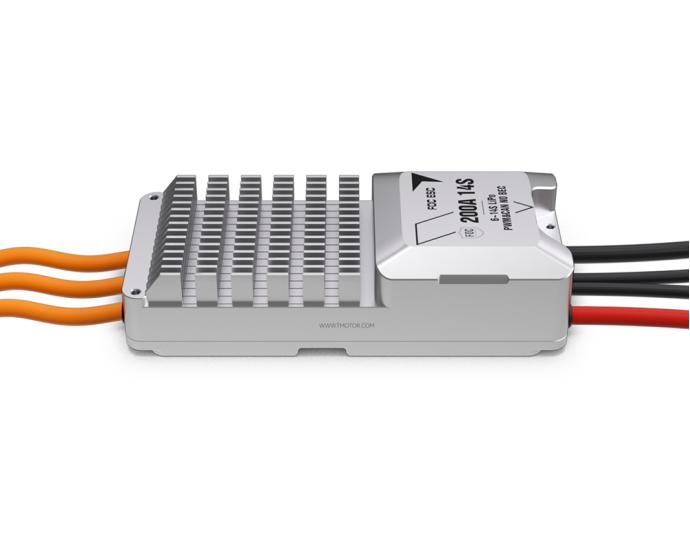

| Model No. | V200A 14S | Power Cable | Silicone wire-red/black -10AWG-1120mm |
| Size | 127*56*33mm (L*W*H) | Signal Cable | Shielded cables-Black-OD4.2-5C -770mm-JP-3P*2-Black blank white-green yellow gray |
| Weight(Incl. cables) | 470g | Encoder cables | Shielded cables-Black-24AWG-5C -395mm-M6 aviation connector |

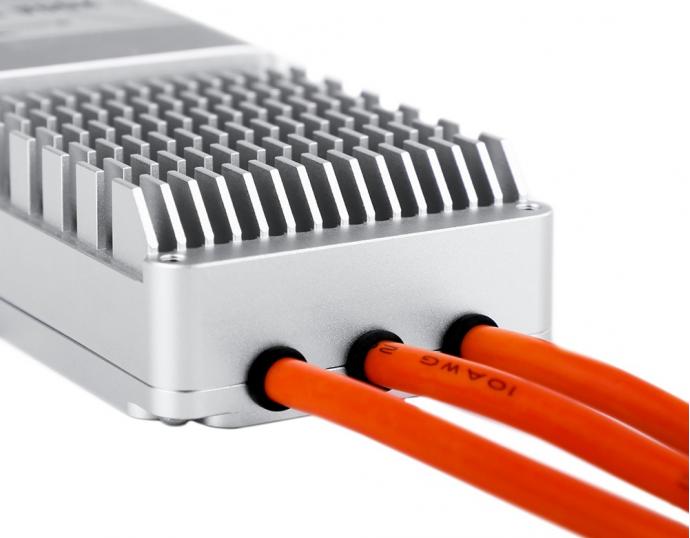

| Motor Cable | Silicone wire-orange-10AWG-205mm | Protocol | PWM/CAN |
| Support Voltage | 18~60V (6~14S) | BEC | NO |
| Continuous Current | 100A | Throttle Pos. Range | 1040-1940 |
| Peak Current(<10s) | 200A | Throttle Refresh Frequency | 50-500HZ |
| Standby Consumption | ≤50mA@48V | Throttle Response Speed | 300ms |
