Name: T-HOBBY V2208 V2 5"Freestyle/Racing FPV Motor 4-6S KV1750/KV1950/KV2450
Brand: LIGPOWER
SKU: ligpower001140
Price: 17.50 USD
Availability: InStock

Relevant Products

T-HOBBY T5143S 2Pairs/bag

$3.19

Detail information
Specifications

About T-HOBBY Velox V2208 V2 Racing&freestyle FPV Motor

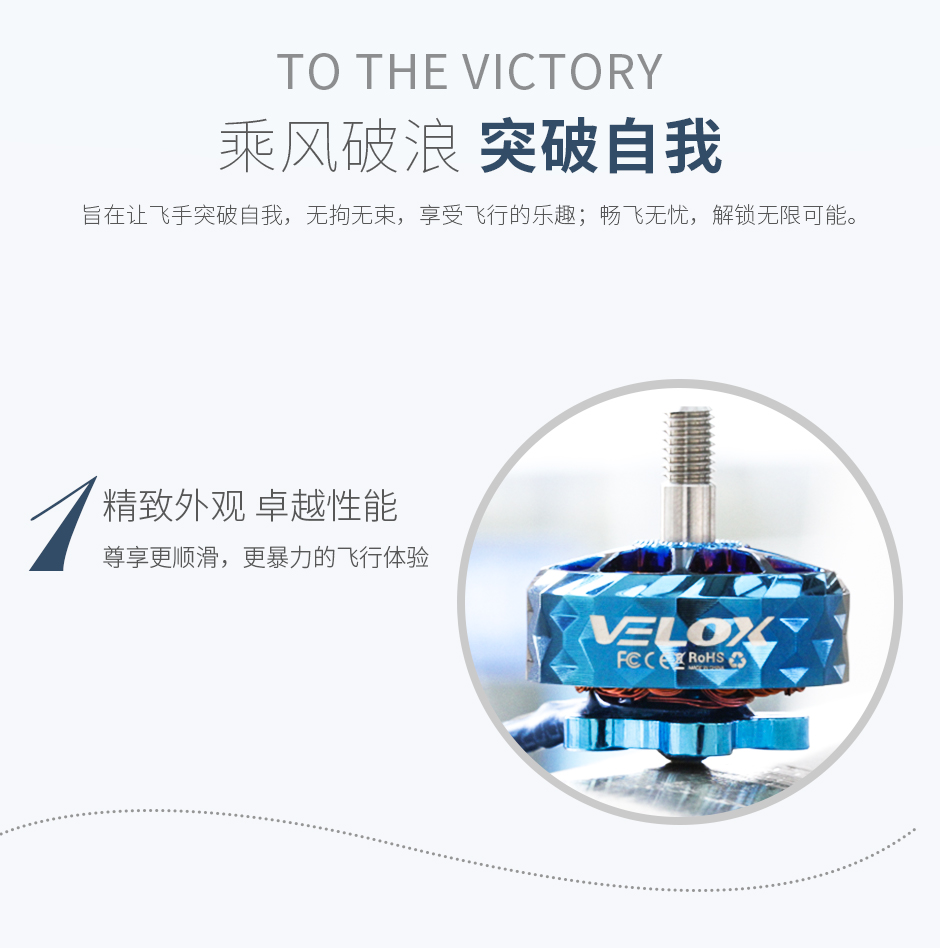

The Velox Veloce is solid while pretty 5 inch fpv motor. It has exquisite apperance, and excellent performance.

Unibell design, titanium shaft, N52 arc magnet,make this motor much more durable.

It can bring you a better experience for 5 inch fpv racing, freestyle, also cinematic.

Velox V2208 V2 Hightlight:

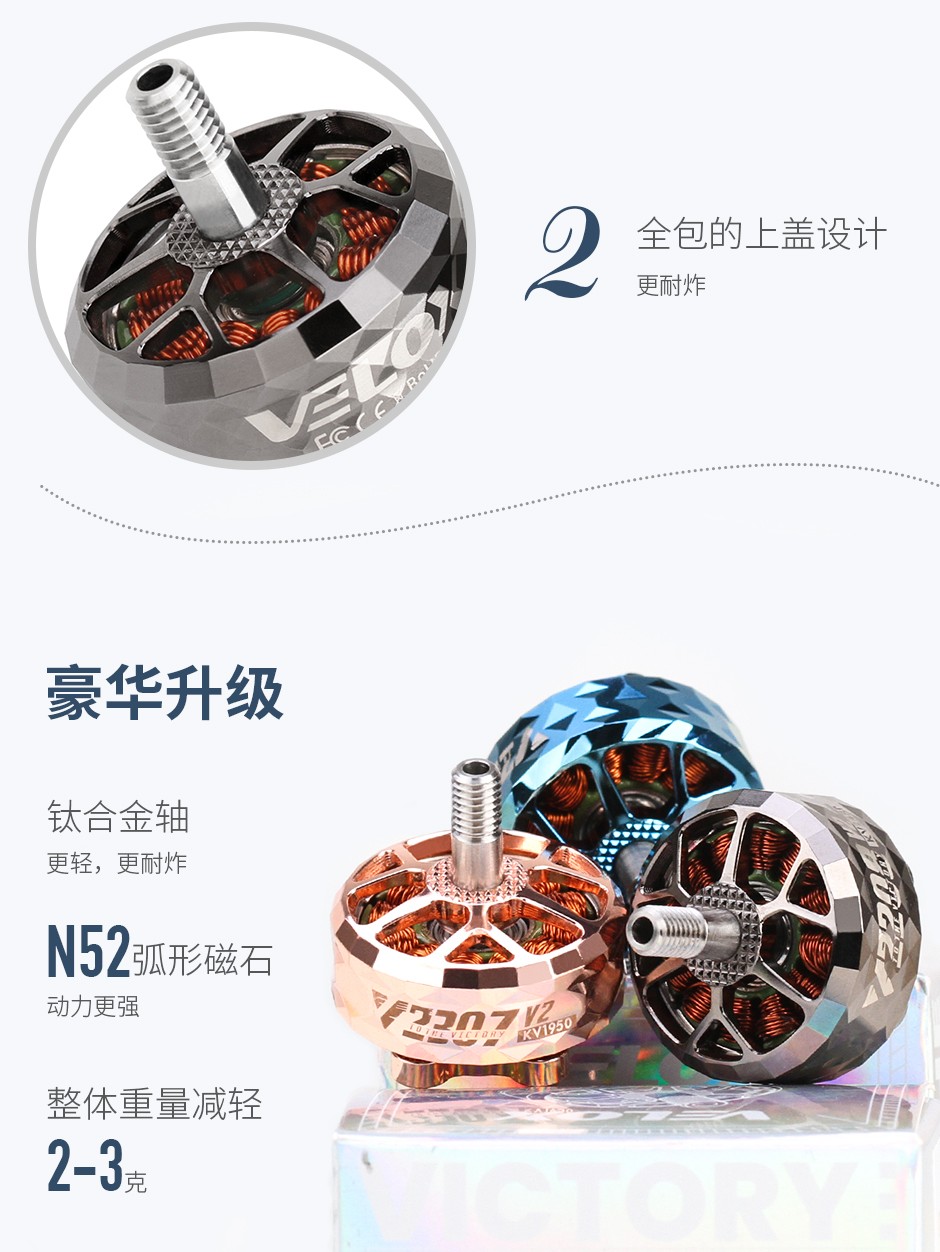

The Velox V2 motor adopts an all-inclusive upper cover design, and the titanium alloy shaft is lighter and more resistant to explosions.

The overall weight is reduced by 2-3 grams, allowing you to enjoy a smoother and more violent flight experience.

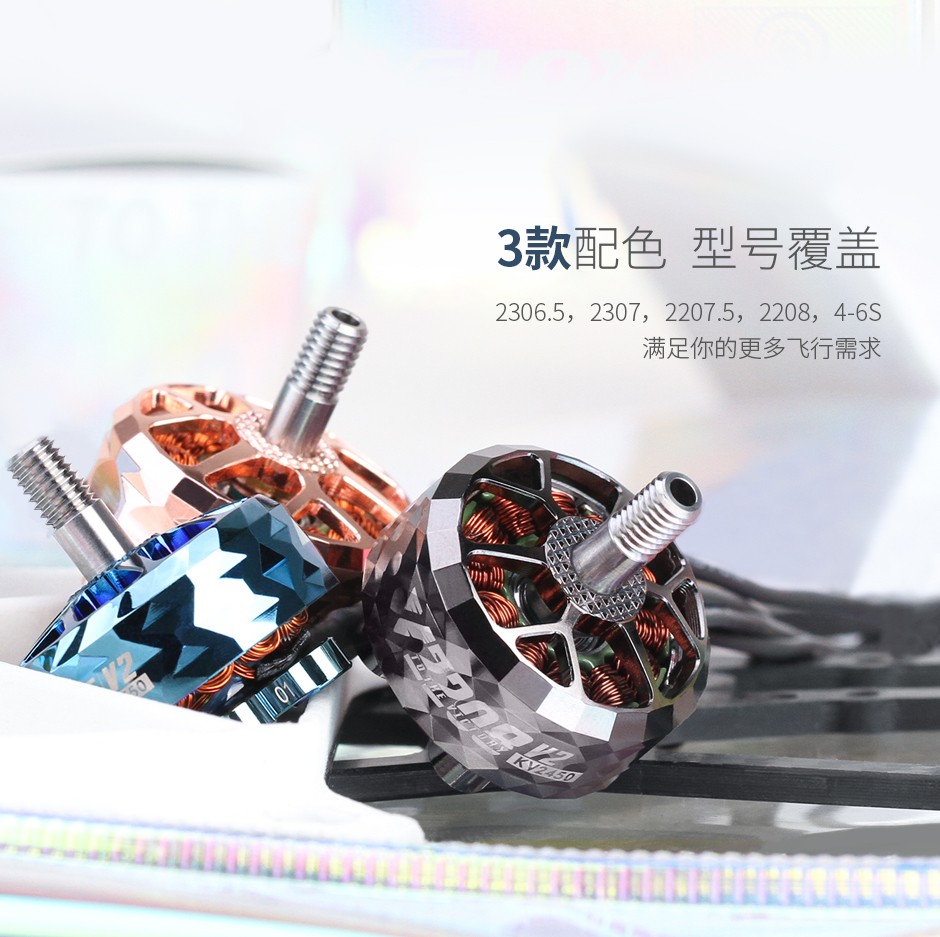

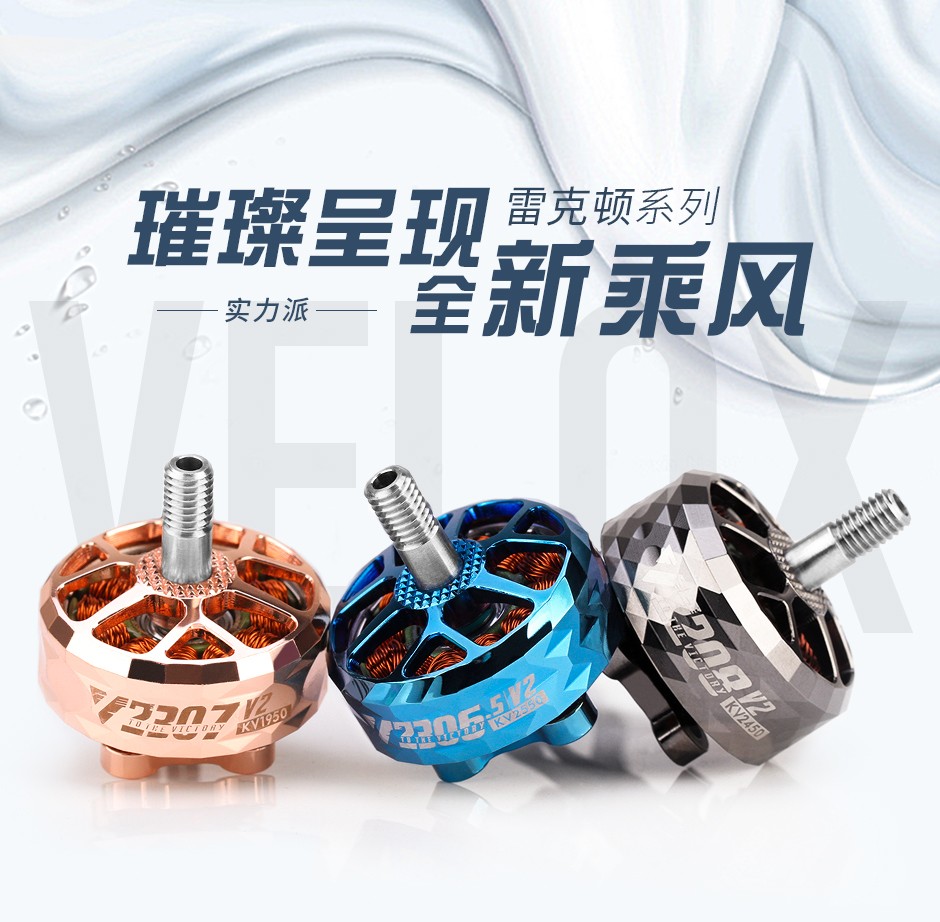

Models cover 2306.5, 2307, 2207.5, 2208, 4-6S to meet more of pilots' flight needs.

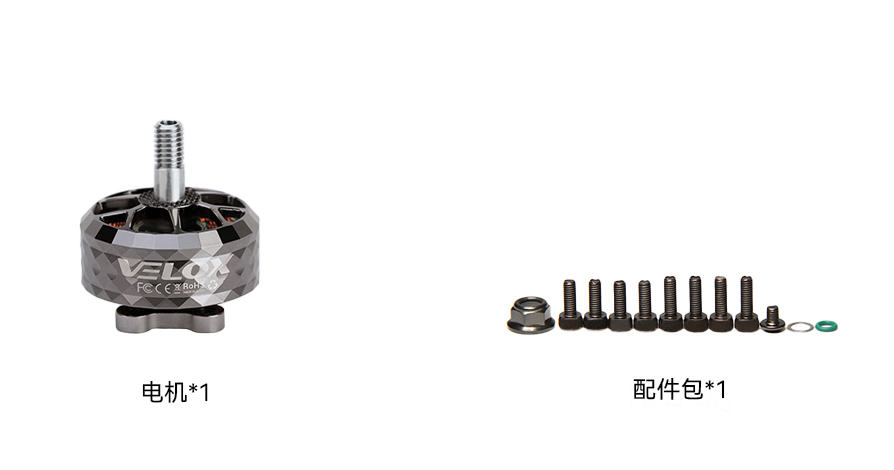

Packing List Includes:

1x T-HOBBY VELOX V2208 V2 Motor (Choose KV)

1x Hardware Set

Matching Frame:

5 Inch

Matching Guide:

F7 Flight controller / Pacer F7 Flight controller

F55A Pro II 6S 4IN1 ESC

P49436 FPV Drone propeller / T5143s FPV Drone propeller

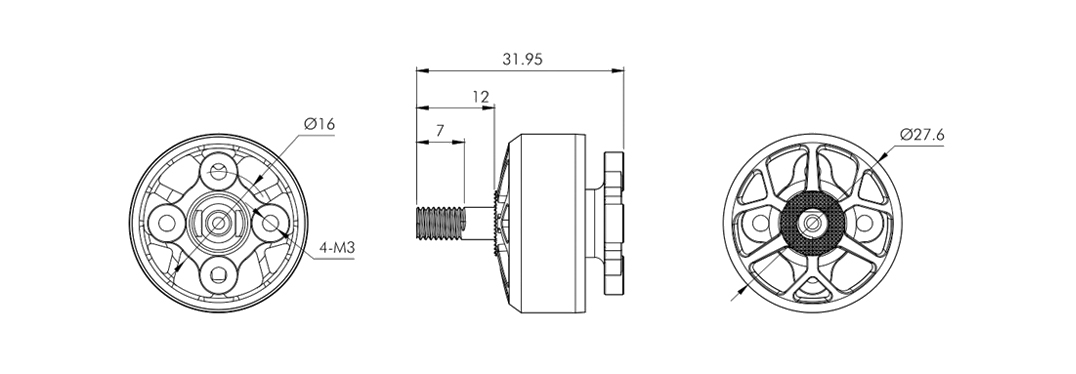

Technical Drawing

Specification

Test Item	1750	Configuration	12N14P
Internal Resistance	65mΩ	Motor Dimensions	Φ27.6*31.95mm
Shaft Diameter	4mm	Lead	20#、150mm
Weight(Incl.Cable)	36.9g	Weight(Excl.Cable)	33.1g
Rated Voltage(Lipo)	6S	Idle Current(10V)	1.35A
Max.Power(60s)	796W	Peak Current(60s)	34.5A

Test Item	1950	Configuration	12N14P
Internal Resistance	52mΩ	Motor Dimensions	Φ27.6*31.95mm
Shaft Diameter	4mm	Lead	20#、150mm
Weight(Incl.Cable)	37.2g	Weight(Excl.Cable)	33.4g
Rated Voltage(Lipo)	6S	Idle Current(10V)	1.6A
Max.Power(60s)	980W	Peak Current(60s)	43.2A

Test Item	2450	Configuration	12N14P
Internal Resistance	41mΩ	Motor Dimensions	Φ27.6*31.95mm
Shaft Diameter	4mm	Lead	20#、150mm
Weight(Incl.Cable)	37.2g	Weight(Excl.Cable)	33.4g
Rated Voltage(Lipo)	4-5S	Idle Current(10V)	2.1A
Max.Power(60s)	611W	Peak Current(60s)	40.3A

Test Data

Type	Propeller	Throttle	Thrust (g)	Voltage (V)	Current (A)	RPM	Power (W)	Efficiency (g/W)	Operating Temperature(℃)
V2208 V2 KV1750	T5143S 6S	50%	536.79	23.58	6.51	18900	158.39	3.39	87 (Ambient Temperature:12℃)
		55%	627.58	23.54	8.20	20291	197.96	3.17
		60%	729.81	23.50	10.10	21817	242.37	3.01
		65%	825.59	23.46	12.17	23192	290.50	2.84
		70%	928.24	23.41	14.43	24410	342.67	2.71
		75%	1025.00	23.36	16.83	25549	398.18	2.57
		80%	1106.36	23.32	19.00	26604	447.82	2.47
		85%	1200.09	23.27	21.42	27741	503.27	2.38
		90%	1285.86	23.20	24.17	28861	565.55	2.27
		95%	1385.39	23.12	27.55	29805	641.80	2.16
		100%	1460.13	23.04	30.76	30807	713.64	2.05
	T5146 6S	50%	633.09	23.56	7.17	18472	173.89	3.64	91 (Ambient Temperature:12℃)
		55%	727.76	23.53	8.88	19847	213.79	3.40
		60%	855.11	23.48	11.15	21296	266.64	3.21
		65%	963.58	23.43	13.39	22596	318.63	3.02
		70%	1089.68	23.37	16.01	23813	379.13	2.87
		75%	1201.72	23.32	18.70	24920	441.02	2.72
		80%	1294.38	23.26	21.42	25678	503.07	2.57
		85%	1369.53	23.21	23.60	26789	552.80	2.48
		90%	1485.43	23.14	26.86	27783	626.47	2.37
		95%	1583.68	23.07	30.09	28713	698.90	2.27
		100%	1627.91	22.97	33.64	29591	777.66	2.09
	T5147 6S	50%	621.90	23.56	7.42	18308	179.74	3.46	97 (Ambient Temperature:12℃)
		55%	715.51	23.52	9.21	19614	221.67	3.23
		60%	828.50	23.47	11.49	21085	274.69	3.02
		65%	938.79	23.43	13.81	22324	328.54	2.86
		70%	1057.01	23.37	16.56	23503	391.96	2.70
		75%	1163.40	23.31	19.30	24639	454.82	2.56
		80%	1287.46	23.26	21.88	25454	513.74	2.51
		85%	1373.88	23.20	24.34	26470	569.41	2.41
		90%	1499.18	23.12	27.65	27336	644.22	2.33
		95%	1608.39	23.04	31.10	27820	721.23	2.23
		100%	1679.61	22.95	34.32	29091	792.58	2.12
	T5150 6S	50%	635.54	23.56	7.36	18376	178.40	3.56	98 (Ambient Temperature:12℃)
		55%	736.73	23.52	9.18	19631	220.92	3.33
		60%	858.99	23.47	11.51	20887	275.15	3.12
		65%	976.58	23.42	13.91	22286	330.67	2.95
		70%	1092.83	23.37	16.58	23503	392.31	2.79
		75%	1207.75	23.31	19.35	24625	455.73	2.65
		80%	1294.30	23.25	21.95	25539	515.39	2.51
		85%	1382.12	23.20	24.43	26448	571.53	2.42
		90%	1481.98	23.13	27.45	27482	639.69	2.32
		95%	1591.90	23.05	30.86	28242	715.97	2.22
		100%	1690.80	22.94	34.50	29075	796.46	2.12
Note: Motor temperature is motor surface temperature @100% throttle running 1mins. (Date above based on benchtest are for reference only. Comparion with that of other motor types is not recommended.)
V2208 V2 KV1950	T5143S 6S	50%	655.20	23.52	9.16	20782	215.48	3.04	89 (Ambient Temperature:12℃)
		55%	757.41	23.48	11.33	22198	265.96	2.85
		60%	857.15	23.42	13.76	23908	322.38	2.66
		65%	966.45	23.37	16.47	24947	384.91	2.51
		70%	1072.22	23.31	19.16	26470	446.72	2.40
		75%	1166.00	23.26	21.89	27124	509.16	2.29
		80%	1267.72	23.18	24.98	28639	579.08	2.19
		85%	1361.93	23.11	27.98	29728	646.68	2.11
		90%	1456.13	23.03	31.49	30790	725.18	2.01
		95%	1552.85	22.92	35.27	31750	808.31	1.92
		100%	1617.18	22.79	39.07	32451	890.48	1.82
	T5146 6S	50%	764.91	23.51	9.87	20246	231.98	3.30	91 (Ambient Temperature:12℃)
		55%	889.87	23.45	12.39	21664	290.53	3.06
		60%	1023.46	23.40	15.20	23077	355.65	2.88
		65%	1139.19	23.33	18.07	24559	421.48	2.70
		70%	1239.65	23.27	21.03	25711	489.48	2.53
		75%	1348.45	23.20	24.17	26541	560.90	2.40
		80%	1474.00	23.13	27.47	27479	635.38	2.32
		85%	1553.03	23.04	31.09	28574	716.19	2.17
		90%	1627.01	22.95	34.20	29454	785.04	2.07
		95%	1717.46	22.82	38.11	30349	869.85	1.97
		100%	1769.29	22.68	42.10	31109	954.78	1.85
	T5147 6S	50%	755.17	23.49	10.27	20005	241.19	3.13	93 (Ambient Temperature:12℃)
		55%	876.22	23.44	12.87	21528	301.68	2.90
		60%	993.17	23.38	15.70	22947	366.96	2.71
		65%	1144.62	23.31	18.76	24231	437.48	2.62
		70%	1253.18	23.25	21.74	25275	505.48	2.48
		75%	1367.71	23.18	25.00	26401	579.42	2.36
		80%	1453.31	23.11	27.89	27188	644.68	2.25
		85%	1570.57	23.03	31.59	28065	727.36	2.16
		90%	1674.67	22.92	35.14	29021	805.62	2.08
		95%	1768.31	22.80	38.99	29821	888.84	1.99
		100%	1823.06	22.64	43.29	30405	980.16	1.86
	T5150 6S	50%	764.43	23.50	10.03	20054	235.70	3.24	96 (Ambient Temperature:12℃)
		55%	896.79	23.44	12.65	21371	296.50	3.02
		60%	1023.37	23.39	15.51	22873	362.64	2.82
		65%	1152.06	23.32	18.64	24259	434.63	2.65
		70%	1260.37	23.26	21.42	25338	498.08	2.53
		75%	1377.74	23.18	24.97	26426	578.88	2.38
		80%	1460.22	23.12	27.76	27166	641.74	2.28
		85%	1584.91	23.03	31.53	28063	725.87	2.18
		90%	1688.25	22.93	35.06	29088	803.76	2.10
		95%	1778.13	22.80	38.94	29844	887.70	2.00
		100%	1856.13	22.65	43.04	30451	974.78	1.90
Note: Motor temperature is motor surface temperature @100% throttle running 1mins. (Date above based on benchtest are for reference only. Comparion with that of other motor types is not recommended.)
V2208 V2 KV2450	T5143S 4S	50%	479.94	15.54	7.73	17774	137.30	3.50	90 (Ambient Temperature:12℃)
		55%	556.47	15.50	9.80	18968	168.99	3.29
		60%	619.42	15.46	11.69	20180	197.70	3.13
		65%	696.40	15.41	14.12	21420	234.53	2.97
		70%	775.80	15.35	16.74	22431	273.92	2.83
		75%	854.87	15.29	19.59	23666	316.36	2.70
		80%	922.33	15.22	22.40	24561	357.85	2.58
		85%	989.44	15.16	25.06	25431	396.59	2.49
		90%	1069.09	15.09	28.03	26323	439.68	2.43
		95%	1145.72	15.00	31.59	27261	490.35	2.34
		100%	1223.09	14.88	35.40	28051	543.04	2.25
	T5146 4S	50%	547.30	15.46	8.43	17254	147.33	3.71	92 (Ambient Temperature:12℃)
		55%	633.32	15.42	10.45	18355	178.10	3.56
		60%	709.81	15.37	12.77	19361	213.24	3.33
		65%	798.96	15.32	15.37	20706	252.24	3.17
		70%	889.05	15.25	18.18	21756	294.11	3.02
		75%	982.74	15.18	21.35	22795	340.89	2.88
		80%	1070.43	15.11	24.71	23628	390.05	2.74
		85%	1138.88	15.04	27.69	24446	432.88	2.63
		90%	1221.79	14.96	30.97	25015	479.77	2.55
		95%	1292.65	14.85	34.33	25920	526.04	2.46
		100%	1381.87	14.70	38.62	26515	583.96	2.37
	T5147 4S	50%	561.96	15.52	8.99	17077	156.61	3.59	91 (Ambient Temperature:12℃)
		55%	637.37	15.48	11.03	18241	187.80	3.39
		60%	722.66	15.42	13.55	19375	225.92	3.20
		65%	814.72	15.36	16.35	20416	268.17	3.04
		70%	901.26	15.30	19.48	21519	314.91	2.86
		75%	976.45	15.23	22.44	22400	358.45	2.72
		80%	1055.35	15.15	25.80	23370	407.51	2.59
		85%	1117.34	15.08	28.92	24159	452.64	2.47
		90%	1188.32	14.99	32.04	24925	496.85	2.39
		95%	1294.81	14.88	35.49	25645	544.56	2.38
		100%	1375.61	14.73	39.64	26360	600.22	2.29
	T5150 4S	50%	576.31	15.56	8.89	17299	155.53	3.71	94 (Ambient Temperature:12℃)
		55%	666.65	15.51	11.14	18355	189.94	3.51
		60%	754.75	15.46	13.67	19508	228.33	3.31
		65%	842.23	15.40	16.34	20626	268.69	3.13
		70%	924.64	15.34	19.28	21688	312.65	2.96
		75%	1020.27	15.27	22.55	22669	361.02	2.83
		80%	1104.85	15.19	25.92	23635	410.47	2.69
		85%	1183.23	15.11	29.17	24365	457.50	2.59
		90%	1262.38	15.02	32.65	24758	507.09	2.49
		95%	1346.65	14.91	36.12	25607	554.99	2.43
		100%	1426.30	14.76	40.34	26424	611.79	2.33
Note: Motor temperature is motor surface temperature @100% throttle running 1mins. (Date above based on benchtest are for reference only. Comparion with that of other motor types is not recommended.)

Packing List

Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
