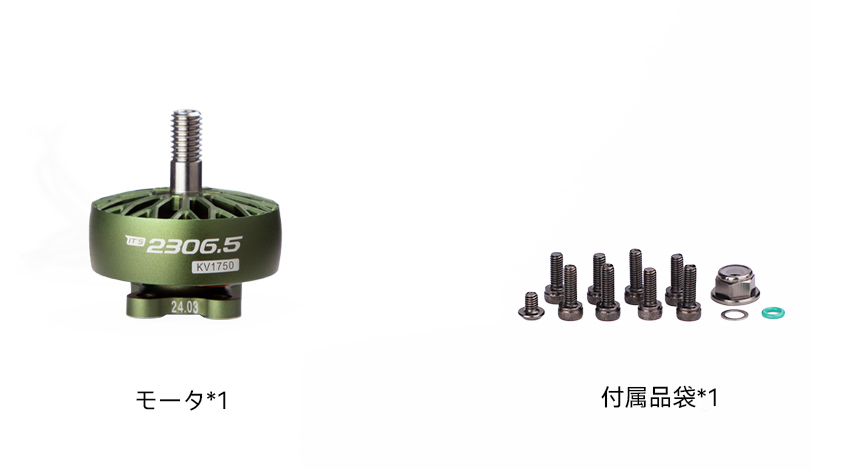

| 製品テスト型番 | KV1750 | 極スロット | 12N14P |
| 軸の径 | IN:4mm OUT:5mm | シリコンケーブル規格 | 20#150mm |
| 重量（線を含まない） | 33.4g | 試験電圧 | 6S |
| 無負荷電流(10V) | 0.95A | 最大出力（10s） | 849W |
| 最大電流（10s） | 36A |

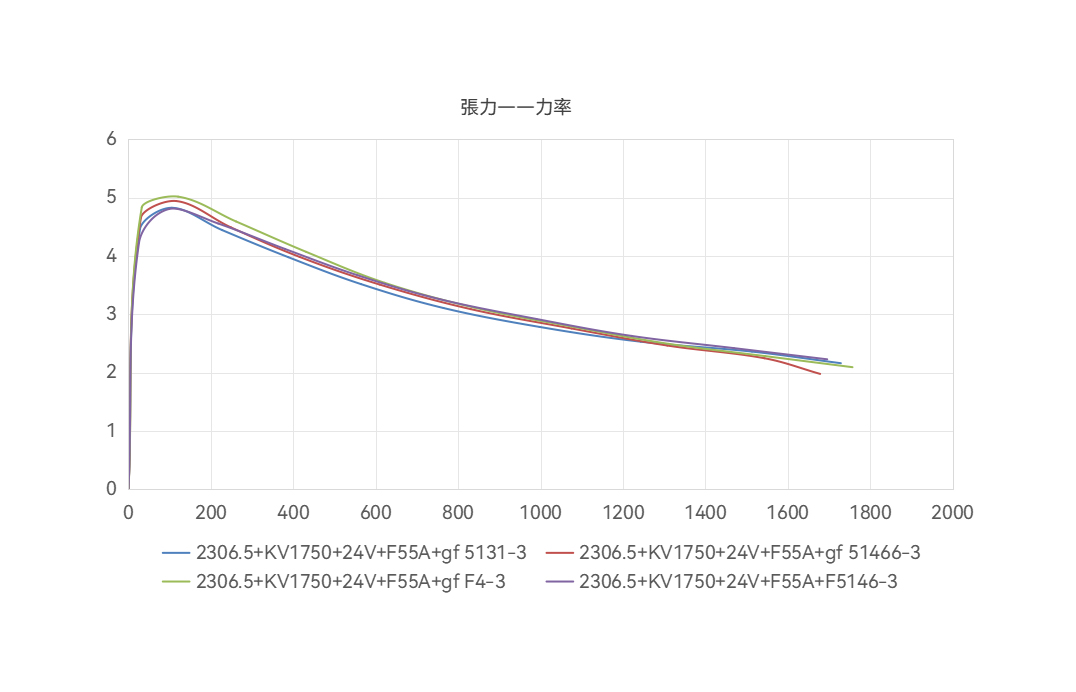

| プロペラ | 型番 | アクセル点 | 電圧 (V) | 電流 (A) | 回転スピード | 張力 (g) | 出力 (W) | 力率 (G/W) |
| F5146-3 | KV1750 | 0% | 24.0 | 0.0 | 0.00 | 0.0 | 0.0 | 0.00 |
| 10% | 24.0 | 0.3 | 4577.26 | 25.6 | 6.1 | 4.23 | ||
| 20% | 24.0 | 0.9 | 8579.59 | 98.6 | 20.5 | 4.80 | ||
| 30% | 24.0 | 2.0 | 12273.53 | 217.6 | 47.8 | 4.56 | ||
| 40% | 24.0 | 3.8 | 15813.53 | 379.5 | 92.1 | 4.12 | ||
| 50% | 23.9 | 6.3 | 18778.61 | 555.8 | 151.5 | 3.67 | ||
| 60% | 23.9 | 9.7 | 21606.44 | 755.0 | 231.7 | 3.26 | ||
| 70% | 23.8 | 14.2 | 24471.84 | 990.2 | 339.3 | 2.92 | ||
| 80% | 23.8 | 19.6 | 26928.15 | 1220.5 | 464.5 | 2.63 | ||
| 90% | 23.7 | 25.7 | 29278.22 | 1468.8 | 607.3 | 2.42 | ||
| 100% | 23.6 | 32.3 | 31251.48 | 1695.5 | 761.3 | 2.23 | ||
| GF F4-3 | KV1750 | 0% | 24.0 | 0.0 | 0.00 | 0.0 | 0.0 | 0.00 |
| 10% | 24.0 | 0.3 | 4549.27 | 32.3 | 6.7 | 4.83 | ||
| 20% | 24.0 | 1.0 | 8380.37 | 120.5 | 24.0 | 5.02 | ||
| 30% | 24.0 | 2.4 | 11986.52 | 261.2 | 56.9 | 4.59 | ||
| 40% | 24.0 | 4.4 | 15172.36 | 431.1 | 105.9 | 4.07 | ||
| 50% | 23.9 | 7.3 | 18107.74 | 621.7 | 175.7 | 3.54 | ||
| 60% | 23.9 | 11.3 | 20932.63 | 839.0 | 269.5 | 3.11 | ||
| 70% | 23.8 | 16.3 | 23625.69 | 1080.9 | 388.7 | 2.78 | ||
| 80% | 23.7 | 22.2 | 25919.45 | 1310.8 | 526.1 | 2.49 | ||
| 90% | 23.6 | 28.7 | 28070.97 | 1545.7 | 677.7 | 2.28 | ||
| 100% | 23.5 | 35.7 | 29857.62 | 1756.8 | 839.6 | 2.09 | ||
| GF 51466-3 | KV1750 | 0% | 24.0 | 0.0 | 0.00 | 0.0 | 0.0 | 0.00 |
| 10% | 24.0 | 0.3 | 4567.66 | 30.3 | 6.5 | 4.66 | ||
| 20% | 24.0 | 1.0 | 8449.97 | 115.7 | 23.4 | 4.94 | ||
| 30% | 24.0 | 2.3 | 12026.48 | 249.2 | 55.6 | 4.49 | ||
| 40% | 24.0 | 4.4 | 15236.87 | 415.4 | 104.3 | 3.98 | ||
| 50% | 23.9 | 7.3 | 18114.17 | 609.3 | 173.6 | 3.51 | ||
| 60% | 23.9 | 11.3 | 20915.29 | 830.6 | 269.1 | 3.09 | ||
| 70% | 23.8 | 16.4 | 23588.14 | 1075.1 | 390.0 | 2.76 | ||
| 80% | 23.7 | 22.4 | 25806.36 | 1307.5 | 530.9 | 2.46 | ||
| 90% | 23.6 | 29.1 | 27856.48 | 1543.5 | 687.6 | 2.25 | ||
| 100% | 23.5 | 36.1 | 29706.07 | 1678.3 | 848.8 | 1.98 | ||
| GF 5131-3 | KV1750 | 0% | 24.0 | 0.0 | 0.00 | 0.0 | 0.0 | 0.00 |
| 10% | 24.0 | 0.3 | 4599.52 | 27.9 | 6.3 | 4.46 | ||
| 20% | 24.0 | 0.9 | 8530.73 | 105.2 | 21.8 | 4.82 | ||
| 30% | 24.0 | 2.1 | 12113.98 | 227.3 | 51.2 | 4.44 | ||
| 40% | 24.0 | 4.1 | 15600.43 | 387.7 | 97.5 | 3.98 | ||
| 50% | 24.0 | 6.7 | 18566.70 | 564.2 | 160.5 | 3.52 | ||
| 60% | 23.9 | 10.3 | 21372.08 | 764.5 | 246.1 | 3.11 | ||
| 70% | 23.8 | 15.0 | 24162.96 | 997.5 | 358.6 | 2.78 | ||
| 80% | 23.7 | 20.7 | 26489.45 | 1243.0 | 491.5 | 2.53 | ||
| 90% | 23.6 | 27.1 | 28676.84 | 1513.1 | 641.3 | 2.36 | ||
| 100% | 23.6 | 34.0 | 30533.28 | 1728.6 | 800.3 | 2.16 |
