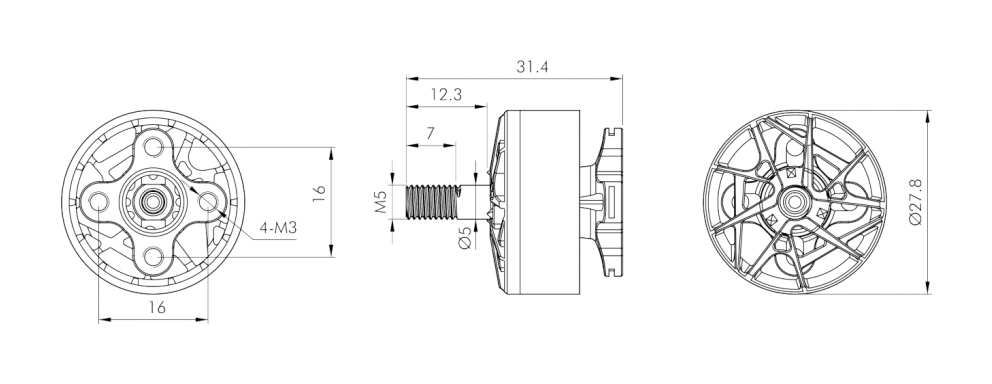

工程図
満200ドル国際エクスプレス送料無料（遠隔地へのお届け及び特別商品を除く）.
- 中文简体
- English
| 製品テスト型番 | KV1950 | 極スロット | 12N14P |
| 軸の径 | IN:4mm OUT:5mm | シリコンケーブル規格 | 20#150mm |
| 重量（線を含まない） | 34.5g | 試験電圧 | 25.2V |
| 無負荷電流(10V) | 1.49A | 最大出力（10s） | 1354W |
| 最大電流（10s） | 55.5A |
| 製品テスト型番 | KV2150 | 極スロット | 12N14P |
| 軸の径 | IN:4mm OUT:5mm | シリコンケーブル規格 | 20#150mm |
| 重量（線を含まない） | 33.7g | 試験電圧 | 25.2V |
| 無負荷電流(10V) | 1.55A | 最大出力（10s） | 1591W |
| 最大電流（10s） | 65.6A |

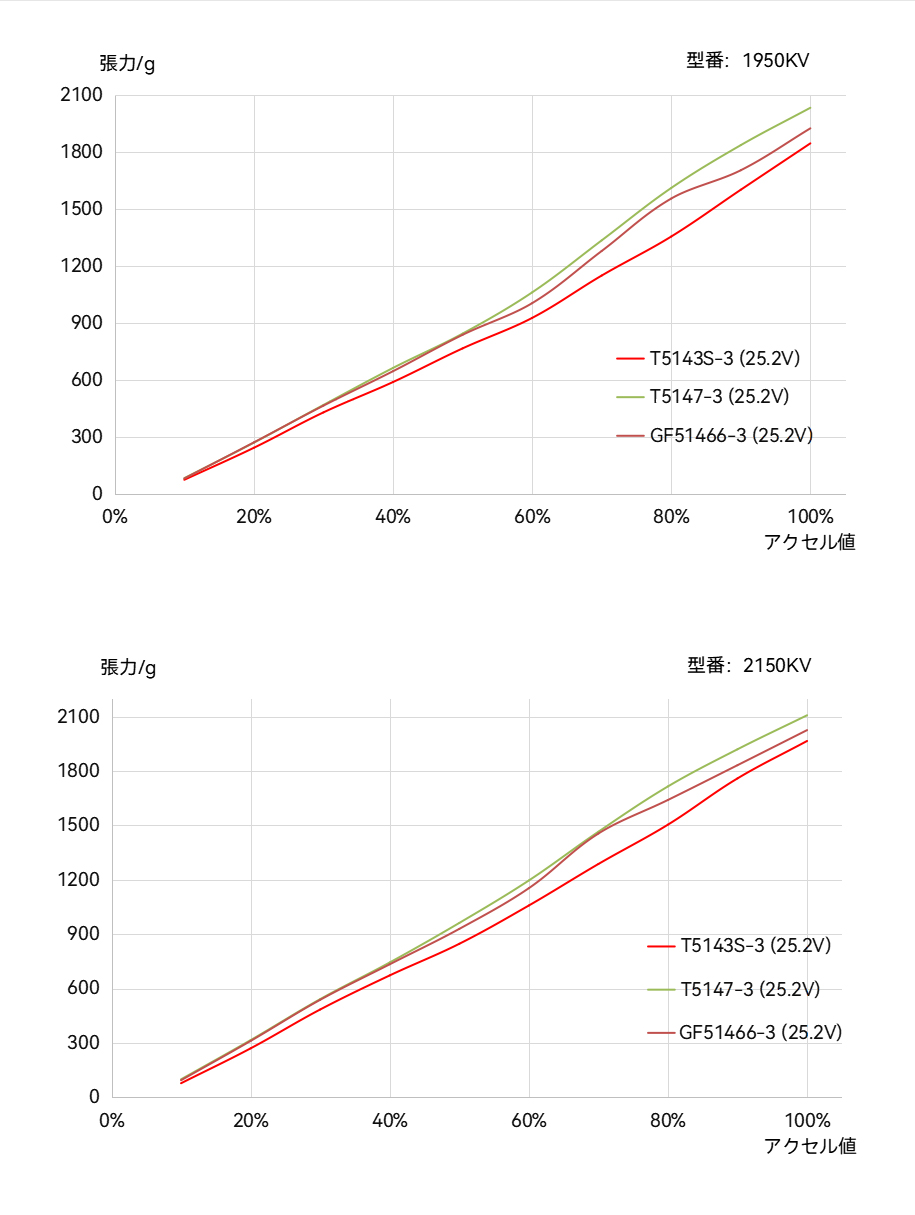

| Propeller | Type | Throttle | Voltage (V) | Current (A) | RPM | Thrust (g) | Power (W) | Efficiency (g/W) |
| T-HOBBY T5143S-3 | 1950KV | 20% | 25.2 | 2.7 | 13212.6 | 242.8 | 68.8 | 3.5 |
| 40% | 25.1 | 8.9 | 19856.2 | 588.9 | 223.6 | 2.6 | ||
| 60% | 25.0 | 16.0 | 24507.1 | 926.5 | 400.6 | 2.3 | ||
| 80% | 24.8 | 29.3 | 29978.4 | 1355.0 | 725.0 | 1.9 | ||
| 100% | 24.5 | 50.4 | 35275.0 | 1845.5 | 1233.8 | 1.5 | ||
| 2150KV | 20% | 25.2 | 3.5 | 13970.8 | 270.0 | 87.9 | 3.1 | |
| 40% | 25.0 | 11.5 | 21162.4 | 672.6 | 287.9 | 2.3 | ||
| 60% | 24.9 | 19.3 | 26030.8 | 1058.4 | 482.0 | 2.2 | ||
| 80% | 24.7 | 36.1 | 31585.5 | 1504.7 | 889.9 | 1.7 | ||
| 100% | 24.3 | 60.5 | 36418.5 | 1966.5 | 1470.4 | 1.3 | ||
| T-HOBBY T5147-3 | 1950KV | 20% | 25.2 | 2.8 | 12081.1 | 269.8 | 70.9 | 3.8 |
| 40% | 25.1 | 9.4 | 18434.1 | 663.2 | 236.1 | 2.8 | ||
| 60% | 24.9 | 19.1 | 22987.9 | 1060.8 | 475.7 | 2.2 | ||
| 80% | 24.7 | 34.2 | 28369.3 | 1610.7 | 845.9 | 1.9 | ||
| 100% | 24.4 | 55.5 | 32523.4 | 2032.9 | 1353.9 | 1.5 | ||
| 2150KV | 20% | 25.1 | 3.6 | 12977.3 | 315.4 | 90.4 | 3.5 | |
| 40% | 25.0 | 12.1 | 19428.8 | 744.0 | 302.3 | 2.5 | ||
| 60% | 24.9 | 22.9 | 24400.5 | 1196.6 | 568.5 | 2.1 | ||
| 80% | 24.6 | 41.7 | 29377.8 | 1715.8 | 1026.1 | 1.7 | ||
| 100% | 24.2 | 65.6 | 33384.2 | 2108.3 | 1591.0 | 1.3 | ||
| GF 51466-3 | 1950KV | 20% | 25.2 | 2.8 | 13043.2 | 271.1 | 69.3 | 3.9 |
| 40% | 25.1 | 9.1 | 19484.3 | 645.9 | 227.2 | 2.8 | ||
| 60% | 25.0 | 16.7 | 24054.7 | 1004.2 | 417.3 | 2.4 | ||
| 80% | 24.8 | 31.0 | 29316.5 | 1554.9 | 768.4 | 2.0 | ||
| 100% | 24.4 | 52.6 | 34381.8 | 1924.6 | 1286.4 | 1.5 | ||
| 2150KV | 20% | 25.2 | 3.4 | 13859.1 | 311.0 | 86.7 | 3.6 | |
| 40% | 25.0 | 11.6 | 20666.5 | 734.1 | 289.2 | 2.5 | ||
| 60% | 24.9 | 20.1 | 25474.7 | 1154.0 | 500.2 | 2.3 | ||
| 80% | 24.7 | 37.7 | 30890.7 | 1641.0 | 929.7 | 1.8 | ||
| 100% | 24.3 | 63.0 | 35369.5 | 2026.4 | 1530.0 | 1.3 |
