Specification Export to Excel

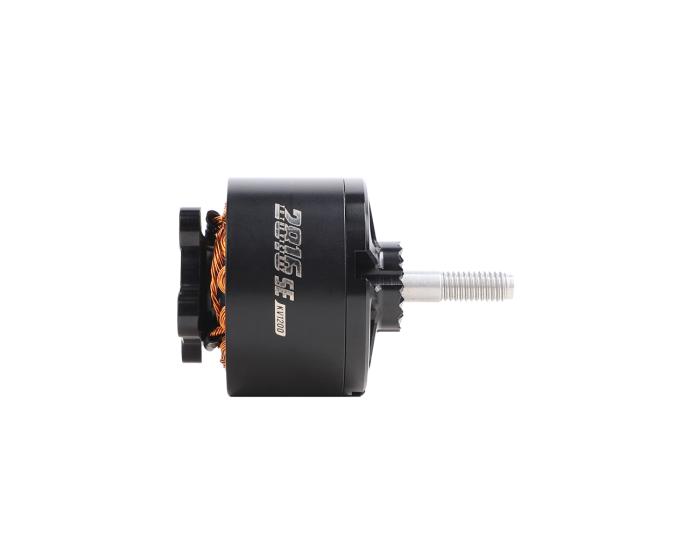

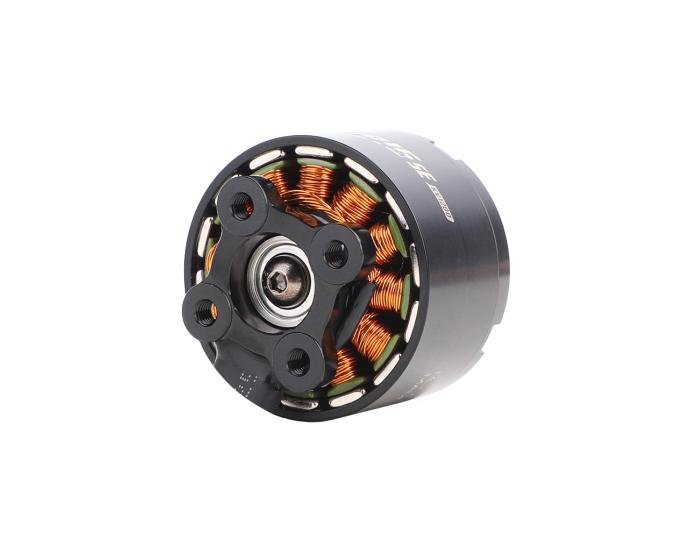

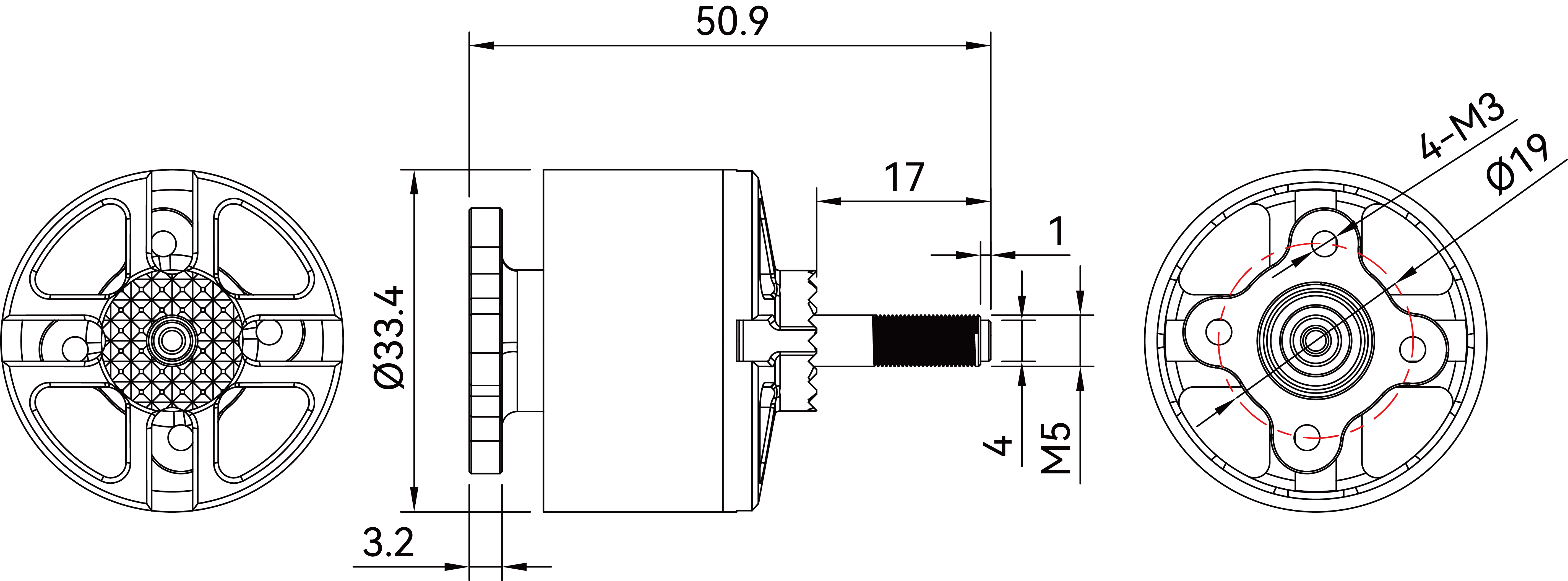

| Type | 2816SE | Motor Dimension | Φ33.4x50.9mm |
| Magnet | Nickel Plated
Arc Magnet | Coil Insulation
Test | 500V Withstand
Voltage Test |
Waterproof And
Dustproof Class | / | Configuration | 12N14P |
Dynamic Balance
Requirements Standards | ≤5mg | Bearings | Imported 694-ZZ Bearings |
| Shaft Diameter | 4mm | Lead | 18AWG PTFE Wire x 150mm |
| Screw Diameter | Φ19-M3-4 | Prop Adapter Shaft Thread | M5 |
| Packing Size | 77x72x70mm | Packing Weight | 120g |
| Tech Specs |
| Recommended Voltage | KV800 | Idle Current (10V) | 1.4A |
| Max Power | 510W | Internal Resistance | 47mΩ |
| Rated Voltage (LiPo) | 6-8S | Peak Current | 92A |
| Max Thrust | 5670g | Weight
(Incl. Cable) | 100g |
|
|
|
|
|
|
|
| Recommended Voltage | KV1200 | Idle Current (10V) | 2.3A |
| Max Power | 452W | Internal Resistance | 20mΩ |
| Rated Voltage (LiPo) | 6-8S | Peak Current | 110A |
| Max Thrust | 5210g | Weight
(Incl. Cable) | 98g |
| Recommended |
| Motor | 2816SE KV800 | Frame Type | 7-Inch Low-Drag
Rocket-Style X4 |
| Prop | 7x13x2 | Lipo Cells | 12S |
| ESC | V90A 12S | Recommended
takeoff weight range | Within 2kg |
| FC | F7 PRO | Max Takeoff Weight | 2.5kg |
Recommended ESC Settings:
AM32 (V2.19+): Startup Power 100%, Timing 22.5, PWM Frequency 24–48kHz, Motor KV1600.
BL32: Startup Power 35, Timing 30, PWM Frequency 24–48kHz, Demag Compensation High.
These settings provide optimal efficiency and flight performance. Incorrect settings may cause motor desync. |
Test Data:
Takeoff Weight 21,000g, Battery 3300mAh 12S 95C LiPo Battery, Max Speed 480km/h, Range 10km+ (With 500g Payload: Max Speed 440km/h). |
Test Data Export to Excel
| Type | Propeller | Voltage
(V) | Throttle | Current
(A) | RPM | Thrust
(gf) | Power
(W) | Efficiency
(gf/W) | Torque
(N·m) | Operating
Temperature
(℃) |
| 2816SE KV800 | T-HOBBY Cine75 | 48.0 | 20% | 1.8 | 7361 | 430 | 51 | 4.91 | 0.07 | 59
(Ambient Temperature:
25) |
| 48.0 | 30% | 4.2 | 10310 | 880 | 140 | 4.32 | 0.13 |
| 47.9 | 40% | 8.3 | 13260 | 1470 | 300 | 3.72 | 0.22 |
| 47.8 | 50% | 13.7 | 15839 | 2120 | 510 | 3.25 | 0.31 |
| 47.6 | 60% | 20.8 | 18193 | 2820 | 780 | 2.85 | 0.41 |
| 47.5 | 70% | 29.7 | 20396 | 3600 | 1107 | 2.56 | 0.52 |
| 47.3 | 80% | 40.6 | 22455 | 4370 | 1481 | 2.28 | 0.63 |
| 47.0 | 90% | 53.8 | 24286 | 5130 | 1892 | 2.03 | 0.74 |
| 46.7 | 100% | 67.6 | 25862 | 5670 | 2276 | 1.80 | 0.84 |
| 2816SE KV800 | T-HOBBY Cine85 | 32.0 | 20% | 1.3 | 4977 | 260 | 24 | 6.35 | 0.05 | 59
(Ambient Temperature:
25) |
| 32.0 | 30% | 3.1 | 6981 | 550 | 68 | 5.69 | 0.09 |
| 32.0 | 40% | 5.5 | 8644 | 880 | 131 | 5.05 | 0.14 |
| 31.9 | 50% | 9.5 | 10575 | 1320 | 237 | 4.37 | 0.21 |
| 31.8 | 60% | 15.5 | 12496 | 1850 | 393 | 3.76 | 0.30 |
| 31.6 | 70% | 22.6 | 14109 | 2420 | 569 | 3.40 | 0.39 |
| 31.5 | 80% | 30.6 | 15519 | 2960 | 764 | 3.07 | 0.47 |
| 31.3 | 90% | 40.5 | 16831 | 3500 | 989 | 2.77 | 0.56 |
| 31.1 | 100% | 51.8 | 18000 | 4040 | 1223 | 2.51 | 0.65 |
| 2816SE KV800 | GF6x12x2 | 45.0 | 20% | 1.6 | 6993 | 110 | 39 | 1.58 | 0.05 | 59
(Ambient Temperature:
25) |
| 45.0 | 30% | 3.7 | 9888 | 230 | 113 | 1.38 | 0.11 |
| 44.9 | 40% | 7.0 | 12713 | 380 | 236 | 1.20 | 0.18 |
| 44.8 | 50% | 11.5 | 15230 | 540 | 404 | 1.04 | 0.25 |
| 44.7 | 60% | 17.1 | 17604 | 700 | 612 | 0.92 | 0.33 |
| 44.6 | 70% | 24.6 | 19796 | 900 | 883 | 0.82 | 0.43 |
| 44.4 | 80% | 33.3 | 21922 | 1090 | 1193 | 0.73 | 0.52 |
| 44.2 | 90% | 44.5 | 23903 | 1310 | 1562 | 0.67 | 0.62 |
| 43.9 | 100% | 56.7 | 25756 | 1500 | 1943 | 0.60 | 0.72 |
| 2816SE KV800 | 7x13x2 | 50.0 | 20% | 2.4 | 6955 | 190 | 80 | 1.57 | 0.11 | 59
(Ambient Temperature:
25) |
| 49.9 | 30% | 5.7 | 9659 | 360 | 207 | 1.26 | 0.21 |
| 49.8 | 40% | 12.6 | 12729 | 630 | 473 | 1.02 | 0.36 |
| 49.6 | 50% | 21.4 | 15148 | 900 | 801 | 0.85 | 0.51 |
| 49.4 | 60% | 32.2 | 17152 | 1170 | 1180 | 0.73 | 0.66 |
| 49.1 | 70% | 45.6 | 18956 | 1400 | 1583 | 0.63 | 0.80 |
| 48.8 | 80% | 60.3 | 20356 | 1610 | 1957 | 0.55 | 0.92 |
| 48.5 | 90% | 76.1 | 21324 | 1770 | 2265 | 0.48 | 1.01 |
| 48.2 | 100% | 91.1 | 21892 | 1860 | 2440 | 0.42 | 1.06 |
| 2816SE KV1100 | T-HOBBY Cine75 | 35.0 | 20% | 2.5 | 7161 | 390 | 50 | 4.45 | 0.07 | 59
(Ambient Temperature:
25) |
| 34.9 | 30% | 5.6 | 9942 | 810 | 129 | 4.18 | 0.12 |
| 34.8 | 40% | 10.4 | 12675 | 1350 | 264 | 3.73 | 0.20 |
| 34.7 | 50% | 17.3 | 15196 | 1950 | 453 | 3.26 | 0.28 |
| 34.5 | 60% | 25.7 | 17396 | 2580 | 681 | 2.90 | 0.37 |
| 34.3 | 70% | 36.3 | 19399 | 3230 | 949 | 2.60 | 0.47 |
| 34.1 | 80% | 48.8 | 21273 | 3900 | 1257 | 2.35 | 0.56 |
| 33.8 | 90% | 64.4 | 23009 | 4580 | 1603 | 2.11 | 0.67 |
| 33.5 | 100% | 81.1 | 24443 | 5210 | 1940 | 1.92 | 0.76 |
| 2816SE KV1100 | T-HOBBY Cine85 | 28.0 | 20% | 2.2 | 5654 | 340 | 36 | 5.51 | 0.06 | 59
(Ambient Temperature:
25) |
| 28.0 | 30% | 4.8 | 7751 | 680 | 92 | 5.05 | 0.11 |
| 27.9 | 40% | 8.8 | 9684 | 1100 | 180 | 4.46 | 0.18 |
| 27.7 | 50% | 16.0 | 11877 | 1680 | 336 | 3.79 | 0.27 |
| 27.6 | 60% | 24.8 | 13756 | 2290 | 523 | 3.34 | 0.36 |
| 27.4 | 70% | 35.4 | 15344 | 2870 | 735 | 2.96 | 0.46 |
| 27.1 | 80% | 47.5 | 16725 | 3420 | 962 | 2.65 | 0.55 |
| 26.8 | 90% | 62.4 | 17977 | 3970 | 1214 | 2.37 | 0.65 |
| 26.5 | 100% | 79.2 | 18986 | 4470 | 1457 | 2.13 | 0.73 |
| 2816SE KV1100 | GF6x12x2 | 48.0 | 20% | 3.5 | 9509 | 200 | 98 | 1.16 | 0.10 | 59
(Ambient Temperature:
25) |
| 47.9 | 30% | 8.6 | 13558 | 420 | 288 | 1.01 | 0.20 |
| 47.8 | 40% | 14.6 | 16685 | 610 | 517 | 0.87 | 0.30 |
| 47.6 | 50% | 24.0 | 19618 | 870 | 863 | 0.76 | 0.42 |
| 47.4 | 60% | 36.3 | 22373 | 1150 | 1296 | 0.67 | 0.55 |
| 47.1 | 70% | 50.9 | 24909 | 1410 | 1778 | 0.59 | 0.68 |
| 46.7 | 80% | 68.1 | 27170 | 1660 | 2281 | 0.52 | 0.80 |
| 46.4 | 90% | 87.3 | 29043 | 1880 | 2766 | 0.47 | 0.91 |
| 45.9 | 100% | 110.3 | 30463 | 2080 | 3192 | 0.41 | 1.00 |
| 2816SE KV1100 | 7x13x2 | 35.0 | 20% | 3.1 | 6616 | 180 | 67 | 1.64 | 0.10 | 59
(Ambient Temperature:
25) |
| 34.9 | 30% | 6.9 | 8964 | 320 | 167 | 1.31 | 0.18 |
| 34.7 | 40% | 14.4 | 11633 | 540 | 366 | 1.07 | 0.30 |
| 34.6 | 50% | 24.7 | 13967 | 750 | 628 | 0.88 | 0.43 |
| 34.3 | 60% | 37.2 | 15799 | 980 | 924 | 0.77 | 0.56 |
| 34.0 | 70% | 51.7 | 17421 | 1190 | 1234 | 0.68 | 0.68 |
| 33.7 | 80% | 68.3 | 18791 | 1370 | 1542 | 0.59 | 0.78 |
| 33.3 | 90% | 86.9 | 19883 | 1540 | 1831 | 0.53 | 0.88 |
| 33.0 | 100% | 105.4 | 20807 | 1650 | 2077 | 0.47 | 0.95 |
Note:
The motor temperature refers to the casing temperature after running at 80% throttle for 10 seconds.
(The above data is obtained by T-HOBBY's independent platform test and is only for reference.
The final interpretation right belongs to T-HOBBY.) |

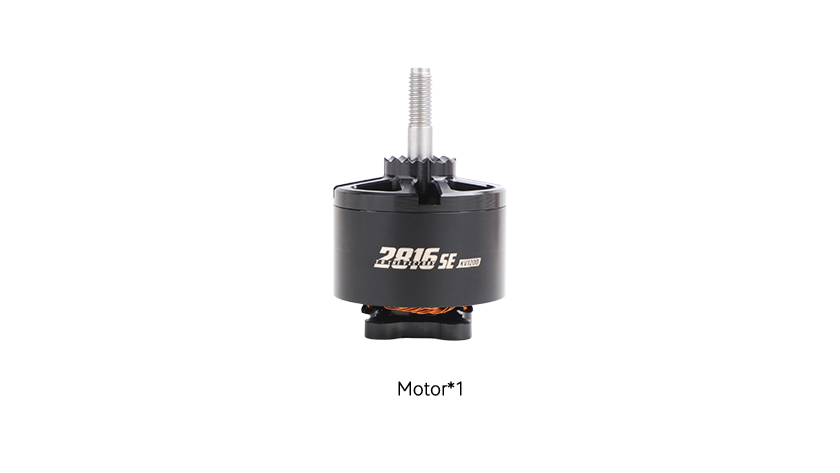

Packing List
Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to "
onlinesales@ligpower.com " in time.
