Specification Export to Excel

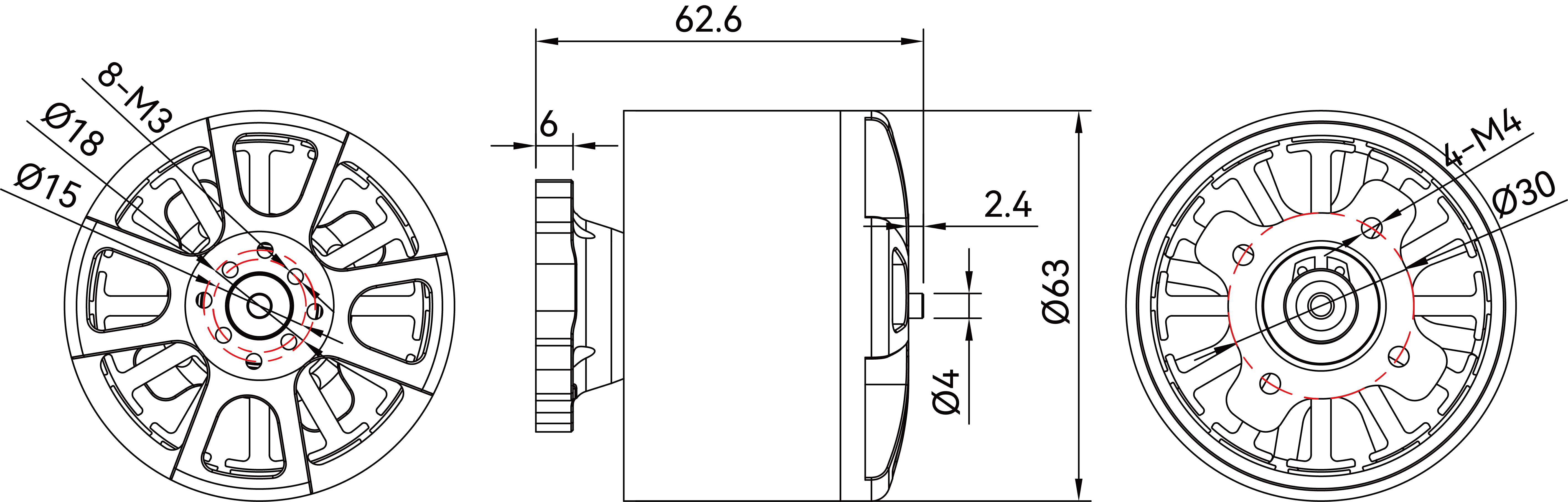

| Type | 5330SE | Motor Dimension | Φ63x62.6mm |
| Magnet | Nickel Plated
Arc Magnet | Coil Insulation
Test | 500V Withstand
Voltage Test |
Waterproof And
Dustproof Class | / | Configuration | 12N14P |
Dynamic Balance
Requirements Standards | ≤5mg | Bearings | Imported 698-ZZ Bearings |
| Shaft Diameter | 4mm | Lead | 14AWG Silicone Wire x 600mm |
| Screw Diameter | Φ30-M4-4 | Prop Adapter Shaft Thread | Φ18-M3-4/Φ15-M3-4 |
| Packing Size | 144x129x85mm | Packing Weight | 720g |
| Tech Specs |
| Recommended Voltage | KV240 | Idle Current (10V) | 3.0A |
| Max Power | 760W | Internal Resistance | 18mΩ |
| Rated Voltage (LiPo) | 12S | Peak Current | 131A |
| Max Thrust | 17890g | Weight
(Incl. Cable) | 690g |
| Recommended |
| Motor | 5330SE KV240 | Frame Type | 20-Inch X4 |
| Prop | 20x10x3 | Lipo Cells | 12S |
| ESC | V90A 12S | Recommended
takeoff weight range | Within 25kg |
| FC | F7 SE + BEC ≤ 8S | Max Takeoff Weight | 35kg |
Recommended ESC Settings:
AM32 (V2.19+): Startup Power 100%, Timing 15, PWM Frequency 24–48kHz, Motor KV 540.
BL32: Startup Power 35, Timing 30, PWM Frequency 24–48kHz, Demag Compensation High.
These settings provide optimal efficiency and flight performance. Incorrect settings may cause motor desync. |
Test Data:
1. 20000mAh 12S Battery (4000g), Payload 29,000g, Takeoff Weight 35,000g, Flight Time 8 minutes.
2. 20000mAh 12S Battery (4000g), Payload 19,000g, Takeoff Weight 25,000g, Flight Time 12 minutes.
3. 40000mAh 12S Battery (8000g), Payload 15,000g, Takeoff Weight 25,000g, Flight Time 24 minutes. |
Test Data Export to Excel
| Type | Propeller | Voltage
(V) | Throttle | Current
(A) | RPM | Thrust
(gf) | Power
(W) | Efficiency
(gf/W) | Torque
(N·m) | Operating
Temperature
(℃) |
| 5330SE KV240 | T-HOBBY P24 | 32.0 | 30% | 2.7 | 1939 | 1005 | 67 | 11.79 | 0.33 | 72
(Ambient Temperature:
25) |
| 32.0 | 40% | 6.1 | 2604 | 1885 | 161 | 9.71 | 0.59 |
| 32.0 | 50% | 11.1 | 3254 | 3109 | 300 | 8.78 | 0.88 |
| 32.0 | 60% | 18.0 | 3844 | 4388 | 495 | 7.64 | 1.23 |
| 32.0 | 70% | 27.1 | 4416 | 5801 | 744 | 6.70 | 1.61 |
| 31.9 | 80% | 39.3 | 4981 | 7458 | 1090 | 5.95 | 2.09 |
| 31.9 | 90% | 54.5 | 5521 | 9090 | 1474 | 5.22 | 2.55 |
| 31.9 | 95% | 62.9 | 5766 | 10176 | 1685 | 5.07 | 2.79 |
| 31.9 | 100% | 72.9 | 6030 | 11170 | 1932 | 4.81 | 3.06 |
| 5330SE KV240 | T-HOBBY P22 | 48.1 | 30% | 3.8 | 2895 | 1715 | 139 | 9.39 | 0.46 | 89
(Ambient Temperature:
25) |
| 48.1 | 40% | 8.5 | 3882 | 3144 | 337 | 7.70 | 0.83 |
| 48.1 | 50% | 15.6 | 4805 | 4944 | 639 | 6.59 | 1.27 |
| 48.1 | 60% | 26.5 | 5720 | 7161 | 1090 | 5.62 | 1.82 |
| 48.0 | 70% | 40.3 | 6529 | 9475 | 1668 | 4.90 | 2.44 |
| 48.0 | 80% | 58.5 | 7302 | 12115 | 2401 | 4.32 | 3.14 |
| 47.9 | 90% | 84.8 | 8075 | 15146 | 3323 | 3.73 | 3.93 |
| 47.9 | 95% | 103.4 | 8457 | 16671 | 3853 | 3.37 | 4.35 |
| 47.8 | 100% | 111.5 | 8654 | 17823 | 4160 | 3.34 | 4.59 |
| 5330SE KV240 | GF 1810 | 48.1 | 30% | 4.3 | 2846 | 1713 | 164 | 8.24 | 0.55 | 105
(Ambient Temperature:
25) |
| 48.1 | 40% | 9.8 | 3821 | 3101 | 392 | 6.60 | 0.98 |
| 48.0 | 50% | 17.9 | 4721 | 4695 | 781 | 5.46 | 1.58 |
| 48.0 | 60% | 29.6 | 5560 | 6568 | 1223 | 4.63 | 2.10 |
| 47.9 | 70% | 45.8 | 6402 | 9076 | 1837 | 4.13 | 2.74 |
| 47.9 | 80% | 65.6 | 7155 | 11419 | 2622 | 3.63 | 3.50 |
| 47.9 | 90% | 97.9 | 7939 | 14444 | 3708 | 3.08 | 4.46 |
| 47.8 | 95% | 115.8 | 8246 | 15718 | 4214 | 2.84 | 4.88 |
| 47.9 | 100% | 123.3 | 8499 | 16419 | 4575 | 2.78 | 5.14 |
| 5330SE KV240 | HQ 2010 | 48.2 | 30% | 4.5 | 2868 | 1927 | 159 | 8.82 | 0.53 | 118
(Ambient Temperature:
25) |
| 48.2 | 40% | 10.2 | 3845 | 3503 | 383 | 7.09 | 0.95 |
| 48.2 | 50% | 18.8 | 4728 | 5312 | 762 | 5.86 | 1.54 |
| 48.2 | 60% | 31.6 | 5596 | 7637 | 1283 | 5.03 | 2.19 |
| 48.1 | 70% | 48.0 | 6381 | 10026 | 1931 | 4.34 | 2.89 |
| 48.1 | 80% | 68.8 | 7098 | 12572 | 2676 | 3.80 | 3.60 |
| 48.1 | 90% | 104.1 | 7838 | 15760 | 3743 | 3.15 | 4.56 |
| 47.9 | 95% | 122.1 | 8115 | 16935 | 4190 | 2.90 | 4.93 |
| 47.9 | 100% | 131.2 | 8306 | 17894 | 4619 | 2.85 | 5.31 |
Note:
The motor temperature refers to the casing temperature after running at 80% throttle for 10 seconds.
(The above data is obtained by T-HOBBY's independent platform test and is only for reference.
The final interpretation right belongs to T-HOBBY.) |

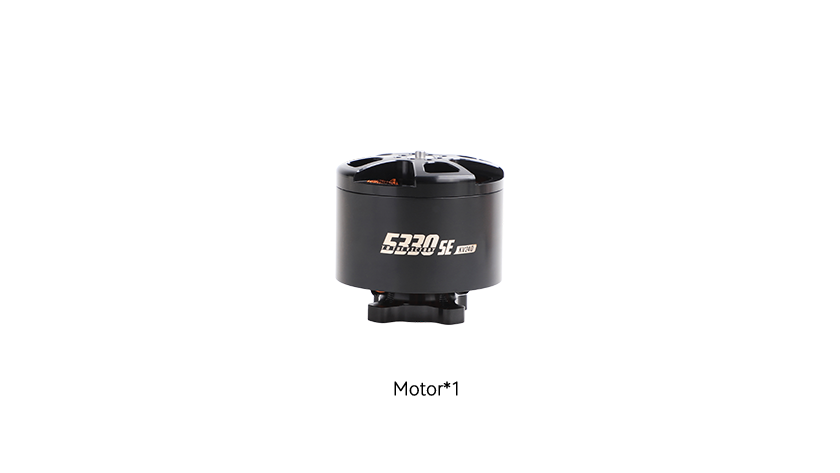

Packing List
Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to "
onlinesales@ligpower.com " in time.
