Specification Export to Excel

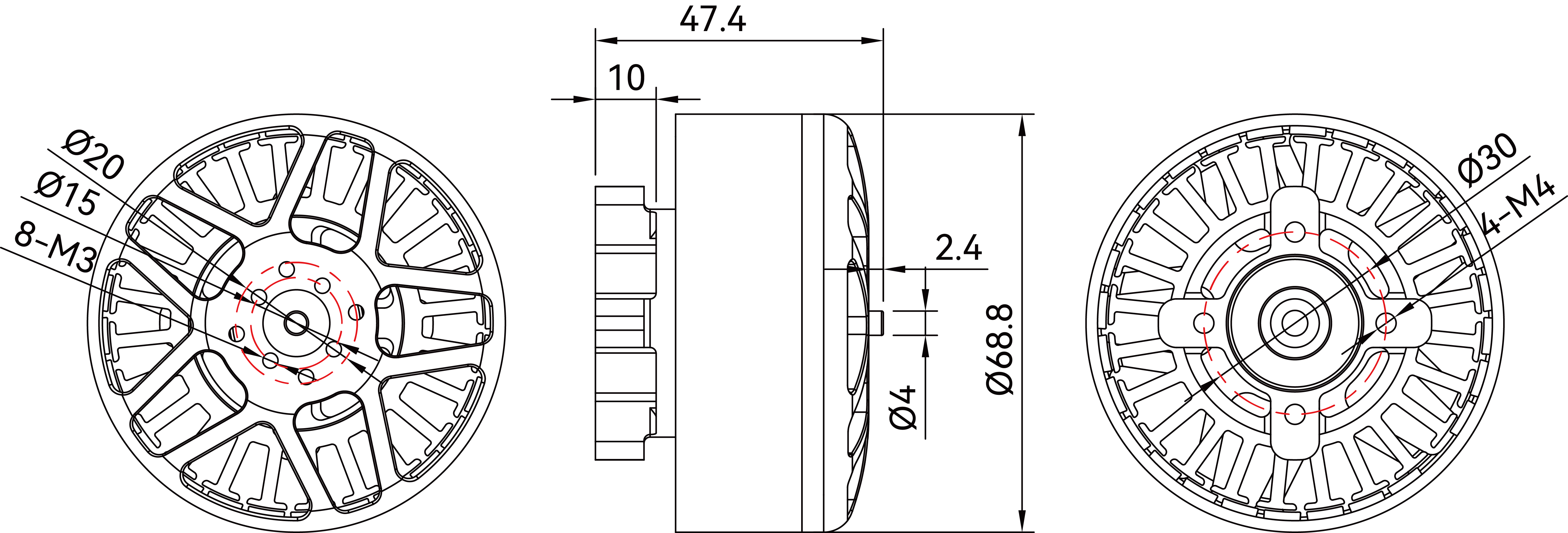

| Type | 6218SE | Motor Dimension | Φ68.8x47.4mm |
| Magnet | Nickel Plated
Arc Magnet | Coil Insulation
Test | 500V Withstand
Voltage Test |
Waterproof And
Dustproof Class | / | Configuration | 24N28P |
Dynamic Balance
Requirements Standards | ≤5mg | Bearings | Imported 608-ZZ Bearings |
| Shaft Diameter | 4mm | Lead | 14AWG Silicone Wire x 600mm |
| Screw Diameter | Φ30-M4-4 | Prop Adapter Shaft Thread | Φ20-M3-4/Φ15-M3-4 |
| Packing Size | 144x129x70mm | Packing Weight | 500g |
| Tech Specs |
| Recommended Voltage | KV200 | Idle Current (10V) | 1.6A |
| Max Power | 505W | Internal Resistance | 35mΩ |
| Rated Voltage (LiPo) | 12S | Peak Current | 76A |
| Max Thrust | 14460g | Weight
(Incl. Cable) | 455g |
| Recommended |
| Motor | 6218SE KV200 | Frame Type | 20-Inch X4 |
| Prop | 20x10x3 | Lipo Cells | 12S |
| ESC | V90A 12S | Recommended
takeoff weight range | Within 30kg |
| FC | F7 SE + BEC ≤ 8S | Max Takeoff Weight | 35kg |
Recommended ESC Settings:
AM32 (V2.19+): Startup Power 100%, Timing 15, PWM Frequency 24–48kHz, Motor KV 520.
BL32: Startup Power 35, Timing 30, PWM Frequency 24–48kHz, Demag Compensation High.
These settings provide optimal efficiency and flight performance. Incorrect settings may cause motor desync. |
Test Data:
1.20000mAh 12S Battery (4000g), Payload 29,000g, Takeoff Weight 35,000g, Flight Time 8 minutes.
2.20000mAh 12S Battery (4000g), Payload 24,000g, Takeoff Weight 30,000g, Flight Time 13 minutes.
3.40000mAh 12S Battery (8000g), Payload 20,000g, Takeoff Weight 30,000g, Flight Time 26 minutes. |
Test Data Export to Excel
| Type | Propeller | Voltage
(V) | Throttle | Current
(A) | RPM | Thrust
(gf) | Power
(W) | Efficiency
(gf/W) | Torque
(N·m) | Operating
Temperature
(℃) |
| 6218SE KV200 | T-HOBBY P22 | 47.8 | 30% | 2.4 | 2443 | 1180 | 87 | 10.34 | 0.34 | 59
(Ambient Temperature:
25) |
| 47.9 | 40% | 5.1 | 3248 | 2114 | 211 | 8.58 | 0.62 |
| 47.9 | 50% | 8.8 | 3979 | 3306 | 354 | 7.89 | 0.85 |
| 47.8 | 60% | 14.2 | 4701 | 4714 | 591 | 6.96 | 1.20 |
| 47.8 | 70% | 21.8 | 5420 | 6346 | 925 | 6.09 | 1.63 |
| 47.8 | 80% | 31.4 | 6086 | 8119 | 1332 | 5.40 | 2.09 |
| 47.8 | 90% | 43.7 | 6726 | 9960 | 1838 | 4.77 | 2.61 |
| 47.8 | 95% | 51.3 | 7025 | 10911 | 2097 | 4.45 | 2.85 |
| 47.8 | 100% | 57.3 | 7291 | 11928 | 2352 | 4.36 | 3.08 |
| 6218SE KV200 | T-HOBBY P24 | 47.9 | 30% | 3.2 | 2323 | 1448 | 117 | 9.55 | 0.48 | 81
(Ambient Temperature:
25) |
| 47.9 | 40% | 6.9 | 3159 | 2918 | 278 | 8.80 | 0.84 |
| 47.9 | 50% | 12.3 | 3858 | 4395 | 505 | 7.48 | 1.25 |
| 47.9 | 60% | 19.4 | 4508 | 6098 | 807 | 6.54 | 1.71 |
| 47.9 | 70% | 29.6 | 5169 | 8015 | 1223 | 5.66 | 2.26 |
| 47.9 | 80% | 43.3 | 5809 | 10093 | 1740 | 4.86 | 2.86 |
| 47.9 | 90% | 59.8 | 6391 | 12487 | 2296 | 4.36 | 3.43 |
| 47.8 | 95% | 68.8 | 6657 | 13603 | 2628 | 4.14 | 3.77 |
| 47.9 | 100% | 76.0 | 6873 | 14464 | 2908 | 3.98 | 4.04 |
| 6218SE KV200 | T-HOBBY P26 | 32.1 | 30% | 2.4 | 1568 | 973 | 59 | 12.68 | 0.36 | 56
(Ambient Temperature:
25) |
| 32.1 | 40% | 5.2 | 2086 | 1822 | 140 | 10.94 | 0.64 |
| 32.1 | 50% | 9.5 | 2570 | 2795 | 253 | 9.15 | 0.94 |
| 32.1 | 60% | 15.7 | 3060 | 4218 | 426 | 8.40 | 1.33 |
| 32.1 | 70% | 23.1 | 3474 | 5494 | 618 | 7.42 | 1.70 |
| 32.0 | 80% | 32.6 | 3886 | 6932 | 883 | 6.63 | 2.17 |
| 32.0 | 90% | 44.3 | 4280 | 8460 | 1183 | 5.97 | 2.64 |
| 32.0 | 95% | 52.5 | 4494 | 9247 | 1365 | 5.51 | 2.90 |
| 31.9 | 100% | 57.9 | 4643 | 9935 | 1502 | 5.38 | 3.09 |
| 6218SE KV200 | HQ2010 | 48.2 | 30% | 2.9 | 2364 | 1167 | 106 | 8.43 | 0.43 | 68
(Ambient Temperature:
25) |
| 48.2 | 40% | 6.2 | 3211 | 2396 | 229 | 8.07 | 0.68 |
| 48.2 | 50% | 10.8 | 3920 | 3614 | 410 | 6.94 | 1.00 |
| 48.2 | 60% | 17.1 | 4605 | 5033 | 680 | 6.10 | 1.41 |
| 48.2 | 70% | 26.0 | 5291 | 6708 | 1058 | 5.36 | 1.91 |
| 48.1 | 80% | 38.1 | 5921 | 8327 | 1531 | 4.54 | 2.47 |
| 48.2 | 90% | 52.9 | 6562 | 10680 | 2110 | 4.19 | 3.07 |
| 48.1 | 95% | 59.3 | 6807 | 11465 | 2331 | 4.02 | 3.27 |
| 48.1 | 100% | 67.0 | 7067 | 12320 | 2635 | 3.82 | 3.56 |
Note:
The motor temperature refers to the casing temperature after running at 80% throttle for 10 seconds.
(The above data is obtained by T-HOBBY's independent platform test and is only for reference.
The final interpretation right belongs to T-HOBBY.) |

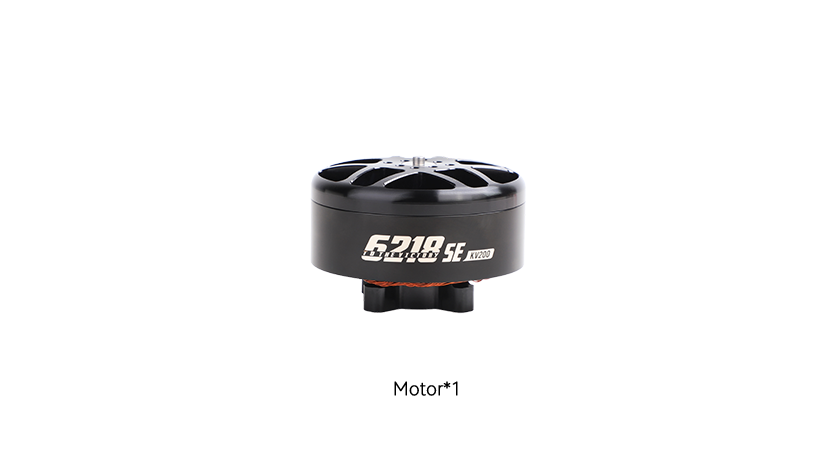

Packing List
Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to "
onlinesales@ligpower.com " in time.
