Name: T-HOBBY Velox 3115 FPV Cinelifter Drone Motor 3-12S KV400/640/900/1050
Brand: LIGPOWER
SKU: LIGPOWER001506
Price: 49.90 USD
Availability: InStock

Relevant Products

Detail information
Specifications

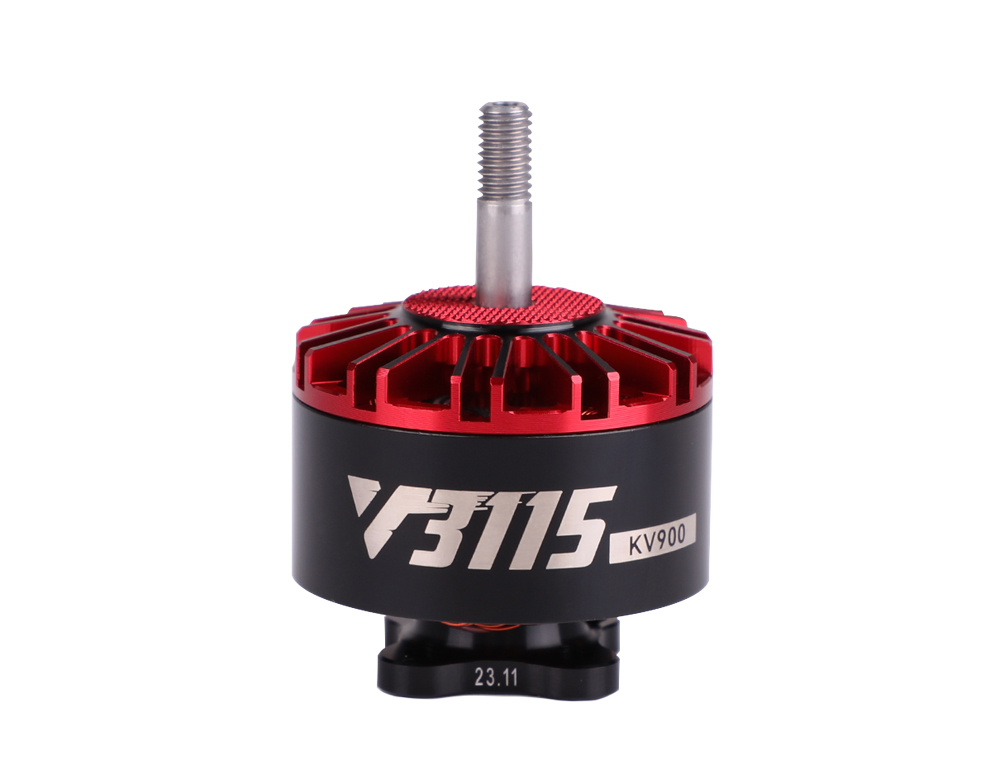

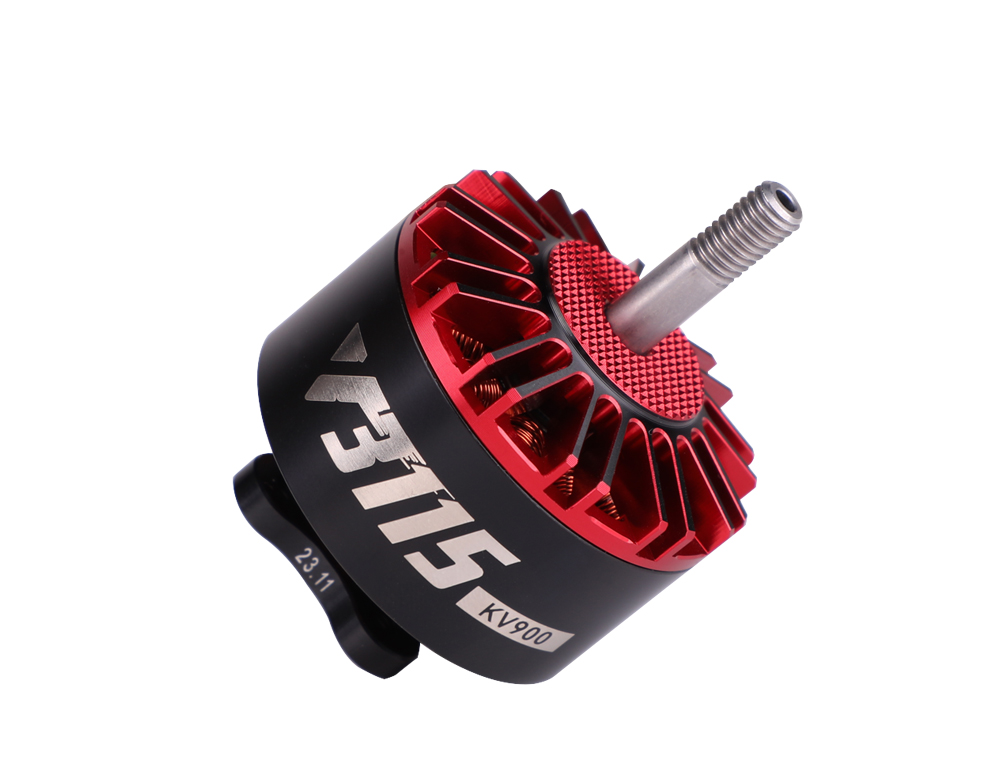

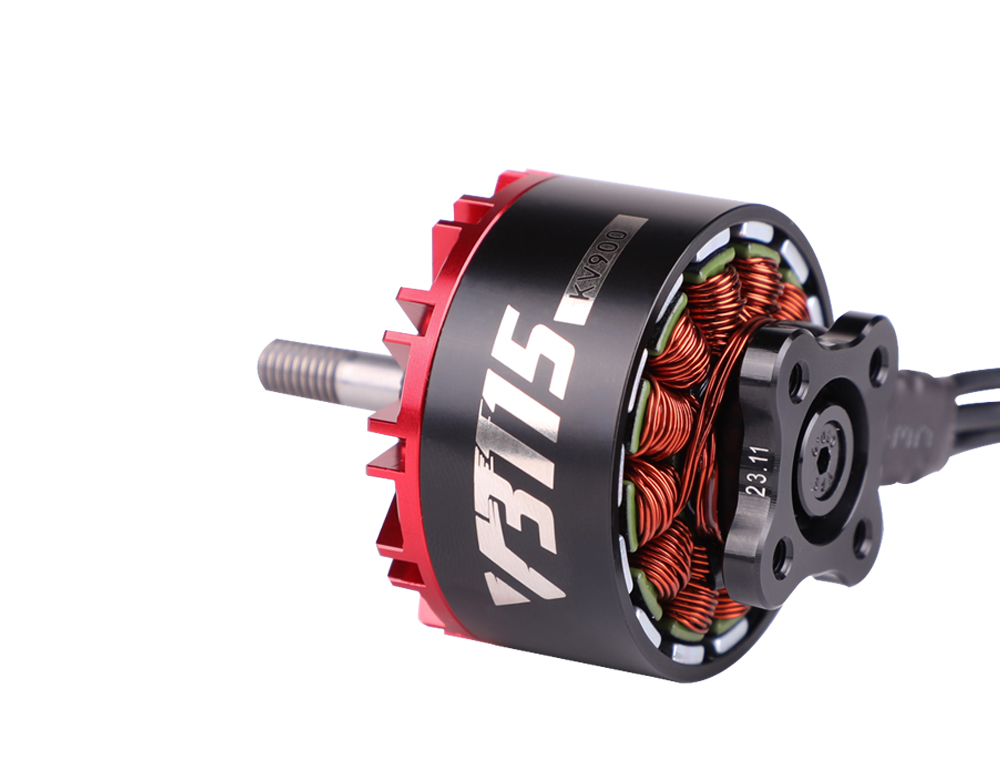

About T-HOBBY Velox V3115 X4 X8 Cinelifter Drone Motor

The Velox V3115 motor provide powerful propulsion for 3-12S, 8-11 inch X4 X8 cinematic drones, ensuring easy control for cinematic-level shooting and a safe flight.

Cinelifter Velox V3115 Hightlight:

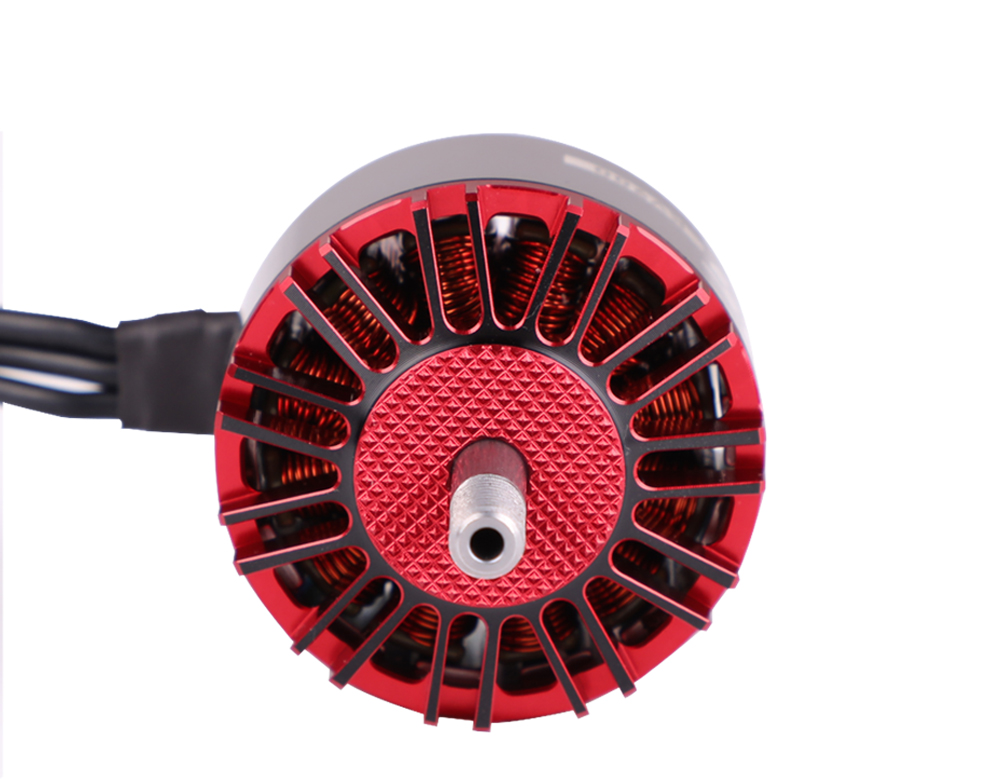

The V3115 motor adopts an active heat dissipation design, operating at a lower temperature, and uses the first electrophoretic iron core,

which is more corrosion-resistant in humid flight environments and has stable performance, which provides powerful propulsion for 3-12S,

8-11 inch X4 X8 cinematic drones, ensuring easy control for cinematic-level shooting and a safe flight.

Packing List Includes:

1x T-HOBBY Velox V3115 Motor

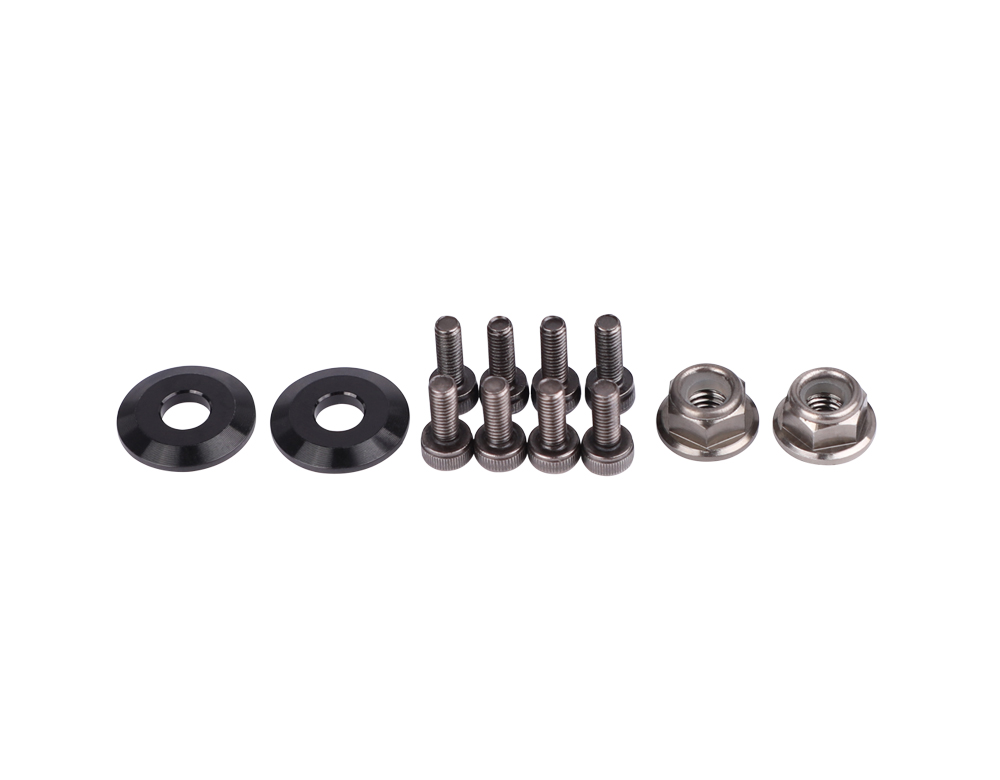

1x Hardware Set

Matching Frame:

8-11 Inch(X4 X8)

Matching Guide:

F7Pro Flight controller

C80A 8S 4IN1 ESC

C7.5*4.6 FPV Drone propeller

Technical Drawing

Specification

Test Item	KV400	Configuration	12N14P
Internal Resistance	145.38mΩ	Motor Dimensions	φ37.2*51.1mm
Shaft Diameter	IN5 OUT5	Lead	18AWG 250mm
Weight(Incl.Cable)	113.4g	Idle Current(10V)	0.59A
Max.Power(10s)	1982W	Peak Current(10s)	41A

Test Item	KV640	Configuration	12N14P
Internal Resistance	67.13mΩ	Motor Dimensions	φ37.2*51.1mm
Shaft Diameter	IN5 OUT5	Lead	18AWG 250mm
Weight(Incl.Cable)	113.3g	Idle Current(10V)	1.10A
Max.Power(10s)	1927W	Peak Current(10s)	62A

Test Item	KV900	Configuration	12N14P
Internal Resistance	38.08mΩ	Motor Dimensions	φ37.2*51.1mm
Shaft Diameter	IN5 OUT5	Lead	18AWG 250mm
Weight(Incl.Cable)	113.1g	Idle Current(10V)	1.57A
Max.Power(10s)	1894W	Peak Current(10s)	83A

Test Item	KV1050	Configuration	12N14P
Internal Resistance	33.84mΩ	Motor Dimensions	φ37.2*51.1mm
Shaft Diameter	IN5 OUT5	Lead	18AWG 250mm
Weight(Incl.Cable)	112.7g	Idle Current(10V)	1.79A
Max.Power(10s)	1903W	Peak Current(10s)	83.6A

Test Data

Type	Propeller	Throttle	Voltage (V)	Current (A)	Power (W)	RPM	Thrust (g)	Torque (N*m)	Efficiency (g/W)	Operating Temperature (℃)
V3115 KV400	T9.5X5-3	10%	48	0.21	10	2134	35	0.02	3.5	/
		20%	48	0.76	36	4101	238	0.05	6.5
		30%	48	1.46	70	5472	478	0.08	6.8
		40%	48	3.11	149	7101	856	0.14	5.7
		50%	48	5.51	264	8640	1300	0.22	4.9
		60%	48	8.61	412	10049	1784	0.29	4.3
		70%	48	12.15	582	11478	2358	0.39	4.1
		80%	48	17.44	833	12860	2986	0.50	3.6
		90%	48	23.77	1133	14133	3638	0.61	3.2
		100%	48	31.42	1493	15291	4299	0.72	2.9
	HQ1050-3	10%	48	0.22	10	2023	44	0.02	4.2	/
		20%	48	0.75	36	3791	254	0.05	7.0
		30%	48	1.69	81	5241	559	0.10	6.9
		40%	48	3.56	171	6820	1018	0.18	6.0
		50%	48	6.43	308	8295	1552	0.28	5.0
		60%	48	10.17	487	9634	2095	0.37	0.0
		70%	48	15.51	741	10973	2819	0.50	0.0
		80%	48	22.76	1085	12129	3514	0.62	3.2
		90%	48	30.35	1443	13224	4213	0.75	2.9
		100%	47	41.12	1949	14013	4781	0.85	2.5
	T10.5X5-3	10%	48	0.22	10	1880	42	0.02	4.1	/
		20%	48	0.73	35	3644	272	0.06	7.8
		30%	48	1.77	85	5187	619	0.11	7.3
		40%	48	3.72	178	6758	1099	0.19	6.2
		50%	48	6.70	321	8220	1646	0.29	5.1
		60%	48	10.26	491	9407	2189	0.38	0.0
		70%	48	15.99	764	10821	2931	0.51	3.8
		80%	48	23.30	1111	11851	3555	0.62	3.2
		90%	48	31.01	1474	13011	4285	0.76	2.9
		100%	47	41.84	1982	13713	4817	0.85	2.4
	T10.5X5-3	10%	32	0.15	5	1199	11	0.01	2.4	/
		20%	32	0.49	16	2613	117	0.03	7.4
		30%	32	1.04	34	3661	285	0.05	8.5
		40%	32	1.91	61	4667	502	0.09	8.2
		50%	32	3.72	119	5844	825	0.14	6.9
		60%	32	5.50	176	6826	1144	0.20	6.5
		70%	32	8.35	267	7853	1529	0.26	5.7
		80%	32	11.82	377	8748	1916	0.33	5.1
		90%	32	15.88	506	9661	2350	0.40	4.6
		100%	32	20.62	655	10503	2798	0.48	4.3
V3115 KV640	T9.5X5-3	10%	32	0.33	11	2030	32	0.01	3.0	/
		20%	32	1.21	39	4108	242	0.04	6.2
		30%	32	2.64	85	5642	518	0.09	6.1
		40%	32	5.01	160	7183	882	0.14	5.5
		50%	32	8.72	279	8732	1333	0.22	4.8
		60%	32	13.91	443	10151	1821	0.30	4.1
		70%	32	19.43	618	11554	2389	0.39	3.9
		80%	32	27.77	879	12900	3018	0.50	3.4
		90%	32	37.44	1181	14120	3637	0.60	3.1
		100%	31	49.03	1537	15211	4280	0.71	2.8
	HQ1050-3	10%	32	0.33	11	1912	44	0.02	4.1	/
		20%	32	1.25	40	3844	268	0.05	6.7
		30%	32	2.95	94	5346	586	0.11	6.2
		40%	32	5.66	181	6841	1034	0.18	5.7
		50%	32	10.31	329	8350	1591	0.28	4.8
		60%	32	16.10	513	9540	2107	0.37	4.1
		70%	32	24.53	778	10945	2825	0.50	3.6
		80%	32	35.22	1112	12023	3450	0.61	3.1
		90%	31	46.55	1461	13090	4126	0.73	2.8
		100%	31	60.77	1895	13871	4693	0.83	2.5
	T10.5X5-3	10%	32	0.33	11	1738	37	0.02	3.5	/
		20%	32	1.25	40	3686	285	0.06	7.1
		30%	32	3.13	100	5243	655	0.11	6.5
		40%	32	5.94	190	6784	1127	0.19	5.9
		50%	32	10.67	341	8262	1705	0.29	5.0
		60%	32	16.50	525	9432	2218	0.38	4.2
		70%	32	25.20	799	10829	2952	0.51	3.7
		80%	32	34.25	1080	11770	3559	0.61	3.3
		90%	31	47.53	1491	12890	4265	0.74	2.9
		100%	31	61.83	1927	13632	4797	0.84	2.5
	T10.5X5-3	10%	24	0.25	6	1190	2	0.01	0.4	/
		20%	24	0.89	21	2841	139	0.03	6.5
		30%	24	1.95	47	4050	345	0.06	7.4
		40%	24	3.97	95	5289	644	0.11	6.8
		50%	24	6.54	157	6432	995	0.17	6.3
		60%	24	10.58	253	7590	1416	0.24	5.6
		70%	24	16.24	386	8597	1835	0.31	4.8
		80%	24	22.33	529	9596	2304	0.39	4.4
		90%	24	29.83	704	10534	2791	0.48	4.0
		100%	23	38.71	908	11405	3288	0.57	3.6
V3115 KV900	HQ9050-3	10%	24	0.50	12	2132	47	0.02	4.0	/
		20%	24	1.81	44	4318	275	0.05	6.3
		30%	24	3.88	93	5834	546	0.10	5.9
		40%	24	7.39	177	7389	916	0.16	5.2
		50%	24	12.66	302	8944	1384	0.23	4.6
		60%	24	20.68	491	10366	1885	0.32	3.8
		70%	24	29.07	686	11750	2454	0.42	3.6
		80%	23	41.09	962	13043	3047	0.52	3.2
		90%	23	54.95	1275	14144	3626	0.62	2.8
		100%	23	71.15	1634	15140	4199	0.73	2.6
	T9.5X5-3	10%	24	0.49	12	2024	29	0.02	2.5	/
		20%	24	1.80	43	4233	256	0.05	5.9
		30%	24	3.88	93	5790	547	0.10	5.9
		40%	24	7.40	177	7367	933	0.16	5.3
		50%	24	12.55	299	8930	1404	0.23	4.7
		60%	24	20.69	491	10368	1902	0.32	3.9
		70%	24	28.85	681	11733	2480	0.41	3.6
		80%	23	40.61	951	13036	3084	0.51	3.2
		90%	23	54.17	1258	14176	3663	0.61	2.9
		100%	23	70.01	1609	15190	4246	0.71	2.6
	HQ1050-3	10%	24	0.49	12	1901	28	0.02	2.4	/
		20%	24	1.86	45	3936	282	0.06	6.3
		30%	24	4.35	104	5450	619	0.12	5.9
		40%	24	9.22	220	7048	1106	0.20	5.0
		50%	24	15.23	363	8482	1663	0.29	4.6
		60%	24	408.08	582	9647	2192	0.38	3.8
		70%	24	35.77	840	11009	2907	0.51	3.5
		80%	23	50.80	1182	11930	3439	0.60	2.9
		90%	23	65.69	1514	12968	4107	0.72	2.7
		100%	23	82.99	1889	13712	4605	0.82	2.4
	T10.5X5-3	10%	24	0.50	12	1649	28	0.03	2.3	/
		20%	24	1.88	45	3767	305	0.06	6.8
		30%	24	4.56	109	5379	691	0.12	6.3
		40%	24	9.39	224	6958	1215	0.21	5.4
		50%	24	15.86	377	8391	1782	0.31	4.7
		60%	24	23.86	14	9516	2307	0.40	4.1
		70%	23	36.67	16	10886	3043	0.52	3.5
		80%	23	50.48	19	11874	3646	0.62	3.1
		90%	23	66.87	1540	12795	4244	0.74	2.8
		100%	23	83.30	1894	13479	4735	0.82	2.5
	T10.5X5-3	10%	16	0.34	6	985	11	0.01	2.0	/
		20%	16	1.19	19	2602	121	0.03	6.3
		30%	16	2.52	41	3745	301	0.06	7.4
		40%	16	4.85	78	4857	552	0.10	7.1
		50%	16	8.19	131	5987	861	0.15	6.6
		60%	16	13.70	218	7047	1232	0.21	5.7
		70%	16	19.47	308	8008	1602	0.28	5.2
		80%	16	27.54	432	8870	1988	0.34	4.6
		90%	16	36.45	566	9728	2399	0.41	4.2
		100%	15	47.06	723	10520	2820	0.49	3.9
V3115 KV1050	T8.5X5-3	10%	24	0.62	15	2546	38	0.01	2.6	/
		20%	24	2.25	54	5112	279	0.05	5.2
		30%	24	4.66	112	6869	561	0.09	5.0
		40%	24	7.93	190	8423	877	0.14	4.6
		50%	24	13.52	322	10152	1296	0.20	4.0
		60%	24	20.67	490	11898	1800	0.28	3.7
		70%	24	29.60	698	13552	2351	0.37	3.4
		80%	23	40.68	953	14946	2878	0.45	3.0
		90%	23	54.38	1263	16248	3423	0.54	2.7
		100%	23	69.75	1604	17443	3977	0.63	2.5
	HQ9050-3	10%	24	0.63	15	2345	37	0.02	2.5	/
		20%	24	2.30	55	4642	298	0.06	5.4
		30%	24	5.00	120	6271	621	0.11	5.2
		40%	24	9.72	232	7958	1062	0.18	4.6
		50%	24	17.29	411	9564	1582	0.27	3.8
		60%	24	26.75	632	11092	2157	0.37	3.4
		70%	23	37.78	887	12425	2731	0.47	3.1
		80%	23	51.87	1207	13692	3359	0.58	2.8
		90%	23	68.78	1583	14724	3921	0.68	2.5
		100%	23	83.61	1899	15568	4409	0.77	2.3
	T9.5X5-3	10%	24	0.63	15	2212	38	0.02	2.6	/
		20%	24	2.32	56	4529	304	0.06	5.5
		30%	24	5.02	120	6230	645	0.11	5.4
		40%	24	9.78	234	7962	1099	0.18	4.7
		50%	24	17.28	411	9572	1624	0.27	4.0
		60%	24	26.61	629	11103	2217	0.36	3.5
		70%	23	37.46	880	12453	2813	0.46	3.2
		80%	23	51.33	1195	13723	3455	0.57	2.9
		90%	23	67.94	1564	14793	4024	0.67	2.6
		100%	23	83.50	1898	15628	4537	0.76	2.4
	HQ1045-3	10%	24	0.65	16	2173	27	0.02	1.8	/
		20%	24	2.35	57	4643	284	0.06	5.0
		30%	24	4.98	120	6378	621	0.11	5.2
		40%	24	9.41	225	8049	1068	0.17	4.7
		50%	24	16.70	398	9728	1627	0.26	4.1
		60%	24	25.60	607	11301	2263	0.35	3.7
		70%	24	36.25	853	12725	2914	0.46	3.4
		80%	23	49.96	1166	14012	3586	0.56	3.1
		90%	23	66.67	1539	15073	4232	0.66	2.8
		100%	23	83.46	1903	15965	4804	0.76	2.5
	HQ1045-3	10%	16	0.42	7	1260	1	0.01	0.2	/
		20%	16	1.48	24	3207	105	0.03	4.4
		30%	16	2.99	48	4576	283	0.05	5.9
		40%	16	4.96	79	5659	474	0.08	6.0
		50%	16	8.15	129	6807	739	0.12	5.7
		60%	16	12.60	197	7985	1060	0.17	5.4
		70%	15	18.46	283	8967	1373	0.22	4.9
		80%	15	25.55	390	10033	1754	0.27	4.5
		90%	15	33.71	507	10940	2122	0.33	4.2
		100%	15	43.82	658	11964	2566	0.40	3.9

Packing List

Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
