Name: T-HOBBY Velox 3120 FPV X4 X8 Cinematic Drone 3-12S KV500/700
Brand: LIGPOWER
SKU: ligpower001330
Price: 56.90 USD
Availability: InStock

T-HOBBY Velox 3120 FPV X4 X8 Cinematic Drone 3-12S KV500/700

56.90

Available points: 57 Points Points reward: 56 Points

Promotion
- LIMITED-TIME FPV SALE 20% OFF

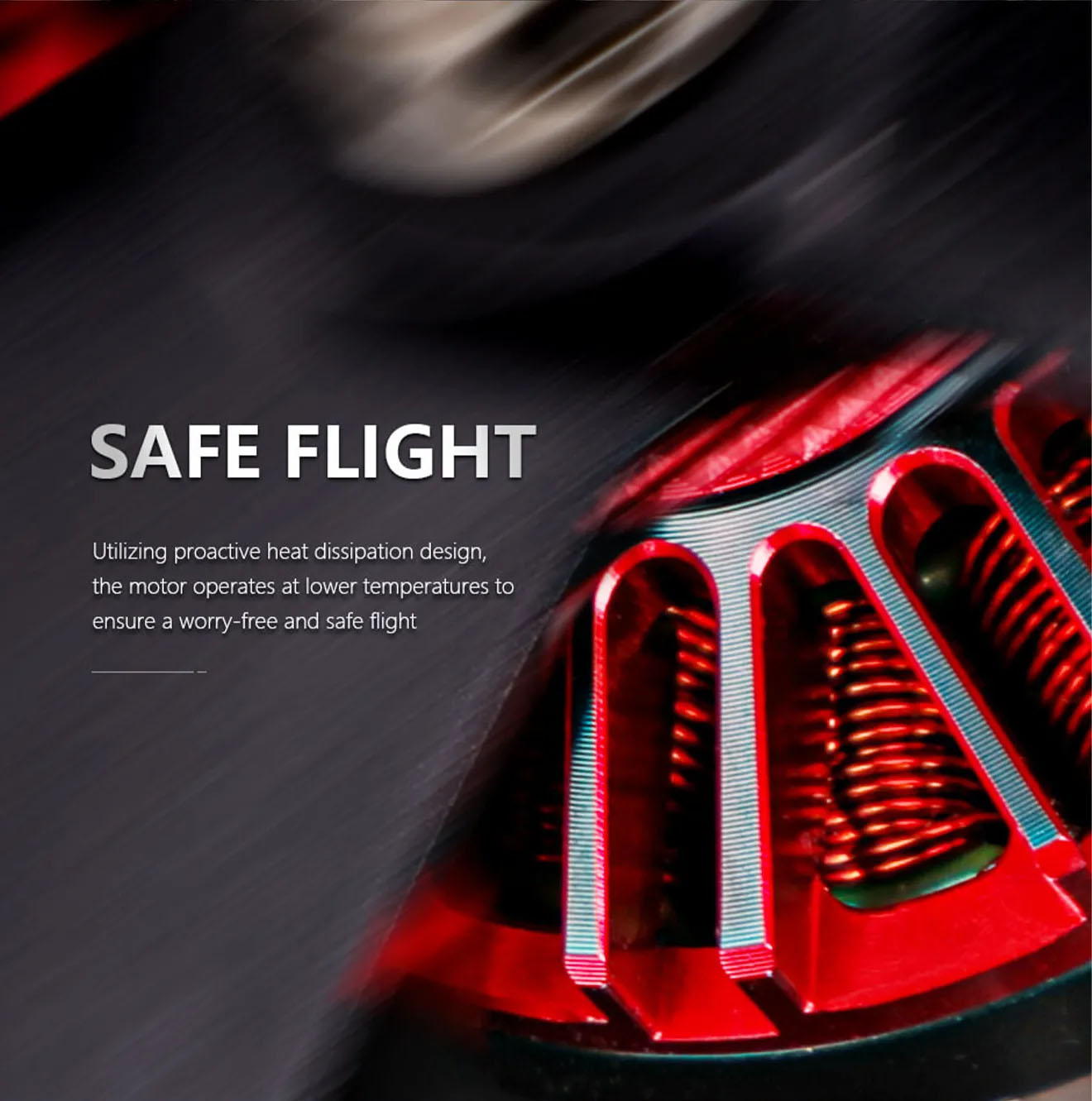

1. Proactive heat dissipation design

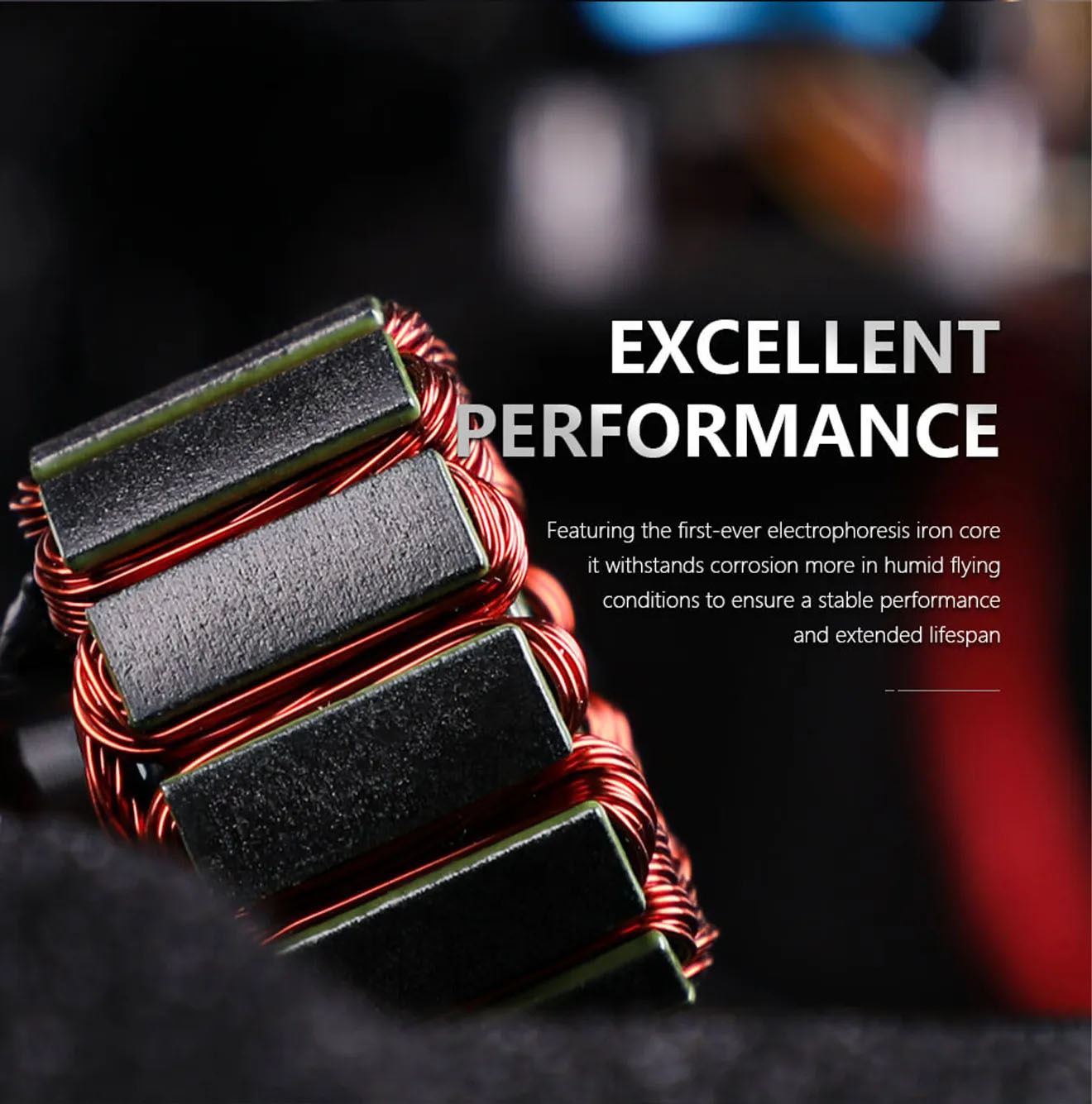

2. First-ever electrophoresis iron core design

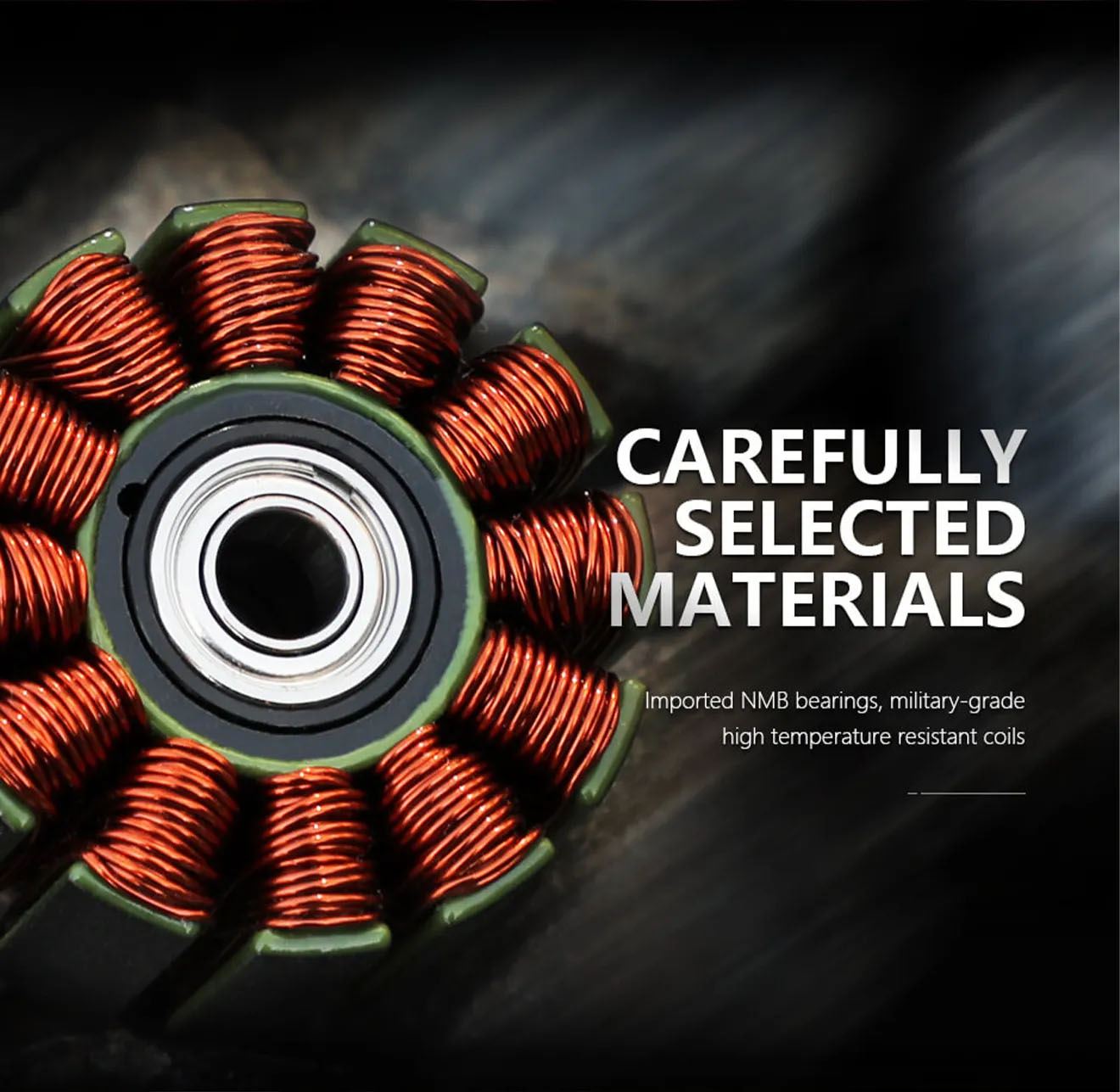

3. Imported NMB bearings and high temperature resistant coils.
4. Providing robust power for 3-12S, 8-11 inch X4 X8 cinematic drones with heavy payloads.

Parameter：

KV500
KV700

Quantity：

56.90

Free Shipping by DHL/UPS Express

Relevant Products

Detail information
Specifications

About T-HOBBY Velox V3120 X4 X8 Cinematic Drone Motor

The Velox V3120 motor provide powerful propulsion for 3-12S, 8-11 inch X4 X8 cinematic drones, ensuring easy control for cinematic-level shooting and a safe flight.

Cinematic Velox V3120 Hightlight:

The V3120 motor adopts an active heat dissipation design, operating at a lower temperature, and uses the first electrophoretic iron core,

which is more corrosion-resistant in humid flight environments and has stable performance, which provides powerful propulsion for 3-12S,

8-11 inch X4 X8 cinematic drones, ensuring easy control for cinematic-level shooting and a safe flight.

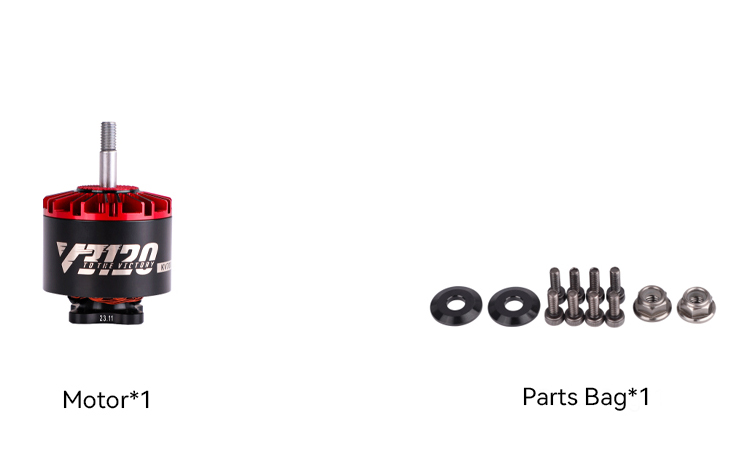

Packing List Includes:

1x T-HOBBY Velox V3120 Motor

1x Hardware Set

Matching Frame:

8-11 Inch(X4 X8)

Matching Guide:

F7Pro Flight controller

C80A 8S 4IN1 ESC

C7.5*4.6 FPV Drone propeller

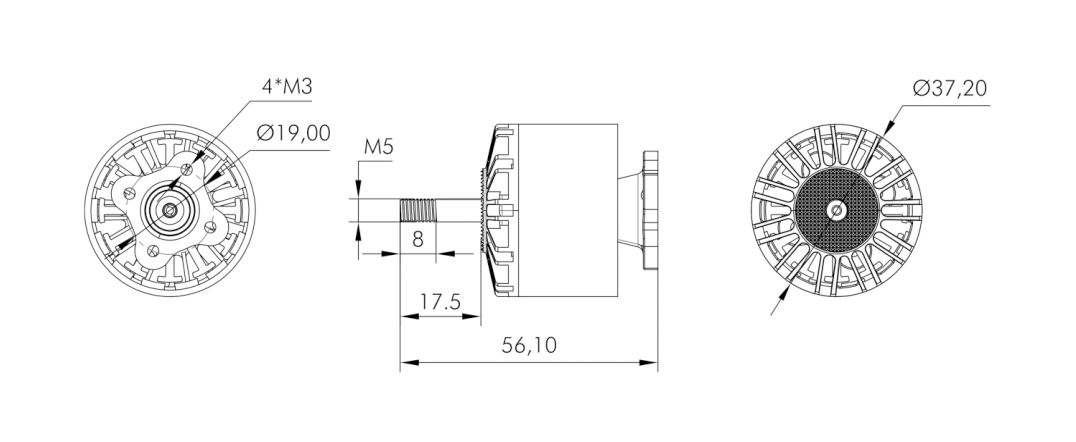

Technical Drawing

Specification Export to Excel

Test Item	KV500	Configuration	12N14P
Internal Resistance	76.35mΩ	Motor Dimensions	φ37.2*56.1mm
Shaft Diameter	IN5 OUT5	Lead	16AWG 250mm
Weight(Incl.Cable)	146.7g	Idle Current(10V)	0.95A
Max.Power(10s)	3242W	Peak Current(10s)	68.9A

Test Item	KV700	Configuration	12N14P
Internal Resistance	40.59mΩ	Motor Dimensions	φ37.2*56.1mm
Shaft Diameter	IN5 OUT5	Lead	16AWG 250mm
Weight(Incl.Cable)	148.1g	Idle Current(10V)	1.35A
Max.Power(10s)	2453W	Peak Current(10s)	79.4A

Test Data Export to Excel

Type	Propeller	Throttle	Voltage (V)	Current (A)	Power (W)	RPM	Thrust (g)	Torque (N*m)	Efficiency (g/W)	Operating Temperature (℃)
V3120 KV500	HQ1050-3	10%	48	0.41	20	2585	90	0.03	4.6	/
		20%	48	1.46	70	4707	436	0.09	6.2
		30%	48	3.16	152	6301	871	0.16	5.7
		40%	48	6.11	294	8004	1488	0.26	5.1
		50%	48	10.87	521	9730	2227	0.39	4.3
		60%	48	17.40	832	11333	3007	0.54	3.6
		70%	48	25.72	1227	12902	3873	0.71	3.2
		80%	48	36.40	1730	14238	4876	0.89	2.8
		90%	47	51.83	2450	15359	5796	1.18	2.4
		100%	47	67.99	3200	16260	6716	1.22	2.1
	T10.5X5-3	10%	48	0.41	20	2388	82	0.04	4.2	/
		20%	48	1.44	69	4553	459	0.09	6.6
		30%	48	3.26	156	6208	927	0.17	5.9
		40%	48	6.12	294	7908	1567	0.27	5.3
		50%	48	11.25	539	9651	2376	0.41	4.4
		60%	48	18.19	870	11209	3229	0.56	3.7
		70%	48	26.62	1269	12648	4124	0.72	3.2
		80%	48	37.67	1790	13976	5095	0.90	2.8
		90%	47	51.56	2439	15234	6112	1.09	2.5
		100%	47	68.91	3242	16069	6837	1.23	2.1
	T10.5X5-3	10%	32	0.27	9	1547	22	0.02	2.6	/
		20%	32	0.93	30	3228	184	0.05	6.2
		30%	32	1.90	61	4445	422	0.09	6.9
		40%	32	3.37	108	5553	715	0.13	6.6
		50%	32	5.83	187	6789	1120	0.20	6.0
		60%	32	8.91	285	7982	1581	0.28	5.6
		70%	32	13.66	435	9107	2085	0.36	4.8
		80%	32	18.88	600	10188	2633	0.46	4.4
		90%	32	25.56	810	11266	3239	0.56	4.0
		100%	32	33.04	1043	12219	3828	0.67	3.7
	HQ1145-3	10%	48	0.41	20	2330	66	0.04	3.3	/
		20%	48	1.46	70	4587	442	0.10	6.3
		30%	48	3.20	154	6288	906	0.16	5.9
		40%	48	5.92	284	7951	1533	0.26	5.4
		50%	48	10.92	523	9717	2354	0.39	4.5
		60%	48	17.31	828	11313	3234	0.54	3.9
		70%	48	25.49	1215	12834	4207	0.70	3.5
		80%	48	36.49	1733	14197	5204	0.87	3.0
		90%	47	50.40	2383	15439	6279	1.07	2.6
		100%	47	67.81	3189	16327	7142	1.23	2.2
V3120 KV700	HQ1050-3	10%	32	0.52	17	2306	77	0.03	4.6	/
		20%	32	1.90	61	4402	384	0.08	6.3
		30%	32	4.07	130	5904	750	0.14	5.8
		40%	32	7.67	245	7446	1249	0.23	5.1
		50%	32	13.23	422	9028	1892	0.34	4.5
		60%	32	21.56	685	10497	2587	0.46	3.8
		70%	32	30.70	971	11912	3394	0.60	3.5
		80%	31	43.73	1375	13213	4253	0.76	3.1
		90%	31	59.20	1842	14092	5091	0.87	2.8
		100%	31	76.84	2361	14665	5873	0.96	2.5
	T10.5X5-3	10%	24	0.38	9	1544	25	0.02	2.8	/
		20%	24	1.35	33	3281	214	0.05	6.6
		30%	24	2.81	67	4538	472	0.09	7.0
		40%	24	4.99	120	5694	786	0.14	6.6
		50%	24	8.73	208	6976	1216	0.21	5.8
		60%	24	13.27	316	8198	1693	0.29	5.4
		70%	24	20.20	479	9327	2204	0.38	4.6
		80%	24	27.88	657	10408	2755	0.47	4.2
		90%	23	37.56	880	11441	3339	0.58	3.8
		100%	23	48.70	1133	12405	3936	0.69	3.5
	T10.5X5-3	10%	32	0.51	16	2131	58	0.03	3.5	/
		20%	32	1.89	61	4226	388	0.08	6.4
		30%	32	4.12	132	5789	803	0.14	6.1
		40%	32	8.07	258	7394	1359	0.23	5.3
		50%	32	13.80	440	8969	2045	0.35	4.6
		60%	32	22.37	711	10355	2759	0.47	3.9
		70%	32	31.64	1001	11771	3564	0.61	3.6
		80%	31	44.84	1410	13059	4424	0.77	3.1
		90%	31	60.97	1902	14158	5197	0.92	2.7
		100%	31	79.41	2453	15198	6028	1.08	2.5
	HQ1145-3	10%	32	0.52	17	2044	49	0.03	2.9	/
		20%	32	1.88	60	4267	352	0.08	5.8
		30%	32	4.06	130	5874	778	0.14	6.0
		40%	32	7.65	244	7434	1324	0.22	5.4
		50%	32	13.21	421	9020	2010	0.33	4.8
		60%	32	21.45	681	10461	2758	0.45	4.1
		70%	32	30.37	959	11876	3605	0.59	3.8
		80%	31	43.31	1360	13175	4474	0.74	3.3
		90%	31	58.91	1836	14305	5327	0.90	2.9
		100%	31	77.34	2387	15354	6236	1.06	2.6

Packing List

Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
