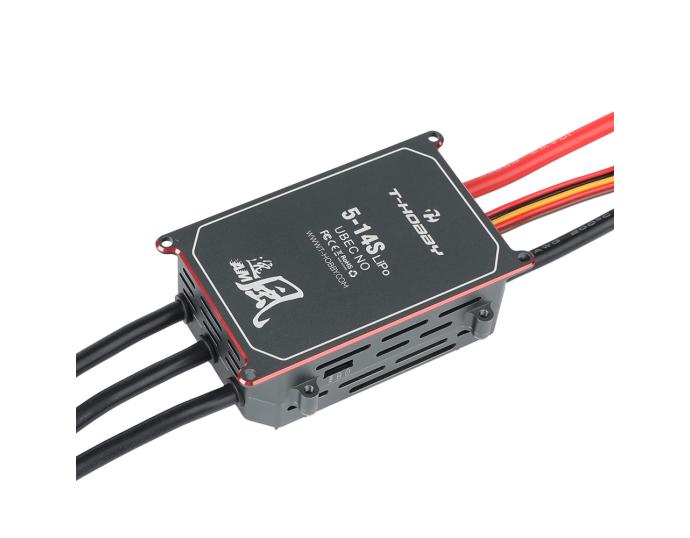

AM156A

430.00

Available points: 430 Points Points reward: 430 Points
?
Quantity:

430.00

Free Shipping by DHL/UPS Express

  • Detail information
  • Specifications

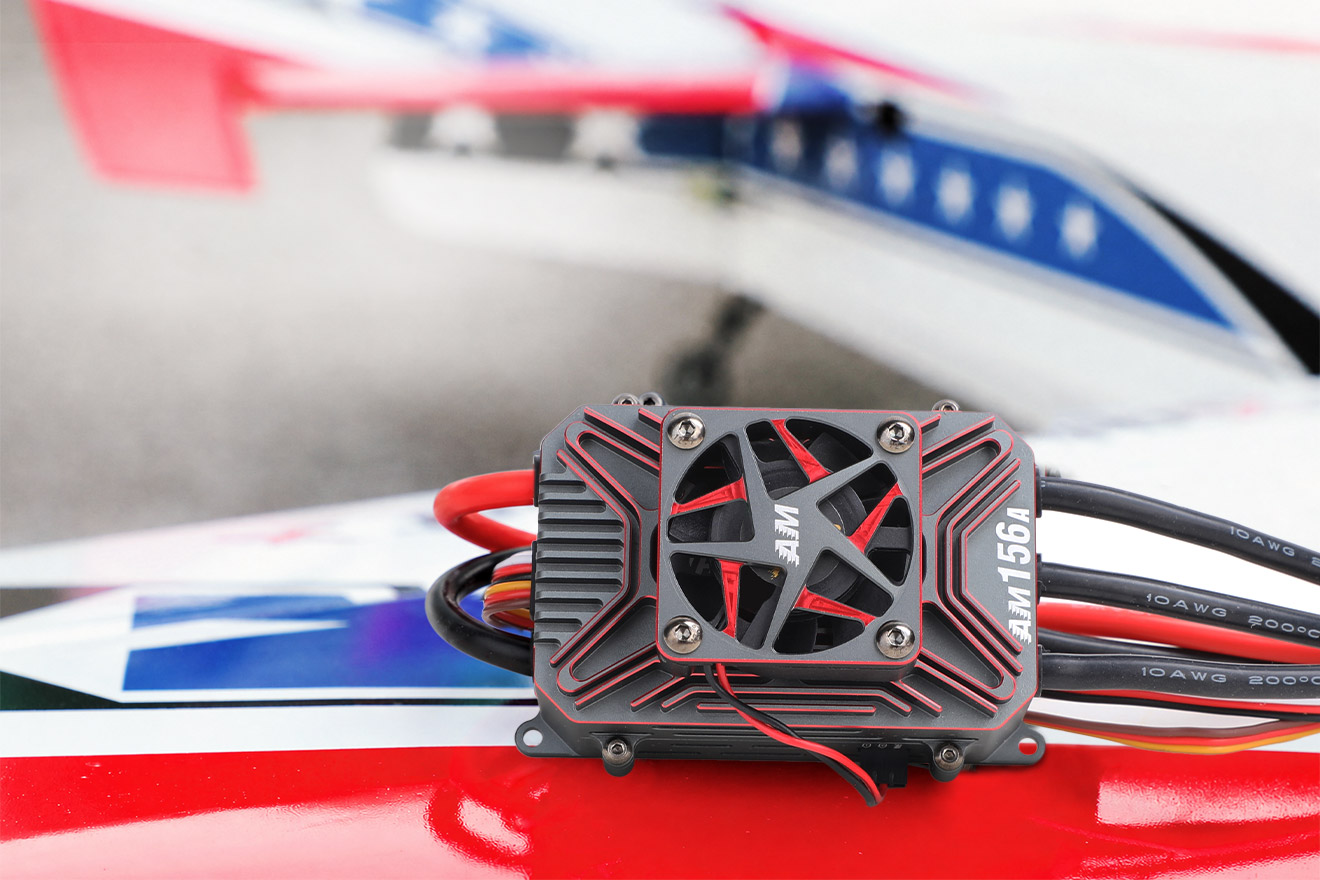

AM156A is designed for 74"-84" 3D planes

You will release from your heavy planes and feel lightweight and agile instantly

AM156A is designed for 74

The world's top pilots have repeatedly calibrated the power curve and hand feel

Enabling rapid control over delicate 3D flights

The world's toppilots have repeatedly calibrated the powercurve and hand feel

How fast are your hands? How accurate are your fingers?

AM156A HV zero-latency and precise tracking allows you to show off your skills easily

How fast are your hands? How accurate are your fingers?

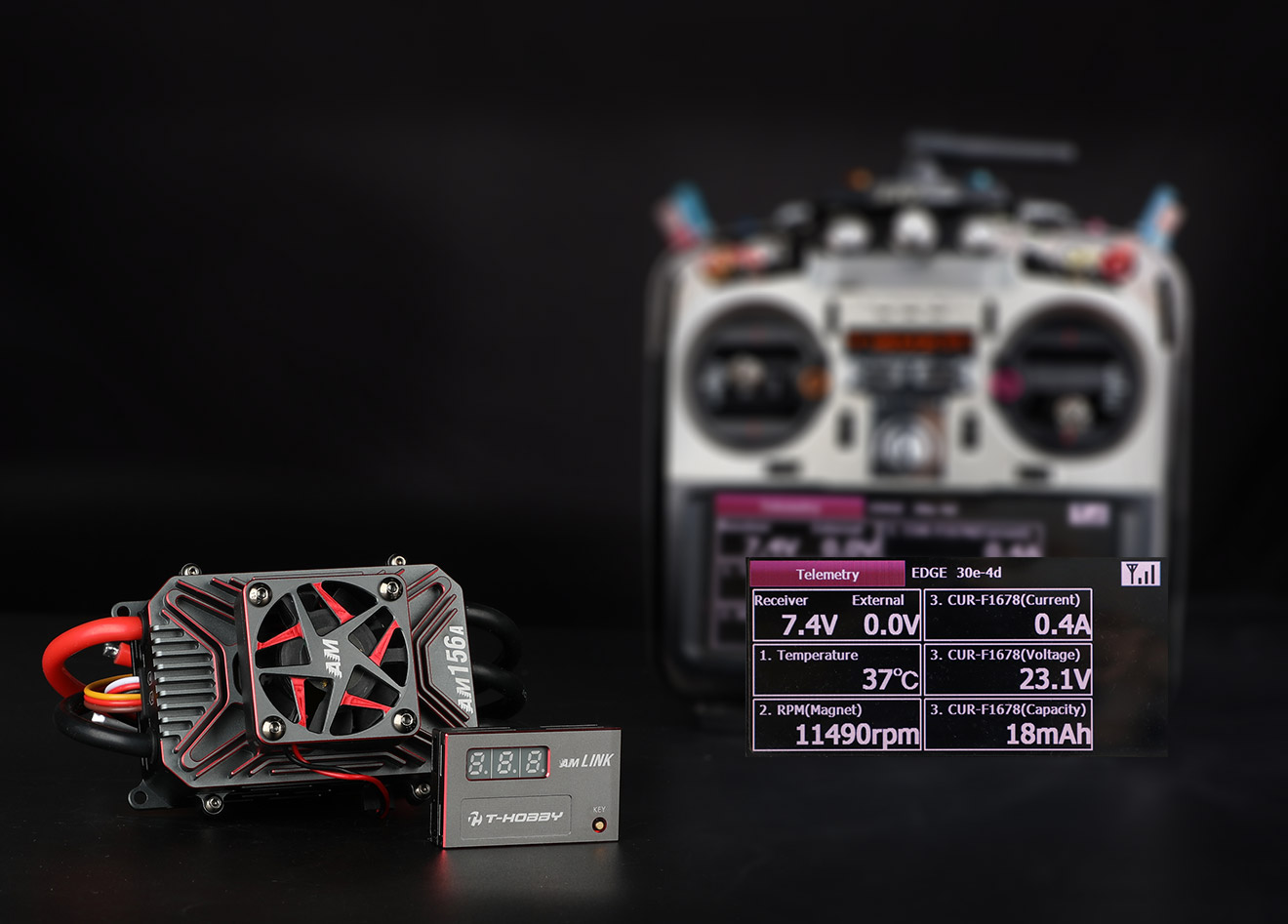

Multiple Preset Alarm and Data Feedback

Keep a eye on flying status

Multiple Preset Alarm and Data Feedback

Multiple Protection for a Safe Flight

  • Search Alarm

    Search Alarm

  • Unplugged Reminder

    Unplugged
    Reminder

  • Signal Loss Protection

    Signal Loss
    Protection

  • Low Voltage Protection

    Low Voltage
    Protection

  • Startup Protection

    Startup
    Protection

  • High Temperature Protection

    High Temperature
    Protection

  • Overload Protection

    Overload
    Protection

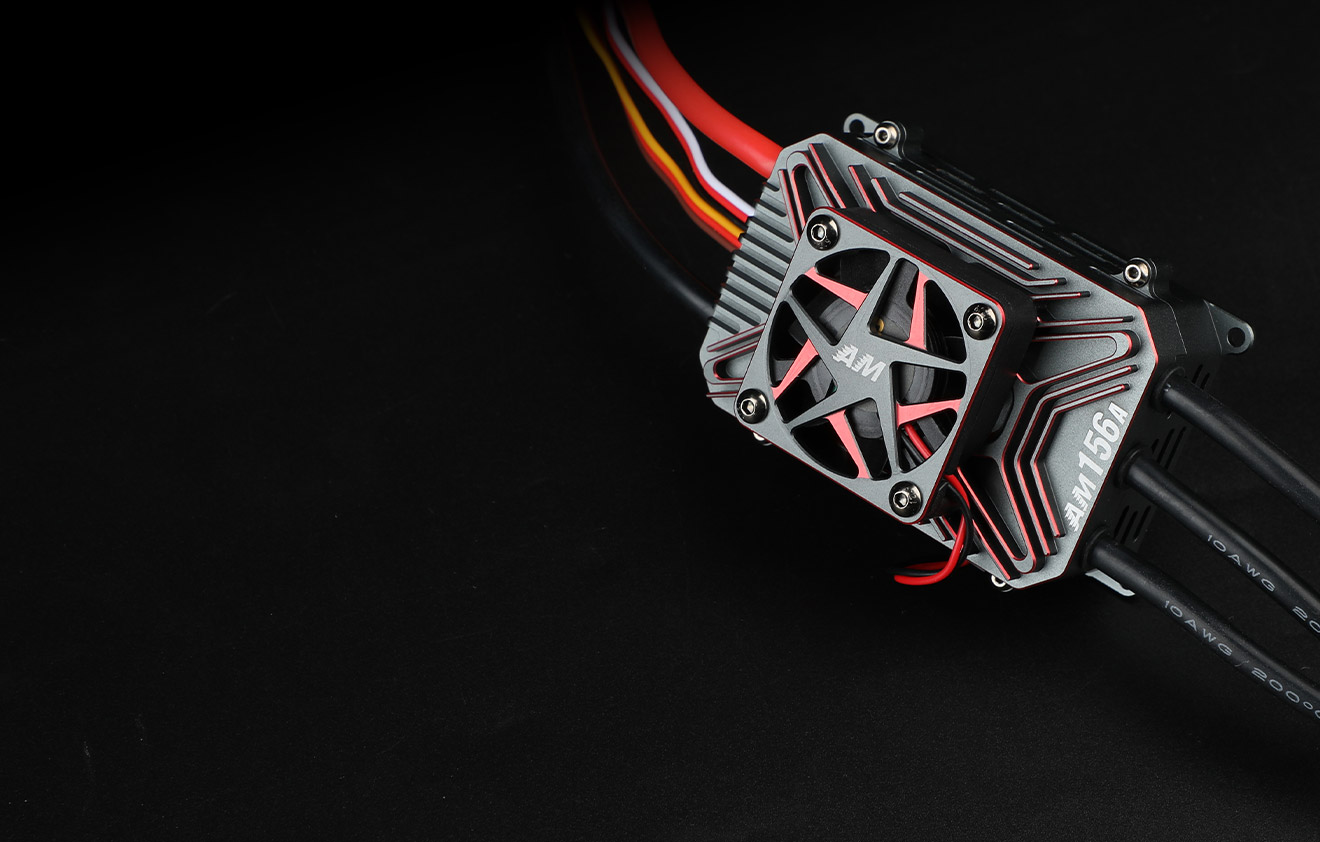

Multiple Protection for a Safe Flight
  • Robust Performance


    245g weight, 9.2KW power, 5-14S power supply, continuous current 156A, peak current 176A

  • Focused and dedicated


    Disable UBEC to ensure ESC stability

  •

  • Continuous Output


    Active cooling fan for  rapid heat dissipation

  • Secure and Quick Installation


    Hidden strap design with screw fixing

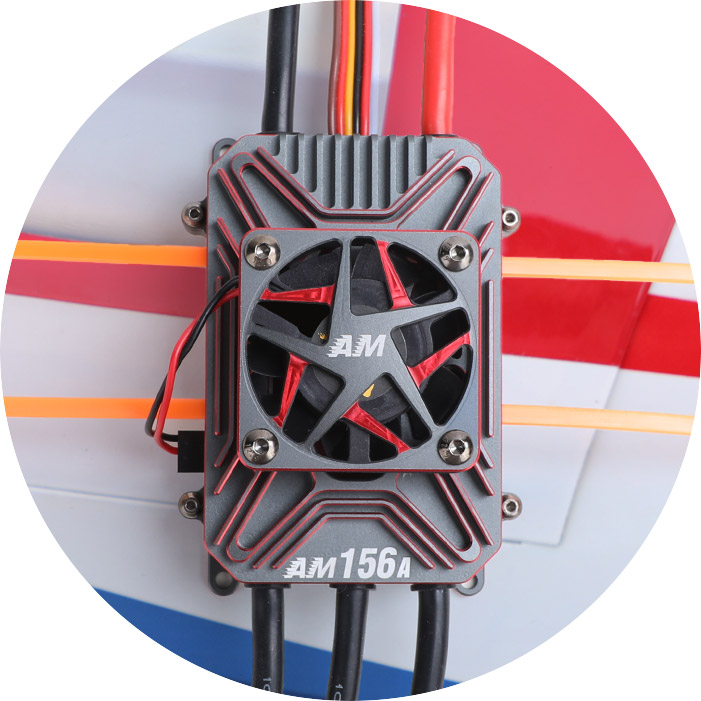

AM15A Features

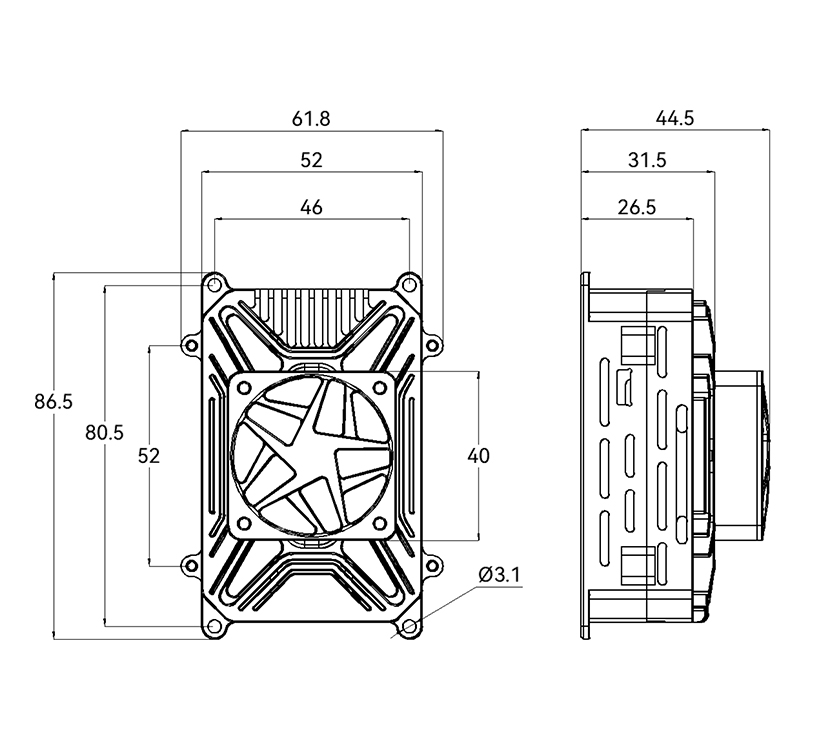

Technical Drawing


Specification Export to Excel
ESC ModelAM156AESC Size86.5x61.8x44.5mm
Motor Wire110mm-10AWGESC Weight245g
Power Cord250mm-10AWGPackaging Size170x120x80mm
Signal Wire410±10mmPackaging Weight544g
Protection Rating/

Specifications
Supported Voltage5-14S LiPoBEC/
Continuous Current156AThrottle Isolation/
Maximum Current176AStandby Consumption/
PWM Level3.3VThrottle Pos.Range900-2100us
PWM Pulse Width1040-1960usThrottle Refresh Frequency400Hz
PWM Frequency24KHzPropeller Positioning/
Communication MethodPWMParameter Options/
Dual Throttle/Compatibility/
