Name: T-HOBBY AM20 PRO F3P-A Indoor Rc Plane Motor KV1500/KV1900
Brand: LIGPOWER
SKU: LIGPOWER001211
Price: 45.99 USD
Availability: InStock

T-HOBBY AM20 PRO F3P-A Indoor Rc Plane Motor KV1500/KV1900

45.99

Available points: 2200 Points Points reward: 45 Points

1.very light weight only 10.1g
2. Considerate design with easy installation
3.Very light and easier to accomplish the task
4.Good throttle linear

Parameter：

KV1500
KV1900

Quantity：

45.99

Free Shipping by DHL/UPS Express

Relevant Products

Detail information
Specifications

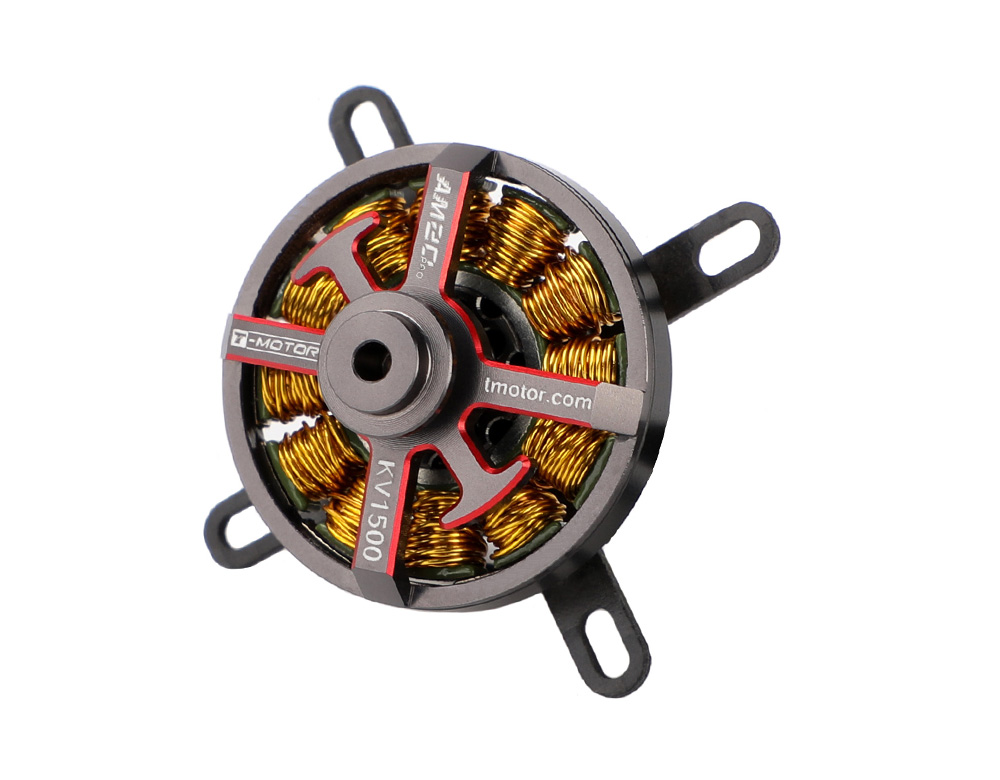

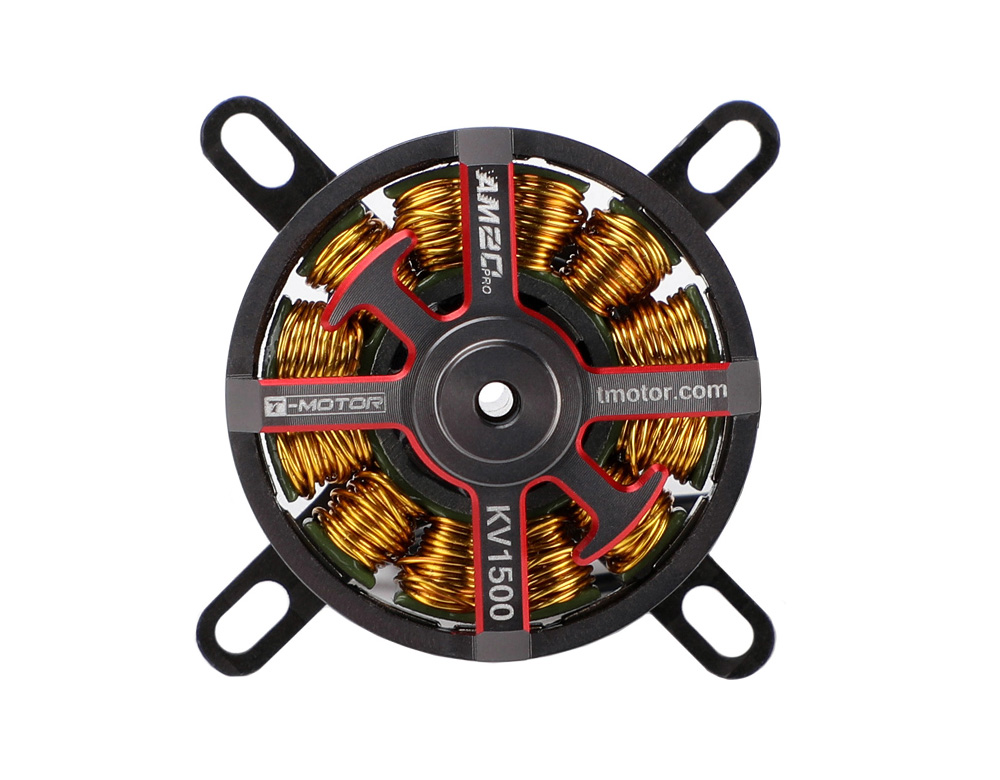

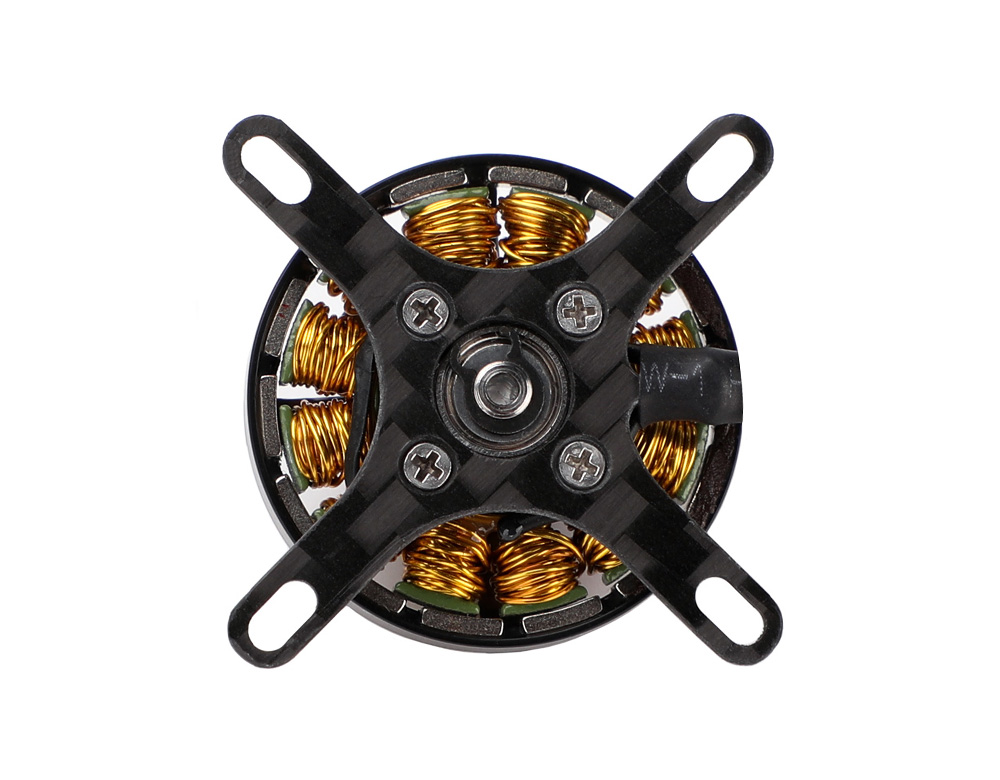

About T-HOBBY AM20 PRO F3P-A Indoor RC Plane Motor

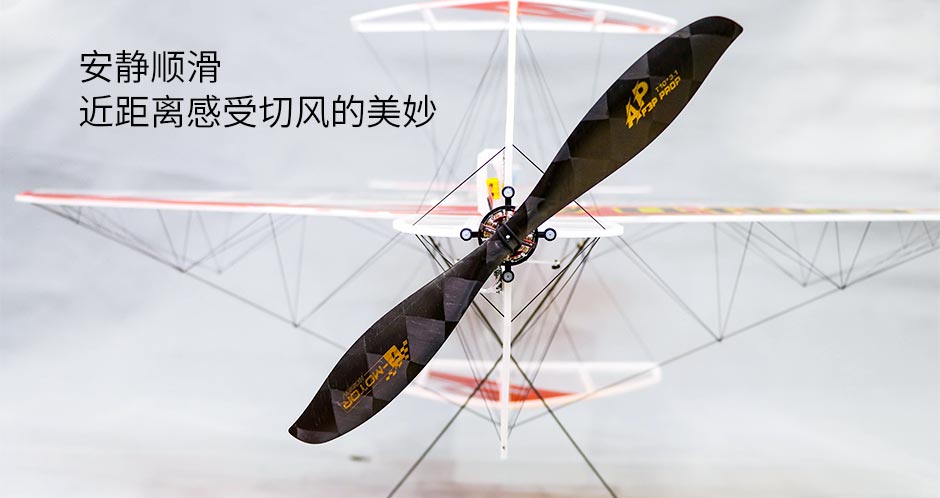

T-HOBBY AM20 PRO F3P-A is the flagship of T-HOBBY Hobby for indoor competition

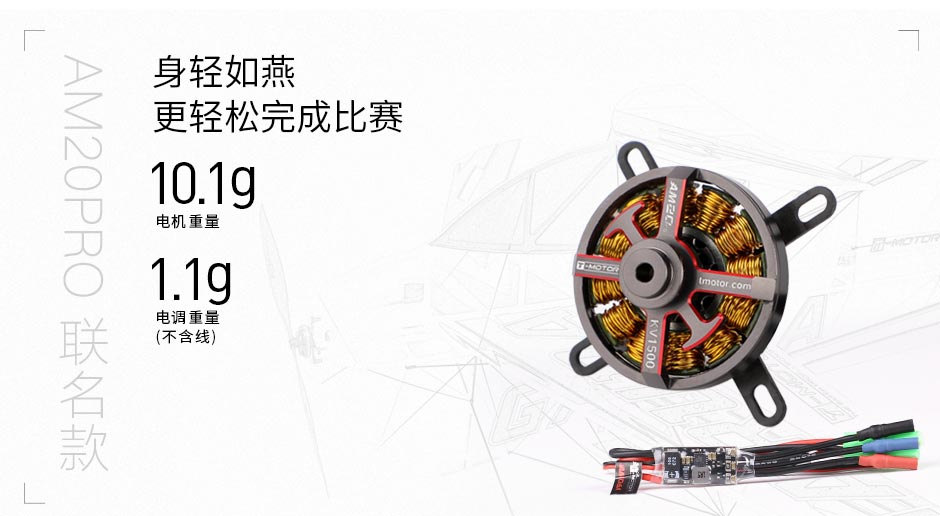

Which is hi-end motor weighing only 10.1 grams and Suitable for F3P indoor route aircraft of 50-100g.

AM20 Pro Hightlight:

1.Very light weight only 10.1g

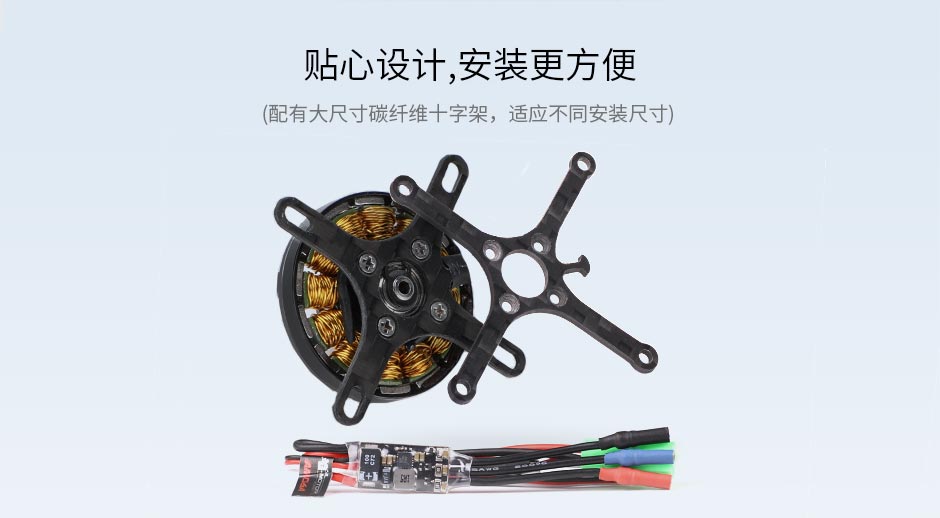

2.Considerate design with easy installation

3.Very light and easier to accomplish the task

4.Good throttle linear

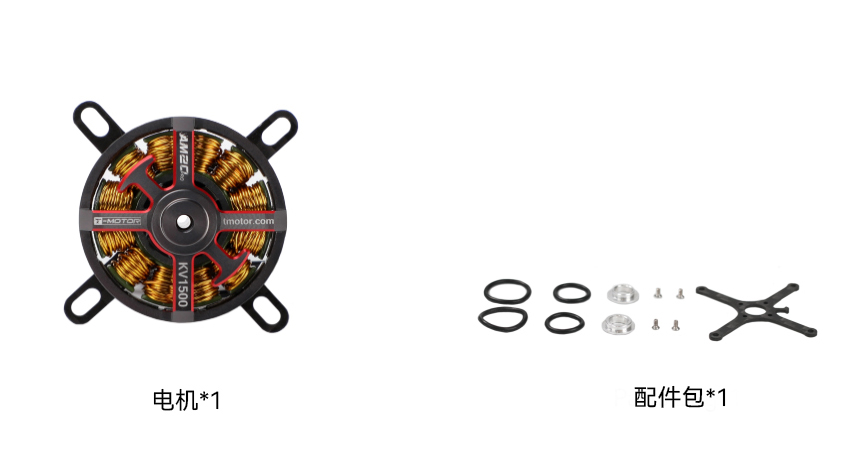

Packing List Includes:

1x T-HOBBY AM20 Motor

1x Hardware pack

Matching Guide:

T-HOBBY AM06A ESC

FS10*3.1 F3P-A Carbon Fiber Prop

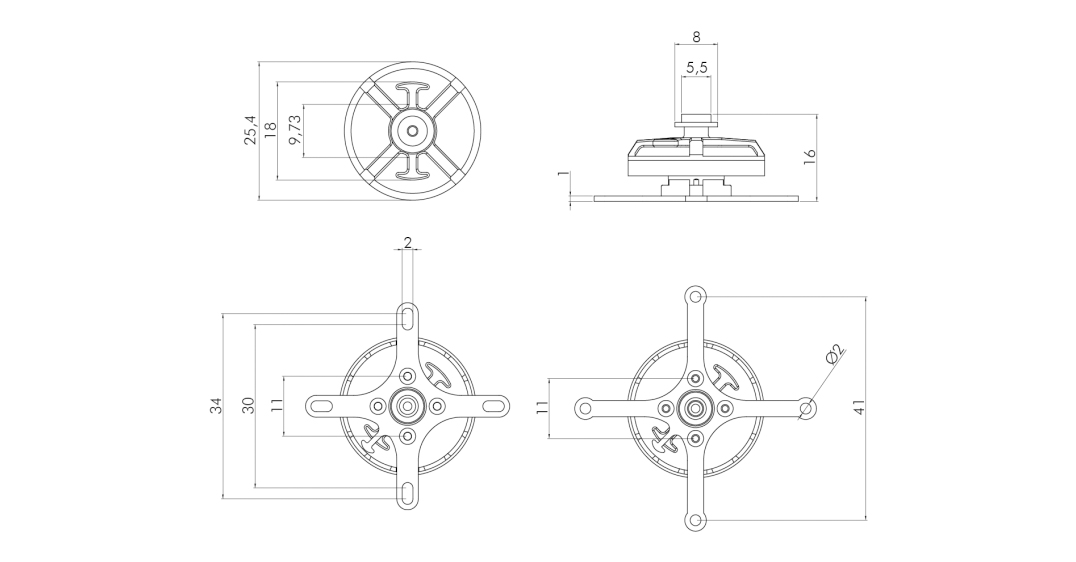

Technical Drawing

Specification Export to Excel

Test Item	KV1500	Weight (Incl. Cable)	10.1g
Motor Dimensions	Φ25.4*15mm	Internal Resistance	630mΩ
Lead	40mm	Configuration	12N14P
Shaft Diameter	IN：3mm	Rated Voltage(Lipo)	2S
Idle Current(10V)	0.14A	Peak Current(180s)	6A
Max Power (180S)	67.2W

Test Item	KV1900	Weight (Incl. Cable)	10.1g
Motor Dimensions	Φ25.4*15mm	Internal Resistance	455mΩ
Lead	40mm	Configuration	12N14P
Shaft Diameter	IN：3mm	Rated Voltage(Lipo)	2S
Idle Current(10V)	0.25A	Peak Current(180s)	6A
Max Power (180S)	67.2W

Test Data Export to Excel

Type	Propeller	Throttle	Voltage (V)	Current (A)	Power (W)	RPM	Torque (N*m)	Thrust (g)	Efficiency (g/W)	Operating Temperature (℃)
T-HOBBY AM20 KV1500	T-HOBBY 10*3.1	30%	8.23	0.34	2.82	1648	0.006	37	13.18	30
		35%	8.23	0.49	4.05	1882	0.007	48	11.91
		40%	8.22	0.72	5.89	2061	0.009	58	9.85
		45%	8.22	0.89	7.32	2322	0.010	70	9.61
		50%	8.22	1.25	10.27	2395	0.011	76	7.38
		55%	8.22	1.36	11.15	2705	0.014	95	8.55
		60%	8.21	1.63	13.36	2856	0.015	106	7.95
		65%	8.20	1.94	15.91	2997	0.017	118	7.41
		70%	8.19	2.27	18.58	3147	0.019	128	6.92
		75%	8.19	2.62	21.42	3279	0.020	139	6.50
		80%	8.17	3.09	25.23	3460	0.022	154	6.11
		85%	8.17	3.49	28.47	3569	0.024	165	5.80
		90%	8.16	3.90	31.81	3658	0.025	176	5.52
		95%	8.15	4.30	35.02	3741	0.026	183	5.23
		100%	8.14	4.68	38.06	3836	0.027	189	4.98
Note: Motor temperature is motor surface temperature at 100% throttle running 3mins. (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)
T-HOBBY AM20 KV1900	T-HOBBY 10*3.1	30%	8.22	0.51	4.19	1892	0.007	48	11.37	30
		35%	8.22	0.75	6.19	2126	0.009	60	9.65
		40%	8.21	1.32	10.86	2032	0.008	54	4.98
		45%	8.20	1.83	14.97	1938	0.007	49	3.29
		50%	8.19	2.02	16.51	2361	0.011	74	4.48
		55%	8.19	1.96	16.02	2928	0.016	112	6.98
		60%	8.19	2.35	19.22	3086	0.018	125	6.49
		65%	8.18	2.79	22.79	3226	0.020	137	5.99
		70%	8.17	3.24	26.45	3345	0.021	147	5.57
		75%	8.16	3.70	30.20	3468	0.023	158	5.23
		80%	8.15	4.17	33.94	3580	0.024	167	4.91
		85%	8.14	4.65	37.80	3677	0.025	175	4.64
		90%	8.13	5.14	41.75	3760	0.026	183	4.38
		95%	8.11	5.65	45.82	3820	0.027	190	4.16
		100%	8.10	6.14	49.72	3887	0.028	196	3.95
Note: Motor temperature is motor surface temperature at 100% throttle running 3mins. (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)

Packing List

Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
