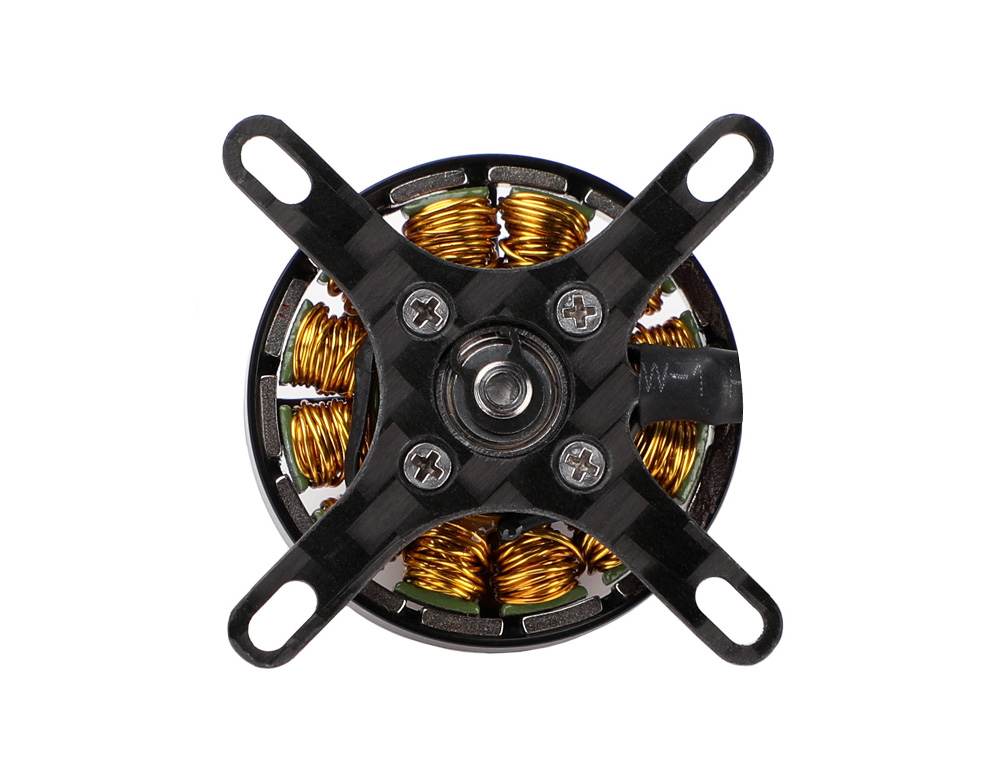

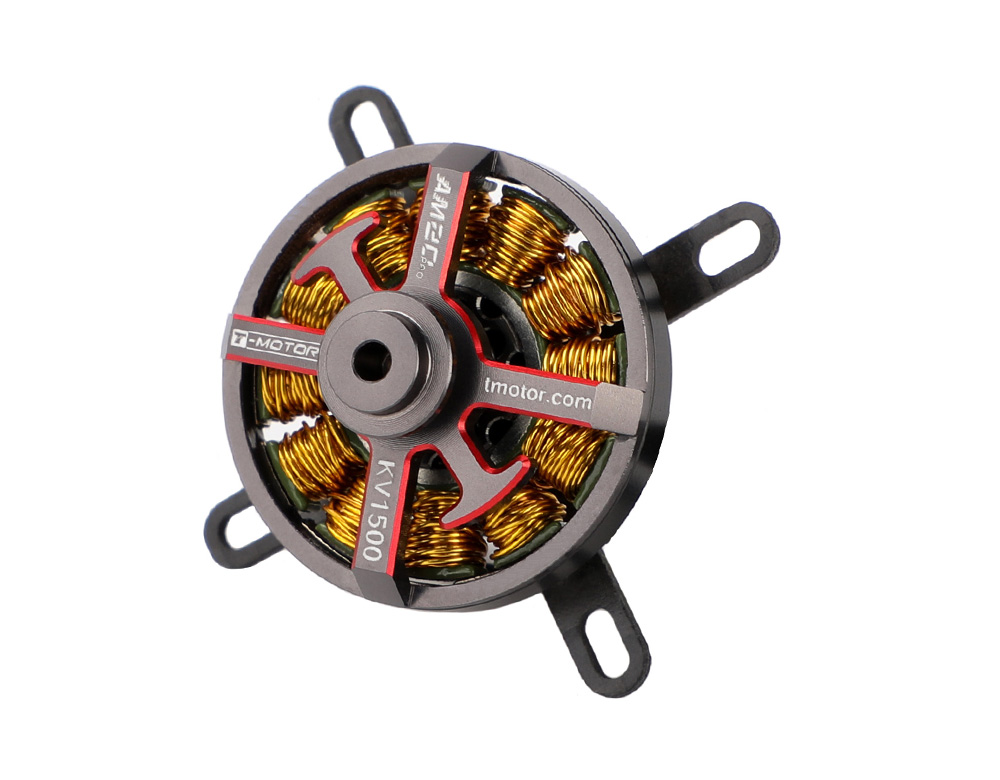

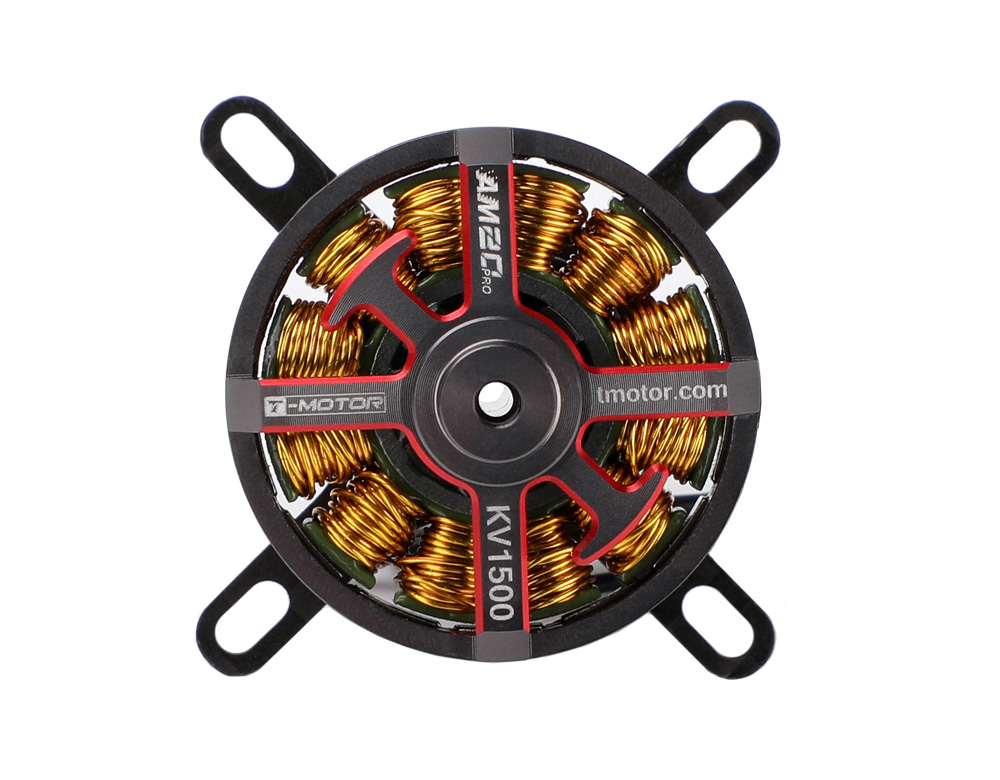

T-HOBBY AM20 PRO F3P-A Indoor Rc Plane Motor KV1500/KV1900

45.99

Available points: 2200 Points Points reward: 45 Points

1.very light weight only 10.1g
2. Considerate design with easy installation
3.Very light and easier to accomplish the task
4.Good throttle linear
Parameter：
Quantity：

45.99

Free Shipping by DHL/UPS Express

Relevant Products
  • Detail information
  • Specifications

About T-HOBBY AM20 PRO F3P-A Indoor RC Plane Motor


T-HOBBY AM20 PRO F3P-A is the flagship of T-HOBBY Hobby for indoor competition

Which is hi-end motor weighing only 10.1 grams and Suitable for F3P indoor route aircraft of 50-100g.


AM20 Pro Hightlight:

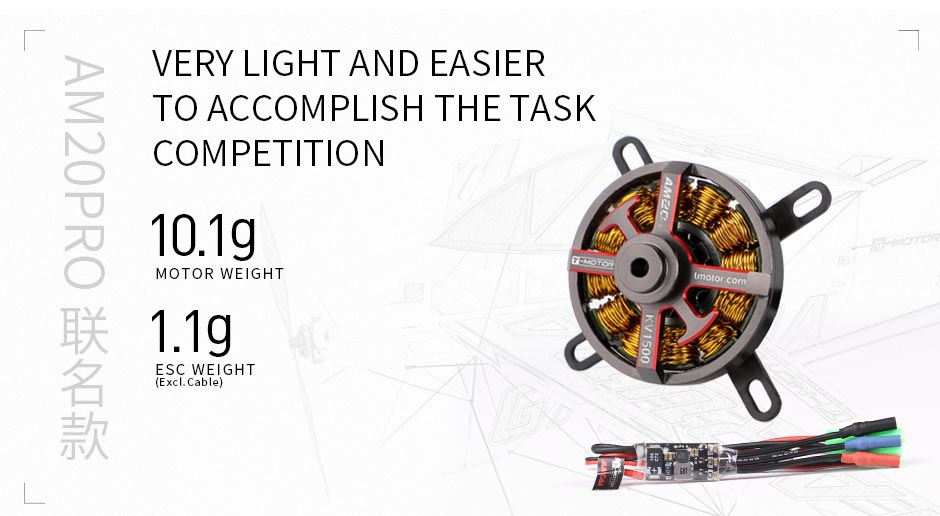

1.Very light weight only 10.1g

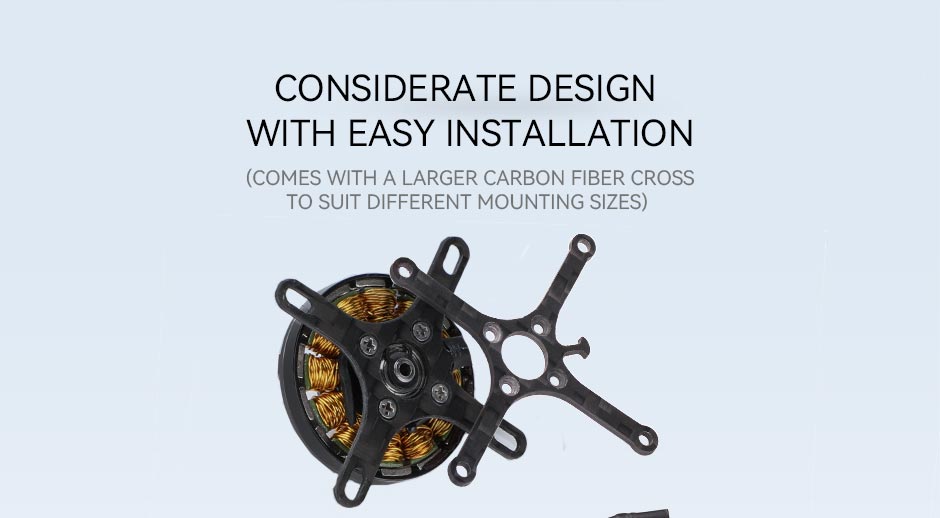

2.Considerate design with easy installation

3.Very light and easier to accomplish the task

4.Good throttle linear


Packing List Includes:


1x T-HOBBY AM20 Motor

1x Hardware pack


Matching Guide:


T-HOBBY AM06A ESC

FS10*3.1 F3P-A Carbon Fiber Prop


Technical Drawing

Specification
Test ItemKV1500Weight (Incl. Cable)10.1g
Motor DimensionsΦ25.4*15mmInternal Resistance630mΩ
Lead40mmConfiguration12N14P
Shaft DiameterIN：3mmRated Voltage(Lipo)2S
Idle Current(10V)0.14APeak Current(180s)6A
Max Power (180S)67.2W
Test ItemKV1900Weight (Incl. Cable)10.1g
Motor DimensionsΦ25.4*15mmInternal Resistance455mΩ
Lead40mmConfiguration12N14P
Shaft DiameterIN：3mmRated Voltage(Lipo)2S
Idle Current(10V)0.25APeak Current(180s)6A
Max Power (180S)67.2W
Test Data
TypePropellerThrottleVoltage
(V)		Current
(A)		Power
(W)		RPMTorque
(N*m)		Thrust
(g)		Efficiency
(g/W)

Operating

Temperature

(℃)
T-HOBBY
AM20
KV1500		T-HOBBY
10*3.1		30%8.230.342.8216480.0063713.1830
35%8.230.494.0518820.0074811.91
40%8.220.725.8920610.009589.85
45%8.220.897.3223220.010709.61
50%8.221.2510.2723950.011767.38
55%8.221.3611.1527050.014958.55
60%8.211.6313.3628560.0151067.95
65%8.201.9415.9129970.0171187.41
70%8.192.2718.5831470.0191286.92
75%8.192.6221.4232790.0201396.50
80%8.173.0925.2334600.0221546.11
85%8.173.4928.4735690.0241655.80
90%8.163.9031.8136580.0251765.52
95%8.154.3035.0237410.0261835.23
100%8.144.6838.0638360.0271894.98
Note: Motor temperature is motor surface temperature at 100% throttle running 3mins.
(Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)
T-HOBBY
AM20
KV1900		T-HOBBY
10*3.1		30%8.220.514.1918920.0074811.3730
35%8.220.756.1921260.009609.65
40%8.211.3210.8620320.008544.98
45%8.201.8314.9719380.007493.29
50%8.192.0216.5123610.011744.48
55%8.191.9616.0229280.0161126.98
60%8.192.3519.2230860.0181256.49
65%8.182.7922.7932260.0201375.99
70%8.173.2426.4533450.0211475.57
75%8.163.7030.2034680.0231585.23
80%8.154.1733.9435800.0241674.91
85%8.144.6537.8036770.0251754.64
90%8.135.1441.7537600.0261834.38
95%8.115.6545.8238200.0271904.16
100%8.106.1449.7238870.0281963.95
Note: Motor temperature is motor surface temperature at 100% throttle running 3mins.
(Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)
Packing List

Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
