Name: AM30 3D/4D
Brand: LIGPOWER
SKU: LIGPOWER001231
Price: 119.00 USD
Availability: InStock

AM30 3D/4D

119.00

Available points: 1200 Points Points reward: 119 Points

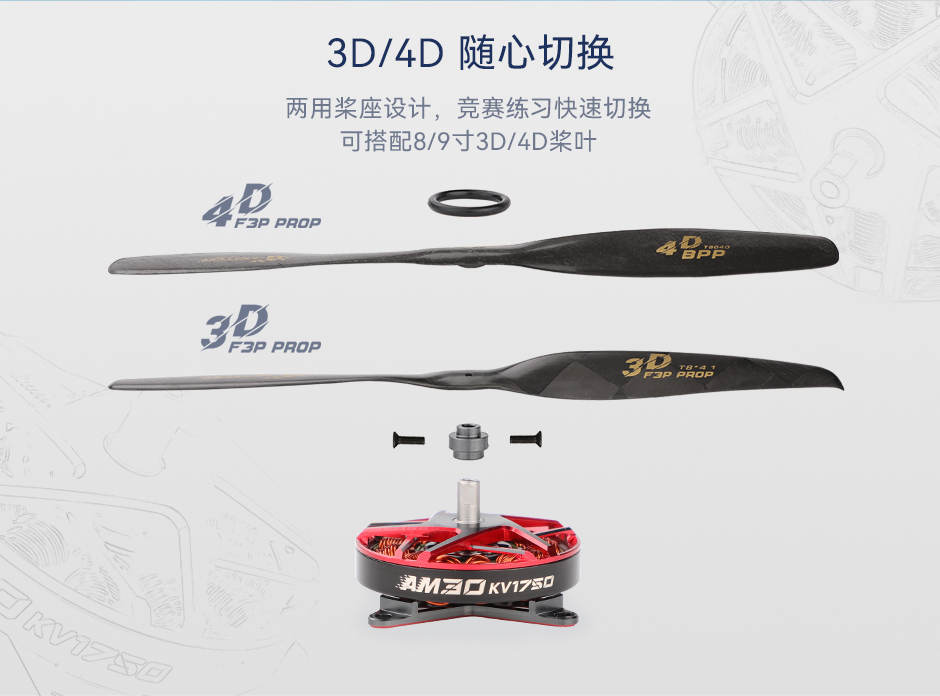

AM30搭配F3P 3D和4D桨叶

KV：

KV1450
KV2280
KV1750

Quantity：

119.00

Free Shipping by DHL/UPS Express

Relevant Products

AM30套装

$409

Detail information
Specifications

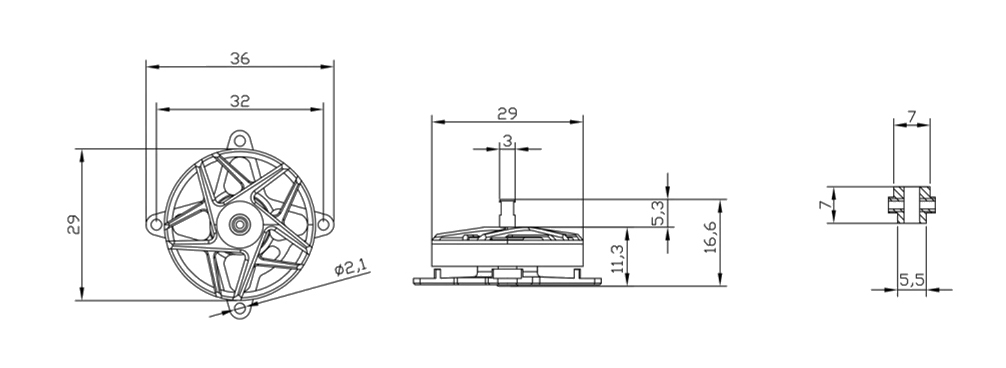

Technical Drawing

Specification

测试型号	KV1450	相间内阻	204mΩ
重量	18.6g	空载电流（10V)	0.8A
引线规格	漆包线40mm	工作额定电压(lipo)	2-3s
槽极	12N14P	最大电流	13.7A
最大功率(180s)	172W

测试型号	KV1750	相间内阻	147mΩ
重量	18.6g	空载电流（10V)	1A
引线规格	漆包线40mm	工作额定电压(lipo)	2-3s
槽极	12N14P	最大电流	14.5A
最大功率(180s)	182W

测试型号	KV2280	相间内阻	88mΩ
重量	18.6g	空载电流（10V)	1.2A
引线规格	漆包线40mm	工作额定电压(lipo)	2-3s
槽极	12N14P	最大电流	15.9A
最大功率(180s)	200W

Test Data

螺旋桨	测试型号	油门值	电压（V）	电流（A）	功率（W）	转速（RPM）	拉力（g）	力效 (g/W)	电机温度 (℃)
T-MOTOR T8040 碳纤4D	AM30 1450KV	40%	8.4	0.7	5.89	3779	51.5	8.8	/
		50%	8.4	1.2	10.34	4719	82.2	7.9
		60%	8.4	2.0	16.71	5646	120.0	7.2
		70%	8.4	2.9	24.29	6429	159.4	6.6
		80%	8.4	4.0	33.53	7172	203.0	6.1
		90%	8.4	5.3	44.13	7841	244.6	5.5
		100%	8.4	6.5	54.75	8360	281.0	5.1
		40%	12.6	1.5	18.32	5115	155.8	8.5	/
		50%	12.6	2.6	32.28	6113	230.4	7.1
		60%	12.6	4.1	51.07	7010	312.4	6.1
		70%	12.6	5.9	73.96	7817	397.8	5.4
		80%	12.5	8.3	103.34	8569	486.4	4.7
		90%	12.5	10.9	136.42	9154	560.7	4.1
		100%	12.5	13.4	167.02	9526	609.4	3.6
	AM30 1750KV	40%	8.4	1.1	9.03	4444	78.4	8.7	/
		50%	8.4	2.0	16.59	5573	124.3	7.5
		60%	8.4	3.1	26.12	6549	171.0	6.5
		70%	8.4	4.5	37.93	7404	218.5	5.8
		80%	8.4	6.2	52.13	8184	269.8	5.2
		90%	8.4	8.2	68.73	8872	320.4	4.7
		100%	8.4	10.1	84.9	9355	358.2	4.2
		40%	12.6	2.2	28.26	5701	200.5	7.1	/
		50%	12.6	3.9	49.55	6698	282.3	5.7
		60%	12.6	6.1	76.1	7626	371.2	4.9
		70%	12.5	8.9	111.28	8474	473.1	4.3
		80%	12.5	12.4	154.33	9160	558.4	3.6
		90%	12.5	16.1	200.53	9579	615.7	3.1
		100%	12.4	19.2	238.56	9820	643.1	2.7
T-MOTOR T8041 碳纤3D	AM30 1450KV	40%	8.4	0.8	6.52	3707	72.3	11.1	/
		50%	8.4	1.4	11.51	4607	115.4	10.0
		60%	8.4	2.2	18.69	5475	164.1	8.8
		70%	8.4	3.2	27.05	6229	211.8	7.8
		80%	8.4	4.3	36.45	6893	259.0	7.1
		90%	8.4	5.7	47.59	7524	310.1	6.5
		100%	8.4	7.1	59.47	8043	358.1	6.0
		40%	12.6	1.4	17.29	5236	153.2	8.9
		50%	12.6	2.4	29.79	6333	222.0	7.5
		60%	12.6	3.7	46.4	7302	299.4	6.5
		70%	12.6	5.4	67.44	8275	383.6	5.7
		80%	12.5	7.5	93.95	9145	474.1	5.0
		90%	12.5	9.9	124.43	9894	555.8	4.5
		100%	12.5	12.5	156.04	10318	601.7	3.9
	AM30 1750KV	40%	8.4	1.2	9.99	4297	100.6	10.1	/
		50%	8.4	2.1	17.89	5361	158.2	8.8
		60%	8.4	3.4	28.46	6279	219.5	7.7
		70%	8.4	4.9	40.89	7086	281.3	6.9
		80%	8.4	6.5	54.78	7782	338.5	6.2
		90%	8.4	8.6	71.58	8422	401.1	5.6
		100%	8.4	10.8	90.92	9003	459.7	5.1
		40%	12.6	2.1	26.1	5922	193.7	7.4	/
		50%	12.6	3.6	44.89	7012	274.8	6.1
		60%	12.6	5.5	68.88	8067	365.5	5.3
		70%	12.5	8.0	100.67	9076	466.8	4.6
		80%	12.5	11.2	139.65	9951	560.4	4.0
		90%	12.5	14.8	184.76	10544	630.4	3.4
		100%	12.4	18.0	223.92	10861	670.0	3.0
T-MOTOR T8044 3D	AM30 1450KV	40%	8.4	0.8	6.7	3661	81.4	12.2	/
		50%	8.4	1.4	11.88	4489	124.5	10.5
		60%	8.4	2.3	19.39	5305	177.7	9.2
		70%	8.4	3.4	28.81	6023	235.5	8.2
		80%	8.4	4.7	39.4	6617	287.9	7.3
		90%	8.4	6.2	51.82	7167	341.1	6.6
		100%	8.4	7.8	64.91	7635	389.4	6.0
		40%	12.6	1.2	15.69	5381	115.1	7.3	/
		50%	12.6	2.2	27.15	6490	169.9	6.3
		60%	12.6	3.4	42.52	7536	231.2	5.4
		70%	12.6	5.0	62.69	8590	304.0	4.8
		80%	12.6	7.0	87.44	9521	377.0	4.3
		90%	12.5	9.2	115.7	10316	445.1	3.8
		100%	12.5	11.6	144.91	10878	496.7	3.4
	AM30 1750KV	40%	8.5	1.3	10.56	4248	102.7	9.7	/
		50%	8.5	2.3	19.39	5218	162.2	8.4
		60%	8.4	3.7	31.05	6075	229.2	7.4
		70%	8.4	5.3	44.57	6771	304.0	6.8
		80%	8.4	7.2	60.49	7386	366.6	6.1
		90%	8.4	9.4	78.93	7913	425.0	5.4
		100%	8.4	11.7	97.83	8341	459.6	4.7
		40%	12.6	1.9	23.77	6116	150.4	6.3	/
		50%	12.6	3.3	41.09	7267	214.9	5.2
		60%	12.6	5.1	63.92	8418	291.2	4.6
		70%	12.6	7.4	92.96	9501	373.5	4.0
		80%	12.5	10.4	130	10443	457.7	3.5
		90%	12.5	13.9	173.69	11138	524.6	3.0
		100%	12.5	17.0	211.1	11539	562.4	2.7

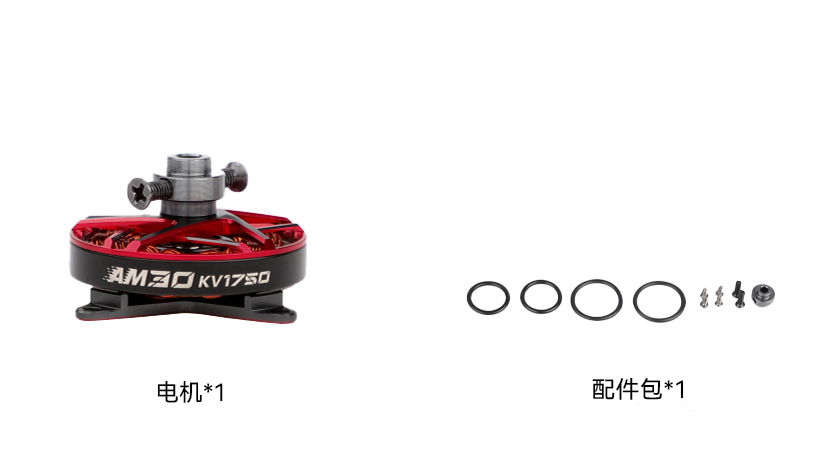

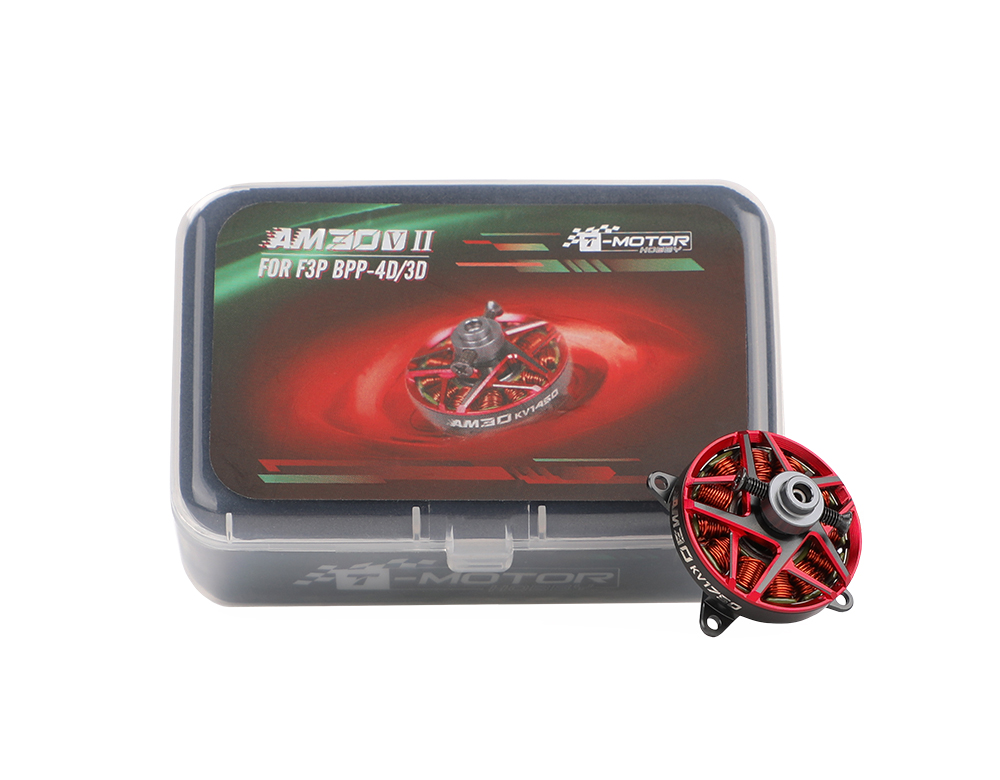

Packing List

Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
