Name: T-HOBBY AM480 3D 5-6S Freestyle RC Plane Motor 600KV/650KV/900KV
Brand: LIGPOWER
SKU: LIGPOWER001555
Price: 64.99 USD
Availability: InStock

Relevant Products

Detail information
Specifications
Download

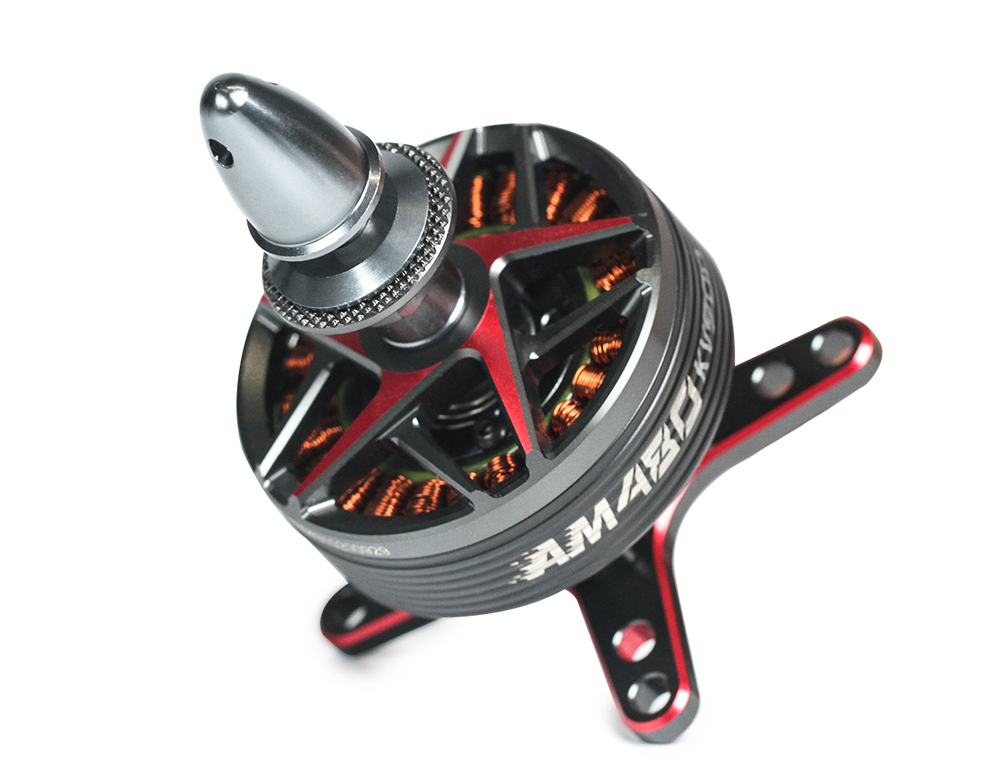

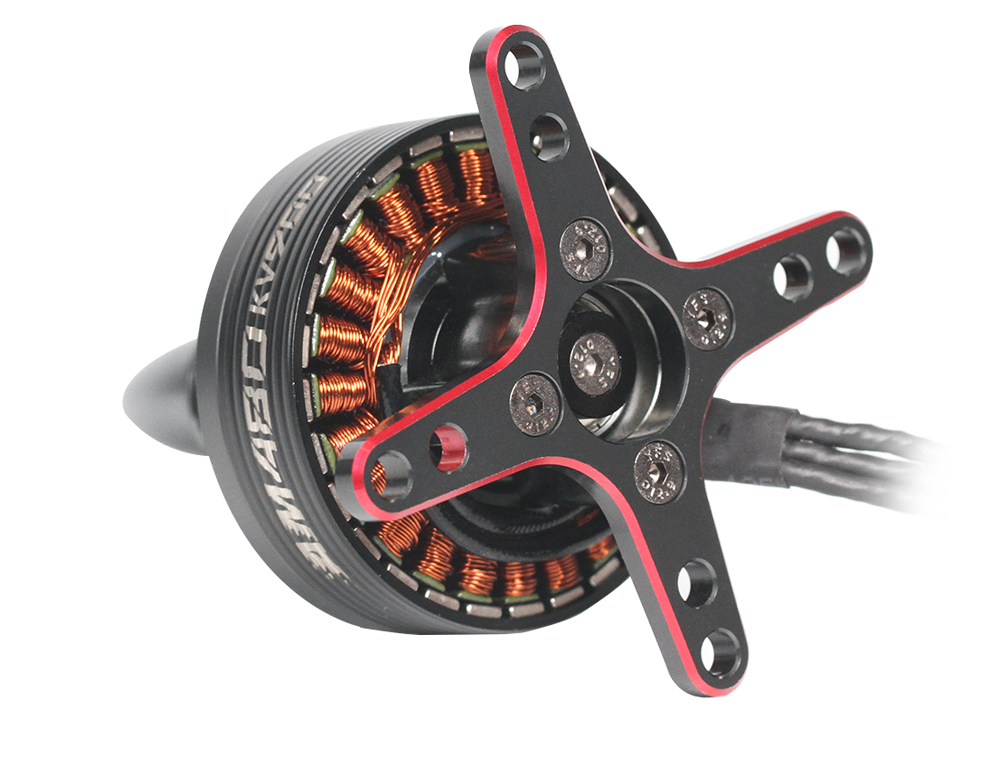

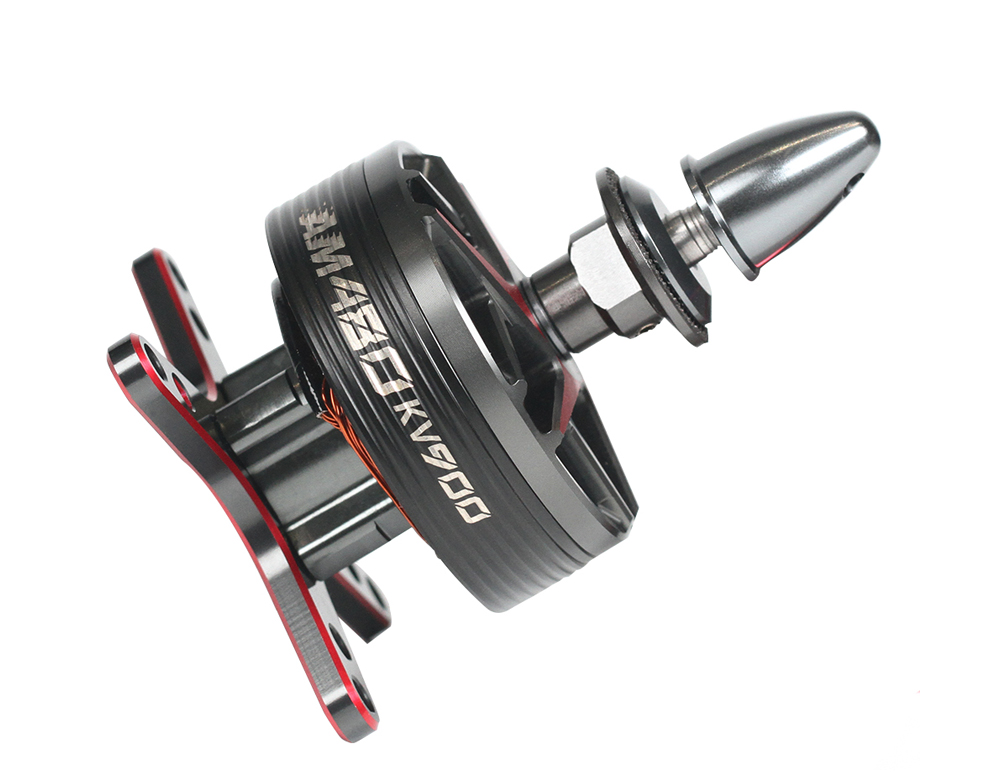

About T-HOBBY RC AM480 3D 5-6S Freestyle Fixed Wing Plane Motor

T-HOBBY AM480 145g lightweight and robust, with a large diameter design for greater torque and faster response, and has been tested by professional platform and champions, suitable for 3D plane from 48 to 52 inches, and can be used with different propellers to achieve light load, efficient or violent flight.

AM480 3D Hightlight:

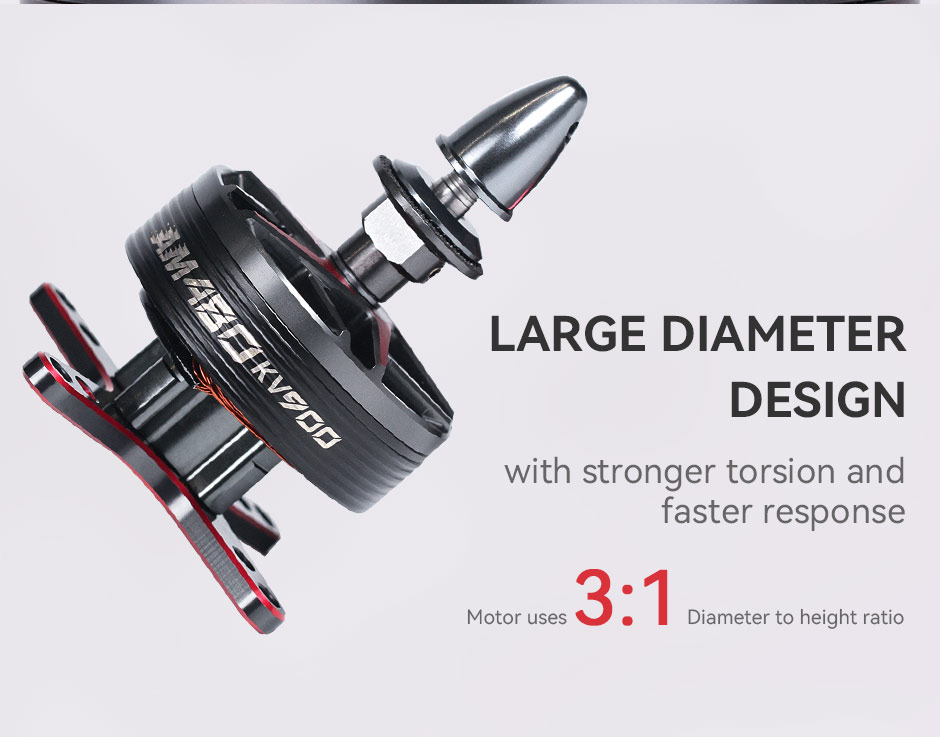

1.The T-HOBBY AM480 is very well made. Thanks to the ripples on the motor bell and the hollow shaft, the motor is more robust and lighter. The ratio of diameter and engine height ratio is 3:1 for higher torque and better cooling.

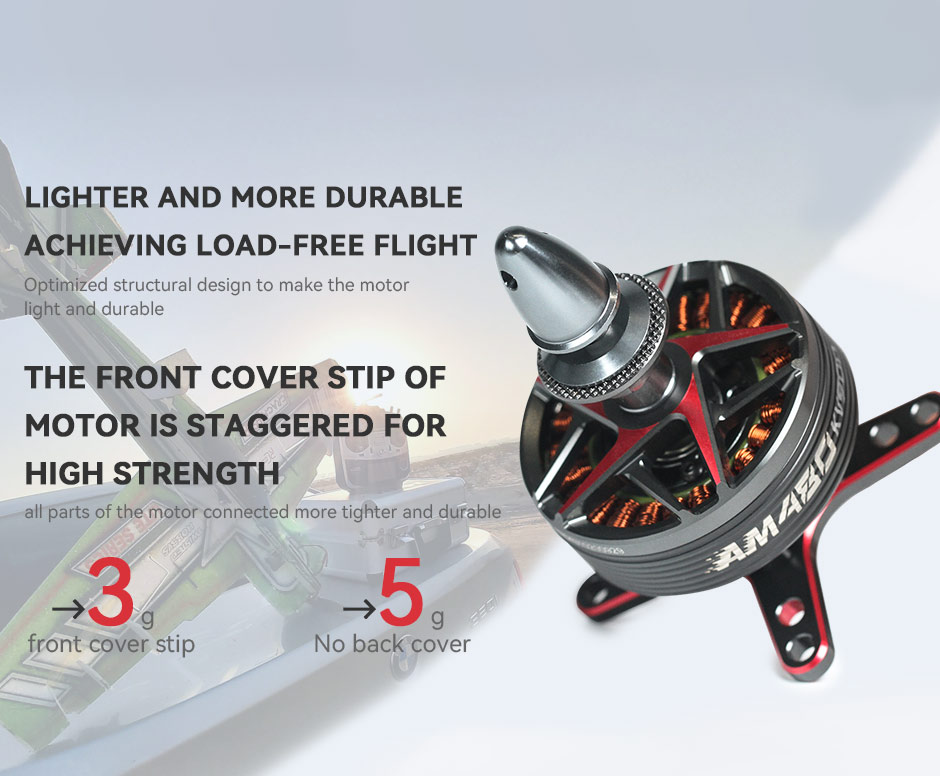

2.Optimize structural design, lighter and more durable achieving load-free flight.

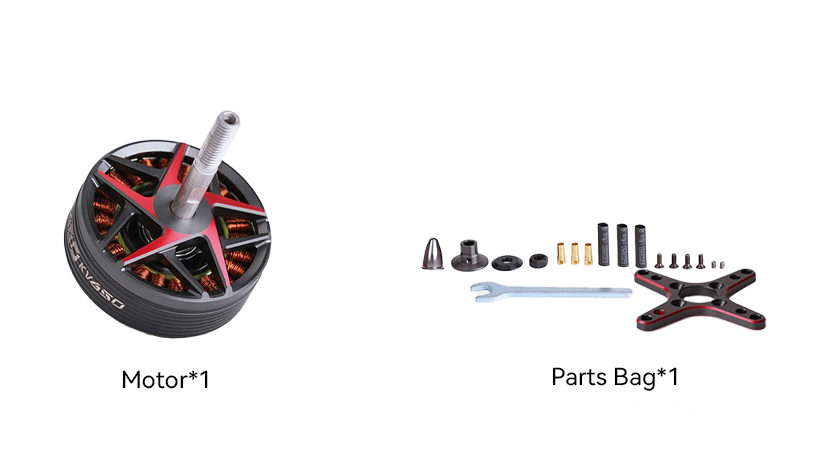

Packing List Includes:

1x T-HOBBY AM480 Motor

1x Hardware pack

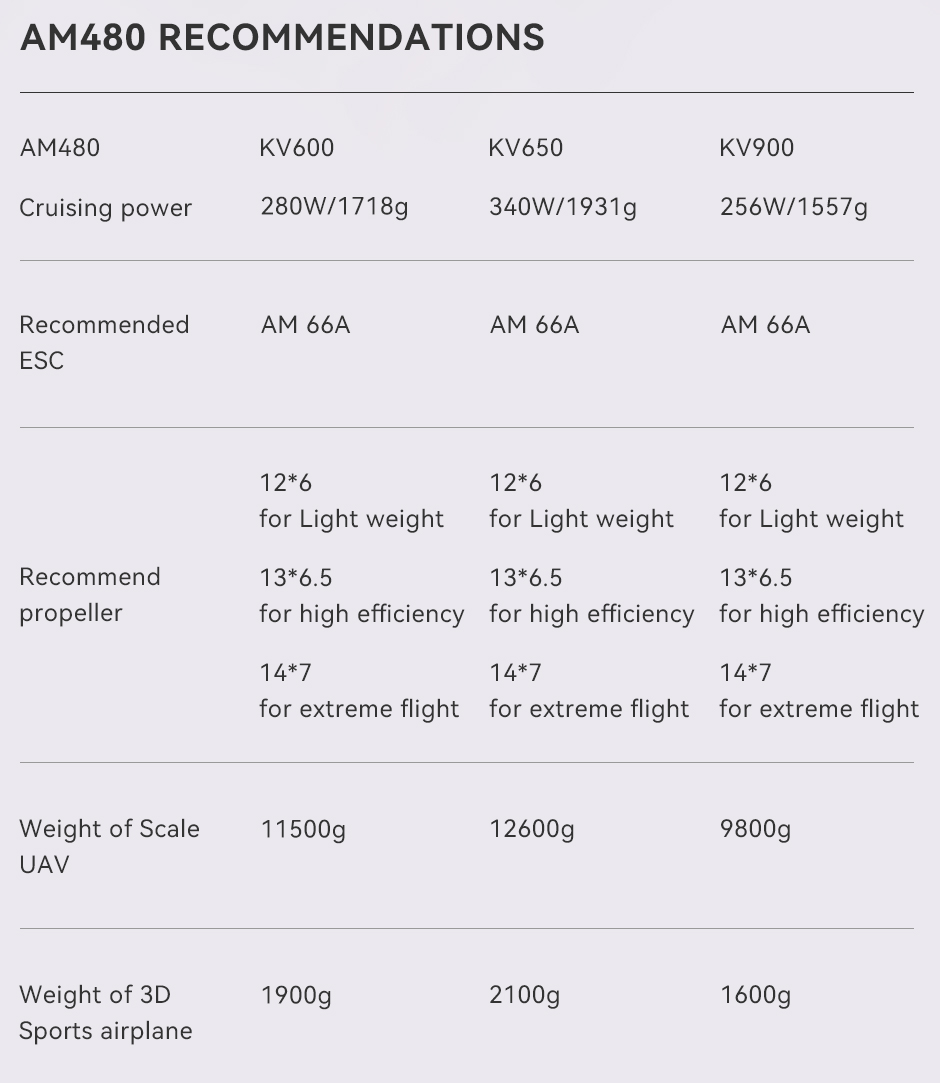

Matching Guide:

T-HOBBY AM66A ESC

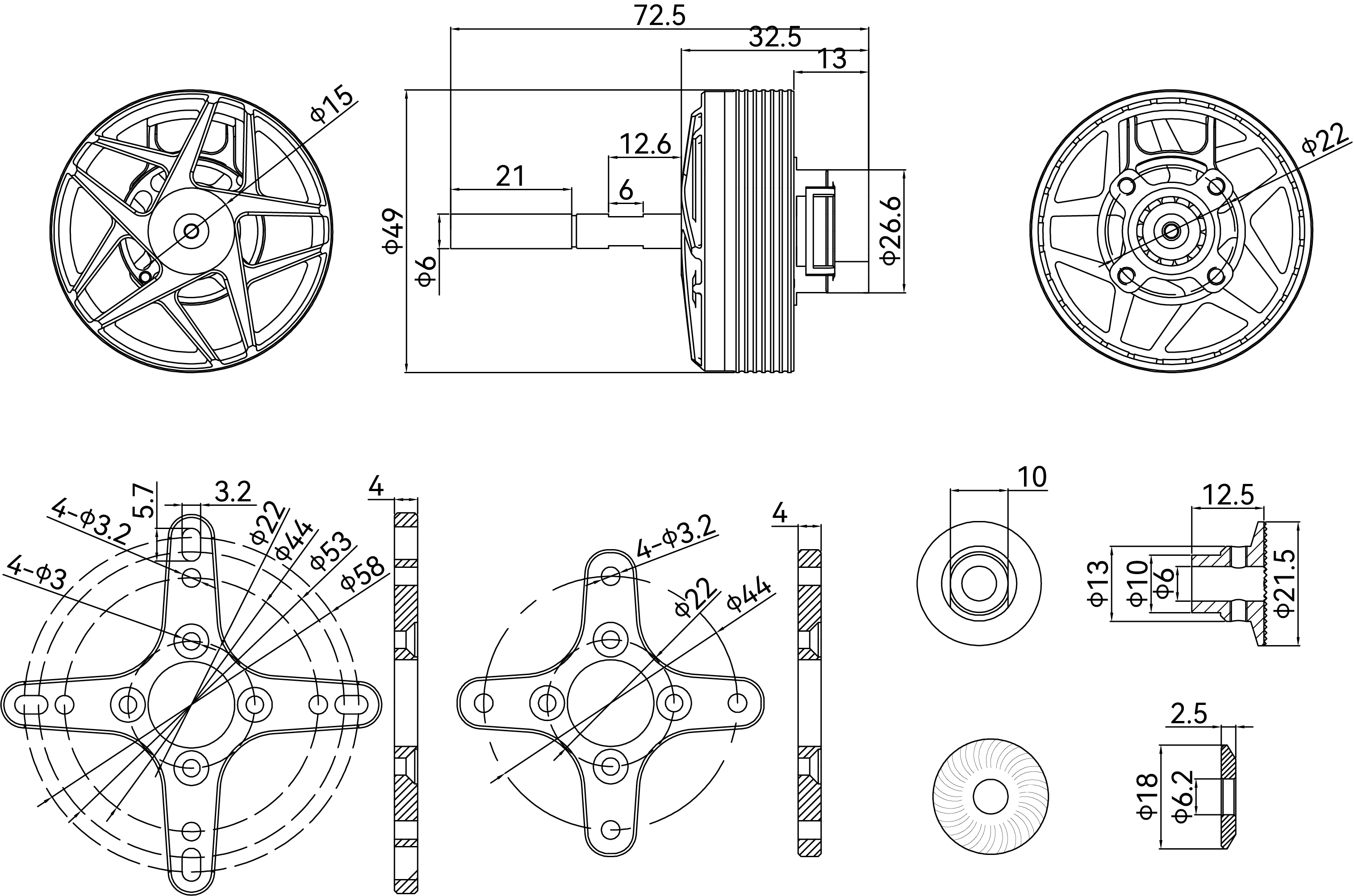

Technical Drawing

Specification

Test Item	KV600	Weight (Incl. Cable)	145g
Motor Dimensions	Φ49*70mm	Internal Resistance	35mΩ
Lead	Enameled Wire 90mm	Configuration	24N28P
Shaft Diameter	IN：6mm OUT：6mm	Rated Voltage(Lipo)	5-6S
Idle Current(10V)	1.35A	Peak Current(180s)	45A
Max Power (180S)	960W

Test Item	KV650	Weight (Incl. Cable)	145g
Motor Dimensions	Φ49*70mm	Internal Resistance	32mΩ
Lead	Enameled Wire 90mm	Configuration	24N28P
Shaft Diameter	IN：6mm OUT：6mm	Rated Voltage(Lipo)	5-6S
Idle Current(10V)	1.55A	Peak Current(180s)	55A
Max Power (180S)	1150W

Test Item	KV900	Weight (Incl. Cable)	145g
Motor Dimensions	Φ49*70mm	Internal Resistance	18mΩ
Lead	Enameled Wire 90mm	Configuration	24N28P
Shaft Diameter	IN：6mm OUT：6mm	Rated Voltage(Lipo)	3-4S
Idle Current(10V)	2.45A	Peak Current(180s)	60A
Max Power (180S)	800W

Test Data

Type	Propeller	Throttle	Voltage (V)	Current (A)	Power (W)	RPM	Torque (N*m)	Thrust (g)	Efficiency (g/W)	Operating Temperature (℃)
AM480 KV600	APC 12*6	40%	21.70	3.75	81.34	4905	0.110	632	7.77	79 (Ambient Temperature: /)
		50%	21.56	6.20	133.70	5914	0.164	944	7.06
		55%	21.62	8.02	173.37	6454	0.195	1132	6.53
		60%	21.59	9.99	215.69	6962	0.224	1331	6.17
		65%	21.49	12.26	263.52	7465	0.257	1548	5.87
		70%	21.43	14.79	316.95	7919	0.300	1758	5.55
		75%	21.38	17.68	378.03	8369	0.341	1988	5.26
		80%	21.31	20.75	442.00	8779	0.380	2224	5.03
		90%	21.22	28.32	600.76	9608	0.483	2725	4.54
		100%	21.02	36.75	772.54	10343	0.569	3197	4.14
	APC 13*6.5	40%	21.89	4.60	100.81	4761	0.146	795	7.89	88 (Ambient Temperature: /)
		50%	21.53	7.71	165.97	5715	0.209	1152	6.94
		55%	21.54	9.90	213.27	6227	0.244	1383	6.48
		60%	21.51	12.41	267.08	6709	0.289	1620	6.06
		65%	21.46	15.37	329.84	7191	0.343	1886	5.72
		70%	21.43	18.60	398.54	7629	0.389	2145	5.38
		75%	21.30	21.95	467.61	8016	0.433	2391	5.11
		80%	21.23	25.55	542.30	8383	0.479	2645	4.88
		90%	21.06	34.72	731.43	9136	0.592	3171	4.34
		100%	20.86	45.59	950.99	9777	0.707	3596	3.78
AM480 KV600	T-HOBBY 13*6.5 polymer carbon	40%	21.93	4.80	105.23	4721	0.152	838	7.97	87 (Ambient Temperature: /)
		50%	21.84	8.30	181.31	5738	0.222	1255	6.92
		55%	21.79	10.59	230.67	6235	0.259	1489	6.45
		60%	21.73	13.25	287.99	6719	0.309	1746	6.06
		65%	21.66	16.32	353.46	7197	0.360	2016	5.70
		70%	21.59	19.47	420.33	7623	0.408	2280	5.42
		75%	21.52	23.00	494.98	8024	0.455	2539	5.13
		80%	21.43	26.80	574.36	8393	0.506	2807	4.89
		90%	21.09	35.31	744.81	9101	0.602	3335	4.48
		100%	20.89	45.61	953.00	9786	0.711	3897	4.09
	T-HOBBY 13*6.5 polymer glass fibre	40%	21.93	4.68	102.70	4736	0.152	826	8.04	86 (Ambient Temperature: /)
		50%	21.85	8.08	176.43	5757	0.216	1231	6.98
		55%	21.79	10.33	225.09	6259	0.256	1462	6.50
		60%	21.74	12.90	280.39	6740	0.305	1718	6.13
		65%	21.67	15.97	346.17	7224	0.352	1995	5.76
		70%	21.60	19.06	411.74	7652	0.399	2253	5.47
		75%	21.53	22.62	486.99	8055	0.448	2522	5.18
		80%	21.45	26.30	564.18	8430	0.493	2781	4.93
		90%	21.12	34.75	733.88	9138	0.596	3294	4.49
		100%	20.94	45.09	943.93	9836	0.697	3847	4.08
Note: Motor temperature is motor surface temperature at 100% throttle running 3mins. (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)
AM480 KV650	APC 12*6	40%	21.94	4.73	103.84	5292	0.128	747	7.20	81 (Ambient Temperature: /)
		50%	21.86	7.98	174.55	6414	0.186	1111	6.36
		55%	21.81	10.23	223.20	6960	0.223	1331	5.97
		60%	21.76	12.79	278.31	7517	0.262	1575	5.66
		65%	21.70	15.58	338.12	8013	0.312	1809	5.35
		70%	21.64	18.74	405.46	8488	0.350	2054	5.07
		75%	21.57	22.35	481.99	8931	0.387	2305	4.78
		80%	21.50	26.26	564.52	9375	0.435	2574	4.56
		90%	21.18	34.98	740.91	10148	0.534	3066	4.14
		100%	20.98	45.59	956.42	10892	0.633	3550	3.71
	APC 13*6.5	40%	21.91	5.69	124.75	5102	0.166	911	7.30	92 (Ambient Temperature: /)
		50%	21.82	9.73	212.30	6159	0.246	1354	6.38
		55%	21.75	12.61	274.21	6704	0.285	1616	5.90
		60%	21.68	15.84	343.33	7214	0.347	1893	5.51
		65%	21.60	19.31	417.07	7680	0.393	2167	5.20
		70%	21.53	23.06	496.38	8100	0.445	2435	4.91
		75%	21.43	27.26	584.21	8490	0.501	2703	4.63
		80%	21.20	31.71	672.45	8838	0.546	2961	4.40
		90%	20.97	42.53	891.90	9564	0.662	3475	3.90
		100%	20.74	55.53	1151.83	10182	0.782	3930	3.41
AM480 KV650	T-HOBBY 13*6.5 polymer carbon	40%	21.90	5.98	130.94	5049	0.175	967	7.39	89 (Ambient Temperature: /)
		50%	21.79	10.21	222.43	6096	0.249	1424	6.40
		55%	21.73	13.08	284.11	6629	0.305	1702	5.99
		60%	21.65	16.45	356.20	7138	0.359	1988	5.58
		65%	21.45	19.79	424.39	7569	0.405	2247	5.30
		70%	21.33	23.47	500.53	7975	0.451	2516	5.03
		75%	21.24	27.46	583.20	8363	0.499	2779	4.76
		80%	21.12	32.08	677.54	8738	0.551	3055	4.51
		90%	20.97	42.84	898.42	9513	0.663	3669	4.08
		100%	20.76	55.19	1145.52	10183	0.779	4256	3.72
	T-HOBBY 13*6.5 polymer glass fibre	40%	21.89	5.81	127.10	5065	0.170	948	7.46	87 (Ambient Temperature: /)
		50%	21.78	9.91	215.95	6114	0.248	1399	6.48
		55%	21.52	12.54	269.85	6598	0.287	1645	6.10
		60%	21.46	15.86	340.48	7106	0.344	1931	5.67
		65%	21.39	19.26	412.17	7586	0.390	2210	5.36
		70%	21.34	22.94	489.54	8009	0.438	2487	5.08
		75%	21.25	27.02	574.18	8404	0.490	2759	4.80
		80%	21.16	31.58	668.13	8789	0.540	3034	4.54
		90%	20.98	42.19	885.01	9549	0.651	3626	4.10
		100%	20.78	54.53	1133.03	10225	0.765	4203	3.71
Note: Motor temperature is motor surface temperature at 100% throttle running 3mins. (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)
AM480 KV900	APC 12*6	40%	14.34	5.63	80.74	4779	0.107	601	7.44	76 (Ambient Temperature: /)
		50%	14.31	9.13	130.68	5732	0.149	882	6.75
		55%	14.28	11.48	163.84	6219	0.178	1048	6.40
		60%	14.23	14.13	201.08	6682	0.199	1223	6.08
		65%	14.15	17.48	247.26	7173	0.238	1430	5.78
		70%	14.05	20.68	290.54	7573	0.263	1606	5.53
		75%	13.95	24.17	337.02	7949	0.302	1788	5.30
		80%	13.89	28.29	393.02	8331	0.332	1984	5.05
		90%	13.68	37.22	509.29	9023	0.404	2374	4.66
		100%	13.51	48.17	650.75	9679	0.482	2779	4.27
	APC 13*6.5	40%	14.54	6.76	98.25	4615	0.137	736	7.49	82 (Ambient Temperature: /)
		50%	14.42	11.41	164.47	5565	0.199	1087	6.61
		55%	14.35	14.17	203.30	6009	0.221	1279	6.29
		60%	14.09	17.32	244.04	6392	0.263	1459	5.98
		65%	13.97	20.90	292.01	6782	0.302	1660	5.69
		70%	13.97	25.52	356.51	7232	0.343	1912	5.36
		75%	13.88	29.68	411.95	7577	0.380	2114	5.13
		80%	13.74	34.24	470.45	7886	0.420	2315	4.92
		90%	13.53	44.52	602.46	8505	0.498	2718	4.51
		100%	13.31	56.97	758.50	9086	0.582	3144	4.15
AM480 KV900	T-HOBBY 13*6.5 polymer carbon	40%	14.55	6.99	101.69	4573	0.141	780	7.67	79 (Ambient Temperature: /)
		50%	14.44	11.77	169.98	5519	0.204	1155	6.79
		55%	14.37	14.74	211.92	5958	0.241	1358	6.41
		60%	14.30	18.32	261.94	6404	0.278	1577	6.02
		65%	14.22	22.28	316.78	6812	0.318	1803	5.69
		70%	14.13	26.58	375.60	7226	0.363	2036	5.42
		75%	14.03	30.98	434.79	7565	0.399	2253	5.18
		80%	13.86	35.52	492.46	7862	0.436	2453	4.98
		90%	13.56	45.48	616.85	8443	0.505	2841	4.61
		100%	13.29	57.78	767.81	9000	0.585	3271	4.26
	T-HOBBY 13*6.5 polymer glass fibre	40%	14.55	6.82	99.29	4580	0.140	768	7.73	80 (Ambient Temperature: /)
		50%	14.44	11.56	166.91	5534	0.205	1127	6.75
		55%	14.38	14.45	207.71	5976	0.236	1337	6.44
		60%	14.30	17.93	256.38	6432	0.282	1557	6.07
		65%	14.22	21.68	308.35	6842	0.315	1776	5.76
		70%	14.13	26.07	368.38	7256	0.358	2017	5.48
		75%	14.03	30.32	425.45	7601	0.395	2227	5.24
		80%	13.84	34.72	480.62	7891	0.428	2420	5.03
		90%	13.58	44.86	609.38	8491	0.500	2826	4.64
		100%	13.37	57.04	762.47	9086	0.581	3268	4.29
Note: Motor temperature is motor surface temperature at 100% throttle running 3mins. (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)

Packing List

Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.

AM480-C-draw-model.pdf
