Name: T-HOBBY AM670 6S Freestyle Flight Plane Motor
Brand: LIGPOWER
SKU: LIGPOWER001521
Price: 141.90 USD
Availability: InStock

T-HOBBY AM670 6S Freestyle Flight Plane Motor

141.90

Available points: 0 Points Points reward: 141 Points

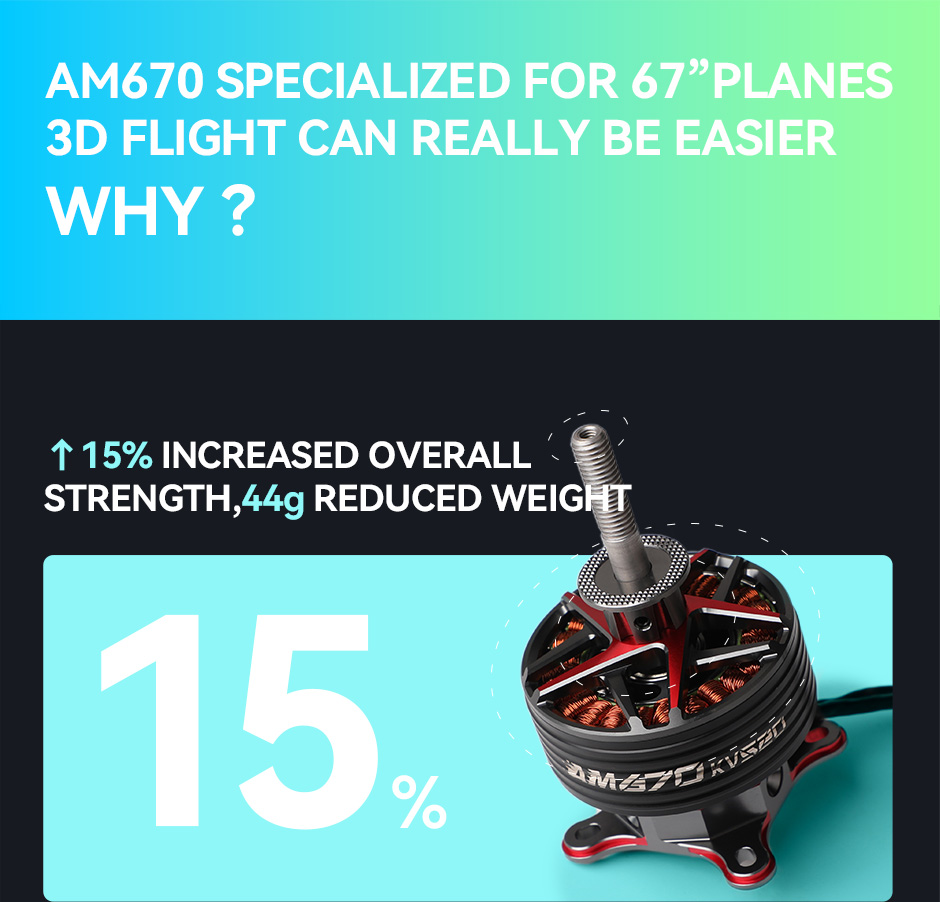

AM670 specialized for 67”planes
3D flight can really be easier

Parameter：

KV480
KV520

Quantity：

141.90

Free Shipping by DHL/UPS Express

Relevant Products

Detail information
Specifications

About T-HOBBY AM670 6S Fixed Wing Airpalne Motor

T-HOBBY AM670 416g lightweight and robust, with a large diameter design for greater torque and faster response, and has been tested by professional platform and champions,

Suitable for 3D plane from 67 to 70 inches, 10.1kg extreme thrust,and can be used with different propellers to achieve light load, efficient or violent flight.

AM670 6S Hightlight:

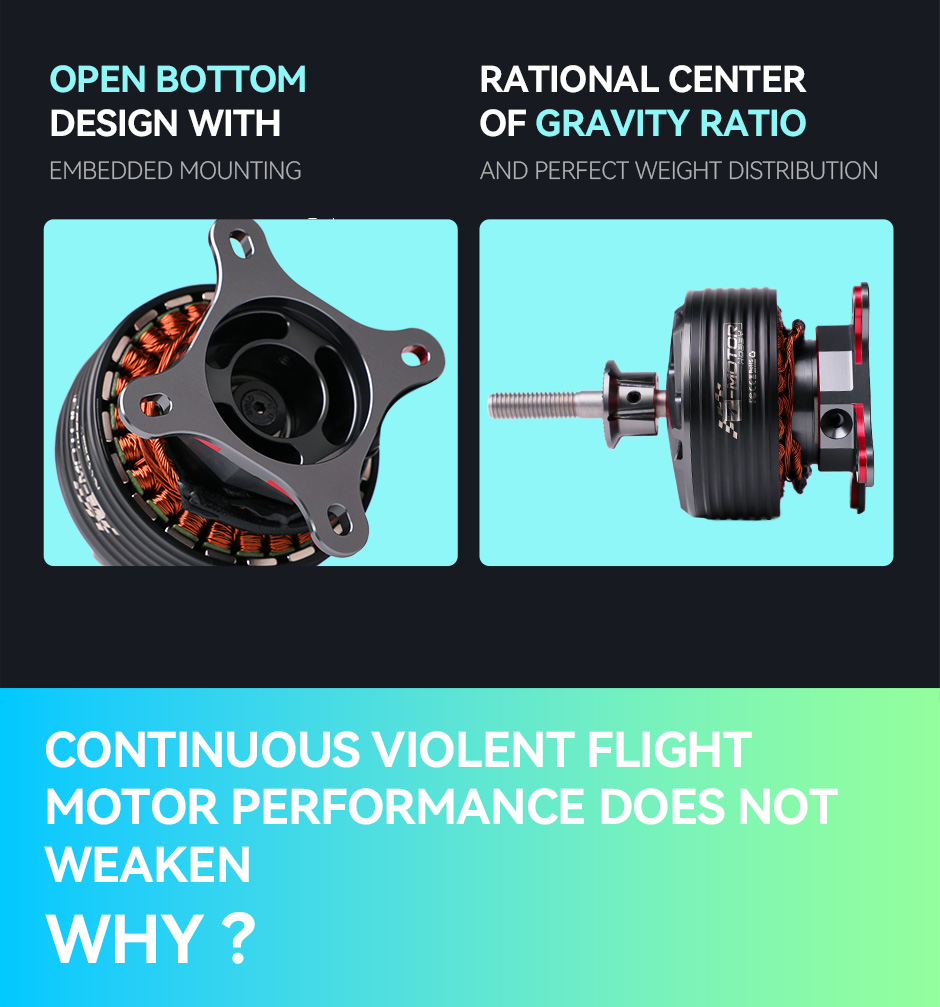

1.The open-back coverless design, combined with the embedded mounting base and reasonable center of gravity ratio, make 3D flight easier.

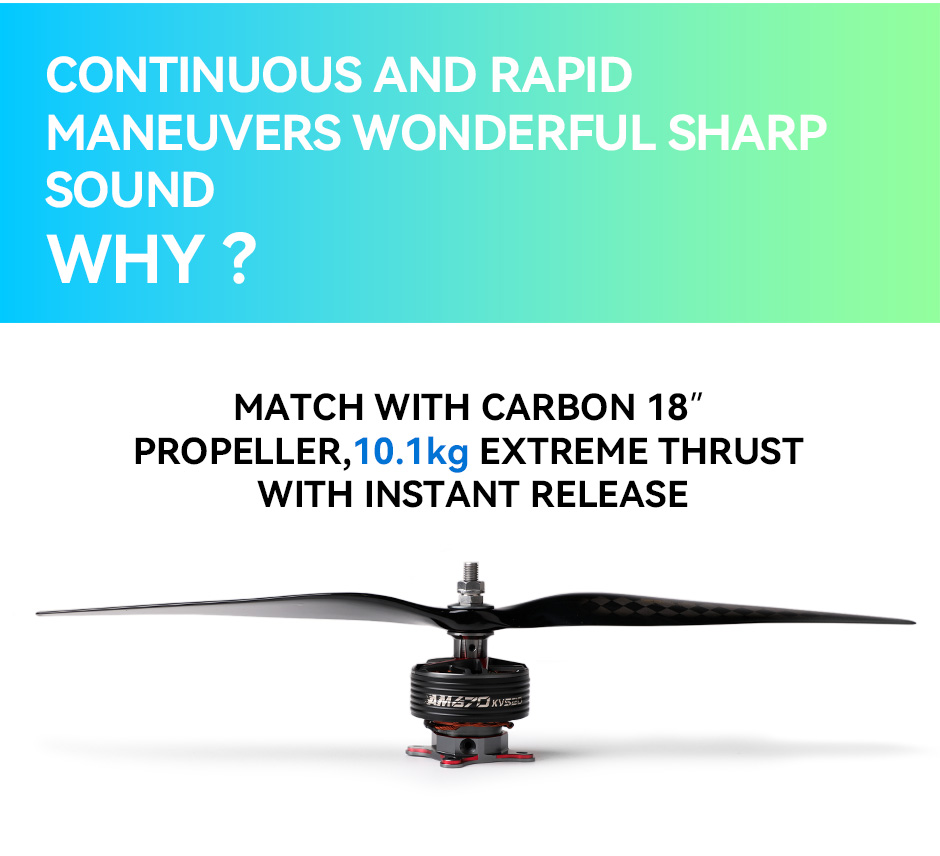

2.The overall strength of the motor is increased by 15%, and the weight is reduced by 44g. It can fly continuously and violently without any degradation in motor performance. 3.Match with T-HOBBY 18*8 carbon props10.1kg extreme thrust with instant release,and AMLink parameter return card, it helps you fly safely.

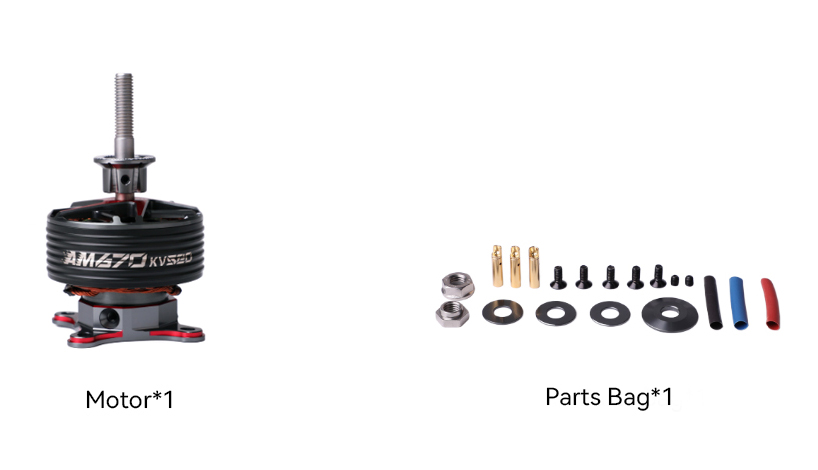

Packing List Includes:

1x T-HOBBY AM670 6s Motor

1x Parts Back

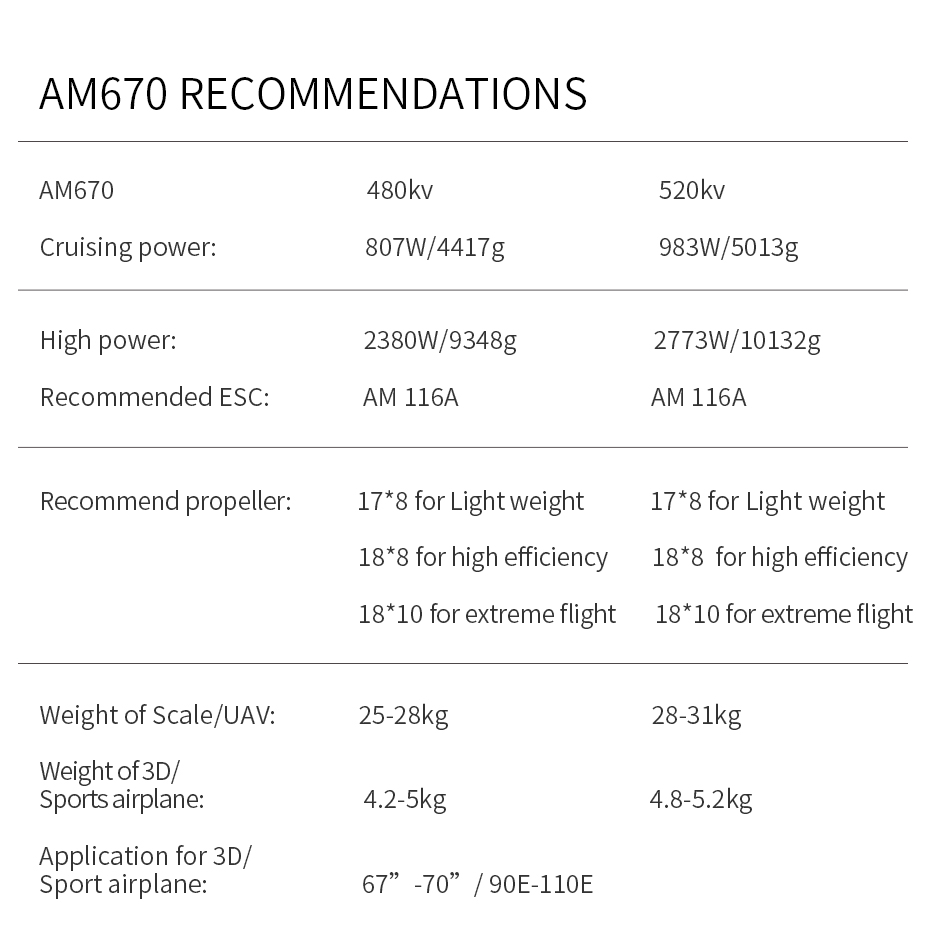

Matching Guide:

Updating

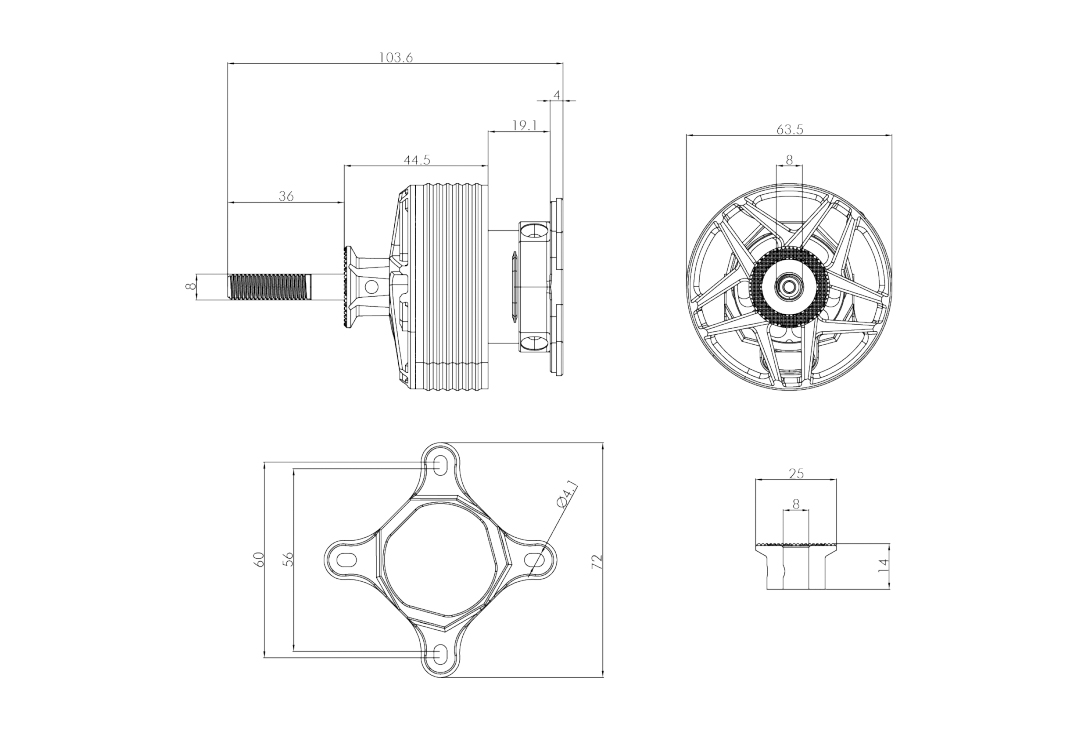

Technical Drawing

Specification

Test Item	KV480	Weight (Incl. Cable)	416.1g
Motor Dimensions	Φ63.5*103.6	Internal Resistance	12mΩ
Lead	Enameled Wire*110mm	Configuration	24N20P
Shaft Diameter	IN:8 OUT:8	Recomended battery/voltage	6S
Idle Current(10V)	3.5A	Peak Current(180s)	110A
Max Power (180S)	2700W	Recomended ESC/Propeller	AM116A/18*10

Test Item	KV520	Weight (Incl. Cable)	416.3g
Motor Dimensions	Φ63.5*103.6	Internal Resistance	10mΩ
Lead	Enameled Wire*110mm	Configuration	24N20P
Shaft Diameter	IN:8 OUT:8	Recomended battery/voltage	6S
Idle Current(10V)	4.2A	Peak Current(180s)	130A
Max Power (180S)	3200W	Recomended ESC/Propeller	AM116A/18*8

Test Data

Type	Propeller	Throttle	Voltage (V)	Current (A)	Power (W)	RPM	Torque (N*m)	Thrust (g)	Efficiency (g/W)	Operating Temperature (℃)
AM670 KV480	18*8	40%	23.85	10.85	258.78	4008	0.411	1909	7.38	/
		45%	23.78	13.90	330.62	4414	0.499	2322	7.02
		50%	23.69	18.05	427.49	4860	0.609	2830	6.62
		55%	23.58	22.88	539.41	5296	0.728	3388	6.28
		60%	23.46	28.18	661.03	5700	0.848	3939	5.96
		65%	23.32	34.40	802.29	6108	0.977	4534	5.65
		70%	23.17	41.32	957.22	6489	1.112	5161	5.39
		75%	22.99	49.26	1132.43	6859	1.258	5834	5.15
		80%	22.80	57.78	1317.56	7207	1.401	6516	4.95
		85%	22.58	68.04	1536.18	7577	1.563	7235	4.71
		90%	22.35	78.25	1748.97	7887	1.715	7921	4.53
		100%	22.03	92.60	2039.95	8263	1.903	8733	4.28
	18*10	40%	23.81	12.46	296.78	3835	0.501	2068	6.97	/
		45%	23.72	16.51	391.56	4270	0.623	2574	6.57
		50%	23.60	21.61	510.10	4713	0.762	3147	6.17
		55%	23.46	27.86	653.79	5140	0.919	3793	5.80
		60%	23.31	34.62	807.02	5522	1.073	4418	5.47
		65%	23.15	42.01	972.38	5894	1.232	5076	5.22
		70%	22.96	50.26	1154.08	6249	1.387	5707	4.95
		75%	22.76	59.69	1358.36	6596	1.559	6408	4.72
		80%	22.53	69.91	1575.19	6930	1.725	7061	4.48
		85%	22.31	80.31	1791.35	7219	1.887	7728	4.31
		90%	22.02	93.21	2052.68	7520	2.065	8464	4.12
		100%	21.65	109.93	2380.06	7858	2.289	9349	3.93
Note: Motor temperature is motor surface temperature at 100% throttle running 10mins. (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)
AM670 KV520	18*8	40%	23.58	13.44	316.98	4303	0.471	2183	6.89	/
		45%	23.52	17.20	404.44	4728	0.569	2649	6.55
		50%	23.40	22.11	517.21	5182	0.689	3212	6.21
		55%	23.29	27.79	647.05	5618	0.816	3802	5.88
		60%	23.16	34.44	797.57	6043	0.954	4433	5.56
		65%	23.01	41.91	964.42	6456	1.101	5110	5.30
		70%	22.84	50.41	1151.29	6860	1.256	5823	5.06
		75%	22.64	59.79	1353.52	7236	1.405	6534	4.83
		80%	22.41	71.29	1597.29	7633	1.589	7361	4.61
		85%	22.13	83.74	1852.97	8001	1.762	8137	4.39
		90%	21.88	95.82	2096.23	8314	1.916	8822	4.21
		100%	21.55	111.11	2394.77	8636	2.097	9617	4.02
	18*10	40%	23.63	15.75	372.12	4124	0.591	2440	6.56	/
		45%	23.49	21.07	495.03	4599	0.735	3032	6.13
		50%	23.35	27.43	640.54	5060	0.889	3666	5.72
		55%	23.21	34.50	800.90	5481	1.046	4309	5.38
		60%	23.04	42.66	983.03	5872	1.217	5014	5.10
		65%	22.86	51.69	1181.44	6253	1.392	5728	4.85
		70%	22.63	62.12	1405.87	6618	1.576	6462	4.60
		75%	22.39	73.44	1644.20	6961	1.757	7199	4.38
		80%	22.14	85.44	1891.43	7276	1.932	7907	4.18
		85%	21.83	99.60	2174.43	7585	2.124	8649	3.98
		90%	21.52	113.60	2444.89	7854	2.297	9357	3.83
		100%	21.14	131.23	2773.70	8138	2.503	10132	3.65
Note: Motor temperature is motor surface temperature at 100% throttle running 10mins. (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)

Packing List

Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
