AM740

319.00

Available points: 319 Points Points reward: 319 Points
?
Quantity:

319.00

Free Shipping by DHL/UPS Express

  • Detail information
  • Specifications

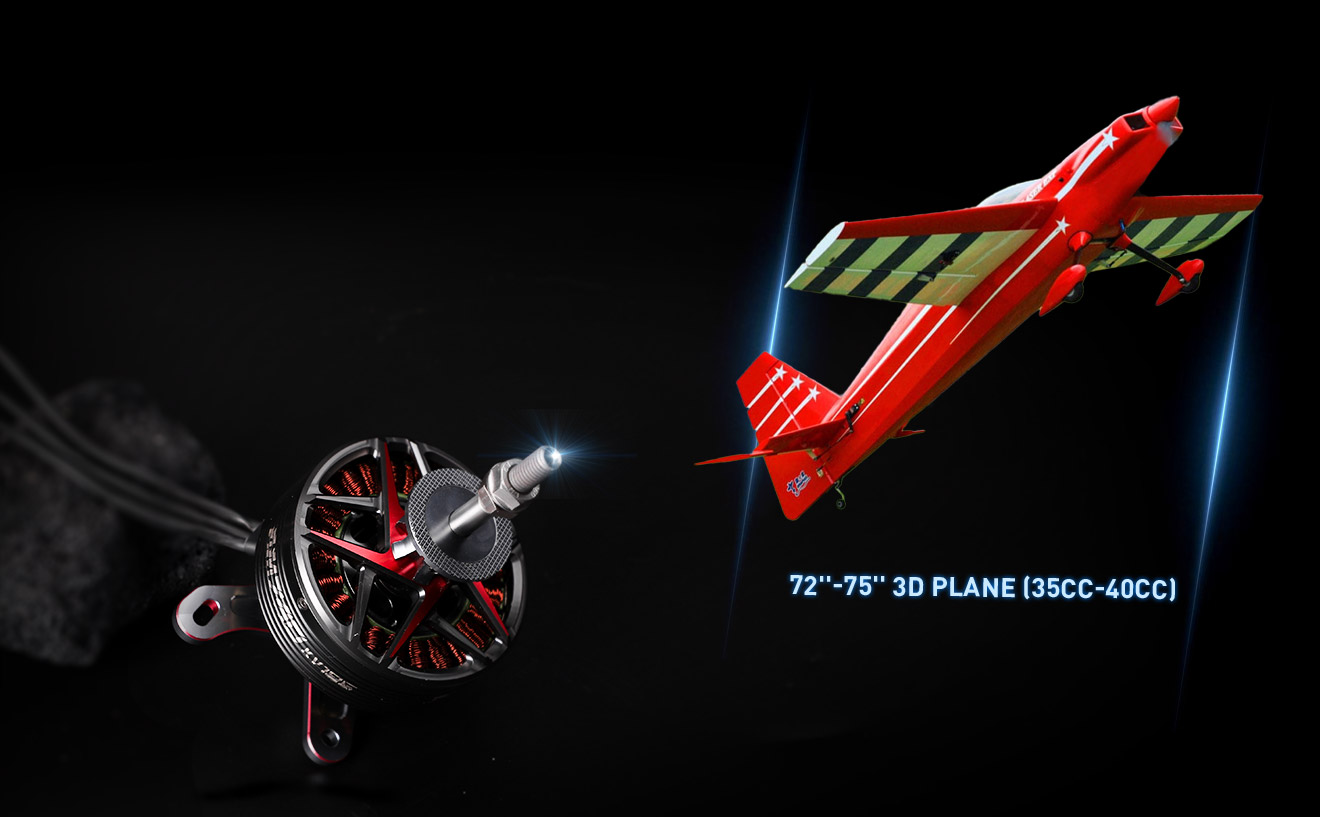

AM740 is designed for 72"-75" 3D planes

Break free from traditional constraints, so you will release from your heavy planes and feel lightweight and agile instantly

AM740 + AM156A
KV185: AMZ21x10/22x10 – Scale Model, UAV
KV220: AMZ20x10 – Master Class 3D Aerobatic

AM740 is designed for 72

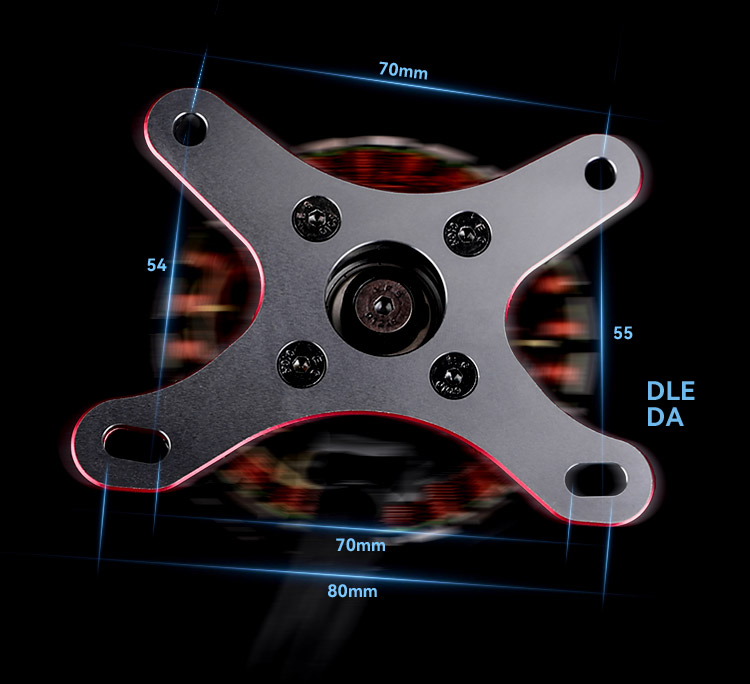

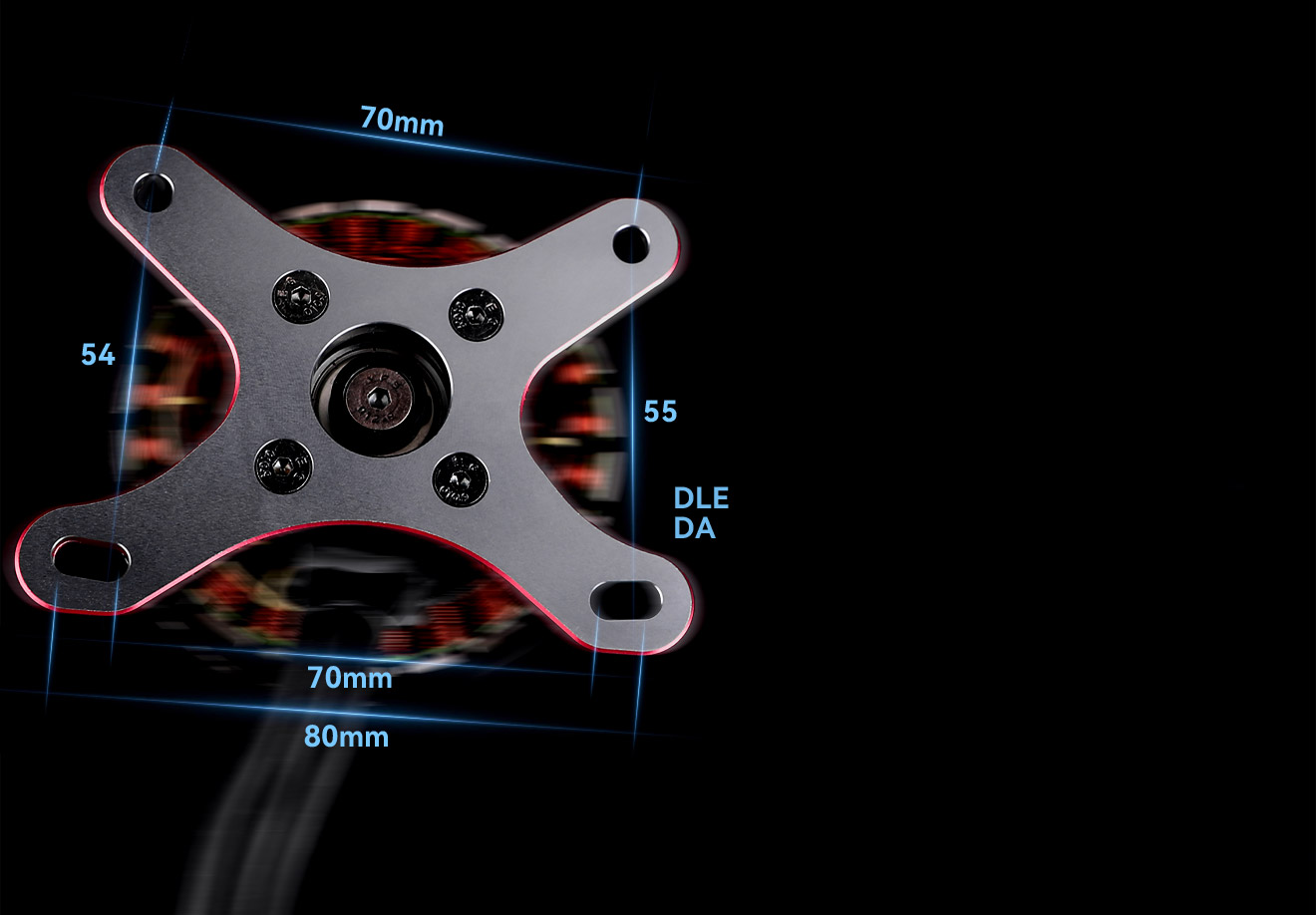

Non-destructive replacement for convenient installation

Fixed with the same mounting plate as the gas engine for quick installation

Non-destructive replacement for convenient installation
bases

*The product includes two bases of different specifications, which can replace gas aircraft and electric aircraft at will

Non-destructive replacement for convenient installation

The world's top pilots have repeatedly calibrated the powercurve and hand feel

Enabling rapid control over delicate 3D flights

The world's toppilots have repeatedly calibrated the powercurve and hand feel

How fast are your hands? How accurate are your fingers?

AM740's zero-latency and precise tracking allows you to show off your skills easily

How fast are your hands? How accurate are your fingers?

Equipped With the AMZ 20x10 Carbon Fiber Propeller

Instantly releasing 17.5kg of continuous thrust High response, high burst, let you show off your skills easily

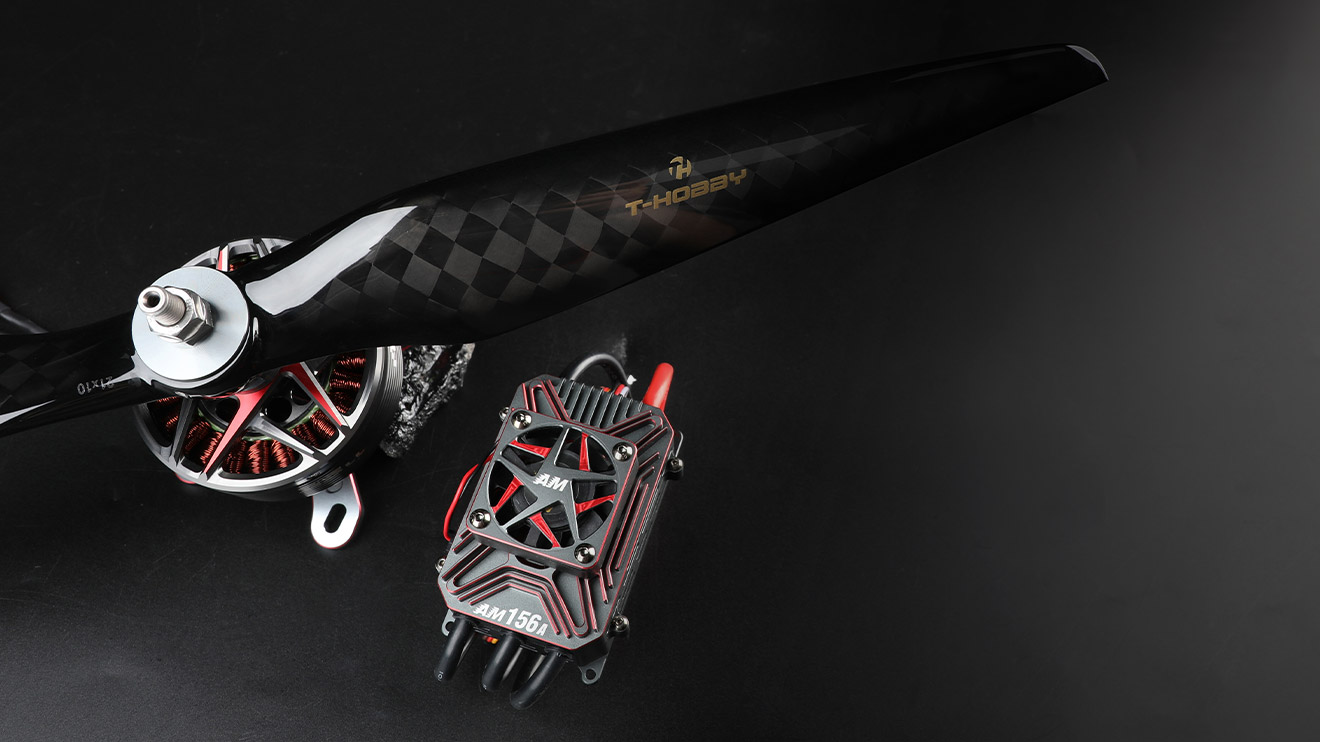

Equipped With the AMZ 22x10 Carbon Fiber Propeller

Quick installation
comfortable adaption

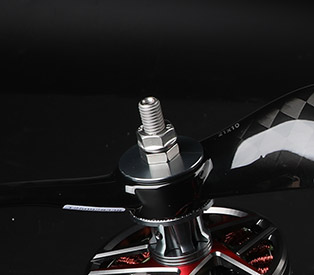

  • Hard lock screw nut to add the violence to the end

    Hard lock screw nut to add the violence to the end

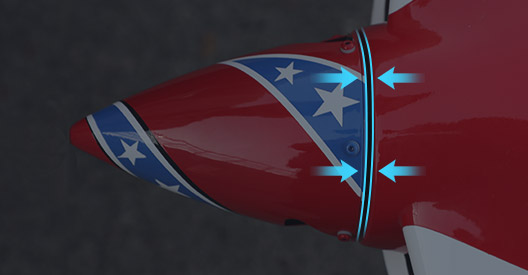

  • 4.5mm blade seat adjustable gap for accurate fit

    4.5mm blade seat adjustable gap for accurate fit

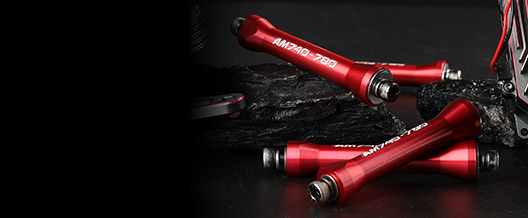

  • The right height for the special motor bracket

    The right height for the special motor bracket

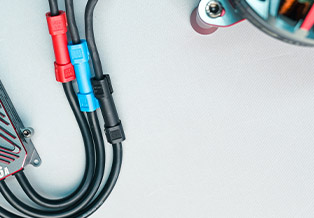

  • Quickly connect the motor and ESC with the corresponding plug colors

    Quickly connect the motor and ESC with the corresponding plug colors

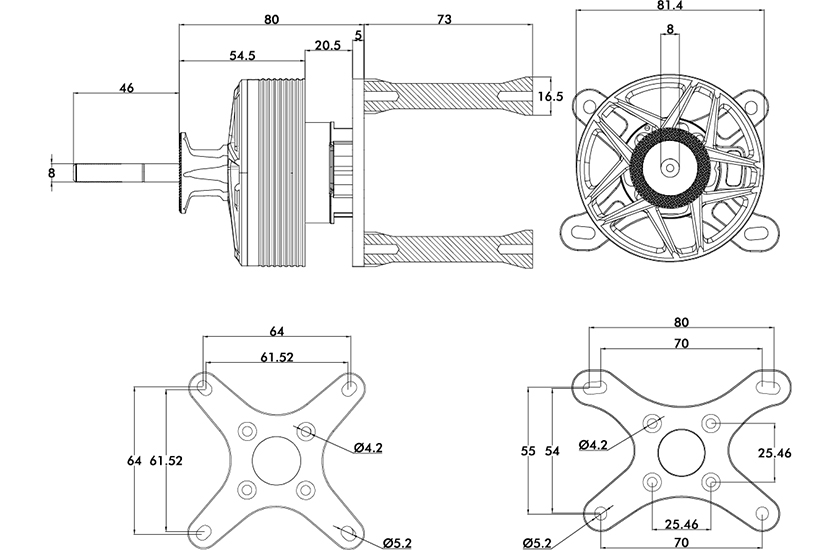

Technical Drawing


Specification Export to Excel
TypeAM740Motor DimensionΦ81.4x121mm
Shaft Diameter8mmConfiguration24N22P
Magnet180°C High-TemperatureCoil Insulation
Test
1000V Withstand
Voltage Test
Dynamic Balance
Requirements Standards
≦5mgLeadBottom Line-170mm
PlugXT150-M-
Bananenstecker


Tech Specs
KV185Idle Current (10V)2.7A
Max Power4912WPeak Current97A
Rated Voltage (LiPo)10-12SInternal Resistance27mΩ
Max Thrust17929gWeight
(Incl. Cable)
680g
KV220Idle Current (10V)3.6A
Max Power6765WPeak Current134A
Rated Voltage (LiPo)10-12SInternal Resistance19mΩ
Max Thrust17569gWeight
(Incl. Cable)
690g
Recommended
Aircraft Dimensions72-75 InchRecommended
Takeoff Weight
8.5kg
ESCAM156APropAMZ20x10/21x10/22x10
Recommended Battery12S 3300-4600mAhEquivalent Engine35-40CC
UAV Size2.2-2.6mUAV Takeoff Weight<45kg
Recommended ESCAM156ARecommended PropellerAMZ20x10/21x10/22x10
Recommended Voltage44.4-50.4VEquivalent Engine30-35CC
