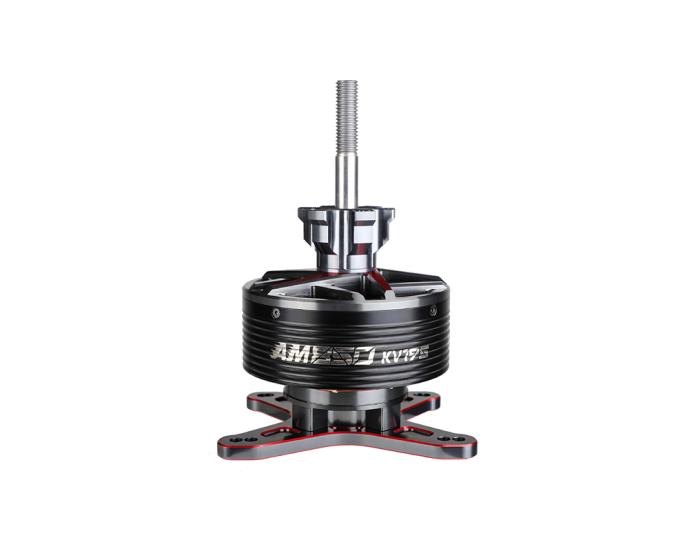

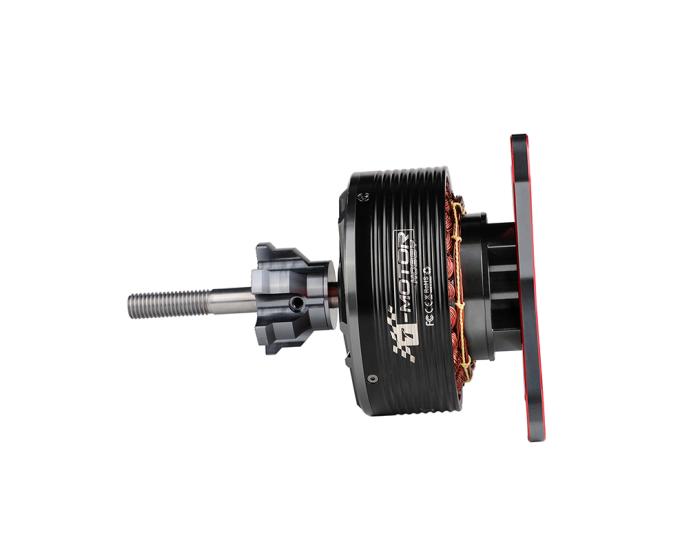

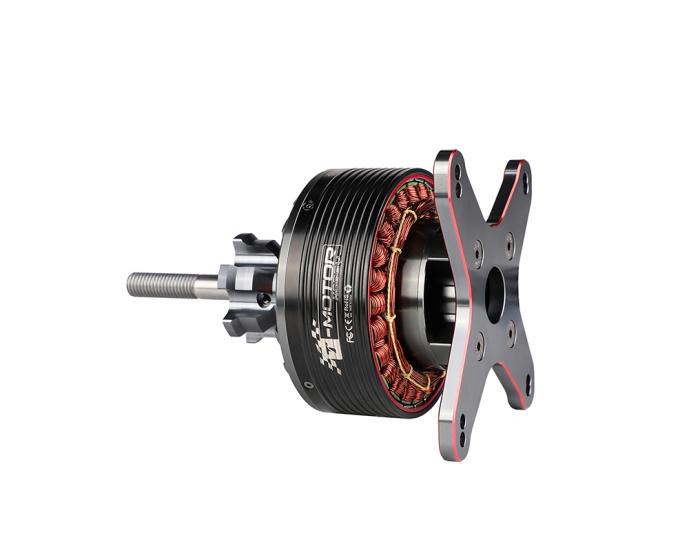

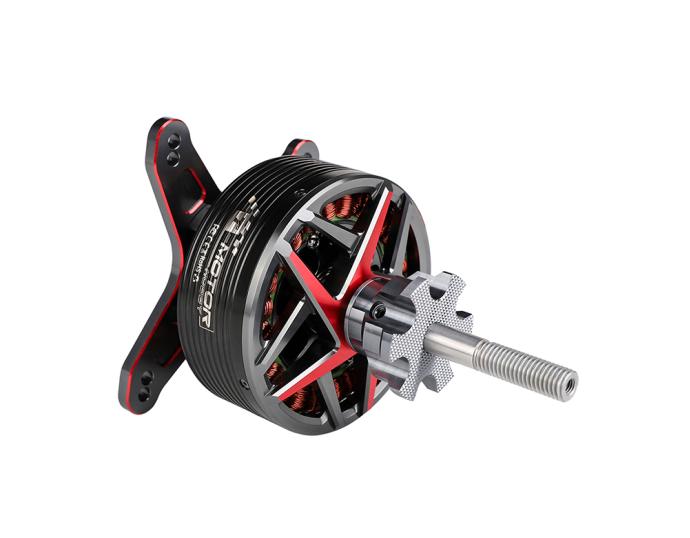

AM850 KV195 Motor 19.7kg Thrust for 84"-89" 3D Planes

419.00

Available points: 0 Points Points reward: 419 Points

KV：
  • 195KV
Quantity：

419.00

Free Shipping by DHL/UPS Express

  • Detail information
  • Specifications
AM850 detail1

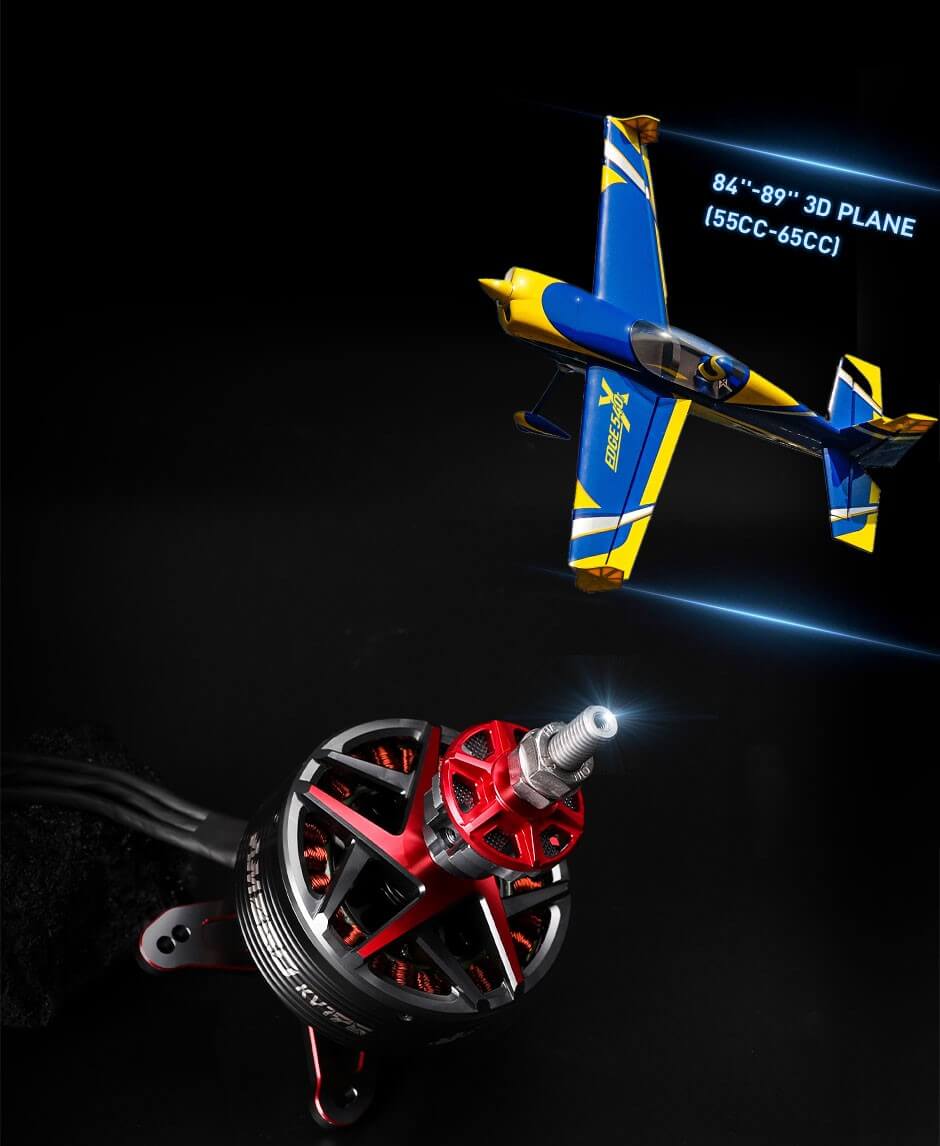

AM850 IS
DESIGNED FOR
84"-89" 3D
PLANES

Break free from traditional
constraints, so you will release
from your heavy planes and feel
lightweight and agile instantly

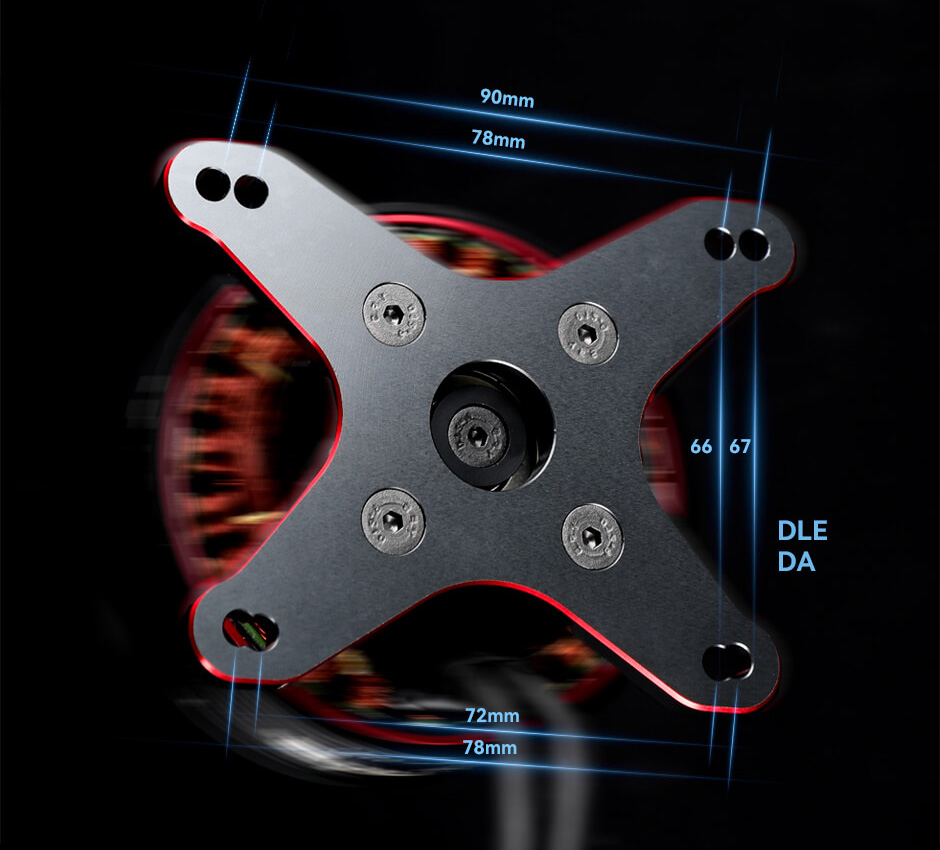

NON-DESTRUCTIVE
REPLACEMENT FOR
CONVENIENT INSTALLATION

Fixed with the same mounting plate as the
gas engine for quick installation

AM850 detail2
AM850 detail3

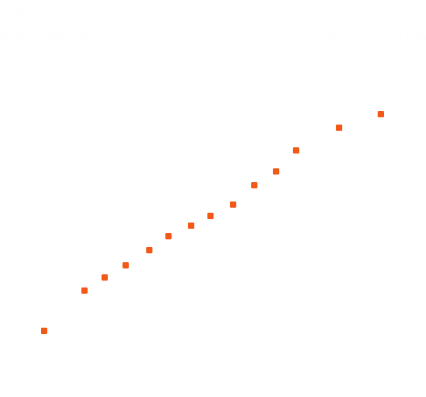

THE WORLD’S TOPPILOTS HAVE
REPEATEDLYCALIBRATED
CTHE POWERCURVE AND HAND FEEL

Enabling rapid control over delicate 3D flights

AM850 detail4

HOW FAST ARE
YOUR HANDS?
HOW ACCURATE
ARE YOUR FINGERS?

AM850’s zero-latency and precise
tracking allows you to show off
your skills easily

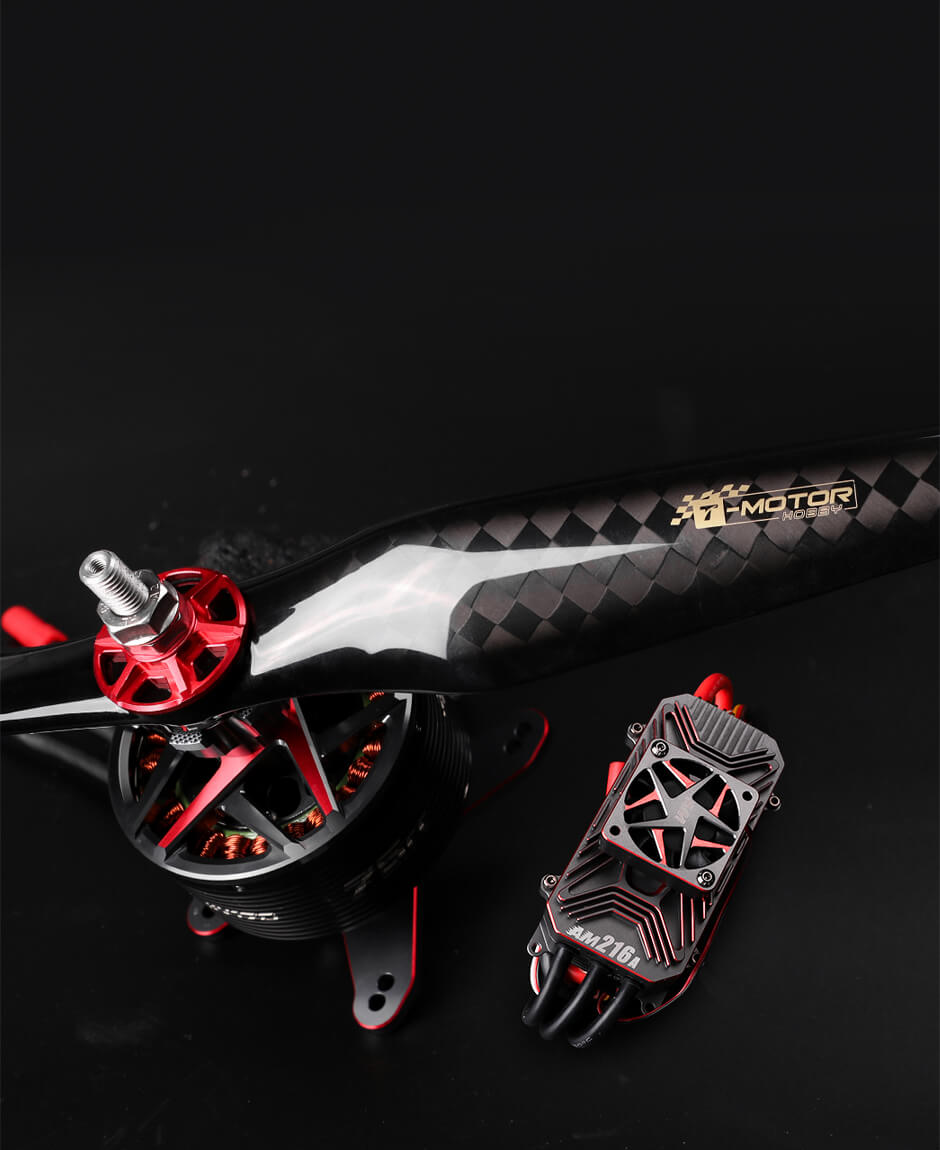

EQUIPPED WITH THE
AMZ 23*10 CARBON FIBER
PROPELLER

Instantly releasing19.7kg of continuous thrust High response, high burst,let you show off your skills easily

AM850 detail5

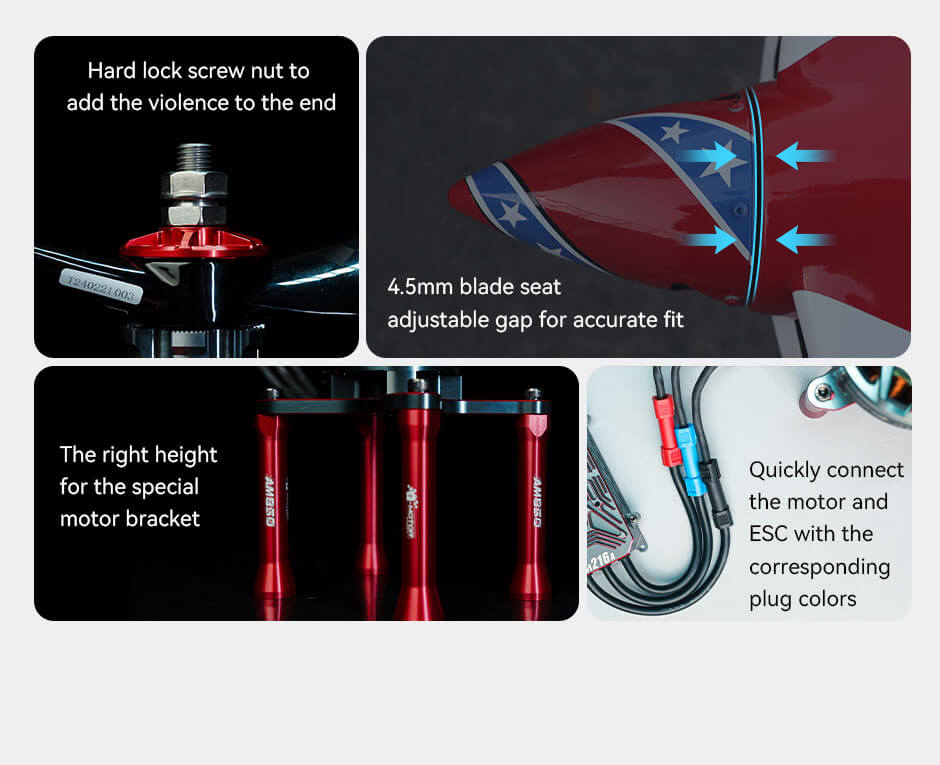

QUICK INSTALLATION
COMFORTABLE ADAPTION

AM850 detail6

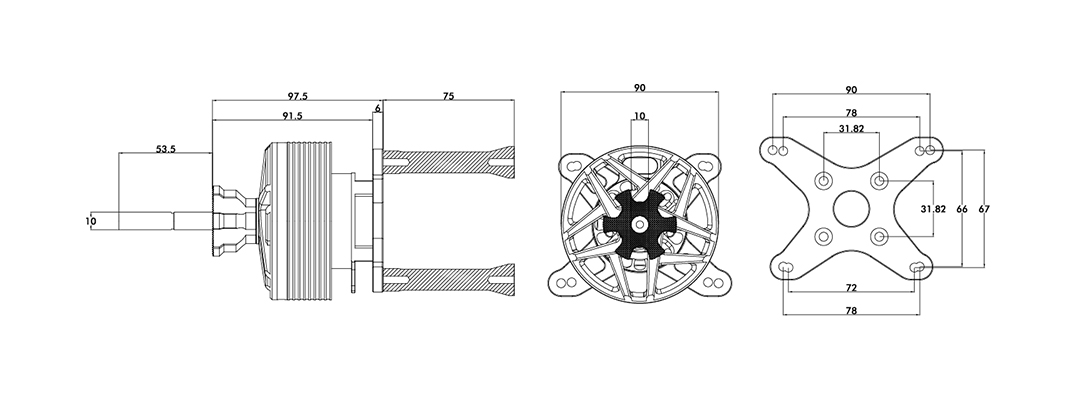

Technical Drawing


Specification
Test ItemKV195Weight (Incl. Cable)1025g
Motor DimensionsΦ90*145mmInternal Resistance9mΩ
Lead160mmConfiguration24N28P
Shaft Diameter10mmRatedVoltage(Lipo)10-12S
Idle Current(10V)5.7APeak Current(180s)75A
Max. Power(180s)3780WRecomended ESC/PropellerAM216A/AMZ23*10
Test Data
TypePropellerThrottleVoltage
(V)		Current
(A)		Power
(W)		RPMTorque
(N*m)		Thrust
(g)		Efficiency
(g/W)		Operating Temperature
(℃)
AM850
KV195		T23*1030%50.7512.04611.2134671.0737086.07/
35%50.7015.29775.2238101.3045175.83
40%50.6418.88955.9441271.5353415.59
45%50.5822.501137.9844141.7561495.40
50%50.5326.721350.2946982.0070315.21
55%50.4531.571592.3549952.2880145.03
60%50.3637.541890.4553092.6091354.83
65%50.2644.382230.5956292.95103774.65
70%50.1453.332674.0159973.39119074.45
75%50.0062.933146.7063253.82133764.25
80%49.8573.413659.5166424.27149014.07
85%49.6685.774259.5369554.77165243.88
90%49.4698.654878.6472325.26179893.69
95%49.18117.315768.7275775.96193533.35
100%49.14125.496165.9377116.25197893.21
Note: Motor temperature is motor surface temperature @100% throttle running 3mins.
(Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)
AM850
KV195		T24*1030%50.7512.43630.7032621.2039846.32/
35%50.6915.91806.3435911.4648696.04
40%50.6419.861005.8539061.7457975.76
45%50.5824.141221.0342032.0267615.54
50%50.4829.611494.6945202.3579265.30
55%50.3835.611794.1148292.7091285.09
60%50.2743.282175.5151663.12105244.84
65%50.1352.562634.8955173.60121374.61
70%49.9763.203158.2858624.11138284.38
75%49.7975.113739.7861884.66155774.17
80%49.6387.744354.4964865.19172803.97
85%49.40101.945036.2967855.78190803.79
90%49.22116.695743.7670536.34206943.60
95%48.92135.526629.6973307.01215323.25
100%48.83145.117086.4574597.33220363.11
Note: Motor temperature is motor surface temperature @100% throttle running 3mins.
(Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)

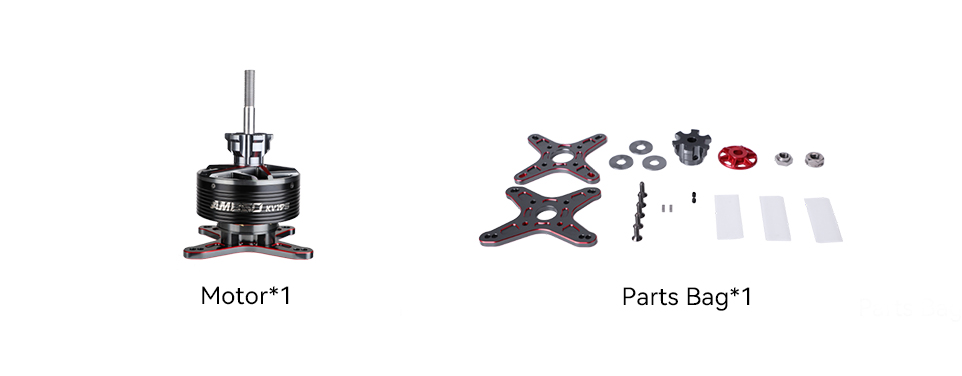

Packing List


Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
