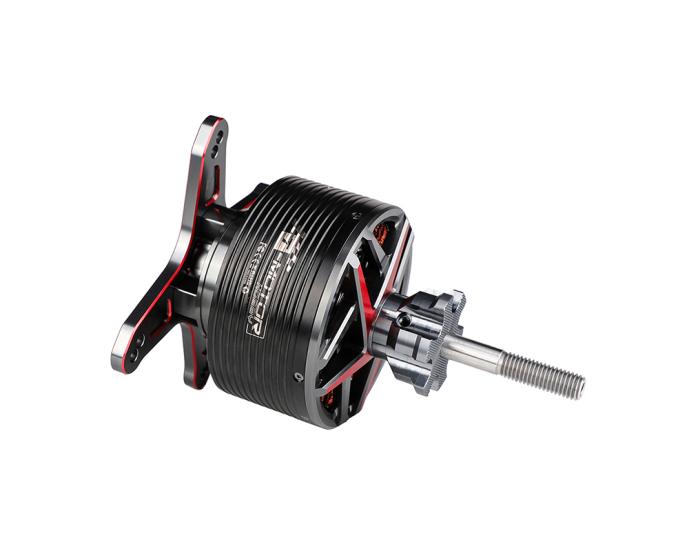

AM910 KV190 Heavy-lift Motor for 90"-96" 3D Planes

499.00

Available points: 0 Points Points reward: 499 Points

KV：
  • KV190
Quantity：

499.00

Free Shipping by DHL/UPS Express

  • Detail information
  • Specifications
AM910 detail1

AM910 IS
DESIGNED FOR
90"-96" 3D
PLANES

Break free from traditional
constraints, so you will release
from your heavy planes and feel
lightweight and agile instantly

NON-DESTRUCTIVE
REPLACEMENT FOR
CONVENIENT INSTALLATION

Fixed with the same mounting plate as the
gas engine for quick installation

AM910 detail2
AM910 detail3

THE WORLD’S TOPPILOTS HAVE
REPEATEDLYCALIBRATED
CTHE POWERCURVE AND HAND FEEL

Enabling rapid control over delicate 3D flights

AM910 detail4

HOW FAST ARE
YOUR HANDS?
HOW ACCURATE
ARE YOUR FINGERS?

AM910’s zero-latency and precise
tracking allows you to show off
your skills easily

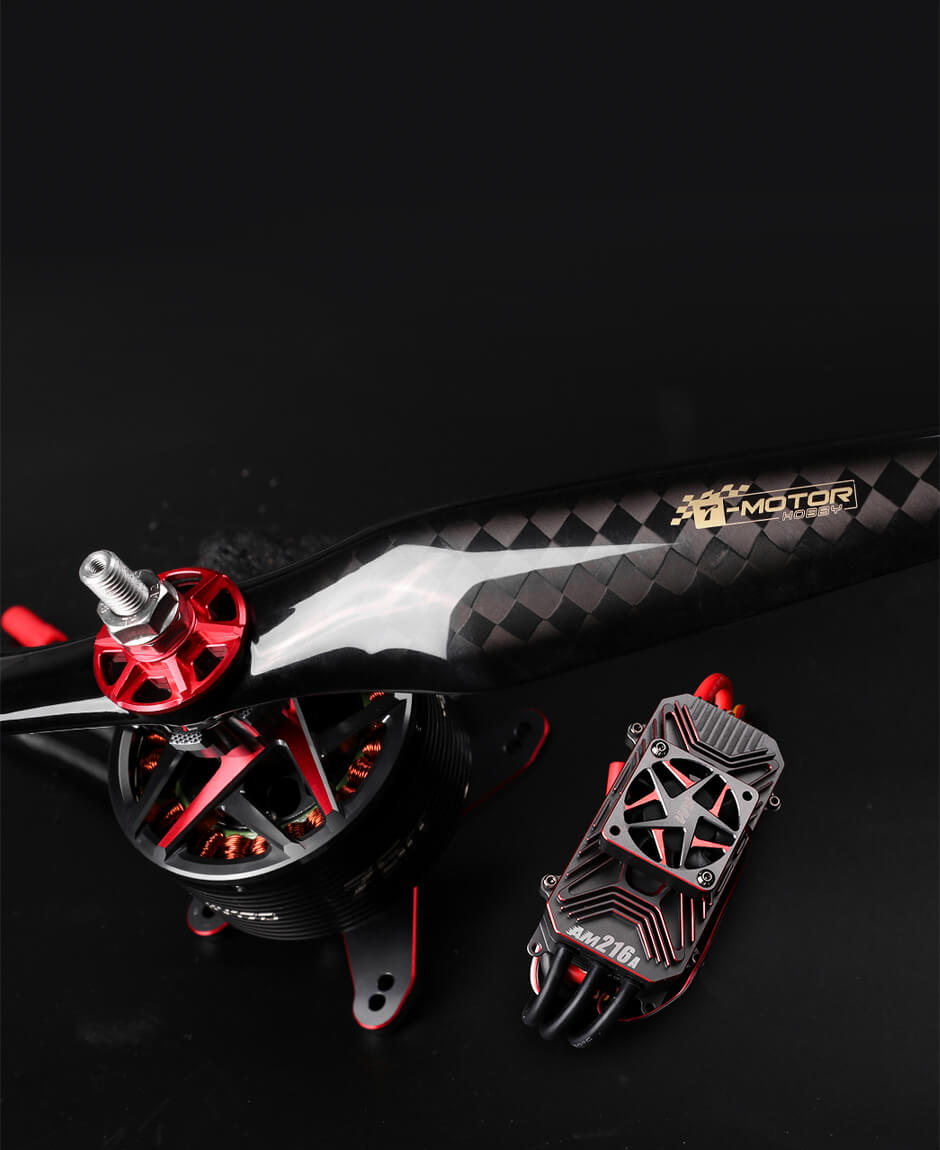

EQUIPPED WITH THE
AMZ 24*10 CARBON FIBER
PROPELLER

Instantly releasing22.4kg of continuous thrust High response, high burst,let you show off your skills easily

AM910 detail5

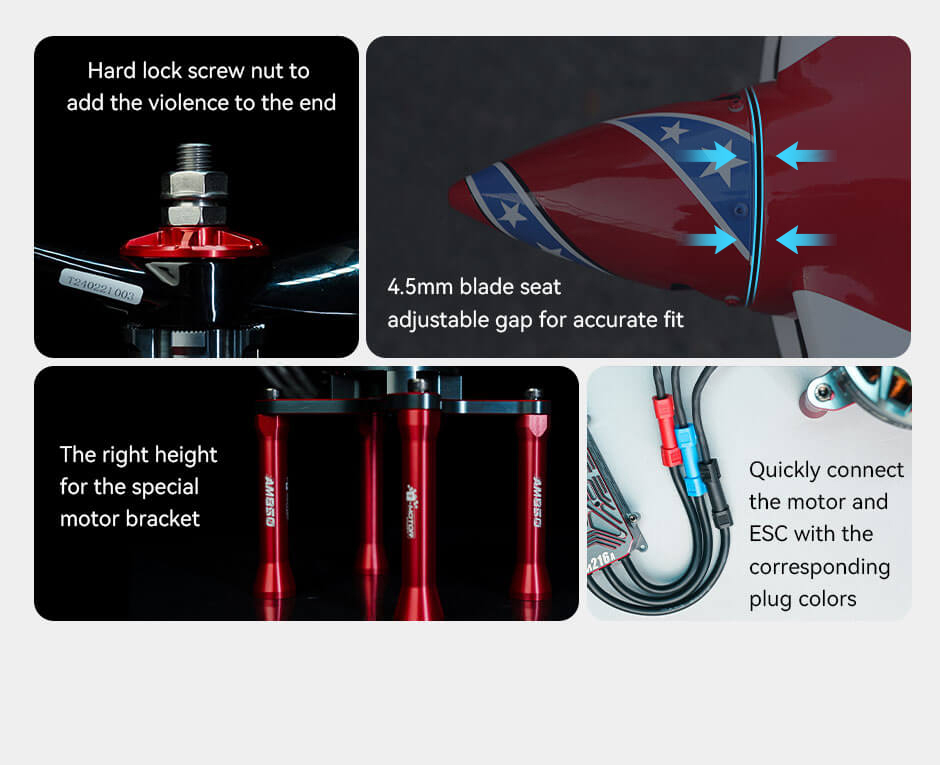

QUICK INSTALLATION
COMFORTABLE ADAPTION

AM910 detail6

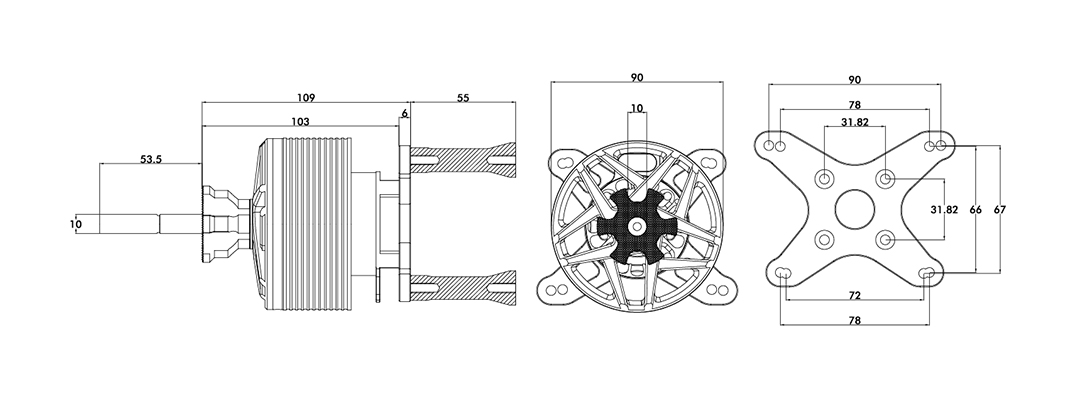

Technical Drawing


Specification
Test ItemKV190Weight (Incl. Cable)1025g
Motor DimensionsΦ90*156.5mmInternal Resistance9mΩ
Lead160mmConfiguration24N28P
Shaft Diameter10mmRatedVoltage(Lipo)10-12S
Idle Current(10V)7.5APeak Current(180s)75A
Max. Power(180s)4788WRecomended ESC/PropellerAM216A/AMZ24*10
Test Data
TypePropellerThrottleVoltage
(V)		Current
(A)		Power
(W)		RPMTorque
(N*m)		Thrust
(g)		Efficiency
(g/W)		Operating Temperature
(℃)
AM910
KV190		T24*1030%50.0616.31816.7035391.4046585.70/
35%49.9620.811039.3638901.7056785.46
40%49.8425.411266.5641951.9966625.26
45%49.7429.661475.2544412.2475175.10
50%49.6035.611766.1647462.5886544.90
55%49.4741.522054.0450202.9097404.74
60%49.3548.632400.1953043.28110094.59
65%49.2456.832798.3455943.69123584.42
70%49.0767.073291.0459174.18139784.25
75%48.8278.743843.6162314.71157044.09
80%48.5491.644447.9365345.25174403.92
85%48.18106.445128.5668285.85192833.76
90%47.84120.955785.8970796.40208153.60
95%47.35138.656565.1273437.01215543.28
100%46.96156.647355.2775807.61224483.05
Note: Motor temperature is motor surface temperature @100% throttle running 3mins.
(Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)
AM910
KV190		HK25*1030%50.7516.91858.0032621.6049855.81/
35%50.6721.631095.8335911.9360645.53
40%50.5826.801355.4039062.2771945.31
45%50.4732.291629.5142032.6283355.12
50%50.3738.531940.9145203.0095644.93
55%50.2646.282325.8448293.43109904.73
60%50.1355.332773.4451663.93125534.53
65%49.9866.033300.3355174.48143484.35
70%49.7879.123938.1658625.10162864.14
75%49.6392.884609.2161885.72181843.95
80%49.38108.585361.7864866.36201543.76
85%49.12125.516164.6567857.04220333.57
90%48.93143.327012.6070537.75237033.38
95%48.64164.608005.9873308.49248173.10
100%48.51185.358990.5374599.17259222.88
Note: Motor temperature is motor surface temperature @100% throttle running 3mins.
(Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)

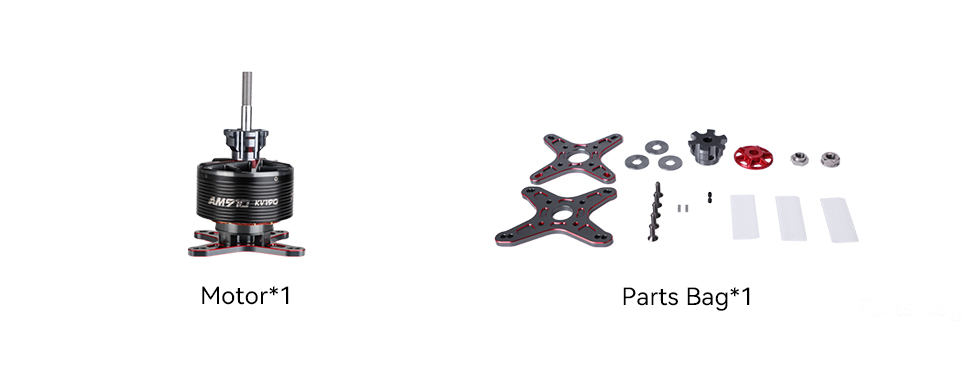

Packing List


Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
