| Model NO. | AMZ22*10 | Operating Environment Temperature | -30~50℃ |

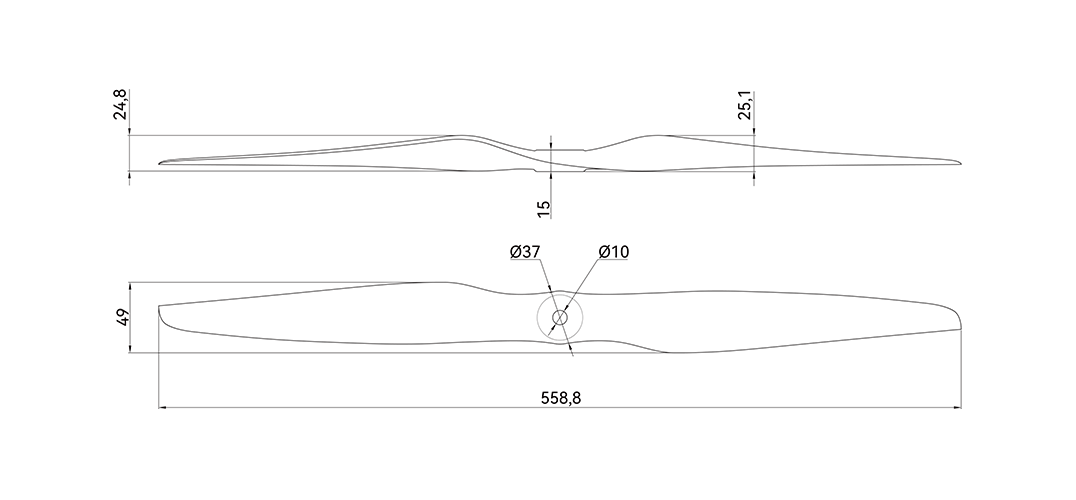

| Diameter | 22 Inch | Storage Temperature/ Humidity | -10~50℃/<85% |
| Pitch | 10 Inch | Package Size | 640*80*35mm |
| Weight (Single Blade) | 61g | Package Weight | 225g |

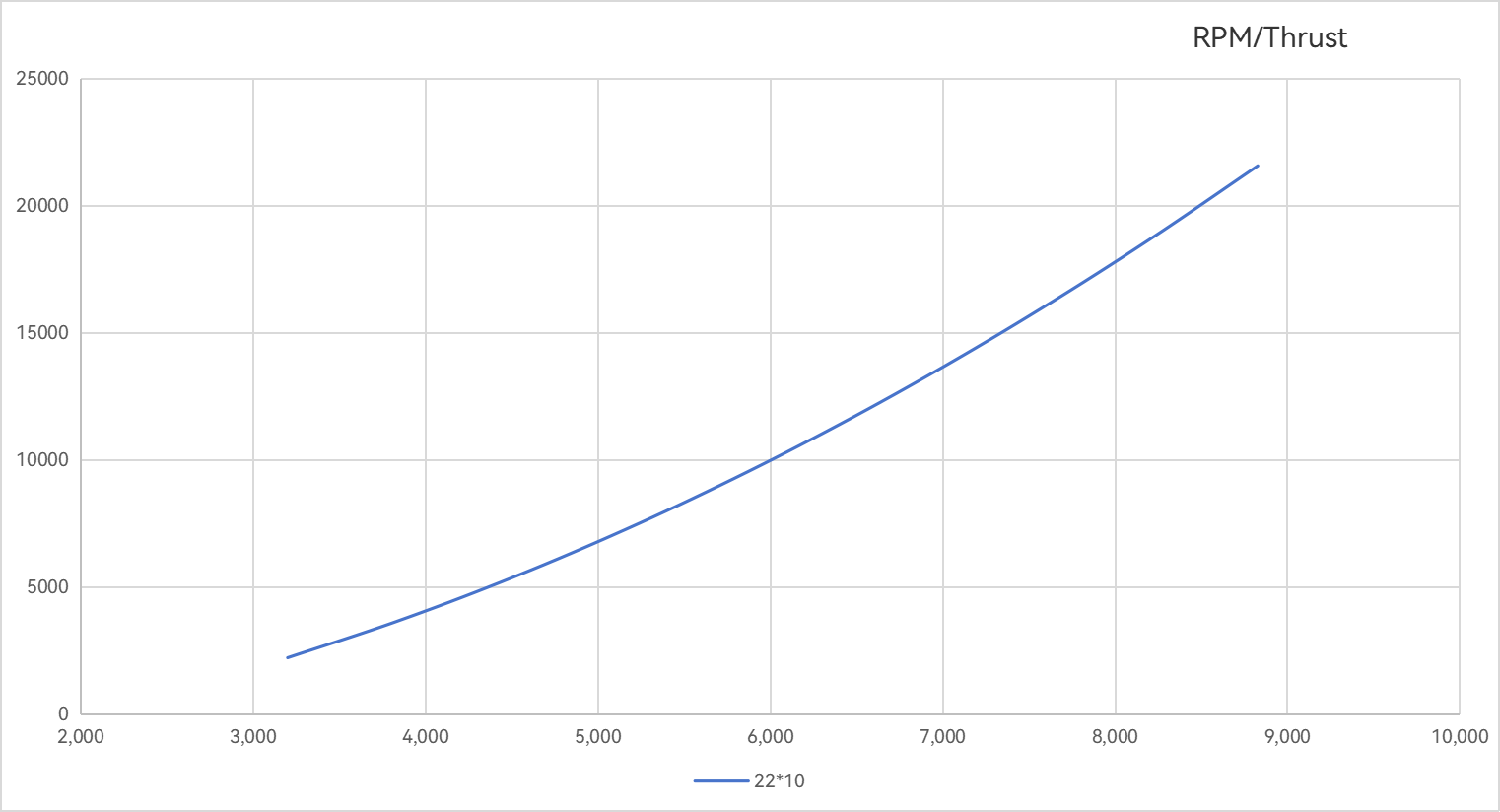

| Material | CF+Epoxy | Recommended Thrust/RPM | 9.4kg/5900 RPM |
| T-MOTORSeries | Integrated Propeller | Recommended Max. Thrust/RPM | 21.1kg/8820 RPM |
（1）Prop marked with "L" is for CW which "R" for CCW (aerial view).
（2）Please be careful when using the propellers as the spinning propellers may cause serious injury.
（3）Propeller structural strength has been rigorously tested. Use within the recommended maximum thrust range. Exceeding the ultimate thrust limit will damage the propeller blades.Do not test blade strength by hand-bending, as this does not replicate actual flight stress conditions and may cause blade damage.
（4）Please make sure all the accessories are mounted properly.
（5）Please check on the propellers before flight and make sure they are in good condition. Please replace propellers with new ones if fault is found with them.
（6）Propeller storage requirements:
•Avoid corrosive gases and hazardous environments.
•Maintain ambient conditions within: Temperature range: -10°C to 50°C Relative humidity: ≤85% RH
•Strictly adhere to these parameters during long-term storage.
（7）Please apply anaerobic screw locking glue of medium or above strength when install propellers onto motors.
（8）Please use the propellers in compliance with local laws and regulations.
