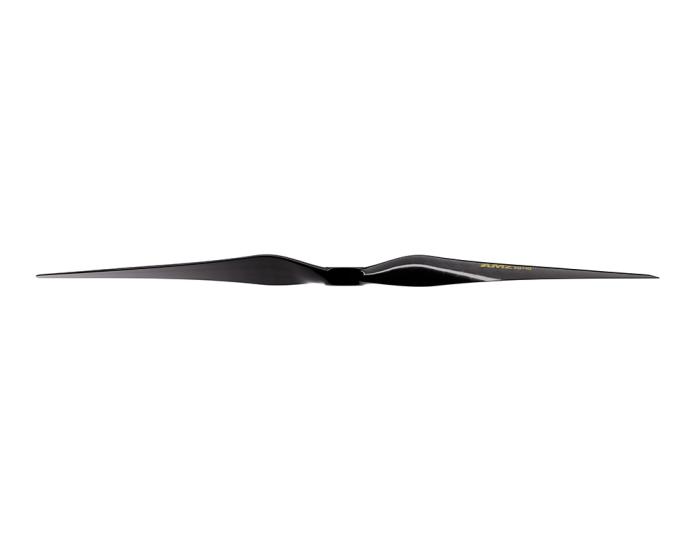

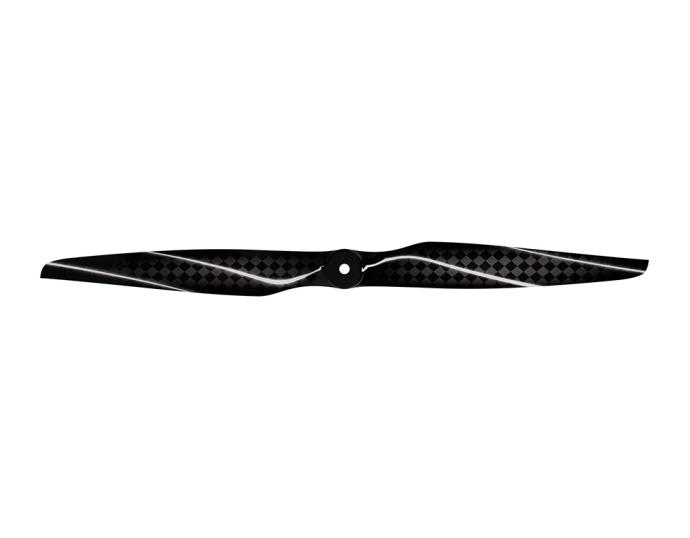

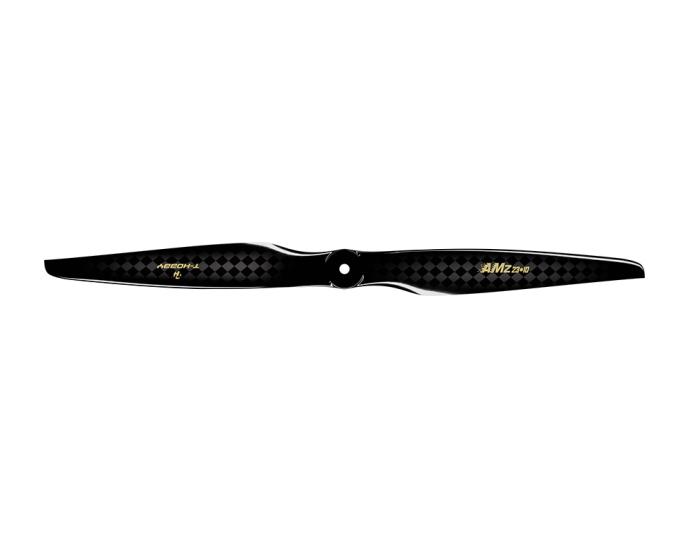

T-HOBBY AMZ 23*10 High-Performance Propeller for 84-89 Inch 3D Planes

115.90

Available points: 0 Points Points reward: 115 Points

Quantity：

115.90

Free Shipping by DHL/UPS Express

  • Detail information
  • Specifications
amz series detail1

AMZ 23*10

AM780/AM850+AM216A

amz series detail2

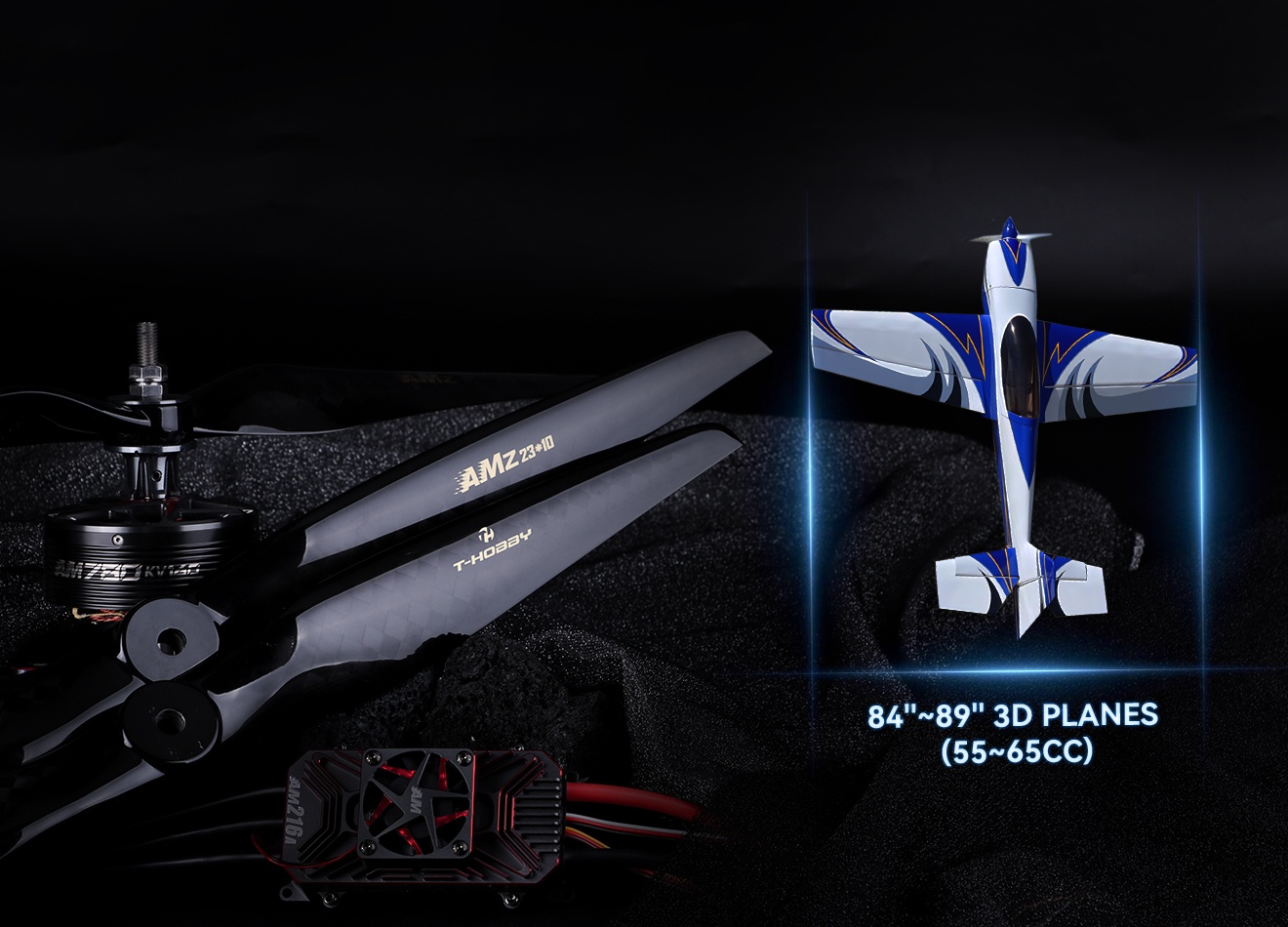

AMZ 23*10 Power System Matching

AM216A 5~14S

ESC

AM780 KV160 16.7kg

MOTOR&MAX. THRUST

AM850 KV195 18.8kg

MOTOR&MAX. THRUST

84''~89'' 55~65CC

3D aircraft

12S 4500~5800mAh

Recommended battery

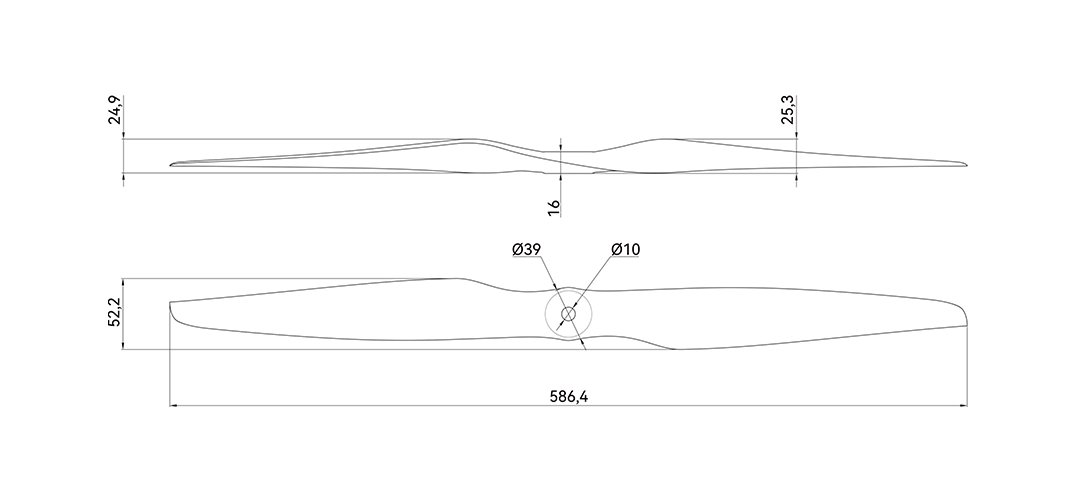

Technical Drawing


Specification
Model NO.AMZ23*10Operating Environment
Temperature		-30~50℃
Diameter23 InchStorage Temperature/
Humidity		-10~50℃/<85%
Pitch10 InchPackage Size640*80*35mm
Weight
(Single Blade)		76gPackage Weight225g
MaterialCF+EpoxyRecommended Thrust/RPM11.1kg/5800 RPM
T-MOTORSeriesIntegratedPropellerRecommended
Max. Thrust/RPM		23.8kg/8520 RPM

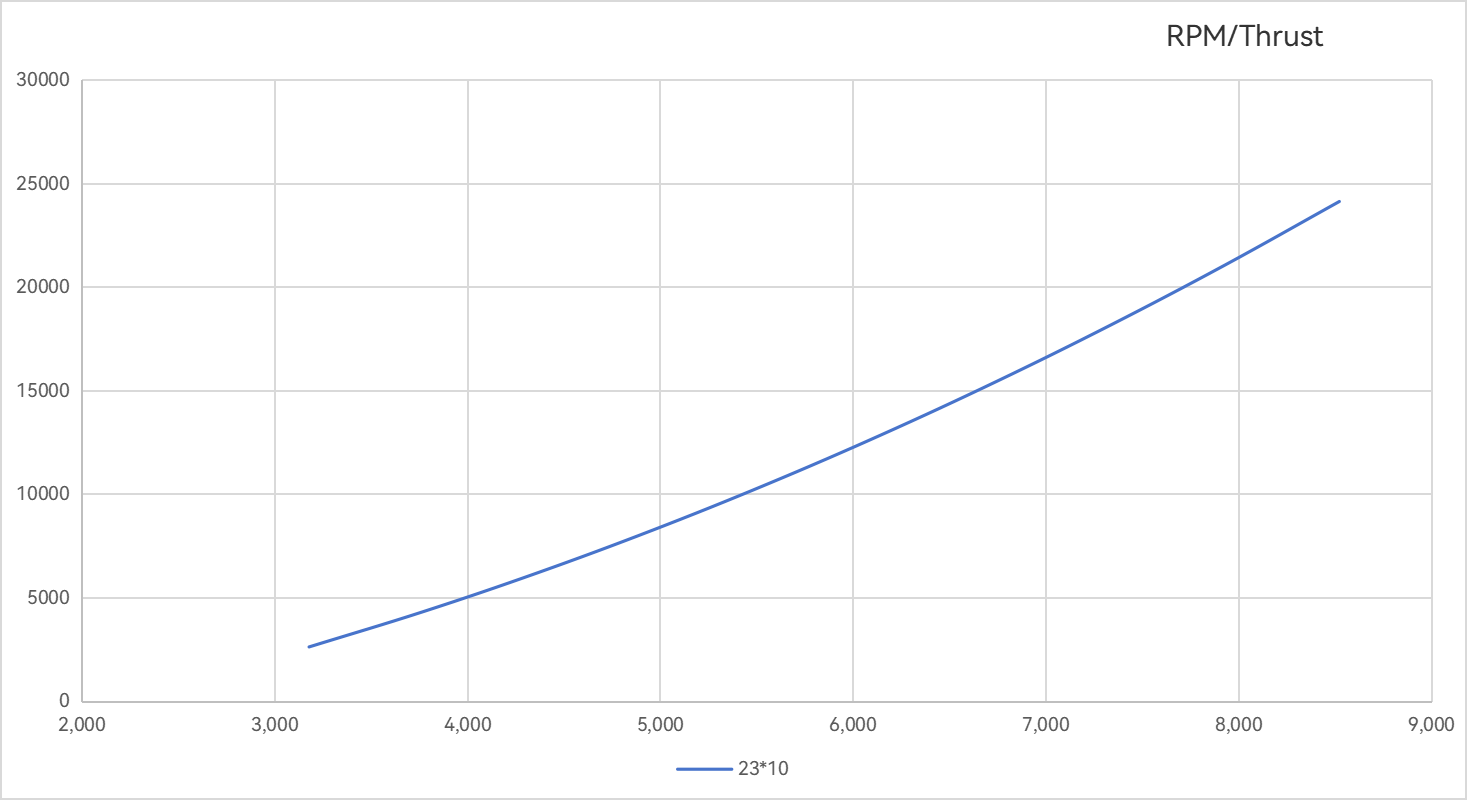

Analysis Chart


Packing List


Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
Note

（1）Prop marked with "L" is for CW which "R" for CCW (aerial view).

（2）Please be careful when using the propellers as the spinning propellers may cause serious injury.

（3）Propeller structural strength has been rigorously tested. Use within the recommended maximum thrust range. Exceeding the ultimate thrust limit will damage the propeller blades.Do not test blade strength by hand-bending, as this does not replicate actual flight stress conditions and may cause blade damage.

（4）Please make sure all the accessories are mounted properly.

（5）Please check on the propellers before flight and make sure they are in good condition. Please replace propellers with new ones if fault is found with them.

（6）Propeller storage requirements:

          •Avoid corrosive gases and hazardous environments.

          •Maintain ambient conditions within: Temperature range: -10°C to 50°C Relative humidity: ≤85% RH

          •Strictly adhere to these parameters during long-term storage.

（7）Please apply anaerobic screw locking glue of medium or above strength when install propellers onto motors.

（8）Please use the propellers in compliance with local laws and regulations.
