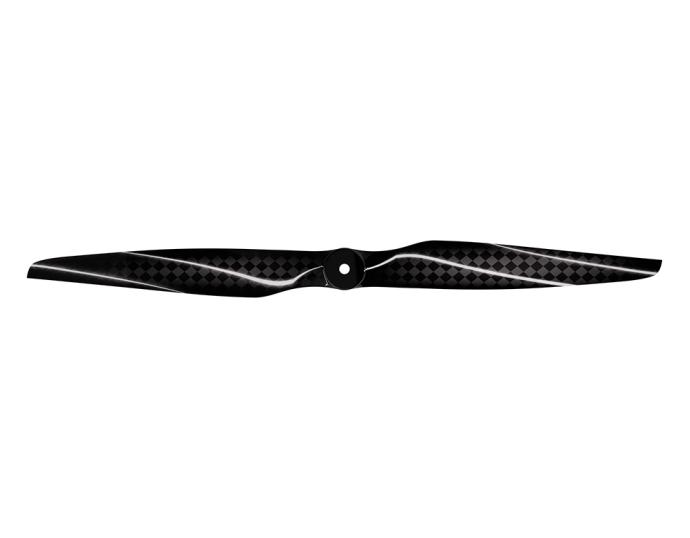

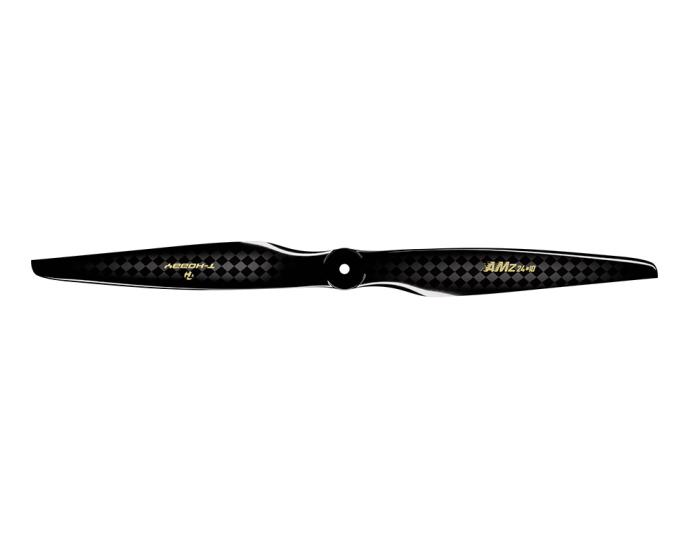

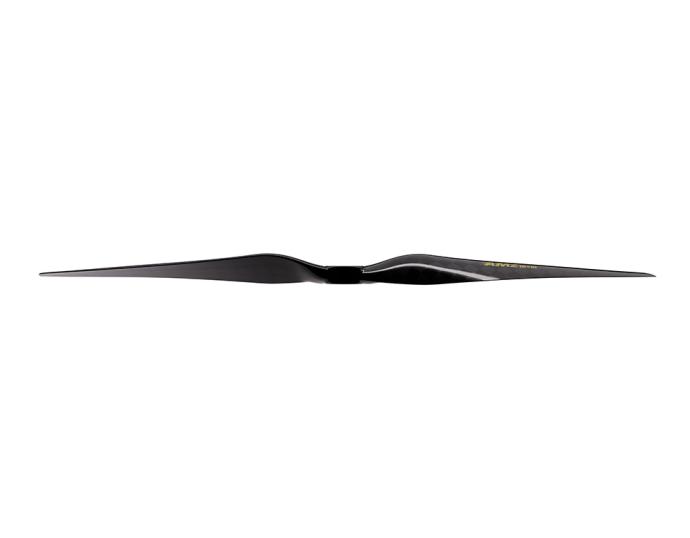

T-HOBBY AMZ 24*10 Carbon Fibre High Thrust Propeller

759.00

Available points: 0 Points Points reward: 759 Points

Quantity：

759.00

Free Shipping by DHL/UPS Express

  • Detail information
  • Specifications
amz series detail1

AMZ 24*10

AM910 KV190+AM216A

amz series detail2

AMZ 24*10 Power System Matching

AM216A 5~14S

ESC

AM910 KV190 21.7kg

MOTOR&MAX. THRUST

90''~96'' 70~80CC

3D aircraft

12S 5600~6600mAh

Recommended battery

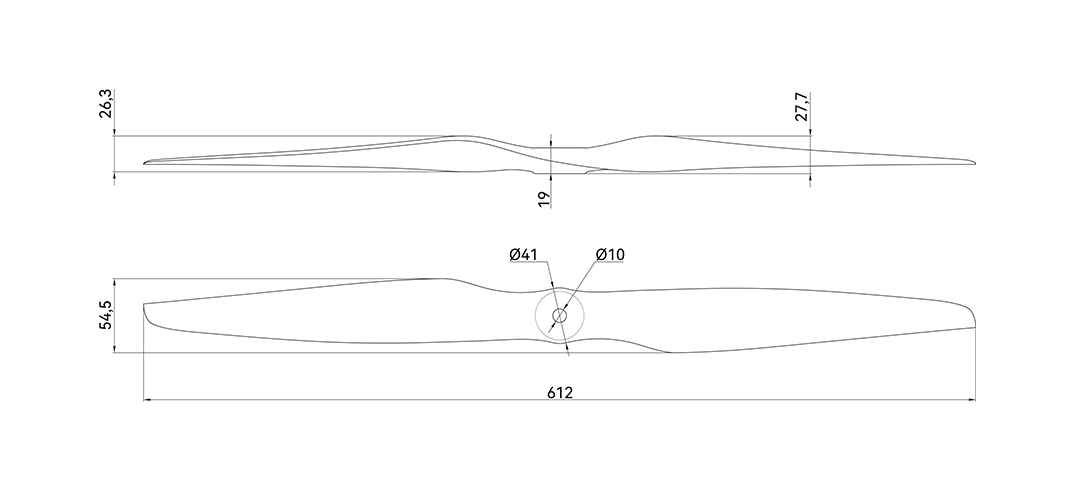

Technical Drawing


Specification
Model NO.AMZ24*10Operating Environment
Temperature		-30~50℃
Diameter24 InchStorage Temperature/
Humidity		-10~50℃/<85%
Pitch10 InchPackage Size690*80*35mm
Weight
(Single Blade)		84gPackageWeight240g
MaterialCF+EpoxyRecommended Thrust/RPM12.7kg/5650 RPM
T-MOTOR SeriesIntegrated PropellerRecommended Max. Thrust/RPM26.5kg/8270 RPM

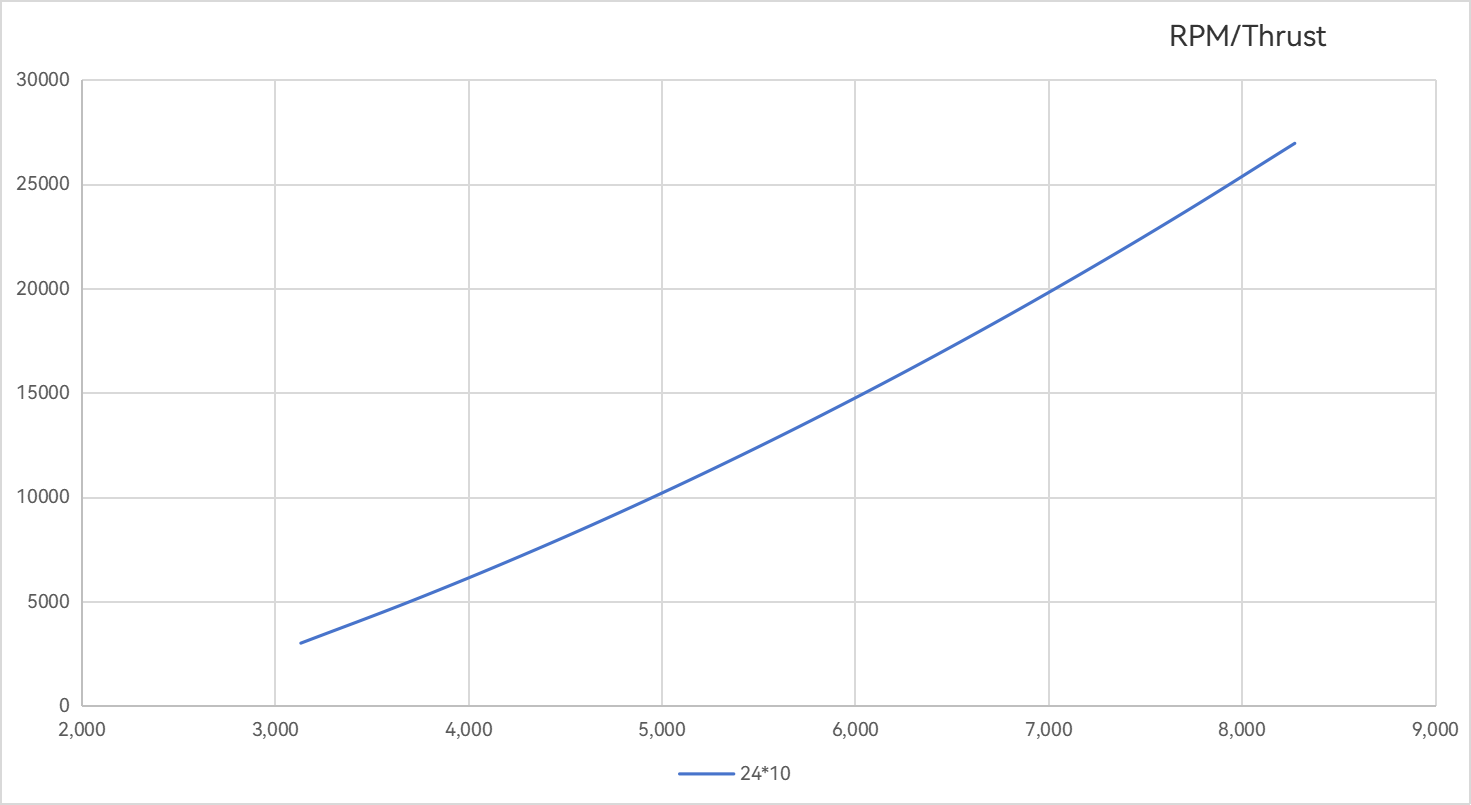

Analysis Chart

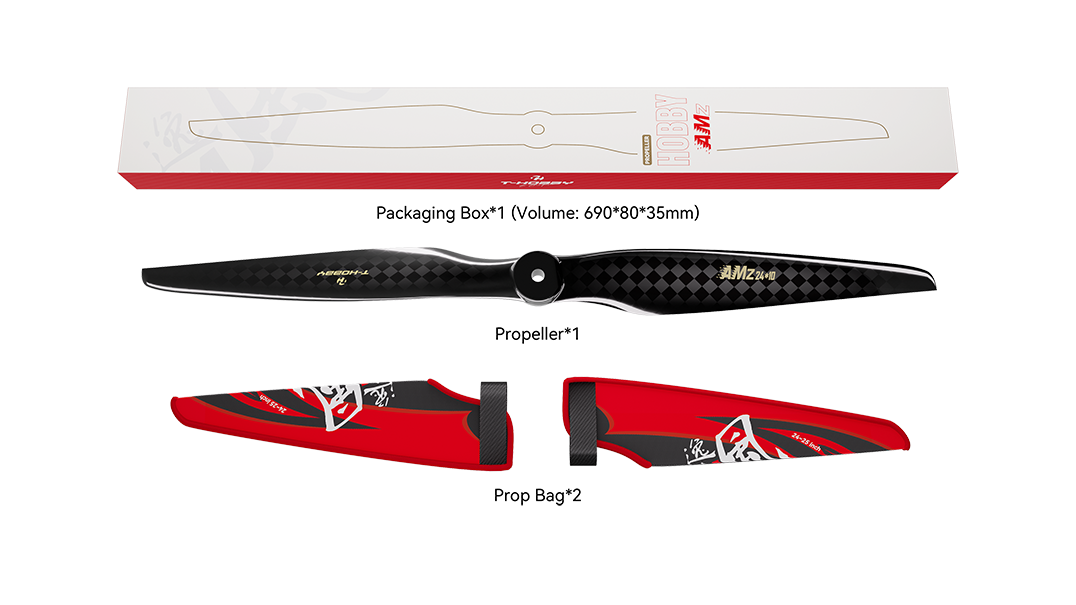

Packing List


Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
Note

（1）Prop marked with "L" is for CW which "R" for CCW (aerial view).

（2）Please be careful when using the propellers as the spinning propellers may cause serious injury.

（3）Propeller structural strength has been rigorously tested. Use within the recommended maximum thrust range. Exceeding the ultimate thrust limit will damage the propeller blades.Do not test blade strength by hand-bending, as this does not replicate actual flight stress conditions and may cause blade damage.

（4）Please make sure all the accessories are mounted properly.

（5）Please check on the propellers before flight and make sure they are in good condition. Please replace propellers with new ones if fault is found with them.

（6）Propeller storage requirements:

          •Avoid corrosive gases and hazardous environments.

          •Maintain ambient conditions within: Temperature range: -10°C to 50°C Relative humidity: ≤85% RH

          •Strictly adhere to these parameters during long-term storage.

（7）Please apply anaerobic screw locking glue of medium or above strength when install propellers onto motors.

（8）Please use the propellers in compliance with local laws and regulations.
