Name: T-HOBBY AS2308 3-4S Long Shaft 3D Trainer RC Airplane Motor
Brand: LIGPOWER
SKU: LIGPOWER001598
Price: 18.99 USD
Availability: InStock

T-HOBBY AS2308 3-4S Long Shaft 3D Trainer RC Airplane Motor

18.99

Available points: 900 Points Points reward: 18 Points

1.flexible control,fly at will
2.Powerful and violent
3.Durable and safe
4.specially designed for small 3D,trainer and slider

Parameter：

KV1450
KV2600

Quantity：

18.99

Free Shipping by DHL/UPS Express

Detail information
Specifications

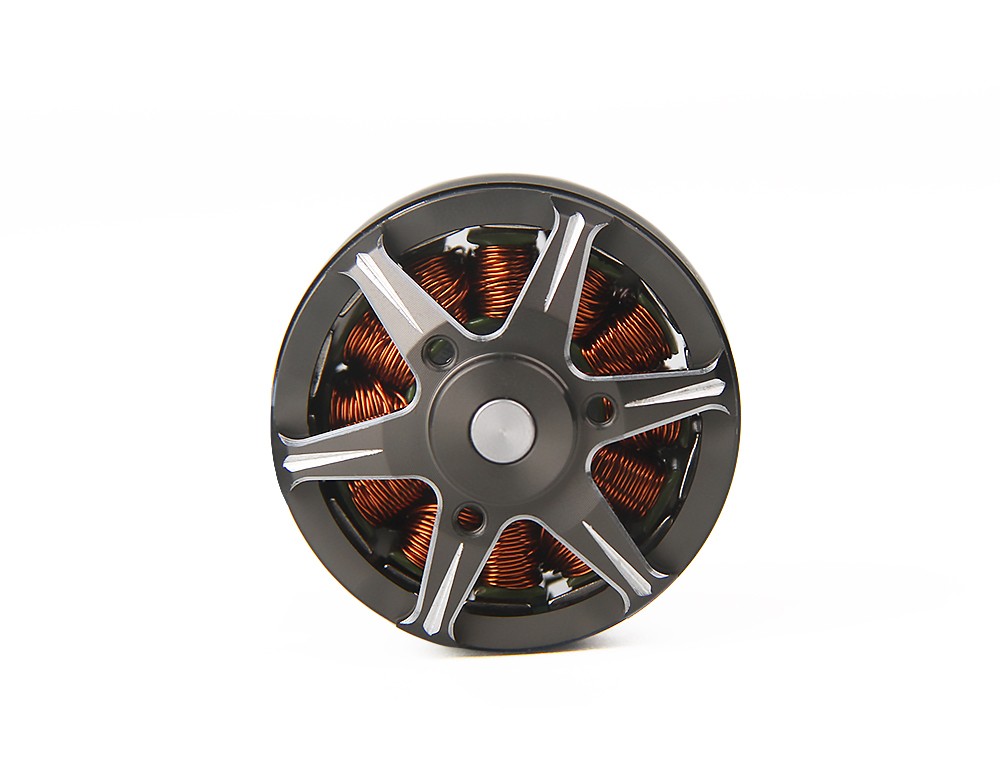

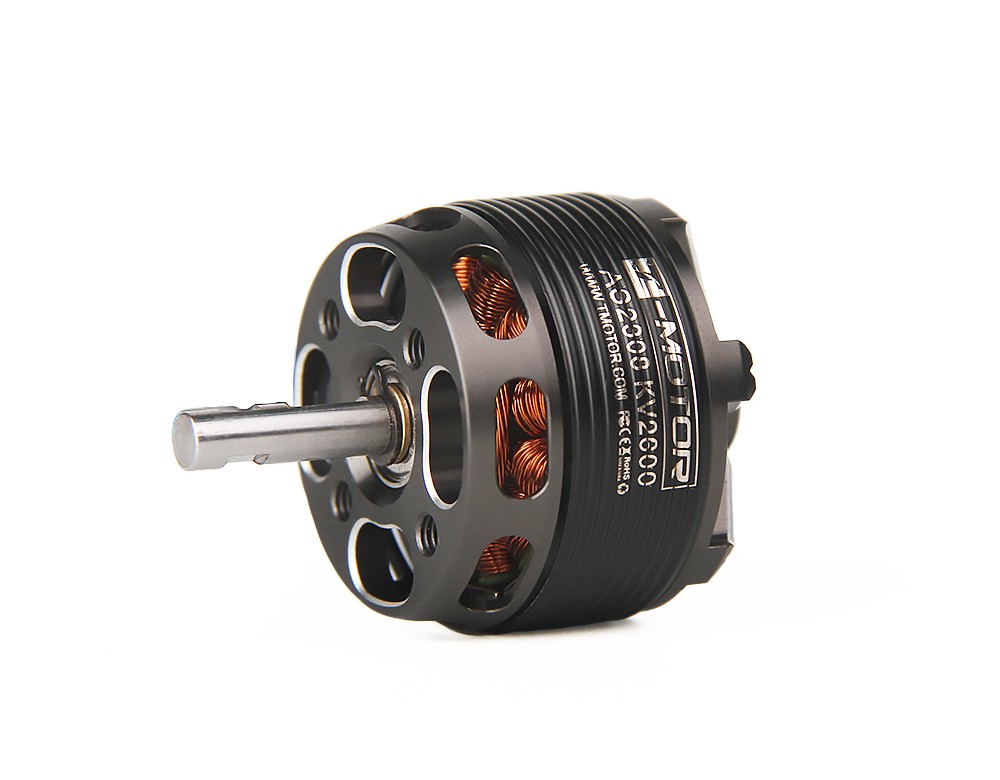

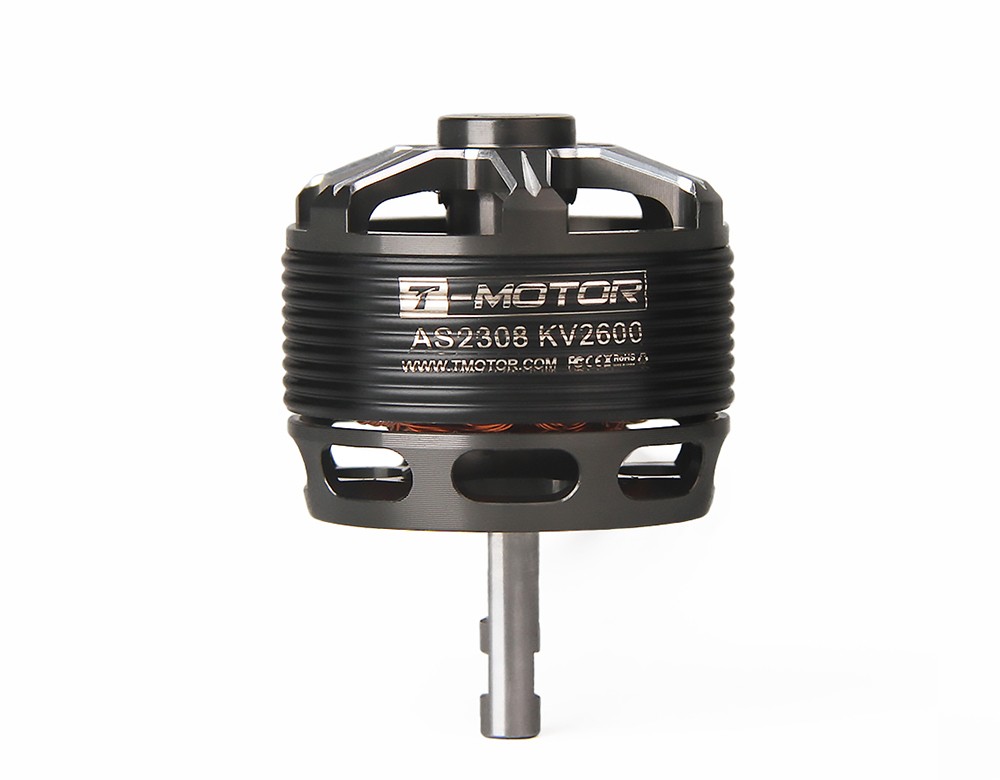

About T-HOBBY AS2308 Long Shaft 3D Trainer Airplane Brushless Motor

AS2308 is a motor specially designed for outdoor small 3D, training machines, gliders, etc. The motor weighs 49g and supports 3-4s battery.

It is recommended to match AT30A ESC + T-HOBBY SF8/9-inch propeller.

AS2308 Highlights:

1.T-HOBBY AS Series is designed for training practice, it owns cost-effective and equally high-performance suitable for beginners.

2. Using imported high-quality bearings, combined with structural strength, the motor is resistant to falling and explosion.

3. The rear shaft design is convenient for glider use.

4.946g high thrust design ensures strong power and crisp and graceful movements when the aircraft is flying

Packing List Includes:

1x T-HOBBY AS2308 Motor

1x Parts pack

Matching Guide:

Updating

Technical Drawing

Specification Export to Excel

Test Item	Long Shaft KV1450	Weight (Incl. Cable)	49g
Motor Dimensions	Φ29.4*40.5mm	Internal Resistance	88mΩ
Lead	20#AWG 100mm	Configuration	12N14P
Shaft Diameter	IN：4mm OUT：4mm	Rated Voltage(Lipo)	3S
Idle Current(10V)	0.74A	Peak Current(180s)	24A
Max Power (180S)	275W	Recommendation	/

Test Item	Long Shaft KV2600	Weight (Incl. Cable)	49g
Motor Dimensions	Φ29.4*40.5mm	Internal Resistance	29.5mΩ
Lead	20#AWG 100mm	Configuration	12N14P
Shaft Diameter	IN：4mm OUT：4mm	Rated Voltage(Lipo)	3-4S
Idle Current(10V)	1.62A	Peak Current(180s)	29A
Max Power (180S)	326W	Recommendation	/

Test Data Export to Excel

Type	Propeller	Throttle	Voltage (V)	Current (A)	Power (W)	RPM	Torque (N*m)	Thrust (g)	Efficiency (g/W)	Operatin Temperature (℃)
AS2308 Long Shaft KV1450	APC 8*6	40%	11.90	4.21	50.05	6209	0.050	267	5.34	78 (Ambient Temperature: /)
		45%	11.89	5.02	59.64	6595	0.056	306	5.13
		50%	11.86	5.92	70.24	6989	0.063	344	4.90
		55%	11.84	7.00	82.83	7383	0.072	386	4.66
		60%	11.82	8.12	95.95	7820	0.080	435	4.53
		65%	11.79	9.50	111.92	8299	0.088	507	4.53
		70%	11.75	10.93	128.50	8689	0.097	563	4.38
		75%	11.71	12.76	149.41	9117	0.110	621	4.15
		80%	11.66	14.69	171.37	9527	0.118	673	3.93
		90%	11.56	19.32	223.25	10264	0.150	782	3.50
		100%	11.52	20.53	236.53	10418	0.157	798	3.37
	APC 9*6	40%	11.89	4.43	52.64	5458	0.058	314	5.96	81 (Ambient Temperature: /)
		45%	11.87	5.44	64.56	5874	0.067	366	5.68
		50%	11.84	6.66	78.82	6318	0.076	425	5.40
		55%	11.81	8.11	95.74	6761	0.086	487	5.08
		60%	11.77	9.88	116.24	7206	0.099	558	4.80
		65%	11.72	11.80	138.38	7645	0.114	622	4.50
		70%	11.68	13.57	158.50	7965	0.132	666	4.20
		75%	11.63	15.54	180.79	8287	0.143	732	4.05
		80%	11.58	17.74	205.43	8609	0.153	797	3.88
		90%	11.47	22.78	261.25	9202	0.169	926	3.55
		100%	11.44	23.98	274.36	9273	0.172	946	3.45
Note: Motor temperature is motor surface temperature at 100% throttle running 3mins. (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)
AS2308 Long Shaft KV2600	APC 6*4	40%	11.77	9.11	107.23	14546	0.048	386	3.60	91 (Ambient Temperature: /)
		45%	11.74	10.39	121.93	15297	0.053	437	3.59
		50%	11.71	11.61	135.98	15941	0.058	477	3.51
		55%	11.68	12.92	150.92	16663	0.063	521	3.45
		60%	11.65	14.26	166.22	17178	0.067	563	3.39
		65%	11.62	15.57	180.85	17689	0.071	604	3.34
		70%	11.59	16.97	196.69	18197	0.076	644	3.28
		75%	11.56	18.31	211.65	18750	0.081	679	3.21
		80%	11.51	20.63	237.40	19429	0.091	744	3.13
		90%	11.37	26.31	299.24	21104	0.106	872	2.91
		100%	11.32	28.81	325.99	21690	0.121	909	2.79
Note: Motor temperature is motor surface temperature at 100% throttle running 3mins. (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)
