Name: T-MOTOR AT2308 Fixed Wing Aircraft 3D Trainer Glider Long Shaft Motor
Brand: LIGPOWER
SKU: LIGPOWER001621
Price: 29.99 USD
Availability: InStock

T-MOTOR AT2308 Fixed Wing Aircraft 3D Trainer Glider Long Shaft Motor

29.99

Available points: 1500 Points Points reward: 29 Points

1.Robust body &release freely
2.Military-grade wire & more durable
3.Anti-stripping design safety assurance
4.High torque and more durable
5.Packaging Weight：120g，
6.Packaging size：105*65*50mm

Parameter：

KV1450
KV2600

Quantity：

29.99

Free Shipping by DHL/UPS Express

Detail information
Specifications

About T-MOTOR AT2308 Long Shaft Fixed Wing Motor

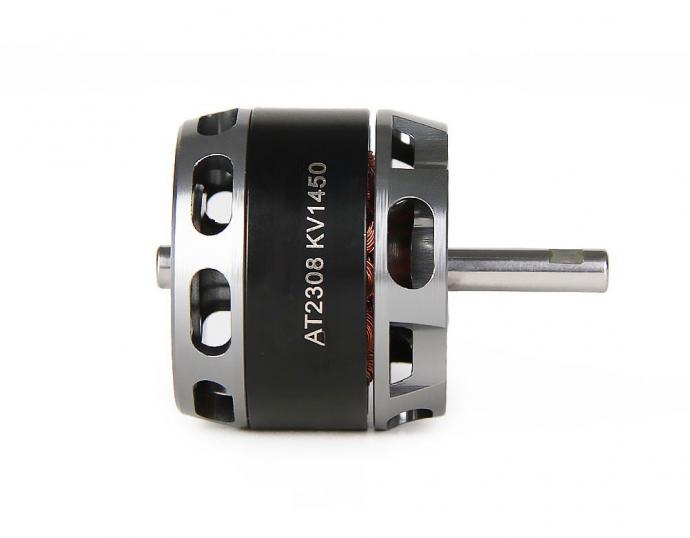

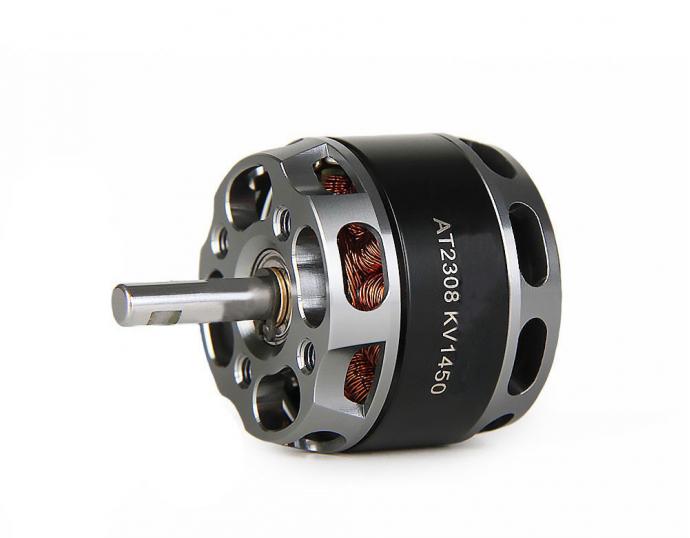

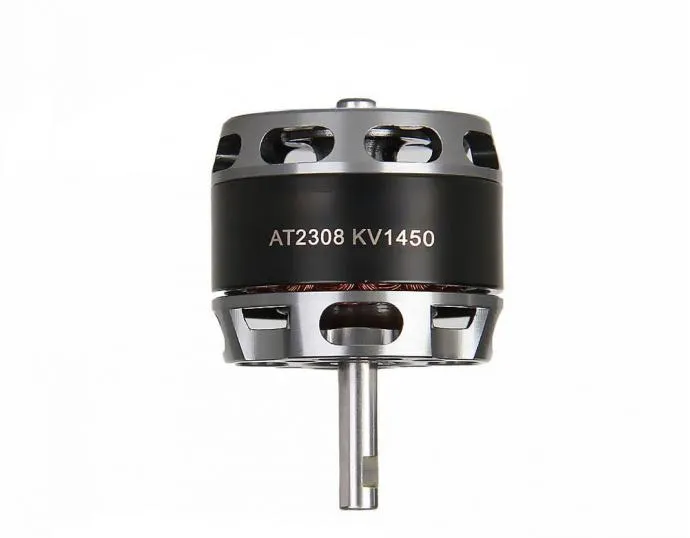

T-MOTOR AT2308 LONG SHAFT 2600KV is a high-end motor designed primarily for outdoor airplanes.

The AT series of motors uses modern materials used in industry-driven areas. Hand-made high-temperature enameled wire for excellent characteristics of fireproof, and anti-aging, greatly extends the working life of the motor.AT2308 is Specially designed for 320-500g flying weight sailplane and fixed-wing aircraft,biggest thrust 1kg.It can support 2-4s lipos with a maximum power of 300w

AT2308 Highlights:

1. Robust body &release freely
2. Military-grade wire & more durable
3. Anti-stripping design safety assurance
4. High torque and more durable

Packing List Includes:

1x T-MOTOR AT2308 Motor

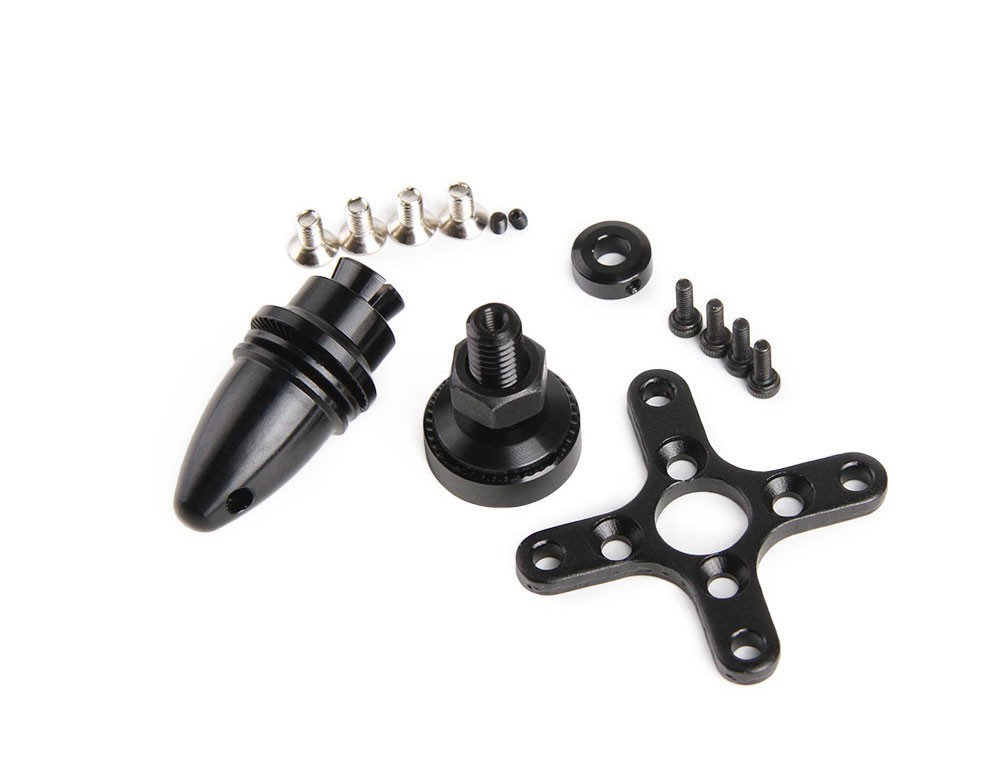

1x Hardware pack

Matching Guide:

AT30A ESC

AT2308 strong power,hand-made winding,preferred raw materials

AT2308 the upgraded at series are designed for fixed-wing model,VTOL UAV

AT2308 efficient cooling

AT2308 hand-made winding high efficiency and stability

AT2308 double security,safe flight without worrying the rotor loosening,preferred raw materials superb workmanship

AT2308 optimize the motor circuit to increase motor performance by more than 5%

AT2308 tirple-bearing supported more durable & flying longer

AT2308 embossing design for secure mounting

AT2308 the secone generation of new at series

Technical Drawing


Specification Export to Excel

Test Item	Long Shaft KV1450	Weight (Incl. Cable)	47g
Motor Dimensions	Φ28.8*40.5mm	Internal Resistance	90mΩ
Lead	22#AWG 100mm	Configuration	12N14P
Shaft Diameter	IN：4mm OUT：4mm	Rated Voltage(Lipo)	2-4S
Idle Current(10V)	0.8A	Peak Current(180s)	23A
Max Power (180S)	250W	Recommendation	/

Test Item	Long Shaft KV2600	Weight (Incl. Cable)	48g
Motor Dimensions	Φ28.8*40.5mm	Internal Resistance	28mΩ
Lead	22#AWG 100mm	Configuration	12N14P
Shaft Diameter	IN：4mm OUT：4mm	Rated Voltage(Lipo)	2-4S
Idle Current(10V)	1.8A	Peak Current(180s)	28A
Max Power (180S)	300W	Recommendation	/

Test Data Export to Excel

Type	Propeller	Throttle	Voltage (V)	Current (A)	Power (W)	RPM	Torque (N*m)	Thrust (g)	Efficiency (g/W)	Operatin Temperature (℃)
AT2308 Long Shaft KV1450	APC 8*6	40%	11.32	4.21	47.47	5990	0.049	294	6.19	53 (Ambient Temperature: /)
		45%	11.31	4.97	56.05	6347	0.055	333	5.93
		50%	11.29	5.78	65.13	6699	0.060	371	5.69
		55%	11.26	6.79	76.33	7108	0.068	419	5.48
		60%	11.24	7.95	89.12	7586	0.074	481	5.39
		65%	11.21	9.27	103.65	7978	0.083	554	5.34
		70%	11.18	10.57	117.97	8343	0.091	607	5.15
		75%	11.14	12.11	134.73	8709	0.100	666	4.94
		80%	11.09	13.98	154.89	9099	0.110	730	4.72
		90%	11.00	17.98	197.61	9737	0.128	843	4.27
		100%	10.97	19.07	209.07	9858	0.132	867	4.15
	APC 9*6	40%	11.42	4.33	49.38	5272	0.054	328	6.64	79 (Ambient Temperature: /)
		45%	11.40	5.22	59.34	5631	0.062	377	6.36
		50%	11.38	6.42	72.85	6054	0.072	445	6.11
		55%	11.35	7.68	86.97	6474	0.081	518	5.96
		60%	11.31	9.29	104.94	6904	0.092	596	5.68
		65%	11.27	10.95	123.44	7265	0.103	667	5.40
		70%	11.23	12.74	142.96	7604	0.113	742	5.19
		75%	11.19	14.48	161.78	7908	0.123	807	4.99
		80%	11.15	16.46	183.27	8173	0.134	873	4.76
		90%	11.04	20.83	229.72	8681	0.154	1007	4.38
		100%	11.00	22.42	246.35	8827	0.159	1045	4.24
Note: Motor temperature is motor surface temperature at 100% throttle running 10mins. (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)
AT2308 Long Shaft KV2600	APC 6*4	40%	11.20	9.08	101.56	14240	0.043	432	4.25	49 (Ambient Temperature: /)
		45%	11.16	10.29	114.80	14981	0.048	475	4.14
		50%	11.12	11.62	129.07	15645	0.053	518	4.01
		55%	11.09	12.80	141.78	16198	0.057	557	3.93
		60%	11.06	14.02	154.91	16580	0.061	596	3.85
		65%	11.02	15.26	167.99	17230	0.065	632	3.76
		70%	10.99	16.46	180.71	17665	0.069	669	3.70
		75%	10.95	17.73	194.07	18147	0.073	704	3.63
		80%	10.90	19.73	214.93	18835	0.079	760	3.53
		90%	10.73	25.03	268.46	20249	0.094	892	3.32
		100%	10.65	26.89	286.24	20690	0.099	930	3.25
Note: Motor temperature is motor surface temperature at 100% throttle running 10mins. (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)

Packing List


Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
