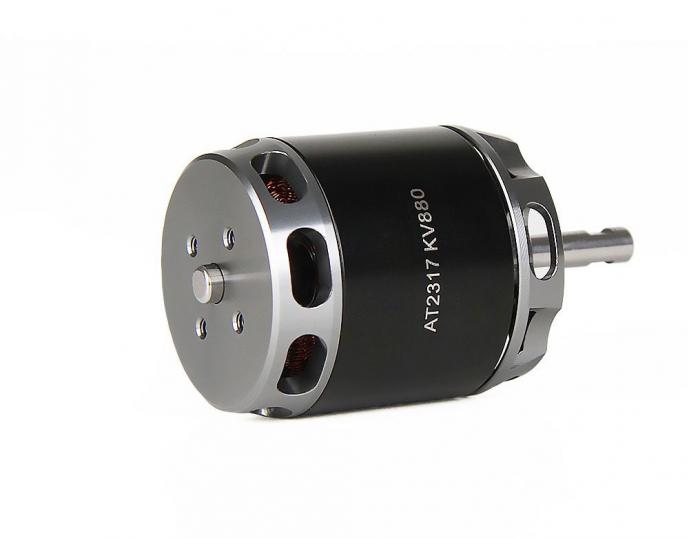

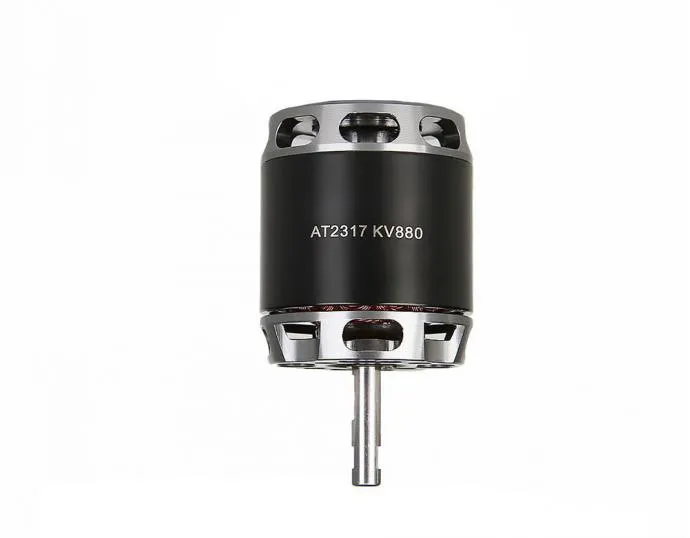

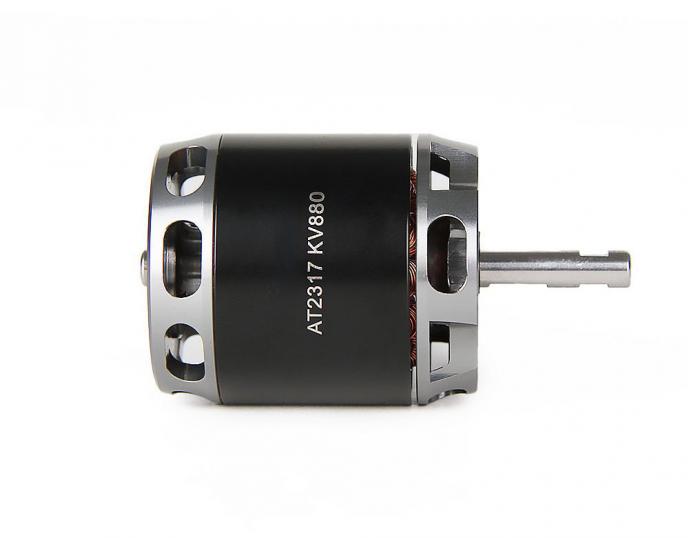

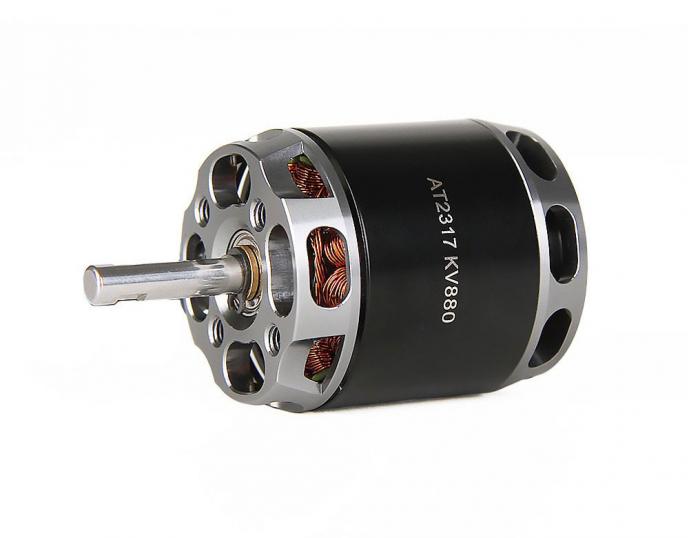

Name: T-MOTOR AT2317 Long Shaft Outdoor 3D Trainer Glider Motor-KV1400/KV880/KV1250
Brand: LIGPOWER
SKU: LIGPOWER001618
Price: 39.99 USD
Availability: InStock

Detail information
Specifications

About T-MOTOR AT2317 UAV Fixed Wing Aircraft 3D Trainer Glider Long Shaft Motor

T-MOTOR AT2317 is specially designed for800-1200g flyingweigh3D airplane, sailplane and fixed wing aircraft,biggest thrust 1.7kg.

It can support 2-4s lipos with a maximum power of 700w，recommend with T-MOTOR T12*6propeller and T-MOTOR AT40A/55A ESC

Hi-end motor suitable for larger airplanes of the Outdoor category. The motor has a mounting cross, which makes it easier to mount on the airplane. The motor has 10 cm long cables with a cross section of 0.5 mm2 (20AWG).

AT2317 Highlights:

1. Robust body &release freely

2. Military-grade wire & more durable

3. Anti-stripping design safety assurance

4. High torque and more durable

Packing List Includes:

1x T-MOTOR AT2317 Motor

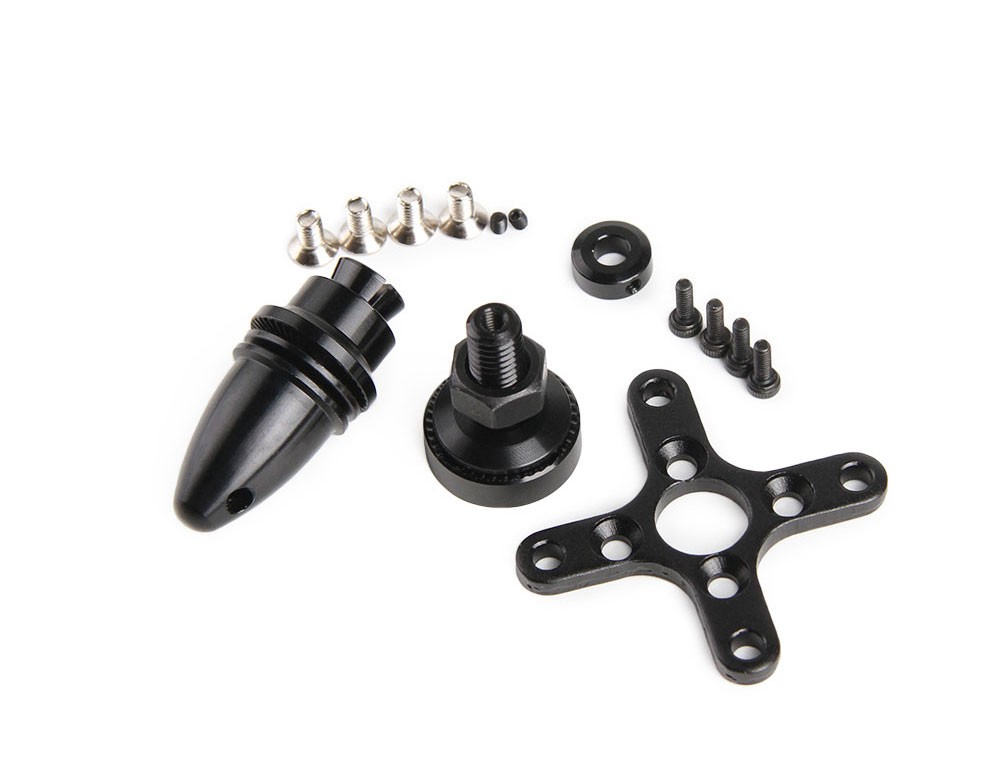

1x Hardware pack

Matching Guide:

AT40A ESC / AT55A ESC

AT2317 strong power,hand-made winding,preferred raw materials

AT2317 the upgraded at series are designed for fixed-wing model,VTOL UAV

AT2317 efficient cooling

AT2317 hand-made winding high efficiency and stability

AT2317 double security,safe flight without worrying the rotor loosening,preferred raw materials superb workmanship

AT2317 optimize the motor circuit to increase motor performance by more than 5%

AT2317 tirple-bearing supported more durable & flying longer

AT2317 embossing design for secure mounting

AT2317 the secone generation of new at series

Technical Drawing


Specification Export to Excel

Test Item	Long Shaft KV880	Weight (Incl. Cable)	79g
Motor Dimensions	Φ28.8*52mm	Internal Resistance	82mΩ
Lead	22#AWG 100mm	Configuration	12N14P
Shaft Diameter	IN：4mm OUT：4mm	Rated Voltage(Lipo)	2-4S
Idle Current(10V)	0.9A	Peak Current(180s)	25A
Max Power (180S)	350W	Recommendation	/

Test Item	Long Shaft KV1250	Weight (Incl. Cable)	79g
Motor Dimensions	Φ28.8*52mm	Internal Resistance	52mΩ
Lead	22#AWG 100mm	Configuration	12N14P
Shaft Diameter	IN：4mm OUT：4mm	Rated Voltage(Lipo)	2-4S
Idle Current(10V)	1.3A	Peak Current(180s)	40A
Max Power (180S)	550W	Recommendation	/

Test Item	Long Shaft KV1400	Weight (Incl. Cable)	80g
Motor Dimensions	Φ28.8*52mm	Internal Resistance	35mΩ
Lead	22#AWG 100mm	Configuration	12N14P
Shaft Diameter	IN：4mm OUT：4mm	Rated Voltage(Lipo)	2-4S
Idle Current(10V)	1.7A	Peak Current(180s)	45A
Max Power (180S)	700W	Recommendation	/

Test Data Export to Excel

Type	Propeller	Throttle	Voltage (V)	Current (A)	Power (W)	RPM	Torque (N*m)	Thrust (g)	Efficiency (g/W)	Operating Temperature (℃)
AT2317 Long Shaft KV880	APC 10*4.7	40%	14.70	4.91	72.01	5265	0.090	583	8.09	51 (Ambient Temperature: /)
		45%	14.68	5.79	84.69	5561	0.102	653	7.71
		50%	14.66	6.79	99.33	5864	0.114	729	7.34
		55%	14.63	7.84	114.62	6196	0.127	812	7.08
		60%	14.60	9.21	134.38	6525	0.143	910	6.77
		65%	14.56	10.96	159.39	6920	0.162	1022	6.41
		70%	14.51	12.77	185.13	7270	0.179	1130	6.11
		75%	14.47	14.85	214.73	7608	0.199	1243	5.79
		80%	14.41	17.12	246.59	7974	0.219	1356	5.50
		90%	14.28	22.12	315.77	8604	0.258	1571	4.97
		100%	14.23	23.89	339.80	8686	0.272	1652	4.86
	APC 11*5.5	40%	14.68	4.82	70.62	5297	0.087	592	8.38	72 (Ambient Temperature: /)
		45%	14.66	5.68	83.25	5640	0.098	667	8.01
		50%	14.64	6.60	96.57	5950	0.110	743	7.69
		55%	14.62	7.61	111.15	6217	0.122	828	7.45
		60%	14.59	8.94	130.34	6585	0.137	928	7.12
		65%	14.55	10.68	155.23	6976	0.156	1049	6.76
		70%	14.51	12.43	180.15	7317	0.173	1161	6.45
		75%	14.46	14.39	207.80	7668	0.192	1282	6.17
		80%	14.40	16.69	240.15	8021	0.213	1402	5.84
		90%	14.27	21.86	311.81	8647	0.254	1627	5.22
		100%	14.23	23.36	332.14	8750	0.264	1670	5.03
	APC 12*6	40%	11.21	3.74	41.84	3882	0.070	435	10.40	57 (Ambient Temperature: /)
		45%	11.19	4.35	48.57	4098	0.077	488	10.05
		50%	11.19	5.12	57.19	4350	0.087	551	9.64
		55%	11.15	5.92	65.86	4595	0.096	615	9.33
		60%	11.19	7.16	79.99	4929	0.111	710	8.88
		65%	11.11	8.56	94.94	5250	0.126	807	8.50
		70%	11.05	10.03	110.84	5539	0.140	898	8.10
		75%	11.07	11.85	131.06	5860	0.158	1018	7.77
		80%	10.98	13.78	151.10	6098	0.175	1115	7.38
		90%	10.86	17.90	194.20	6631	0.207	1327	6.83
		100%	10.82	19.41	209.79	6720	0.218	1396	6.66
	APC 13*8	40%	11.07	4.19	46.22	3289	0.085	463	10.01	79 (Ambient Temperature: /)
		45%	11.15	5.10	56.69	3533	0.097	537	9.47
		50%	11.12	6.25	69.34	3813	0.113	623	8.98
		55%	11.08	7.68	85.00	4112	0.131	725	8.53
		60%	10.71	8.95	95.59	4295	0.143	794	8.31
		65%	10.70	10.94	116.82	4588	0.165	916	7.84
		70%	10.92	13.49	147.10	4939	0.190	1061	7.21
		75%	10.87	15.70	170.57	5169	0.210	1172	6.87
		80%	10.88	18.28	198.72	5406	0.232	1297	6.53
		90%	10.76	23.33	250.66	5778	0.268	1488	5.93
		100%	10.69	24.84	265.34	5809	0.277	1540	5.81
Note: Motor temperature is motor surface temperature at 100% throttle running 10mins. (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)
AT2317 Long Shaft KV1250	APC 8*6	40%	15.12	8.13	122.92	8445	0.094	624	5.08	78 (Ambient Temperature: /)
		45%	15.09	9.48	143.03	8889	0.106	698	4.88
		50%	15.05	10.83	162.81	9304	0.116	765	4.70
		55%	15.03	12.07	181.18	9612	0.126	820	4.52
		60%	14.99	13.47	201.69	9983	0.136	882	4.37
		65%	14.96	15.02	224.60	10305	0.148	943	4.20
		70%	14.93	16.40	244.54	10663	0.162	1014	4.15
		75%	14.85	19.05	283.40	11152	0.179	1105	3.90
		80%	14.78	22.03	325.32	11609	0.198	1207	3.71
		90%	14.56	28.80	419.00	12530	0.237	1406	3.36
		100%	14.49	30.61	443.19	12713	0.246	1451	3.27
	APC 9*6	40%	15.09	9.06	136.63	7581	0.114	749	5.48	93 (Ambient Temperature: /)
		45%	15.06	10.66	160.19	8013	0.128	840	5.24
		50%	15.02	12.37	185.59	8418	0.142	937	5.05
		55%	14.97	14.16	212.01	8774	0.156	1050	4.95
		60%	14.93	16.10	240.25	9130	0.171	1131	4.71
		65%	14.88	17.91	266.47	9474	0.185	1217	4.57
		70%	14.82	20.45	302.98	9880	0.203	1341	4.42
		75%	14.72	23.84	350.85	10287	0.227	1457	4.15
		80%	14.61	27.14	396.58	10619	0.249	1562	3.94
		90%	14.32	34.69	496.77	11369	0.288	1696	3.41
		100%	14.23	36.73	522.62	11500	0.295	1733	3.32
	APC 9*6	40%	11.35	6.37	72.24	6179	0.074	486	6.73	57 (Ambient Temperature: /)
		45%	11.33	7.42	83.98	6547	0.083	548	6.53
		50%	11.31	8.53	96.33	6876	0.092	606	6.29
		55%	11.28	9.60	108.10	7175	0.100	660	6.11
		60%	11.26	10.63	119.51	7431	0.108	711	5.95
		65%	11.23	11.85	132.86	7727	0.117	770	5.80
		70%	11.19	13.36	149.40	7977	0.129	836	5.60
		75%	11.15	15.22	169.60	8417	0.141	913	5.39
		80%	11.09	17.71	196.20	8820	0.157	1003	5.11
		90%	10.95	22.99	251.48	9518	0.188	1156	4.60
		100%	10.89	24.65	268.36	9735	0.196	1192	4.44
	APC 10*4.7	40%	11.34	7.05	79.83	5328	0.092	583	7.30	79 (Ambient Temperature: /)
		45%	11.31	8.25	93.30	5642	0.103	651	6.98
		50%	11.28	9.68	109.12	5923	0.115	732	6.70
		55%	11.24	11.22	125.91	6246	0.128	822	6.53
		60%	11.20	13.13	146.85	6569	0.144	914	6.23
		65%	11.14	15.55	173.09	6946	0.162	1024	5.92
		70%	11.09	17.77	196.83	7266	0.179	1118	5.68
		75%	11.02	20.41	224.79	7551	0.196	1220	5.43
		80%	10.94	23.41	255.66	7894	0.215	1327	5.19
		90%	10.73	29.63	317.60	8441	0.248	1494	4.70
		100%	10.65	31.44	334.79	8529	0.255	1523	4.55
Note: Motor temperature is motor surface temperature at 100% throttle running 10mins. (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)
AT2317 Long Shaft KV1400	APC 8*6	40%	15.13	10.98	166.02	9128	0.115	701	4.22	78 (Ambient Temperature: /)
		45%	15.10	12.79	193.18	9627	0.129	774	4.01
		50%	15.08	14.75	222.40	10115	0.142	852	3.83
		55%	15.05	16.75	252.09	10553	0.156	923	3.66
		60%	15.03	18.68	280.70	10904	0.170	994	3.54
		65%	14.99	21.36	320.23	11377	0.185	1085	3.39
		70%	14.97	23.11	345.91	11794	0.197	1179	3.41
		75%	14.91	27.02	403.03	12294	0.222	1309	3.25
		80%	14.85	32.01	475.25	12954	0.250	1437	3.02
		90%	14.73	41.16	606.27	13678	0.299	1652	2.73
		100%	14.68	44.70	656.29	13937	0.311	1703	2.59
	APC 8*6	40%	11.30	8.27	93.37	7652	0.078	511	5.46	93 (Ambient Temperature: /)
		45%	11.27	9.48	106.67	8100	0.086	576	5.40
		50%	11.24	10.79	121.26	8438	0.095	635	5.24
		55%	11.21	12.02	134.68	8795	0.103	686	5.09
		60%	11.19	13.27	148.34	9061	0.111	737	4.97
		65%	11.16	14.45	161.10	9366	0.118	780	4.84
		70%	11.13	15.70	174.56	9590	0.126	821	4.70
		75%	11.08	17.66	195.59	10037	0.138	889	4.55
		80%	11.02	20.28	223.57	10434	0.153	966	4.32
		90%	10.83	26.37	285.43	11295	0.184	1122	3.93
		100%	10.76	28.34	304.65	11505	0.193	1172	3.85
	APC 9*6	40%	11.28	9.15	103.11	6935	0.093	612	5.93	57 (Ambient Temperature: /)
		45%	11.25	10.66	119.81	7313	0.104	681	5.69
		50%	11.21	12.29	137.54	7641	0.115	755	5.49
		55%	11.17	13.79	153.86	7972	0.126	821	5.34
		60%	11.13	15.41	171.35	8285	0.137	880	5.14
		65%	11.09	17.15	190.14	8588	0.147	941	4.95
		70%	11.04	19.19	211.93	8922	0.160	1016	4.80
		75%	10.97	21.91	240.06	9314	0.176	1100	4.58
		80%	10.87	24.97	271.40	9711	0.193	1192	4.39
		90%	10.62	31.95	339.12	10390	0.226	1369	4.04
		100%	10.53	34.22	359.97	10517	0.236	1422	3.95
Note: Motor temperature is motor surface temperature at 100% throttle running 10mins. (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)

Packing List


Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
