Name: AT2826 3D F3A Fixed Wing Long Shaft Brushless Motor-KV900/KV1100
Brand: LIGPOWER
SKU: LIGPOWER000793
Price: 69.99 USD
Availability: InStock

AT2826 3D F3A Fixed Wing Long Shaft Brushless Motor-KV900/KV1100

69.99

Available points: 3500 Points Points reward: 69 Points

• Packaging Weight：270g，Packaging size：105*65*50mm

KV：

KV900
KV1100

Quantity：

69.99

Free Shipping by DHL/UPS Express

Detail information
Specifications

About LIGPOWER AT2826 3D F3A Fixed Wing Long Shaft Motor

LIGPOWER AT2826 is specially designed for sailplane and aircraft weight of 1.4-2.2kg. The motor weight is 175g and the maximum thrust is 3.4kg.

It can supports 3-4 lipos with a maximum power of 1100w. Recommend with LIGPOWER T13*6.5propeller and LIGPOWER AT75A ESC

AT2826 Highlights:

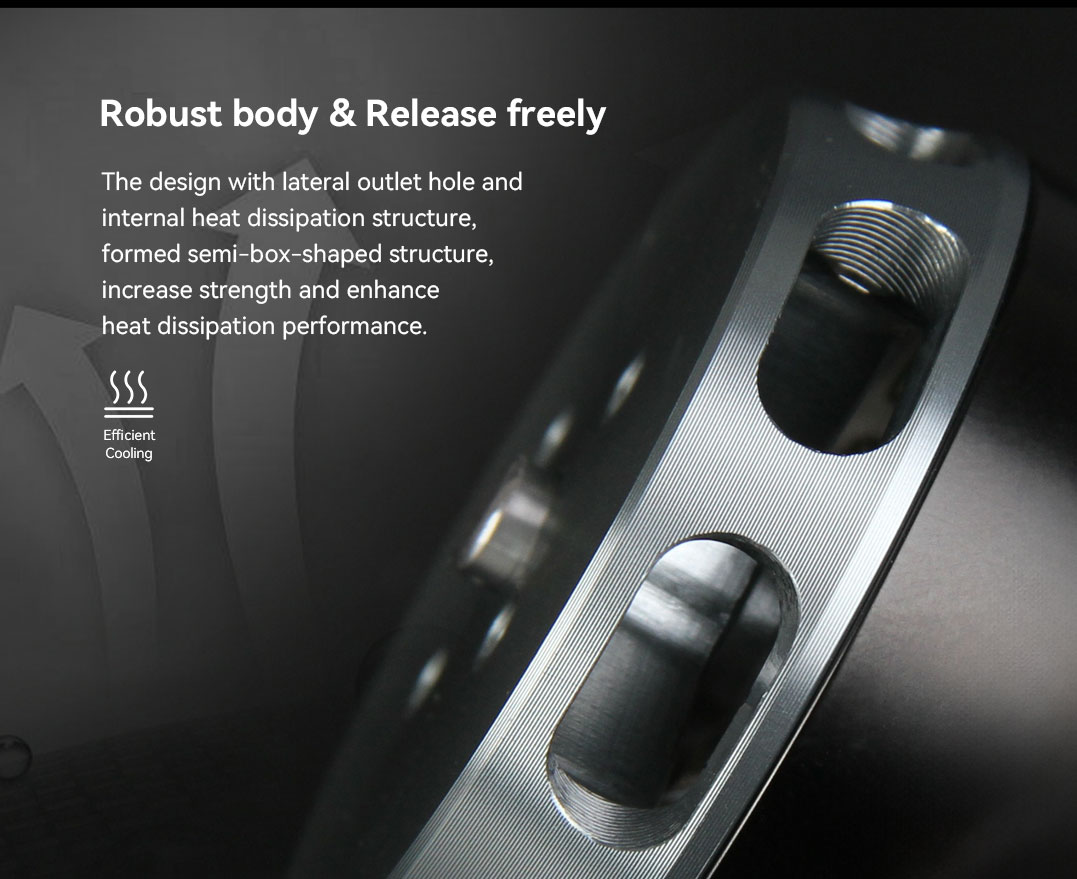

1. Robust body &release freely

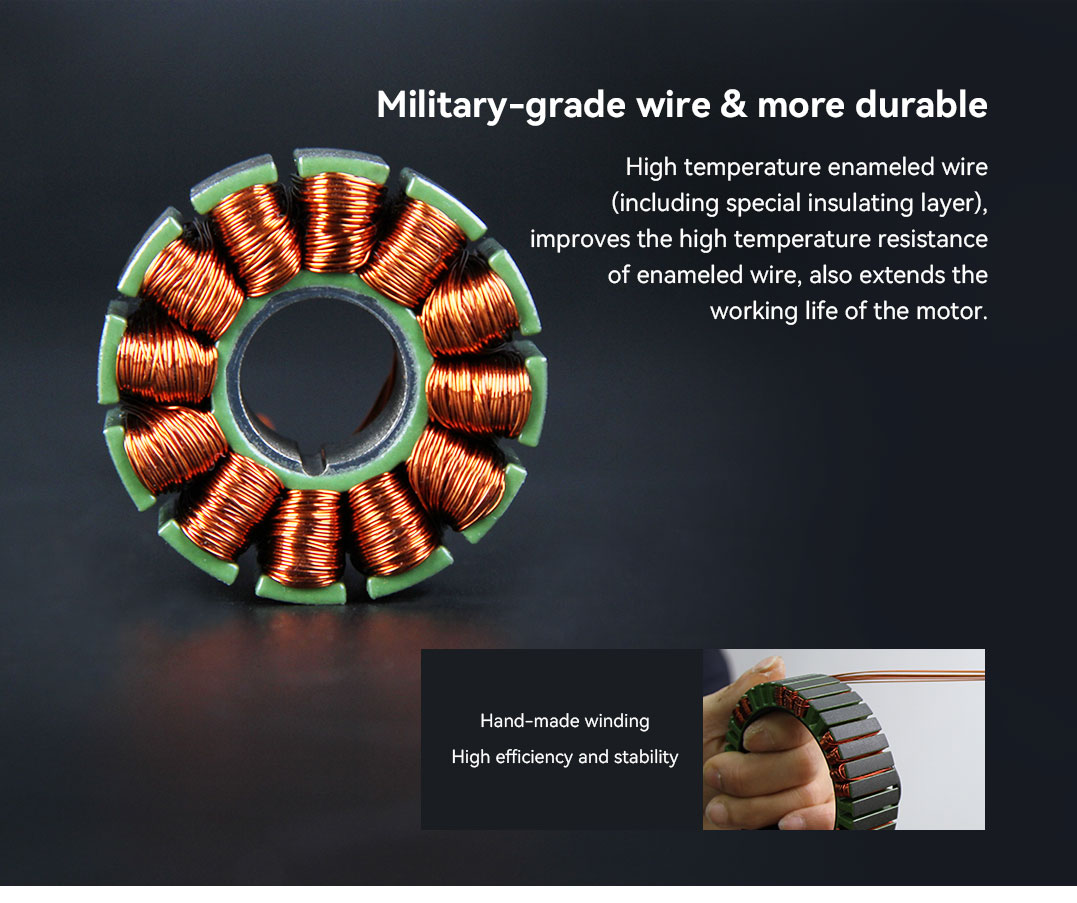

2. Military-grade wire & more durable

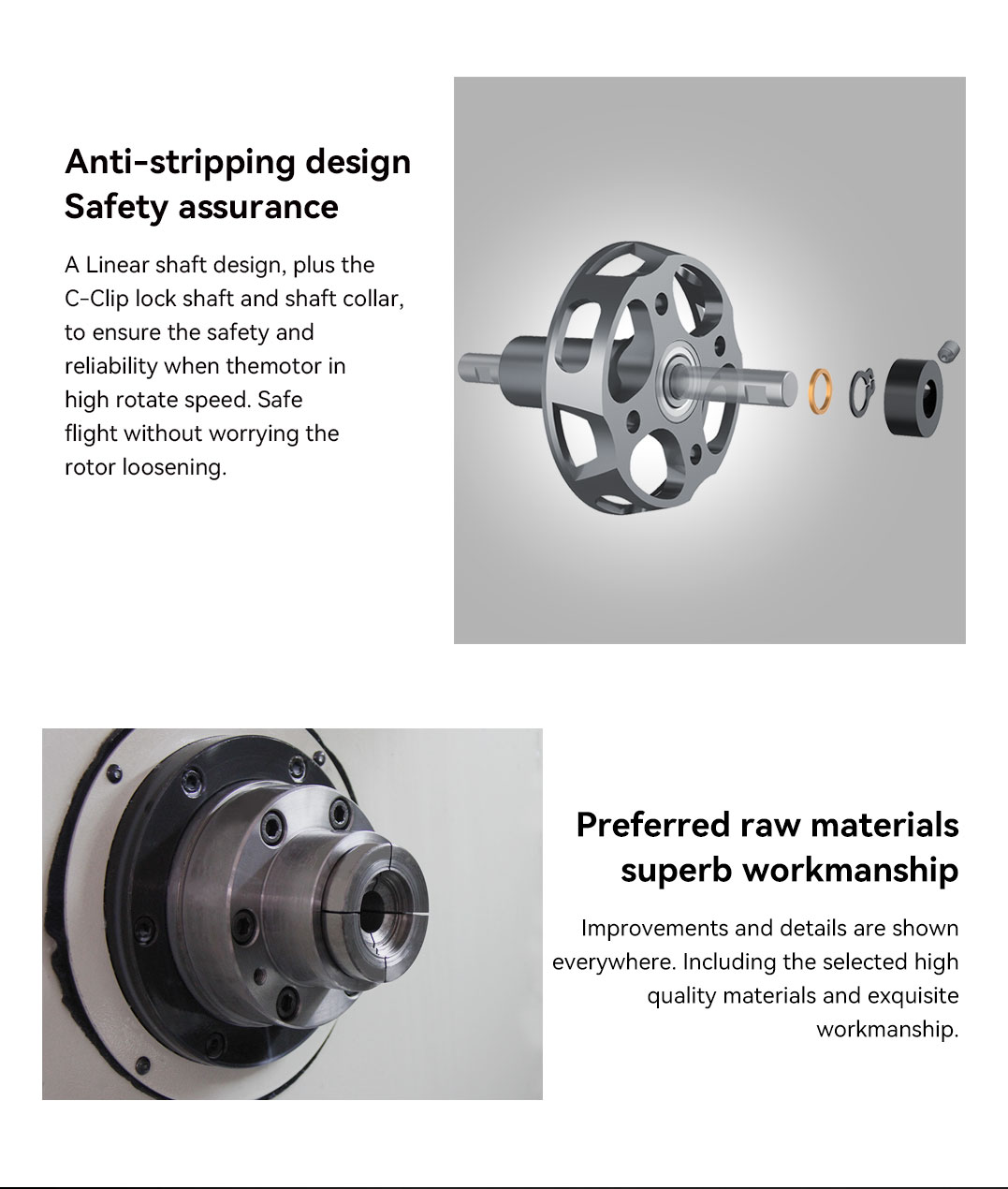

3. Anti-stripping design safety assurance

4. High torque and more durable

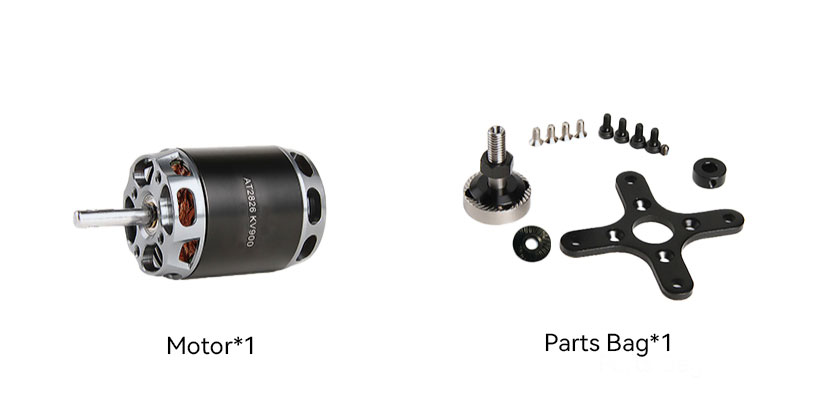

Packing List Includes:

1x LIGPOWER AT2826 Motor

1x Hardware pack

Matching Guide:

AT75A ESC

T13*6.5 Propeller

AT2826 strong power,hand-made winding,preferred raw materials

AT2826 the upgraded at series are designed for fixed-wing model,VTOL UAV

AT2826 efficient cooling

AT2826 hand-made winding high efficiency and stability

AT2826 double security,safe flight without worrying the rotor loosening,preferred raw materials superb workmanship

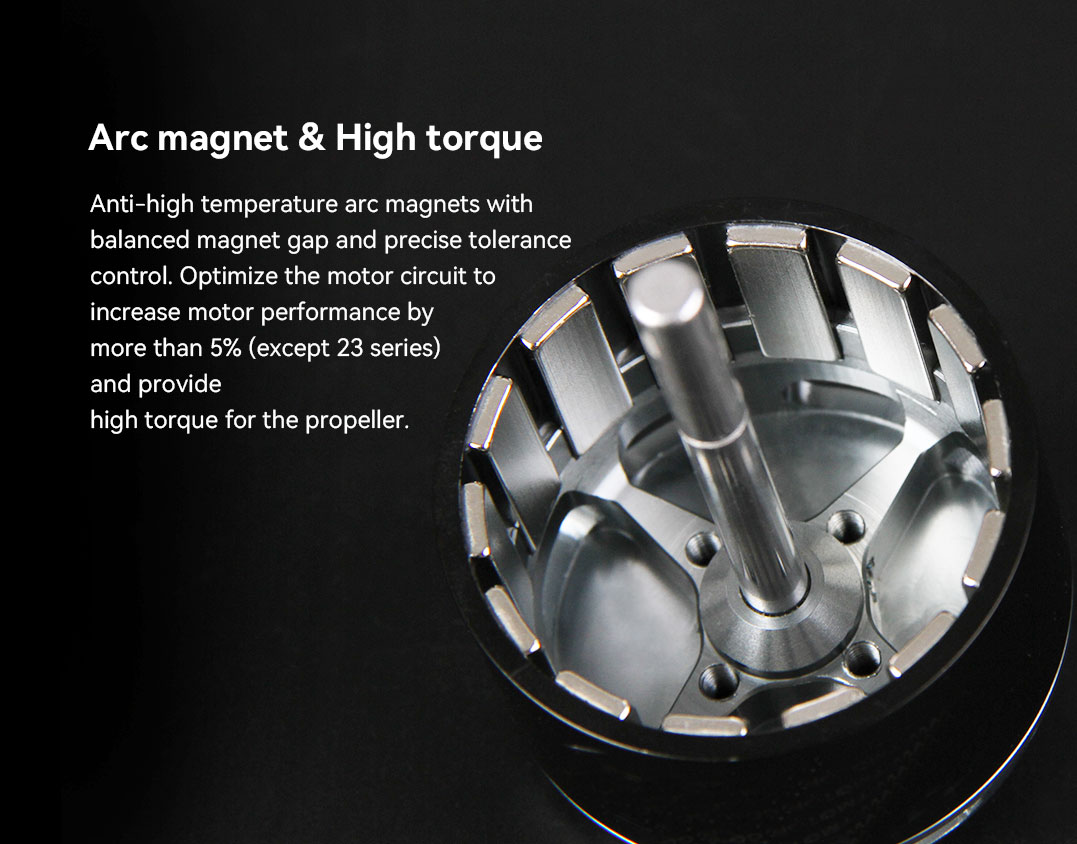

AT2826 optimize the motor circuit to increase motor performance by more than 5%

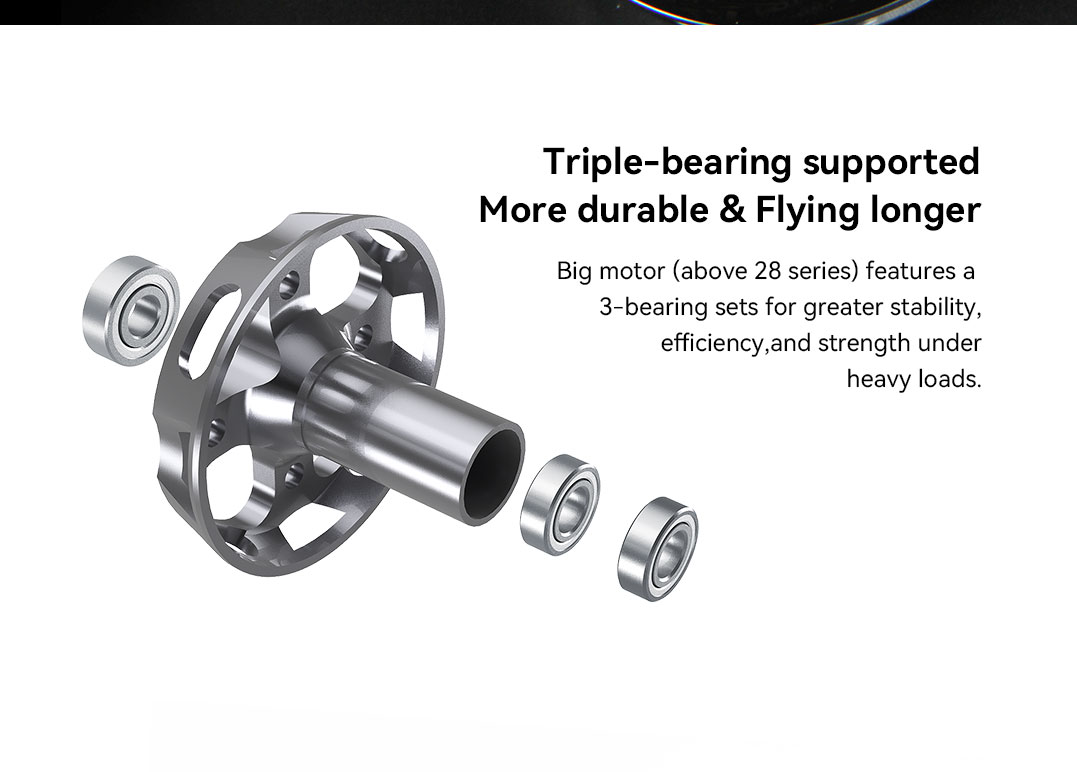

AT2826 tirple-bearing supported more durable & flying longer

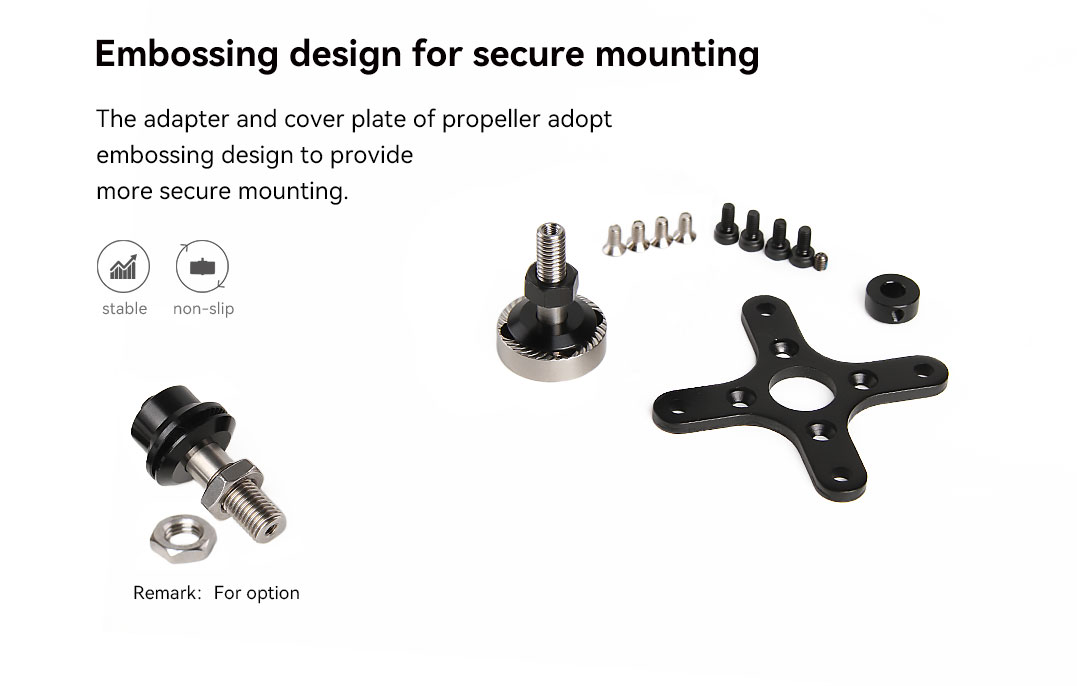

AT2826 embossing design for secure mounting

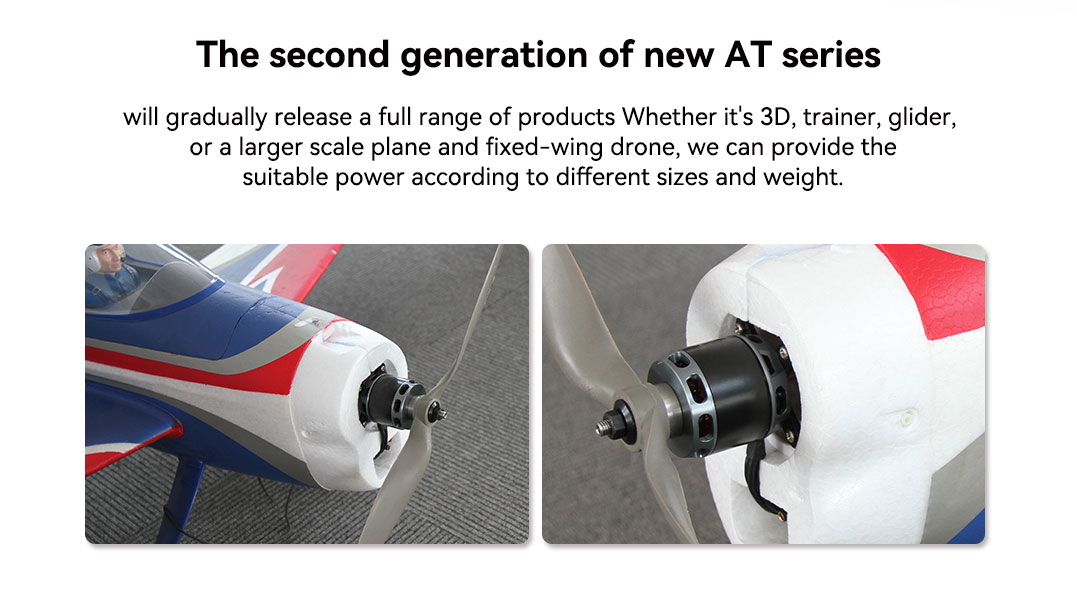

AT2826 the secone generation of new at series

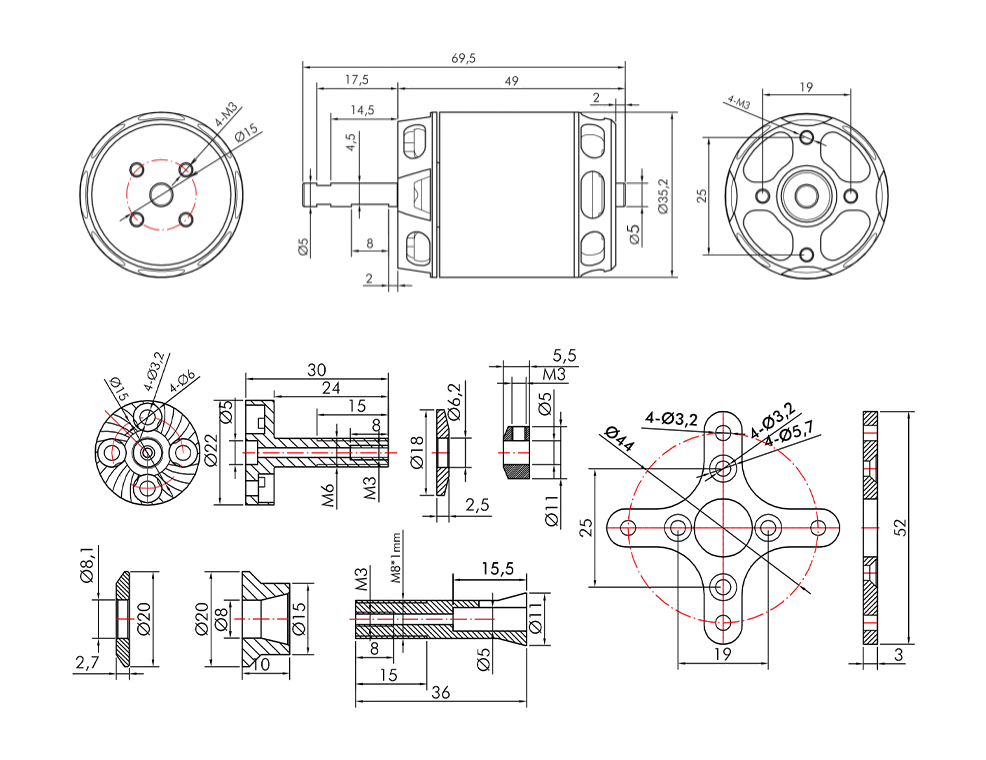

Technical Drawing


Specification

Test Item	Long ShaftKV900	Weight (Incl. Cable)	175g
Motor Dimensions	Φ35.2*69.5mm	Internal Resistance	24mΩ
Lead	Enameled Wire100mm	Configuration	12N14P
Shaft Diameter	IN：5mm OUT：5mm	Rated Voltage(Lipo)	3-4S
Idle Current(10V)	2.2A	Peak Current(180s)	57A
Max Power (180S)	820W	Recommendation	/

Test Item	Long Shaft KV1100	Weight (Incl. Cable)	175g
Motor Dimensions	Φ35.2*69.5mm	Internal Resistance	110mΩ
Lead	Enameled Wire100mm	Configuration	12N14P
Shaft Diameter	IN：5mm OUT：5mm	Rated Voltage(Lipo)	3-4S
Idle Current(10V)	2.9A	Peak Current(180s)	59A
Max Power (180S)	110W	Recommendation	/

Test Data

Type	Propeller	Throttle	Voltage (V)	Current (A)	Power (W)	RPM	Torque (N*m)	Thrust (g)	Efficiency (g/W)	Operating Temperature (℃)
AT2826 Long Shaft KV900	APC 12*6	40%	15.11	11.43	172.61	6258	0.188	1117	6.47	98 (Ambient Temperature: /)
		45%	15.07	13.63	205.47	6634	0.213	1272	6.19
		50%	15.03	15.68	235.81	6950	0.236	1406	5.96
		55%	15.00	17.71	265.69	7263	0.256	1528	5.75
		60%	14.97	19.84	296.86	7509	0.281	1670	5.63
		65%	14.93	21.92	327.20	7782	0.300	1779	5.44
		70%	14.88	24.53	365.16	8080	0.323	1933	5.29
		75%	14.82	28.51	422.43	8468	0.370	2155	5.10
		80%	14.74	33.36	491.67	8879	0.411	2397	4.87
		90%	14.58	42.72	622.90	9556	0.489	2810	4.51
		100%	14.50	47.28	685.84	9798	0.524	2992	4.36
	APC 13*6.5	40%	15.10	12.19	183.97	5611	0.216	1216	6.61	HOT
		45%	15.05	14.84	223.29	6012	0.247	1388	6.22
		50%	15.01	17.32	259.98	6345	0.276	1541	5.93
		55%	14.97	19.81	296.47	6638	0.304	1698	5.73
		60%	14.91	22.84	340.67	6948	0.338	1885	5.53
		65%	14.85	26.58	394.75	7297	0.376	2091	5.30
		70%	14.79	30.38	449.24	7656	0.415	2291	5.10
		75%	14.71	34.95	514.23	8000	0.456	2513	4.89
		80%	14.63	39.79	582.14	8325	0.510	2745	4.71
		90%	14.44	51.45	743.02	8953	0.594	3212	4.32
		100%	14.35	57.16	820.02	9183	0.637	3409	4.16
	APC 14*7	40%	11.36	8.96	101.76	4170	0.157	826	8.11	87 (Ambient Temperature: /)
		45%	11.33	10.62	120.33	4435	0.179	943	7.84
		50%	11.29	12.63	142.61	4709	0.202	1061	7.44
		55%	11.26	14.76	166.16	4952	0.227	1189	7.16
		60%	11.23	16.66	187.02	5173	0.249	1298	6.94
		65%	11.18	19.33	216.15	5457	0.278	1444	6.68
		70%	11.13	22.74	252.95	5738	0.313	1624	6.42
		75%	11.06	26.62	294.42	6067	0.349	1798	6.11
		80%	10.99	30.69	337.39	6338	0.385	1971	5.84
		90%	10.82	41.07	444.58	6906	0.466	2350	5.29
		100%	10.77	44.15	475.59	7048	0.488	2447	5.14
	APC 15*8	40%	11.34	8.92	101.10	3745	0.188	921	9.11	HOT
		45%	11.31	10.56	119.50	3949	0.210	1030	8.62
		50%	11.28	12.69	143.14	4182	0.239	1168	8.16
		55%	11.23	15.35	172.38	4465	0.269	1328	7.70
		60%	11.17	19.17	214.08	4805	0.312	1534	7.17
		65%	11.10	23.09	256.38	5095	0.354	1730	6.75
		70%	11.04	27.02	298.20	5372	0.393	1914	6.42
		75%	10.95	32.45	355.28	5650	0.441	2140	6.02
		80%	10.88	36.74	399.67	5879	0.476	2317	5.80
		90%	10.71	46.75	500.90	6277	0.557	2680	5.35
		100%	10.63	51.81	550.80	6424	0.592	2844	5.16
Note: Motor temperature is motor surface temperature at 100% throttle running 10mins. (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)
AT2826 Long Shaft KV1100	APC 12*6	40%	11.28	13.27	149.72	5858	0.162	978	6.53	86 (Ambient Temperature: /)
		45%	11.24	15.55	174.83	6211	0.182	1094	6.26
		50%	11.20	18.01	201.81	6507	0.205	1228	6.09
		55%	11.17	20.15	225.04	6799	0.224	1329	5.91
		60%	11.13	22.60	251.45	7036	0.245	1457	5.79
		65%	11.09	24.78	274.73	7242	0.262	1559	5.68
		70%	11.05	27.21	300.54	7478	0.281	1663	5.53
		75%	10.99	30.65	336.94	7806	0.308	1826	5.42
		80%	10.91	35.65	388.97	8206	0.344	2028	5.21
		90%	10.76	45.19	486.11	8837	0.406	2363	4.86
		100%	10.67	50.12	535.03	9037	0.435	2531	4.73
	APC 13*6.5	40%	11.27	14.15	159.46	5279	0.188	1053	6.60	HOT
		45%	11.22	16.89	189.50	5621	0.213	1197	6.32
		50%	11.18	19.58	218.84	5915	0.238	1337	6.11
		55%	11.13	22.69	252.39	6220	0.265	1482	5.87
		60%	11.09	24.86	275.62	6409	0.284	1585	5.75
		65%	11.03	28.58	315.17	6726	0.314	1751	5.55
		70%	10.96	32.83	359.69	7051	0.346	1922	5.34
		75%	10.89	37.14	404.41	7358	0.378	2095	5.18
		80%	10.80	42.24	456.37	7672	0.413	2285	5.01
		90%	10.61	53.95	572.57	8207	0.488	2675	4.67
		100%	10.53	59.09	622.02	8415	0.511	2810	4.52
Note: Motor temperature is motor surface temperature at 100% throttle running 10mins. (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)

Packing List


Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
