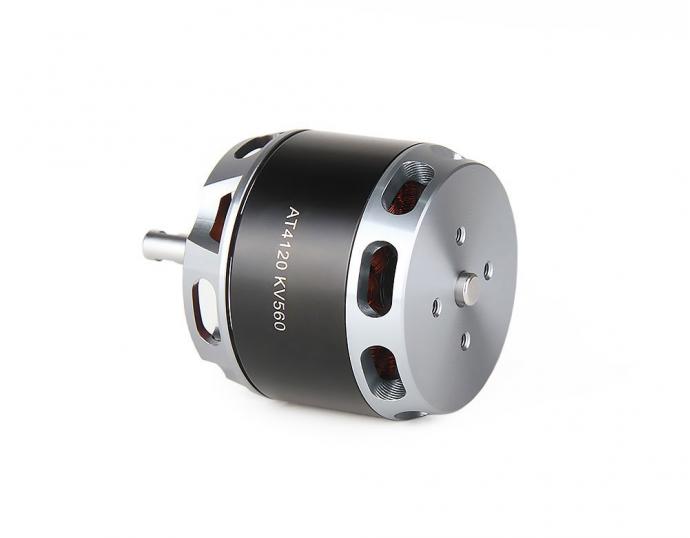

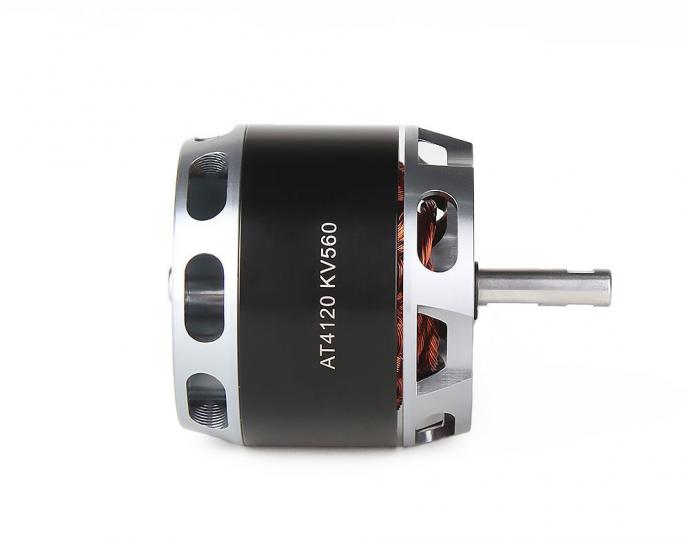

Name: T-MOTOR AT4120 VTOL Fixed Wing Airplane Long Shaft Motor-KV250/KV500/KV560
Brand: LIGPOWER
SKU: LIGPOWER000826
Price: 109.99 USD
Availability: InStock

Detail information
Specifications

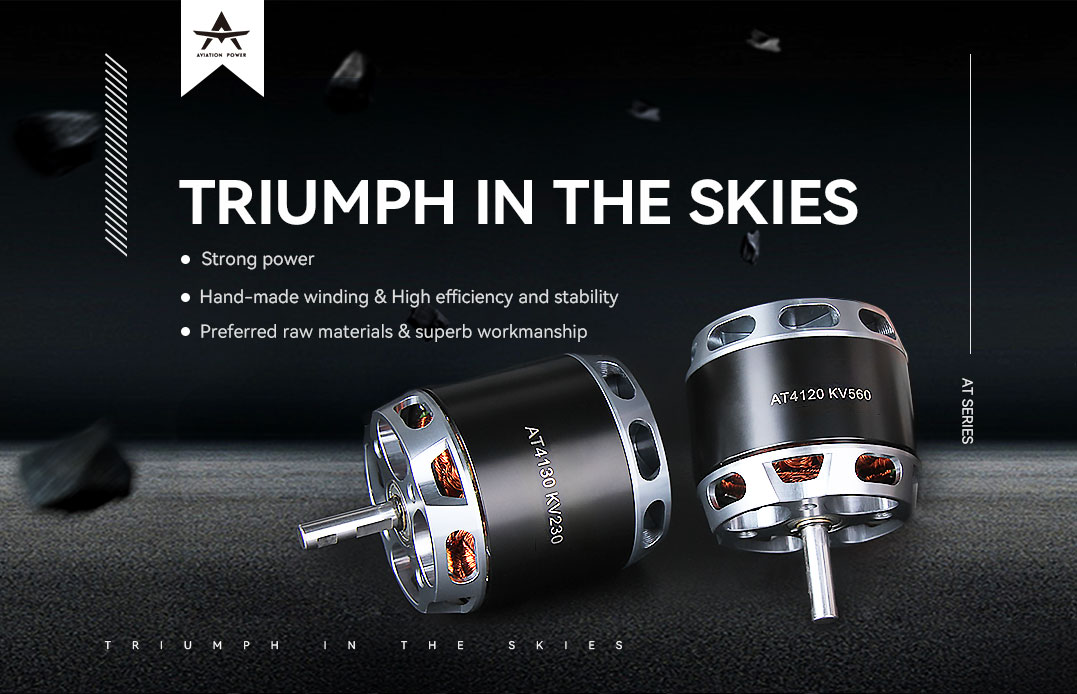

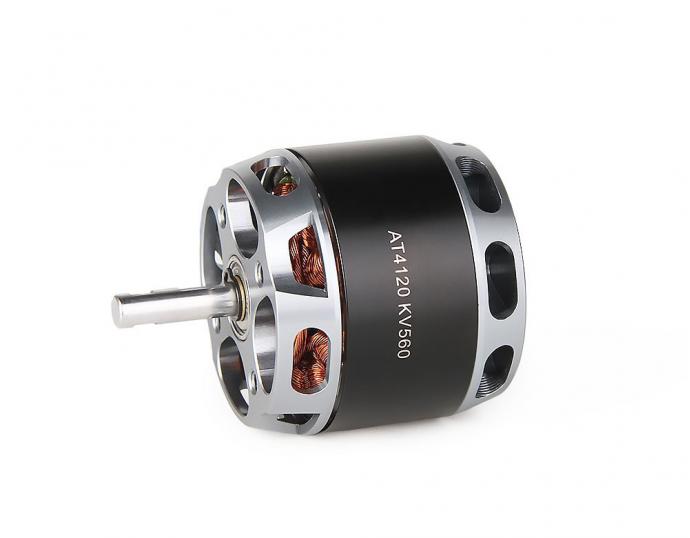

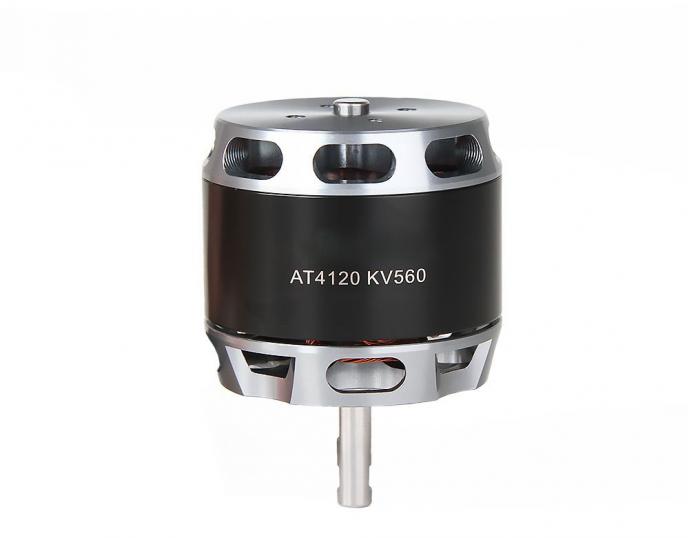

About T-MOTOR AT4120 VTOL Fixed Wing Airplane Long Shaft Motor

High quality AT4120 BLDC motor has been developed especially for use with 5s and 6s lipols for 3D models up to 3500g and for sailplanes up to 5000g in weight.

And especially the 250KV can work under 12S lipols with 2100W max. power. Recommended to be used with T-MOTOR AT115A and T-MOTOR FS15*8 folding propellers.

AT4120 Highlights:

The AT4120 long-shaft engine adopts a long-shaft design, which improves installation flexibility and compatibility with different types of propellers and accessories.

This makes it a versatile choice for different types of aviation applications.

Packing List Includes:

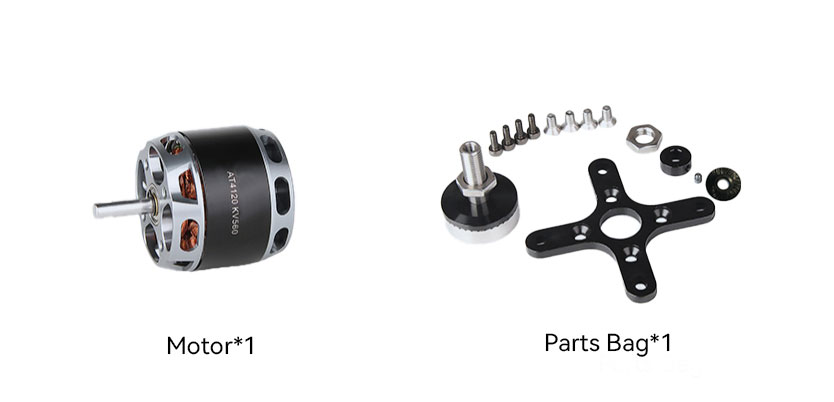

1x T-MOTOR AT4120 Motor

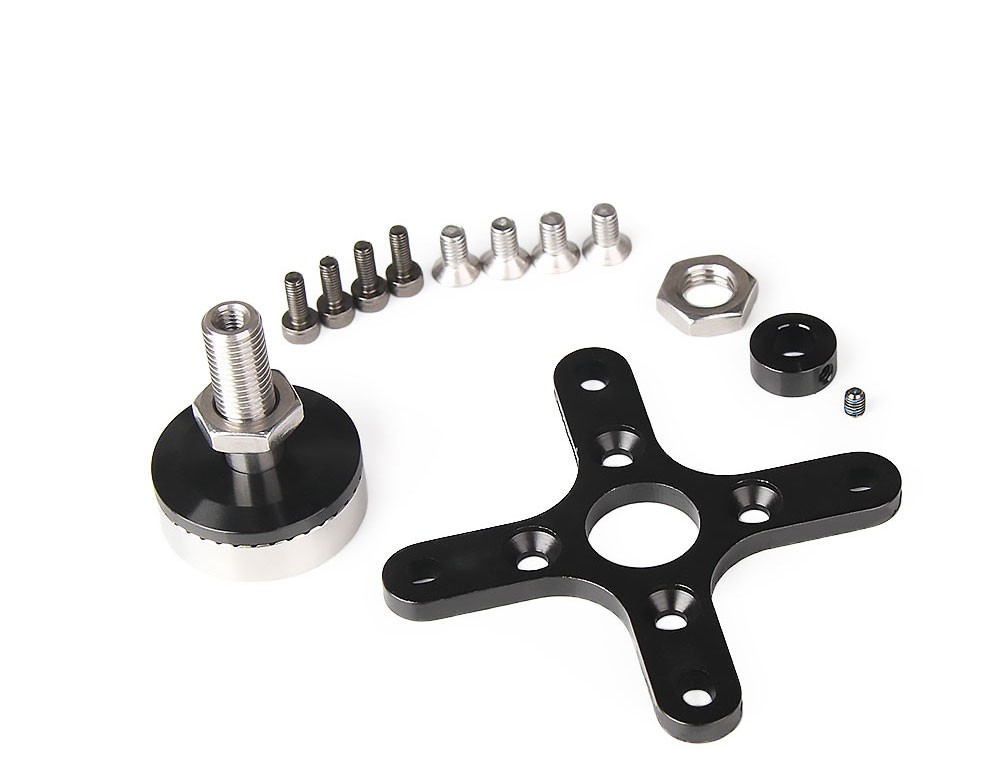

1x Hardware pack

Matching Guide:

AT 115A ESC

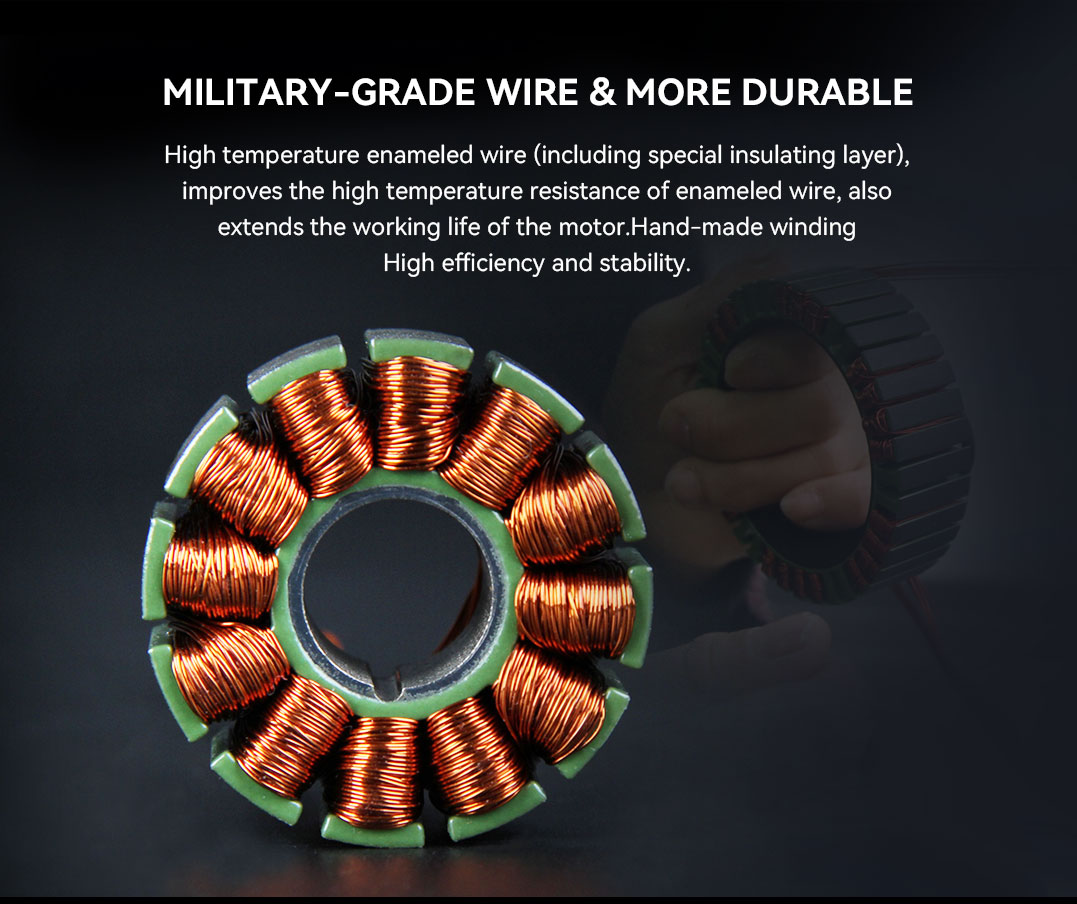

AT4120 strong power,hand-made winding,preferred raw materials

AT4120 the upgraded at series are designed for fixed-wing model,VTOL UAV

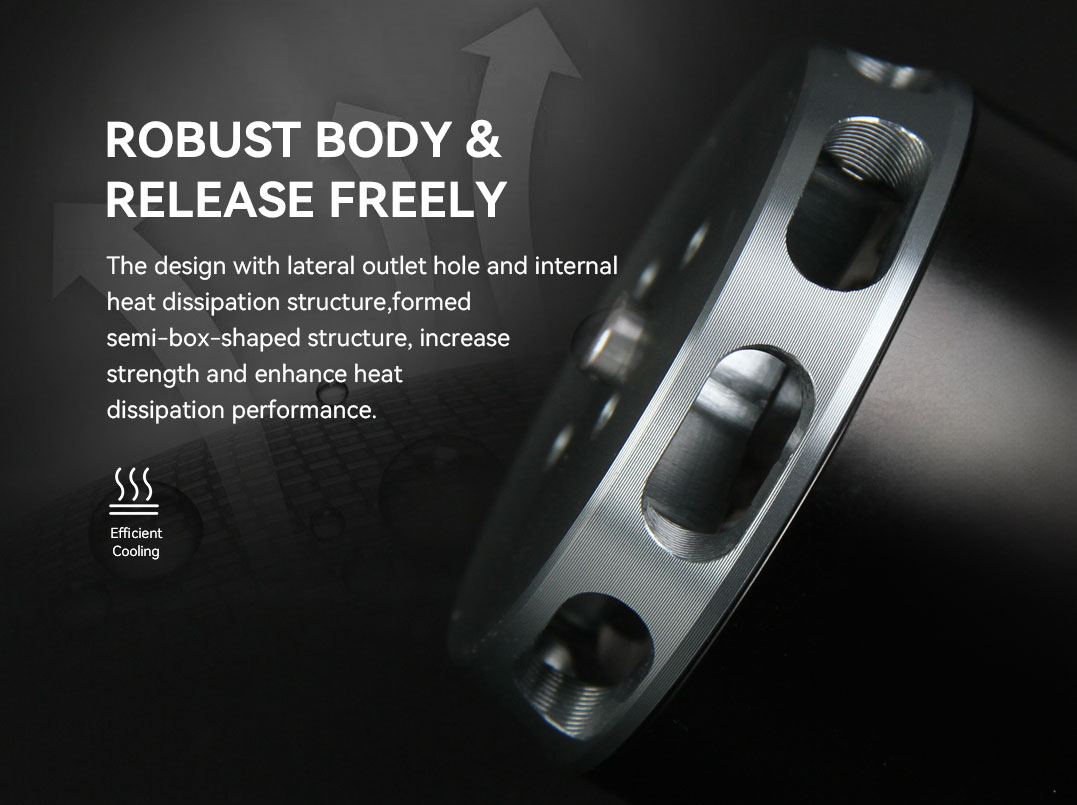

AT4120 efficient cooling

AT4120 hand-made winding high efficiency and stability

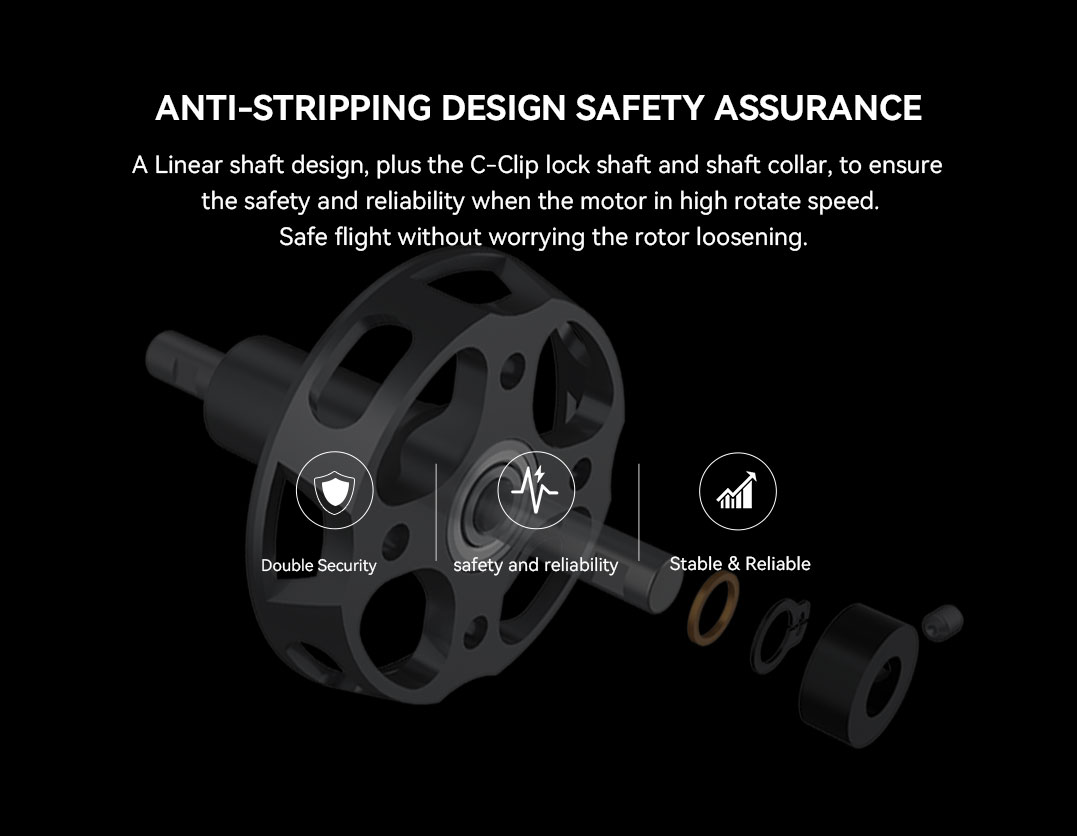

AT4120 double security,safe flight without worrying the rotor loosening

AT4120 preferred raw materials superb workmanship

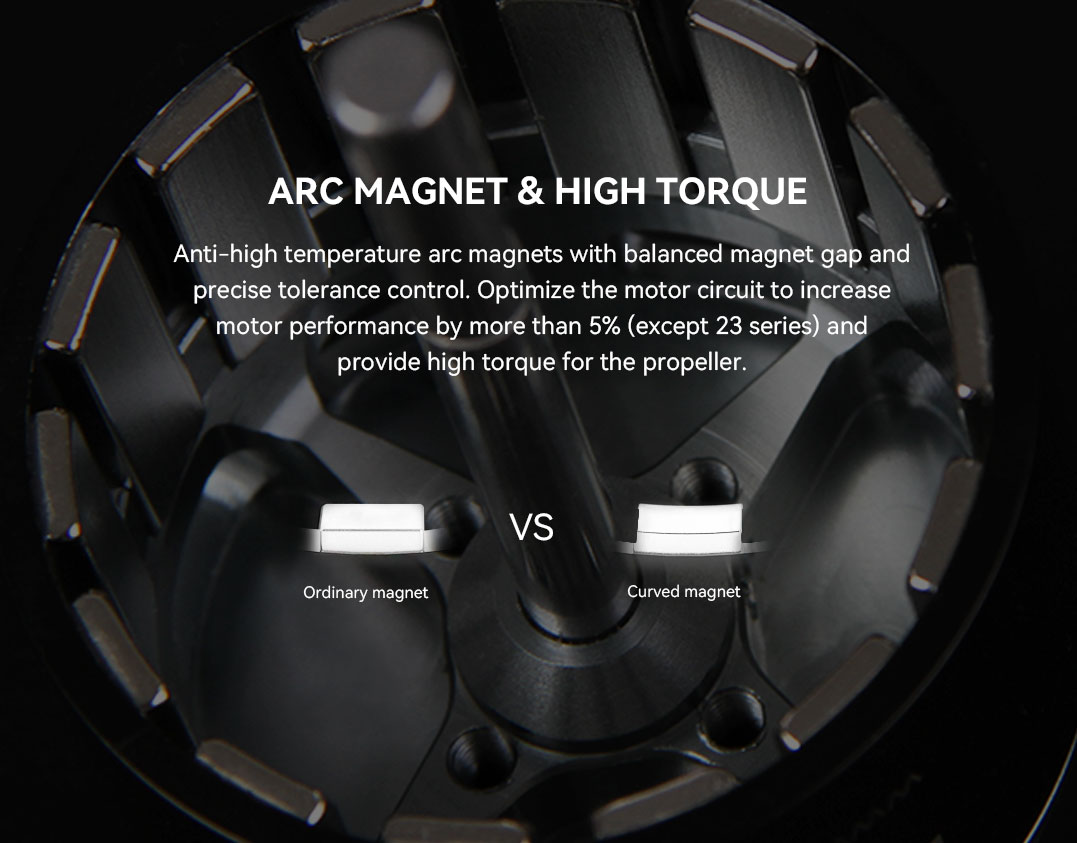

AT4120 optimize the motor circuit to increase motor performance by more than 5%

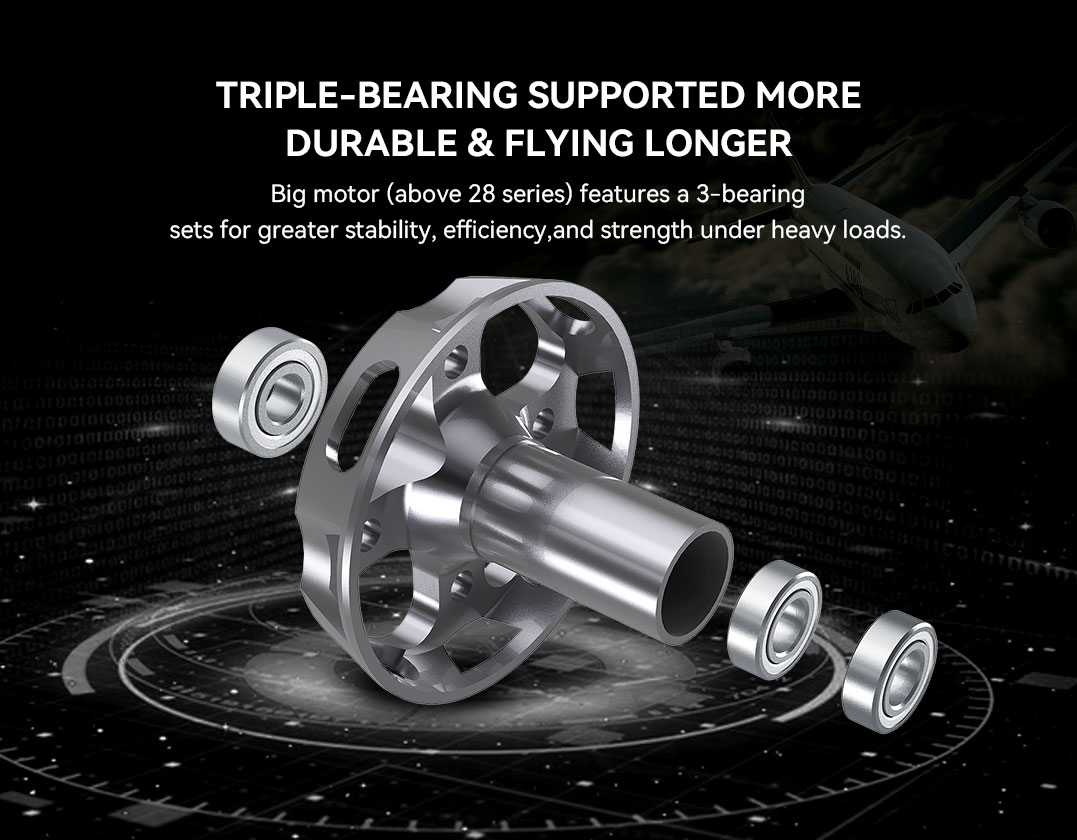

AT4120 tirple-bearing supported more durable & flying longer

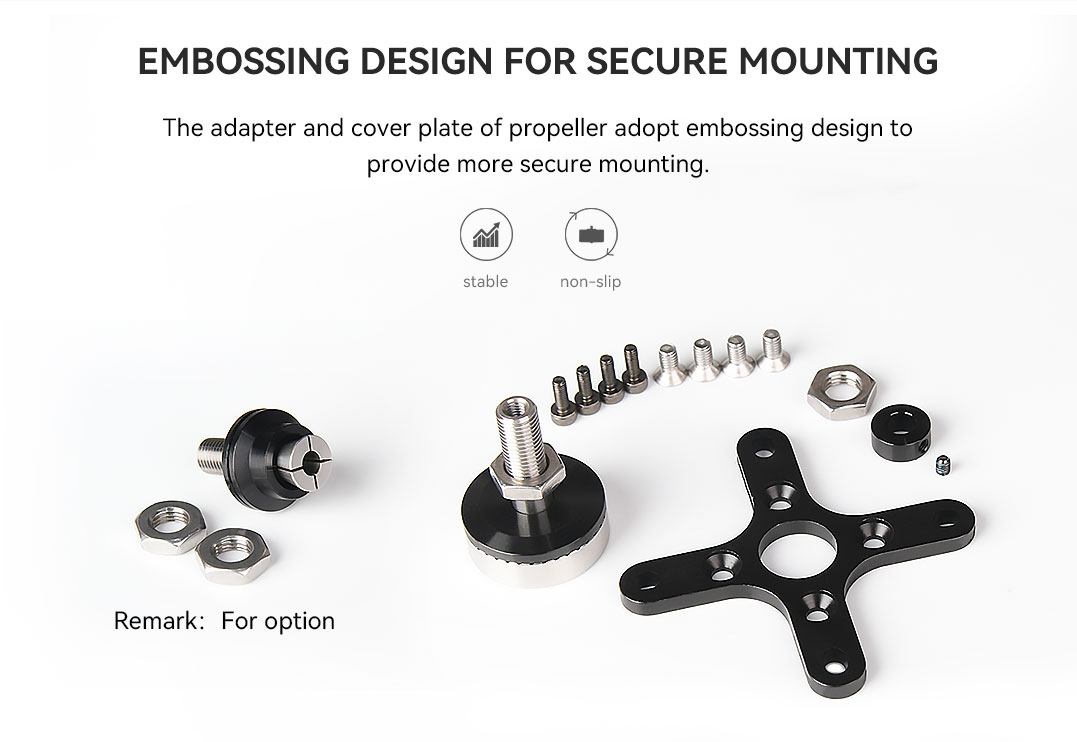

AT4120 embossing design for secure mounting

AT4120 the secone generation of new at series

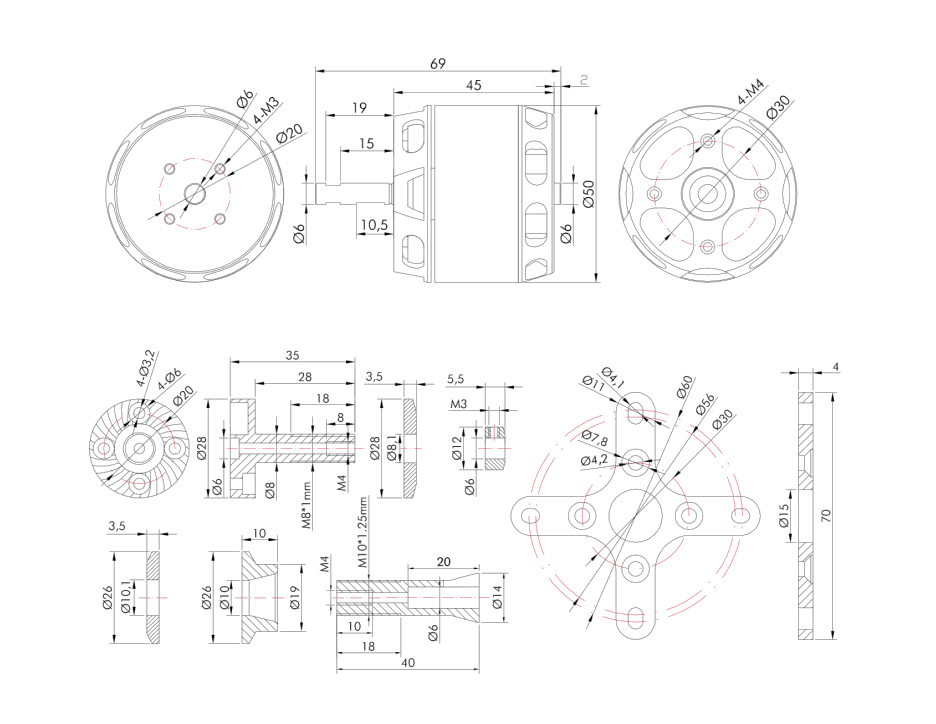

Technical Drawing


Specification

Test Item	Long ShaftKV250	Weight (Incl. Cable)	304g
Motor Dimensions	Φ50*69mm	Internal Resistance	76mΩ
Lead	Enameled Wire100mm	Configuration	12N14P
Shaft Diameter	IN：6mm OUT：6mm	Rated Voltage(Lipo)	12S
Idle Current(10V)	1.0A	Peak Current(180s)	45A
Max Power (180S)	2100W	Recommendation	/

Test Item	Long ShaftKV500	Weight (Incl. Cable)	305g
Motor Dimensions	Φ50*69mm	Internal Resistance	21mΩ
Lead	Enameled Wire100mm	Configuration	12N14P
Shaft Diameter	IN：6mm OUT：6mm	Rated Voltage(Lipo)	6S
Idle Current(10V)	2.0A	Peak Current(180s)	75A
Max Power (180S)	1700W	Recommendation	/

Test Item	Long ShaftKV560	Weight (Incl. Cable)	300g
Motor Dimensions	Φ50*69mm	Internal Resistance	16mΩ
Lead	Enameled Wire100mm	Configuration	12N14P
Shaft Diameter	IN：6mm OUT：6mm	Rated Voltage(Lipo)	6S
Idle Current(10V)	2.4A	Peak Current(180s)	80A
Max Power (180S)	1800W	Recommendation	/

Test Data

Type	Propeller	Throttle	Voltage (V)	Current (A)	Power (W)	RPM	Torque (N*m)	Thrust (g)	Efficiency (g/W)	Operating Temperature (℃)
AT4120 Long Shaft KV250	APC 15*8	40%	44.32	2.70	119.63	3880	0.203	1012	8.46	65 (Ambient Temperature: /)
		45%	44.33	3.30	146.11	4287	0.248	1235	8.45
		50%	44.30	4.56	201.83	4838	0.319	1574	7.80
		55%	44.25	6.75	298.59	5422	0.411	2014	6.75
		60%	44.23	8.19	362.23	5832	0.478	2331	6.43
		65%	44.21	9.84	434.86	6243	0.558	2712	6.24
		70%	44.14	12.69	560.11	6716	0.653	3146	5.62
		75%	44.10	15.43	680.25	7132	0.749	3586	5.27
		80%	44.04	18.63	820.64	7565	0.857	4067	4.96
		90%	43.91	26.06	1144.20	8288	1.071	4934	4.31
		100%	43.73	36.52	1596.93	8963	1.347	5504	3.45
	APC 15*10	40%	44.30	3.05	135.07	3828	0.249	1104	8.18	87 (Ambient Temperature: /)
		45%	44.28	3.86	171.08	4205	0.300	1321	7.72
		50%	44.26	5.15	228.12	4716	0.375	1662	7.29
		55%	44.21	7.77	343.40	5317	0.492	2168	6.31
		60%	44.18	9.61	424.73	5713	0.565	2476	5.83
		65%	44.14	11.97	528.31	6154	0.671	2914	5.52
		70%	44.08	15.06	663.58	6565	0.775	3355	5.06
		75%	44.03	17.80	783.72	6953	0.879	3771	4.81
		80%	43.96	21.72	954.68	7363	0.997	4240	4.44
		90%	43.80	30.96	1355.90	8012	1.276	4731	3.49
		100%	43.61	42.30	1844.49	8618	1.545	5609	3.04
	APC 16*8	40%	44.37	3.25	144.09	3937	0.257	1253	8.70	HOT (Ambient Temperature: /)
		45%	44.37	3.99	177.09	4278	0.304	1485	8.39
		50%	44.33	5.53	245.37	4824	0.389	1899	7.74
		55%	44.29	7.96	352.38	5389	0.498	2422	6.87
		60%	44.25	10.12	447.90	5810	0.590	2850	6.36
		65%	44.19	12.62	557.80	6195	0.688	3302	5.92
		70%	44.14	15.97	704.96	6652	0.808	3852	5.46
		75%	44.07	19.57	862.44	7052	0.931	4379	5.08
		80%	44.00	24.05	1058.23	7485	1.077	5016	4.74
		90%	43.85	32.70	1433.96	8112	1.301	5952	4.15
		100%	43.63	45.73	1995.20	8676	1.603	6717	3.37
Note: Motor temperature is motor surface temperature at 100% throttle running 10mins. (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)
AT4120 Long Shaft KV500	APC 15*8	40%	22.47	6.81	153.13	4252	0.252	1222	7.98	79 (Ambient Temperature: /)
		45%	22.44	8.40	188.45	4603	0.291	1420	7.53
		50%	22.41	10.07	225.68	4901	0.330	1603	7.10
		55%	22.37	12.34	276.12	5255	0.385	1867	6.76
		60%	22.32	15.19	339.14	5637	0.448	2174	6.41
		65%	22.27	18.63	414.72	6030	0.525	2533	6.11
		70%	22.19	22.75	504.91	6441	0.600	2878	5.70
		75%	22.12	27.01	597.54	6817	0.675	3229	5.40
		80%	22.05	31.62	697.07	7153	0.755	3583	5.14
		90%	21.86	42.70	933.28	7805	0.929	4351	4.66
		100%	21.75	49.31	1072.47	8135	1.020	4714	4.40
	APC 15*10	40%	22.49	5.40	121.44	3680	0.236	1027	8.46	HOT (Ambient Temperature: /)
		45%	22.46	7.19	161.62	4097	0.294	1281	7.93
		50%	22.36	12.00	268.25	4688	0.393	1701	6.34
		55%	22.32	15.15	338.13	5176	0.464	2020	5.97
		60%	22.25	18.98	422.43	5573	0.545	2371	5.61
		65%	22.19	22.88	507.71	5914	0.623	2700	5.32
		70%	22.12	27.55	609.35	6288	0.710	3052	5.01
		75%	22.01	33.85	744.87	6687	0.803	3434	4.61
		80%	21.90	40.20	880.50	7030	0.900	3815	4.33
		90%	21.65	55.07	1192.32	7555	1.111	4324	3.63
		100%	21.40	70.41	1506.65	7952	1.301	4670	3.10
	APC 16*8	40%	22.44	8.73	195.81	4294	0.314	1518	7.75	98 (Ambient Temperature: /)
		45%	22.40	10.71	240.02	4636	0.364	1765	7.35
		50%	22.35	13.87	309.84	5071	0.440	2123	6.85
		55%	22.28	17.61	392.29	5499	0.528	2550	6.50
		60%	22.21	22.03	489.30	5927	0.622	2979	6.09
		65%	22.12	27.16	600.86	6334	0.719	3427	5.70
		70%	22.03	32.72	720.93	6715	0.824	3885	5.39
		75%	21.94	38.56	845.96	7075	0.922	4305	5.09
		80%	21.82	45.23	986.96	7405	1.024	4742	4.80
		90%	21.54	62.33	1342.79	8035	1.270	5801	4.32
		100%	21.49	65.44	1406.23	8108	1.318	5967	4.24
Note: Motor temperature is motor surface temperature at 100% throttle running 10mins. (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)
AT4120 Long Shaft KV560	APC 14*7	40%	22.44	9.30	208.82	5285	0.272	1421	6.81	79 (Ambient Temperature: /)
		45%	22.41	11.47	256.93	5704	0.323	1667	6.49
		50%	22.38	13.30	297.53	6011	0.357	1832	6.16
		55%	22.33	15.78	352.36	6365	0.408	2087	5.92
		60%	22.28	18.84	419.77	6759	0.468	2374	5.66
		65%	22.22	22.57	501.53	7242	0.531	2676	5.34
		70%	22.15	27.13	600.92	7678	0.610	3049	5.07
		75%	22.07	31.63	698.14	8054	0.684	3395	4.86
		80%	21.97	37.50	823.81	8465	0.776	3779	4.59
		90%	21.72	52.46	1139.49	9286	0.977	4616	4.05
		100%	21.61	59.47	1284.98	9581	1.065	4909	3.82
	APC 15*8	40%	22.43	9.90	222.15	4796	0.320	1562	7.03	98 (Ambient Temperature: /)
		45%	22.40	12.15	272.15	5152	0.374	1829	6.72
		50%	22.34	15.29	341.66	5582	0.445	2168	6.34
		55%	22.27	19.32	430.25	6049	0.528	2558	5.95
		60%	22.20	23.78	527.88	6475	0.612	2951	5.59
		65%	22.11	29.15	644.45	6934	0.709	3384	5.25
		70%	22.01	35.31	777.07	7358	0.806	3828	4.93
		75%	21.89	42.25	924.78	7731	0.916	4314	4.66
		80%	21.79	48.35	1053.45	8046	1.008	4707	4.47
		90%	21.49	66.59	1431.12	8689	1.253	5311	3.71
		100%	21.32	76.78	1637.32	8979	1.376	5580	3.41
Note: Motor temperature is motor surface temperature at 100% throttle running 10mins. (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)
