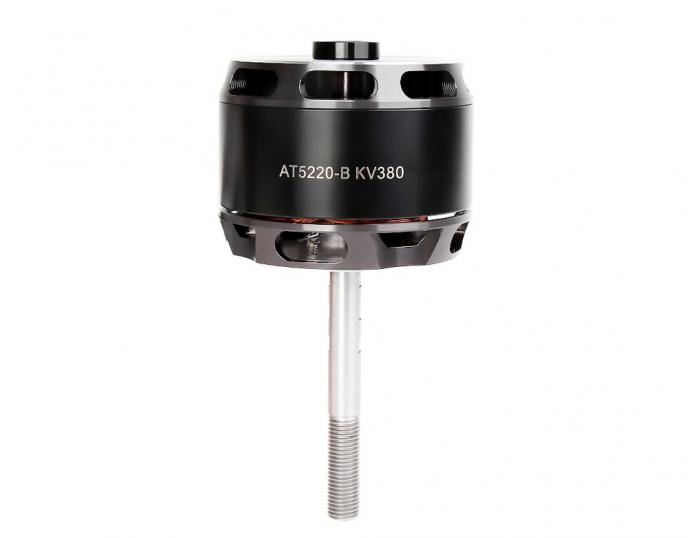

Name: AT5220B 20-25CC VTOL Fixed Wing Aircraft Long Shaft Motor KV220/KV380
Brand: LIGPOWER
SKU: LIGPOWER000949
Price: 139.00 USD
Availability: InStock

Detail information
Specifications

About LIGPOWER AT5220B 20-25CC VTOL Fixed Wing Aircraft Long Shaft Motor

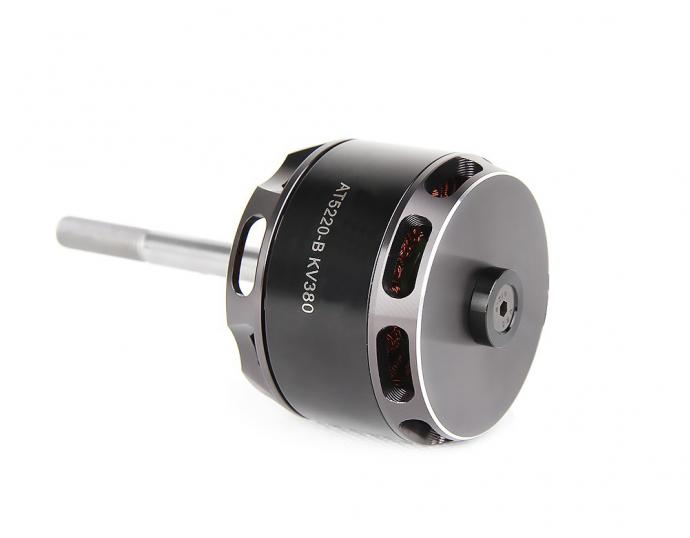

LIGPOWER AT5220 BLDC motor features with two different mounting way.. One for fixed-wing, and another output of the shaft for Mutlticopter.

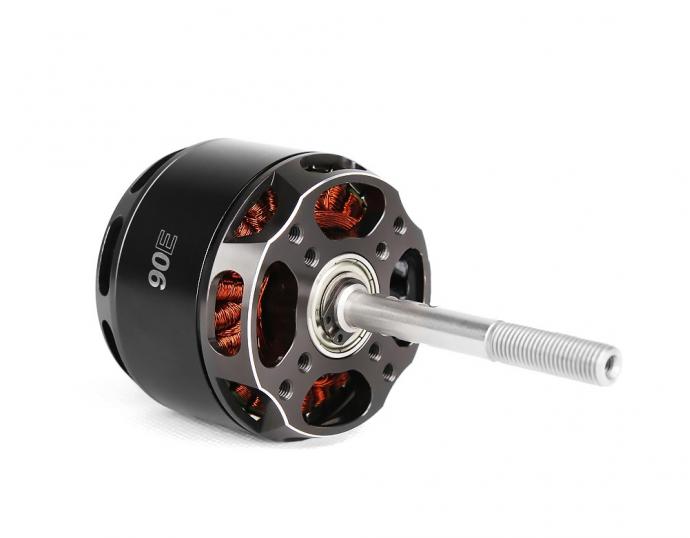

AT5220A and AT5220B together with 6s-12s lipos is capable to reach currents up to 100A shortly and is suitable for 90E-140E aircraft,corresponding to gasoline engine about 20-25CC.

The AT5220 supporting a maximum power of approximately 2700W.Recommended to be used with LIGPOWER AT115A .

AT5220B Highlights:

1 Thanks to the solid structure and high-quality materials, the AT52 series engines provide unparalleled reliability and durability, allowing you to fly with confidence.

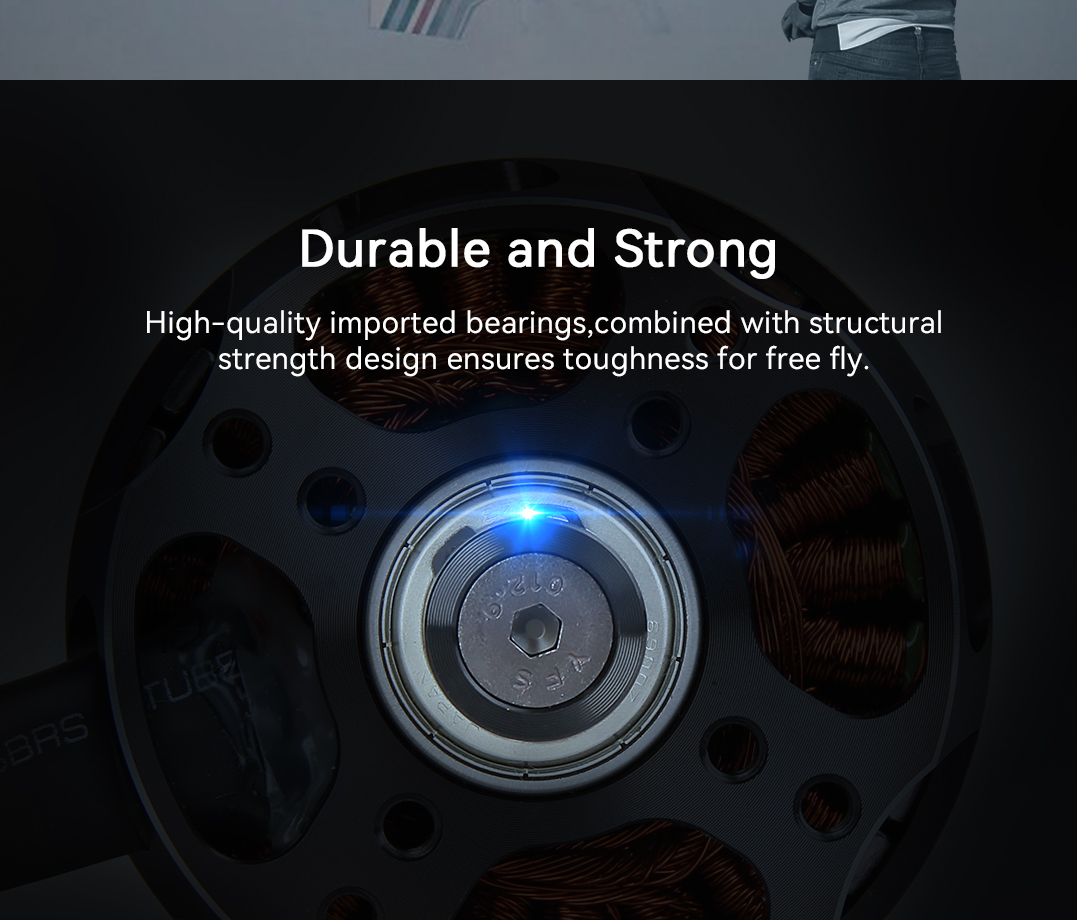

2.AT52 series engines use imported high-quality bearings and are designed with structural strength to be durable and reliable. Ensuring optimal engine performance and sustainable service life.

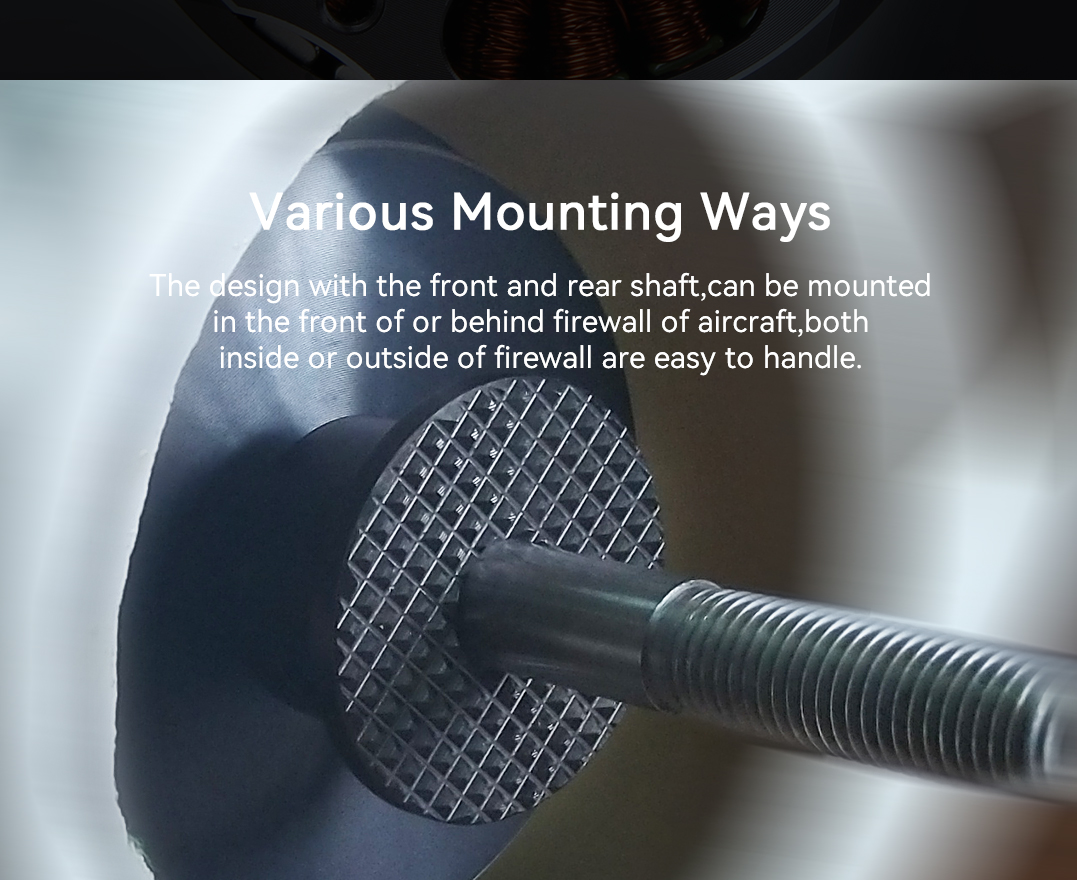

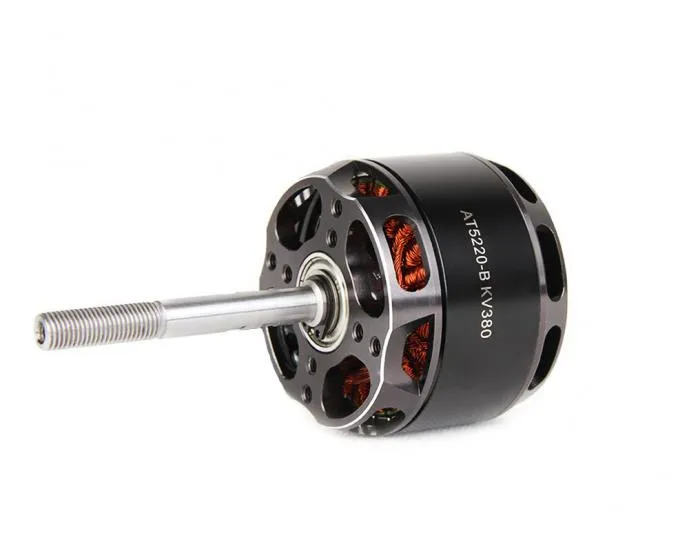

3.The steel shaft is divided into front-out shaft and rear-out shaft to adapt to various installation methods and meet the needs of different application scenarios.

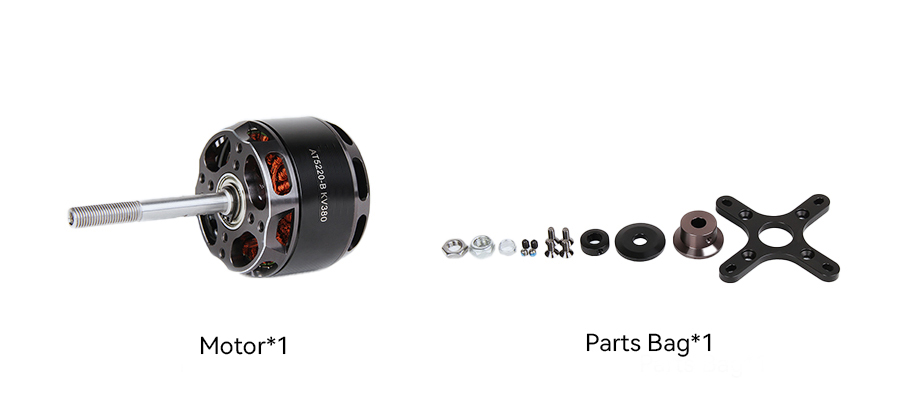

Packing List Includes:

1x LIGPOWER AT5220B Motor

1x Hardware pack

Matching Guide:

AT 115A ESC

powerful and balanced

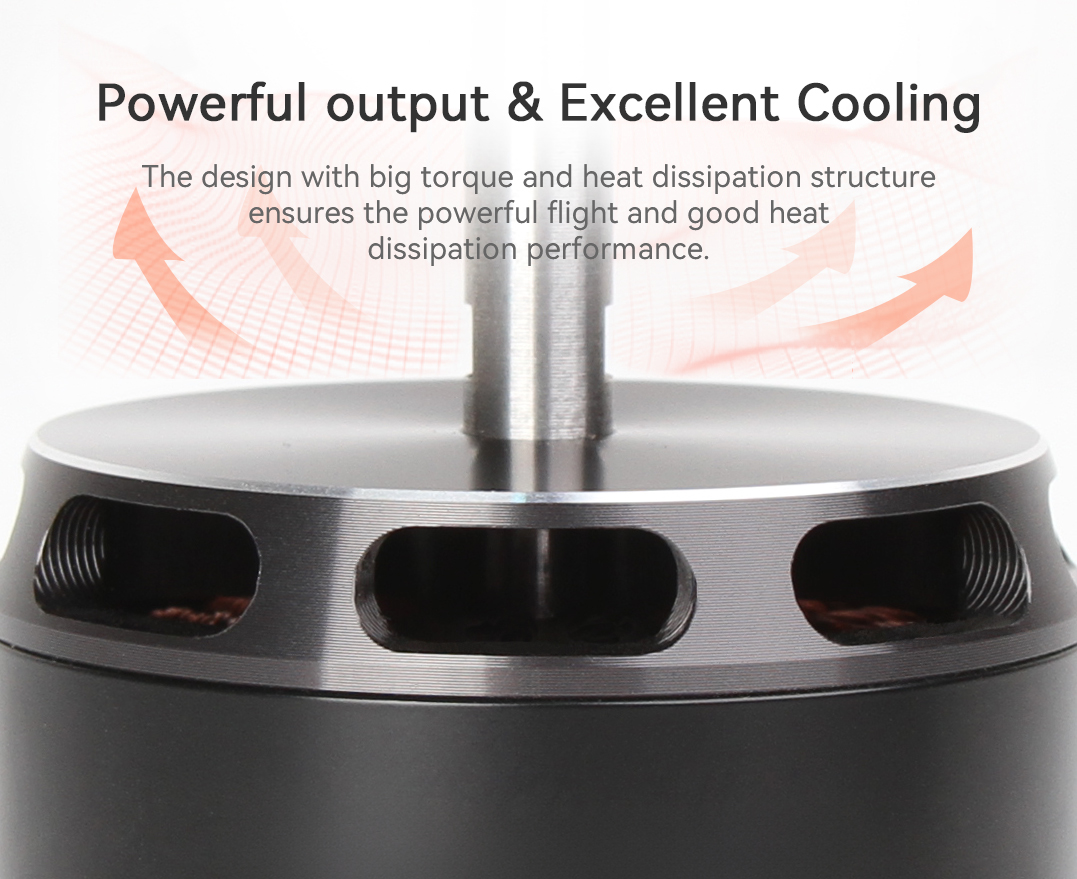

excellent cooling

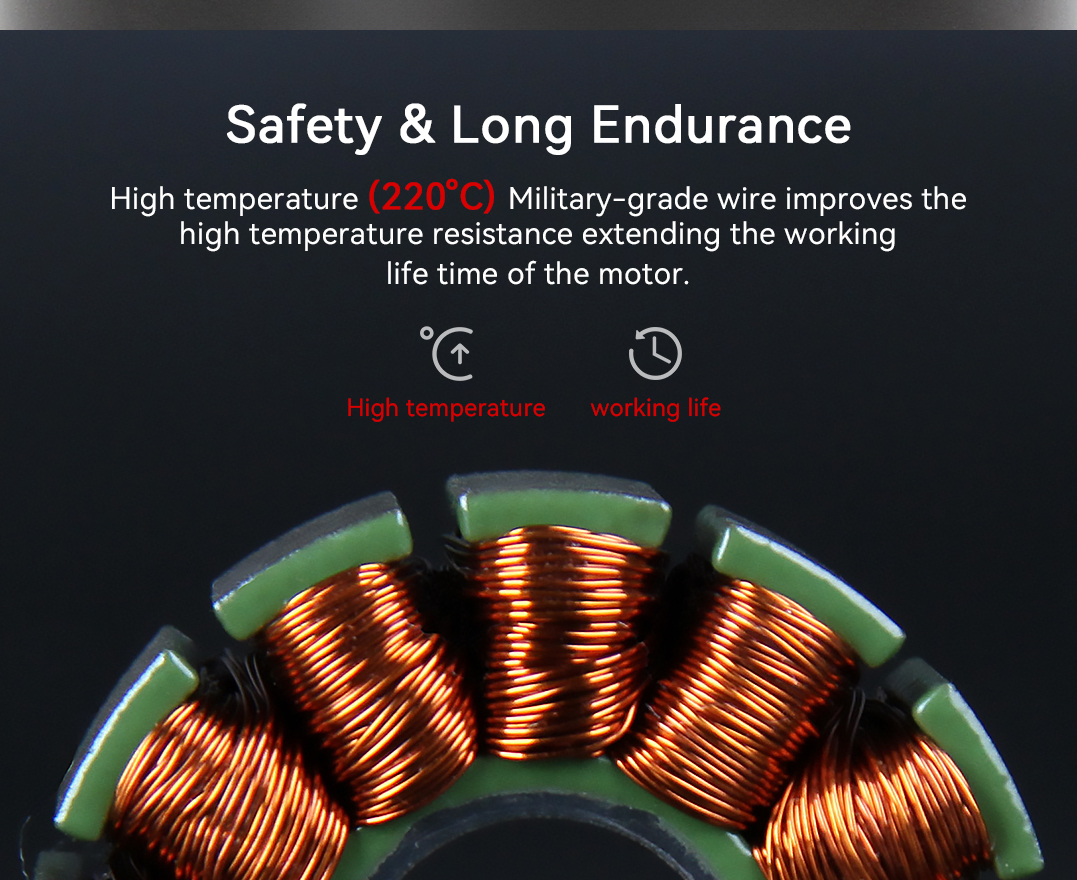

high temperature,working life

excellent control

high-quality imported bearings,durable and strong

various mounting ways

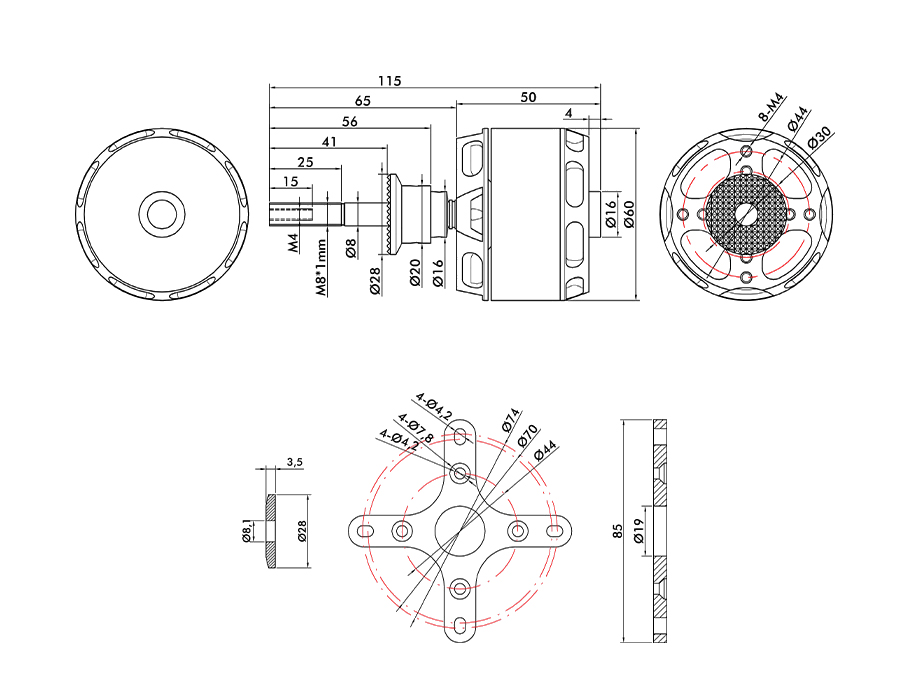

Technical Drawing


Specification

Test Item	Long Shaft KV220	Weight (Incl. Cable)	450g
Motor Dimensions	Φ60*120mm	Internal Resistance	36mΩ
Lead	Enameled Wire 100mm	Configuration	24N28P
Shaft Diameter	IN：10mm OUT：8mm	Rated Voltage(Lipo)	6-12S
Idle Current(10V)	1.8A	Peak Current(180s)	70A
Max Power (180S)	2700W	Recommendation	/

Test Item	Long Shaft KV380	Weight (Incl. Cable)	465g
Motor Dimensions	Φ60*120mm	Internal Resistance	11mΩ
Lead	Enameled Wire 100mm	Configuration	24N28P
Shaft Diameter	IN：10mm OUT：8mm	Rated Voltage(Lipo)	6S
Idle Current(10V)	4.0A	Peak Current(180s)	100A
Max Power (180S)	2200W	Recommendation	/

Test Data

Type	Propeller	Throttle	Voltage (V)	Current (A)	Power (W)	RPM	Torque (N*m)	Thrust (g)	Efficiency (g/W)	Operating Temperature (℃)
AT5220-B Long Shaft KV220	APC 18*8	40%	44.30	4.27	189.20	3585	0.383	1469	7.77	81 (Ambient Temperature: /)
		45%	44.27	5.57	246.66	3980	0.460	1818	7.37
		50%	44.20	8.59	379.74	4592	0.600	2446	6.44
		55%	44.13	11.17	492.86	5055	0.745	3009	6.11
		60%	44.08	13.86	611.06	5473	0.857	3502	5.73
		65%	44.01	16.93	611.06	5839	0.991	4080	5.48
		70%	43.93	20.49	900.27	6232	1.131	4668	5.19
		75%	43.84	24.92	1092.62	6656	1.326	5323	4.87
		80%	43.75	29.00	1092.62	6969	1.466	5924	4.67
		90%	43.54	38.65	1682.85	7614	1.757	7142	4.24
		100%	43.33	48.86	2116.80	8141	2.037	8185	3.87
	FALCON 18*10	40%	44.30	4.71	208.48	3526	0.435	1529	7.33	95 (Ambient Temperature: /)
		45%	44.26	6.17	272.92	3909	0.530	1899	6.96
		50%	44.18	9.60	424.00	4500	0.697	2555	6.03
		55%	44.13	12.30	542.84	4957	0.871	3100	5.71
		60%	44.06	15.45	680.69	5393	1.055	3670	5.39
		65%	43.98	18.85	829.10	5756	1.185	4218	5.09
		70%	43.91	22.54	989.79	6131	1.328	4818	4.87
		75%	43.79	27.63	1210.20	6541	1.486	5470	4.52
		80%	43.69	32.51	1420.65	6817	1.634	5725	4.03
		90%	43.46	43.51	1891.09	7420	2.049	6819	3.61
		100%	43.22	54.71	2364.75	7936	2.354	7806	3.30
	FALCON 19*10	40%	44.27	5.10	225.98	3480	0.482	1730	7.66	106 (Ambient Temperature: /)
		45%	44.24	6.73	297.83	3853	0.578	2172	7.29
		50%	44.15	10.39	458.61	4423	0.779	2894	6.31
		55%	44.07	13.85	610.43	4895	0.929	3525	5.78
		60%	43.99	17.53	771.33	5314	1.099	4220	5.47
		65%	43.92	21.04	924.14	5651	1.240	4817	5.21
		70%	43.82	25.78	1129.54	6007	1.422	5554	4.92
		75%	43.71	30.89	1350.43	6387	1.585	6236	4.62
		80%	43.61	35.84	1562.82	6691	1.790	6884	4.41
		90%	43.37	47.17	2045.77	7289	2.132	8240	4.03
		100%	43.11	59.53	2566.74	7781	2.468	9499	3.70
Note: Motor temperature is motor surface temperature at 100% throttle running 3mins. (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)
AT5220-B Long Shaft KV380	APC 18*8	40%	22.02	8.48	186.80	3491	0.373	1426	7.63	74 (Ambient Temperature: /)
		45%	21.96	11.05	242.62	3867	0.470	1757	7.24
		50%	21.83	17.22	375.97	4437	0.614	2367	6.29
		55%	21.74	21.32	463.48	4818	0.724	2787	6.01
		60%	21.63	26.63	576.14	5238	0.854	3273	5.68
		65%	21.53	31.43	676.66	5536	0.939	3696	5.46
		70%	21.41	37.34	799.35	5876	1.054	4117	5.15
		75%	21.24	44.95	954.74	6211	1.260	4560	4.78
		80%	21.09	51.43	1084.83	6476	1.518	5000	4.61
		90%	20.78	66.45	1380.62	7006	1.698	5903	4.28
		100%	20.43	82.27	1680.38	7422	1.900	6733	4.01
	FALCON 18*10	40%	22.02	9.29	204.46	3393	0.387	1452	7.10	81 (Ambient Temperature: /)
		45%	21.97	11.85	260.37	3748	0.461	1741	6.69
		50%	21.87	16.83	368.06	4203	0.587	2215	6.02
		55%	21.73	23.19	503.81	4676	0.733	2734	5.43
		60%	21.61	28.99	626.57	5080	0.885	3267	5.21
		65%	21.50	34.13	733.94	5385	1.024	3687	5.02
		70%	21.37	40.60	867.53	5700	1.139	4162	4.80
		75%	21.21	48.06	1019.47	6003	1.259	4651	4.56
		80%	21.07	54.89	1156.66	6270	1.370	5092	4.40
		90%	20.70	72.94	1509.93	6723	1.629	5636	3.73
		100%	20.34	90.14	1833.17	7128	1.853	6328	3.45
	FALCON 19*10	40%	22.00	10.36	227.99	3370	0.459	1718	7.54	91 (Ambient Temperature: /)
		45%	21.94	13.29	291.53	3739	0.537	2038	6.99
		50%	21.84	18.44	402.67	4155	0.685	2584	6.42
		55%	21.67	26.22	568.26	4635	0.842	3168	5.58
		60%	21.53	33.20	714.61	5031	1.014	3807	5.33
		65%	21.42	38.67	828.27	5325	1.114	4233	5.11
		70%	21.28	45.61	970.30	5624	1.226	4684	4.83
		75%	21.10	54.16	1142.78	5924	1.364	5250	4.59
		80%	20.95	61.71	1292.68	6172	1.479	5697	4.41
		90%	20.58	79.40	1634.41	6640	1.716	6703	4.10
		100%	20.21	96.83	1956.90	7020	1.921	7516	3.84
Note: Motor temperature is motor surface temperature at 100% throttle running 3mins. (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)
