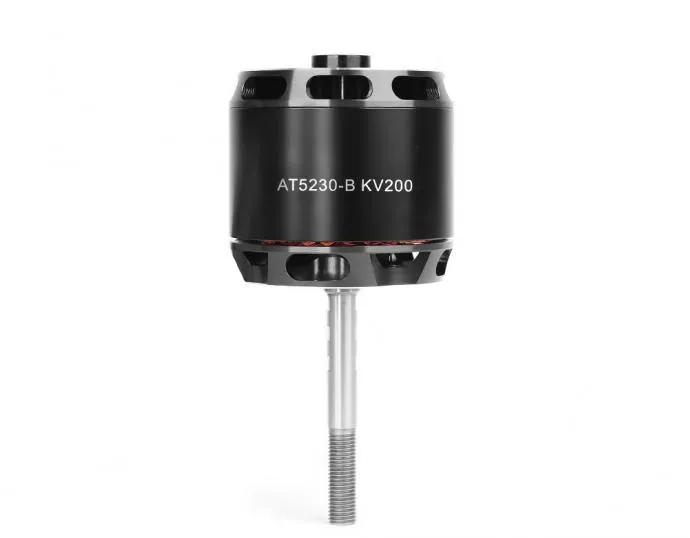

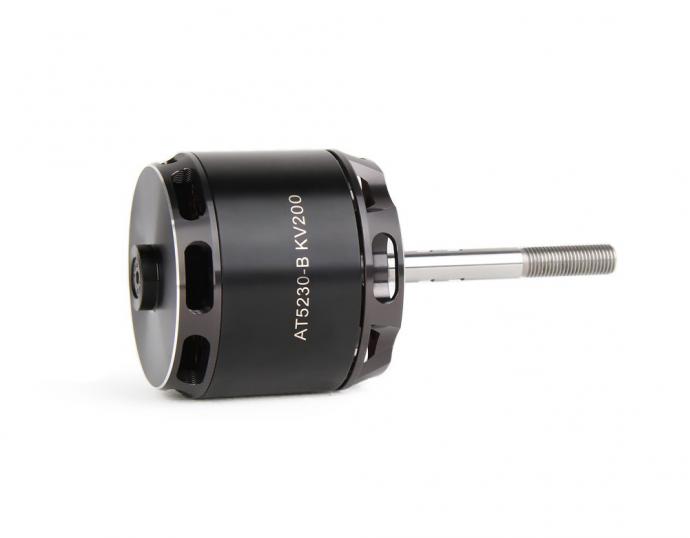

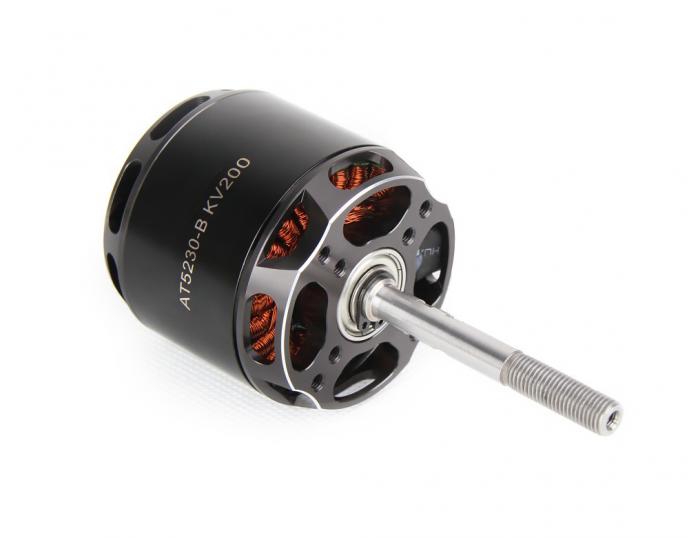

Name: T-MOTOR AT5230B 25-30CC VTOL Fixed Wing Aircraft Shaft Motor KV200
Brand: LIGPOWER
SKU: LIGPOWER000951
Price: 149.00 USD
Availability: InStock

T-MOTOR AT5230B 25-30CC VTOL Fixed Wing Aircraft Shaft Motor KV200

149.00

Available points: 7500 Points Points reward: 149 Points

• Packaging Weight：800g; Packaging size：185*105*75mm
• AT52 series are suitable for 90E-140E aircraft,corresponding to gasoline engine about 25-30CC

KV：

KV200

Quantity：

149.00

Free Shipping by DHL/UPS Express

Detail information
Specifications

About T-MOTOR AT5220B 25-30CC VTOL Fixed Wing Aircraft Shaft Motor

T-MOTOR AT5230B is a hi-end motor suitable for VTOL UAV fixed wing larger airplanes of the Outdoor category.

features with excellent heat dissipation structure which ensures the powerful flight. 3500W maximum power which give strong power for 30CC RC airplane.

It is support 6-12s lipos with T-MOTOR AT115A.

AT5220B Highlights:

1 Thanks to the solid structure and high-quality materials, the AT52 series engines provide unparalleled reliability and durability, allowing you to fly with confidence.

2.AT52 series engines use imported high-quality bearings and are designed with structural strength to be durable and reliable. Ensuring optimal engine performance and sustainable service life.

3.The steel shaft is divided into front-out shaft and rear-out shaft to adapt to various installation methods and meet the needs of different application scenarios.

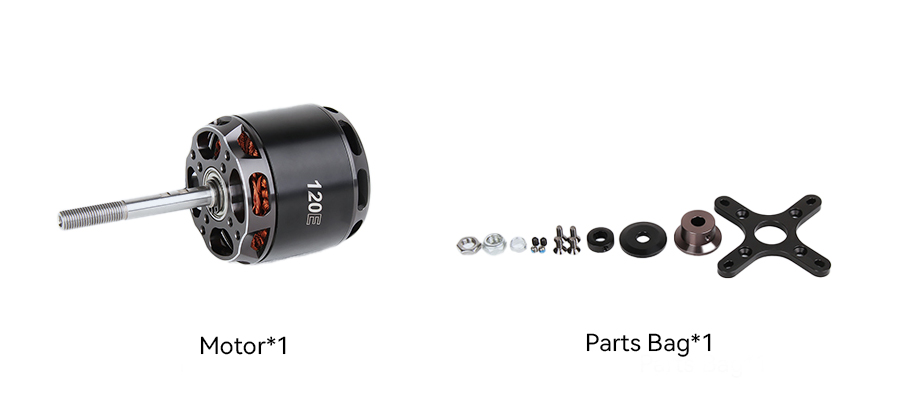

Packing List Includes:

1x T-MOTOR AT5230B Motor

1x Hardware pack

Matching Guide:

AT 115A ESC

powerful and balanced

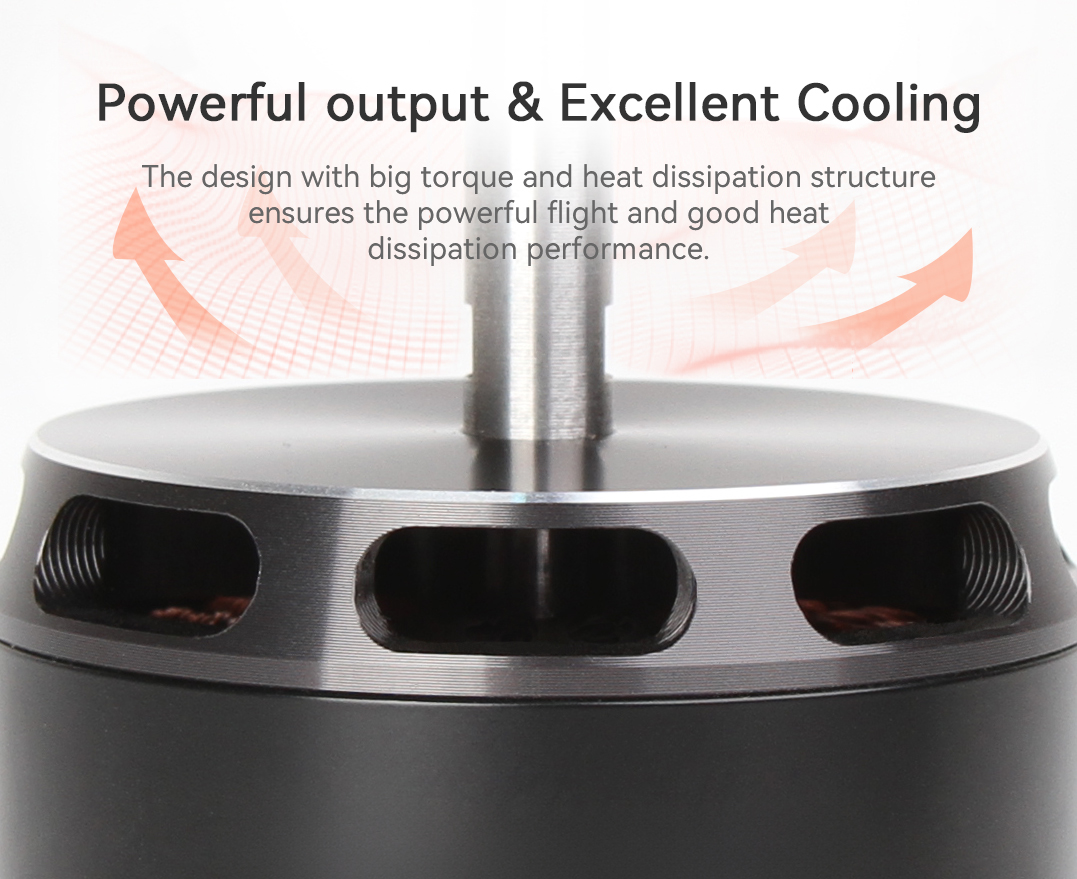

excellent cooling

high temperature,working life

excellent control

high-quality imported bearings,durable and strong

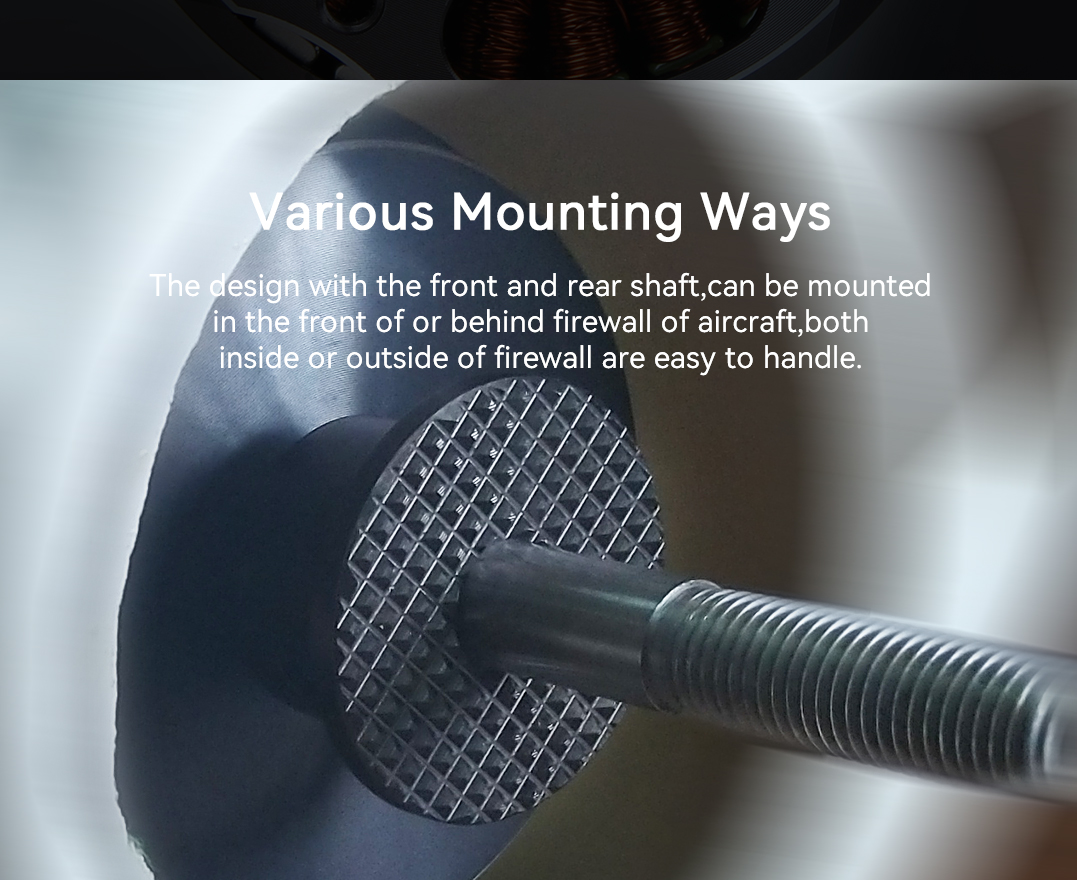

various mounting ways

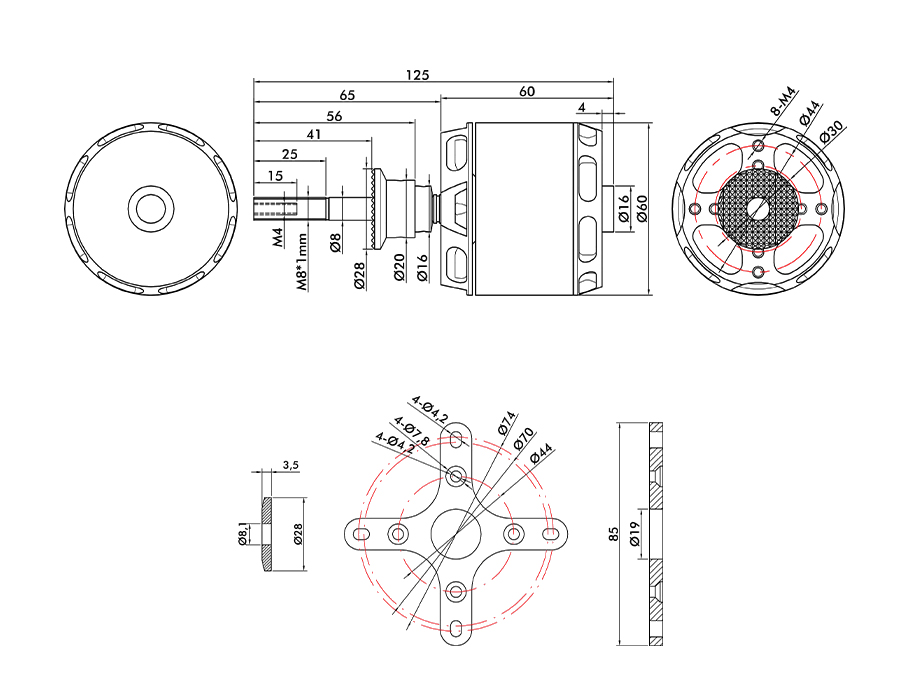

Technical Drawing


Specification Export to Excel

Test Item	Long Shaft KV200	Weight (Incl. Cable)	610g
Motor Dimensions	Φ60*130mm	Internal Resistance	22mΩ
Lead	Enameled Wire 100mm	Configuration	24N28P
Shaft Diameter	IN：10mm OUT：8mm	Rated Voltage(Lipo)	6-12S
Idle Current(10V)	2.7A	Peak Current(180s)	75A
Max Power (180S)	3500W	Recommendation	/

Test Data Export to Excel

Type	Propeller	Throttle	Voltage (V)	Current (A)	Power (W)	RPM	Torque (N*m)	Thrust (g)	Efficiency (g/W)	Operating Temperature (℃)
AT5230-B Long Shaft KV200	FALCON 20*10	40%	36.88	5.40	199.02	3032	0.460	1603	8.05	78 (Ambient Temperature: /)
		45%	36.84	7.06	260.13	3378	0.561	1987	7.64
		50%	36.78	9.60	353.20	3785	0.685	2488	7.05
		55%	36.70	13.09	480.52	4211	0.837	3091	6.43
		60%	36.63	16.86	617.35	4649	0.999	3750	6.08
		65%	36.56	20.15	736.66	4971	1.131	4263	5.79
		70%	36.45	24.81	904.39	5309	1.295	4918	5.44
		75%	36.35	29.62	1076.71	5656	1.461	5585	5.19
		80%	36.25	34.44	1248.34	5941	1.615	6214	4.98
		90%	36.02	45.45	1637.06	6514	2.089	7553	4.61
		100%	35.77	57.41	2053.49	6973	2.434	8905	4.34
	FALCON 21*10	40%	36.85	6.17	227.25	2993	0.551	1899	8.36	86 (Ambient Temperature: /)
		45%	36.81	8.07	297.08	3321	0.656	2346	7.90
		50%	36.75	11.07	406.83	3716	0.896	2984	7.34
		55%	36.67	14.89	546.11	4119	0.991	3652	6.69
		60%	36.55	19.99	730.83	4567	1.212	4493	6.15
		65%	36.46	24.19	882.01	4875	1.469	5148	5.84
		70%	36.36	29.07	1056.84	5201	1.697	5868	5.55
		75%	36.23	35.04	1269.71	5521	1.898	6707	5.28
		80%	36.13	40.18	1451.84	5798	2.055	7330	5.05
		90%	35.85	53.34	1912.21	6314	2.608	8884	4.65
		100%	35.56	66.54	2366.34	6765	2.977	10167	4.30
	FALCON 22*10	40%	36.84	6.98	257.14	2924	0.666	2212	8.60	102 (Ambient Temperature: /)
		45%	36.78	9.27	340.87	3248	0.785	2733	8.02
		50%	36.70	12.83	470.96	3634	1.041	3463	7.35
		55%	36.61	17.30	633.17	4028	1.205	4210	6.65
		60%	36.48	23.56	859.54	4470	1.479	5212	6.06
		65%	36.39	27.79	1011.32	4753	1.720	5925	5.86
		70%	36.26	33.81	1226.09	5067	1.979	6726	5.49
		75%	36.12	40.68	1469.54	5367	2.216	7649	5.20
		80%	35.99	46.54	1675.26	5624	2.397	8345	4.98
		90%	35.67	61.48	2193.17	6105	2.852	10003	4.56
		100%	35.35	76.51	2704.98	6518	3.339	11500	4.25
Note: Motor temperature is motor surface temperature at 100% throttle running 3mins. (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)
AT5230-B Long Shaft KV200	FALCON 18*10	40%	44.27	5.74	254.19	3654	0.496	1681	6.61	83 (Ambient Temperature: /)
		45%	44.23	7.45	329.50	4058	0.599	2079	6.31
		50%	44.15	11.13	491.43	4679	0.751	2760	5.62
		55%	44.07	14.49	638.51	5134	0.932	3315	5.19
		60%	44.00	17.60	774.52	5551	1.089	3898	5.03
		65%	43.94	20.84	915.83	5913	1.227	4453	4.86
		70%	43.84	25.66	1124.70	6340	1.499	5209	4.63
		75%	43.73	30.91	1351.62	6754	1.689	5892	4.36
		80%	43.61	36.43	1588.96	7078	1.850	6249	3.93
		90%	43.36	48.53	2104.20	7736	2.238	7296	3.47
		100%	43.06	62.54	2692.85	8280	2.643	8111	3.01
	FALCON 19*10	40%	44.27	6.12	270.98	3609	0.546	1894	6.99	92 (Ambient Temperature: /)
		45%	44.23	7.99	353.32	4010	0.653	2317	6.56
		50%	44.13	12.47	550.33	4619	0.863	3190	5.80
		55%	44.05	15.71	691.84	5048	1.007	3781	5.47
		60%	43.98	19.51	858.14	5477	1.173	4473	5.21
		65%	43.89	23.39	1026.35	5822	1.318	5069	4.94
		70%	43.78	28.55	1250.05	6249	1.503	5841	4.67
		75%	43.65	34.74	1516.66	6647	1.711	6712	4.43
		80%	43.54	40.31	1755.18	6965	1.895	7455	4.25
		90%	43.26	53.73	2324.24	7599	2.289	8993	3.87
		100%	42.97	67.29	2891.43	8139	2.685	10263	3.55
	FALCON 20*10	40%	44.24	6.89	304.73	3559	0.604	2200	7.22	100 (Ambient Temperature: /)
		45%	44.20	8.93	394.77	3940	0.734	2711	6.87
		50%	44.10	13.71	604.51	4540	0.961	3623	5.99
		55%	44.01	17.55	772.57	4964	1.149	4365	5.65
		60%	43.92	21.86	960.16	5400	1.336	5109	5.32
		65%	43.83	25.99	1139.25	5749	1.501	5784	5.08
		70%	43.72	31.56	1379.72	6145	1.712	6639	4.81
		75%	43.57	38.29	1668.41	6535	1.934	7529	4.51
		80%	43.45	44.35	1926.74	6849	2.137	8337	4.33
		90%	43.13	59.00	2544.65	7462	2.573	10079	3.96
		100%	42.80	74.31	3180.32	7973	2.990	11641	3.66
Note: Motor temperature is motor surface temperature at 100% throttle running 3mins. (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)

Packing List


Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
