Name: T-MOTOR AT5330A 25-30CC VTOL Fixed Wing Aircraft Shaft Motor KV220
Brand: LIGPOWER
SKU: LIGPOWER001122
Price: 179.00 USD
Availability: InStock

T-MOTOR AT5330A 25-30CC VTOL Fixed Wing Aircraft Shaft Motor KV220

179.00

Available points: 9000 Points Points reward: 179 Points

• Packaging Weight：900g
• Packaging size：185*105*75mm

KV：

KV220

Quantity：

179.00

Free Shipping by DHL/UPS Express

Detail information
Specifications

About T-MOTOR AT5330A 25-30CC VTOL Fixed Wing Aircraft Shaft Motor

T-MOTOR AT5330A is a hi-end motor suitable for VTOL UAV fixed wing larger airplanes of the Outdoor category.

features with excellent heat dissipation structure which ensures the powerful flight. 3500W maximum power which give strong power for 30CC RC airplane.

It is support 6-12s lipos with T-MOTOR AT115A.

AT5330A Highlights:

1 Thanks to the solid structure and high-quality materials, the AT53 series engines provide unparalleled reliability and durability, allowing you to fly with confidence.

2.AT53 series engines use imported high-quality bearings and are designed with structural strength to be durable and reliable. Ensuring optimal engine performance and sustainable service life.

3.The steel shaft is divided into front-out shaft and rear-out shaft to adapt to various installation methods and meet the needs of different application scenarios.

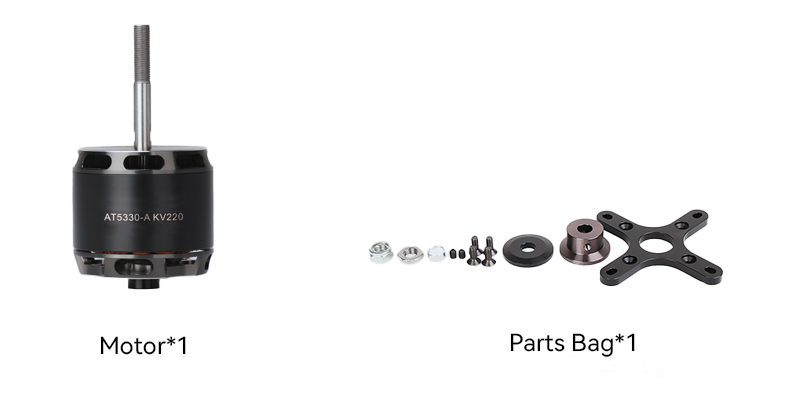

Packing List Includes:

1x T-MOTOR AT5330A Motor

1x Hardware pack

Matching Guide:

AT 115A ESC

fast response speed and long endurance flight

Detailed parameters

linear throttle output,more stable and more energy-efficient

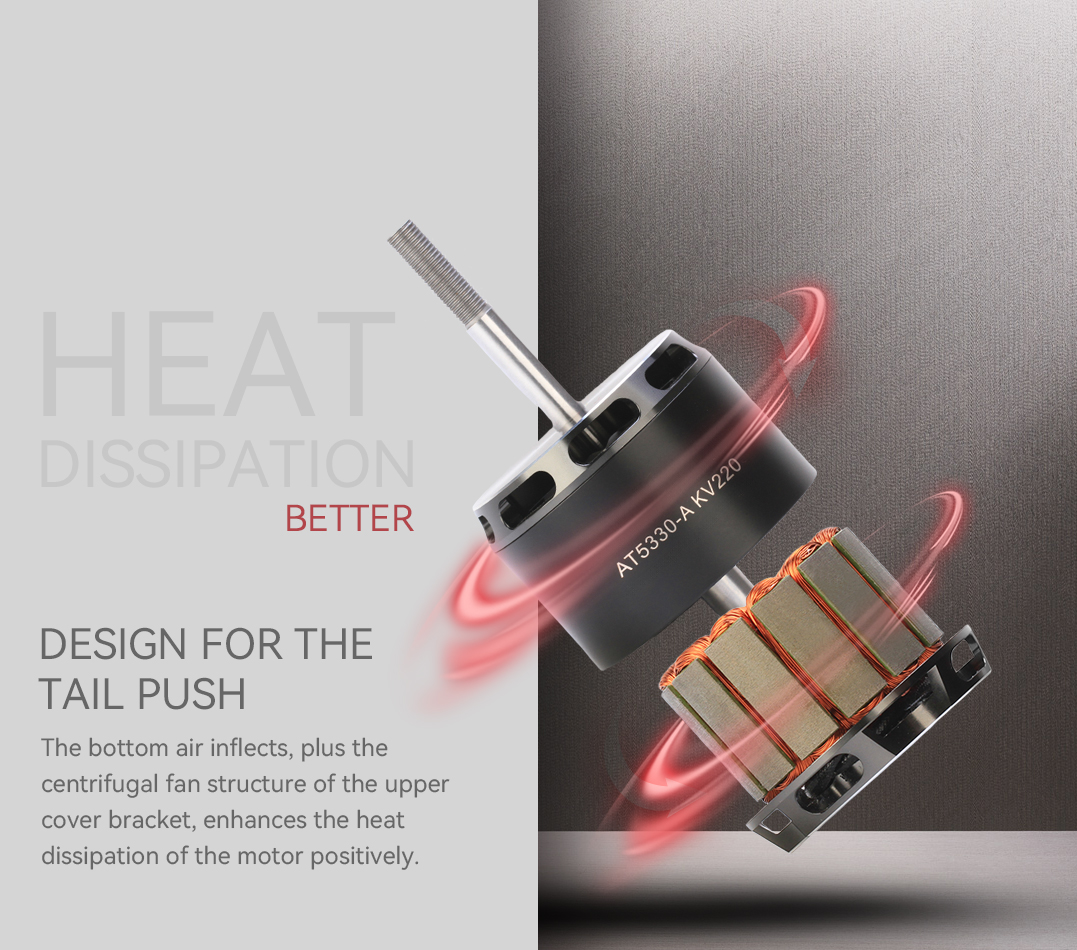

Better heat dissipation

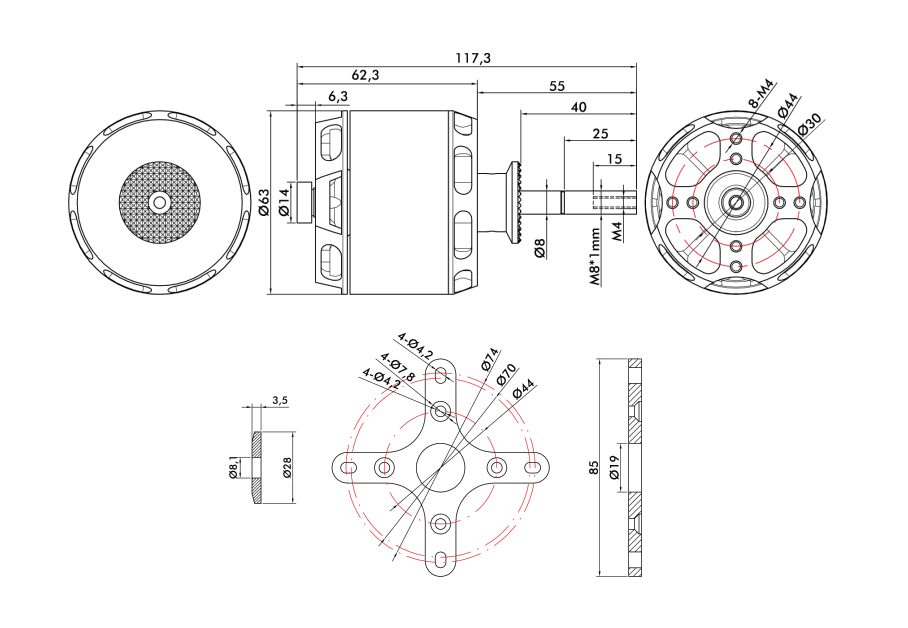

Technical Drawing


Specification Export to Excel

Model No./ Kv	AT5330 KV220	Magnet Temperature Resistance Grade	150℃
Motor Size (mm)	Φ63*117.3	Lead (mm)	Enameled Wire 100
Stator Technology	Anti-rust treatment; 180°C high temperature-resisting coatings	Enamelled Wires Temperature Resistance Grade	Class C 220℃
Configuration	12N14P	Coil Withdraw Voltage	1000V/5s
Shaft Diameter (mm)	IN:10 OUT:8	Rotor Dynamic Balance Standard	≤5mg
Bearing	Imported 6800/6900ZZ	IP	IP35

KV Value	KV220	Battery (lipo)/Voltage Recommendation	12S（4.2V/Sl）/42-52V
Idle Current (18V)	3.0A	ESC Recommendation	AT115A (6-12S)
Peak Current (A)	75A/Continuous180s	Propeller Recommendation	18-20 inch
Max. Power (W)	3600W/Continuous 180s	Motor Weight (g)	Weight (incl. cables) 685g
In ternal Resistance (mΩ)	24	Package Weight (g)	900g

Stern thrust T-MOTOR	AT5330 KV220	VTOL Motor	V605 KV210
Stern thrust propeller recommendation	18-20寸	VTOL Prop	V22*7.4
Stern thrust ESC recommendation	AT115A（6-12S）	VTOL ESC	FLAME 80A HV
Stern thrust battery (Lipo)/voltage recommendation	12S（4.2V/Sl）/42-52V	VTOL Battery (Lipo)/ Voltage	12S（4.2V/Sl）/42-52V
Stern thrust pull recommendation(kg)	4-6	VTOL Thrust per Motor	4.5-6
MTOW (Quad) (kg)	18-24

Test Data Export to Excel

Item No.	Prop	Throttle	Voltage (V)	Thrust (g)	Torque (N*m)	Current (A)	RPM	Inputpower (W)	Efficiency (g/W)	Operating Temperature (℃)
AT5330 KV220	18*10	40%	44.20	1665	0.41	5.44	3555	240.50	6.92	77℃
		45%	44.17	2066	0.51	7.04	3949	310.84	6.65
		50%	44.11	2568	0.62	9.44	4390	416.30	6.17
		55%	44.03	3202	0.78	13.06	4885	574.96	5.57
		60%	43.98	3754	0.93	16.21	5277	712.74	5.27
		65%	43.92	4285	1.07	19.45	5642	854.21	5.02
		70%	43.82	4763	1.29	24.48	6040	1072.85	4.44
		75%	43.73	5409	1.49	29.84	6448	1304.90	4.15
		80%	43.62	6067	1.68	35.33	6803	1540.79	3.94
		90%	43.40	7404	2.08	47.89	7488	2078.38	3.56
		100%	43.07	8276	2.61	65.34	8075	2814.25	2.94
	19*10	40%	44.18	1936	0.48	6.20	3509	273.70	7.08	91℃
		45%	44.13	2403	0.59	8.01	3899	353.38	6.80
		50%	44.04	2967	0.73	10.86	4324	478.30	6.20
		55%	43.74	3702	0.92	15.10	4807	660.32	5.61
		60%	43.65	4324	1.07	18.49	5185	806.94	5.36
		65%	43.61	4958	1.22	21.93	5538	956.50	5.18
		70%	43.52	5729	1.41	27.05	5934	1177.09	4.87
		75%	43.43	6581	1.63	32.99	6340	1433.07	4.59
		80%	43.31	7329	1.82	38.51	6664	1668.08	4.39
		90%	43.06	8964	2.25	52.12	7313	2244.06	3.99
		100%	42.76	10518	2.73	68.92	7898	2947.27	3.57
	20*10	40%	44.06	2201	0.54	6.71	3471	295.50	7.45	102℃
		45%	43.94	2733	0.67	8.96	3852	393.75	6.94
		50%	43.86	3371	0.83	11.91	4267	522.49	6.45
		55%	43.66	4156	1.02	16.38	4728	715.04	5.81
		60%	43.55	4883	1.20	20.41	5115	888.92	5.49
		65%	43.51	5591	1.37	24.49	5465	1065.78	5.25
		70%	43.44	6444	1.59	29.82	5842	1295.52	4.97
		75%	43.28	7399	1.82	36.33	6223	1572.19	4.71
		80%	43.17	8248	2.04	42.50	6544	1834.72	4.50
		90%	43.00	10062	2.51	57.58	7189	2475.76	4.06
		100%	42.68	11913	3.00	75.34	7756	3215.34	3.70
Notes：Motor temperature is the motor surface temperature aftering running at 100% for 3 mins. (Based on T-MOTOR test bench(es), all data are for reference only. T-MOTOR reserves the right of final interpretation. )

Packing List


Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
