T-HOBBY Black Friday 2207 Fpv Motor

Name: T-HOBBY Black Friday 2207 Fpv Motor
Brand: LIGPOWER
SKU: ligpower001259
Price: 19.90 USD
Availability: InStock

19.90

Available points: 20 Points Points reward: 19 Points

Color：

Grey
Blue

Quantity：

19.90

Free Shipping by DHL/UPS Express

Detail information
Specifications

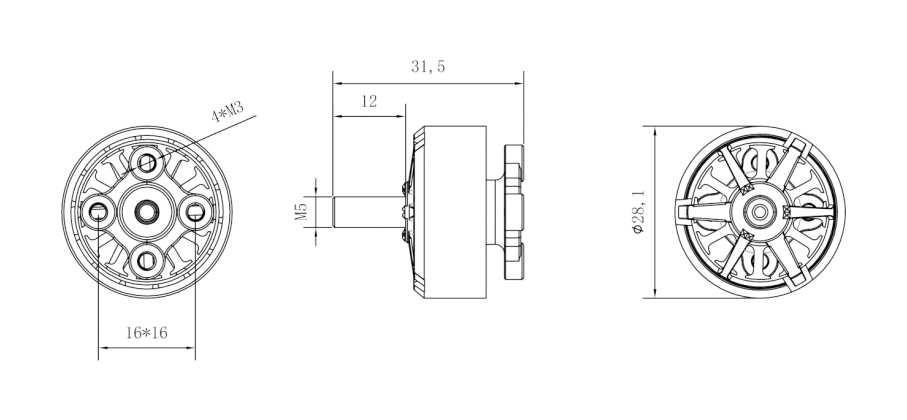

Technical Drawing

Specification

KV	1950KV	Configuration	12N14P
Shaft Diameter	4mm	Lead	20#150mm
Weight (Incl. Cable)	34.4g	Voltage	6S
Idle Current（10V）	1.34A	Max. Power（10s）	1144W
Peak Current（10s）	46.7A

Test Data

Propeller	Type	Throttle	Voltage (V)	Current (A)	RPM	Thrust (g)	Power (W)	Efficiency (g/W)
T-HOBBY T5147-3	1950KV	20%	25.2	2.7	11926.5	240.9	67.0	3.60
		40%	25.1	8.6	18157	580.6	216.3	2.68
		60%	24.9	17.9	22423.3	928.3	445.2	2.09
		80%	24.7	30.1	27342.3	1418.0	743.2	1.91
		100%	24.5	46.7	31131.1	1752.6	1143.8	1.53
T-HOBBY P49436-3	1950KV	20%	25.2	2.5	13097.1	212.6	63.4	3.35
		40%	25.1	8.3	19778.9	512.1	207.9	2.46
		60%	25.0	15.4	24011.2	796.6	384.9	2.07
		80%	24.8	25.5	29120.1	1195.9	633.3	1.89
		100%	24.6	42.3	33951.6	1590.9	1039.4	1.53
T-HOBBY T5143S-3	1950KV	20%	25.2	2.6	12967.3	210.3	64.3	3.27
		40%	25.1	8.4	19558.1	525.6	210.3	2.50
		60%	25.0	15.6	23911.6	803.0	388.5	2.07
		80%	24.8	25.7	29051	1188.7	638.2	1.86
		100%	24.5	42.6	33738.9	1594.0	1045.7	1.52

Analysis Chart

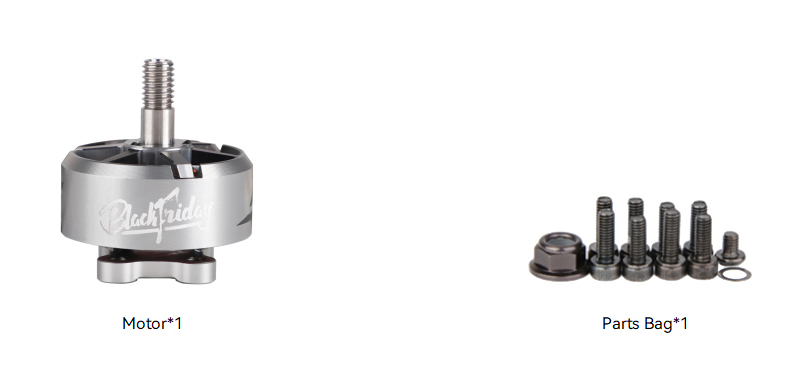

Packing List


Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
