Collect

T-HOBBY Christmas Edition 2207.5 Fpv Motor 1950KV

Name: T-HOBBY Christmas Edition 2207.5 Fpv Motor 1950KV
Brand: LIGPOWER
SKU: ligpower001271
Price: 20.90 USD
Availability: InStock

20.90

Available points: 21 Points Points reward: 20 Points

Color：

Green
Red

Quantity：

20.90

Free Shipping by DHL/UPS Express

Detail information
Specifications

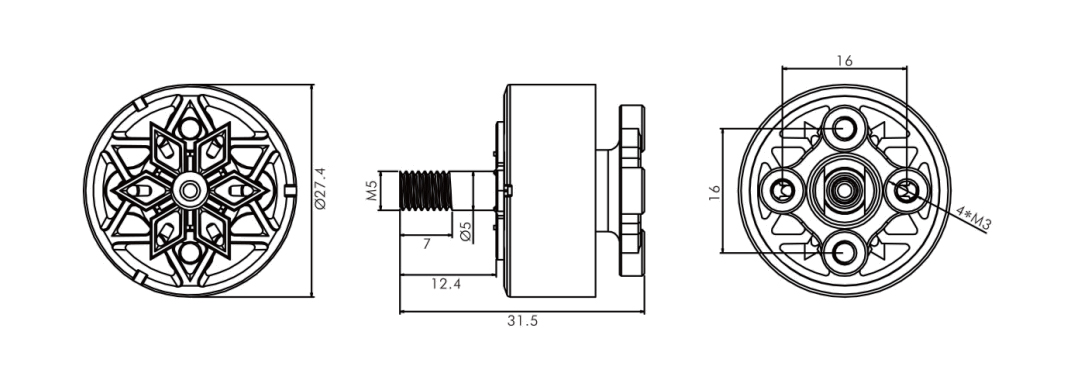

Technical Drawing

Specification Export to Excel

KV	KV1950	Configuration	12N14P
Shaft Diameter	IN:4mm OUT:5mm	Lead	20#150mm
Weight (Incl. Cable)	34.2g	Voltage	6S
Idle Current（10V）	1.25A	Max. Power（10s）	1126W
Peak Current（10s）	45.9A

Test Data Export to Excel

Propeller	Type	Throttle	Voltage (V)	Current (A)	RPM	Thrust (g)	Power (W)	Efficiency (g/W)
T5147-3 25.2V	1950KV	20%	25.20	2.60	11779	226.90	66.50	3.41
		40%	25.10	8.80	17976	589.30	221.00	2.67
		60%	25.00	17.00	22436	943.90	424.10	2.23
		80%	24.80	29.20	26957	1409.00	723.50	1.95
		100%	24.50	45.90	30929	1790.40	1126.20	1.59
P49436-3 25.2V	1950KV	20%	25.20	2.60	12998	224.50	64.70	3.47
		40%	25.10	8.30	19505	539.50	208.10	2.59
		60%	25.00	15.00	24023	831.00	375.90	2.21
		80%	24.80	24.80	28889	1223.20	615.90	1.99
		100%	24.60	41.10	33597	1616.60	1010.30	1.60
T5143S-3 25.2V	1950KV	20%	25.17	2.60	12799	211.70	65.40	3.24
		40%	25.09	8.37	19412	530.80	209.90	2.53
		60%	24.98	15.21	23895	814.80	380.10	2.14
		80%	24.84	25.09	28746	1186.00	623.20	1.90
		100%	24.60	41.18	33459	1586.40	1013.10	1.57

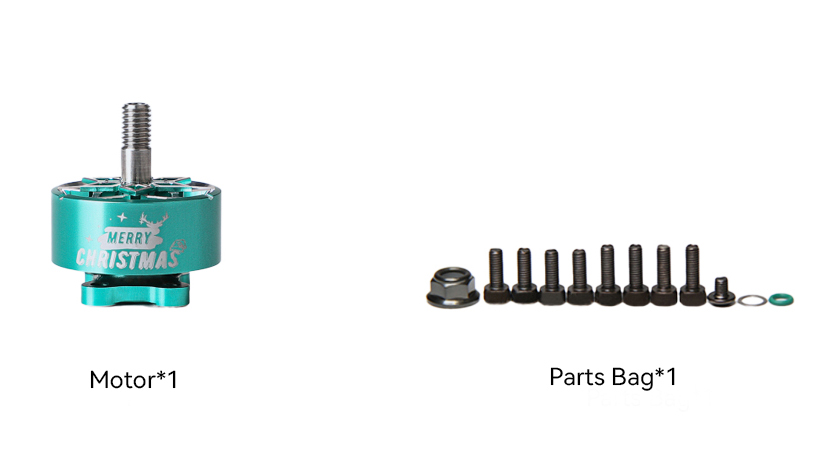

Packing List

Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
