T-HOBBY Cine30 6S FPV Motor for 3" Cinewhoop

Name: T-HOBBY Cine30 6S FPV Motor for 3" Cinewhoop
Brand: LIGPOWER
SKU: LIGPOWER001451
Price: 37.90 USD
Availability: InStock

37.90

Available points: 38 Points Points reward: 37 Points

PCS：

1Pcs
1Set(4Pcs)

Quantity：

37.90

Free Shipping by DHL/UPS Express

Detail information
Specifications

COMPREHENSIVE PROTECTION FOR SECURE FLIGHT

The integrated protective design effectively prevents sand, gravel, and dust from entering the motor during filming and take off/landing operations. The iron core undergoes electrophoretic coating treatment and has passed 72-hour salt spray test certification, ensuring reliable performance in moisture, dusty, and corrosive environments.

CORROSION
RESISTANT

SAND
RESISTANT

DUST
RESISTANT

ALL-ENVIRONMENT
RELIABILITY

HIGH-SPEED CHASING EFFORTLESS

Optimized electromagnetic design and excellent heat dissipation boost initial response and sustained power. Effortlessly chasing motorcycles and skiing action even with full-size GOPRO loads.

MULTI-FRAME COMPATIBLE BASE DESIGN

The non-protruding shaft screw configuration ensures compatibility with various frame types, allowing the motor to demonstrate exceptional performance across different application scenarios and frame configurations.

RECOMMENDED

CINE35

F7 45A AIO

Technical Drawing

Specification

Type	Cine30	Motor Dimension	Φ24.69*19.9mm
Magnet	Nickel platedarc magnet	Coil insulation test	200V withstandvoltage test
Waterproof anddustproof class	IP45	Configuration	12N14P
Dynamic balancerequirements standards	≤5mg	Bearings	Imported 683ZZ
Shaft Diameter	1.5mm	Lead	24AWG*150mm
Screw Diameter	Φ12-M2-4	Prop Adapter Shaft Thread	Φ5-M2-4
Packing Size	656555mm	Packing Weight	30g(1pcs)/125g(4pcs)

Tech Specs
Recommended Voltage	6S	Idle Current(10V)	1.1A
Max Power(1s)	323W	Internal Resistance	120mΩ
Rated Voltage (Lipo)	22.2V	Peak Current(1s)	25A
Max Thrust	715g	Weight (incl.cable)	18g

Recommended
Motor	Cine30 6S	Frame Type	Cinewhoop X4
Prop	GF D76-3	Lipo Cells	6S
ESC	F7 45A AIO 6S	Recommended takeoff weight range	Within 700g
FC	F7 45A AIO 7S	Max Takeoff Weight	1000g
Test Data:	1、1350mah 6s battery (216g), load weight 120g, AUW 570g, flight time 10 minutes. 2、1350mah 6s battery (216g), without payload, AUW 450g, flight time 13 minutes. 3、3000mah 6s battery (330g), without payload, AUW 564g, flight time 20 minutes.
Note: Recommend BL32 ESC settings: Startup power: 40%, Timing: 30, PWM frequency: 32K, for best efficiency and flight time experience (improper settings may cause desync)

Test Data

Type	Propeller	Voltage (V)	Throttle (%)	Current (A)	RPM	Thrust (g)	Power (W)	Efficiency (g/W)	Torque (N*m)	Operating Temperature (℃)
Cine30 6S	T-HOBBY T76S-3	24.04	10%	0.15	6157	14	4	3.93	0.00
		24.04	20%	0.64	11979	57	15	3.73	0.01	136 (Ambient temperature: 25℃)
		24.02	30%	1.65	17422	125	40	3.16	0.01
		23.99	40%	3.33	22253	210	80	2.63	0.02
		23.95	50%	6.04	26198	291	145	2.01	0.03
		23.91	60%	9.03	30637	404	216	1.87	0.04
		23.87	70%	12.39	33807	488	296	1.65	0.05
		23.81	80%	16.39	36452	577	390	1.48	0.06
		23.74	90%	20.54	38673	651	488	1.33	0.07
		23.68	100%	24.95	40346	702	591	1.19	0.07
Note: The motor temperature refers to the casing temperature after running at 80% throttle for 10 seconds. (The above data is obtained by T-HOBBY's independent platform test and is only for reference. The final interpretation right belongs to T-HOBBY.)
Cine30 6S	T-HOBBY T76S-3 (With Oddity frame)	24.02	10%	0.14	6755	16	3	4.82	0.00
		24.01	20%	0.58	12809	57	14	4.08	0.01	128 (Ambient temperature: 25℃)
		23.99	30%	1.42	18145	115	34	3.35	0.01
		23.95	40%	2.89	23041	189	69	2.73	0.02
		23.90	50%	5.06	27883	284	121	2.34	0.03
		23.83	60%	7.65	32180	379	182	2.08	0.04
		23.74	70%	10.75	35196	455	255	1.78	0.05
		23.65	80%	14.14	38520	551	334	1.65	0.06
		23.55	90%	18.24	40999	633	429	1.47	0.07
		23.44	100%	22.34	42816	699	524	1.34	0.07
Note: The motor temperature refers to the casing temperature after running at 80% throttle for 10 seconds. (The above data is obtained by T-HOBBY's independent platform test and is only for reference. The final interpretation right belongs to T-HOBBY.)
Cine30 6S	HQ DT76-3	24.04	10%	0.15	6350	13	4	3.64	0.00
		24.04	20%	0.59	12503	52	14	3.70	0.01	115 (Ambient temperature: 25℃)
		24.02	30%	1.45	18020	110	35	3.17	0.01
		24.00	40%	2.86	23081	188	69	2.73	0.02
		23.97	50%	5.05	28074	280	121	2.31	0.03
		23.93	60%	7.70	32423	380	184	2.06	0.04
		23.89	70%	10.93	35838	469	261	1.80	0.05
		23.84	80%	14.60	39206	565	348	1.62	0.06
		23.77	90%	18.82	41937	647	447	1.45	0.07
		23.70	100%	23.46	44086	722	556	1.30	0.07
Note: The motor temperature refers to the casing temperature after running at 80% throttle for 10 seconds. (The above data is obtained by T-HOBBY's independent platform test and is only for reference. The final interpretation right belongs to T-HOBBY.)
Cine30 6S	HQ DT76-3 (With Oddity frame)	24.02	10%	0.13	6741	13	3	4.24	0.00
		24.01	20%	0.55	12925	52	13	3.95	0.01	111 (Ambient temperature: 25℃)
		23.99	30%	1.31	18049	105	31	3.33	0.01
		23.96	40%	2.57	23138	176	62	2.86	0.02
		23.91	50%	4.51	27798	264	108	2.44	0.03
		23.85	60%	6.95	31995	353	166	2.13	0.04
		23.78	70%	9.67	35476	434	230	1.89	0.05
		23.68	80%	13.24	39149	533	313	1.70	0.06
		23.57	90%	17.38	42395	626	410	1.53	0.07
		23.47	100%	21.44	44626	692	503	1.38	0.07
Note: The motor temperature refers to the casing temperature after running at 80% throttle for 10 seconds. (The above data is obtained by T-HOBBY's independent platform test and is only for reference. The final interpretation right belongs to T-HOBBY.)
Cine30 6S	GF D75-3	24.04	10%	0.15	6457	11	4	3.22	0.00
		24.03	20%	0.59	12529	45	14	3.15	0.01	104 (Ambient temperature: 25℃)
		24.01	30%	1.42	18117	94	34	2.75	0.01
		24.00	40%	2.72	23377	155	65	2.38	0.02
		23.97	50%	4.75	28514	230	114	2.02	0.02
		23.94	60%	7.00	33261	311	168	1.86	0.03
		23.90	70%	9.77	37372	387	234	1.66	0.04
		23.85	80%	13.01	41439	473	310	1.53	0.05
		23.80	90%	16.62	45023	554	396	1.40	0.05
		23.73	100%	20.79	48138	629	493	1.27	0.06
Note: The motor temperature refers to the casing temperature after running at 80% throttle for 10 seconds. (The above data is obtained by T-HOBBY's independent platform test and is only for reference. The final interpretation right belongs to T-HOBBY.)
Cine30 6S	GF D75-3 (With Oddity frame)	24.03	10%	0.13	6847	15	3	4.71	0.00
		24.01	20%	0.55	13126	53	13	4.00	0.01	96 (Ambient temperature: 25℃)
		24.00	30%	1.30	18595	106	31	3.40	0.01
		23.96	40%	2.49	23878	173	60	2.90	0.02
		23.92	50%	4.25	29216	254	102	2.50	0.03
		23.87	60%	6.27	33973	335	150	2.24	0.03
		23.80	70%	8.71	38196	415	207	2.00	0.04
		23.72	80%	11.64	42520	508	276	1.84	0.05
		23.63	90%	14.84	46173	588	351	1.67	0.06
		23.54	100%	18.42	49363	655	434	1.51	0.06
Note: The motor temperature refers to the casing temperature after running at 80% throttle for 10 seconds. (The above data is obtained by T-HOBBY's independent platform test and is only for reference. The final interpretation right belongs to T-HOBBY.)

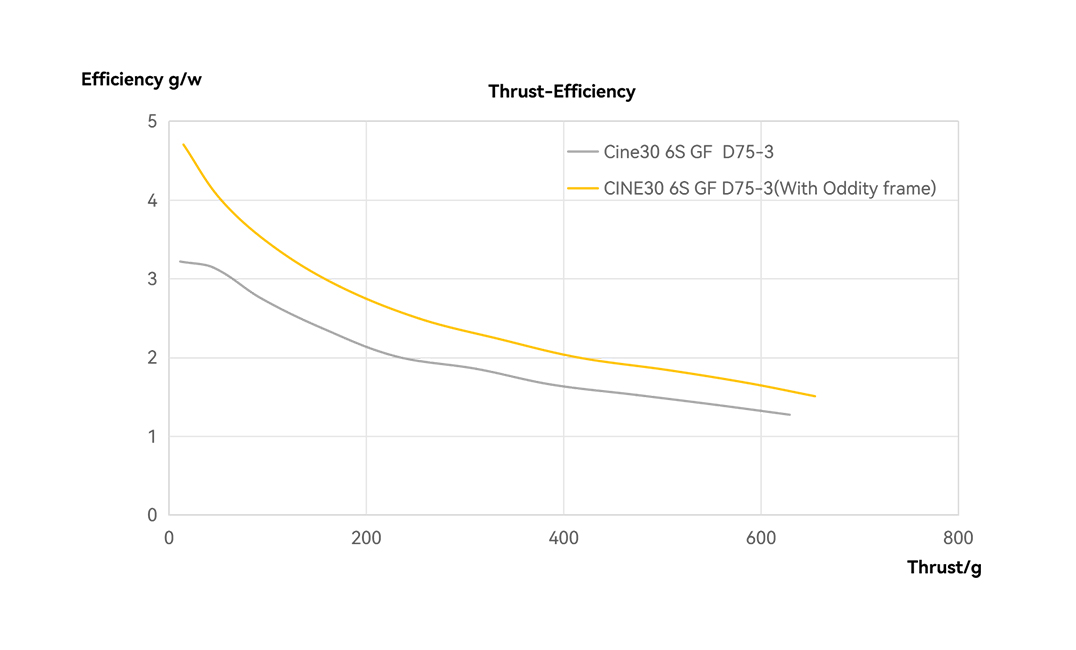

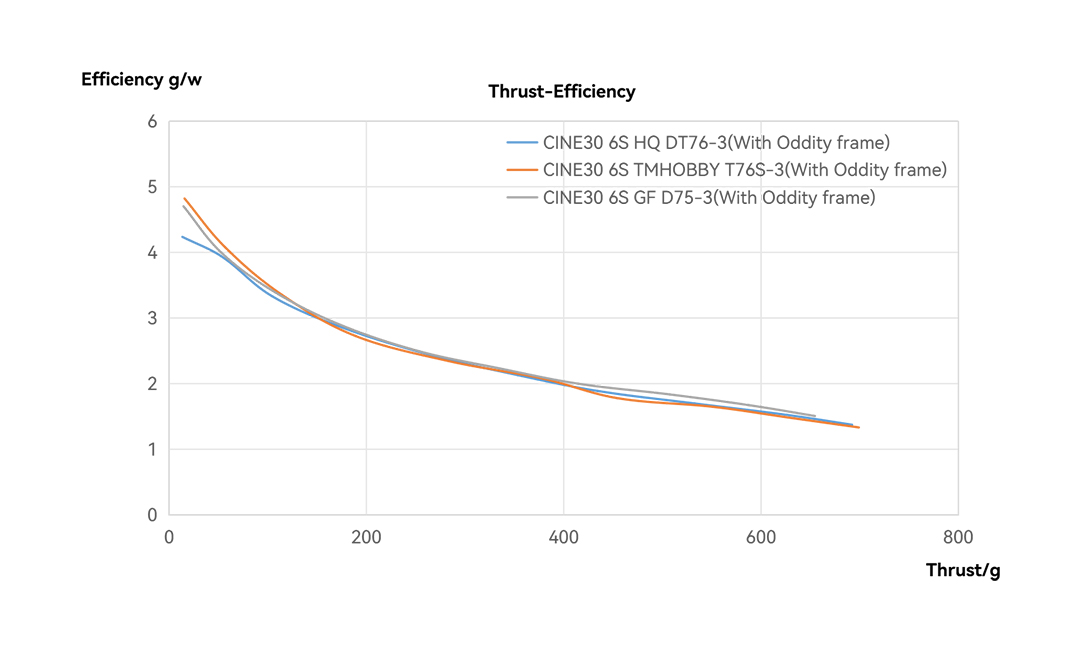

Analysis Chart

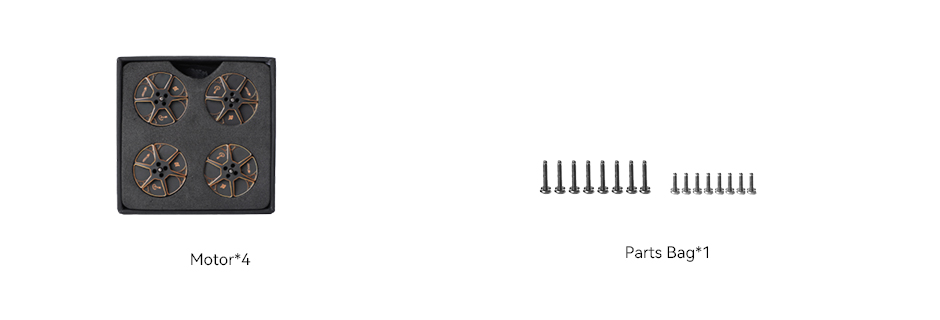

Packing List

Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
