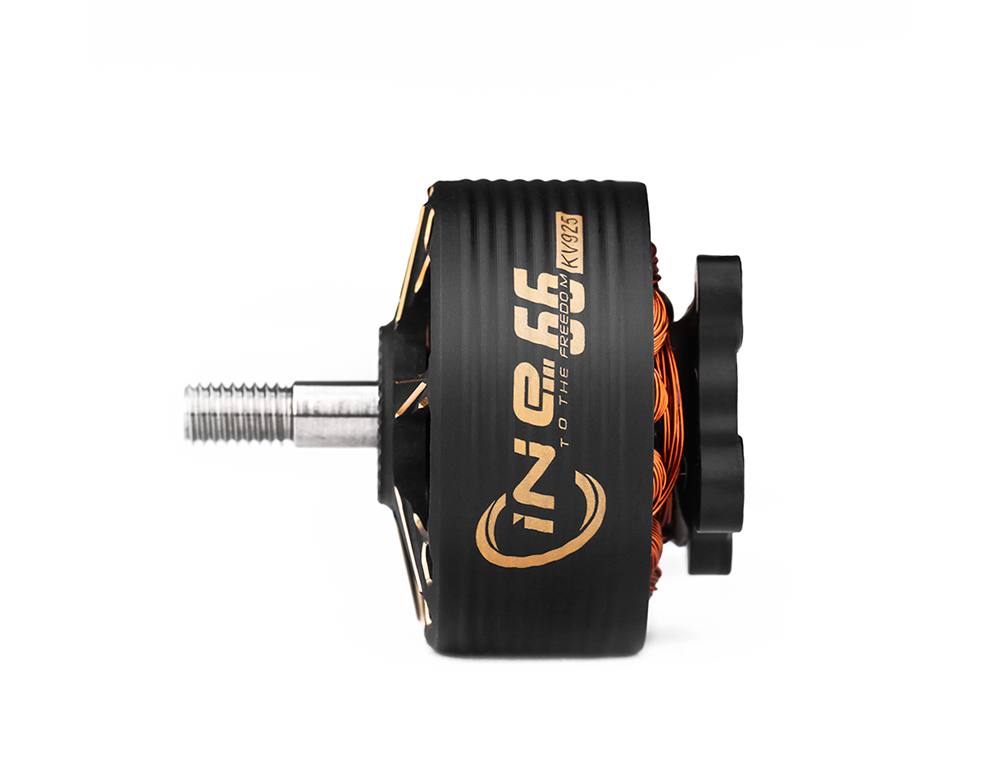

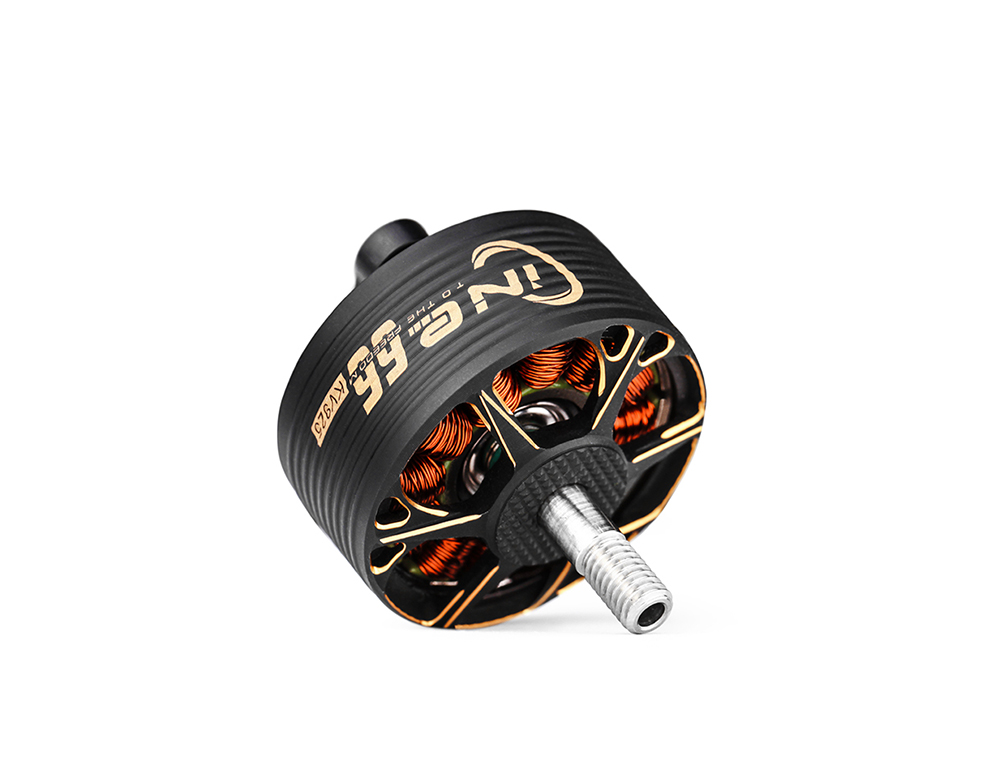

Name: T-HOBBY CINE66 2812 FPV Cinematic Drone Motor 8S KV925/KV1155
Brand: LIGPOWER
SKU: ligpower001189
Price: 45.90 USD
Availability: InStock

Relevant Products

Detail information
Specifications

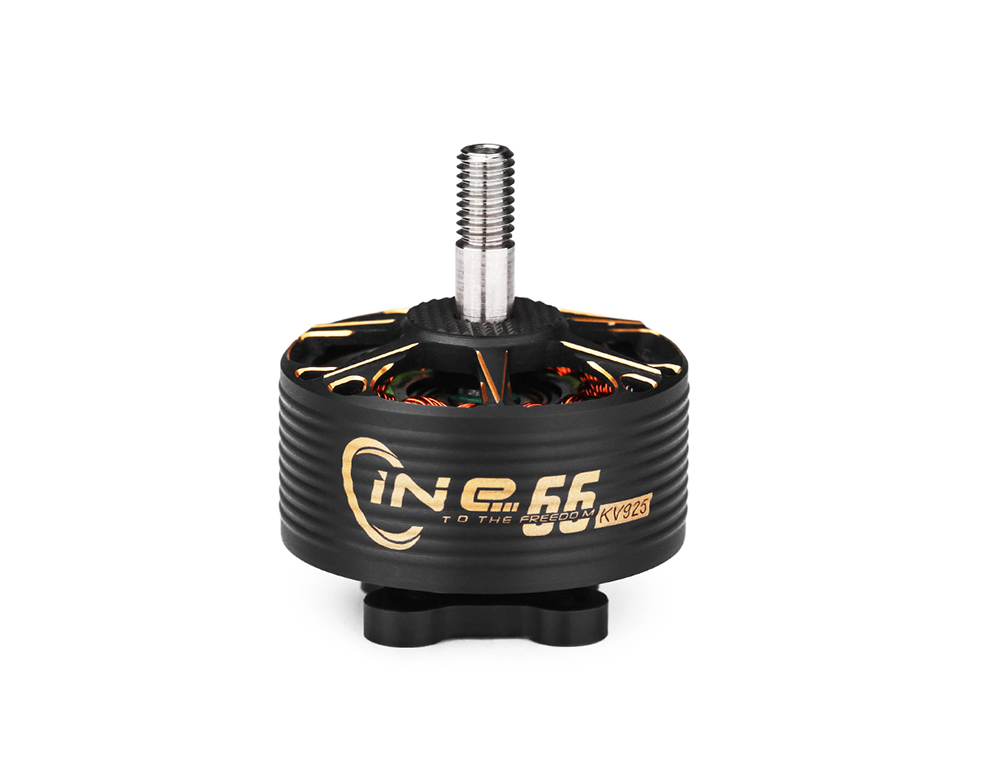

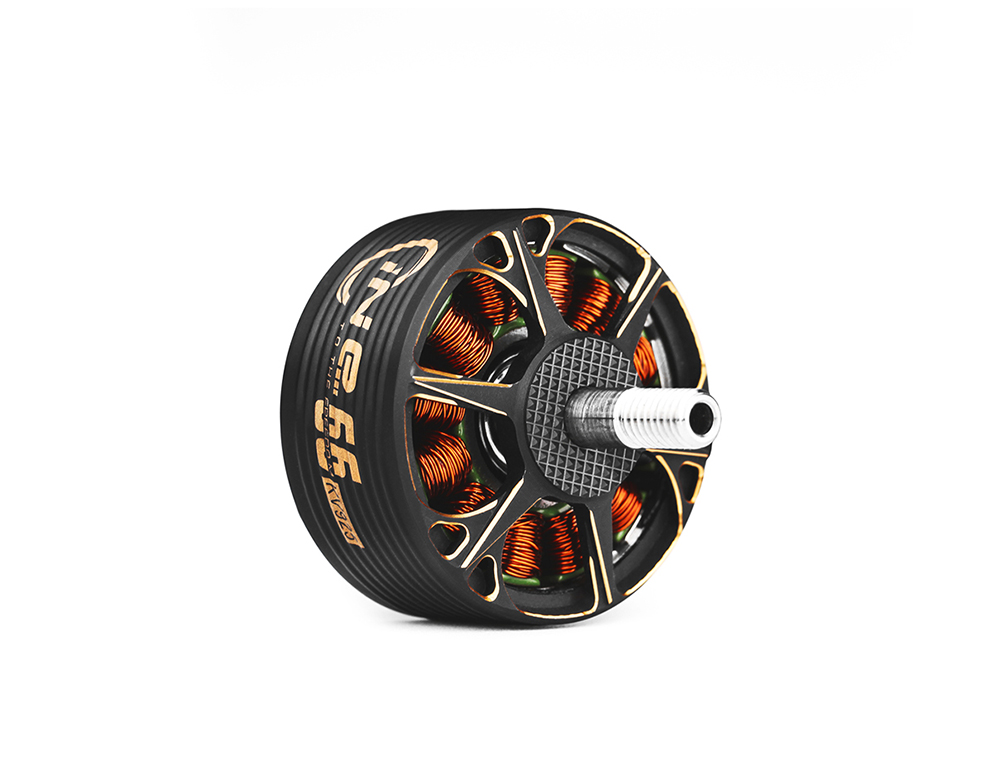

About T-HOBBY Cine66 2812 Cinematic Drone Motor

The Cine66 cinematic motors have a high-quality design for safer chemical propulsion. The Cine66 provides stronger power for an 8-9" X8 cinematic build.

Cine66 2812 Hightlight:

The new CINE Series is one of our greatest additions to the Cinewhoop class of motors. The Cine66 2812 cinematic motors have a high-quality design for safer chemical propulsion. The Cine66 provides stronger power for an 8-9" X8 cinematic build.

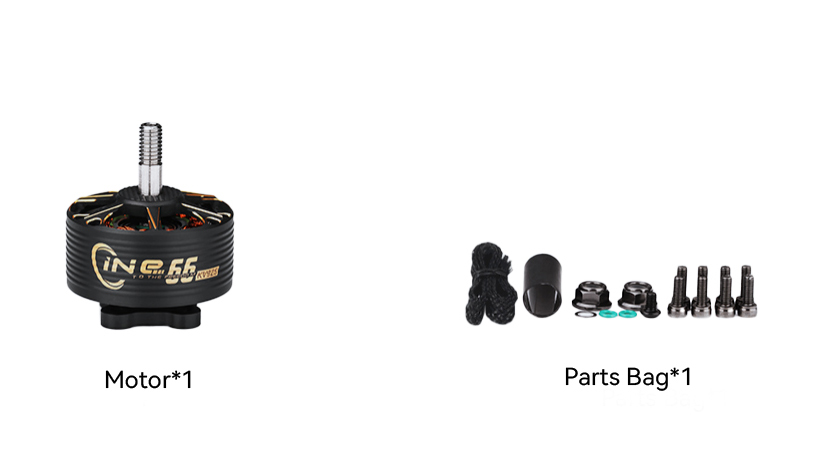

Packing List Includes:

1x T-HOBBY CINE Series Cine66 2812 Motor (925KV or 1155KV options)

1x Hardware Pack

Matching Frame:

8-9 Inch,X8

Matching Guide:

F7Pro Flight controller

C55A 8S 8IN1 ESC

C7.5 FPV Drone propeller

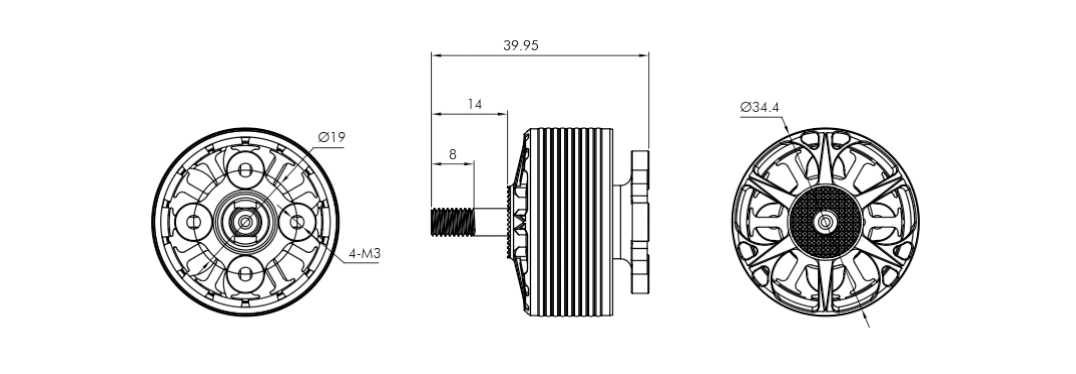

Technical Drawing

Specification Export to Excel

Test Item	KV925	Weight(Incl. Cable)	76.4g
Motor Dimensions	Φ34.4*39.95mm	Internal Resistance	69mΩ
Lead	18#AWG 250mm	Configuration	12N14P
Shaft Diameter	4mm	Rated Voltage(Lipo)	5-6S
Idle Current(10V)	1.05A	Peak Current(680s)	50.5A
Max. Power(60s)	1237W

Test Item	KV1155	Weight(Incl. Cable)	76.7g
Motor Dimensions	Φ34.4*39.95mm	Internal Resistance	47mΩ
Lead	18#AWG 250mm	Configuration	12N14P
Shaft Diameter	4mm	Rated Voltage(Lipo)	4-6S
Idle Current(10V)	1.41A	Peak Current(680s)	54.5A
Max. Power(60s)	1320W

Test Data Export to Excel

Type	Propeller	Throttle	Thrust (g)	Voltage (V)	Current (A)	RPM	Power (W)	Efficiency (g/W)	Operating Temperature (℃)
Cine66 KV925	HQ8040-3	30%	417.23	25.22	3.10	7897	78.22	5.33	89 (Ambient Temperature: 26℃)
		35%	511.31	25.21	4.00	8657	100.84	5.07
		40%	603.20	25.20	4.94	9377	124.50	4.84
		45%	695.81	25.19	5.90	9986	148.62	4.68
		50%	790.22	25.18	6.86	10550	172.83	4.57
		55%	886.06	25.17	7.83	11125	197.01	4.50
		60%	998.05	25.16	9.26	11754	232.85	4.29
		65%	1149.32	25.14	10.78	12561	270.95	4.24
		70%	1325.18	25.11	13.07	13399	328.31	4.04
		75%	1508.82	25.08	15.75	14161	394.95	3.82
		80%	1680.88	25.05	18.42	14946	461.31	3.64
		85%	1882.06	25.01	21.66	15672	541.86	3.47
		90%	2069.79	24.97	25.03	16377	624.86	3.31
		95%	2257.18	24.93	28.40	17038	707.88	3.19
		100%	2450.57	24.88	32.20	17668	801.00	3.06
	HQ8045-3	30%	448.00	24.88	3.35	6710	83.36	5.37	91 (Ambient Temperature: 26℃)
		35%	553.03	24.84	4.41	7358	109.51	5.05
		40%	644.81	24.81	5.51	8018	136.70	4.72
		45%	759.14	24.79	6.90	8624	171.10	4.44
		50%	877.64	24.78	8.33	9257	206.29	4.25
		55%	1028.87	24.74	10.49	9991	259.39	3.97
		60%	1181.85	24.71	12.59	10742	311.27	3.80
		65%	1367.04	24.66	15.35	11482	378.41	3.61
		70%	1557.16	24.61	17.92	12093	441.00	3.53
		75%	1764.48	24.57	21.91	12827	538.25	3.28
		80%	1933.19	24.52	25.59	13381	627.37	3.08
		85%	2101.12	24.47	29.43	13981	720.03	2.92
		90%	2254.47	24.42	33.75	14545	824.16	2.74
		95%	2468.76	24.37	38.48	15056	937.66	2.63
		100%	2630.75	24.32	43.27	15545	1052.24	2.50
	HQ9030-2	30%	469.84	24.94	3.02	7959	75.38	6.23	90 (Ambient Temperature: 26℃)
		35%	569.28	24.92	3.89	8719	96.99	5.87
		40%	656.76	24.90	4.83	9448	120.22	5.46
		45%	762.33	24.88	5.79	9994	144.19	5.29
		50%	850.84	24.87	6.72	10547	167.00	5.09
		55%	934.44	24.85	7.72	11103	191.91	4.87
		60%	1035.87	24.83	8.91	11668	221.27	4.68
		65%	1183.59	24.80	10.51	12445	260.57	4.54
		70%	1353.33	24.77	12.56	13199	311.08	4.35
		75%	1565.39	24.73	15.41	14001	381.13	4.11
		80%	1716.22	24.70	17.79	14765	439.44	3.91
		85%	1899.64	24.65	20.83	15508	513.41	3.70
		90%	2133.83	24.60	24.56	16168	604.06	3.53
		95%	2331.31	24.55	28.09	16800	689.54	3.38
		100%	2517.24	24.49	31.81	17447	779.23	3.23
	HQ9050-3	30%	383.75	21.01	2.95	5254	62.01	6.19	90 (Ambient Temperature: 26℃)
		35%	475.90	21.00	3.90	5826	81.95	5.81
		40%	576.37	20.99	4.89	6327	102.59	5.62
		45%	704.63	20.97	6.16	6854	129.11	5.46
		50%	861.26	20.95	7.86	7493	164.61	5.23
		55%	1028.99	20.92	10.00	8127	209.22	4.92
		60%	1203.31	20.89	12.69	8729	264.95	4.54
		65%	1342.58	20.79	15.83	9290	329.02	4.08
		70%	1524.84	20.77	18.62	9775	386.67	3.94
		75%	1709.71	20.68	21.89	10237	452.78	3.78
		80%	1872.27	20.65	25.41	10770	524.63	3.57
		85%	2051.46	20.59	28.91	11269	595.24	3.45
		90%	2202.58	20.52	33.26	11650	682.54	3.23
		95%	2343.25	20.47	37.23	11984	762.15	3.07
		100%	2515.04	20.43	41.95	12336	856.95	2.93
	HQ9050-3	30%	515.97	25.20	3.72	6003	93.65	5.51	94 (Ambient Temperature: 26℃)
		35%	634.38	25.19	4.57	6592	115.14	5.51
		40%	795.97	25.17	6.32	7307	159.10	5.00
		45%	983.14	25.14	8.31	8003	209.01	4.70
50%		1189.45	25.10	10.68	8735	268.07	4.44
55%		1372.68	25.05	14.63	9339	366.63	3.74
60%		1561.56	25.01	17.41	9875	435.58	3.59
65%		1768.67	24.98	20.34	10551	508.15	3.48
70%		1981.59	24.92	24.34	11175	606.63	3.27
75%		2148.86	24.85	28.11	11572	698.61	3.08
80%		2384.92	24.78	32.89	12058	814.88	2.93
85%		2570.49	24.75	37.26	12461	922.26	2.79
90%		2710.72	24.71	41.75	12811	1031.62	2.63
95%		2837.84	24.63	46.33	13086	1141.08	2.49
100%		2922.81	24.52	50.47	13296	1237.46	2.36
Note: Motor temperature is motor surface temperature @100% throttle running 1mins. (Date above based on benchtest are for reference only. Comparion with that of other motor types is not recommended.)
Cine66 KV1155	HQ8040-3	30%	599.95	25.20	5.30	9329	133.61	4.49	98 (Ambient Temperature: 26℃)
		35%	731.77	25.18	6.82	10171	171.73	4.26
		40%	867.03	25.16	8.43	10962	212.00	4.09
		45%	1001.88	25.14	10.05	11751	252.54	3.97
		50%	1148.81	25.11	11.87	12455	298.16	3.85
		55%	1283.84	25.10	13.53	13186	339.56	3.78
		60%	1467.07	25.06	16.28	14057	408.02	3.60
		65%	1687.33	25.02	19.59	14934	490.03	3.44
		70%	1945.06	24.96	23.98	15929	598.46	3.25
		75%	2186.48	24.89	29.15	16759	725.46	3.01
		80%	2398.40	24.73	33.85	17394	837.29	2.86
		85%	2590.89	24.66	38.40	18082	946.87	2.74
		90%	2815.77	24.64	43.60	18654	1074.31	2.62
		95%	3018.02	24.58	49.16	19373	1208.38	2.50
		100%	3149.20	24.13	54.00	19679	1303.27	2.42
	HQ8045-3	30%	588.76	24.89	5.32	8624	132.32	4.45	96 (Ambient Temperature: 26℃)
		35%	721.96	24.86	7.06	9257	175.64	4.11
		40%	862.06	24.83	8.99	9991	223.14	3.86
		45%	1024.38	24.79	11.69	10742	289.74	3.54
		50%	1202.69	24.75	14.60	11482	361.46	3.33
		55%	1430.39	24.70	17.37	12093	429.10	3.33
		60%	1604.02	24.65	20.98	12827	517.16	3.10
		65%	1841.24	24.59	25.52	13381	627.32	2.94
		70%	2096.01	24.51	31.34	13981	768.08	2.73
		75%	2310.17	24.43	36.80	14545	898.87	2.57
		80%	2464.93	24.35	41.97	15056	1022.21	2.41
		85%	2637.95	24.27	48.04	15545	1166.20	2.26
		90%	2785.35	24.20	54.15	16028	1310.77	2.12
		95%	2924.46	24.12	60.02	16518	1447.76	2.02
		100%	3070.75	24.04	66.49	16978	1598.33	1.92
	HQ9030-2	30%	622.69	24.90	4.81	9448	119.69	5.20	99 (Ambient Temperature: 26℃)
		35%	755.55	24.88	6.27	9994	155.99	4.84
		40%	884.36	24.85	7.77	10547	193.22	4.58
		45%	1016.35	24.82	9.37	11103	232.69	4.37
		50%	1169.97	24.80	11.19	11668	277.39	4.22
		55%	1309.11	24.78	12.78	12445	316.66	4.13
		60%	1496.40	24.74	15.38	13199	380.55	3.93
		65%	1735.96	24.69	18.90	14001	466.61	3.72
		70%	1981.92	24.63	23.06	14765	568.00	3.49
		75%	2207.15	24.57	27.95	15508	686.66	3.21
		80%	2420.52	24.50	32.84	16168	804.68	3.01
		85%	2639.98	24.44	37.40	16800	914.34	2.89
		90%	2866.19	24.38	42.57	17447	1037.70	2.76
		95%	3094.18	24.30	48.11	18121	1169.12	2.65
		100%	3299.21	24.21	54.52	18801	1319.95	2.50
	HQ9050-3	30%	371.55	16.78	3.88	5257	65.09	5.71	85 (Ambient Temperature: 26℃)
		35%	463.21	16.72	5.07	5797	84.73	5.47
		40%	559.96	16.70	6.45	6302	107.78	5.20
		45%	675.05	16.68	8.14	6826	135.73	4.97
		50%	809.62	16.66	9.72	7358	161.92	5.00
		55%	961.80	16.60	12.23	7975	203.00	4.74
		60%	1121.32	16.52	15.60	8540	257.59	4.35
		65%	1273.17	16.51	19.26	9083	317.94	4.00
		70%	1437.54	16.48	22.72	9589	374.29	3.84
		75%	1606.53	16.44	26.79	10078	440.53	3.65
		80%	1759.00	16.38	30.74	10532	503.51	3.49
		85%	1929.32	16.31	35.25	10996	574.84	3.36
		90%	2086.99	16.25	40.48	11369	657.78	3.17
		95%	2223.07	16.19	45.19	11698	731.54	3.04
		100%	2353.42	16.13	50.41	12003	813.22	2.89
Note: Motor temperature is motor surface temperature @100% throttle running 1mins. (Date above based on benchtest are for reference only. Comparion with that of other motor types is not recommended.)
