Name: T-HOBBY F1203 Tinywhoop FPV motor 2-3S KV7000
Brand: LIGPOWER
SKU: AFD01010369
Price: 14.90 USD
Availability: InStock

T-HOBBY F1203 Tinywhoop FPV motor 2-3S KV7000

14.90

Available points: 700 Points Points reward: 14 Points

Promotion
- LIMITED-TIME FPV SALE 20% OFF

1. Powerful
2. High-speed

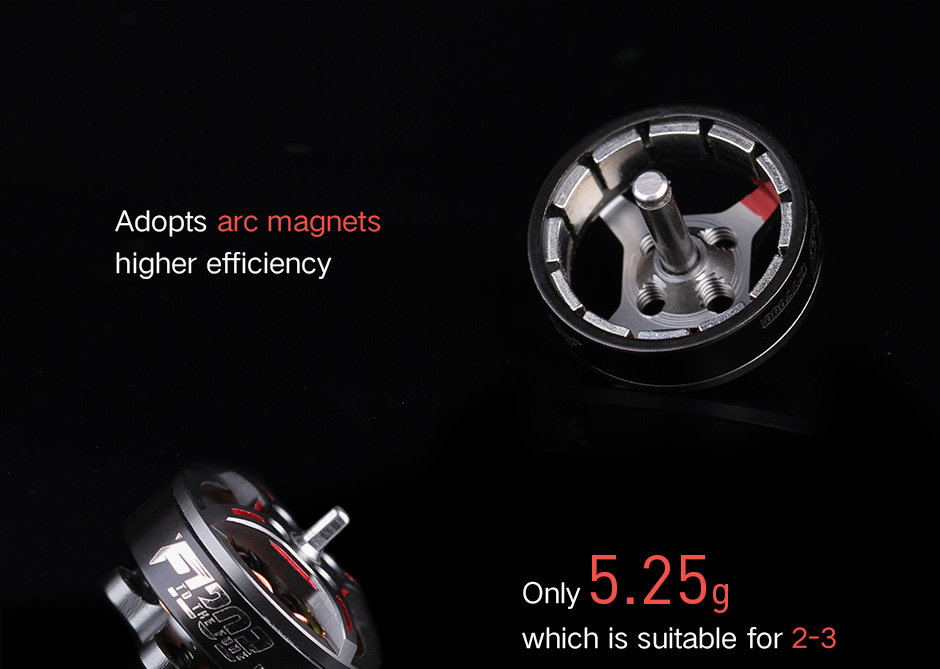

3. Comes with arc magnets for higher efficiency
4. Suitable for 2" - 3" quads

Quantity：

14.90

Free Shipping by DHL/UPS Express

Detail information
Specifications

About T-HOBBY F1203 2-3 Inch Tinywhoop Drone Motor

Enjoy a smooth flight with the T-HOBBY F1203 7000KV fpv motors.

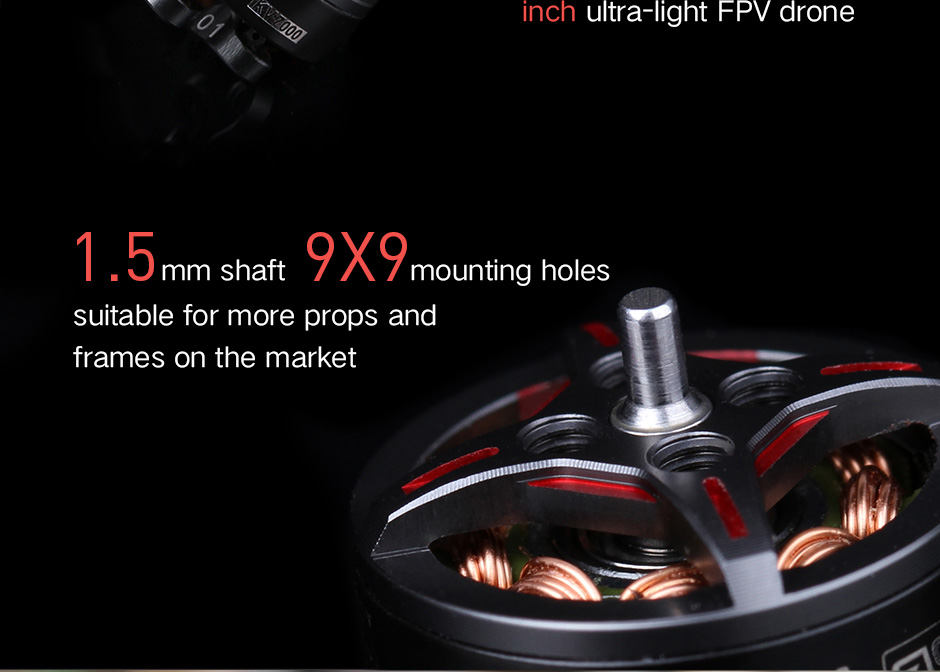

The F1203 motor has a 1.5mm shaft and comes with a 9x9 mounting pattern so you can have more options for props and frames in the market!

This brushless but powerful motor is suitable for 2-3 inch ultralight quadcopters!

F1203 Hightlight:

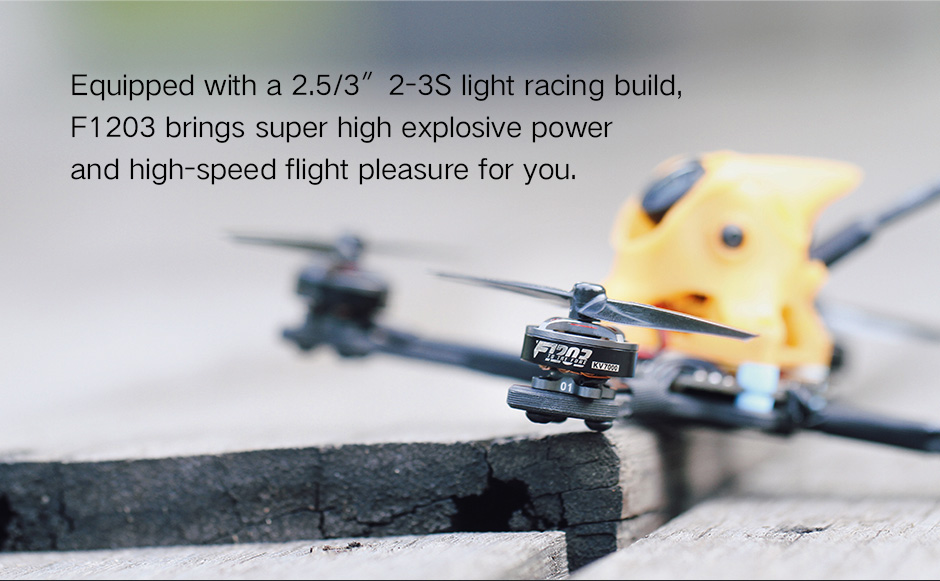

The F1203 motor is suitable for 2-3 inch ultra-light toothpick FPV drones. The shaft length is 1.5mm and equipped with 9x9 mounting holes.

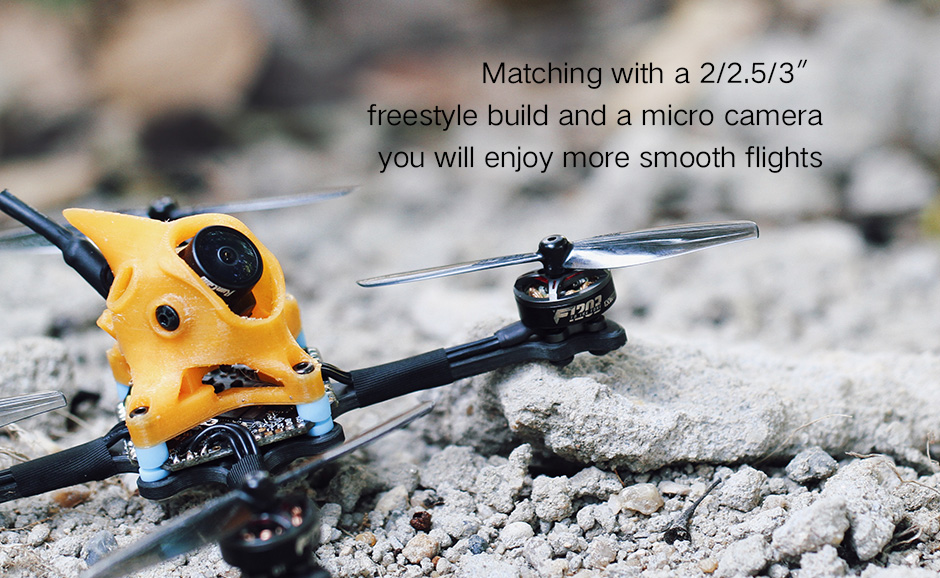

It has more prop and frame options on the market. Equipped with a small high-definition camera, the world is in the palm of your hand.

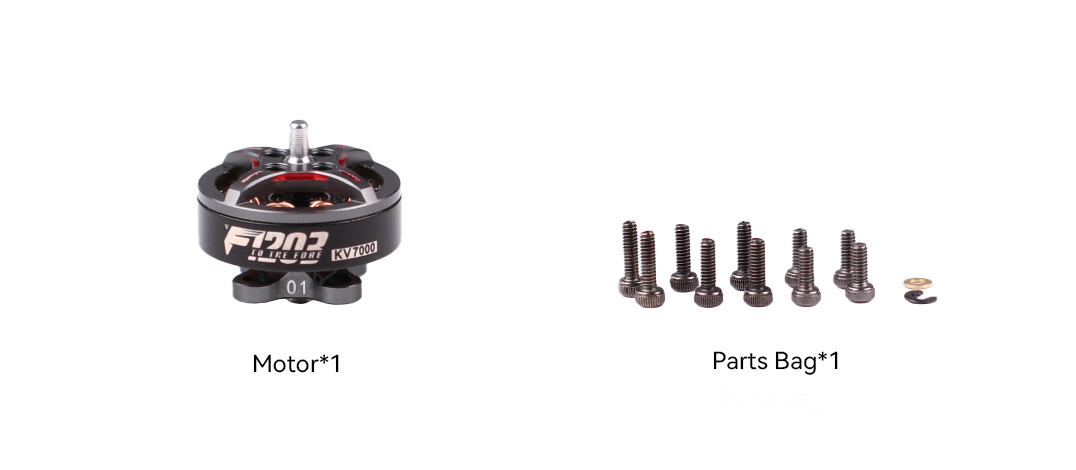

Packing List Includes:

1 x T-HOBBY F1203 7000KV Motor

1 x Screws

Matching Frame:

2-3 Inch Tinywhoop

Matching Guide:

Updating

Technical Drawing

Specification Export to Excel

Test ltem	7000	Configuration	9N12P
Internal Resistance	198mΩ	Motor Dimensions	Φ15.5*14.05mm
Shaft Diameter	2mm	Lead	28# black75mm
Weight (lncl. Cable)	5.25g	Weight (Excl.Cable)	4.45g
Rated Voltage (Lipo)	2~3S	Idle Current (10V)	0.64A
Max. Power (60s)	192W	Peak Current (60s)	10.85A

Test Data Export to Excel

Type	Propeller	Throttle	Thrust (g)	Voltage (V)	Current (A)	RPM	Power (W)	Efficiency (g/W)	Operating Temperature (℃)
F1203 KV7000	GF 2023-3	50%	36.36	8.44	2.23	21697	18.82	1.93	52 (Ambient Temperature: 21℃)
		55%	43.87	8.43	2.61	23640	22.00	1.99
		60%	49.55	8.43	3.00	25221	25.29	1.96
		65%	57.27	8.43	3.38	26856	28.49	2.01
		70%	65.68	8.42	3.81	28296	32.08	2.05
		75%	75.09	8.42	4.21	29501	35.45	2.12
		80%	83.24	8.42	4.63	30586	38.98	2.14
		85%	88.78	8.41	5.05	31828	42.47	2.09
		90%	92.80	8.41	5.51	33247	46.34	2.00
		95%	99.08	8.40	6.10	34442	51.24	1.93
		100%	105.40	8.39	6.79	35830	56.97	1.85
	GF 2023-3	50%	58.35	12.62	3.31	27208	41.77	1.40	60 (Ambient Temperature: 21℃)
		55%	72.42	12.62	3.87	29371	48.84	1.48
		60%	82.03	12.61	4.48	31323	56.49	1.45
		65%	90.44	12.60	5.08	33535	64.01	1.41
		70%	100.60	12.60	5.75	35546	72.45	1.39
		75%	107.68	12.59	6.35	37391	79.95	1.35
		80%	120.27	12.58	7.02	39387	88.31	1.36
		85%	131.20	12.57	7.79	41075	97.92	1.34
		90%	141.37	12.56	8.66	42827	108.77	1.30
		95%	149.38	12.55	9.57	44421	120.10	1.24
		100%	157.81	12.55	10.56	45398	132.53	1.19
Note: Motor temperature is motor surface temperature @100% throttle running 1mins. (Date above based on benchtest are for reference only. Comparion with that of other motor types is not recommended.)
1203 KV7000	GF 2020-4	50%	43.02	8.40	2.39	20298	20.08	2.14	54 (Ambient Temperature: 21℃)
		55%	49.93	8.40	2.78	21861	23.35	2.14
		60%	57.79	8.39	3.19	23605	26.76	2.16
		65%	66.66	8.39	3.63	24973	30.46	2.19
		70%	72.86	8.39	4.03	26319	33.81	2.15
		75%	79.89	8.38	4.43	27533	37.12	2.15
		80%	86.96	8.38	4.84	28588	40.56	2.14
		85%	93.32	8.37	5.30	29890	44.36	2.10
		90%	100.80	8.37	5.83	31204	48.80	2.07
		95%	109.74	8.36	6.44	32341	53.84	2.04
		100%	118.08	8.35	7.16	33777	59.79	1.98
	GF 2020-4	50%	67.86	12.57	3.36	25238	42.24	1.61	67 (Ambient Temperature: 21℃)
		55%	78.57	12.57	3.94	27125	49.53	1.59
		60%	87.95	12.57	4.54	29034	57.07	1.54
		65%	101.04	12.57	5.18	30965	65.11	1.55
		70%	113.09	12.56	5.81	33001	72.97	1.55
		75%	126.72	12.56	6.48	34954	81.39	1.56
		80%	140.76	12.55	7.21	36751	90.49	1.56
		85%	155.92	12.53	8.05	38499	100.87	1.55
		90%	168.19	12.53	8.92	40269	111.77	1.50
		95%	181.88	12.51	9.84	41812	123.10	1.48
		100%	192.57	12.51	10.85	43123	135.73	1.42
Note: Motor temperature is motor surface temperature @100% throttle running 1mins. (Date above based on benchtest are for reference only. Comparion with that of other motor types is not recommended.)
1203 KV7000	GFD 63-3	50%	62.55	8.40	3.37	15749	28.31	2.21	57 (Ambient Temperature: 21℃)
		55%	70.32	8.40	3.92	16650	32.93	2.14
		60%	77.67	8.40	4.51	17527	37.88	2.05
		65%	86.25	8.39	5.12	18285	42.96	2.01
		70%	94.42	8.38	5.82	19155	48.77	1.94
		75%	103.12	8.37	6.46	19924	54.07	1.91
		80%	109.25	8.37	7.09	20735	59.34	1.84
		85%	116.10	8.35	7.79	21294	65.05	1.78
		90%	122.48	8.34	8.56	22051	71.39	1.72
		95%	130.79	8.34	9.28	22598	77.40	1.69
		100%	138.97	8.38	10.13	23244	84.89	1.64
	G 3018-2	50%	65.51	8.40	2.65	18916	22.26	2.94	62 (Ambient Temperature: 21℃)
		55%	75.25	8.40	3.13	20378	26.29	2.86
		60%	86.78	8.40	3.64	21574	30.58	2.84
		65%	97.67	8.39	4.11	22835	34.48	2.83
		70%	106.02	8.39	4.53	23931	38.01	2.79
		75%	115.10	8.39	4.99	24914	41.87	2.75
		80%	126.63	8.38	5.53	25789	46.34	2.73
		85%	135.60	8.37	6.07	26814	50.81	2.67
		90%	145.85	8.37	6.72	27776	56.25	2.59
		95%	154.59	8.36	7.41	28657	61.95	2.50
		100%	165.51	8.34	8.27	29447	68.97	2.40
Note: Motor temperature is motor surface temperature @100% throttle running 1mins. (Date above based on benchtest are for reference only. Comparion with that of other motor types is not recommended.)

Packing List

Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
