Name: T-HOBBY F1204 FPV Toothpick/Whoops Motor 2-3S KV5000/KV6500
Brand: LIGPOWER
SKU: LIGPOWER001560
Price: 15.90 USD
Availability: InStock

T-HOBBY F1204 FPV Toothpick/Whoops Motor 2-3S KV5000/KV6500

15.90

Available points: 800 Points Points reward: 15 Points

1. Suitable for 2.5-3" toothpick and whoops
2. 1.5mm shaft, fit more power
3. Ultralight motor
4. High efficiency, better cooling

Parameter：

KV5000
KV6500

Quantity：

15.90

Free Shipping by DHL/UPS Express

Detail information
Specifications

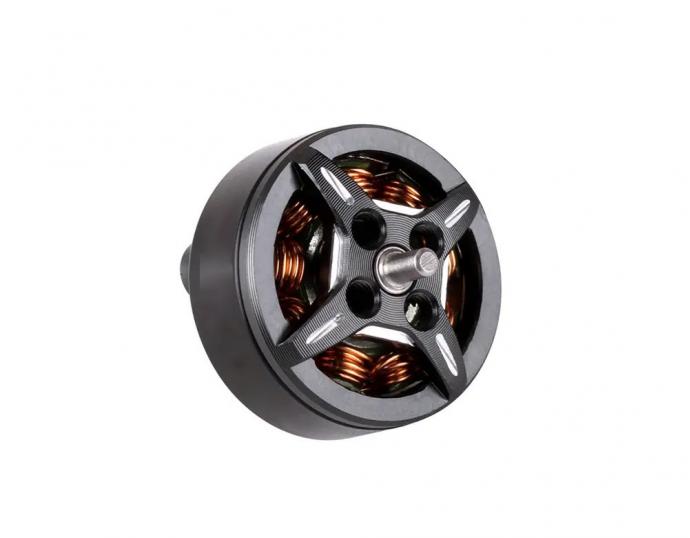

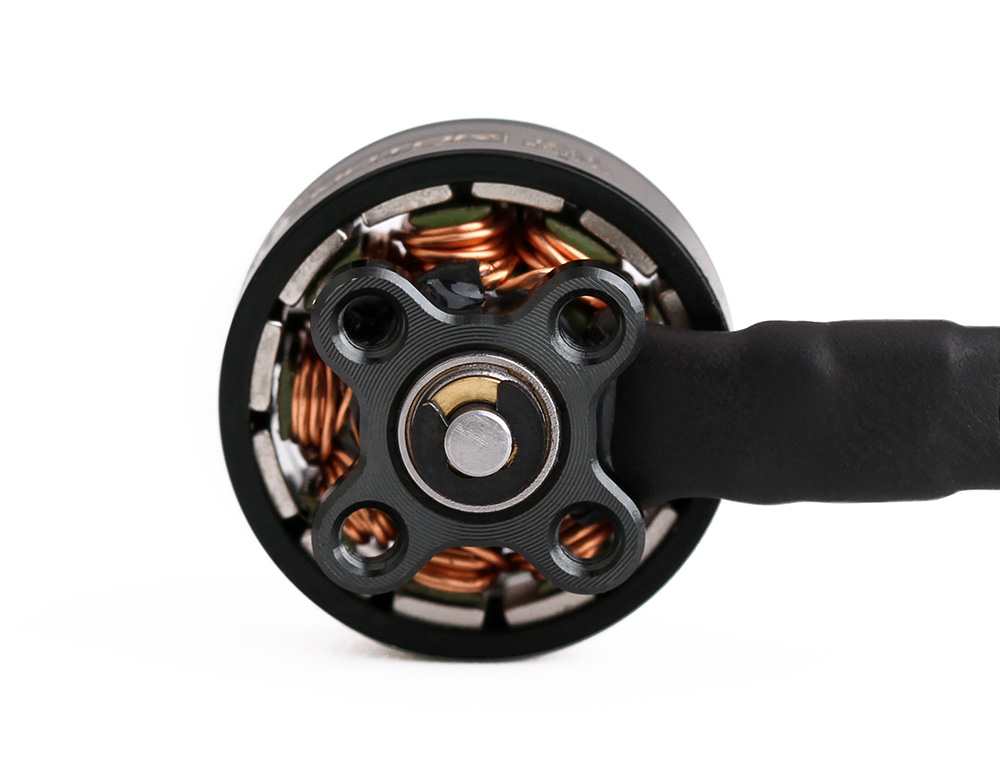

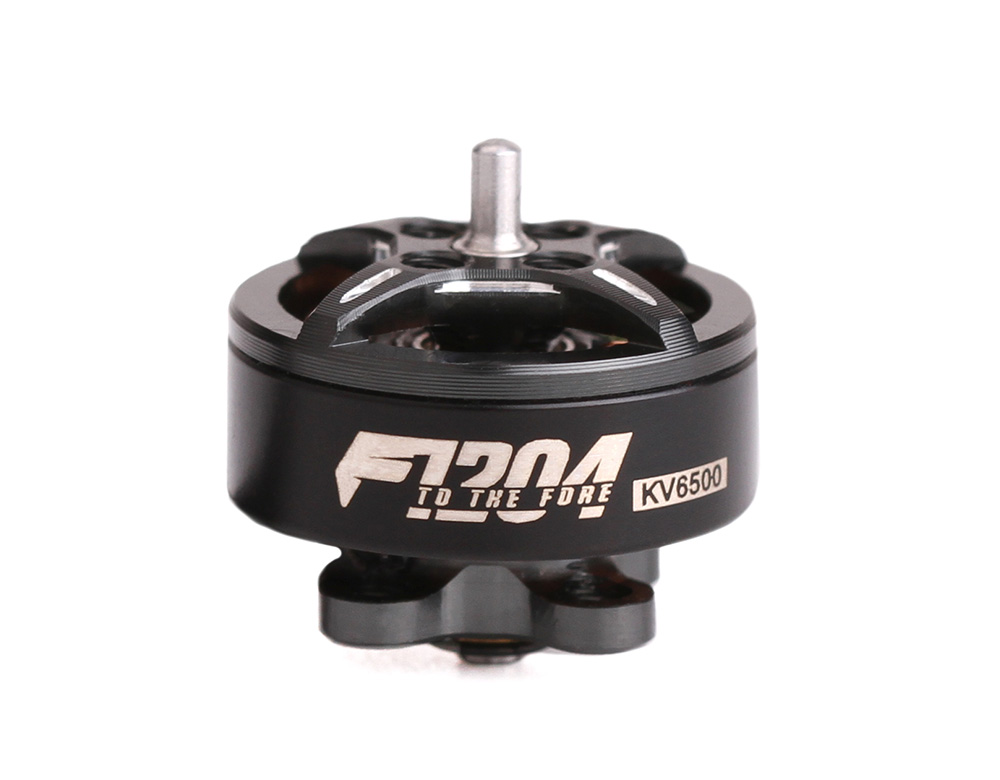

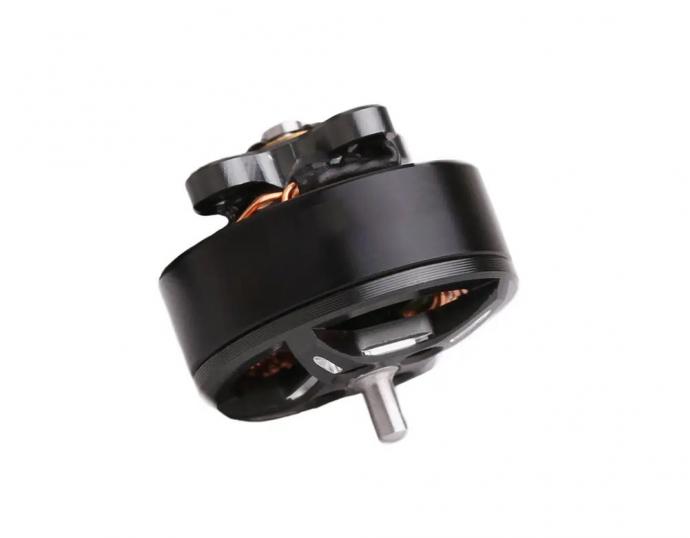

About T-HOBBY F1204 Toothpick and Whoops Motor

The F1204 fpv brushless motors from T-HOBBY are ultralight motors that are specially made for toothpicks and whoops!

The F1204 motor comes with a 1.5mm shaft to fit more props and features high efficiency, better cooling, and fast response. Suitable for 2.5-3 inch builds!

F80 PRO Hightlight:

The F1204 FPV brushless motor is an ultra-light motor made specifically for toothpicks and fits 2.5-3 inch frames.

The F1204 motor uses a 1.5mm rotating shaft and is suitable for more models. It has high efficiency, good heat dissipation and fast response.

Packing List Includes:

1 x T-HOBBY F1204 5000KV/6500KV Motor

1 x Set crews

Matching Frame:

2.5-3 Inch toothpicks and whoops

Matching Guide:

Updating

Technical Drawing

Specification

Test ltem	5000	Configuration	9N12P
Internal Resistance	240mQ	Motor Dimensions	φ15.5*15.6mm
Shaft Diameter	1.5mm	Lead	24# black 100mm
Weight (lncl. Cable)	6.9g	Weight (Excl.Cable)	6.1g
Rated Voltage (Lipo)	2~3S	Idle Current (10V)	0.7A
Max. Power (60s)	72W	Peak Current (60s)	6A

Test ltem	6500	Configuration	9N12P
Internal Resistance	140mQ	Motor Dimensions	φ15.5*15.6mm
Shaft Diameter	1.5mm	Lead	24# black 100mm
Weight (lncl. Cable)	6.9g	Weight (Excl.Cable)	6.1g
Rated Voltage (Lipo)	2~3S	Idle Current (10V)	0.9A
Max. Power (60s)	60W	Peak Current (60s)	7A

Test Data

Type	Propeller	Throttle	Thrust (g)	Voltage (V)	Current (A)	RPM	Power (W)	Efficiency (g/W)	Operating Temperature (℃)
F1204 KV6500	GF 3016	50%	55.05	8.43	1.72	17718	14.54	3.79	45 (Ambient Temperature: 8℃)
		55%	64.95	8.42	2.10	19173	17.71	3.67
		60%	76.88	8.40	2.55	20590	21.47	3.58
		65%	86.39	8.39	2.97	21803	24.93	3.47
		70%	97.52	8.38	3.43	23078	28.77	3.39
		75%	107.94	8.36	3.91	24199	32.73	3.30
		80%	116.34	8.35	4.42	25442	36.89	3.15
		85%	127.51	8.32	4.98	26480	41.47	3.07
		90%	136.56	8.31	5.51	27293	45.79	2.98
		95%	145.26	8.29	6.19	27915	51.26	2.83
		100%	153.53	8.27	6.90	28718	56.99	2.69
	HQ 3020	50%	55.05	8.43	1.81	17420	15.26	3.61	47 (Ambient Temperature: 8℃)
		55%	66.52	8.42	2.24	18865	18.81	3.54
		60%	78.97	8.40	2.72	20297	22.82	3.46
		65%	87.38	8.39	3.13	21327	26.29	3.32
		70%	98.06	8.37	3.61	22560	30.20	3.25
		75%	108.10	8.36	4.08	23570	34.13	3.17
		80%	117.36	8.34	4.58	24531	38.21	3.07
		85%	125.46	8.33	5.10	25528	42.43	2.96
		90%	137.03	8.30	5.71	26602	47.40	2.89
		95%	147.59	8.28	6.34	27580	52.54	2.81
		100%	156.34	8.26	7.04	28338	58.20	2.69
F1204 KV5000	GF 2540	50%	58.85	12.22	1.41	19881	17.20	3.42	50 (Ambient Temperature: 8℃)
		55%	68.80	12.21	1.74	21387	21.24	3.24
		60%	78.63	12.20	2.07	22811	25.26	3.11
		65%	87.49	12.19	2.42	24129	29.51	2.96
		70%	97.92	12.18	2.82	25545	34.29	2.86
		75%	108.01	12.17	3.23	26733	39.27	2.75
		80%	120.67	12.16	3.69	28086	44.83	2.69
		85%	129.85	12.14	4.14	29285	50.27	2.58
		90%	140.00	12.13	4.64	30442	56.24	2.49
		95%	148.95	12.11	5.13	31324	62.13	2.40
		100%	156.57	12.09	5.63	32065	68.06	2.30
	HQ 3020	50%	67.14	12.23	1.50	19201	18.34	3.66	53 (Ambient Temperature: 8℃)
		55%	77.63	12.22	1.87	20441	22.85	3.40
		60%	87.87	12.20	2.26	21925	27.58	3.19
		65%	96.45	12.20	2.62	23023	31.90	3.02
		70%	108.87	12.18	3.04	24046	37.01	2.94
		75%	120.29	12.17	3.47	25282	42.18	2.85
		80%	132.24	12.16	3.92	26404	47.65	2.78
		85%	143.50	12.14	4.41	27447	53.52	2.68
		90%	155.09	12.12	4.97	28505	60.20	2.58
		95%	164.96	12.11	5.48	29282	66.38	2.49
		100%	171.75	12.09	5.96	29834	72.10	2.38

Packing List

Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
