Name: T-HOBBY F1303 FPV 3 Inch Toothpick Motor 2-3S KV5000
Brand: LIGPOWER
SKU: ligpower001074
Price: 15.90 USD
Availability: InStock

T-HOBBY F1303 FPV 3 Inch Toothpick Motor 2-3S KV5000

15.90

Available points: 800 Points Points reward: 15 Points

1. Lightweight
2. Low-noise
3. Smooth

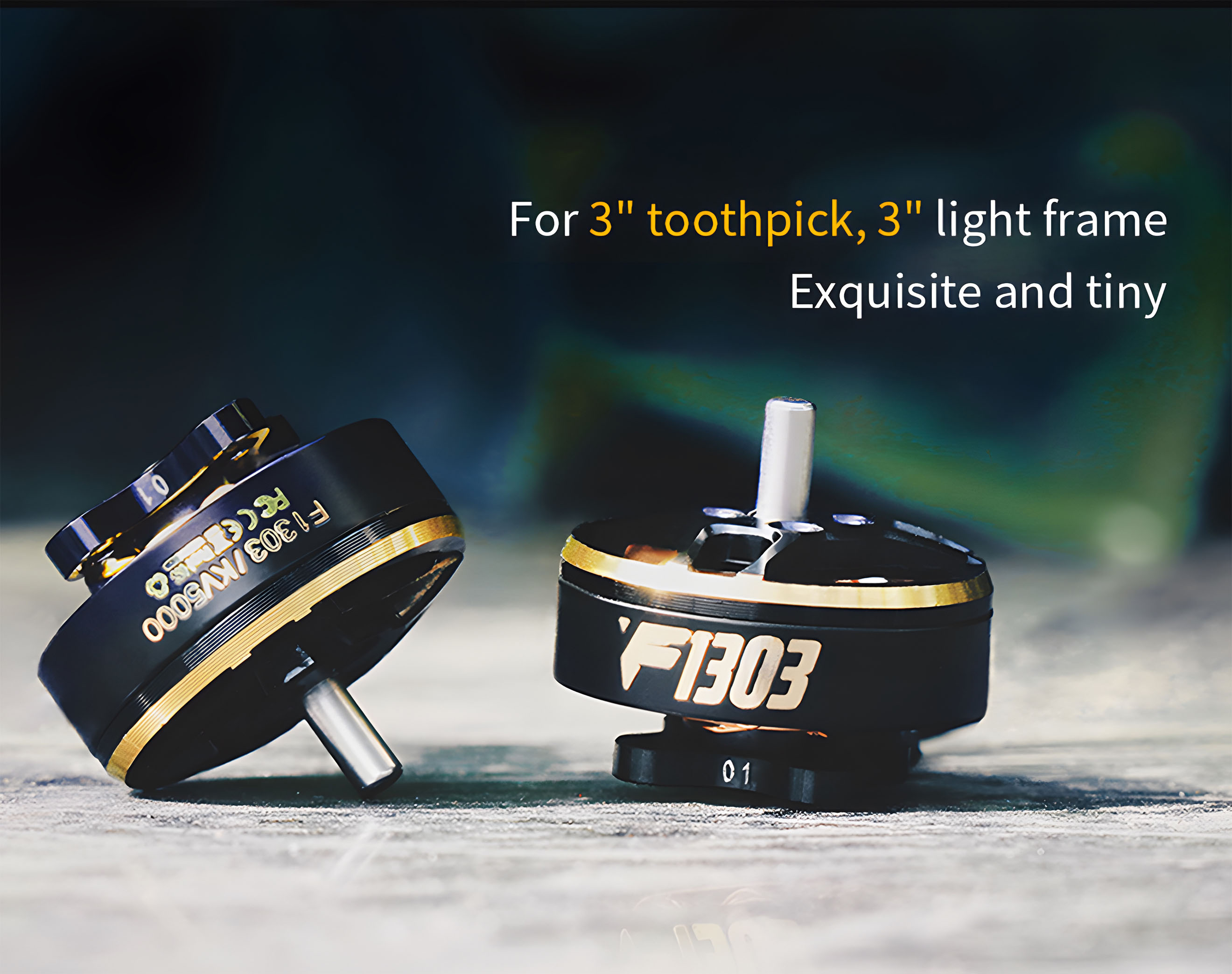

4. For 3 inch toothpick, 3 inch light frame

KV：

KV5000

Quantity：

15.90

Free Shipping by DHL/UPS Express

Detail information
Specifications

About T-HOBBY F1303 Toothpick Drone Motor

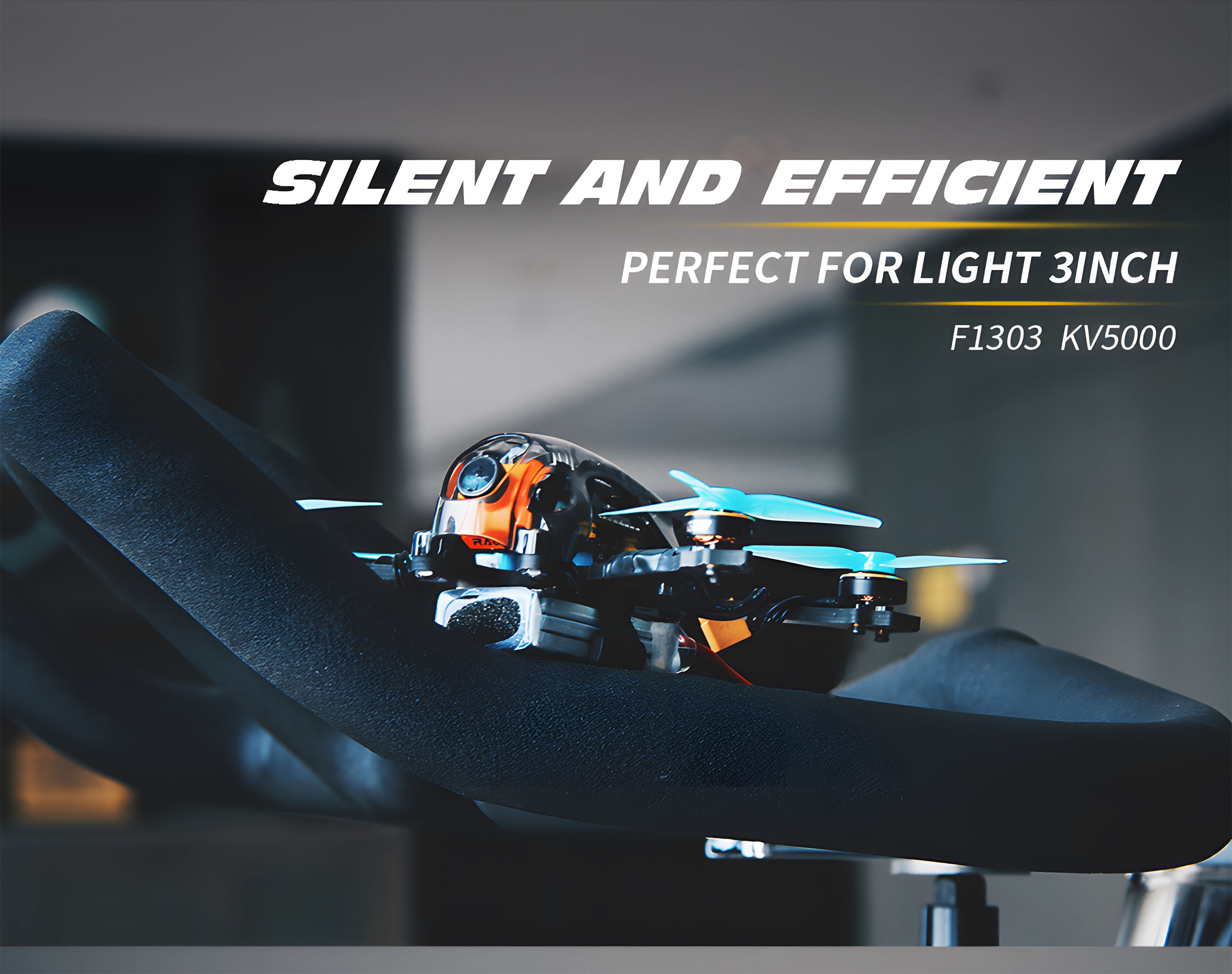

Powerful, silent, and efficient is what describes F1303 5000KV fpv motors by T-HOBBY.

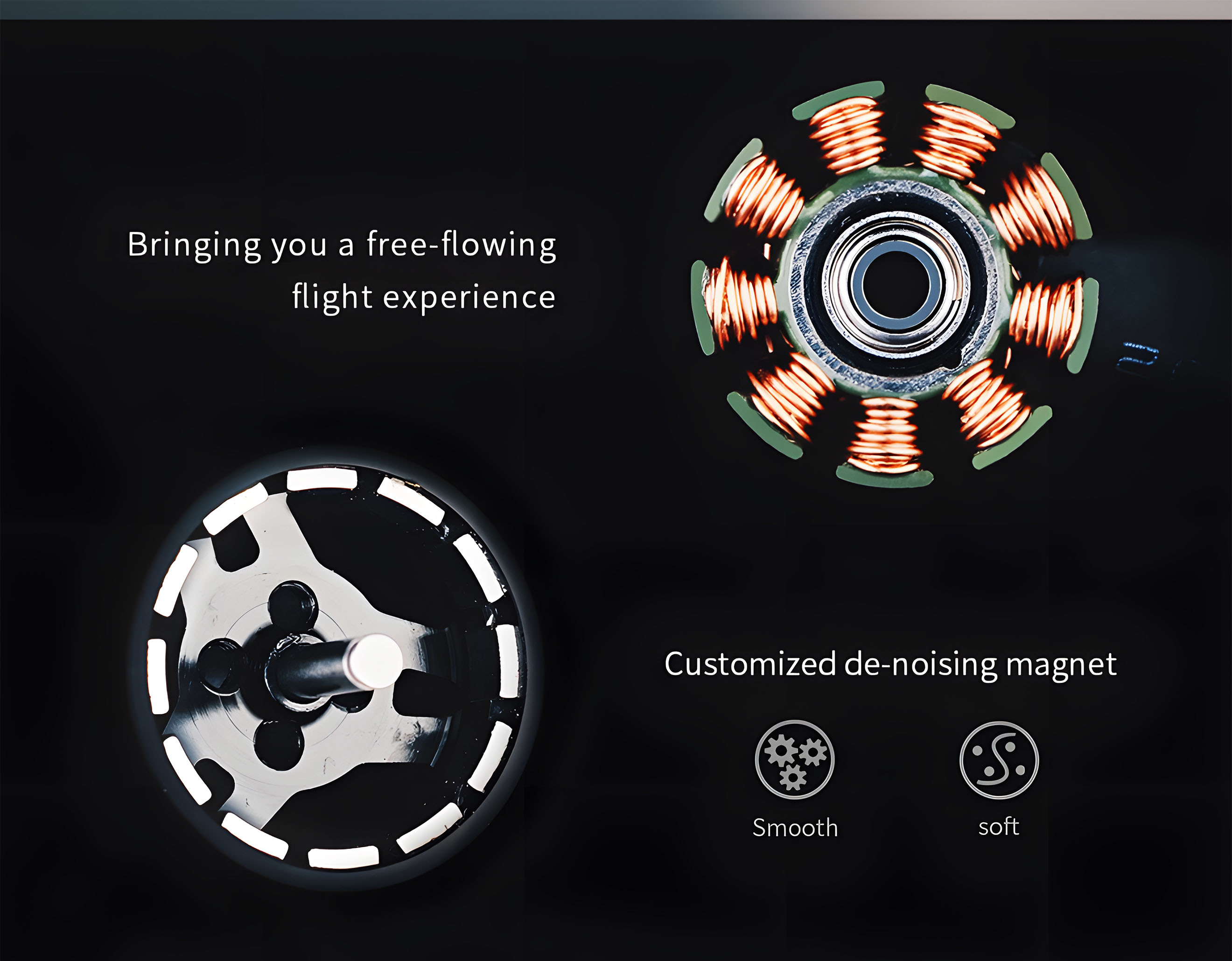

This motor is specifically designed to fit 3 inch toothpick builds and it is made with a customized de-noise magnet so you can enjoy a smooth and soft flying experience!

F1303 Hightlight:

The F1303 5000KV fpv motor is powerful, quiet and efficient. This motor is exquisite and compact, specially designed for 3-inch toothpick drones.

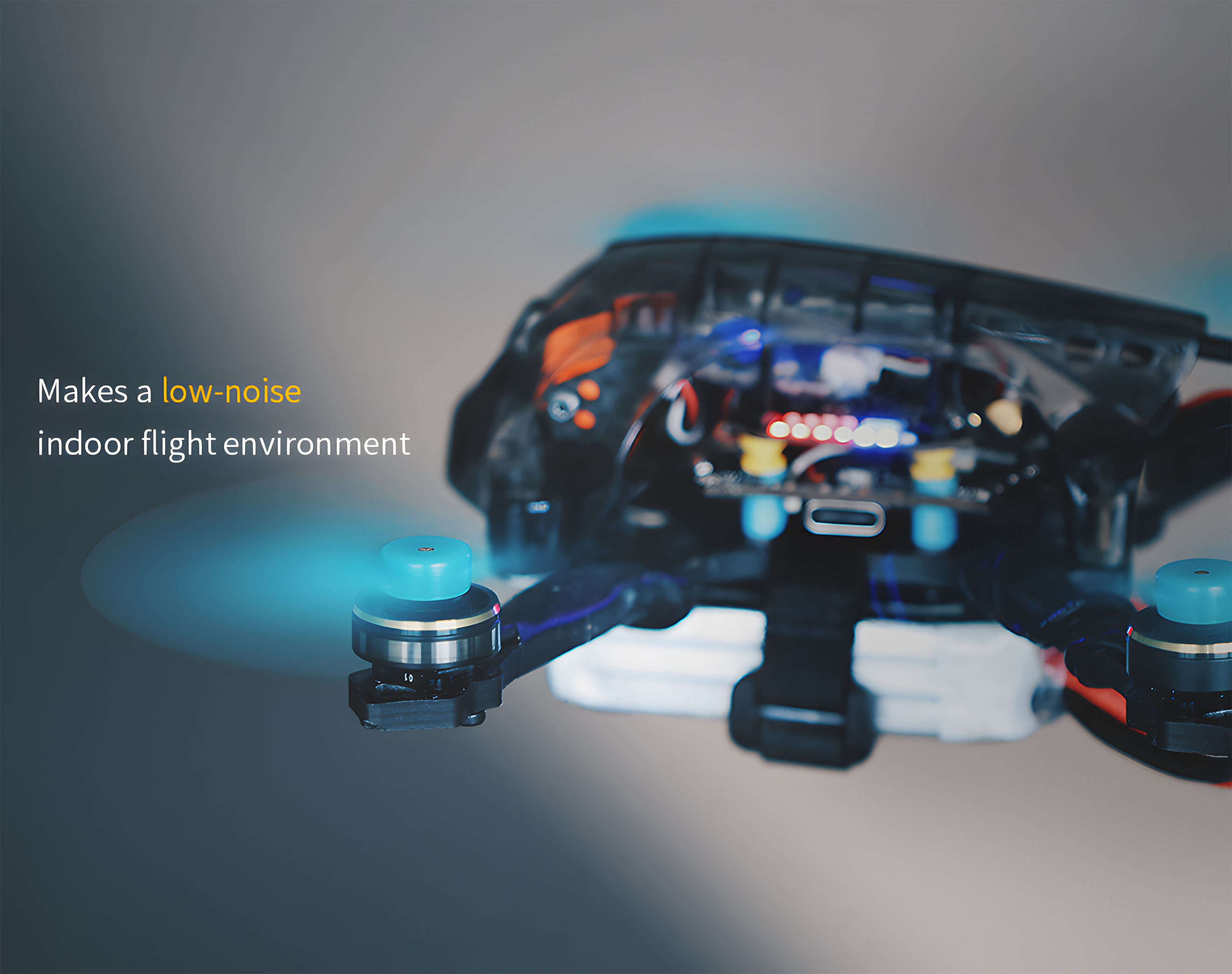

Customized magnet noise reduction is used to reduce indoor flight noise, allowing you to enjoy a smooth and soft flight experience!

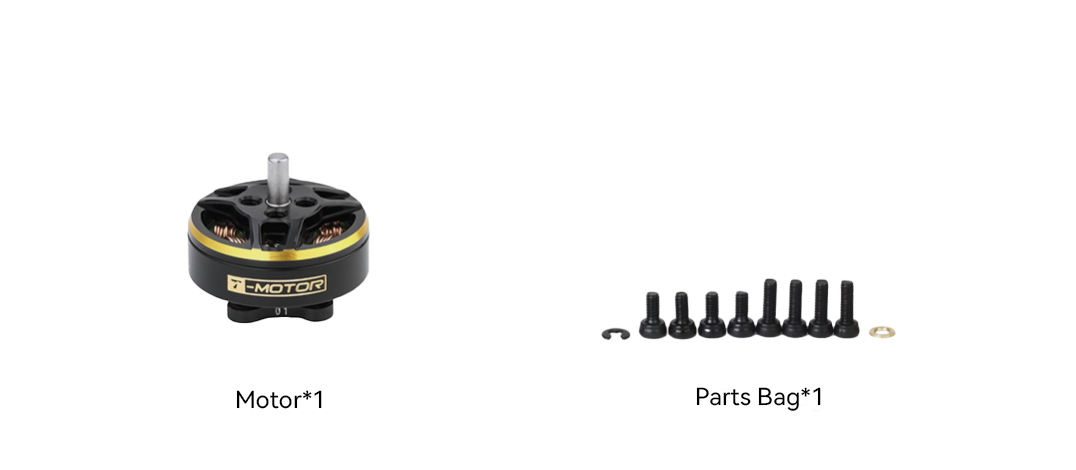

Packing List Includes:

1 x T-HOBBY F1303 5000KV Motor

1 x Parts Bag

Matching Frame:

3 Inch

Matching Guide:

Updating

Technical Drawing

Specification Export to Excel

TestItem	KV5000	Weight(Incl.Cable)	6.1g
Motor Dimensions	Φ16.5*14.55mm	Internal Resistance	280mΩ
Lead	24#AWG85mm	Configuration	9N12P
Shaft Diameter	2mm	Rated Voltage(Lipo)	2-3S
Idle Current(4V)	0.32A	Peak Current(60s)	7.45A
Max.Power(60s)	87W

Test Data Export to Excel

Type	Propeller	Throttle	Thrust (g)	Voltage (V)	Current (A)	RPM	Power (W)	Efficiency (g/W)	Operating Temperature (℃)
F1303 KV5000	HQ 3018	50%	66.24	11.94	1.83	22735	21.83	3.03	(Ambient Temperature: 27℃)
		55%	77.02	11.92	2.23	24358	26.60	2.90
		60%	87.17	11.91	2.67	25785	31.75	2.75
		65%	99.82	11.89	3.16	27100	37.55	2.66
		70%	109.31	11.87	3.74	28724	44.44	2.46
		75%	125.84	11.84	4.35	29547	51.47	2.44
		80%	133.38	11.82	4.87	30926	57.58	2.32
		85%	143.74	11.80	5.40	31974	63.72	2.26
		90%	159.87	11.77	6.07	32846	71.41	2.24
		95%	166.34	11.74	6.69	33709	78.51	2.12
		100%	177.27	11.70	7.45	34651	87.15	2.03
	GF 2540	50%	63.73	11.94	1.82	22881	21.78	2.93	(Ambient Temperature: 27℃)
		55%	73.74	11.93	2.24	24389	26.70	2.76
		60%	80.84	11.92	2.65	26092	31.59	2.56
		65%	92.33	11.91	3.13	27486	37.32	2.47
		70%	101.52	11.88	3.71	28963	44.13	2.30
		75%	112.37	11.86	4.23	30162	50.14	2.24
		80%	118.44	11.84	4.70	31523	55.71	2.13
		85%	128.49	11.82	5.27	32758	62.26	2.06
		90%	136.69	11.80	5.86	33678	69.16	1.98
		95%	144.42	11.76	6.51	34868	76.55	1.89
		100%	151.18	11.70	7.18	35612	84.05	1.80
Note: Motor temperature is motor surface temperature @100% throttle running 1mins. (Date above based on benchtest are for reference only. Comparion with that of other motor types is not recommended.)

Packing List

Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
